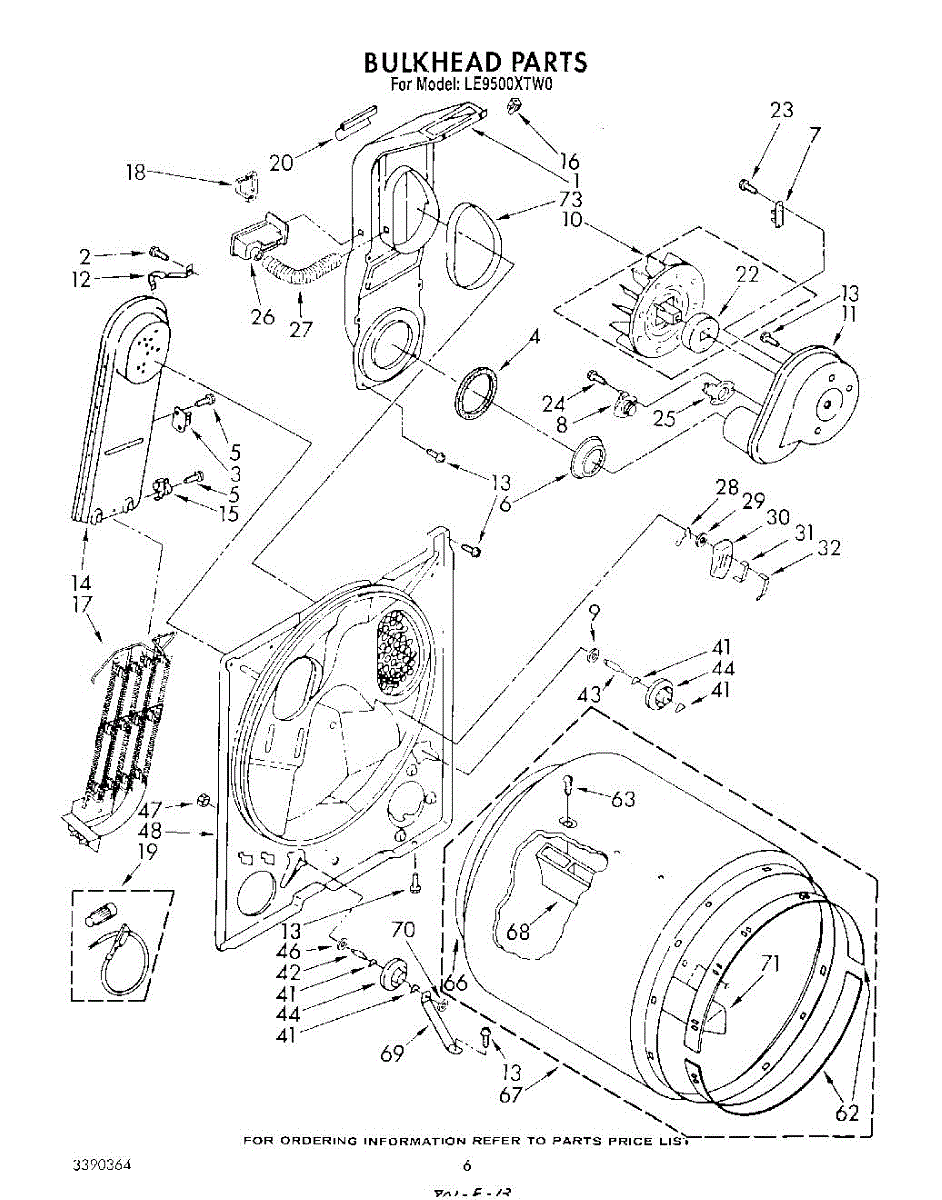

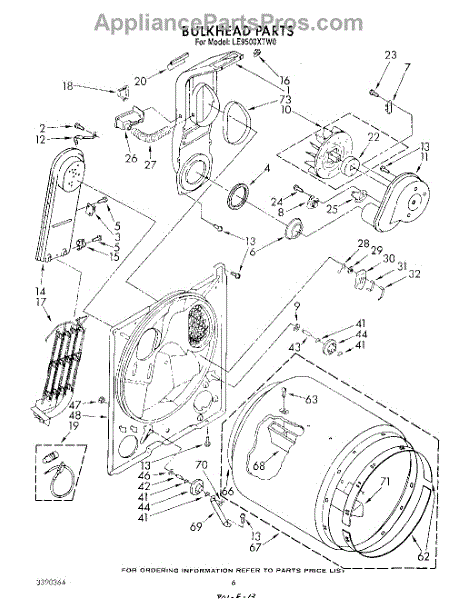

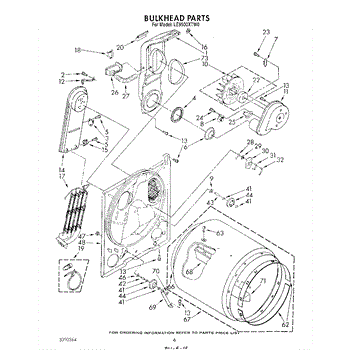

Parts for Whirlpool LE9500XTG0: 04 - Section Parts

Specs: 10-16 x 1/2 inch.

The Thermal Cut-Off Kit is an OEM part for Whirlpool dryers. This safety kit is designed to protect the dryer from overheating by interrupting the heat source when the dryer air temperature reaches dangerously high levels. The kit typically includes one high-limit thermostat and one thermal cut-off fuse. These components are critical for preventing potential fire hazards by ensuring that the dryer operates within safe temperature ranges.

Symptoms of a failing thermal cut-off kit include:

• Dryer not heating up at all, as the thermal fuse may have been triggered
• Excessive heat in the dryer, prior to the fuse being triggered
• Frequent stopping of the dryer during cycles

Causes of thermal cut-off failure often involve restricted airflow (from lint buildup or obstructed vents), component failure within the heating system, or issues with the dryer cycling thermostat that cause abnormal heating.

This OEM part is also compatible with Kenmore, Maytag, KitchenAid, Roper, and other brands manufactured by Whirlpool.

The Seal is an OEM part for Whirlpool dryers. This specific seal is designed to fit around the blower housing, ensuring a tight seal that prevents air leaks within the dryer. The blower housing is a critical component of the dryer's air circulation system, which moves air through the drum to dry clothes efficiently.

Causes of damage to the Seal can include wear and tear from regular use, excessive heat degrading the material over time, or improper maintenance practices that can cause physical damage to the seal.

Symptoms of a bad Seal include:

• Longer drying times than usual
• Excessive heat buildup in the dryer
• Unusual noises from the dryer, such as rattling or buzzing

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This factory shield is a protective panel used within the appliance assembly. It helps guard nearby components and maintain proper operation by directing heat, air, or moisture as designed. Replacing a damaged or missing shield restores correct fit and protection.

• Provides a protective barrier for internal components in the specified area
• Helps manage airflow/heat/moisture path as engineered for the system
• Replace if cracked, warped, missing, or not securing firmly
• Typical signs include visible damage, rubbing/rattling, or evidence of heat/moisture exposure near the shield

• Disconnect power; shut off gas/water if applicable before servicing
• Access the location per your model's service information
• Transfer and reuse original clips/fasteners as needed; do not overtighten
• Verify alignment and clearances before reassembly and testing

Stop dryer downtime in its tracks — install the Whirlpool WP3392519 OEM Thermal Fuse in minutes.

OEM Quality Fast 1–2 Day Shipping* Free Tech Help

Why choose this fuse?

• Guaranteed OEM: built by Whirlpool to Whirlpool specs — no risky aftermarket clones.
• Broad compatibility: works with Whirlpool, Kenmore, Maytag, KitchenAid, Roper & more.
• Quick delivery: over 94 % of APP orders arrive in 2 days or less.

Fixes these common dryer problems

4-step DIY installation (≈10 min)

1. Unplug dryer and remove rear panel.
2. Locate thermal fuse on blower housing.
3. Transfer wires; secure new fuse with ¼-inch nut-driver.
4. Clean the vent & lint path before testing to prevent repeat failure.

*Video tutorial below.

Ready to get heat back?
Click Add to Cart now & enjoy industry-leading 1–2 day delivery on

The Cycling Thermostat is an OEM part for Whirlpool dryers. It regulates and monitors the temperature inside the dryer during the drying cycle. It ensures that the dryer doesn't overheat and prevents potential damage to clothes or the dryer itself.

Causes of a faulty cycling thermostat can include wear and tear over time, electrical issues, or sensor malfunction.

Symptoms of a bad cycling thermostat may include:

• Clothes taking longer than usual to dry
• Inconsistent drying results
• Overheating or burning smell
• The dryer not heating at all

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This flat support washer provides a stable bearing surface under a fastener. Its 1-1/2-in diameter helps distribute load, maintain spacing, and keep components aligned so hardware stays tight and assemblies operate smoothly. What it does:

• Distributes clamping force to prevent pull-through and gouging
• Maintains proper spacing and alignment between mating parts
• Helps reduce vibration, rubbing, or wobble from a loose assembly
• Replaces a cracked, deformed, or missing support washer

• One support washer

• Disconnect power and shut off water/gas before servicing.
• Note the order and orientation of any washers/spacers during disassembly.
• Inspect mating hardware and surfaces; replace any worn or damaged parts.
• Tighten fasteners to manufacturer specifications—do not over-tighten.

The Blower Wheel is an OEM part for Whirlpool dryers. This component is crucial for the proper circulation of hot air within the dryer drum, ensuring efficient drying of clothes by directing airflow through the drum and out the exhaust.

Common causes of a bad blower wheel include accumulated lint and debris obstructing the wheel, physical damage from foreign objects, or general wear from prolonged use. A faulty blower wheel can significantly reduce drying efficiency and may cause the dryer to overheat.

Symptoms of a bad blower wheel include:

• Longer drying times for clothes
• Unusual noises during the drying cycle
• Overheating of the dryer
• Poor airflow from the dryer vent

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This blower housing assembly directs airflow from the dryer's drum to the exhaust, helping the appliance vent properly for efficient drying. It replaces a damaged or cracked housing to restore correct air path and reduce airflow loss. What it does:

• Guides air from the drum to the blower wheel and exhaust vent for proper drying performance
• Supports and locates the blower wheel and related seals to maintain airflow integrity
• Can reduce or stop airflow issues like poor drying or extended cycle times when cracked or broken
• May resolve abnormal noise caused by a loose or damaged housing contacting the blower wheel

• One blower housing assembly

• Disconnect electrical power (and gas supply for gas dryers) before servicing
• Access typically requires removing the dryer cabinet or back panel; follow the OEM service manual
• Inspect the blower wheel and motor while replacing the housing; replace any worn components
• After installation, check for proper wheel clearance and exhaust airflow and quiet operation

This retainer clip secures a component in place to prevent movement and maintain proper alignment during appliance operation. Replacing a damaged or missing clip helps restore safe, reliable performance.

• Holds the mating part firmly to reduce vibration and noise
• Helps prevent intermittent operation caused by loose fitment
• Common fix when a component feels loose, rattles, or won't stay seated

• Disconnect power and shut off gas/water before servicing
• Note original clip orientation and location before removal
• Use needle-nose pliers to carefully release and install the clip
• Do not over-bend the clip; replace if deformed or fatigued

Specs: 10-16 x 1/2 inch.

This is the heater box only, does not include heating element.

The Hi-Limit Thermostat is an OEM part for Whirlpool dryers. It plays a crucial role in ensuring the dryer operates at safe temperatures by cutting off power to the heating element if the dryer overheats. This safety mechanism helps prevent potential fires and damage to the appliance.

Common causes of a bad thermostat include normal wear and tear, exposure to excessive heat, or electrical malfunctions.

Symptoms of a bad hi-limit thermostat include:

• The dryer not heating
• The dryer overheating
• The dryer shutting off unexpectedly during a cycle
• Longer drying times

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dryer Heating Element is an OEM part for Whirlpool dryers. This component is responsible for generating the heat needed to dry clothes efficiently. Situated in the rear or bottom of the dryer, the heating element heats the air before it enters the dryer drum, providing the warmth necessary for drying garments.

Common causes include overheating due to restricted airflow from a clogged vent, a break in the heating coil from wear and tear, or electrical issues such as short circuits. It's crucial to maintain proper dryer venting to prevent overheating and to ensure the longevity of the heating element.

Symptoms of a bad Dryer Heating Element include:

• Clothes taking longer than usual to dry
• Dryer not heating up at all
• Increased energy bills due to the dryer running longer
• A noticeable difference in drying efficiency

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

No longer includes terminals and adapter leads. You can purchase the wire separate, part number 279457. Another common Whirlpool dryer element is 279838. Use our model number search to be sure you're getting the correct element for your dryer.

The Heating Element Connecting Wire is an OEM part for Whirlpool dryers, designed to provide a secure electrical connection to the dryer's heating element. This critical component ensures that the heating element receives the power it needs to generate heat for drying clothes.

Causes of a bad heating element connecting wire can include overheating, physical damage, or wear and tear over time. These issues can lead to a loss of connectivity, resulting in the heating element failing to heat up.

Symptoms of a bad Heating Element Connecting Wire include:

• The dryer not heating up despite having power
• Intermittent heating, suggesting a loose or faulty connection
• Unusual smells or signs of burning, indicating overheating or damage to the wire

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Moisture Sensor is an OEM part for Whirlpool dryers. This part detects the moisture level in the clothing during the drying cycle, allowing the dryer to adjust the drying time accordingly.

Causes of a bad moisture sensor can include regular wear and tear, buildup of lint or residue, or physical damage.

Symptoms of a bad moisture sensor include:

• Clothes taking longer to dry or coming out still damp
• The dryer not stopping when clothes are dry
• The dryer shutting off prematurely
• Inconsistent drying results

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This ignition electrode delivers the spark needed to light the burner in compatible gas ovens and ranges, restoring reliable ignition so burners and bake/broil functions light properly. What it does:

• Produces the spark for the gas burner to ignite
• Helps ensure consistent ignition timing and burner starts
• Commonly used when a burner fails to light or ignition is intermittent
• Works with the oven/range ignition system to start bake and broil cycles

• Disconnect power and shut off the gas supply before starting any repair
• Handle the ceramic/insulated tip carefully to avoid cracking or contamination
• Verify correct electrode position and secure mounting for reliable sparking

The Drum Support Wheel Retainer is an OEM part for Whirlpool dryers. This part secures the drum support wheels in place, ensuring that the dryer drum rotates smoothly and quietly during operation. The retainer is designed to fit precisely, preventing the support wheels from loosening or wobbling, which can lead to inefficient drying and increased wear on other components.

Over time, retainers can wear out or become damaged, potentially leading to a loose drum support wheel. This can cause the dryer to operate noisily, vibrate excessively, or even damage the drum itself if not addressed promptly.

Symptoms of a bad Drum Support Wheel Retainer include:

• Unusual noises, such as squeaking or thumping, coming from the dryer
• Excessive vibration during operation
• The dryer drum may feel unstable or wobble when turned by hand

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Drum Support Roller Shaft - Left is an OEM part for Whirlpool dryers. It is specifically designed to support the drum roller, ensuring smooth rotation of the dryer drum during operation. This shaft is essential for maintaining the drum's alignment and stability, allowing for effective and efficient drying of clothes.

Causes of a bad drum support roller shaft can include wear and tear from regular use, accumulation of lint and debris, or damage from overloading the dryer. These factors can lead to the shaft becoming worn out or bent, impairing the dryer’s performance.

Symptoms of a bad drum support roller shaft include:

• Squeaking or grinding noises during the drying cycle
• The dryer drum not rotating smoothly or being off-balance
• Increased drying times or incomplete drying of clothes

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drum Support Roller Shaft - Right is an OEM part for Whirlpool dryers. This shaft provides support for the drum roller, allowing the dryer drum to rotate smoothly and efficiently during drying cycles.

You should replace the drum support roller shaft if it becomes worn, bent, or damaged. Causes of a bad drum support roller shaft can include regular wear and tear, overloading the dryer, or exposure to high temperatures, which can affect its structural integrity.

Symptoms of a bad drum support roller shaft include:

• Unusual noises such as squeaking or grinding during operation
• The dryer drum not rotating smoothly or becoming stuck
• Excessive vibration or wobbling of the dryer drum
• Visible wear or damage on the roller shaft

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dryer Rear Drum Support Roller Kit is an OEM replacement part for  Whirlpool dryers, as well as Kenmore, Samsung and other brands. This kit includes the rear support rollers that are crucial for maintaining proper drum alignment and smooth rotation during the drying cycle. Matching belt 341241 and idler pulley WP691366.

Symptoms of a faulty Rear Drum Support Roller Kit include:

• Excessive vibration or shaking during drying cycles
• Loud grinding or squeaking noises from the rear of the dryer
• Uneven wear or visible damage to the rollers
• Potential drum misalignment, rubbing against the drum casing, or leaks

Causes of a bad Rear Drum Support Roller Kit can include wear and tear over time, excessive load imbalances, or physical damage from impact or mishandling.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

This support washer is a flat spacer used within the mechanism to support and separate mating parts, maintaining alignment and smoother movement. Replacing a worn washer helps reduce friction and wear so components operate properly. What it does:

• Maintains proper spacing and support between adjoining parts
• Helps prevent metal-to-metal contact, reducing scraping or grinding noises
• Addresses wobble or excess play when the original washer is worn, deformed, or missing
• Restores smoother movement and alignment in the assembly

• One support washer

• Disconnect power and water supply before servicing; for gas combos, also shut off gas
• Refer to your model's parts diagram for location and orientation
• Track the order of any shims/spacers during disassembly and reinstall in the same sequence
• Tighten fasteners to manufacturer guidance to avoid deforming the washer or binding parts

This lock nut secures appliance components and resists loosening from vibration. Replacing a stripped, rusted, or missing nut restores a firm, reliable connection to reduce noise and prevent parts from shifting or backing off.

• Secures brackets, shafts, pulleys, panels, or other hardware as designed by the manufacturer
• Helps prevent fasteners from loosening due to vibration and thermal cycling
• Common fix for rattling/vibration noises and components that work loose over time
• Replaces damaged, rounded, or missing original nut to restore proper fit

• Disconnect power and shut off gas/water supplies before servicing
• Remove the worn nut with the appropriate wrench or socket
• Start the new nut by hand to avoid cross-threading; tighten securely—do not overtighten
• Inspect the mating bolt/stud and any washers; replace if worn or damaged

The Bearing Ring for Front Support is an OEM part for Whirlpool dryers. It provides support and stability to the dryer's front drum. The bearing ring helps to reduce friction and ensure smooth rotation of the drum during the drying cycle. It helps to maintain proper alignment and balance, preventing excessive noise and vibration during operation.

A bad bearing ring can occur due to wear and tear over time, high usage, or damage from foreign objects getting caught in the drum. If the bearing ring becomes worn, cracked, or damaged, it can lead to loud squeaking or grinding noises coming from the dryer.

Symptoms of a bad bearing ring for front support include:

• Loud squeaking or grinding noises during operation.
• Excessive vibration or shaking of the dryer.
• Difficulty in rotating the drum manually.
• Visible damage or wear on the bearing ring.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Rear Drum Felt Seal with Adhesive is an OEM part for Whirlpool dryers. This part creates a tight seal at the rear of the dryer drum. This seal prevents hot air from escaping the drum during cycles, ensuring efficient and even drying of clothes.

Causes of a deteriorating rear drum felt seal can range from normal wear and tear, excessive heat exposure, to mechanical issues that cause misalignment or excessive wear on the seal itself.

Symptoms of a bad Rear Drum Felt Seal include:

• Clothes taking longer to dry or not drying thoroughly
• Increased lint outside the dryer or in the venting system
• Unusual noises during operation, indicating a gap or friction issue
• Heat escaping from the rear of the dryer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This drum is the rotating tub that holds clothes and provides the tumbling action needed for cleaning or drying. It restores the drum surface and rotation area to help the appliance tumble items properly. What it does:

• Replaces a damaged, dented, or cracked drum to restore a smooth tumbling surface
• Supports normal rotation so clothes move through the wash or dry cycle evenly
• Helps reduce rubbing, scraping, or loud metal-on-metal noises from the cabinet
• Addresses symptoms like visible drum damage, fabric catching, or items not tumbling

• One replacement drum

• Disconnect power and water before starting any repair
• Installation typically requires disassembling the front or top panel and removing the old drum, belt, and related fasteners
• Inspect and replace worn belts, rollers, seals, or bearings while servicing the drum

The Dryer Drum Baffle is an OEM replacement part designed for Whirlpool dryers. The baffle, located inside the drum, helps lift and tumble clothes during the drying cycle, ensuring even and efficient drying. It agitates the clothing, allowing air to circulate freely and preventing tangling.

Note: This is the tall baffle.

Over time, the drum baffle can become loose or damaged due to frequent use and contact with clothing or objects left in pockets. Physical wear or repeated impacts might cause it to crack, detach, or warp, reducing its ability to tumble clothes properly.

Symptoms of a faulty Drum Baffle include:

• Clothes not drying evenly or efficiently
• Unusual noises coming from the drum, such as rattling or banging
• Loose or detached baffle within the drum

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replace a cracked or missing bracket to keep appliance components securely mounted and aligned. Restoring this support helps prevent movement, vibration, and premature wear, so the connected part operates as intended.

• Provides a rigid mounting point for an associated component or assembly
• Maintains correct alignment and spacing within the appliance
• Helps reduce vibration, rattling, or shifting during operation
• Replaces brackets that are cracked, bent, or broken
• Common signs: loose or wobbly parts, misalignment, rattling noises, or visible bracket damage

• Disconnect power; also shut off the water supply before servicing
• Wear cut-resistant gloves—bracket edges can be sharp
• Reuse original screws/clips unless replacements are specified
• Hand-start fasteners, align parts, and tighten evenly without overtightening

The Push Clip is an OEM replacement part for Whirlpool dryers. Situated internally near the rear cylinder wall, it firmly secures the drum support roller assembly.

Causes of failure relate to fatigue from years of absorbing drum impacts and associated mechanical stresses. Corrosion penetration if moisture enters the clip mounting area increases operational resistance over time as well.

Symptoms consist of:

• Uneven drying and weakened tumbling action inside the cylinder
• Vibration or noise emerging from the rear roller area
• Premature wear signals stemming from dislocated roller assembly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Short baffle

The Lint Screen Housing Foam Seal is an OEM part for Whirlpool dryers. This seal is placed around the lint screen housing to prevent air leaks and ensure that the dryer operates efficiently by directing airflow properly through the lint screen. By maintaining a tight seal, this foam helps to optimize the dryer’s performance, reduce drying times, and prevent lint from escaping into the internal parts of the dryer, which can lead to potential maintenance issues and decreased efficiency.

Symptoms of a failing lint screen housing foam seal include:

• Increased lint buildup inside the dryer beyond the lint screen
• Longer drying times due to inefficient air circulation
• Excessive heat and humidity within the dryer

Causes of foam seal deterioration typically involve normal wear and tear, exposure to high heat which can degrade the material, or improper maintenance that can tear or dislodge the foam.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
