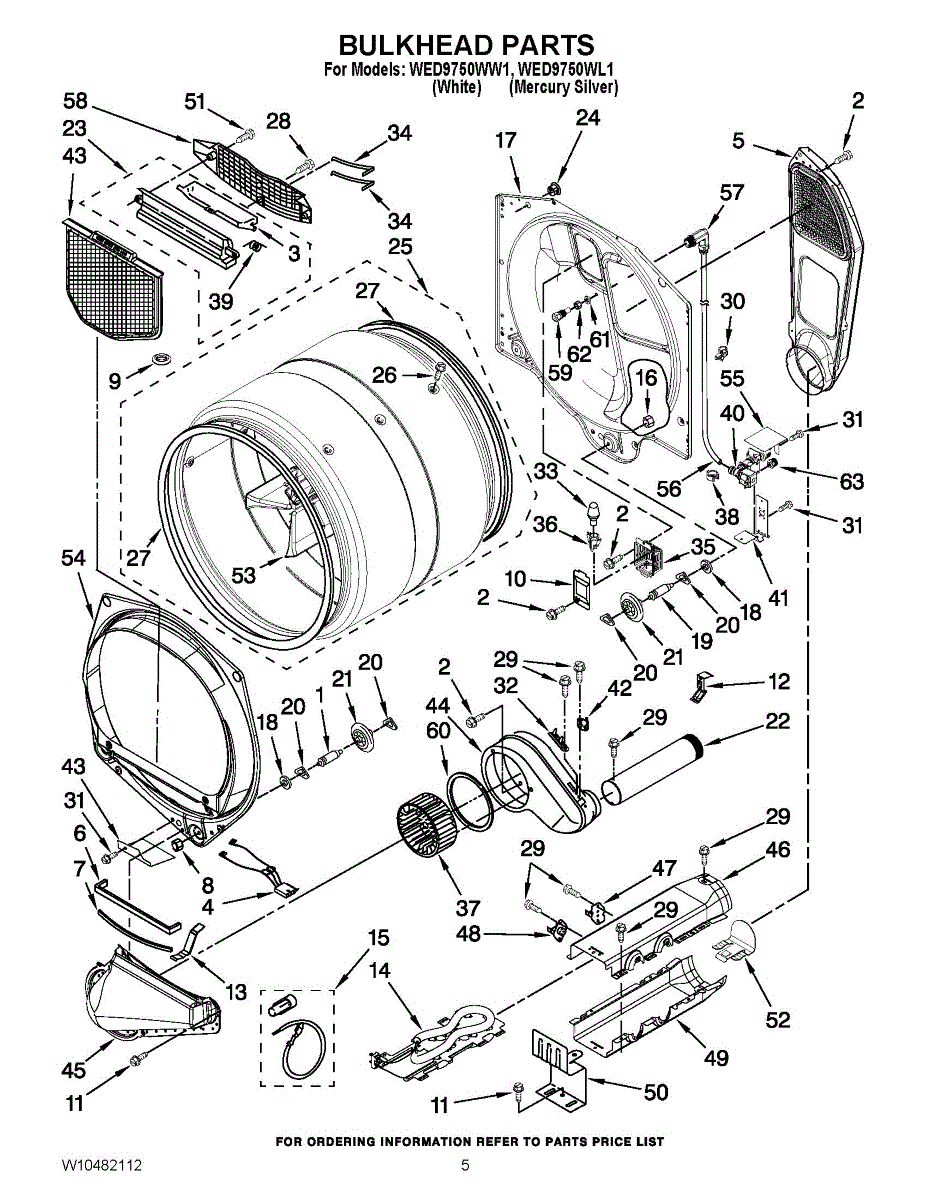

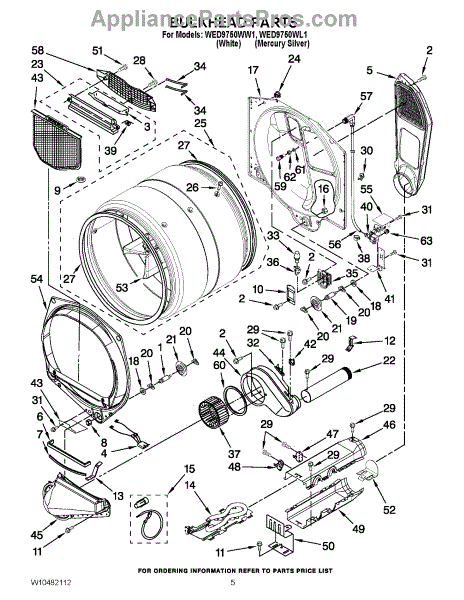

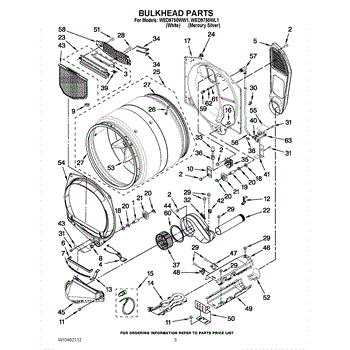

Parts for Whirlpool WED9750WL1: 03 - Bulkhead Parts

Shaft that secures front drum support rollers in your dryer. Replace if worn, scored, or damaged to restore proper drum alignment and support.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Dryer lint screen door provides access to the lint filter. Replace if cracked, broken, or won't close properly. Verify fit with your model number.

This sensor harness connects the dryer's moisture sensor bars to the main wiring, helping the control or timer read moisture levels so Auto Dry cycles can advance and deliver consistent, reliable drying performance.

• Provides the electrical path between the moisture sensor bars and the control/timer
• Enables the dryer to sense wet fabrics and adjust or advance Auto Dry cycles
• A damaged or open harness can cause Auto Dry to not advance, run too long, or stop early
• Contribute to inconsistent dry times or a "Sensing" indicator that behaves abnormally

• Disconnect power before servicing
• Access the sensor bars at the front bulkhead; note wire routing and clip locations
• Transfer routing/clips from the old harness; connect to both sensor bars and the main harness plug, ensuring snug terminals and clear wire paths
• Restore power and run an Auto Dry test; inspect/clean the sensor bars and check harness continuity

Channels dryer exhaust to external vent connection. Replace if rusted, leaking, or screen is damaged to restore proper airflow and drying performance.

Seals the dryer outlet housing to prevent air leaks and maintain venting efficiency. Replace if lint accumulates in cabin or moisture escapes. Verify fit.

Seals the dryer outlet housing to prevent air leaks and maintain venting efficiency. Replace if lint accumulates in cabin or moisture escapes. Verify fit.

Covers and protects your dryer's light bulb from heat and debris while diffusing illumination. Replace if cracked, yellowed, or missing. Confirm fit.

Fastener secures panels, brackets, and internal assemblies in washers, dryers, and refrigerators. Replace stripped, missing, or worn screws.

Replacement retainer clip that secures panels and internal components in your dryer. Install when the original clip is broken, worn, or missing.

This spring clip secures small panels, brackets, or trim inside your appliance to maintain a snug fit and prevent movement. Replacing a fatigued clip helps restore proper alignment and reduce unwanted vibration or rattling. What it does:

• Provides spring tension to hold a component firmly in place
• Helps prevent vibration, rattling, or shifting during operation
• Replaces a bent, worn, corroded, or missing clip
• Common symptoms: loose or misaligned panel/trim, recurring rattles, or parts that won't stay secured

• 1 spring clip

• Disconnect power (and gas, if applicable) before servicing
• Access the clip location per your model's service/parts diagram
• Note the clip's orientation and attachment points before removal
• Use needle-nose pliers carefully to avoid bending adjacent tabs or brackets

Dryer not heating or taking too long to dry? This heating element restores heat. DIY-friendly repair, typically takes 15-20 minutes with basic tools.

Connects power to your dryer's heating element. Replace this wire if it's frayed, burned, corroded, or broken to restore the electrical connection.

This 3/8-16 nut secures appliance components and helps prevent loosening and vibration. Replace a worn, stripped, or missing nut to restore a tight, reliable connection and consistent operation.

• Provides a 3/8-16 threaded fastener connection for applicable bolts or studs
• Helps keep brackets, panels, and other parts firmly in place
• Replaces damaged or missing hardware that can cause looseness or rattling
• Signs of failure include rounded corners, stripped threads, corrosion, or inability to tighten securely

• Disconnect power and, if applicable, shut off water and gas before servicing
• Match thread size to the original part; start threading by hand to avoid cross-threading
• Reinstall any washers/spacers in the original order; tighten securely without over-tightening
• If the original used a locking feature or threadlocker, reinstall per your product's service information

The washer is an OEM replacement part for Whirlpool clothes dryers. This part is located on the drum roller support shaft in your dryer. The exterior of the washer is 1 inch in diameter with a hole in the middle and is made of metal. They are installed alongside the drum support rollers and idler pulleys. They help prevent the rollers and pulleys from bumping up against the brackets they are installed on. If you are replacing the rollers, we suggest you replace the washers at the same time.

Causes can be normal wear to bearing surfaces over extended use cycles. Accidental impacts may also potentially bend or damage shaft components.

Symptoms of a bad roller shaft include:

• Noisy squeaks or clanks emanating from within
• Jerky or unbalanced tumbling of dryer loads
• Roller assemblies binding or sticking

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Drum Support Shaft for Left Hand Threads is an OEM replacement part for Whirlpool dryers. This component is essential for securing and supporting the drum as it rotates during the drying cycle. It helps maintain the drum’s alignment and stability, ensuring smooth and efficient operation of the dryer.

Over time, the drum support shaft can become worn out or damaged due to continuous use, the weight of laundry loads, or improper installation. Additionally, exposure to high temperatures and repeated mechanical stress can cause the shaft to weaken or fail, leading to issues with the dryer’s performance.

Symptoms of a bad drum support shaft include:

• The drum not rotating smoothly or making grinding noises
• Excessive wobbling or vibrating of the drum during the drying cycle
• The dryer taking longer to dry clothes or not drying them evenly
• Visible damage or wear on the shaft or its threads
• The drum becoming misaligned or not sitting properly within the dryer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Secures drum support rollers to their shafts in your dryer. Replace if broken, missing, or damaged during roller maintenance to keep drum wheels stable.

Replacement drum support roller for dryers. Mounts on the drum frame to support and guide the drum as it rotates. Replace if cracked, worn, or damaged.

Directs exhaust airflow from your dryer to the external vent. Replace this duct pipe if worn, damaged, cracked, or missing to restore proper ventilation.

Dryer outlet grill for the lint filter housing. Covers the opening where lint collects. Replace if cracked, broken, or missing for proper airflow.

Replace a worn or damaged dryer drum that's causing noise, poor tumbling, or clothing snags. Sheet metal construction holds laundry during cycles.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Seals the drum perimeter to prevent abrasion and maintain temperature. Replace when worn, torn, or causing marks on clothes. Verify fit by model number.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

Stop dryer downtime in its tracks — install the Whirlpool WP3392519 OEM Thermal Fuse in minutes.

OEM Quality Fast 1–2 Day Shipping* Free Tech Help

Why choose this fuse?

• Guaranteed OEM: built by Whirlpool to Whirlpool specs — no risky aftermarket clones.
• Broad compatibility: works with Whirlpool, Kenmore, Maytag, KitchenAid, Roper & more.
• Quick delivery: over 94 % of APP orders arrive in 2 days or less.

Fixes these common dryer problems

4-step DIY installation (≈10 min)

1. Unplug dryer and remove rear panel.
2. Locate thermal fuse on blower housing.
3. Transfer wires; secure new fuse with ¼-inch nut-driver.
4. Clean the vent & lint path before testing to prevent repeat failure.

*Video tutorial below.

Ready to get heat back?
Click Add to Cart now & enjoy industry-leading 1–2 day delivery on

Illuminates the dryer drum for better visibility when loading and unloading. Replace when bulb burns out or fails to light. Confirm fit with your model.

Dryer shuts off before clothes are dry? The moisture sensor bar detects dryness levels. Easy 10-30 minute DIY fix with video guide included.

Mounting bracket secures interior panels and components in your dryer. Replace when worn, cracked, or broken to restore proper fit and stability.

Dryer won't power on or has intermittent electrical issues? A worn terminal block socket causes loose connections. Simple DIY fix in under 30 minutes.

Dryer making rattling noise or not heating properly? A cracked blower wheel disrupts airflow. Moderate DIY repair—requires panel removal and wrench work.

Retainer clip secures interior panels and trim in your dryer, reducing vibration and rattling. Replace when panels feel loose or fasteners break.

Restores proper tension to your dryer's lint screen door for smooth opening and closing. Replace if the cover is loose or won't stay closed securely.

Fix E1 error codes or overheating issues with this dryer thermistor. Monitors temperature to prevent shutdowns. DIY repair takes about 30 minutes.

The Dryer Lint Filter is an OEM replacement part for Whirlpool electric dryers. This essential screen traps lint and debris released from tumbling clothes. Consistent filtration is key for safety and performance. This filter measures approximately 12 1/2 inches wide and 10 1/2 inches deep.

Causes of a clogged lint filter can be an accumulation of lint from regular drying cycles plugging ventilation holes. Neglecting filter cleaning allows fluff to build up rapidly.

Symptoms of a dirty lint filter include:

• Extended drying times as airflow is restricted
• Overheating problems or melted slots in the filter housing
• Risk of dryer or clothing fires from unvented lint buildup

This OEM replacement part is also compatible with Kenmore and Maytag models too, it removes the fire hazard of neglected cleaning.

Replacement housing that supports and protects internal components in compatible Whirlpool appliances. Restores structural integrity to the cabinet, helping reduce vibration and keeping wiring and components enclosed for safe, reliable operation. What it does:

• Provides the outer cabinet support that secures motors, controls and wiring
• Protects internal parts from debris and accidental contact
• Helps reduce rattling, vibration and misalignment symptoms caused by cracked or damaged cabinets
• Restores proper fit for panels and fasteners to eliminate rubbing or interference noises

• Disconnect power (and water if applicable) before starting any repair
• Basic hand tools are typically required; keep screws and clips organized during disassembly
• Some housings may require two people to position during replacement—avoid forcing parts to prevent damage
• Fasteners and any sealing gaskets are in good condition and replaced if worn

Lint duct assembly creates a sealed airflow path from drum to blower. Replace if cracked, damaged, or leaking to restore drying efficiency. Verify fit by model.

This housing slot heater melts ice and prevents frost buildup inside the appliance housing, helping restore normal airflow and component operation. It's a direct replacement heater element used where ice forms around the housing slot. What it does:

• Provides targeted heat to the housing slot to reduce ice accumulation
• Helps restore proper airflow and circulation by clearing frost/ice blockages
• Commonly replaced when the housing develops repeated ice buildup or intermittent heating
• Works as part of the defrost/anti-ice system to protect internal components

• Disconnect power to the appliance before servicing to avoid electrical shock
• Access typically requires removing exterior panels or trim; keep fasteners organized
• Handle the heater element and wiring with care to avoid damage to the element or connector

Dryer won't heat? This thermal cut-off kit prevents overheating by interrupting power to the heating element. Common DIY fix with basic tools in 1 hour.

Dryer won't heat or overheats? The high limit thermostat monitors drum temperature. Moderate DIY repair with heater housing access required.

Secures the heater housing to the dryer cabinet. Replace if your bracket is bent, cracked, or missing to restore stable mounting and alignment.

Replacement mounting screw for securing handles, panels, and internal components. Needed when original screws are stripped, lost, or broken during repairs.

Replacement clip that secures trim, panels, or small components to restore proper fit and reduce rattling and vibration. Install when a worn or missing clip leaves trim or panels loose or causes intermittent noise. What it does:

• Holds trim, panels or small assemblies in place to prevent movement
• Stops rattling and vibration caused by loose parts
• Replaces broken or missing clips that allow gaps or misalignment
• Small, snap-in retainer shaped to match original attachment point

• Always disconnect power before servicing the appliance
• Access the clip location by removing the adjacent panel or trim per the OEM diagram
• Clip typically snaps into place; use needle-nose pliers or a flat screwdriver to remove the old clip if needed

Replaces a cracked, broken, or missing dryer drum baffle. Installs inside the drum to lift and tumble clothes during the drying cycle. Easy repair.

The Water Inlet Valve is an OEM replacement part for Whirlpool dryers. Located where the water supply line connects, it controls the flow of water into the dryer drum for steam cycles. Precise control is needed to prevent temperature fluctuations or flooding.

Causes of a bad inlet valve can include mineral buildup clogging water pathways, worn diaphragms allowing constant flow, or mechanical linkage issues.

Symptoms of a bad water inlet valve include:

• Steam cycles not activating or producing steam
• The dryer fails to stop water flow and overflowing
• Fault codes displayed relating to water input functions

This OEM replacement part is compatible with brands like Maytag, KitchenAid, and more.

Plastic grille that covers and secures the lint screen in your dryer. Replace if cracked, broken, or damaged from regular use or impact.

Fix uneven steam distribution or wrinkles not smoothing out with this steam spray nozzle. Restores proper steam flow when clogged or cracked. DIY repair.

Seals the blower housing to prevent air leaks that reduce drying efficiency. Replace if worn, cracked, or missing to restore optimal airflow.

Flat metal washer that distributes load and secures fasteners in your dryer. Replace if worn, corroded, or missing to restore proper fastener grip.

Replacement mounting nut for dryers. Secures panels, brackets, and assemblies. Replace if stripped, missing, or corroded during repairs or maintenance.

This coupler connects the washer motor to the gearcase so the motor can turn the transmission and drive the washer's agitator and spin functions. Replacing a worn coupler restores reliable power transfer and normal wash cycles. What it does:

• Transfers torque from the motor to the gearcase so the washer agitates and spins
• Dampens shock between motor and transmission during load changes
• Worn or broken couplers can cause no-agitate/no-spin, slipping, or loud grinding noises
• Prevents direct metal-to-metal contact that can damage motor or gearcase

• Disconnect power and water supply before starting any repair
• Support the tub or transmission per the OEM instructions before removing the old coupler
• Inspect motor shaft and gearcase input for damage; replace additional parts if scored or worn
• Use basic hand tools; follow OEM diagram for proper alignment and secure fit
