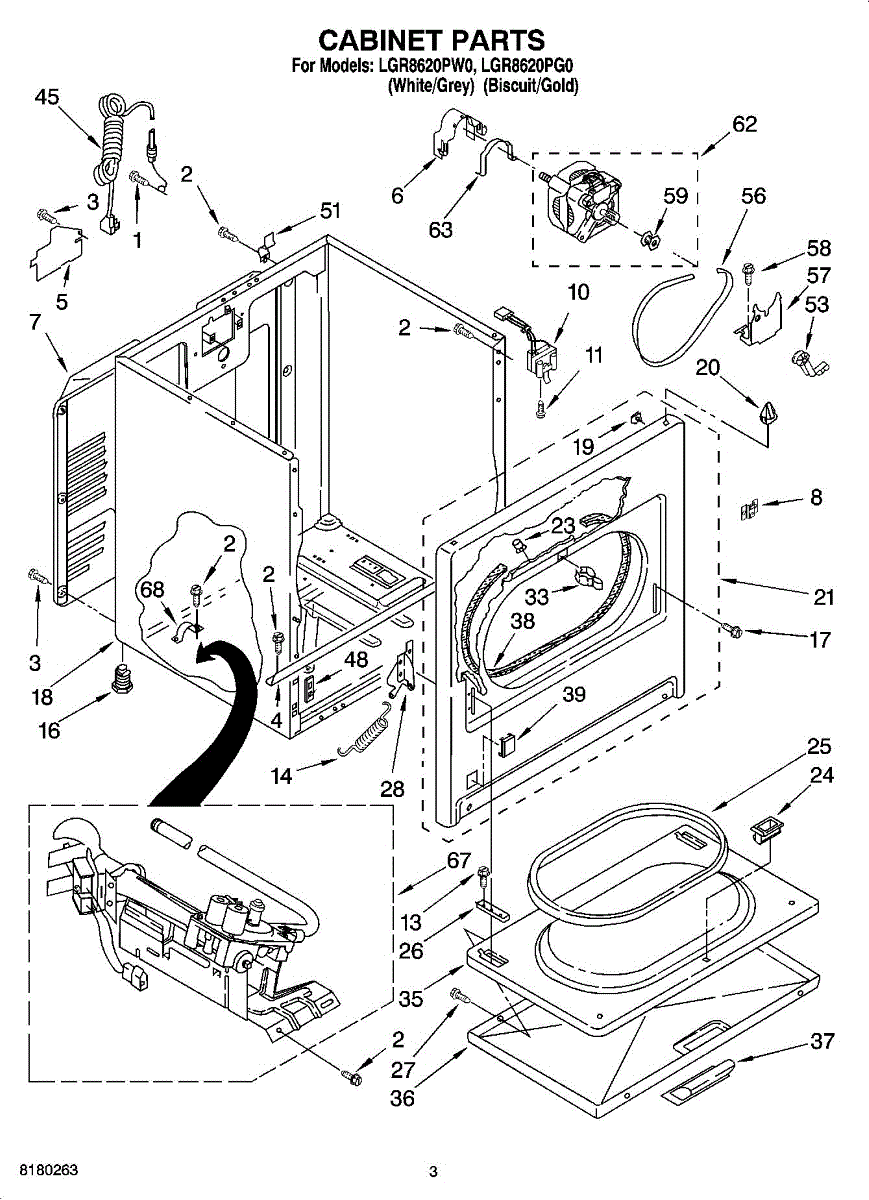

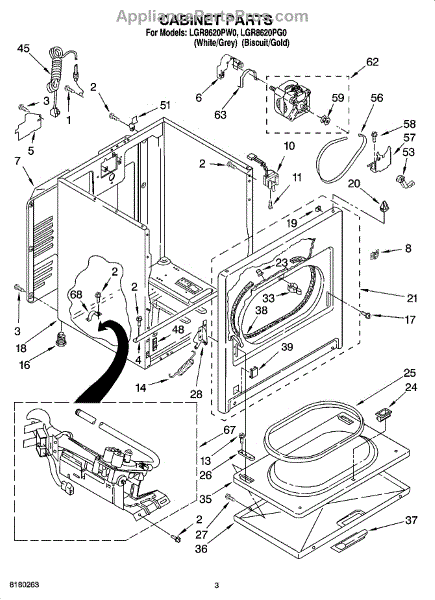

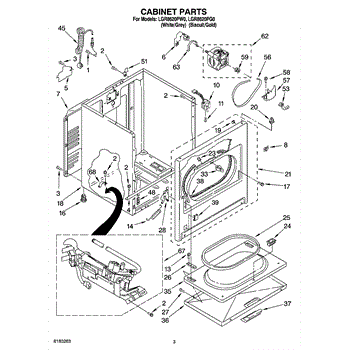

Parts for Whirlpool LGR8620PG0: 02 - Cabinet Parts

Replacement screw secures panels, brackets, and internal assemblies. Needed when original hardware is stripped, corroded, or missing to keep parts tight.

Specs: 10-16 x 1/2 inch.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

This replacement cover restores the appliance's finished appearance and protects internal components from dust and debris. It's a direct-fit exterior trim piece designed to replace a cracked, broken, or missing cover. What it does:

• Protects internal components and wiring from debris and accidental contact
• Restores the appliance's cosmetic appearance and helps maintain sealing
• Helps reduce dust buildup in the covered area
• Replaces damaged or missing trim that can expose sharp edges or hardware

• Disconnect power (unplug or switch off circuit breaker) before beginning work
• Basic hand tools may be required; follow for panel removal/replacement
• Handle carefully to avoid scratching the finish and watch for sharp edges
• Replace with manufacturer-recommended fasteners

Fixes excessive vibration and rattling from dryer motor movement. This clamp secures the motor to its bracket, restoring stability. DIY-friendly repair.

Replaces the cabinet back panel on your dryer. Needed when the original is cracked, damaged, or missing. Covers internal components and restores enclosure.

This door spring restores the proper counterbalance of the oven door so it opens smoothly and closes with controlled tension. Replacing a worn or broken spring helps prevent the door from dropping, slamming, or sitting unevenly.

• Provides counterbalance tension for the oven door through the hinge mechanism
• Helps the door open smoothly and hold at a partially open position
• Maintains even alignment and consistent gasket contact
• Common symptoms of failure: door feels heavy, drops open or slams, uneven door height, squeaks during movement

• Disconnect power at the breaker and allow the oven to cool completely
• Springs are under tension—support the door and use caution to avoid injury
• Note the spring's routing and anchor points before removal; reinstall in the same positions
• For even tension, consider replacing both door springs when the design uses one per side

Dryer won't stop spinning when door opens or won't start at all? The door switch likely failed. DIY repair in 10-20 minutes with basic tools.

6-20 screw secures panels, brackets, and internal components. Replace stripped, missing, or damaged screws to restore proper fit and eliminate rattling.

Screw secures appliance panels and access covers. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattles or gaps.

This door spring restores the proper counterbalance of the oven door so it opens smoothly and closes with controlled tension. Replacing a worn or broken spring helps prevent the door from dropping, slamming, or sitting unevenly.

• Provides counterbalance tension for the oven door through the hinge mechanism
• Helps the door open smoothly and hold at a partially open position
• Maintains even alignment and consistent gasket contact
• Common symptoms of failure: door feels heavy, drops open or slams, uneven door height, squeaks during movement

• Disconnect power at the breaker and allow the oven to cool completely
• Springs are under tension—support the door and use caution to avoid injury
• Note the spring's routing and anchor points before removal; reinstall in the same positions
• For even tension, consider replacing both door springs when the design uses one per side

The Dryer Leveling Foot is an OEM part for Whirlpool dryers. It is designed to support and stabilize the dryer by allowing adjustments to the height and leveling of the unit. Proper leveling ensures the dryer operates smoothly and efficiently, reducing vibrations and preventing unwanted movement during cycles.

Causes of a bad leveling foot can include wear and tear from regular use, damage from moving the dryer, or breakage due to heavy loads and stress. Over time, the threads on the leveling foot can wear out, or the foot itself can become cracked or deformed.

Symptoms of a bad leveling foot include:

• Dryer rocking or wobbling during operation
• Unusual noises or vibrations
• Difficulty in adjusting the dryer's height
• Visible damage or wear on the leveling foot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Dryer Leveling Foot is an OEM part for Whirlpool dryers. It is designed to support and stabilize the dryer by allowing adjustments to the height and leveling of the unit. Proper leveling ensures the dryer operates smoothly and efficiently, reducing vibrations and preventing unwanted movement during cycles.

Causes of a bad leveling foot can include wear and tear from regular use, damage from moving the dryer, or breakage due to heavy loads and stress. Over time, the threads on the leveling foot can wear out, or the foot itself can become cracked or deformed.

Symptoms of a bad leveling foot include:

• Dryer rocking or wobbling during operation
• Unusual noises or vibrations
• Difficulty in adjusting the dryer's height
• Visible damage or wear on the leveling foot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Size: 10-32 x 1/2 inch.

Dryer outer cabinet that houses internal components. Replace if your cabinet is rusted, dented, cracked, or damaged, compromising structural integrity.

U-type clip nut slides onto sheet metal panels to create threaded anchor points for screws. Replace if broken, missing, or worn during repairs.

The Top Lock is an OEM component for Whirlpool electric and gas dryers. It secures the outer metal cabinet door during drying cycles for safety and ventilation. This lock provides a method for releasing and latching the door tightly when shut.

Symptoms of a failing top lock may include:

• Inability to fully close or properly latch the dryer door
• Accidental opening from deficient locking during operation
• Difficulty manipulating the lock due to worn or broken parts

Causes related to normal wear of moving parts through frequent use over several years. Deformation from excessive exterior impacts could also damage locking mechanisms.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Front panel for dryers. Replaces cracked, dented, or damaged exterior panels. Installs on the front of the cabinet to restore appearance and structure.

Includes two bumpers and two locking clips. You will use one or the other depending on hole size.

Dryer door won't stay closed or requires tape to shut? The door catch secures your dryer door during operation. Easy 5-30 minute DIY fix with video guide.

The Door Seal is an OEM part for Whirlpool dryers. It forms a tight seal around the dryer door, preventing heat from escaping and ensuring efficient drying performance. This seal helps to maintain the internal temperature of the dryer, optimizing energy use and improving drying results.

Causes of a bad door seal can include wear and tear from regular use, damage due to improper handling or cleaning, or deterioration over time. A compromised door seal can affect the efficiency of the dryer and lead to potential safety issues.

Symptoms of a bad door seal include:

• Heat escaping from the dryer door
• Longer drying times
• Higher energy consumption
• Visible wear or damage to the seal

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Retaining clip secures panels and assemblies in dishwashers, dryers, and laundry centers. Replaces worn, broken, or missing clips to restore fit.

This is a replacement side trim screw that secures the refrigerator side trim/finish panel, restoring a snug fit and finished appearance. Designed to match the original factory fit and finish on compatible Whirlpool units. What it does:

• Fastens the side trim/finish panel so the exterior trim sits flush and secure
• Helps stop rattling, shifting, or gaps caused by loose or missing trim screws
• Matches factory color and head style to keep a consistent exterior look
• Small hardware piece used in multiple trim/assembly locations

• One side trim screw (black)

• Use the matching screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can crack trim or strip threads
• Turn power off and remove any nearby panels if needed for safe access
• Replace all to ensure even fit

Left hand hinge. For right hinge use WP8066056

The Door Hinge is an OEM part for Whirlpool dryers. This hinge ensures the secure attachment of the dryer door to the appliance, allowing it to open and close smoothly. Right-hand hinge. For the left hinge use AP3047600

Causes of a bad door hinge can include regular wear and tear, accidental impacts, or overloading the door.

Symptoms of a bad door hinge include:

• Door not closing properly
• Door sagging or misaligned
• Difficulty opening or closing the door
• Noises or squeaking when moving the door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

White front door panel for dryers. Replaces cracked, damaged, or discolored doors. Restores appearance and ensures proper door closure and seal.

Biscuit-colored door handle for your dryer. Installs on the front door panel. Replace if your existing handle is cracked, broken, or missing.

The Dryer Door Handle is an OEM replacement part for Whirlpool dryers. A dryer door handle can deteriorate due to prolonged use, repeated force when opening or closing the door, or accidental impact that causes cracks or breakage. These factors may compromise the handle's structural integrity and make it less reliable.

Color: White

Symptoms of a bad Dryer Door Handle include:

• Loose or wobbly handle
• Cracks or visible damage to the handle
• Difficulty opening or closing the dryer door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Seals the gap between drum and front panel to retain heat and reduce friction. Replace if worn, torn, or causing noise. Confirm fit with your model.

This power cord connects your appliance to household electricity, supplying safe, reliable power to its controls and components. Replace a damaged or overheated cord to restore dependable operation and reduce the risk of shorts.

• Supplies AC power from the wall outlet to the appliance's electrical system
• Helps resolve no power, intermittent power loss, or tripped breaker issues
• Replace if the cord is cut, frayed, melted, discolored, or feels hot at the plug
• Restores safe operation when the original plug or insulation is damaged

• Disconnect power at the outlet or circuit breaker before servicing
• Note wire routing and connection points; match the original orientation for hot, neutral, and ground
• Seat the cord properly and secure with the model's required strain relief or clamp to prevent tension on terminals
• Ensure the cord is not pinched and is clear of sharp edges, hot surfaces, and moving parts; test for proper operation

The Dryer Clip is an OEM component for Whirlpool electric and gas dryers. It securely fastens critical ductwork attached to the dryer cabinet. Over extended periods, the constant vibrations produced during tumbling cycles cause microscopic fractures or loosening within the clip material where it grips duct joints.

Causes relate to ordinary fatigue from long-term resonance vibrations concentrated at anchoring points.

Symptoms involve:

• Loose or detached venting/ductwork affecting airflow
• Noticeable leaks emerging at separation interfaces
• Reduced drying effectiveness due to compromised ventilation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Supports and pivots the hinged dryer top panel for service access. Replace if cracked, broken, or causing wobble, scraping, or alignment gaps.

Idler pulley maintains belt tension in your dryer drum assembly. Replace if the wheel is cracked, bracket is broken, or pulley has worn bearings.

Get your dryer spinning smoothly again - install the Whirlpool 341241 OEM Drum Belt in minutes.

Why this belt?

• Exact factory spec: 92 ¼-inch length × ¼-inch width, 4 ribs / 3 grooves - built to Whirlpool standards, not a generic copy.
• Broad compatibility: Fits most Whirlpool-made dryers - Kenmore 110-series, Roper, Estate, Maytag, KitchenAid, Admiral, Crosley, Amana & more.
• Quiet, durable rubber: Reinforced EPDM resists cracking and stretch for years of reliable tumbling.

Fixes these common dryer problems

DIY install — about 15 minutes

1. Unplug dryer; remove lint screen housing & front panel.
2. Release belt tension at idler pulley; lift drum slightly to slide old belt off.
3. Loop new belt around drum, idler pulley and motor pulley (ribbed side down).
4. Re-assemble, run test cycle - enjoy quiet, consistent tumbling.

This motor base is the replacement support that secures and positions the dryer motor assembly, helping restore stable alignment and minimize excess noise or vibration during operation. What it does:

• Supports and mounts the motor to the appliance chassis to keep the motor properly aligned
• Helps maintain correct spacing between the motor and drive components for smooth operation
• Reduces motor movement that can cause rubbing, vibration, or unusual noise
• Can address symptoms such as excessive vibration, banging, or misaligned motor movement

• Disconnect power to the appliance before starting any repair
• Follow the appliance's service manual or exploded parts diagram for correct removal and reassembly
• Use appropriate tools and take care with sharp sheet-metal edges
• Retain or transfer any original mounting hardware unless new fasteners are explicitly listed

Replacement machine bolt for securing panels, brackets, and components in dishwashers, dryers, washers, and laundry centers. Restores fit if missing.

The Motor Pulley is an OEM part for Whirlpool dryers, connects the dryer motor to the drum belt, enabling the drum to turn and efficiently dry your clothes. This pulley is crucial for the smooth operation of the dryer, ensuring that the belt is tensioned correctly and runs smoothly without slipping or causing wear.

Causes of a bad Motor Pulley include wear and tear from regular use, a buildup of lint and debris that can interfere with its operation, or a malfunctioning dryer motor that puts undue stress on the pulley.

Symptoms of a bad Motor Pulley include:

• Unusual noises coming from the dryer, such as squeaking or grinding
• The dryer drum failing to turn even though the motor is running
• The dryer taking longer than normal to dry clothes, which can occur if the pulley is not providing proper tension to the belt

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Dryer won't start or stops mid-cycle? A worn drive motor is often the cause. This motor turns the drum and circulates air. Moderate DIY repair.

This part is a motor clamp. This is a genuine OEM part and has been sourced directly from the manufacturer. This part is intended to replace a deteriorated, damaged, or broken motor clamp on certain makes of indoor appliance models. Motor clamps are essential for properly securing the drive motor on various types of indoor appliances such as washers, dryers, and refrigerators. Without the use of a motor clamp, the drive motor is free to move around or become detached. This can easily cause serious damage to the equipment and prevent proper functionality. Proper tools are needed to replace this part and appropriate safety measures should be adhered to when working on any type of equipment. For accurate information on how and where to install this replacement motor clamp, specific manufacturer diagrams should be referred to.As an authentic replacement part, this motor clamp can be used on multiple different models of washers, dryers, refrigerators, and washer/dryer combos manufactured by Kenmore, Maytag, Whirlpool, and Amana. Please note that this motor clamp is a genuine part made of high-quality materials and is sold individually.

This gas surface burner head distributes fuel through its ports to create an even, reliable flame on your cooktop. Replace a clogged, damaged, or warped head to restore consistent ignition and proper heat on the affected burner.

• Channels gas through precision ports to produce a steady, even flame
• Interfaces with the surface igniter/electrode for quick, reliable ignition
• Replaces worn or clogged heads that cause weak, uneven, or yellow flames
• Helps resolve delayed ignition or a burner that won't light

• Disconnect electrical power and shut off gas supply before servicing
• Remove grate and burner cap, lift off the old head, and clean the mating surface
• Align the new head with the igniter and locating features; seat it fully before replacing the cap
• Restore gas and power; test ignition and verify proper flame pattern
