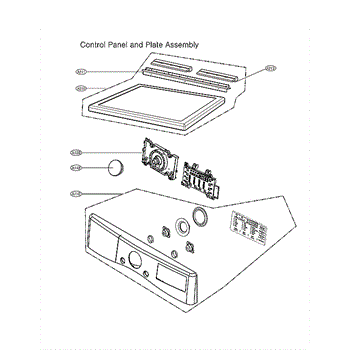

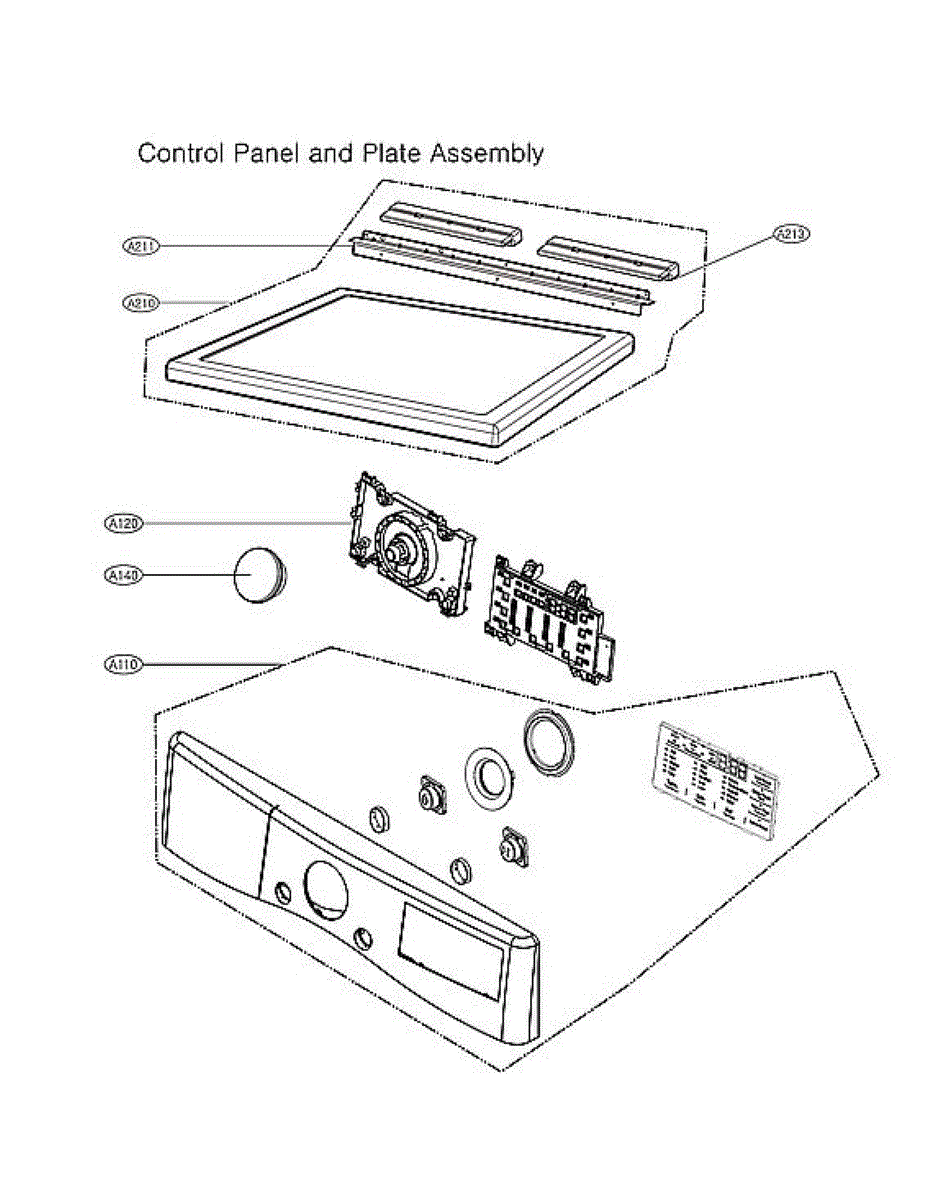

Parts for Lg DLG3601V/00: Control Panel & Plate Assy Parts

The Tub Assembly is an OEM component for LG clothes dryers. As the central component housing both the inner and outer drums, the tub assembly is essential for safely drying wet laundry loads. It rotates the drums to circulate air and remove moisture from clothes during cycles.

Causes of a bad tub assembly dryer can include cracks, leaks, or damage to the drum structure from excessive use or unbalanced loads over time. Wear and tear on rotating or suspension components that impair rotation.

Symptoms of an issue with the tub assembly dryer are:

• Inefficient or slow drying times
• Abnormal noises or vibrations during cycles
• Restricted or lack of drum rotation
• Cracks, leaks, or physical damage visible on drums

This OEM LG part is also compatible with Sears/Kenmore.

Replace your dryer control panel when buttons stop responding or the display fails. This assembly restores full function to your appliance controls.

This is the gas valve assembly that controls the flow of gas to the burner in a gas dryer. It includes the solenoid coils and valve body that open and close to regulate gas delivery for heating. Replace this assembly if your gas dryer runs but produces no heat, heats intermittently, or if the gas igniter glows but the gas never ignites.

Fix a blank or non-responsive dryer display with this control board assembly. Restores power and communication to your dryer's control panel interface.

The Dryer Drum Baffle is an OEM part for LG dryers. This baffle is attached to the inside of the dryer drum and is designed to help lift and tumble clothes during the drying cycle.

Causes of a bad dryer drum baffle can include wear and tear from regular use, physical damage from heavy or sharp objects, or becoming loose due to vibration over time.

Symptoms of a bad dryer drum baffle include:

• Thumping or banging noises during the drying cycle
• Clothes not tumbling properly, leading to uneven drying
• Loose or rattling baffle inside the drum
• Visible damage or breakage on the baffle

This OEM LG part is also compatible with some Kenmore models.

The PCB Assembly, Main is an OEM part compatible with LG dryers. Located inside the back panel, it controls all principal dryer functions including temperature, moisture levels, settings, and safety features. The main board receives temperature and motion sensor inputs to operate critical components like the heating element, motor, and fan.

Causes of a bad main board may include liquid damage, failures due to long-term thermal cycling stresses, or manufacturing defects.

Symptoms of a bad PCB assembly include:

• Dryer not heating, tumbling, or stopping properly
• Faulty moisture detection and settings
• Repeated error codes
• Buzzing noises from internal mechanisms

This authentic LG replacement ensures dependable performance. Compatible with Sears/Kenmore dryers using LG mechanisms, it restores full functionality to maximize the dryer's lifespan. Proper operation preserves your investment.

The Belt is an OEM replacement part for LG dryers that is responsible for connecting the motor to the drum to allow it to tumble. Over time, dryer belts can stretch, wear out, or even break, leading to a drum that won't turn and clothes that don't dry properly.

Symptoms of a bad Dryer Belt include:

• The dryer motor running but the drum not turning.
• A squealing or thumping noise coming from the dryer.
• The dryer not starting at all.

Causes of failure can include regular wear and tear from the dryer's operation, overloading the dryer beyond its capacity, which puts extra strain on the belt, or a misalignment that causes uneven wear. A damaged belt can prevent your dryer from functioning correctly, leading to inefficiency in drying clothes and potential motor damage due to unnecessary strain.

This OEM LG part can also be used on Kenmore/Sears appliances.

Replace your dryer drum seal when clothes take longer to dry or you notice lint buildup. Maintains heat efficiency and prevents air leaks. Confirm fit with your model number.

Base bracket for dryers. Mounts to the bottom of the cabinet to secure the base assembly. Replace if bracket is cracked, bent, or missing hardware.

Thread-forming fastener that secures panels, brackets, and internal components. Replace this screw if it's missing, stripped, or damaged during repairs.

This Pipe Assembly routes water into the appliance so the dispenser and ice maker can receive a steady supply. Replacing a damaged tube restores proper water flow and helps stop leaks or pooling inside or beneath the unit. What it does:

• Carries incoming water from the household supply to the appliance's internal water system
• Restores water delivery to the dispenser and ice maker when the original tube is cracked or blocked
• Prevents leaks and water damage caused by split, corroded, or pinched tubing
• Helps eliminate intermittent flow or weak dispenser output caused by a damaged water line

• One complete pipe assembly as shown

• Shut off the refrigerator's water supply and unplug the appliance before beginning
• Handle tubing fittings carefully; use proper tools to avoid damage or overtightening
• Inspect connection points and replace seals or clips if worn; test for leaks after reinstalling

Dryer won't heat or takes too long to dry? A faulty igniter often causes no heat in gas dryers. Moderate DIY repair with front panel removal required.

For propane order 383EEL3002A.

Converting your dryer from natural gas to propane? This LP conversion kit includes the orifice and components needed. Moderate difficulty repair.

Pipe connector for dryers and laundry centers. Replaces broken, cracked, or missing mechanical pipe connectors. Essential for secure pipe assembly.

This is a small O-ring gasket that creates an airtight seal at the gas supply pipe connection on a gas dryer. It prevents gas from leaking at the fitting where the supply line connects to the dryer's gas valve. Replace this seal if you detect a gas smell near the connection point or if the fitting fails a leak test.

This is the gas tube assembly that connects the gas valve to the burner assembly inside the dryer. It channels gas from the manifold to the burner where it is ignited to produce heat for drying. Replace this tube if you detect a gas smell near the dryer, notice visible damage or corrosion on the tube, or if the dryer fails to heat properly.

Internal exhaust duct assembly that channels hot air between dryer components. Replace if cracked, rusted, burned, or causing stains on clothing.

Top plate assembly for dryers. Mounts on the upper cabinet to provide structural support. Replace if cracked, broken, or worn to restore appearance.

Upper control panel plate for dryers. Covers the top control area of your dryer. Replace if cracked, broken, discolored, or missing for a complete look.

This balance weight is the washer counterweight that helps stabilize the tub during spin cycles to reduce vibration and noise. Replaces a worn or damaged weight to restore smoother, quieter operation. What it does:

• Counterbalances the washer drum to minimize shaking and excessive movement during spin cycles
• Helps prevent banging or knocking noises caused by an unbalanced tub
• Supports even load distribution to reduce stress on suspension components
• Used when a cracked, loose, or missing weight is causing vibration issues

• One balance weight (counterweight)

• Disconnect power and water supply before starting any repair
• Support the tub or cabinet when removing/installing the weight to avoid sudden movement
• Tighten mounting hardware to OEM torque if specified; use the factory fasteners when available

Dryer not heating or overheating? The high limit thermostat shuts off heat at unsafe temperatures. Moderate difficulty repair requiring partial disassembly.

Dryer not heating or overheating? The high limit thermostat shuts off heat at unsafe temperatures. Moderate difficulty repair requiring partial disassembly.

This duct assembly channels exhaust from the appliance to the home vent, restoring proper airflow and helping reduce lint and moisture buildup. It's a direct-fit replacement for the original ducting on compatible LG units. What it does:

• Directs heated air and moisture from the appliance to the exterior vent
• Replaces damaged, crushed or disconnected ductwork that can restrict airflow
• Helps reduce lint accumulation in the cabinet/vent path when installed and maintained
• Restores a sealed connection between the appliance outlet and household venting

• Disconnect power and unplug the appliance before beginning any repair
• Follow for disassembly and routing; use proper clamps or screws to secure connections
• Inspect connected gaskets, clamps and the external vent path; replace or clean as needed
• Do not operate the appliance with obstructed or damaged venting; clean lint regularly to reduce fire risk

The Igniter Sensor is an OEM part for LG dryers. This sensor plays a critical role in the ignition process, ensuring that the gas ignites properly to produce the heat necessary for drying clothes efficiently. It helps monitor and regulate the ignition temperature.

Over time, the igniter sensor can become faulty due to regular use, exposure to high temperatures, or electrical issues. These factors can lead to a malfunction, resulting in the dryer not heating properly or failing to start.

Symptoms of a bad igniter sensor include:

• Dryer not heating up
• Long drying times
• Dryer not starting
• Unusual smells or noises during operation

This OEM LG part is also compatible with Sears/Kenmore.

Mounting bracket that secures internal dryer components. Replace if cracked, broken, or missing to restore proper alignment and stability of assemblies.

The Roller Kit is an OEM part for LG dryers. This 4 roller kit includes replacement drum support rollers, which are essential for allowing the dryer drum to rotate smoothly during operation. The rollers are designed to provide stable support for the drum, minimizing noise and ensuring efficient drying performance.

Over time, drum rollers can wear out due to continuous use, exposure to heavy loads, or lack of proper lubrication. When the rollers become damaged or worn, they may develop flat spots, lose their smooth surface, or begin to squeak. These issues can lead to improper drum rotation or increased strain on other dryer components.

Symptoms of a bad Roller Kit include:

• Loud squeaking, rumbling, or thumping noises during operation
• The dryer drum not spinning or rotating unevenly
• Excessive vibrations while the dryer is running

This OEM LG part is also compatible with Sears/Kenmore.

A manufacturer-configured replacement component designed to restore the appliance's original factory settings and functions. Use this part when a model-specific, pre-configured module is required to return correct operation. What it does:

• Provides the factory-specific configuration and setup programmed by the manufacturer
• Restores functions controlled by the module when configuration or programming is corrupted
• Resolves symptoms such as appliance not starting, control panel unresponsive, or intermittent/erratic operation linked to configuration errors
• Ensures compatibility with model-specific features when the appliance requires a pre-configured assembly

• Disconnect power to the appliance before starting any work
• Handle electronics carefully; observe electrostatic discharge (ESD) precautions for circuit boards or modules
• Match connectors and mounting locations to the original part; do not force connectors

This kit includes both the high-limit thermostat and the safety thermostat used in a dryer's heating system. These thermostats monitor the internal air temperature and cut power to the heating element if the dryer overheats, preventing potential fire hazards. Replace this assembly if the dryer is not heating, shuts off prematurely, or runs excessively hot.

Secures the door hinge assembly to the dryer cabinet. Replace if your bracket is cracked, bent, or broken to restore proper door alignment and support.

Taptite screw secures dryer panels, brackets, and covers to sheet metal or plastic. Replace if missing, stripped, or damaged during repairs.

Captures lint and debris during drying to maintain airflow and prevent exhaust buildup. Replace when torn, cracked, or warped. Confirm fit with your model.

If your dryer door pops open during cycles or won't stay closed, this door latch assembly restores a secure closure. Easy 5-minute DIY repair.

Houses the lint filter to capture debris during drying. Replace if cracked, causing clothes to snag or tear. Confirm fit with your model number.

Note: Due to manufacturer changes to this part, you will also need to order lint filter part number ADQ56656403. To purchase the guide and filter in a kit, order part number 383EEL3002Q.

Precision mounting screw for dryers and laundry centers. Replaces missing, stripped, or damaged screws that secure panels, brackets, and assemblies. Restores stability.

This is a safety switch assembly that detects whether the dryer door is open or closed. It signals the control board to stop the drum and heating element when the door is opened during a cycle. Replace this switch if the dryer will not start, stops mid-cycle unexpectedly, or continues running with the door open.

Secures the lint filter in proper position to prevent clothes snagging. Replace if cracked, warped, or filter sits unevenly. Confirm fit with your model.

Cover that fits over the dryer's lint filter duct area. Replace if cracked, broken, or missing to keep items from falling into the duct when filter is removed.

Distortion spring that applies tension within the dryer mechanism. Replace if fatigued, broken, or missing to restore proper tension and assembly function.

The Dryer Moisture Sensor Bar is an OEM part for LG dryers. It plays a critical role in detecting the moisture level of clothes during the drying cycle, enabling the dryer to adjust the drying time automatically. This ensures efficient operation, preventing over-drying, which can damage fabrics and increase energy consumption.

Symptoms of a bad Dryer Moisture Sensor Bar include:

• Clothes remaining damp after a complete drying cycle
• The dryer continually running without stopping
• Inconsistent drying results, with some clothes over-dried and others still wet

Causes of a bad moisture sensor bar can stem from a buildup of lint and fabric softener residue, which insulates the sensor and impairs its ability to accurately detect moisture. Additionally, wear and tear or damage from loading and unloading can affect its functionality.

Regular cleaning and maintenance are recommended to ensure that your LG dryer operates efficiently and preserves the life of your clothes.

Dryer won't auto dry or cycles run too long? This moisture sensor wire harness connects sensor bars to control. Restores accurate dry cycles. DIY-friendly.

This is a mounting bracket that holds the moisture sensor in place inside the dryer drum area. The moisture sensor detects how wet the clothes are and signals the dryer to stop when they are dry. Replace this holder if it is cracked, broken, or missing, which can cause the moisture sensor to shift out of position and lead to clothes being over-dried or under-dried.

Complete dryer door assembly that restores proper closing and sealing. Replace if door is cracked, dented, or warped. Verify compatibility with your model.

Dryer door won't stay closed or pops open during cycle? This latch hook secures the door panel to prevent rattling and interruptions. Easy 10-minute fix.

Fix a sagging or misaligned dryer door with this replacement hinge. Restores smooth operation and proper door seal for efficient drying performance.

Inner door frame for dryer. Replace if cracked, warped, or broken. Structural component that holds door assembly together. Direct fit part.

The Door Seal is an OEM part for LG dryers. It forms a tight seal around the dryer door, preventing heat and moisture from escaping during the drying cycle, which ensures efficient drying and energy use.

Causes of a bad door seal can include wear and tear from regular use, damage from repeated opening and closing of the dryer door, or degradation from exposure to heat and moisture over time. A compromised door seal can lead to longer drying times and increased energy consumption.

Symptoms of a bad door seal include:

• Heat and moisture escaping from the dryer door
• Longer drying times
• Clothes not drying completely
• Visible cracks, tears, or wear on the seal

This OEM LG part is also compatible with Sears/Kenmore.

This small damper mounts near the dryer door hinge and cushions the door's movement to prevent it from slamming or bouncing when opened or closed. It absorbs impact and reduces stress on the hinge mechanism. Replace this part if the dryer door slams shut forcefully, swings freely without resistance, or if the existing damper is cracked or missing.

Fix loud banging, grinding noise, or poor drying performance with a new dryer blower wheel. Restores proper airflow through drum and exhaust vent.

This is a fastener and retainer assembly that secures the blower wheel to the motor shaft inside a dryer. It keeps the blower wheel firmly in place so it can properly circulate hot air through the drum and out the exhaust vent. Replace this assembly if the blower wheel wobbles, makes rattling or squealing noises, or if the retainer nut is stripped or broken, causing poor airflow and longer drying times.

Duct assembly channels air from dryer drum to blower and exhaust. Replace if cracked, warped, or missing to restore proper airflow and prevent lint bypass.

This guide assembly is a replacement slide guide that helps support and align moving components for smooth operation and reliable engagement. It restores proper tracking and reduces wobble or binding in the mechanism. What it does:

• Provides stable support and alignment for a sliding component to prevent mis-tracking and uneven movement
• Reduces noise, sticking, or binding caused by worn or damaged guides
• Helps maintain proper clearance and engagement of the moving part
• Matches OEM fit and mounting points for direct replacement

• Turn off and unplug the appliance before beginning any repair to avoid electrical shock
• Remove any obstructing panels or components to access the guide
• Inspect mating parts (slides, rails, fasteners) and replace any damaged hardware to ensure correct fit

This adjustable leveling leg screws into the dryer base to support and stabilize the cabinet. Replacing a worn or missing foot helps level the appliance, reduce vibration and noise, and keep it steady on uneven floors.

• Provides threaded height adjustment to properly level the dryer
• Stabilizes the cabinet to minimize rocking, vibration, and walking
• Replaces a broken, worn, or missing foot
• Common symptoms: dryer wobbles, is hard to level, or makes rattling/vibration noise

• Disconnect power; shut off gas supply for gas models
• With a helper, carefully tilt or raise the dryer for access
• Unscrew the old leg; thread the new leg into the base by hand, then adjust with a wrench until the dryer sits level and stable
• Ensure all legs contact the floor and the dryer does not rock

This power cord assembly supplies AC power to the appliance and restores safe operation after a damaged or faulty cord. It replaces the worn or frayed factory cord so the appliance can power on reliably. What it does

• Provides the main AC connection between the appliance and household power
• Replaces cords with visible damage, exposed wiring, burnt connectors, or intermittent power
• Helps stop arcing, sparking, or overheating caused by a failing cord
• Fits into the appliance's cord terminal block for a direct, plug-in power connection

• One power cord assembly

• Disconnect power at the breaker or unplug the appliance before starting any work
• Tighten all terminal screws securely and route the cord away from sharp edges and moving parts

The Dryer Thermistor is an OEM part for LG dryers, designed to monitor and help regulate the temperature within the dryer by providing feedback to the control board about the temperature inside the drum. This allows the dryer to adjust its heat settings accordingly, preventing overheating and ensuring clothes are dried evenly and safely.

Symptoms of a bad Dryer Thermistor include:

• Clothes not drying properly or taking longer than usual to dry.
• The dryer repeatedly stopping during a cycle.
• Error messages appearing on the dryer's display panel.
• The dryer getting too hot or not heating enough.

Causes of a bad Dryer Thermistor can include a buildup of lint and debris affecting its ability to accurately sense temperature, wear and tear over time, or electrical issues within the dryer's circuitry.

This OEM LG part can also be used on Kenmore/Sears appliances.

The Dryer Blower Thermostat is an OEM replacement part for LG dryers. It plays a role in regulating the operation of the blower motor, which is responsible for circulating hot air throughout the dryer during the drying cycle.

Causes of a bad dryer blower thermostat can include electrical malfunctions, physical damage, or simply wear and tear over time.

Symptoms of a bad dryer blower thermostat include:

• The dryer not heating up properly or taking longer to dry clothes
• The blower motor failing to turn on or running continuously
• Inconsistent or inadequate airflow during the drying cycle
• Error codes or fault indicators related to the thermostat or blower motor

This OEM LG part is also compatible with Sears/Kenmore models.

The Motor Bracket is an OEM part for LG dryers. This bracket securely holds the dryer motor in place. It maintains proper alignment and spacing of the motor to allow for smooth operation of the tumble cycle.

Causes of a bad motor bracket can include cracks or breaks developed over time from repeated use and vibration, or damage due to impact or improper installation.

Symptoms of a bad motor bracket include:

• Excessive noise or grinding sounds emanating from the motor area
• The dryer not rotating or tumbling clothes properly
• Increased movement or shaking of the motor
• Poor airflow and inefficient drying performance

This OEM LG part is also compatible with some Kenmore models.

The Drum Motor Assembly is an OEM part for LG dryers. It serves as the powerhouse that drives the drum, enabling it to tumble clothes during the drying cycle. This essential component ensures your dryer operates smoothly, providing the necessary torque for consistent and efficient drying performance.

Causes of failure might include wear and tear from prolonged use, overload from trying to dry heavy loads, electrical issues like short circuits, or physical damage to the motor components.

Symptoms of a bad Drum Motor Assembly include:

• The dryer drum fails to turn, even though the dryer powers on.
• Unusual noises, such as humming or buzzing, indicating the motor is struggling.
• The dryer stops unexpectedly during cycles or won't start at all.
• Decreased drying efficiency or clothes taking longer to dry due to inconsistent drum speed.

This OEM LG part is also compatible with Sears/Kenmore.

This clamp secures hoses, tubing or wiring to the appliance frame to help prevent rubbing, vibration and routing issues. It restores a solid attachment point so lines stay in place during normal use. What it does:

• Holds a hose, tubing or wire bundle in place to prevent chafing and abrasion
• Keeps components routed away from moving parts and hot surfaces
• Reduces rattling or vibration caused by loose lines
• Helps maintain safe, reliable connections by preventing strain on fittings

• Disconnect power and shut off water before servicing
• Use basic hand tools; avoid over-tightening which can pinch hoses or wires
• Inspect adjacent hoses/wires for wear and replace if damaged
• Take photos before removal to ensure correct reinstallation

This micro switch is a compact, snap-action electrical switch that sends an on/off signal when a lever, latch, or paddle is moved. Replacing a worn switch restores reliable detection and control response for the affected function.

• Converts mechanical movement into an electrical open/close signal to the control
• Commonly used for lever/paddle actuators, latches, or interlock detection within the appliance
• Safe symptom clues: no response when actuated, intermittent operation, or a function stuck on/off
• Physical clues: weak or absent "click" when pressed, heat discoloration or damage at terminals

• Disconnect power before servicing; if the product is connected to a water line, close the supply valve
• Note wire positions and terminal labels (COM/NO/NC); transfer wires one at a time to matching terminals
• Match the actuator orientation and mounting position to the original for proper operation
• After installation, verify continuity with a multimeter and test function before reassembly

Maintains tension on your dryer's drum belt for smooth rotation. Replace if pulley wheel is cracked, shaft worn, or assembly moves excessively during operation.

Idler pulley maintains tension on the dryer belt. Replace if worn, cracked, or causing belt slippage. Installs between motor and drum support system.

This replacement screw secures appliance components in their proper position. Use it to restore a tight, rattle-free fit when the original fastener is missing, stripped, or corroded. What it does:

• Fastens brackets, panels, or trim to keep assemblies aligned and secure
• Helps prevent vibration, rattling, and gaps from loose hardware
• Restores proper attachment when a screw is lost, worn, or damaged
• Common symptoms: loose panel/handle, misalignment, rattling, or a missing screw

• Disconnect power; shut off water or gas before service
• Match location to the original; start threads by hand to avoid cross-threading
• Use the correct driver bit; do not overtighten (especially into plastic)
• If the original hole is stripped, repair threads before installing the new screw

Self-tapping screw secures panels, brackets, and components inside your appliance. Replace stripped, corroded, or missing screws to restore secure fit.

Stationary rack that installs inside your dryer drum to hold shoes, sweaters, and delicates that shouldn't tumble. Replace if cracked, broken, or missing.

Fix leaks or poor water flow with a new washer inlet hose. This part channels household water supply into your machine for proper filling and operation.

This side venting kit allows you to redirect your dryer's exhaust air out through a side wall instead of the back of the unit. It includes the necessary ductwork and connections to safely route hot, moist air outside your home. Use this kit when your dryer installation requires side venting due to space constraints or structural limitations.
