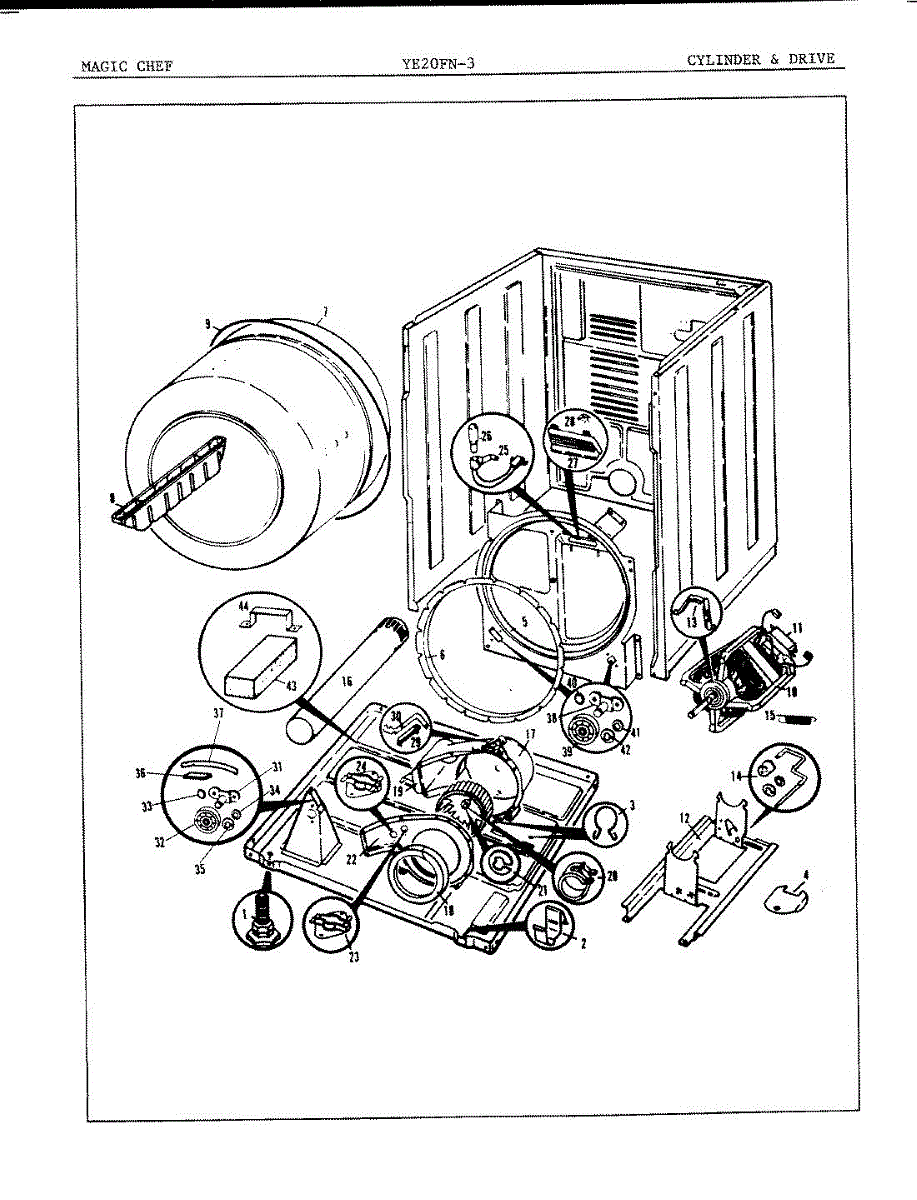

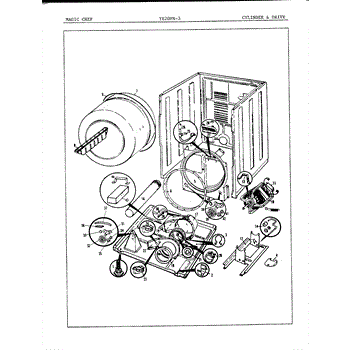

Parts for Magic Chef YE20FA3: 02 - Cylinder & Drive Parts

An adjustable leveler that supports and raises or lowers the appliance to help stabilize it on uneven floors. Restores proper alignment to reduce rocking, vibration, and door misalignment for improved performance and safety. What it does:

• Provides height adjustment to level the cabinet and prevent rocking
• Helps doors close and seal correctly by correcting leaning or unevenness
• Reduces vibration and movement that can cause noise or wear
• Simple turn-to-adjust design for fine tuning appliance position

• Unplug the appliance (and shut off water supply for units with plumbing) before working nearby
• Support the appliance when adjusting so it does not tip; use a helper or appliance dolly as needed
• Turn the leveler by hand or with a wrench; adjust both front/back or left/right sides evenly and re-check with a level

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Specs: 10-16 x 1/2 inch.

Seal assembly replaces the washer's front tub seal to prevent water from leaking around the cylinder, helping stop puddles under the machine and protecting internal components from water exposure. What it does:

• Forms a watertight seal between the front of the tub/cylinder and the outer housing.
• Helps stop leaks that occur during fill, wash, or spin cycles; replacement commonly resolves visible water at the front/base of the washer.
• Use when the seal shows cracks, tears, hardening, or other visible damage.
• Replacement restores proper sealing to help protect bearings and electronics from water intrusion.

• Disconnect power and turn off the water supply before servicing.
• Replacement typically requires front access and partial disassembly of the tub/cabinet; follow the manufacturer service manual and use appropriate tools.
• Clean and inspect the mating surfaces and the shaft for wear or contamination before installing the new seal.
• If you find bearing noise, oil residue, or extensive corrosion, consider replacing affected components.

The Screw is an OEM part for Whirlpool appliances that is responsible for securing various parts in place. The screw ensures a tight and secure fit, preventing any loose parts. A bad screw can occur due to wear and tear or accidental damage. If the screw becomes stripped, rusted, or lost, it can lead to instability or even malfunction of the affected parts.

Symptoms of a bad screw include:

• Loose or wobbly parts.
• Components not securely fastened.
• Difficulty in assembling or disassembling the appliance.
• Rattling or unusual noises during operation.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Get your dryer spinning smoothly again - install the Whirlpool 341241 OEM Drum Belt in minutes.

Why this belt?

• Exact factory spec: 92 ¼-inch length × ¼-inch width, 4 ribs / 3 grooves - built to Whirlpool standards, not a generic copy.
• Broad compatibility: Fits most Whirlpool-made dryers - Kenmore 110-series, Roper, Estate, Maytag, KitchenAid, Admiral, Crosley, Amana & more.
• Quiet, durable rubber: Reinforced EPDM resists cracking and stretch for years of reliable tumbling.

Fixes these common dryer problems

DIY install — about 15 minutes

1. Unplug dryer; remove lint screen housing & front panel.
2. Release belt tension at idler pulley; lift drum slightly to slide old belt off.
3. Loop new belt around drum, idler pulley and motor pulley (ribbed side down).
4. Re-assemble, run test cycle - enjoy quiet, consistent tumbling.

This part is a motor clamp. This is a genuine OEM part and has been sourced directly from the manufacturer. This part is intended to replace a deteriorated, damaged, or broken motor clamp on certain makes of indoor appliance models. Motor clamps are essential for properly securing the drive motor on various types of indoor appliances such as washers, dryers, and refrigerators. Without the use of a motor clamp, the drive motor is free to move around or become detached. This can easily cause serious damage to the equipment and prevent proper functionality. Proper tools are needed to replace this part and appropriate safety measures should be adhered to when working on any type of equipment. For accurate information on how and where to install this replacement motor clamp, specific manufacturer diagrams should be referred to.As an authentic replacement part, this motor clamp can be used on multiple different models of washers, dryers, refrigerators, and washer/dryer combos manufactured by Kenmore, Maytag, Whirlpool, and Amana. Please note that this motor clamp is a genuine part made of high-quality materials and is sold individually.

This idler arm assembly keeps the dryer drum belt properly tensioned so the drum turns smoothly for even drying. Replaces a worn or broken tension arm to restore belt tracking and reduce noise. What it does:

• Maintains correct tension on the dryer drive belt so the drum rotates consistently
• Guides the belt for proper alignment and helps prevent slipping or rubbing
• Reduces squeaks, thumping, or belt-slap caused by a loose or damaged idler
• Works with the drive motor and belt to transfer rotation to the drum

• Disconnect power to the appliance before beginning any repair.
• Basic hand tools required; remove the front panel or access panel per your model's service instructions.
• Inspect the drive belt and pulley for wear while replacing the arm; replace if damaged.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This part has been discontinued by the manufacturer and is no longer available.

Replace a damaged collector duct to restore proper ventilation airflow. This kit channels air from the appliance's intake to the exhaust path, helping reduce leaks, noise, and recirculation for consistent capture performance.

• Directs airflow from the intake/collector to the exhaust duct path
• Helps maintain proper airflow and capture efficiency
• Provides a sealed transition to minimize air leaks and recirculation
• Common symptoms: poor vent suction, smoke/steam lingering, rattling vibrations, visible damage or gaps

• Disconnect power at the breaker; shut off gas before servicing
• Wear cut-resistant gloves—sheet-metal edges can be sharp
• Note airflow orientation and gasket locations; dry-fit before fastening
• Seal joints with UL-listed foil HVAC tape; do not use cloth duct tape

This dryer exhaust fan is used on some Admiral, Crosley, Hoover, Magic Chef, Maytag, Montgomery Ward and Norge brands. Size: 3-1/8 inches deep, 7 1/2 inch fin diameter, 6 3/4 inch hub diameter, 20 standard fins, 1/2 inch diameter motor shaft, 7/16 inch diameter motor shaft to flat side of shaft. Blower wheel clamp not included. For the clamp order 25-7855.

The Clamp is an OEM part for Whirlpool dryers. This clamp ensures tight and secure connections within the dryer, particularly in securing ducts and vents that are essential for proper airflow and operation.

Clamps may need replacement due to loss of tension, corrosion, or damage from regular use. A compromised clamp can lead to operational issues such as prolonged drying times or excessive noise, resulting from loose parts or improper ventilation.

Symptoms of a bad Clamp include:

• Loose or detached vents or hoses, leading to inefficient dryer operation.
• Increased drying times, as a result of compromised airflow from unsecured ducts.
• Unusual vibrations or noise, indicating that internal components may not be securely fastened.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Can use 410233

This part has been discontinued by the manufacturer and is no longer available.

Specs: No.8X1/2 HEX WASHER HEAD

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This cycle thermostat regulates temperature during appliance heating cycles to help maintain safe, consistent operation and proper cycle performance. It replaces a worn or failed thermostat to restore correct temperature control. What it does:

• Senses and opens/closes at set temperatures to control heating during cycles
• Prevents continuous heating when the thermostat reaches its limit
• Can cause no-heat, overheating, or short cycling when faulty
• Works with the appliance's control system to maintain cycle timing and safety

• Disconnect power to the appliance before inspecting or replacing the thermostat
• Handle thermostat and terminals carefully; avoid bending sensing elements

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

Right hand side. Used most Admiral, Crosley, Norge, and Magic Chef dryers. Includes glide and felt pad.

Felt pad.

Right hand side. For the drum glide and felt pad order LA-1006.

Felt pad.

Made for most Admiral, Crosley, Norge, and Magic Chef dryers. Kit includes 2 drum support rollers, 2 support shafts, 4 screws, 2 spacers, 2 washers, 2 retaining rings and instruction sheet.

Left hand side.

This rear support assembly stabilizes the appliance's rear housing and helps keep internal components aligned for smooth operation and reduced vibration. It restores proper rear-end support to prevent rubbing, noise, and uneven motion. What it does:

• Provides a stable mounting point for the appliance's rear section to maintain alignment
• Reduces vibration and rattling caused by a loose or worn rear support
• Helps prevent rubbing, scraping, or grinding noises from misaligned components
• Restores proper fit between the rear housing and moving parts to promote smooth operation

• One rear support assembly

• Disconnect power (and gas if applicable) before beginning any repair
• Access typically requires removing the appliance's rear panel or cabinet; follow OEM service manual steps
• Inspect surrounding mounting hardware and replace any worn fasteners for a secure fit

Size: 10-24 x 3/8 inch.

This retaining ring secures a component on a shaft or within a groove so it stays aligned during operation. Replacing a bent, rusted, or missing ring helps stop wobble, noise, and parts working loose.

• Locks into a groove to keep gears, pulleys, wheels, or spacers from sliding off a shaft
• Helps maintain proper spacing and alignment of moving parts
• Common signs of failure: wobbling parts, scraping/rubbing noises, or components that work loose
• Visual clues: deformation, corrosion, or loss of spring tension

• Disconnect power and any utilities to the appliance before service
• Wear eye protection—retaining rings can spring free under tension
• Note the order/orientation of any washers or spacers before removal
• Use appropriate snap-ring or needle-nose pliers and ensure the ring seats fully in its groove
