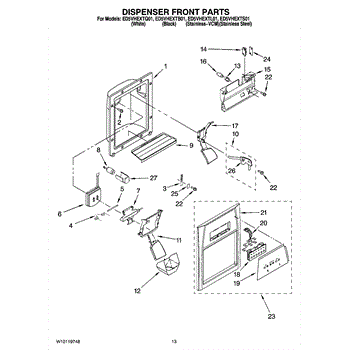

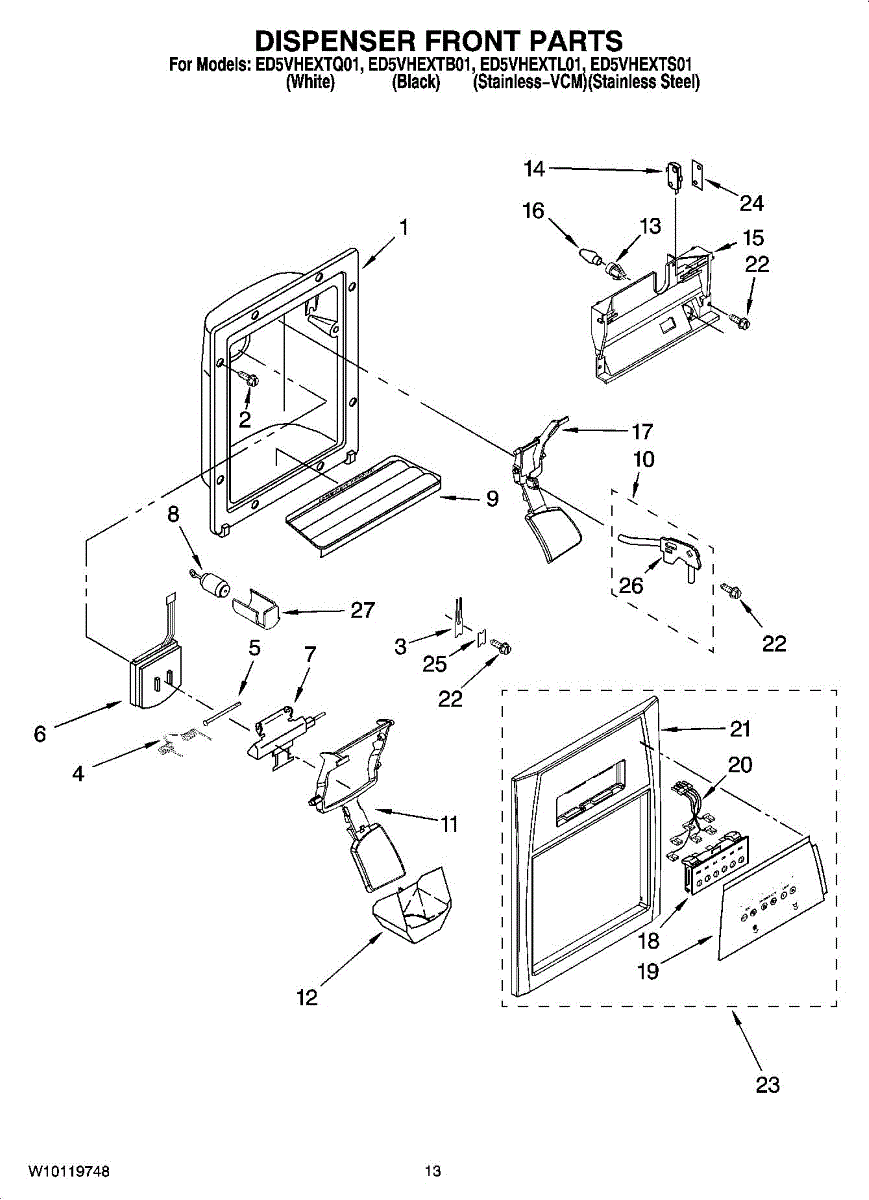

Parts for Whirlpool ED5VHEXTS01: 08 - Dispenser Front Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

The Dispenser Lever Retainer is an OEM part for Whirlpool refrigerators. It secures the dispenser lever, which allows for the proper dispensing of water or ice when activated.

Causes of a bad dispenser lever retainer can include physical damage from repeated use, breakage due to accidental impact, or general wear and tear over time.

Symptoms of a bad dispenser lever retainer include:

• The dispenser lever feeling loose or wobbly
• Difficulty in dispensing water or ice
• The lever not returning to its original position after use
• Unusual noises when using the dispenser

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

For the complete ice door kit order W10823377.

The Dispenser Door Pin Kit is an OEM part for Whirlpool refrigerators. This kit includes the pins that secure the dispenser door, allowing it to open and close smoothly when dispensing ice or water.

Causes of a bad dispenser door pin kit can include normal wear and tear, breakage from frequent use, or damage due to mishandling.

Symptoms of a bad dispenser door pin kit include:

• The dispenser door not opening or closing properly
• Leaks or drips from the dispenser area
• Loose or misaligned dispenser door
• Difficulty in dispensing ice or water

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Ice Dispenser Chute Door is an OEM part for Whirlpool refrigerators. This component is located in the ice dispenser mechanism on the freezer door and is responsible for opening and closing the ice chute. The chute door helps to dispense ice properly and prevents warm air from entering the freezer compartment, which can lead to frost buildup and inefficient cooling.

Symptoms of a failing Ice Dispenser Chute Door include:

• Ice not dispensing properly or getting stuck in the chute
• Frost or ice buildup around the ice dispenser area
•  Warm air entering the freezer, causing temperature fluctuations
• The dispenser door not opening or closing correctly, leading to gaps

Causes of a bad ice dispenser chute door can include wear and tear from regular use, damage from ice jams or blockages, and degradation of the door’s sealing mechanism over time.

This OEM part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

Note: This part longer uses the ribbon heater due to the improved foam design. If your refrigerator uses this ice door and the mounting tabs are broken, you can use the broken tab ice door kit 8201756.

Includes door, support, spring and mechanism delay. No longer uses the ribbon heater due to the improved foam design. If your refrigerator uses this ice door kit and the mounting tabs are broken you can use the broken tab ice door kit 8201756.

Includes door, support, spring and mechanism delay. No longer uses the ribbon heater due to the improved foam design. If your refrigerator uses this ice door kit and the mounting tabs are broken you can use the broken tab ice door kit 8201756.

The Dispenser Overflow Grille is an OEM part for Whirlpool refrigerators. This grille sits below the water and ice dispenser on the refrigerator door, catching any spills or overflow to keep the area clean and prevent water from dripping down the refrigerator. For Black order 2206670B, for Bisque order 2206670T

Causes of a bad dispenser overflow grille can include repeated exposure to water, impact damage, or general wear and tear.

Symptoms of a bad dispenser overflow grille include:

• Cracks or visible damage to the grille
• Water not being effectively caught, leading to drips and spills on the refrigerator door
• Discoloration or staining of the grille

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Dispenser Overflow Grille is an OEM part for Whirlpool refrigerators. It fits in the dispenser area and catches any spills or overflow from the water and ice dispenser, preventing them from dripping onto the floor or into the appliance.

You should replace the dispenser overflow grille if it becomes cracked, warped, or otherwise damaged. Causes of a bad overflow grille can include constant exposure to water, accidental impacts, or regular wear and tear over time.

Symptoms of a bad dispenser overflow grille include:

• Visible cracks or breaks in the grille
• Water pooling around the dispenser area
• The grille not fitting securely in place
• Difficulty in keeping the dispenser area clean

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Other colors:

• For Biscuit order WP2206670T.
• For white order WP2206670W.

The Dispenser Water Tube Kit is an OEM part for Whirlpool refrigerators, designed to replace or repair the water line that connects to the refrigerator's water dispenser.

Causes of these symptoms can vary from normal wear and tear, mineral buildup from hard water leading to blockages or damage, or accidental damage during cleaning or moving of the refrigerator.

Symptoms of needing the Dispenser Water Tube Kit include:

• Leakage or dripping from the water dispenser area
• A decrease in water flow or no water flow to the dispenser or ice maker
• Noticeable damage or kinks in the existing water tube that restrict water flow

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

This ice dispenser lever is the white paddle your glass presses to activate the refrigerator's ice dispenser. Replace a cracked or worn lever to restore smooth dispensing and keep the dispenser area looking clean and finished.

• Activates the internal dispenser switch to release cubed or crushed ice
• Provides the user-facing paddle at the dispenser opening
• Common symptoms: ice won't dispense when pressed; lever is cracked, loose, sticking, or doesn't return; visible wear or discoloration
• Also referred to as the ice dispenser paddle/actuator

• Unplug the refrigerator before servicing
• Remove the drip tray and dispenser trim/escutcheon; carefully release retaining clips and any wiring connectors
• Transfer and reuse existing hardware (spring, hinge pin, screws) from the original lever if required
• Align the lever with the switch actuator and test operation before reinstalling the trim

The Ice Dispenser Guide is an OEM replacement part for Whirlpool brand refrigerators. These brands also include Maytag, KitchenAid, Norge, Roper, Estate, and Kenmore models. It directs ice from the ice bucket to the dispenser chute. It helps to prevent jams by guiding the ice through the dispenser system smoothly and evenly.

You should replace the ice dispenser guide if you notice any signs of wear or damage, such as cracks or warping. A damaged dispenser guide can cause ice jams or blockages. This can prevent ice from dispensing properly or create excessive noise or vibration during the dispensing process.

Get yours today and restore proper ice dispensing function and prevent future issues with the ice dispenser system.

This light socket is the replacement lamp holder for a range/oven interior light assembly, restoring a secure connection for the oven light bulb so you can see cooking status and check food without opening the door. What it does:

• Holds and connects the oven/cooktop interior light bulb to the appliance wiring
• Restores power to a bulb that's not lighting due to a failed socket
• Prevents loose or intermittent lamp connections that cause flickering
• Replaces sockets that appear burned, cracked, or corroded

• Disconnect power at the breaker or unplug the appliance before starting
• Handle the bulb and socket carefully; wear gloves to protect the bulb and yourself
• Inspect wiring and connectors for damage; replace damaged wiring or connectors as needed

The Micro Switch is an OEM part for Whirlpool refrigerators that is responsible for controlling the ice and water dispenser. The switch operates by responding to mechanical actions, like the pressing of the dispenser paddle or button to open or close to allow water and ice to be dispensed.

Symptoms of a bad Micro Switch include:

• The ice or water dispenser not functioning
• Intermittent operation of the dispenser
• Stuck dispenser preventing ice or water from stopping

Causes of a bad Micro Switch can include physical damage from heavy use, wear and tear over time, or electrical issues such as short circuits that impair the switch's function.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Control Bracket is an OEM part for Whirlpool refrigerators. It serves as a foundational component within the refrigerator's control panel, securing and supporting various controls and electrical components.

Causes of a bad Control Bracket can include physical damage from impact or excessive force, corrosion due to moisture or chemical exposure, and general wear and tear over time. A compromised control bracket can lead to misalignment of control components, difficulty in setting controls, or even failure of the refrigerator to respond to control inputs properly.

Symptoms of a bad Control Bracket include:

• Loose or unresponsive controls
• Difficulty adjusting refrigerator settings
• Visible damage or warping of the bracket
• The refrigerator not maintaining set temperatures correctly

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Dryer Light Bulb is an OEM part for Whirlpool dryers. This bulb is specifically designed to provide illumination inside the dryer drum, allowing for better visibility when loading and unloading laundry. It ensures a well-lit drying environment.

Causes of a bad dryer light bulb can include normal wear and tear, electrical issues, or accidental breakage.

Symptoms of a bad dryer light bulb may include:

• The bulb not turning on when the dryer door is open.
• Dim or flickering light inside the dryer drum.
• A burnt-out or broken bulb.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Dispenser Lever is an OEM part for Whirlpool refrigerators. This part controls the release of water from the refrigerator’s dispenser, allowing you to easily fill glasses or containers with water. The lever's design ensures a smooth and responsive action, contributing to the overall convenience of the water dispensing system.

Causes of a bad water dispenser lever can include wear and tear from frequent use, damage from excessive force, or deterioration of the internal mechanisms over time.

Symptoms of a bad water dispenser lever include:

• Difficulty in pressing or activating the lever
• Water not dispensing when the lever is pressed
• The lever feeling loose or unresponsive
• Leaks or drips around the dispenser area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Water Dispenser Lever (White), is an OEM part for Whirlpool refrigerators. This lever activates the water dispensing mechanism, allowing users to easily dispense water from the refrigerator.

Causes of a bad water dispenser lever can include wear and tear from frequent use, accidental breakage, or mechanical issues within the dispensing system.

Symptoms of a bad water dispenser lever include:

• The lever not engaging or dispensing water
• Difficulty in pressing the lever
• The lever feeling loose or broken
• Water not being dispensed when the lever is pressed

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This 6-position switch assembly replaces a worn or damaged selector switch to restore reliable electrical switching for the appliance control. It helps recover proper cycle selection and responsive control inputs for normal operation. What it does:

• Routes power between control circuits so selected cycles and settings engage correctly.
• Restores reliable selector/position switching when the control won't change settings.
• Common symptom when failing: appliance is unresponsive to cycle changes, selections don't register, or operation is intermittent.
• Matches the OEM switch function used in the control/timer area of compatible units.

• Disconnect power to the appliance before beginning any service to avoid shock hazard.
• Remove required panels or the control console to access the switch; keep track of screw locations and wire connections.
• Photograph or label wiring before disconnecting to ensure correct reassembly.

This replacement screw secures appliance panels and internal components. Installing a correct OEM fastener restores a tight fit, reduces rattles and vibration, and helps keep assemblies aligned so your machine operates smoothly.

• Fastens brackets, panels, ducts, or housings to the cabinet or frame
• Replaces missing, stripped, or corroded hardware
• Helps stop rattles, vibration, and loose or misaligned parts
• Maintains proper alignment for reliable operation

• Disconnect power; shut off gas and water before servicing
• Match this screw to the original location and hardware type used on your model
• Start threads by hand to avoid cross-threading; use the correct driver
• Snug only—do not overtighten, especially into plastic or thin sheet metal

Color: BLACK - Due to manufacturer changes, part is now only available in black.

Color: BLACK - Due to manufacturer changes, part is now only available in black.

The Dispenser Arm Strain Relief is an OEM replacement part for Whirlpool side-by-side refrigerators. It connects the water and ice dispenser arm to the fridge cabinet, absorbing tension during use.

Causes of a bad strain relief involve wear and flexing fatigue of the plastic over extensive dispensing cycles. Exposure to moisture or liquid damage inside the fridge liner may prematurely degrade connecting parts as well.

Symptoms of a bad strain relief include:

• Cracks, splits, or tears in the relieving plastic material
• Dispenser arm separation from the cabinet opening
• Missing pieces that compromised structural integrity
• Difficulty accessing or using the refrigerator's water/ice functions

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore side-by-side refrigerator models.

This water tube bracket secures the refrigerator's water supply tube along the cabinet or door route. Replacing a damaged bracket helps prevent kinks and leaks and maintains reliable water flow to the dispenser and icemaker.

• Holds and guides the water tube so it stays correctly positioned
• Helps prevent kinks, rubbing, and vibration that can lead to leaks
• Supports consistent water flow to the dispenser and icemaker
• Typical signs of failure: cracked or missing bracket, tube slipping or dangling, recurring kinks, dampness/leaks along the tubing path

• Unplug the refrigerator and shut off the water supply before servicing
• Access the bracket location (often in a hinge or cabinet routing area; varies by model)
• Release the tube, remove the old bracket, and install the new bracket; reuse existing hardware
• Restore water and power, purge air from the line, and check for leaks and dispenser/ice operation

The Broken Tab Ice Door Kit is an OEM part for Whirlpool refrigerators. This kit includes all the necessary components to repair or replace the ice door chute, which is responsible for dispensing ice from the ice maker to the ice bucket or directly to the user. The ice door chute must seal properly to prevent warm air from entering the freezer compartment, which can lead to frost and ice buildup.

Symptoms of a failing or broken ice door chute include:

• Ice accumulating around the ice dispenser chute
• Frost buildup in the freezer compartment
• Warm air leaking into the freezer, causing temperature fluctuations
• The ice door not closing properly or becoming stuck
• Unusual noises from the ice dispenser area

Causes of a broken ice door chute can include regular wear and tear, physical damage from mishandling or excessive force, or deterioration of the sealing components over time.

This OEM part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

This kit is used if the ice door mounting tabs are broken off of the dispenser wall. If your model number uses this ice door WP2180353 or this ice door kit W10823377 this kit can be used.
