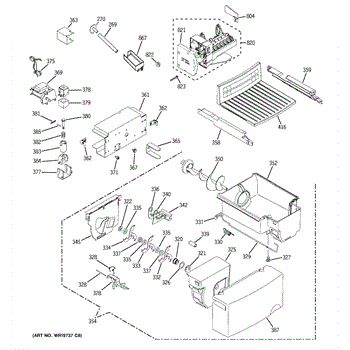

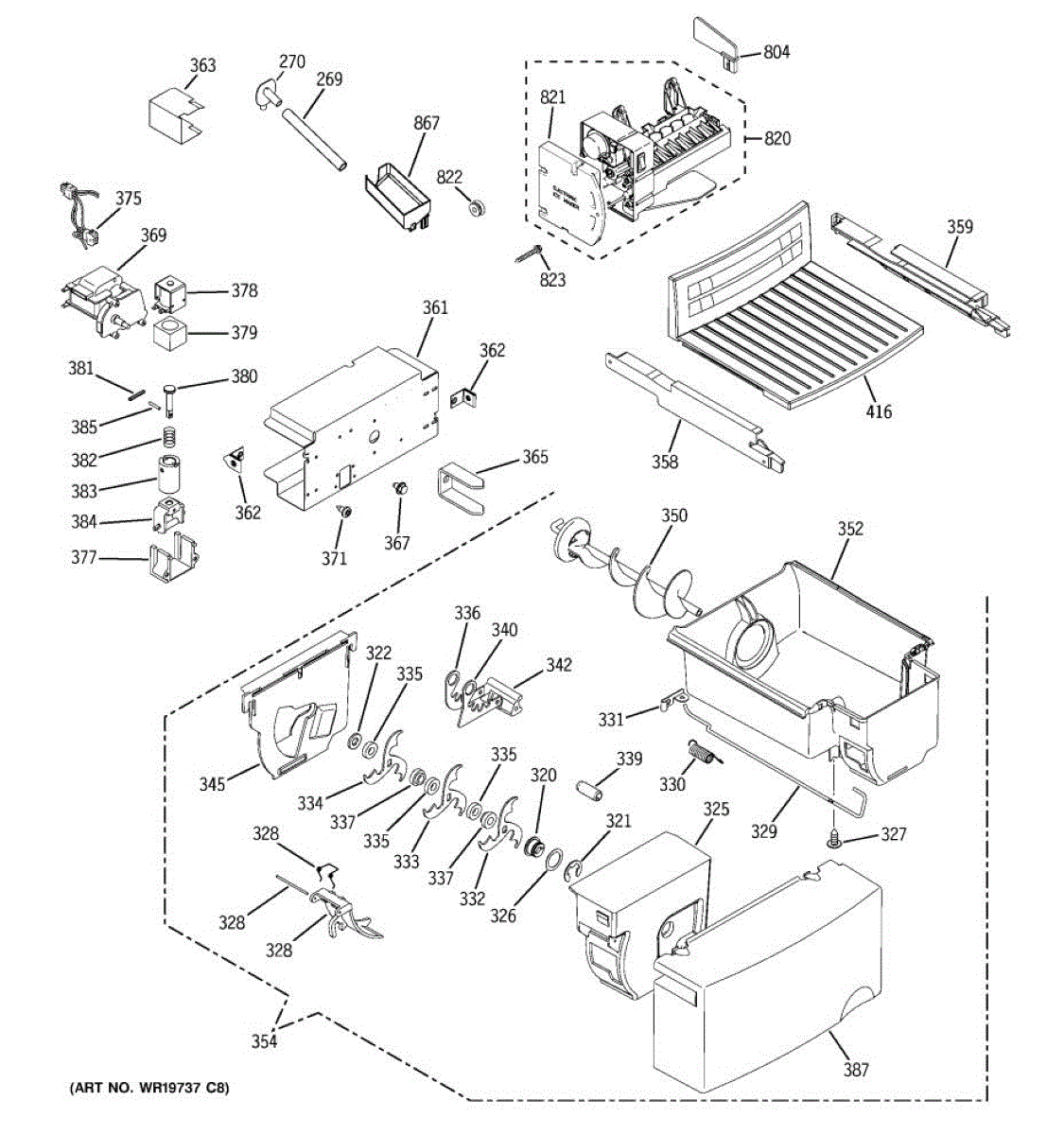

Parts for Ge GSE20IETBFBB: 05 - Ice Maker & Dispenser Parts

The Fill Tube & Grommet Assembly is an OEM part for GE refrigerators. This part ensures that water is efficiently and accurately delivered to the ice maker, where it's frozen into ice.

Causes of a bad Fill Tube & Grommet Assembly can include freezing within the tube, which blocks water flow, physical damage or wear that creates leaks, and deterioration of the grommet, leading to improper sealing and potential water damage.

Symptoms of a bad Fill Tube & Grommet Assembly include:

• Ice maker not producing ice due to lack of water supply
• Water leaking inside the freezer compartment
• Frost or ice formation on the back of the appliance due to leaking water
• Unusual noises as the refrigerator attempts to fill the ice maker

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fill Tube & Grommet Assembly is an OEM part for GE refrigerators. This part ensures that water is efficiently and accurately delivered to the ice maker, where it's frozen into ice.

Causes of a bad Fill Tube & Grommet Assembly can include freezing within the tube, which blocks water flow, physical damage or wear that creates leaks, and deterioration of the grommet, leading to improper sealing and potential water damage.

Symptoms of a bad Fill Tube & Grommet Assembly include:

• Ice maker not producing ice due to lack of water supply
• Water leaking inside the freezer compartment
• Frost or ice formation on the back of the appliance due to leaking water
• Unusual noises as the refrigerator attempts to fill the ice maker

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Auger Nut is a genuine OEM component for GE refrigerators. Located within the icemaker assembly, this nut secures the auger shaft that transports ice from the molding trays to the ice bin.

Symptoms of a bad auger nut include:

• Poor ice harvest, with pieces remaining in trays and mold cavities
• Auger shaft wobbling excessively during ice dispensing
• Ice pieces jamming or clumping together in the bin

Causes can include wear from the continuous rotational movement of each harvest cycle. Over time, the threading may become stripped or warped from repeated heating/cooling.

This genuine GE OEM replacement part is also compatible with Profile, Monogram, and some Kenmore models.

Includes 12 retainer rings.

The Ice Crusher Housing is an OEM part for GE refrigerators. This part provies a protective enclosure that ensures the ice is crushed efficiently and safely before being dispensed.

Causes of a bad ice crusher housing can include wear and tear from regular use, damage from ice jams or foreign objects, and exposure to temperature fluctuations.

Symptoms of a bad ice crusher housing include:

• Ice not being crushed properly
• Ice jams or blockages in the dispenser
• Leaks or cracks in the housing
• Unusual noises during the ice crushing process

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 washers.

This silicon controlled rectifier (SCR) is an electronic switching device used to control power to oven/stove heating circuits, helping the appliance regulate temperature and heat output for cooking performance. What it does:

• Switches and regulates AC power to heating elements for controlled heat
• Enables cycle-based or phase-controlled heating used by oven/range controls
• Common replacement when an element won't heat consistently or unit won't maintain temperature
• Helps stop erratic heating caused by a failed power control component

• Disconnect power to the appliance before inspecting or replacing the SCR
• Observe ESD precautions and handle the component by insulated edges

This pivot is the replacement pivot piece that supports and guides a refrigerator door or sliding drawer, restoring proper alignment for smooth opening and closing. Fits original equipment pivot points. What it does:

• Supports the weight of a door or drawer and keeps it aligned on its track
• Guides smooth opening and closing and prevents binding or sagging
• Restores proper contact and seal when a worn pivot causes misalignment
• Helps reduce noise from loose or worn pivot points

• Disconnect power to the appliance before beginning any repair
• Access may require removing interior panels, trim, or the drawer/door per model instructions
• Handle carefully to avoid scratching sealed surfaces; replace worn fasteners if needed
• If alignment issues persist after replacement, check related hinges, tracks, and mounting hardware

This ice dispenser deflector mounts in the freezer door chute to guide cubes or crushed ice into your glass. Replace a cracked or missing deflector to reduce scatter and keep ice flowing where you want it.

• Directs ice down the dispenser chute toward the glass
• Helps contain spray and bounce-back of cubes
• Restores proper flow when the original deflector is cracked, warped, or missing
• Common symptoms: ice misses the glass, ice scatters on the floor, visible damage to the deflector

• Disconnect power to the refrigerator before servicing; wear cut-resistant gloves
• Access the dispenser area per your model's instructions and note the deflector's orientation
• Transfer any screws or clips from the old part; avoid forcing plastic tabs
• Restore power and test ice dispense to confirm proper direction and clearance

This wire actuator operates the refrigerator dispenser mechanism so pressing the dispenser lever completes the circuit that dispenses water or ice. Replaces a bent or broken dispenser actuator to restore normal dispenser lever function. What it does:

• Transfers user push force from the dispenser lever to the internal switch or door mechanism.
• Helps the dispenser activate water or ice when the lever is pressed.
• Commonly fails by bending, breaking, or losing tension, causing the dispenser to not respond or to stick.
• Works with the dispenser lever assembly and internal actuation switch to complete user input.

• One wire actuator (single piece as shown)

• Disconnect power to the appliance before starting any repair to avoid shock or injury.
• Installation typically requires removing the dispenser bezel and possibly the inner door panel; handle parts carefully to avoid damage.
• Use basic hand tools; keep fasteners organized for reassembly.

The Ice Deflector Spring is an OEM replacement part for GE refrigerators. This spring is a crucial component of the ice dispensing system, specifically in selecting between crushed and whole ice cubes. It is designed to always force the diverter back in a way that the cubes get crushed. When whole cubes are selected, the solenoid pulls the lever against the spring’s tension to shift the configuration, allowing cubes to bypass the crusher blades.

Causes for a malfunctioning Ice Deflector Spring can include wear and tear from regular use, corrosion due to constant exposure to moisture, or mechanical failure that prevents it from effectively reverting the diverter to the crushed ice configuration.

Symptoms of a bad Ice Deflector Spring include:

• The ice dispenser only dispensing whole cubes, even when crushed ice is selected
• The diverter not returning to the crushed ice configuration
• Unusual sounds during the ice dispensing process
• The need for manual intervention to get crushed ice

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A small metal retainer spring that secures trim and lightweight components so panels and shelves stay aligned and do not rattle. Replaces a worn or broken spring to restore a snug, reliable fit. What it does

• Holds trim, panels or lightweight components in position to prevent sagging or separation
• Stops rattling and vibration caused by loose parts
• Restores correct alignment of removable trim or small assemblies
• Helps maintain proper component engagement during normal use

• One retainer spring

• Disconnect power (unplug or switch off circuit) before working on appliances
• Use basic hand tools; access may require removing adjacent trim or clips
• Handle spring and surrounding trim carefully to avoid scratches or damage
• Replace damaged or missing mounting hardware before reassembly

This spacer is a small mounting support used to maintain proper clearance and alignment between refrigerator panels, doors, or components. It helps reduce rubbing, vibration, and noise by restoring correct spacing and fit. What it does:

• Keeps panels, trim, or components spaced correctly to prevent metal-on-metal contact and wear
• Helps align doors and panels for a flush fit and smoother operation
• Reduces vibration and rattling caused by misaligned parts
• Used wherever a fixed clearance or gap is required during reassembly

• Disconnect power to the appliance before beginning any service that requires panel or component removal
• Inspect mating surfaces for damage or debris before installing the spacer; replace any damaged fasteners
• Install in the same orientation and location as the original spacer; do not overtighten mounting hardware

This stationary display blade secures and positions the appliance's front display/overlay so controls and indicators stay aligned and visible. It replaces a cracked, loose, or missing display blade to restore a stable display surface. What it does:

• Holds the display/overlay in the correct position behind the control panel
• Prevents the display from rattling or shifting during normal use
• Restores a flush, aligned appearance when the original blade is broken or worn
• Helps keep buttons and indicators properly supported for reliable operation

• Disconnect power to the appliance before starting any repair.
• Removal usually requires removing the front/display trim or bezel; use basic hand tools.
• Handle small plastic parts carefully to avoid cracking during removal/installation.

A stationary blades assembly that secures the stationary blade in place so the cutting or dispensing mechanism operates smoothly. Replacing a worn or broken assembly restores proper blade alignment and reduces noise or poor cutting performance. What it does:

• Holds the stationary blade securely to stabilize rotation and cutting action
• Maintains correct blade alignment to prevent wobble, jamming, or uneven cutting
• Helps reduce abnormal noise and vibration caused by a loose or damaged blade mount
• Restores reliable operation of the appliance's blade/dispensing mechanism when original part is worn or cracked

• One stationary blades assembly

• Disconnect power (or unplug) and turn off water supply if applicable before beginning repair
• Remove access panels or covers to reach the blade area; keep track of fasteners and trim
• Inspect mating parts (rotor, fasteners, seals) for wear and replace if damaged

The Ice Dispenser Crusher Cover is an OEM part for GE refrigerators. This component is crucial for the ice dispensing mechanism, covering the ice crusher blades and ensuring safe and efficient operation when dispensing crushed ice.

Causes of a bad ice dispenser crusher cover can include regular wear and tear, damage from ice buildup, or cracks and breaks due to impact or mishandling. Over time, these issues can compromise the functionality of the ice dispenser, leading to ineffective ice crushing or potential safety hazards.

Symptoms of a bad Ice Dispenser Crusher Cover include:

• Inconsistent ice crushing
• Ice dispenser jams or blockages
• Visible cracks or breaks in the cover
• Unusual noises during ice dispensing

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Ice Dispenser Bucket Auger is an OEM replacement part for  GE refrigerators. This component is responsible for pushing or "augering" the ice cubes from the ice bucket or bin towards the dispenser chute for easy access.

Symptoms of a failing ice dispenser bucket auger include:

• Ice cubes not dispensing properly or getting stuck
• Loud grinding or crunching noises from the ice dispenser area
• The auger itself becoming cracked, broken, or jammed

Causes of needing to replace the ice dispenser bucket auger can include normal wear over time, damage from impact or foreign objects, or issues with the auger motor that drives its rotation.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This is the dispenser ice bucket that holds and delivers ice from the freezer to the dispenser chute, restoring reliable ice storage and delivery for compatible refrigerators. Durable molded design helps contain and release cubes cleanly. What it does:

• Holds ice produced by the icemaker so cubes can move to the dispenser
• Guides ice toward the dispenser chute for consistent delivery
• Helps prevent ice from spilling into the freezer compartment
• Worn, cracked, or warped buckets can cause jams or poor dispensing

• Disconnect power to the refrigerator before servicing to avoid injury
• Remove existing ice and any obstructions before installing the new bucket
• Align bucket tabs/slots with tracks in the freezer dispenser area and slide into place until seated
• If ice jams or dispensing issues persist after installation, also inspect the auger/drive components and icemaker

The Ice Bucket & Auger is an OEM replacement part for GE refrigerators. This assembly includes both the ice bucket and the auger, which work together to store and dispense ice. The ice bucket holds the ice, while the auger moves the ice from the bucket to the dispenser when you request ice from the refrigerator's front panel.

Symptoms of a bad Ice Bucket & Auger include:

• Inability to dispense ice
• Unusual noises when attempting to dispense ice
• Ice clumping together in the bucket
• Visible damage to the bucket or auger

Causes for a malfunctioning Ice Bucket & Auger can include wear and tear from regular use, mechanical issues with the auger's rotation, or damage to the bucket from impact or mishandling.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Glide Bracket is an OEM part for GE refrigerators. This left bracket supports the refrigerator drawer, allowing it to slide in and out smoothly for easy access to stored items.

Causes of a bad glide bracket can include regular wear and tear, damage from overloading the drawer, or accidental impact that causes the bracket to crack or break.

Symptoms of a bad glide bracket include:

• Difficulty sliding the drawer in and out
• The drawer not aligning properly or coming off its tracks
• Unusual noises when opening or closing the drawer
• Visible cracks or breaks in the bracket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Right side

This shelf bracket secures a refrigerator glass shelf in place so food stays organized and the shelf remains level. It replaces a cracked or worn support to restore proper shelf seating and stability. What it does

• Holds and supports a glass refrigerator shelf to prevent sagging or shifting
• Replaces a broken or chipped bracket that allows the shelf to drop or sit unevenly
• Restores secure engagement between the shelf and refrigerator liner
• Helps eliminate noise or movement from an unstable shelf

• One shelf bracket

• Remove food and the glass shelf before replacing the bracket; handle glass with care
• Install with the original screws/clips; only use fasteners specified by the manufacturer
• Wear gloves to avoid cuts from glass or sharp edges

This boot auger motor drives the auger inside the ice dispenser boot to move ice from the bin to the dispenser chute. Replaces a failed motor to restore normal ice dispensing and reduce jams. What it does:

• Rotates the auger inside the dispenser boot to push ice forward for dispensing
• Helps prevent ice buildup by moving packed cubes during dispense cycles
• Stops working when motor windings or gears fail, causing no ice to dispense or intermittent dispensing
• Works with the dispenser drive and auger assembly to transfer ice from the bin to the chute

• One boot auger motor

• Disconnect power to the appliance before starting any repair
• Access typically requires removing the freezer/refrigerator door trim and dispenser housing; follow OEM service instructions
• Inspect related components (auger, coupler, wiring) and replace if damaged

The Ice Maker Auger Drive Coupler is an OEM replacement part for GE refrigerators. It is located inside the automatic icemaker assembly. The coupler works together with the auger motor shaft to drive the rotation of the ice transport auger.

Over time, the drive coupler can wear out or become damaged due to regular use, jamming, or improper handling. If the coupler is compromised, it can hinder the ice dispensing process.

Symptoms of a bad Auger Dispenser Drive Coupler include:

• Ice not dispensing properly
• Grinding or unusual noises from the dispenser
• The auger not rotating when the dispenser is activated
• Loose or wobbly coupler connection

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-18 Hi/Lo hex-washer screw is a direct-use replacement fastener for appliance panels, brackets and components. It restores secure mounting and helps stop loose trim, rattling or parts that shift during use. What it does:

• Secures panels, trim pieces, mounting brackets and similar components that use a 10-18 thread with a hex-washer head
• Restores proper fit where screws are missing, stripped, or corroded
• Helps eliminate rattling, vibration noise, and misaligned parts caused by loose fasteners
• Matches OEM head and thread style for a correct mechanical fit in specified locations

• Turn power or gas to the appliance off before working on electrical or gas-equipped units; unplug when applicable
• Use the correct sized hex driver or socket to avoid rounding the head
• Tighten until snug—do not overtighten to avoid stripping threads or damaging thin sheet metal
• If replacing multiple fasteners in a load-bearing area, replace all to ensure even fit and alignment

This solenoid saddle is a small mounting bracket that secures a refrigerator solenoid in the correct position. By preventing movement and misalignment, it helps the linked mechanism engage smoothly and consistently.

• Secures the solenoid to its housing or frame to prevent shifting
• Maintains proper alignment for reliable actuation
• A worn or broken saddle can cause buzzing/chattering and intermittent operation
• Restores stable mounting to help the connected mechanism work correctly

• Disconnect power; shut off water supply if working near water lines
• Access the solenoid assembly and note the original saddle's orientation
• Transfer the solenoid into the new saddle and reuse existing fasteners/clips
• Smooth operation before reassembling panels

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This ice maker guardrail secures and guides the ice maker/ice bin assembly so cubes dispense and stay aligned. It helps restore proper ice flow and prevents the ice bin from shifting or rubbing during harvest cycles. What it does:

• Holds the ice maker/ice bin in place to prevent movement and misalignment
• Guides ice cubes during ejection for smoother dispensing
• Reduces rubbing or contact that can cause noise or wear
• Helps maintain consistent ice delivery to the bin

• One ice maker guardrail/rail

• Disconnect power (and water supply if applicable) before beginning service
• Remove shelves or ice bin as needed for clear access; keep fasteners for reinstallation
• Install using existing mounting points and hardware; inspect surrounding parts for wear

This is a 220v international model icemaker.

Front mounting grommet.

The Icemaker Fill Cup is an OEM replacement part for GE refrigerators. This component is specifically designed to channel water from the fill tube into the ice mold.

Symptoms of a bad Icemaker Fill Cup include:

• Water leakage inside the freezer, leading to ice accumulation
• Inadequate or irregular ice production
• The presence of unusual sounds during the ice-making process

Causes for a malfunctioning Icemaker Fill Cup can range from physical damage, such as cracks or warping due to temperature fluctuations, to blockages that impede the flow of water into the ice mold.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.
