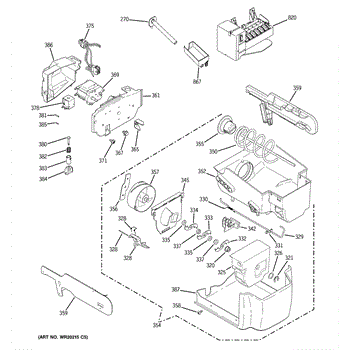

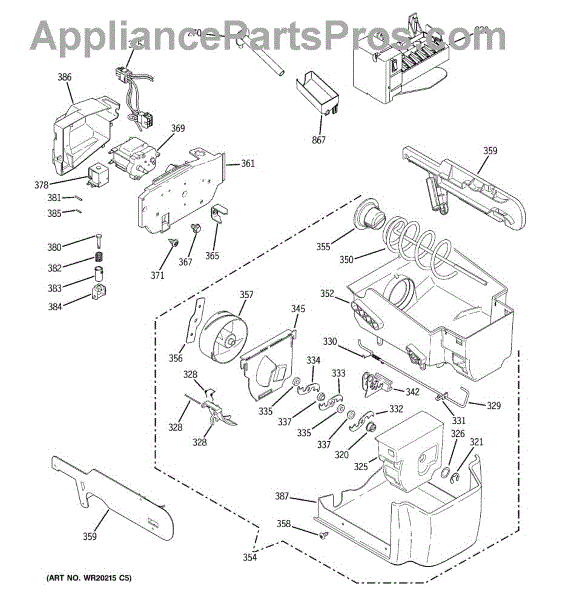

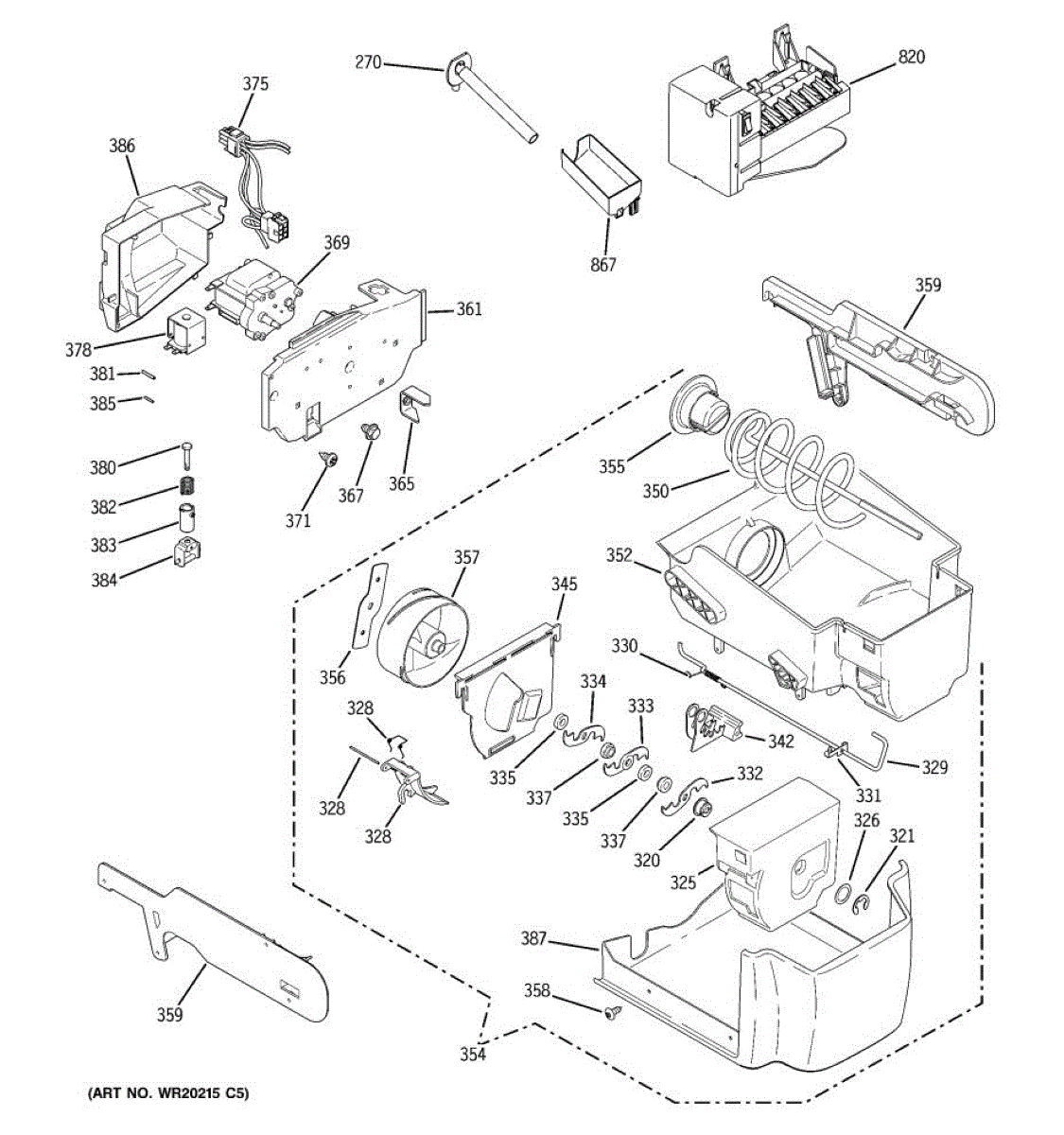

Parts for Ge PSDF5YGXCFWW: 07 - Ice Maker & Dispenser Parts

Rubber grommet seals the ice maker fill tube where it enters the refrigerator cabinet. Replace if cracked, brittle, leaking, or missing to restore seal.

Secures the auger shaft in the icemaker assembly. Replace if stripped, cracked, or loose, preventing proper ice transport from bin to dispenser.

Includes 12 retainer rings.

Protective enclosure for the ice crusher mechanism in your refrigerator's dispenser. Replace if cracked, broken, or damaged from ice jams or wear.

Includes 12 washers.

Replacement pivot that supports and aligns refrigerator doors or drawers. Needed when original pivot is cracked, broken, or worn, causing misalignment.

Ice scattering everywhere? This deflector guides cubes or crushed ice down the chute into your glass. Replaces cracked or missing deflectors in 30 minutes.

Replace your refrigerator's dispenser actuator lever if it's cracked, broken, or missing. This lever installs at the door-mounted dispenser opening.

The Ice Deflector Spring is an OEM replacement part for GE refrigerators. This spring is a crucial component of the ice dispensing system, specifically in selecting between crushed and whole ice cubes. It is designed to always force the diverter back in a way that the cubes get crushed. When whole cubes are selected, the solenoid pulls the lever against the spring’s tension to shift the configuration, allowing cubes to bypass the crusher blades.

Causes for a malfunctioning Ice Deflector Spring can include wear and tear from regular use, corrosion due to constant exposure to moisture, or mechanical failure that prevents it from effectively reverting the diverter to the crushed ice configuration.

Symptoms of a bad Ice Deflector Spring include:

• The ice dispenser only dispensing whole cubes, even when crushed ice is selected
• The diverter not returning to the crushed ice configuration
• Unusual sounds during the ice dispensing process
• The need for manual intervention to get crushed ice

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Metal retainer spring secures trim panels and lightweight components in your refrigerator. Replace when worn, broken, or missing to restore snug fit.

Ice not dispensing or jamming? This ice dispenser auger blade moves ice from the bin to the chute. Installs in numbered sequence with spacers.

Fix ice dispensing issues with this refrigerator auger blade. Solves crushed ice not dispensing or jamming problems. Moderately easy DIY repair part.

Ice won't crush and gets stuck between blades? This moving dispenser blade restores crushing function. Simple DIY fix for side-by-side refrigerators.

Mounting spacer maintains proper clearance between refrigerator panels, doors, or components. Replace if cracked, broken, or missing to restore fit.

Ice dispensing wrong type or jammed? This stationary blade assembly secures the blade for smooth ice crushing. Simple repair restores proper function.

Fix ice dispenser not working or slow ice delivery. This auger helix moves ice from bin to chute. Moderate DIY repair with careful blade reassembly.

Ice not dispensing or jamming? This bucket and auger assembly stores ice and moves it to the dispenser chute. Easy 15-minute installation, no tools needed.

Fix ice not dispensing issues caused by a cracked or broken drive cup. This refrigerator ice maker part secures the auger for proper dispensing. DIY repair.

If ice won't dispense or the auger spins freely, this lock plate secures the helix to the drive shaft. DIY-friendly repair with video guide included.

This helix is the plastic spiral inside the refrigerator's ice bucket that works with the auger to move ice toward the crusher and dispenser. Replacing a worn or broken helix restores smooth ice dispensing and reduces jams.

• Surrounds the auger shaft in the ice bucket to advance cubes toward the crusher/chute
• Engages when the dispenser is activated to feed ice consistently
• Replace if cracked, stripped, or warped
• Symptoms may include little or no ice dispensing, intermittent dispensing, or grinding noises from the bucket

• Unplug the refrigerator and wear cut-resistant gloves; crusher blades are sharp
• Remove and empty the ice bucket; note the order/orientation of blades, spacers, and washers during disassembly
• Transfer components to the new helix in the same sequence; reuse existing hardware
• After reassembly, verify the auger turns smoothly by hand before reinstalling and testing

This is a self-tapping Phillips head screw used to secure various components inside the refrigerator. It measures 8-18 thread size and 1/2 inch in length. Replace if the original screw is stripped, missing, or damaged during a repair, which can cause panels or parts to come loose.

The Left Drawer Glide is an OEM replacement part for GE refrigerators. It sits within the left side wall and aids in smoothly raising and lowering adjustable refrigerator shelves.

Symptoms of a glide include:

• Difficulty level adjusting shelves or full removal
• Binding, catching, or scratching along guide rails
• Noisy or creaking sounds emanating from shelves

Causes stem from typical wear over time, as constant shifting of heavy shelves can degrade plastic glide pieces.

This OEM GE replacement part is compatible with some Hotpoint, RCA and select Kenmore refrigerator models.

White rear motor cover for refrigerator. Shields motor and fan area at back of compartment. Replace if cracked, broken, or missing to protect components.

Ice won't dispense or drive spins freely? This auger drive coupler connects the motor to the ice bucket. Moderately difficult repair with basic tools.

Mounting screw fastens panels, brackets, and trim in refrigerators, dishwashers, and ranges. Replace missing, stripped, or rusty screws to secure parts.

Ice dispenser not working or just humming? The auger motor drives ice delivery. Easy DIY fix in under 15 minutes with our video guide. Restore ice flow.

10-18 hex washer screw for securing panels, trim, brackets, and components in appliances. Replaces lost, stripped, or corroded fasteners.

Wire harness that connects to the dispenser motor in side-by-side refrigerators. Replace if cracked, corroded, or damaged to restore electrical flow.

Ice dispenser only making crushed ice instead of cubes? This solenoid valve kit fixes the cube/crushed ice selector. Easy DIY repair with video guide.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

Ice dispenser only making crushed ice instead of cubes? This solenoid valve kit fixes the cube/crushed ice selector. Easy DIY repair with video guide.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

Protects the auger motor and gearbox in your refrigerator's ice dispenser. Replace if cracked, broken, or missing to keep debris out and ensure proper ice flow.

Protective cover that fits on the bottom of your refrigerator ice bucket. Replaces a cracked, warped, or missing bucket bottom cover to restore containment.

Ice maker not producing ice or stopped working? This ice maker kit restores ice production. Includes full assembly for harvesting and ejecting ice.

Ice maker not filling or water spilling? This fill cup directs water into the ice maker mold for proper ice production. Simple clip-on install.
