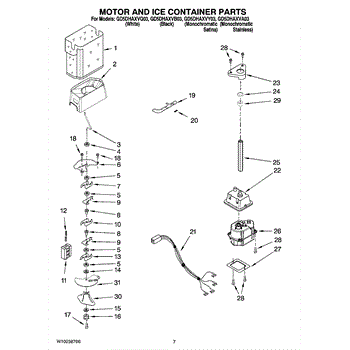

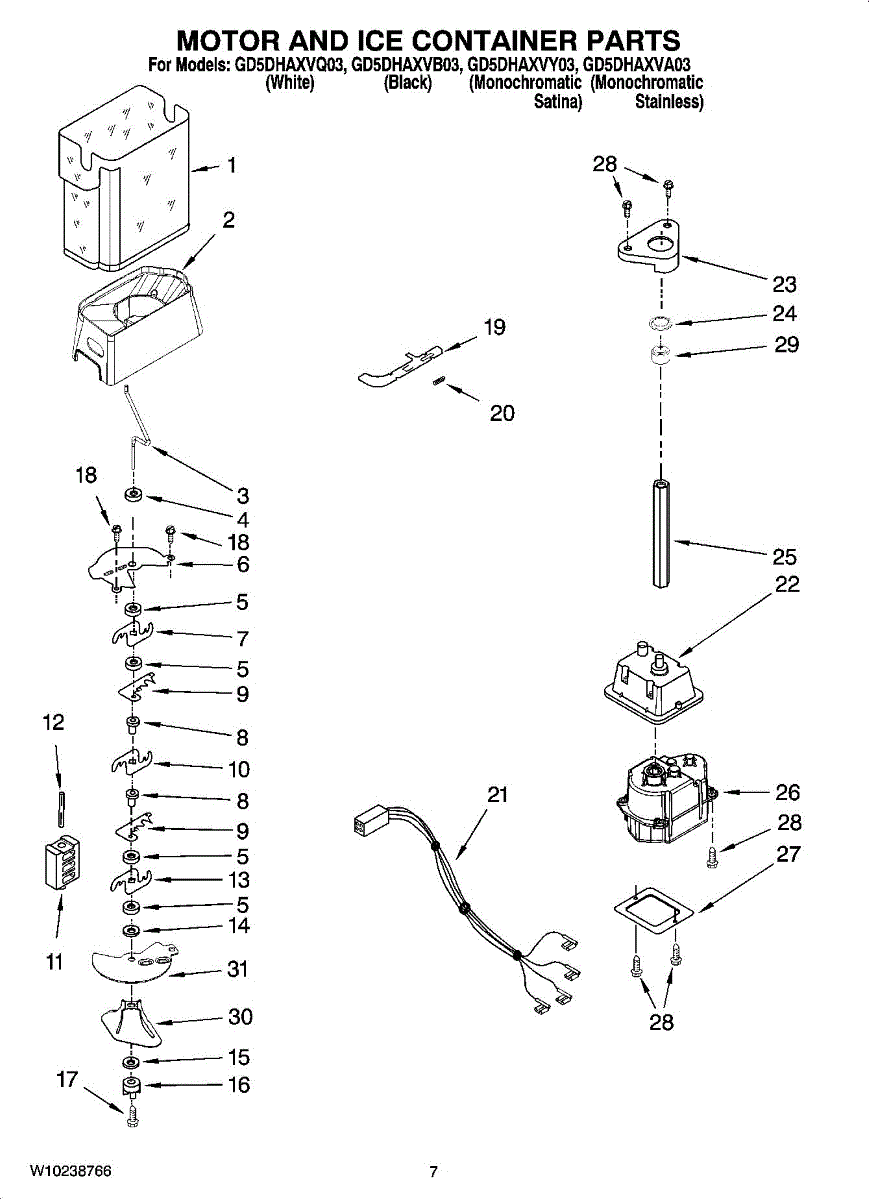

Parts for Whirlpool GD5DHAXVB03: 05 - Motor And Ice Container Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This lower ice crusher bin fits inside the ice bucket and holds the crusher blade stack in position as cubes are processed. Replacing a cracked or worn bin restores reliable crushed-ice dispensing and helps prevent jams and grinding noises.

• Supports and aligns the crusher blades inside the ice bucket during dispensing
• Helps produce crushed ice when selected at the dispenser
• Maintains proper clearances to reduce jams and inconsistent ice size
• Symptoms: ice won't crush, only cubes dispense, dispenser jams or makes grinding noises, visible cracks in the crusher bin

• Disconnect power and remove the ice bucket from the freezer.
• Carefully disassemble the crusher assembly, noting the order and orientation of blades and spacers.
• Transfer components to the new lower bin and ensure tabs/retainers are fully seated.
• Reinstall the bucket and test both Cube and Crush settings.

This replacement ice auger fits inside the freezer ice bin and rotates to move ice to the dispenser and through the crusher, restoring consistent cubed or crushed ice dispensing when the original auger is bent, stripped, or broken.

• Moves ice through the bin to the dispenser chute
• Works with the crusher blades/selector for crushed or cubed dispensing
• Common symptoms: no ice dispensed, motor runs but ice doesn't move, slow or jammed dispensing, grinding noises from the bin
• Replaces a bent, worn, or broken auger spiral that fails to engage or feed ice

• Disconnect power; remove the ice bin from the freezer/door
• Empty the bin; carefully disassemble the crusher blade stack, noting the exact order of blades, spacers, and washers (take reference photos)
• Transfer components onto the new auger and secure the retaining hardware; verify smooth rotation before reinstalling
• Wear cut-resistant gloves—crusher blades and edges are sharp

This replacement washer is a small hardware spacer used in appliance assemblies. It provides a smooth bearing surface under a bolt or nut to distribute load and maintain proper spacing so components stay secure, aligned, and quiet.

• Distributes clamp load to protect mating parts and prevent loosening
• Maintains proper spacing/clearance for correct alignment
• Helps reduce wobble, scraping, or vibration when the original washer is worn or missing
• Visual signs include distortion, cracks, corrosion, or a fastener that no longer tightens securely

• Disconnect power before servicing; for laundry or dishwashing products, also shut off the water supply
• Note the original hardware stack-up and orientation; install the new washer in the same position
• Inspect the bolt/nut and mating surfaces; replace any damaged hardware and tighten per manufacturer guidance
• After reassembly, run a brief test and check for unusual noise or movement

This flat spacer installs on the refrigerator or freezer door hinge. It sets the correct clearance and height between the hinge and door so the door swings smoothly and seals properly. Replace worn or missing spacers to restore alignment. What it does:

• Maintains proper spacing between the hinge and door
• Helps keep the door level and aligned for a consistent seal
• Reduces rubbing or binding as the door opens and closes
• Typical symptoms when worn or missing: door sits low/uneven, rubs the cabinet, won't close reliably, or shows gaps/condensation at the gasket

• 1 flat spacer

• Disconnect power and remove items from the door to reduce weight
• Support the door before removing hinge fasteners; lift the door slightly as needed
• Install the new spacer in the same position/order as the original spacers and washers
• Reinstall and tighten the hinge; readjust if necessary

This replacement blade is the rotating element used within the appliance assembly to deliver the intended action. Installing a new blade restores smooth, efficient operation when the original is cracked, bent, worn, or missing.

• Provides the mechanical action required by the assembly (rotation/agitation)
• Helps maintain consistent performance and smooth operation
• Common failure signs: rattling or scraping noises, vibration/wobble
• Other symptoms: reduced performance in that section of the appliance, visible chips, cracks, or deformation

• Disconnect power before servicing; turn off water supply if applicable
• Wear cut-resistant gloves; edges may be sharp
• Note the original blade's orientation and spacing before removal; install the new blade the same way
• Hand-rotate after installation to ensure free movement and clearance before restoring power

This step spacer positions and supports the appliance step or kickplate to keep panels aligned and reduce rattles. Replacing a worn or missing spacer restores a secure, even fit and helps stop vibration and misalignment. What it does:

• Maintains correct gap and alignment between the step/kickplate and cabinet.
• Prevents rubbing, rattling, or an uneven step caused by a missing or damaged spacer.
• Provides a stable mounting surface so adjacent trim and panels sit flush.
• Helpful when replacing worn trim or after panel repairs to restore factory fit.

• Disconnect power (unplug or shut off breaker) before accessing panels.
• Remove the kickplate or access panel to reach the spacer; note original orientation before removal.
• Seat the spacer fully and reinstall panels and fasteners; avoid over-tightening.

This blade mounting block secures the blade assembly to the appliance, keeping cutting or stirring components aligned for reliable operation and reduced vibration. It restores proper blade positioning to help eliminate noise and uneven performance. What it does:

• Supports and locates the blade assembly so blades stay aligned during operation
• Prevents wobbling or contact that can cause noise and premature wear
• Helps restore consistent cutting/stirring action when a loose or damaged block is present
• Common symptom: loose blade, rattling or grinding noises, or uneven operation

• One blade mounting block

• Disconnect power (and water if applicable) before beginning any repair
• Remove blade assembly per OEM instructions to access and replace the block
• Inspect surrounding components (fasteners, blades, seals) for wear and replace as needed

A roll pin (spring pin) that secures rotating or sliding components by fitting into matched holes to hold shafts, levers, or brackets in place. Replaces a worn or damaged pin to restore proper mechanical engagement. What it does:

• Holds shafts, levers or hinges in position by expanding into drilled holes for a snug, vibration-resistant fit
• Keeps pulleys, rollers, or linkages from moving out of alignment or sliding off their shafts
• Common symptom: loose or wobbling pulley, lever, or shaft where the retaining pin is worn or broken
• Common symptom: noisy or intermittent operation caused by a pin that no longer secures moving parts

• Inspect mating holes and shaft for wear; replace pin with correct size to ensure secure fit
• Use appropriate pliers or a pin punch and hammer to drive the pin in or out; support the assembly to avoid damage
• Wear eye protection when installing or removing roll pins—pins can snap or fly out under force
• If pin is difficult to remove or install, consider using penetrating oil or heating only per OEM guidance

This plain washer is a small hardware spacer used in appliance assemblies. It spreads the load under a fastener to secure parts, maintain alignment, and reduce wear—helping keep brackets, hinges, and mounts tight and operating correctly. What it does

• Distributes clamping force under screws/bolts to protect surfaces
• Maintains spacing for proper alignment of assembled components
• Helps reduce metal-to-metal wear and friction at mounting points
• Replace if missing, bent, worn, or if you notice looseness or rattling around a fastened area

• 1 plain washer

• Disconnect power; shut off water or gas supplies before service
• Note the original order/orientation of hardware; take a photo for reference
• Replace one-for-one and tighten to a snug fit—do not overtighten
• Check alignment and operation before restoring power and utilities

This top coupling links two drive components in select washers to transfer rotation smoothly. Replacing a worn or stripped coupling restores consistent agitation/spin and can reduce slipping, rattling, or grinding noises from the drive area. What it does:

• Connects mating shafts/components so power is transmitted through the drive system
• Helps maintain alignment and cushions minor shock to protect other parts
• Failure symptoms may include no or weak agitation/spin, intermittent drive, or clicking/grinding sounds
• Visual clues can include cracks, rounded/stripped splines, or excessive play

• One top coupling

• Disconnect power; turn off water supply if moving the appliance
• Access location varies by model; cabinet/top or front panel removal may be required
• Note orientation of flats/splines and seat the coupling fully—do not hammer into place
• Inspect the mating hub/shaft; replace worn companion parts to prevent rapid re-wear

The Ice Bucket Coupling is an OEM part for Whirlpool refrigerators. This coupling connects the ice bucket to the auger motor, allowing the motor to rotate the auger and dispense ice through the dispenser chute. It plays a crucial role in the proper functioning of the ice dispensing system by ensuring a secure and effective transfer of motion from the motor to the ice bucket's auger.

Symptoms of a failing Ice Bucket Coupling include:

• The ice dispenser not dispensing ice or dispensing it inconsistently
• The auger not rotating when the dispenser lever is pressed
• Unusual noises, such as grinding or clicking, coming from the ice bucket area
• Visible wear, cracks, or damage to the coupling

Causes of a bad ice bucket coupling can include regular wear and tear from frequent use, physical damage from ice jams or blockages, and degradation of the coupling material over time.

This OEM part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

The Screw is an OEM part for Whirlpool appliances, designed to provide secure fastening in a variety of locations within the appliance. This versatile component is crucial for assembly and maintenance tasks, ensuring that parts are held together tightly and function as intended. Whether it's securing panels, attaching components, or facilitating repairs, this screw is engineered to meet the specifications of Whirlpool appliances, offering durability and reliability.

Causes of screw issues can include normal wear and tear, over-tightening, which may strip the threads, or corrosion that weakens the screw's hold.

Symptoms of a bad or missing Screw include:

• Loose components or panels within the appliance
• Unusual noises due to parts not being securely fastened
• Difficulty in assembling or disassembling parts for repairs or maintenance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement cabinet screw secures panels, brackets, and ducts in Whirlpool-built appliances so components stay aligned and secure. Replacing missing or stripped hardware helps reduce vibration, rattling, and gaps that can affect performance.

• Fastens panels, brackets, and internal components in the appliance cabinet
• Helps maintain proper alignment and reduce vibration or rattling noises
• Restores a tight fit where original hardware is missing, damaged, or stripped
• Typical symptoms: loose paneling, buzzing/rattling sounds, or parts that won't stay fastened

• Disconnect power; for gas models, also shut off the gas supply
• Replace one fastener at a time to preserve alignment and match to the original hardware
• Use the correct driver; start threads by hand to avoid cross-threading
• Do not overtighten into sheet metal

The Whirlpool latch spring is an OEM replacement part responsible for securing the ice container or bin in place on a refrigerator. Its main function is to provide tension and support to the ice container latch, allowing it to engage and disengage properly. When the ice container is inserted into the refrigerator's ice compartment, the latch spring ensures that it securely locks in place, preventing accidental spillage of ice.

Causes of a bad latch spring can include metal fatigue from repeated use, rust or corrosion from exposure to moisture, or physical damage from accidental impacts.

Symptoms of a bad latch spring include:

• The ice container not staying in place and sliding out of position
• Difficulty in properly attaching or detaching the ice container from the refrigerator
• The ice container feeling loose or wobbly when inside the ice compartment
• The ice container not aligning correctly with the ice dispenser or auger

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drive Shaft Holder is an OEM part for Whirlpool refrigerators. This part secures the drive shaft in place, ensuring the proper operation of the ice maker or other rotating parts within the appliance. It provides stability and alignment for the drive shaft, facilitating smooth and efficient performance.

Causes of a bad drive shaft holder can include general wear and tear, damage from mechanical stress, or exposure to harsh conditions within the refrigerator.

Symptoms of a bad drive shaft holder include:

• Ice maker not functioning correctly
• Unusual noises during operation
• Drive shaft wobbling or misaligned
• Reduced efficiency of rotating components

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Drive Shaft Seal is an OEM part for Whirlpool washing machines. It plays a role in preventing water from leaking out of the tub and onto the drive system. This seal ensures that the connection between the drive shaft and the washing machine tub remains watertight, protecting the mechanical components from water damage and corrosion.

Causes of a bad drive shaft seal include aging and deterioration of the material, excessive load sizes that strain the washer, and foreign objects caught between the seal and the shaft, which can lead to tears or breaks.

Symptoms of a bad Drive Shaft Seal include:

• Water leakage from the underside of the washing machine
• Unusual noises during the spin cycle
• A visible tear or damage to the seal itself
• Increased vibration and movement of the machine during operation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Ice Auger Motor Shaft is an OEM replacement part for Whirlpool and KitchenAid refrigerators and freezers. Located inside the icemaker assembly, this shaft transmits rotary motion from the motor to turn the auger paddle.

Symptoms of a failed ice auger motor shaft include:

• Icemaker not dispensing or ejecting cubes properly
• Auger no longer rotating or spinning slowly
• Clicking noises coming from icemaker housing
• Accumulation of unfrozen water inside icemaker basket

Causes relate to repeated flexing against plastic bushings and metal auger thread compounds degradation in frigid subfreezing conditions over long periods.

This genuine part is also compatible with Maytag and Jenn-Air models.

The Auger Drive Motor is an OEM part for Whirlpool refrigerators. It is responsible for powering the auger mechanism that dispenses ice from the ice maker into the ice bucket or directly through the door dispenser. This motor ensures that ice is delivered smoothly and efficiently whenever needed.

Over time, the auger drive motor can wear out or fail due to constant use or electrical issues. Causes of a bad auger drive motor can include motor burnout, electrical malfunctions, or damage from ice buildup.

Symptoms of a bad auger drive motor include:

• The ice dispenser not dispensing ice
• Unusual noises coming from the ice maker area
• The auger not turning or moving slowly
• Intermittent operation of the ice dispenser

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and internal components within your appliance. Replacing a missing or damaged fastener restores a tight fit, reduces vibration and noise, and helps keep parts properly aligned during operation.

• Fastens panels, trim, brackets, or internal components to the chassis
• Maintains proper alignment and stability during normal use
• Replaces missing, rusted, or stripped hardware
• Common symptoms: loose or rattling panels, vibration, difficulty fastening, or a visibly missing screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Match length and thread to the original; replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving hole is stripped, repair threads or replace the clip/nut before installing

The Icemaker Drive Shaft Sleeve is an OEM replacement part for Whirlpool refrigerators. This sleeve fits over the drive shaft that powers the icemaker. It works to smoothly transmit torque from the motor to ensure proper ice production.

Symptoms of a bad drive shaft sleeve icemaker include:

• Incomplete or inconsistent ice production
• Jammed or frozen icemaker
• Ice cubes not fully formed
• Ice falling out of cube trays improperly

Causes of a bad drive shaft sleeve icemaker can include cracks, splits, or damage due to repeated use over time. Failure of this part can lead to icemaker malfunction.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement wiper is the OEM-style rubber blade that clears residue from a sealing surface to help restore proper closure and reduce moisture buildup. Install to replace torn, cracked, or worn wiper material for better sealing performance. What it does:

• Wipes water and debris from the seal or track to help maintain a tight closure.
• Reduces leaks, moisture accumulation, and related odors or frost build-up.
• Stops rubbing or improper closing caused by a damaged or missing wiper.
• Restores the intended contact between the seal and mating surface for reliable performance.

• Disconnect power and follow the appliance manufacturer's safety instructions before servicing.
• Typically installs by sliding or snapping into the wiper channel; use care to avoid stretching or tearing the rubber.
• Clean the mating surface and inspect the retainer or track for damage before installing; replace any damaged retainers per OEM instructions.
