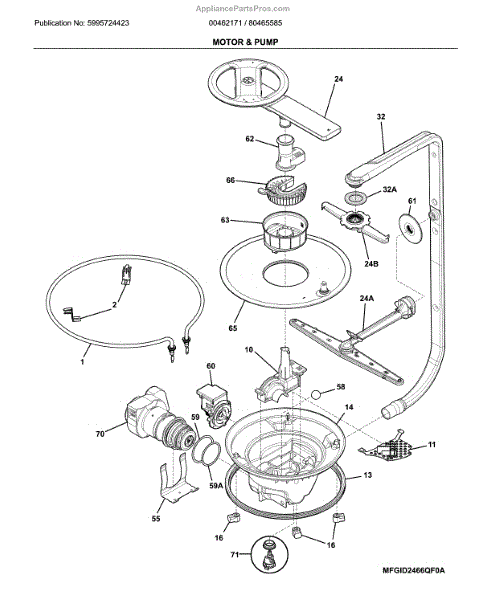

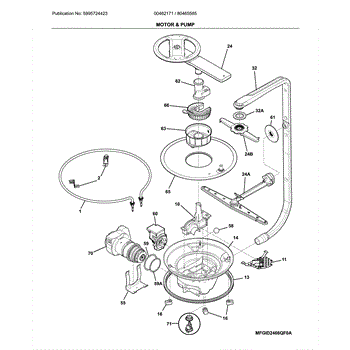

Parts for Ikea 804655851A: Motor & Pump Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Dishes still wet after cycle or water not heating? The heating element heats water for cleaning and promotes drying. DIY repair in under 30 minutes.

Secures components and panels inside your dishwasher. Replace if cracked, broken, or missing to restore proper alignment and prevent rattling or shifting.

Secures the lower spray arm in place. Replace if tabs are broken, worn, or missing, causing the spray arm to detach or not lock down properly. Installs under filter.

Fix dishwasher drainage issues with this sump cover and filter. Screens debris from clogging drain lines. Easy DIY repair in 5-15 minutes with basic tools.

Seals the connection between the dishwasher tub and sump assembly. Replace if water leaks from the base or the gasket appears cracked or flattened.

Fix noisy humming, screeching sounds, or poor draining with a new sump assembly. Houses pump path and turbidity sensor for proper wash cycles.

Secures the sump assembly and pump seal to prevent leaks and maintain proper water flow. Replace if damaged or during sump repairs. Confirm fit with model.

Replacement upper spray arm for dishwashers. Installs in the top rack area to distribute water during wash cycles. Needed when original is cracked or broken.

Replaces cracked, broken, or melted lower spray arm in your dishwasher. Snaps into place on the lower rack. Common damage from falling onto heating coil.

Seals the upper spray arm delivery tube connection in your dishwasher. Replace if water leaks from the spray arm mount or arm becomes loose. Verify fit.

The Delivery Tube is an OEM replacement part for Frigidaire dishwashers. This tube is designed to supply water to the upper spray arm from the pump assembly. By doing so, it plays a role in ensuring that the upper rack of dishes receives adequate water coverage for effective cleaning.

Causes for a malfunctioning Delivery Tube can include blockages from food particles or mineral deposits, general wear and tear from regular use, or damage incurred during maintenance or installation.

Symptoms of a bad Delivery Tube include:

• Inadequate cleaning of dishes on the upper rack
• Water not reaching the upper spray arm
• Unusual sounds during the wash cycle

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement bracket secures a component to the appliance frame, keeping it aligned and stable during operation. Install it to replace a bent, cracked, or missing bracket and restore a solid, rattle-free mount.

• Provides a rigid mounting point to hold the specified part in place
• Helps maintain alignment to reduce vibration, rubbing, or noise
• Replaces damaged or corroded hardware to restore a secure fit
• Common symptoms: loose or sagging component, unusual vibration/noise, or part shifting out of position

• Disconnect power before servicing; shut off water supply if working near water lines
• Note original orientation and fastener locations; take a reference photo
• Transfer and reuse existing screws/clips as needed; tighten fasteners evenly without over-torquing
• Verify alignment and test operation before final reassembly

This small check ball helps control water flow inside the refrigerator's water/ice system to prevent backflow and ensure proper filling. It restores reliable water seating where valves or distributor ports use a ball-style check. What it does:

• Acts as a one-way seal to stop water from flowing backward into the supply line or valve bore
• Helps the ice maker and dispenser fill correctly by allowing water in but not back out
• Common symptom: intermittent or incomplete ice maker fills
• Common symptom: slow or continuous dripping from dispenser or valve area

• Shut off water supply and unplug the appliance before starting
• Small part — handle carefully and note orientation/seat before removal
• Inspect valve bores and seals for debris; clean area before installing new check ball

Seals the rear of your dishwasher's circulation pump to prevent leaks. Replace if you notice water pooling or dripping from the motor area.

The Front O-Ring is an OEM part for Frigidaire dishwashers. This component is essential for maintaining a watertight seal in the front areas of the dishwasher's internal systems, such as around the pump or valve connections. It prevents water leaks and ensures the efficient operation of the dishwasher. The rear O-ring is part number AP2109101

Causes of a bad front O-ring can include regular wear and tear, exposure to high temperatures, and chemical degradation from detergents and rinse aids. Over time, the O-ring may dry out, crack, or become deformed, leading to leaks and decreased performance.

Symptoms of a bad front O-ring include:

• Water leaking from the front of the dishwasher
• Puddles forming under the appliance
• Reduced cleaning performance due to water pressure issues
• Noticeable wear, cracks, or deformation on the O-ring

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Fix a dishwasher that won't drain or makes grinding noises. This drain pump assembly removes water after each cycle. DIY repair in under an hour.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

A rubber mounting grommet that cushions and positions components to reduce vibration and wear, helping parts seat securely for reliable operation. What it does:

• Cushions and isolates parts to reduce noise and vibration.
• Protects metal components and wiring from abrasion where they pass through openings.
• Helps maintain proper alignment and fit of the mounted component.
• Prevents premature wear by absorbing movement and impacts.

• Disconnect power to the appliance before servicing.
• Press-fit into place; ensure proper orientation and full seating.
• Inspect surrounding parts for damage and replace if worn.
• Use manufacturer-recommended replacement; do not use solvents or adhesives unless specified.

Mounting bracket that secures the lower spray arm to the dishwasher sump. Replace if cracked, broken, or missing to prevent spray arm detachment or tilting.

This base is the lower cabinet support that helps keep the appliance stable and holds internal components in their correct position. Replacing a damaged base restores proper fit, alignment and reduces cabinet movement. What it does:

• Provides structural support for the appliance cabinet and mounting points
• Keeps internal components aligned and maintains correct clearance
• Helps prevent rocking, vibration and gaps at the bottom of the cabinet
• Protects lower components from contact with floor-level debris or uneven surfaces

• Disconnect power and, if applicable, water before beginning work
• Access may require removing the toe kick or lower access panels
• Keep track of mounting screws and brackets; use replacement hardware if original fasteners are corroded

Filters debris from dishwasher sump to protect pump and spray arms. Replace if warped, clogged, or dishes aren't cleaning properly. Verify fit by model.

This trap is a molded drain fitting used in select Frigidaire-built appliances. It helps keep water flowing in the correct direction while limiting backflow of air and debris, supporting proper drainage and reducing leaks or odors when the original fails. What it does

• Creates a water seal in the drain path to reduce backflow and odors
• Guides condensate or wash water toward the drain pan/outlet for proper removal
• Helps protect internal components by limiting debris entry into the drain path
• Common symptoms of a bad trap: slow or no draining, water pooling/leaks, unpleasant odors, or visible cracks/warping

• 1 trap

• Disconnect power and, if applicable, shut off the water supply before servicing
• Access the drain area per your model's service/owner documentation; place towels to catch residual water
• Note hose routing and trap orientation; transfer and securely reinstall any clamps or seals
• After reassembly, run a small amount of water through the system to check for leaks

Fix loud whining or grinding noises during wash cycles with this dishwasher circulation pump motor. DIY-friendly repair, typically 10-15 minutes.

This dishwasher turbidity sensor measures how dirty the wash water is and reports to the control. Replacing a faulty sensor can restore proper cycle times and cleaning performance for consistent results.

• Monitors water clarity/soil level during the wash
• Sends feedback to the control to adjust cycle length, rinses, and heating
• Failure can cause very long or very short cycles
• Can trigger sensor-related fault indications

• Disconnect power at the breaker and shut off water before servicing
• Access the sensor from the bottom near the sump; remove the toe panel if needed
• Unplug the wire harness; release the locking tabs or twist-lock to remove; avoid touching the optical window
• Inspect and reuse the existing seal/retainer if in good condition; seat fully and check for leaks after reassembly

Replacement mounting screw for dishwashers. Secures components and panels inside your dishwasher. Order a new screw if yours is stripped, missing, or damaged.

Replacement mounting screw for dishwasher panels, brackets, and trim. Secures loose components caused by missing, stripped, or damaged fasteners.

Replacement mounting screw for dishwasher panels and components. Secures loose panels, brackets, and trim. Needed when original fasteners are missing, stripped, or worn.

Replacement mounting screw for dishwashers. Secures internal components, panels, and brackets. Order when original screw is stripped, missing, or broken.

Secures water or drain hoses to fittings, preventing leaks and loose connections. Replace when hoses slip or drip to restore a tight seal.

Replacement mounting screw for dishwashers. Secures trim, panels, brackets, and internal components. Order when fasteners are missing, stripped, or corroded.

If water remains in your dishwasher after draining or returns to the tub, the drain check valve may have failed. Easy 10-30 minute DIY repair.

Brass nut that secures the heating element to the dishwasher tub. Replace if cracked, split, or causing leaks around the element mounting area.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
