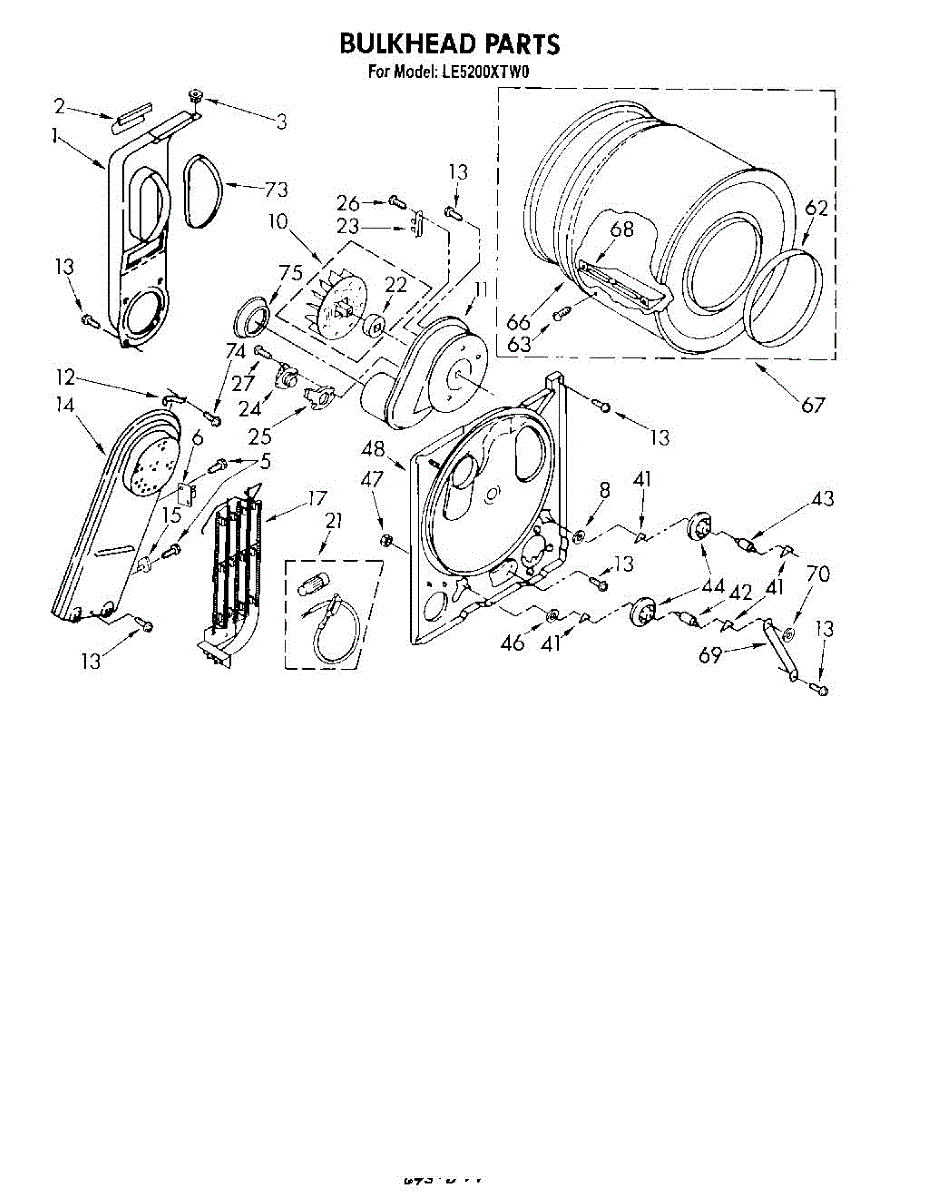

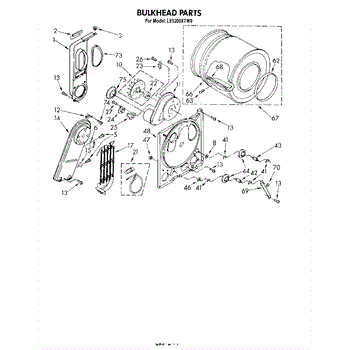

Parts for Whirlpool LE5200XTW0: 04 - Section Parts

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Thermal Cut-Off Kit is an OEM part for Whirlpool dryers. This safety kit is designed to protect the dryer from overheating by interrupting the heat source when the dryer air temperature reaches dangerously high levels. The kit typically includes one high-limit thermostat and one thermal cut-off fuse. These components are critical for preventing potential fire hazards by ensuring that the dryer operates within safe temperature ranges.

Symptoms of a failing thermal cut-off kit include:

• Dryer not heating up at all, as the thermal fuse may have been triggered
• Excessive heat in the dryer, prior to the fuse being triggered
• Frequent stopping of the dryer during cycles

Causes of thermal cut-off failure often involve restricted airflow (from lint buildup or obstructed vents), component failure within the heating system, or issues with the dryer cycling thermostat that cause abnormal heating.

This OEM part is also compatible with Kenmore, Maytag, KitchenAid, Roper, and other brands manufactured by Whirlpool.

This flat support washer provides a stable bearing surface under a fastener. Its 1-1/2-in diameter helps distribute load, maintain spacing, and keep components aligned so hardware stays tight and assemblies operate smoothly. What it does:

• Distributes clamping force to prevent pull-through and gouging
• Maintains proper spacing and alignment between mating parts
• Helps reduce vibration, rubbing, or wobble from a loose assembly
• Replaces a cracked, deformed, or missing support washer

• One support washer

• Disconnect power and shut off water/gas before servicing.
• Note the order and orientation of any washers/spacers during disassembly.
• Inspect mating hardware and surfaces; replace any worn or damaged parts.
• Tighten fasteners to manufacturer specifications—do not over-tighten.

The Blower Wheel is an OEM part for Whirlpool dryers. This component is crucial for the proper circulation of hot air within the dryer drum, ensuring efficient drying of clothes by directing airflow through the drum and out the exhaust.

Common causes of a bad blower wheel include accumulated lint and debris obstructing the wheel, physical damage from foreign objects, or general wear from prolonged use. A faulty blower wheel can significantly reduce drying efficiency and may cause the dryer to overheat.

Symptoms of a bad blower wheel include:

• Longer drying times for clothes
• Unusual noises during the drying cycle
• Overheating of the dryer
• Poor airflow from the dryer vent

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This blower housing assembly directs airflow from the dryer's drum to the exhaust, helping the appliance vent properly for efficient drying. It replaces a damaged or cracked housing to restore correct air path and reduce airflow loss. What it does:

• Guides air from the drum to the blower wheel and exhaust vent for proper drying performance
• Supports and locates the blower wheel and related seals to maintain airflow integrity
• Can reduce or stop airflow issues like poor drying or extended cycle times when cracked or broken
• May resolve abnormal noise caused by a loose or damaged housing contacting the blower wheel

• One blower housing assembly

• Disconnect electrical power (and gas supply for gas dryers) before servicing
• Access typically requires removing the dryer cabinet or back panel; follow the OEM service manual
• Inspect the blower wheel and motor while replacing the housing; replace any worn components
• After installation, check for proper wheel clearance and exhaust airflow and quiet operation

This retainer clip secures a component in place to prevent movement and maintain proper alignment during appliance operation. Replacing a damaged or missing clip helps restore safe, reliable performance.

• Holds the mating part firmly to reduce vibration and noise
• Helps prevent intermittent operation caused by loose fitment
• Common fix when a component feels loose, rattles, or won't stay seated

• Disconnect power and shut off gas/water before servicing
• Note original clip orientation and location before removal
• Use needle-nose pliers to carefully release and install the clip
• Do not over-bend the clip; replace if deformed or fatigued

A replacement mounting screw to secure appliance panels and components so parts stay properly fastened during normal use. Small but essential hardware for stable, rattle-free operation and reliable repairs. What it does:

• Fastens panels, brackets or components to the appliance chassis
• Prevents loose panels, vibration noise, or parts shifting during operation
• Used when original screw is lost, damaged, or stripped
• Restores proper fit and alignment after disassembly for service

• Disconnect power and water before starting any repair
• Use the correct screw type and length; do not force or substitute oversized fasteners
• Tighten until snug—avoid overtightening to prevent stripped threads or cracked parts
• Keep small parts away from children and pets

Specs: 10-16 x 1/2 inch.

This is the heater box only, does not include heating element.

The Hi-Limit Thermostat is an OEM part for Whirlpool dryers. It plays a crucial role in ensuring the dryer operates at safe temperatures by cutting off power to the heating element if the dryer overheats. This safety mechanism helps prevent potential fires and damage to the appliance.

Common causes of a bad thermostat include normal wear and tear, exposure to excessive heat, or electrical malfunctions.

Symptoms of a bad hi-limit thermostat include:

• The dryer not heating
• The dryer overheating
• The dryer shutting off unexpectedly during a cycle
• Longer drying times

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dryer Heating Element is an OEM part for Whirlpool dryers. This component is responsible for generating the heat needed to dry clothes efficiently. Situated in the rear or bottom of the dryer, the heating element heats the air before it enters the dryer drum, providing the warmth necessary for drying garments.

Common causes include overheating due to restricted airflow from a clogged vent, a break in the heating coil from wear and tear, or electrical issues such as short circuits. It's crucial to maintain proper dryer venting to prevent overheating and to ensure the longevity of the heating element.

Symptoms of a bad Dryer Heating Element include:

• Clothes taking longer than usual to dry
• Dryer not heating up at all
• Increased energy bills due to the dryer running longer
• A noticeable difference in drying efficiency

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

No longer includes terminals and adapter leads. You can purchase the wire separate, part number 279457. Another common Whirlpool dryer element is 279838. Use our model number search to be sure you're getting the correct element for your dryer.

The Heating Element Connecting Wire is an OEM part for Whirlpool dryers, designed to provide a secure electrical connection to the dryer's heating element. This critical component ensures that the heating element receives the power it needs to generate heat for drying clothes.

Causes of a bad heating element connecting wire can include overheating, physical damage, or wear and tear over time. These issues can lead to a loss of connectivity, resulting in the heating element failing to heat up.

Symptoms of a bad Heating Element Connecting Wire include:

• The dryer not heating up despite having power
• Intermittent heating, suggesting a loose or faulty connection
• Unusual smells or signs of burning, indicating overheating or damage to the wire

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Stop dryer downtime in its tracks — install the Whirlpool WP3392519 OEM Thermal Fuse in minutes.

OEM Quality Fast 1–2 Day Shipping* Free Tech Help

Why choose this fuse?

• Guaranteed OEM: built by Whirlpool to Whirlpool specs — no risky aftermarket clones.
• Broad compatibility: works with Whirlpool, Kenmore, Maytag, KitchenAid, Roper & more.
• Quick delivery: over 94 % of APP orders arrive in 2 days or less.

Fixes these common dryer problems

4-step DIY installation (≈10 min)

1. Unplug dryer and remove rear panel.
2. Locate thermal fuse on blower housing.
3. Transfer wires; secure new fuse with ¼-inch nut-driver.
4. Clean the vent & lint path before testing to prevent repeat failure.

*Video tutorial below.

Ready to get heat back?
Click Add to Cart now & enjoy industry-leading 1–2 day delivery on

The Cycling Thermostat is an OEM part for Whirlpool dryers. It regulates and monitors the temperature inside the dryer during the drying cycle. It ensures that the dryer doesn't overheat and prevents potential damage to clothes or the dryer itself.

Causes of a faulty cycling thermostat can include wear and tear over time, electrical issues, or sensor malfunction.

Symptoms of a bad cycling thermostat may include:

• Clothes taking longer than usual to dry
• Inconsistent drying results
• Overheating or burning smell
• The dryer not heating at all

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Drum Support Wheel Retainer is an OEM part for Whirlpool dryers. This part secures the drum support wheels in place, ensuring that the dryer drum rotates smoothly and quietly during operation. The retainer is designed to fit precisely, preventing the support wheels from loosening or wobbling, which can lead to inefficient drying and increased wear on other components.

Over time, retainers can wear out or become damaged, potentially leading to a loose drum support wheel. This can cause the dryer to operate noisily, vibrate excessively, or even damage the drum itself if not addressed promptly.

Symptoms of a bad Drum Support Wheel Retainer include:

• Unusual noises, such as squeaking or thumping, coming from the dryer
• Excessive vibration during operation
• The dryer drum may feel unstable or wobble when turned by hand

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Drum Support Roller Shaft - Left is an OEM part for Whirlpool dryers. It is specifically designed to support the drum roller, ensuring smooth rotation of the dryer drum during operation. This shaft is essential for maintaining the drum's alignment and stability, allowing for effective and efficient drying of clothes.

Causes of a bad drum support roller shaft can include wear and tear from regular use, accumulation of lint and debris, or damage from overloading the dryer. These factors can lead to the shaft becoming worn out or bent, impairing the dryer’s performance.

Symptoms of a bad drum support roller shaft include:

• Squeaking or grinding noises during the drying cycle
• The dryer drum not rotating smoothly or being off-balance
• Increased drying times or incomplete drying of clothes

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drum Support Roller Shaft - Right is an OEM part for Whirlpool dryers. This shaft provides support for the drum roller, allowing the dryer drum to rotate smoothly and efficiently during drying cycles.

You should replace the drum support roller shaft if it becomes worn, bent, or damaged. Causes of a bad drum support roller shaft can include regular wear and tear, overloading the dryer, or exposure to high temperatures, which can affect its structural integrity.

Symptoms of a bad drum support roller shaft include:

• Unusual noises such as squeaking or grinding during operation
• The dryer drum not rotating smoothly or becoming stuck
• Excessive vibration or wobbling of the dryer drum
• Visible wear or damage on the roller shaft

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dryer Rear Drum Support Roller Kit is an OEM replacement part for  Whirlpool dryers, as well as Kenmore, Samsung and other brands. This kit includes the rear support rollers that are crucial for maintaining proper drum alignment and smooth rotation during the drying cycle. Matching belt 341241 and idler pulley WP691366.

Symptoms of a faulty Rear Drum Support Roller Kit include:

• Excessive vibration or shaking during drying cycles
• Loud grinding or squeaking noises from the rear of the dryer
• Uneven wear or visible damage to the rollers
• Potential drum misalignment, rubbing against the drum casing, or leaks

Causes of a bad Rear Drum Support Roller Kit can include wear and tear over time, excessive load imbalances, or physical damage from impact or mishandling.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

This support washer is a flat spacer used within the mechanism to support and separate mating parts, maintaining alignment and smoother movement. Replacing a worn washer helps reduce friction and wear so components operate properly. What it does:

• Maintains proper spacing and support between adjoining parts
• Helps prevent metal-to-metal contact, reducing scraping or grinding noises
• Addresses wobble or excess play when the original washer is worn, deformed, or missing
• Restores smoother movement and alignment in the assembly

• One support washer

• Disconnect power and water supply before servicing; for gas combos, also shut off gas
• Refer to your model's parts diagram for location and orientation
• Track the order of any shims/spacers during disassembly and reinstall in the same sequence
• Tighten fasteners to manufacturer guidance to avoid deforming the washer or binding parts

This lock nut secures appliance components and resists loosening from vibration. Replacing a stripped, rusted, or missing nut restores a firm, reliable connection to reduce noise and prevent parts from shifting or backing off.

• Secures brackets, shafts, pulleys, panels, or other hardware as designed by the manufacturer
• Helps prevent fasteners from loosening due to vibration and thermal cycling
• Common fix for rattling/vibration noises and components that work loose over time
• Replaces damaged, rounded, or missing original nut to restore proper fit

• Disconnect power and shut off gas/water supplies before servicing
• Remove the worn nut with the appropriate wrench or socket
• Start the new nut by hand to avoid cross-threading; tighten securely—do not overtighten
• Inspect the mating bolt/stud and any washers; replace if worn or damaged

This front bearing ring sits on the dryer's front bulkhead to provide a smooth, low-friction surface for the drum lip. Replacing a worn ring helps restore quiet, steady drum rotation and prevents scraping against the front panel. What it does:

• Supports the front of the drum and keeps it centered
• Provides a low-friction surface between the drum and front bulkhead
• Helps eliminate squealing, scraping, or grinding noises from the front
• Can address drum drag or rough, uneven rotation

• 1 bearing ring

• Disconnect power; shut off gas supply for gas models before servicing
• Remove the top and front panel to access the front bulkhead and drum
• Support the drum while replacing the ring; install in the same orientation as the original
• Spin the drum by hand to ensure smooth, quiet rotation before reassembly; inspect the belt, idler pulley, rollers, and felt seals while open

The Rear Dryer Drum Felt Seal with Adhesive is an OEM part for Whirlpool dryers. It forms a protective barrier along the rear opening of the dryer drum, preventing air leaks and absorbing sound-dampening vibrations.

Causes of a bad rear drum felt seal can include degradation of adhesives from heat cycling or poor drum surface bonding from bending stresses over time.

Symptoms of a bad rear dryer drum felt seal include:

• Reduced drying effectiveness and longer cycle times from air leaks
• Excessive noise emanating from around the rear drum seal area
• Flapping or loose seals allow air pathways to form
• Deterioration of the felt allowing lint and dust collection behind

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Replacement drum baffle that lifts and tumbles clothes inside the dryer for more even drying and helps prevent garments from snagging. Restores proper drum agitation to reduce noise and improve drying performance. What it does:

• Lifts and separates clothes as the drum turns to promote even heat exposure and drying.
• Helps keep items from bunching or wrapping around the drum, which can cause uneven drying.
• Reduces rattling, thumping, or scraping noises tied to a loose or damaged lifter.
• Protects fabrics from snagging or rubbing against the drum surface.

• Disconnect power to the appliance before beginning service to avoid shock or injury.
• Access may require removing the dryer front panel or drum.
• Keep fasteners and mounting tabs aligned during reassembly to ensure the baffle seats correctly.

The Push Clip is an OEM replacement part for Whirlpool dryers. Situated internally near the rear cylinder wall, it firmly secures the drum support roller assembly.

Causes of failure relate to fatigue from years of absorbing drum impacts and associated mechanical stresses. Corrosion penetration if moisture enters the clip mounting area increases operational resistance over time as well.

Symptoms consist of:

• Uneven drying and weakened tumbling action inside the cylinder
• Vibration or noise emerging from the rear roller area
• Premature wear signals stemming from dislocated roller assembly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Lint Screen Housing Foam Seal is an OEM part for Whirlpool dryers. This seal is placed around the lint screen housing to prevent air leaks and ensure that the dryer operates efficiently by directing airflow properly through the lint screen. By maintaining a tight seal, this foam helps to optimize the dryer’s performance, reduce drying times, and prevent lint from escaping into the internal parts of the dryer, which can lead to potential maintenance issues and decreased efficiency.

Symptoms of a failing lint screen housing foam seal include:

• Increased lint buildup inside the dryer beyond the lint screen
• Longer drying times due to inefficient air circulation
• Excessive heat and humidity within the dryer

Causes of foam seal deterioration typically involve normal wear and tear, exposure to high heat which can degrade the material, or improper maintenance that can tear or dislodge the foam.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Specs: 10-16 x 1/2 inch.

This factory shield is a protective panel used within the appliance assembly. It helps guard nearby components and maintain proper operation by directing heat, air, or moisture as designed. Replacing a damaged or missing shield restores correct fit and protection.

• Provides a protective barrier for internal components in the specified area
• Helps manage airflow/heat/moisture path as engineered for the system
• Replace if cracked, warped, missing, or not securing firmly
• Typical signs include visible damage, rubbing/rattling, or evidence of heat/moisture exposure near the shield

• Disconnect power; shut off gas/water if applicable before servicing
• Access the location per your model's service information
• Transfer and reuse original clips/fasteners as needed; do not overtighten
• Verify alignment and clearances before reassembly and testing

The Dryer Heating Element is an OEM part for Whirlpool dryers. This component is responsible for generating the heat needed to dry clothes efficiently. Situated in the rear or bottom of the dryer, the heating element heats the air before it enters the dryer drum, providing the warmth necessary for drying garments.

Common causes include overheating due to restricted airflow from a clogged vent, a break in the heating coil from wear and tear, or electrical issues such as short circuits. It's crucial to maintain proper dryer venting to prevent overheating and to ensure the longevity of the heating element.

Symptoms of a bad Dryer Heating Element include:

• Clothes taking longer than usual to dry
• Dryer not heating up at all
• Increased energy bills due to the dryer running longer
• A noticeable difference in drying efficiency

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

No longer includes terminals and adapter leads. You can purchase the wire separate, part number 279457. Another common Whirlpool dryer element is 279838. Use our model number search to be sure you're getting the correct element for your dryer.
