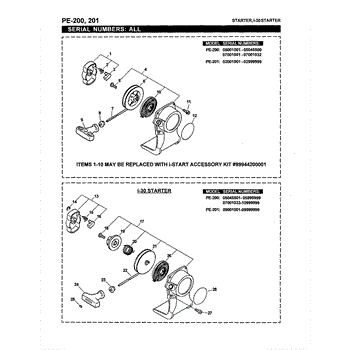

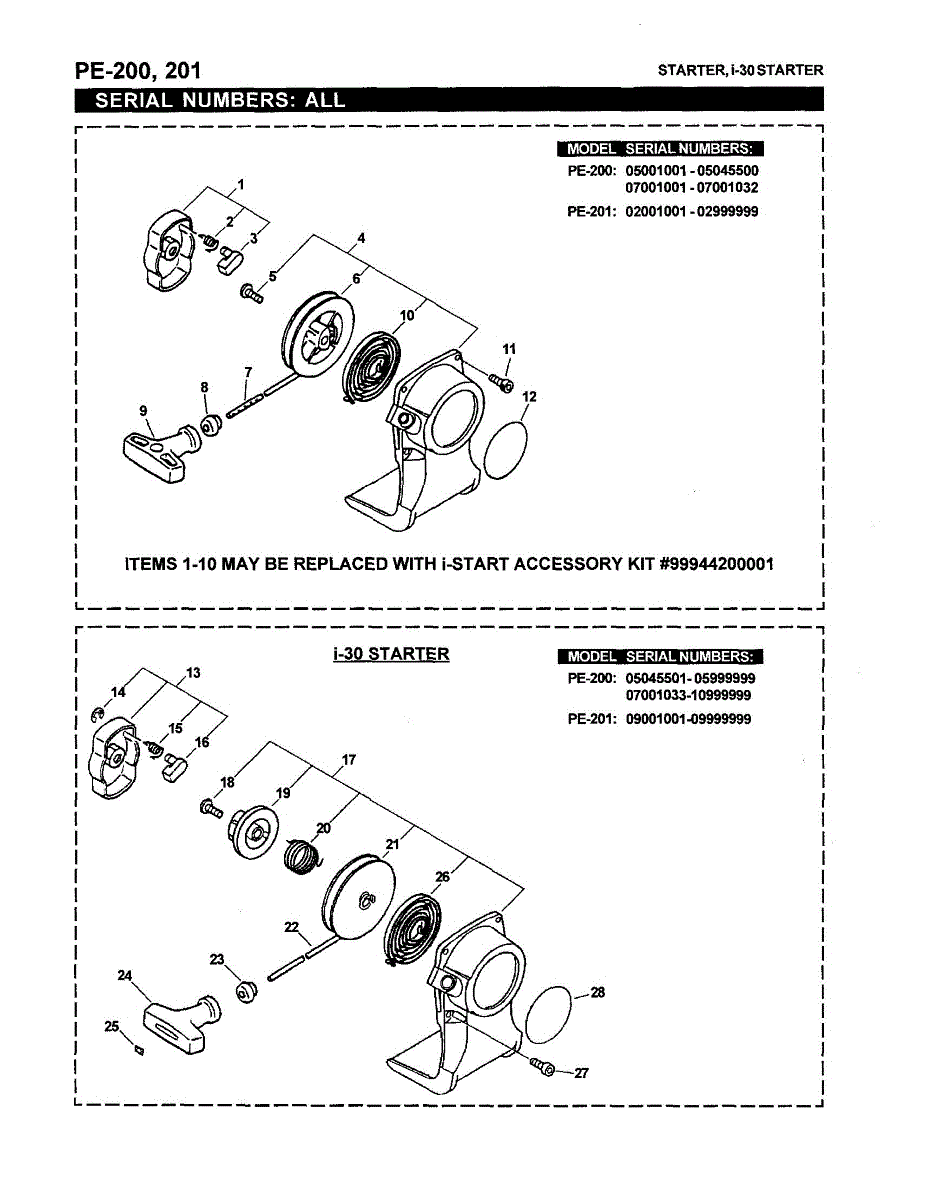

Parts for Echo PE-201: Starter Pe-200, 201 Parts

This is a genuine pawl spring, also sometimes called a return spring, which can be found on select models of small power equipment engines. This part is designed as part of the recoil starter system. When the starter is engaged, the return spring is responsible for returning the starter pawl back to its original position once the engine is started. If the spring starts to wear or fail and cannot return the pawl, the engine will not operate properly and could have trouble starting in the future. It is always a good idea to inspect all starter housing components and replace them with genuine parts like this pawl spring when they are faulty. The OEM pawl spring is manufactured by Echo and made to exact standards to fit more than 150 compatible machines from the brand, as well as select models from Little Wonder and Shindaiwa. It can be used with edgers, trimmers, hedge trimmers, blowers, and paint sprayers. The pawl spring is made of durable metal and is sold as a single unit with no additional hardware or parts. Always allow the engine to cool completely and disengage the spark plug before working on the starter assembly, including replacing this spring.

This is a durable plastic starter pawl that is designed to secure the return spring inside of the starter pawl assembly. It connects the flywheel with the recoil pulley and spins when the starter rope is pulled. This makes the flywheel rotate, which causes the engine to start. If a trimmer or leaf blower isn’t working correctly, it could be caused by a defective starter pawl. The first step is removing the engine cover followed by removing the spark plug boot, taking off the engine cover, and taking out the starter assembly. Next, bind the engine and remove the starter pulley from the engine. At this point, take off the starter pawl return spring using a screwdriver and install the new starter pawl. Reassemble the unit before unbinding the engine and using the equipment again. This is a genuine OEM starter pawl for Echo, Mantis, Shindaiwa, and Little Wonder water pumps, trimmers, tillers, hedge trimmers, chipper shredders, leaf blowers, and pole saws. It is sold individually. A screwdriver and a hex key are needed to complete the replacement.

This is a starter kit meant to replace the starters used on a number of small gasoline powered Echo engines found in lawn and landscaping equipment. This is found on devices such as gasoline powered drills, edgers, trimmers, hedge clippers, brush cutters, and grass trimmers. This part actually replaces the complete starter assembly, including the pull rope, pulley, spring, and handle. Through normal use, starter pulleys eventually sustain damage. A sign of this is when a user pulls and pulls on the starter rope, but the flywheel that turns the engine simply does not engage. While individual pieces of the starter assembly can be replaced, it is generally considered wiser to replace the entire assembly, since every part will have sustained similar wear and tear. Replacing the assembly all at the same time saves money and added time spent working on a disassembled machine. Replacing the starter assembly with a new one is a comparatively easy task, since the user does not have to worry about compressing the recoil starter or tensioning the pull rope. The new assembly is simply bolted onto the device. It is most important, however, to use a starter assembly like this one that is OEM certified to match the original starter assembly perfectly.

This screw is a necessary part in many pieces of outdoor lawn and garden equipment and especially in power machines. It is designed to be used with hedge trimmers, edgers, chainsaws, leaf blowers, chippers, shredders, trimmers, engines, power sprayers, pole saws, pruners, brush cutters, tillers, cultivators, and water pumps. It is designed to be compatible for use with products manufactured by the Echo and Shindaiwa companies.The basic function of a screw is to hold different pieces or materials together. Replacing screws like this one is a relatively simple process as it involves locating the faulty screw, or a spot with a missing screw, and replacing it with the new one.This screw is a genuine OEM part sourced directly from the manufacturer, and it is sold individually. It is manufactured by the Echo company. This screw is made out of metal.

A starter rope is wrapped around the recoil drum starter pulley. The starter spring creates tension for the rope to recoil. It is 2.25 inches in diameter on the outside of the pulley and 0.25 inches in diameter on the inside of the pulley. If the starter spring has gone bad, consider replacing the recoil drum starter pulley while repairing the other part. It may be that the damage of the starter spring has chipped the drum, or the drum may be worn from the friction of spinning as the rope uncoils and recoils. If the recoil drum starter pulley is damaged, it may not spin freely. This could prevent the engine from starting. The replacement of this part should be quick and easy and only requires a screwdriver and pliers to complete. The recoil drum starter pulley works with trimmers, hedge trimmers, pole saws and pruners, leaf blowers/vacuums, small engines, chipper shredders, edgers, tillers, and water pumps manufactured by Echo, Little Wonder, Mantis, and Shindaiwa brands. It is a genuine OEM part.

This starter rope is designed for use with several lawn and garden tools, including as hedge trimmers. It is wrapped around the starter pulley and can be manually pulled on to get the engine to start up. After wear and tear or a lot of use, the rope can start to fray and weaken. Given more time, the starter rope will completely break and no longer be useable. Many people will realize the starter rope is broken when pulling on it and receiving a line of rope in their hands. If the starter rope is broken, it needs to be replaced. First, the spark plug needs to be removed to prevent the engine from powering on. Next, the starter rope can be removed from the guide. The engine cover and fuel tank will need to be removed, as well as the dipstick tube and blower housing. Next, the recoil spring should be rewound before threading the new rope into the pulley. This is an individual genuine OEM component that comes directly from the manufacturer for the highest quality. It can be used with Echo, Little Wonder, and Shindaiwa trimmers, chipper shredders, leaf blowers, and hedge trimmers. A replacement will require basic tools like screwdrivers and a socket wrench.

This is a rope guide that is used with various types of lawn and garden equipment. It connects the rope handle and the starter rope. It helps prevent damage to either of the ropes by covering them in durable plastic material. Over time or through use, the rope guide can become damaged or break. If this happens, the part will need to be replaced. First, put the equipment on a flat surface. Drain the fuel from the tool and disconnect the spark plug wire. Next, the starter will need to be removed from the tool to gain access to the rope guide. The rope guide and any other damaged components, such as the string and springs, can be removed from the tool before adding a replacement component. This is an authentic OEM replacement component that is sourced directly from the manufacturer. It is sold as an individual part. The rope guide is compatible with string trimmers, leaf blowers, hedge trimmers, and pole pruners manufactured by Little Wonder, Echo, and Shindaiwa.

A starter rewind spring is made of metal and works in conjunction with pull starter lawn and garden equipment. If the starter rewind spring is damaged, the equipment’s engine won’t be able to start. The pull start may not provide any resistance when trying to start the machinery. If this is the case, inspect the starter rewind spring for damage. Replacing the starter rewind spring can be accomplished in just a few moments with only a screwdriver. Remove the old part and insert the new one. This starter rewind spring is compatible with string trimmers, hedge trimmers, leaf blowers/vacuums/ pole saws and pruners, edgers, chipper shredders, small engines, tillers, water pumps, and sprayers manufactured by Echo, Little Wonder, Mantis, and Shindaiwa brands. It is a genuine OEM part.

This is a genuine replacement bolt that is designed for use with select trimmers and brush cutters. The metal hex screw is generally found on the starter cover and used to secure the cover to the trimmer to protect the internal engine components. Although the screw is durable, it can become damaged due to impact or another incident. It may also be lost in the process of other repairs or maintenance. It will need to be replaced with an OEM model like this screw for the best results. This 4x16 screw is manufactured by Shindaiwa and compatible with select machines from the brand, as well as those from Little Wonder and Echo. This metal screw is sold as an individual unit and does not include any additional parts or accessories. Replacing the starter cover screw is generally a simple task. Allow the engine to cool and disconnect the power supply. Then, use an Allen wrench to remove the old screw if it isn't already missing. Install the new screw and the job will be done. It is important to wear gloves and use the right size hex key to ensure that the screw doesn't get stripped during installation.

This starter pulley is intended for use in various outdoor machines and tools. It is part of the overall recoil starter assembly. With the help of the starter spring, the pulley is responsible for pulling the starter rope back after the engine is started. The starter rope is wound around the pulley. When the rope is pulled, the pulley spins and unwinds the recoil spring, starting the combustion process. If the pulley fails due to normal wear and tear or damage, it is less expensive to replace than replacing the entire system. Gloves and a screwdriver are required to replace the pulley. Remove the rope handle and rope before removing the pulley. Note that the spring coil will need to be removed as well. Carefully remove it while holding tight to prevent it from uncoiling. Install the new pulley, rewind the spring coil into place if it came uncoiled, and reinstall the rope and handle. Replace the cover. Pull the rope starter to make sure the parts were placed back correctly. This starter pulley assembly is made of durable plastic and metal and sold as an individual component. The pulley is a genuine OEM replacement part compatible with trimmers, pole saws, edgers, pruners, and other equipment manufactured by Echo and Shindaiwa.

This is a genuine pawl spring, also sometimes called a return spring, which can be found on select models of small power equipment engines. This part is designed as part of the recoil starter system. When the starter is engaged, the return spring is responsible for returning the starter pawl back to its original position once the engine is started. If the spring starts to wear or fail and cannot return the pawl, the engine will not operate properly and could have trouble starting in the future. It is always a good idea to inspect all starter housing components and replace them with genuine parts like this pawl spring when they are faulty. The OEM pawl spring is manufactured by Echo and made to exact standards to fit more than 150 compatible machines from the brand, as well as select models from Little Wonder and Shindaiwa. It can be used with edgers, trimmers, hedge trimmers, blowers, and paint sprayers. The pawl spring is made of durable metal and is sold as a single unit with no additional hardware or parts. Always allow the engine to cool completely and disengage the spark plug before working on the starter assembly, including replacing this spring.

Many gas-powered small engines require the use of a pull cord to get the engine going. Rather than a starter, it is the pull of the cord that causes the engine to turn over and combustion to begin inside of the engine. These pull mechanisms often use a damper spring on the starter assembly. It exists to "pre-load" a recoil or pull starter with a lot of tension. When it malfunctions, it will take a tremendous amount of effort to get the engine going. This replacement damper spring is designed for a long list of Shindaiwa and Echo machines. These include trimmers, blowers, edgers, and more. This OEM replacement part is shipped individually and made of durable metal for years of service.

A rope starter is an essential part of many outdoor equipment types, including hedge trimmers, brush cutters, pole saws, and edgers. The rope starter is utilized through a pulling action by the operator. When fitted correctly, it engages the starter spring. The rope turns the engine quickly enough to create a spark. The spark from the movement ignites the fuel in the cylinder and starts the lawn equipment. Rope starters can break from normal use, wearing down as the device is started. To install the rope starter, a socket wrench and screwdriver are required. The replacement can be done in a few minutes when following proper instructions. Wear gloves for protection. The housing must first be disassembled for the replacement of a rope starter. Remove the broken rope starter and install the new one by turning the starter string to build tension. The new rope starter then coils inside. Reassemble the housing and test the rope starter. The rope starter is a genuine OEM replacement part that fits in both Echo and Shindaiwa equipment. It is sold individually. This replacement part is made from white nylon material. Check the instruction manual for specific compatibility.

This is a carburetor rebuild kit that is made for use with gas powered chainsaws. It comes with many parts, including gaskets and diaphragms, that can get a chainsaw running properly again if there are issues with the carburetor. The carburetor is an important component of the chainsaw that ensures the right amount of gas and air reach the cylinder to ignite. The main symptom of carburetor issues is an engine that won't start even when the tank is full of fuel.There's a simple test to determine if the carburetor has an issue inside the chainsaw. The air filter will need to be removed from the equipment before a small amount of fuel is added directly to the carburetor. If the carburetor has problems, the engine will start for a short time before shutting off. Replacing or repairing the carburetor will be required.This carburetor rebuild kit is a genuine OEM replacement part that is directly sourced from the manufacturer. It is sold as an individual kit with several components. The kit is made for use with chainsaws manufactured by Zama and Stihl.
