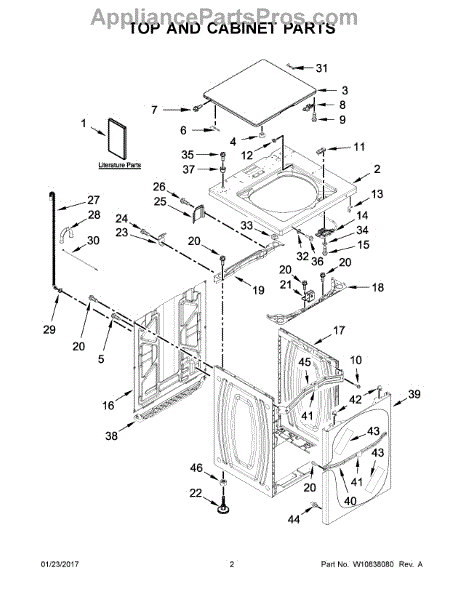

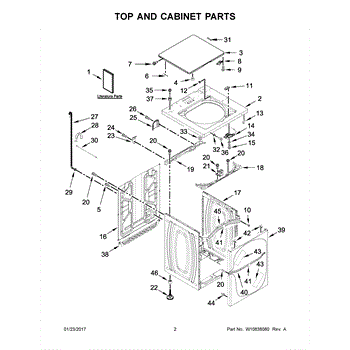

Parts for Whirlpool CAE2745FQ0: 02 - Top And Cabinet Parts

The Switch Mounting Screw is an OEM part compatible with Whirlpool washing machines. This screw securely mounts the cycle selector switch within the control console assembly. Proper fastening ensures dependable operation of control functions.

Causes of a bad mounting screw can stem from stress cracks developing over multiple years of operation. Vibrations accumulate, slowly loosening connections housed in a wet environment.

Symptoms of a bad mounting screw include:

• Loose or rattling switch within the console face
• Difficulty selecting cycles as buttons wobble out of place
• Water intrusion hastening corrosion of electrical terminals
• Potential shock hazards if live connections are exposed

This Whirlpool replacement screw restores a tight mounting point. It is compatible with brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Right hand side

The Washer Lid Screw is an OEM part for Whirlpool washing machines. This 6-32 x .340 screw secures the washer lid to the hinge assembly, ensuring the lid opens and closes smoothly and stays securely in place during operation.

Causes of a bad washer lid screw can include wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or mishandling. A compromised screw can lead to issues with the lid's stability and functionality.

Symptoms of a bad washer lid screw include:

• The washer lid feeling loose or wobbling
• Difficulty in opening or closing the lid
• Visible rust or corrosion on the screw
• The lid not staying securely in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Lid Latch Strike is an OEM part for Whirlpool washing machines. This component is crucial for securing the washer lid during operation, ensuring the lid stays closed and the washer can function safely and efficiently. The lid latch strike works in conjunction with the lid latch assembly to engage and lock the lid when the washer is in use.

You should replace the lid latch strike if it becomes damaged or worn out. Common causes of a bad lid latch strike include regular wear and tear, physical damage from forceful closing, or misalignment from repeated use.

Symptoms of a bad lid latch strike include:

• Washer lid not staying closed
• Washer not starting or stopping mid-cycle
• Error codes related to the lid lock mechanism
• The washer lid feels loose or misaligned

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory screw secures panels, brackets, and other components in your appliance. Replace a missing, stripped, or corroded fastener to restore a tight fit and keep parts properly aligned and rattle-free.

• Secures appliance components and panels in their mounting points
• Replaces damaged, stripped, or missing hardware
• Helps reduce rattling or vibration from loose parts

• Disconnect power; shut off water or gas supplies if applicable
• Match location with the original screw; start threads by hand to avoid cross-threading
• Tighten until snug; do not over-torque, especially into plastic or thin metal
• Reinstall any covers or panels and test for secure fit

Size: 8-18 x 1/2 inch.

This lid lock bezel is the plastic trim that mounts on the washer's top panel around the lid lock. It supports and protects the lock opening so the latch aligns correctly and the area looks clean and finished.

• Provides mounting/trim for the lid lock/switch assembly on the top panel
• Helps keep the lock aligned with the lid strike for reliable engagement
• Replaces cracked, broken, or missing bezel that leaves the lock loose or exposed
• Common signs include a loose or wobbly lock, difficulty latching the lid, or cosmetic damage around the lock opening

• Disconnect power and water supply before servicing
• Access the top panel (release spring clips or remove screws per model)
• Remove screws securing the lid lock, lift out the old bezel, position the new bezel, and reinstall the lock using existing fasteners
• Test operation before reassembly

The lid hinge bearing is used for the lid hinges on washers and dryers. When functioning properly, it allows the lid to open and close properly. If this is a problem with the bearing, it could make the lid difficult to move. In some cases, when the lid will not close, it means that the machine will not function correctly. Damaged lid hinge bearings should be replaced as soon as possible.The lid hinge bearings see a lot of work since they are in use whenever the lid of the washer or dryer opens and closes. They could become cracked and broken over time. Replacing the bearings is a relatively simple repair that owners can make on their own.This lid hinge bearing is for use with many models of washers and dryers from Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Admiral, Amana, Crosley, and Magic Chef. This is a genuine OEM replacement part that has been sourced from the manufacturer. The piece is sold individually, so if owners need to replace more than one hinge, they will need to buy multiples.

Used from harness to top.

The Washer Latch is an OEM replacement part for Whirlpool washing machines. It is a critical component responsible for securing the washer door during operation, preventing water leaks and ensuring a safe, efficient wash cycle.

Symptoms of a faulty washer latch include:

• The door not latching securely or popping open during cycles
• Leaks or water seeping out around the door area
• Error codes or indicators related to the door or latch system

Causes of a bad washer latch can range from wear and tear over extended use to physical damage from impact or mishandling, or issues with the door alignment or hinges.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washing machine models.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This genuine replacement door lock assembly secures the appliance door and signals the control so cycles start and run properly. It restores proper door latching and electronic lock function for safe operation. What it does

• Physically latches the door closed to allow the appliance to run
• Contains the switch that tells the control board the door is locked/closed
• Can resolve symptoms like the appliance not starting, showing a door error, or stopping mid-cycle
• Replaces a worn or broken latch to restore reliable door closure

• One door lock assembly as shown

• Disconnect power before attempting replacement to avoid electrical shock
• Access typically requires removing the front panel or door trim; follow your model's service instructions
• Handle edges and mounting tabs carefully to avoid damage or injury

This leveling foot threads into the base of the appliance to support and stabilize it. Proper adjustment keeps the unit level on uneven floors, reducing rocking, vibration, and noise for smoother, more reliable operation.

• Provides height adjustment to level and stabilize the appliance
• Helps reduce rocking, vibration, and rattling during use
• Restores support when an original foot is worn, stripped, or missing
• Can improve door/tub alignment once the unit is properly leveled

• Disconnect power and, if applicable, turn off water/gas before servicing
• Carefully tip or raise the unit to access the foot; use a helper to prevent tipping
• Thread the new foot by hand to avoid cross-threading; use a wrench for final adjustment
• Level the appliance front-to-back and side-to-side; ensure all feet firmly contact the floor

This door hinge secures and pivots a refrigerator or freezer door, restoring correct alignment and smooth opening. Use this replacement when a door droops, binds, or makes noise during operation. What it does:

• Provides a pivot point that supports the door and maintains alignment.
• Restores smooth opening and closing when original hinge is worn or bent.
• Helps prevent gaps that can cause cooling loss or uneven sealing.
• Reduces scraping, squeaking, or binding caused by a damaged hinge.

• One replacement hinge (single hinge assembly only)

• Disconnect power and empty door shelves before starting; support the door to prevent dropping.
• Follow OEM instructions for correct screw torque and hinge orientation; some doors require shims or spacer placement.
• Use appropriate hand tools; avoid overtightening fasteners to prevent damage.

Screw: 8-16 x 3/8 inch.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear bulkhead to the tub, ensuring vibrations are reduced through solid mounting points. Properly installed screws dampen oscillating movement.

Causes of a bad screw include damage from water exposure like corrosion or breakage from stress concentrations if the tub bangs around during imbalanced loads.

Symptoms of a bad screw include:

• Loose or detached rear bulkhead allowing side-to-side play
• Excessive noise and shaking felt through the surrounding walls
• Development of micro-cracks around screw holes over time
• Potential leak paths if holes are no longer sealed

This Whirlpool replacement screw restores a stable suspension system. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hose is an OEM replacement part for Whirlpool washing machines. It is a flexible tube responsible for draining and expelling the used water from the washer tub after each wash cycle.

Symptoms of a faulty drain hose include:

• Water leaks around the hose connections or along its length
• Slow draining or improper drainage of the tub
• Visible cracks, bulges, or damage to the hose material

Causes of a bad washer drain hose can include normal wear and tear over time, exposure to high water pressure or temperatures, physical damage from kinks or pinches, or improper installation or connections.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washing machine models.

A U-bend retainer designed to secure a U-shaped heating element or tubing in place, preventing movement and vibration for reliable operation. Fits as the replacement hold-down clip used on compatible Whirlpool HVAC and appliance assemblies. What it does:

• Secures U-shaped element or tubing to the appliance frame or mounting bracket
• Prevents rubbing or vibration that can lead to wear or noisy operation
• Helps maintain proper spacing and alignment of the element for consistent performance
• Used where a compact, U-shaped clamp is required to hold components safely

• One U-bend retainer clip as shown

• Inspect the surrounding area and replaced part for damage before installing
• Use basic hand tools; align clip over the U-bend and fasten to the designated mounting point
• Disconnect power and allow components to cool before attempting repair
• Replace with the exact OEM fasteners

The Spring Tension Hose Clamp is an OEM part for Whirlpool washing machines. It is designed to secure hoses in place, preventing leaks by maintaining consistent tension on the hose connections.

Over time, spring tension hose clamps can lose their effectiveness due to metal fatigue, corrosion, or damage from frequent tightening and loosening. This can lead to leaks and improper hose connections.

Symptoms of a bad spring tension hose clamp include:

• Water leaks around hose connections
• Loose or disconnected hoses
• Unusual noises or vibrations during operation
• Water pressure issues within the washing machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Right hand side. For screws use WPW10119828.

This cage nut has 5/16-18 threads and clips into a panel or frame opening to create a durable, replaceable threaded anchor. It restores a solid mounting point so screws can securely fasten panels, brackets, or hardware.

• Provides a 5/16-18 threaded anchor in thin sheet metal or chassis openings
• Secures panels, brackets, and components where factory threads are not possible or have stripped
• Helps eliminate looseness, rattling, or misalignment when a mounting point fails
• Symptoms of a failed/missing cage nut include a screw that won't tighten or hold, loose panels, and vibration noises

• Disconnect power and allow moving parts to stop before servicing
• Remove the screw and old cage nut; compress the new nut's tabs and snap it fully into the opening
• Align threads and start the screw by hand to avoid cross-threading
• Tighten the screw until snug; do not overtighten into sheet metal

The Ring-O is an OEM part for Whirlpool washing machines. It is a small but essential component used to create a secure seal between different parts of the washing machine, preventing leaks and ensuring proper water flow during the wash cycle. This O-ring is typically used in various connections within the appliance to maintain water-tight integrity.

Causes of a bad Ring-O can include regular wear and tear, degradation due to constant exposure to water and detergents, or physical damage from improper installation or handling.

Symptoms of a bad Ring-O include:

• Water leaks from the washing machine
• Reduced efficiency in water flow
• Visible signs of wear or cracks in the O-ring
• Unusual noises during operation due to improper sealing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This mounting bracket secures internal components and keeps assemblies aligned for reliable operation. It replaces a worn or broken bracket to restore proper fit and reduce movement that can cause noise or misalignment. What it does:

• Secures appliance panels or components to the cabinet to maintain proper alignment
• Prevents excess vibration and rattling from loose parts
• Helps keep doors, drawers or internal assemblies positioned correctly
• Addresses symptoms like loose-fitting panels, rattling noises, or misaligned components

• Disconnect power before service to avoid electrical shock
• Basic hand tools required; remove adjacent panels as needed for access
• Inspect surrounding fasteners and replace any damaged screws or clips

A replacement door lock latch assembly that secures the appliance door during operation and restores the safety interlock so cycles can start and run without interruption. Installs where the original lock has failed or won't engage. What it does:

• Secures and latches the appliance door so the unit can start and complete cycles.
• Acts as the safety interlock that signals the control when the door is closed.
• Common symptoms: appliance won't start, door won't stay closed, door lock error codes, or cycles stop mid-run.
• May click or fail to engage if the locking mechanism or switch is worn or broken.

• Disconnect power (and water supply if applicable) before beginning any repair to avoid shock or injury.
• May require removal of door or access panels and basic hand tools; keep track of screws and hardware.
• Test the door operation and run a short cycle after installation to confirm proper operation.

This sound absorber is an OEM-style insulation pad designed to reduce washer cabinet noise and rattling for a quieter cycle. It mounts inside the appliance cabinet to help dampen vibration and airborne sound. What it does:

• Dampens vibration and reduces cabinet noise during spin and agitation
• Helps minimize rattling from internal components for a quieter operation
• Supports stable operation by providing a cushioned barrier between parts and the cabinet
• Commonly replaced when padding is torn, missing, or compressed

• One sound absorber insulation pad

• Disconnect power and water supply before starting any repair
• Access may require removing outer cabinet or panels; follow your model's service manual
• Use proper fasteners and placement as shown in OEM diagram; avoid altering material

This locking nut is used for many purposes on a range of machines including household appliances. This nut is often used for leg leveling for machines. It will help with vibrations from washers and dryers. If the nut is used for this purpose and goes missing or becomes damaged, it could cause the machine to vibrate more and seem louder.Nuts are made from metal and are built to last a long time. However, there can still be issues that arise. In some cases, the nuts might go missing if they become loose and the machine is moved. They could also corrode over time and need to be replaced. The replacement of the nut is typically a fast and simple repair.The nut is a genuine OEM replacement part sourced from the manufacturer. It can work with washers, dryers, and combo machines, and is compatible with models from Whirlpool, Kenmore, Maytag, and Roper. The part is sold individually. Owners may want to have several on hand.
