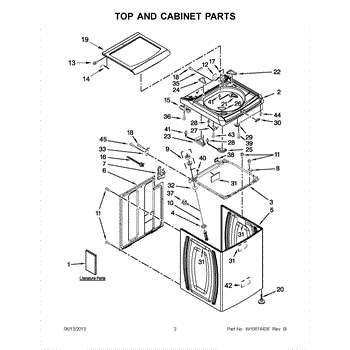

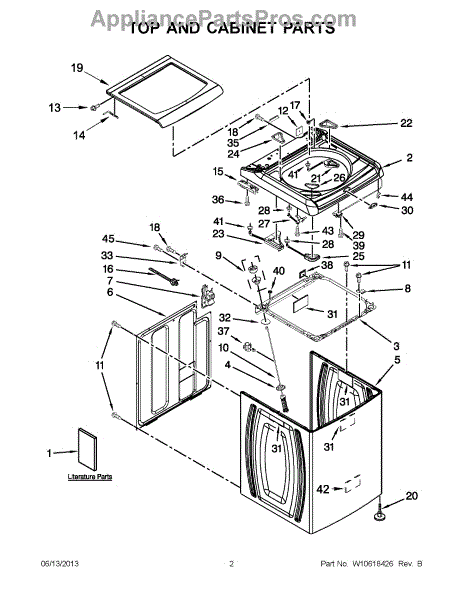

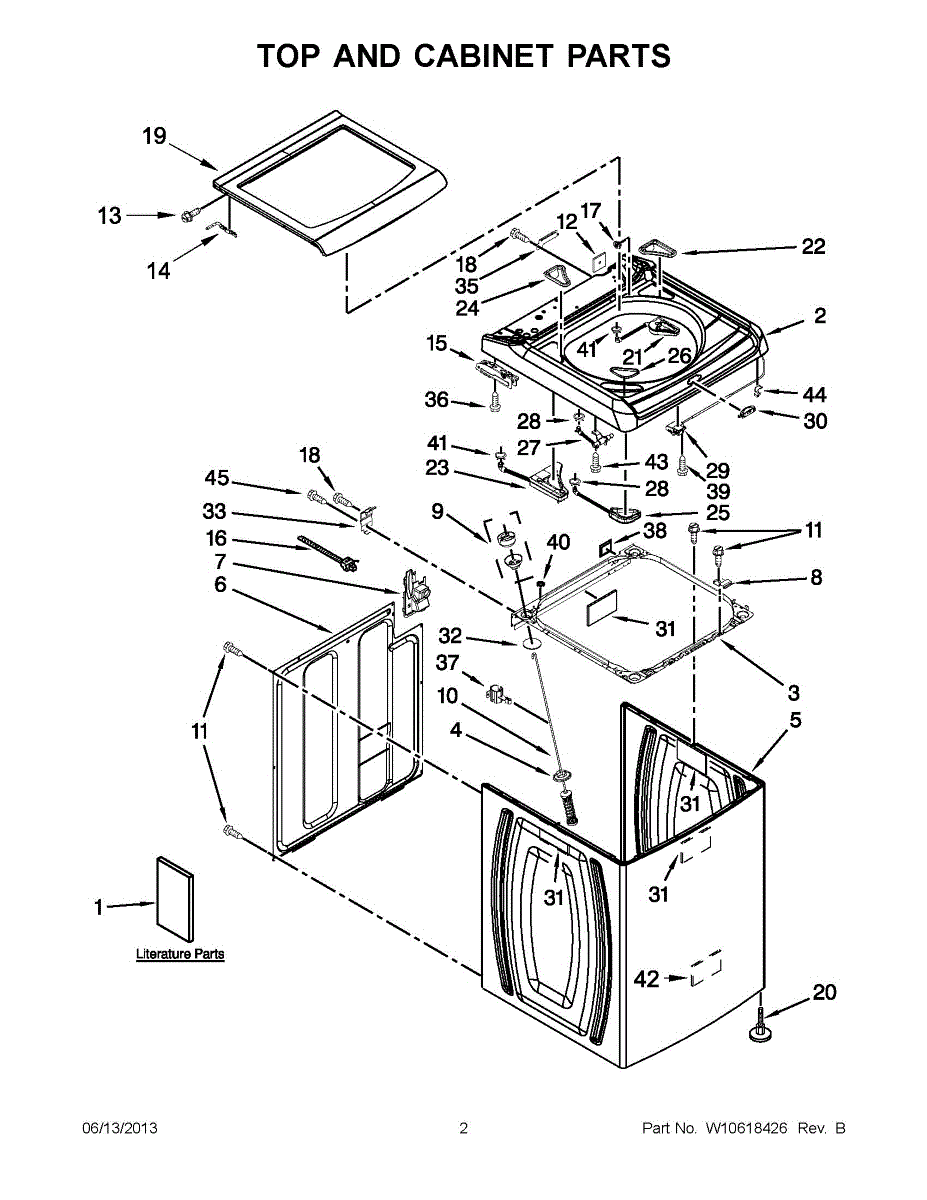

Parts for Whirlpool WTW8100BW0: 01 - Top And Cabinet Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

Small but essential, this drain hose retainer is a clip that secures the hose in place during use or storage. It keeps the hose properly routed to help prevent kinks, pull-outs, and leaks. What it does:

• Holds the drain hose to the cabinet/frame for correct routing or stowage
• Helps prevent kinks, abrasion, and strain that can cause poor draining or leaks
• Replaces a broken, warped, or missing retainer so the hose stays put
• Common symptoms: hose won't stay clipped, falls during operation, visible damage, water near hose path

• 1 drain hose retainer

• Disconnect power and turn off the water supply before servicing
• Access the hose routing area and remove the damaged retainer
• Position and fasten the new retainer in the same location; route the hose through it
• Run a brief test to ensure secure routing and no leaks

This small tension spring restores the return force in the top lock mechanism so it latches securely and releases smoothly. Replacing a fatigued spring helps the lock operate consistently and keeps the panel/top properly secured.

• Provides the return/tension force for the lock lever or arm
• Helps the lock engage fully and stay secured under vibration
• Restores proper latch feel and consistent lock/unlock action
• Common signs include a loose/floppy lock, poor engagement, or the lock not returning to position

• Disconnect power and allow the appliance to cool; shut off gas supply if applicable
• Note the spring's routing/orientation before removal
• Use needle-nose pliers; mind sharp edges and pinch points
• After installation, manually check lock movement for smooth travel

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This flexible gasket creates a tight seal around the appliance opening to help keep temperature and moisture where they belong, reducing leaks and improving performance. It's a direct-replacement part designed to restore proper sealing. What it does:

• Forms an airtight/watertight barrier at the door or access opening
• Prevents leaks and spills from escaping the cabinet or tub
• Helps maintain internal temperature and prevents moisture intrusion
• Reduces frost buildup and condensation caused by poor sealing

• One replacement seal

• Inspect mounting channel and retainers for damage before installing the new seal
• Clean the sealing surface and allow it to dry for a secure fit
• Peel-back adhesive or align retention tabs as required by your model; avoid stretching the gasket

The Washer Lid Screw is an OEM part for Whirlpool washing machines. This 6-32 x .340 screw secures the washer lid to the hinge assembly, ensuring the lid opens and closes smoothly and stays securely in place during operation.

Causes of a bad washer lid screw can include wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or mishandling. A compromised screw can lead to issues with the lid's stability and functionality.

Symptoms of a bad washer lid screw include:

• The washer lid feeling loose or wobbling
• Difficulty in opening or closing the lid
• Visible rust or corrosion on the screw
• The lid not staying securely in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Lid Hinge Arm is an OEM part for Whirlpool washing machines. This arm is a vital component of the washer's lid assembly, providing support and facilitating smooth opening and closing of the lid.

Common symptoms of a bad Lid Hinge Arm in a Whirlpool washing machine include:

• The lid not staying securely open or closed
• Difficulty in opening or closing the lid
• Misalignment or uneven movement of the lid

Causes of a bad Lid Hinge Arm can include:

• Normal wear and tear over time
• Physical damage or breakage
• Misuse or excessive force applied to the lid

If you notice any of the mentioned symptoms or suspect a faulty Lid Hinge Arm, replacing it can restore proper lid operation to your Whirlpool washing machine. This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This right-hand lid hinge secures and guides the appliance lid for smooth, controlled opening and closing—restoring proper alignment and preventing the lid from sagging or binding. What it does:

• Supports the lid on the right side and maintains alignment during use
• Guides smooth opening and closing to prevent sudden drops or catches
• Replaces cracked, bent, or worn hinges that cause uneven gaps or misalignment
• Helps restore lid stability so it stays open or closes evenly

• Disconnect power before beginning any repair and work on a dry, stable surface
• Support the lid while removing and installing the hinge to prevent injury or damage
• Typical installation uses common hand tools (screwdriver/socket); follow OEM diagram for correct fastener locations
• Inspect mounting screws and mating surfaces; replace any damaged hardware for a secure fit

This left-hand lid hinge mounts to the washer top and lid, allowing the lid to pivot smoothly and sit square. Replacing a worn or cracked hinge restores smooth opening/closing and helps the lid lock align correctly for reliable cycle starts. What it does:

• Supports and pivots the lid on the left side
• Maintains proper lid-to-top alignment and spacing
• Helps the lid lock/switch engage correctly
• Common symptoms: lid misalignment or wobble, binding/squeaking at the hinge, visible cracks, lid won't close flush or lock

• One left-hand lid hinge

• Disconnect power before servicing; protect the lid (especially glass) from stress
• Support the lid while removing hinge fasteners to prevent damage
• Move the lid carefully to install the new hinge; do not overtighten screws
• Verify alignment and lid lock operation before running a cycle (left/right is referenced facing the appliance front)

This condenser tie is a small plastic wire tie used to secure the condenser assembly or related wiring and tubing in place. It helps prevent rubbing, vibration noise, and loose routing that can cause wear or interference. What it does:

• Secures condenser coils, wiring harnesses, or drain/tubing to the appliance frame
• Prevents rubbing and vibration that can cause noise or premature wear
• Keeps wiring and tubing routed away from moving parts and hot surfaces
• Helps maintain tidy component placement for reliable operation

• Disconnect power to the appliance before servicing.
• Use pliers or a tie tool to snug the tie; trim excess tail flush to avoid sharp edges.
• Single-use plastic ties may need replacement if cut for removal.
• Route tied components clear of fans, sharp edges, and heating elements.

Hinge bearing that supports the appliance door hinge for smooth, stable movement and helps prevent door sag or noisy operation. Replacing a worn bearing restores proper door alignment and reduces hinge wear. What it does:

• Provides a low-friction pivot for the door hinge so the door opens and closes smoothly.
• Prevents binding, grinding, and uneven door movement caused by a worn hinge pivot.
• Helps maintain proper door alignment to avoid gaps or incomplete latching.
• Common symptoms: door hangs, squeaks, clicks, binds, or feels loose at the hinge.

• Always disconnect power (and water for dishwashers) before beginning repairs.
• Access typically requires removing the door or hinge trim—keep fasteners organized.
• Replace only with the matching bearing; test door operation before reassembly.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Replacement fabric softener dispenser assembly for top-load washers. Restores proper softener release during the rinse cycle so your clothes get even conditioning while preventing pooling, clogs, and leaks from a damaged dispenser. What it does:

• Delivers fabric softener into the rinse cycle for even distribution and improved fabric feel.
• Replaces a broken, cracked, or clogged dispenser that won't release softener.
• Stops softener from pooling in the drawer or leaking into the washer tub.
• Re-establishes correct dispenser operation so the washer times and releases additives properly.

• Disconnect power (unplug) and turn off water before servicing the washer.
• Remove the dispenser drawer, drain any remaining softener, then remove and replace the assembly in the correct orientation.
• Reinstall the drawer, restore power/water, and run a rinse cycle to check for leaks.

Color: White

Restore smooth ice and water dispensing with this refrigerator dispenser assembly in a stainless finish. It replaces the in-door dispenser module so a cracked housing or broken lever no longer hinders operation or appearance.

• Serves as the user-facing ice/water dispenser module mounted in the door
• Provides the paddle/actuator and support for the dispenser's components
• Helps resolve: broken or sticking lever, cracked/loose dispenser housing, nonresponsive dispenser when pressed, cosmetic damage to the dispenser area
• Direct, model-specific replacement; matches the stainless finish

• Disconnect power and shut off the water supply before servicing
• Carefully remove the dispenser trim/panel to avoid scratching the finish; retain screws and clips
• Transfer wiring connectors and any reusable parts from the original assembly per your model's parts list
• Restore power/water and test both ice and water dispensing; check for proper actuation and leaks

Color: White

This replacement detergent dispenser assembly mounts in the dishwasher door and releases detergent at the correct time in the cycle to help ensure thorough cleaning and consistent wash results. What it does:

• Holds and seals detergent until the control signals it to open
• Releases detergent into the tub for proper wash performance
• Common failure symptoms: detergent left in cup, dispenser door won't latch or open, leaks around the dispenser area, or poor cleaning due to no detergent release

• One detergent dispenser assembly

• Disconnect power and turn off water supply before servicing
• Remove the inner door panel to access the dispenser retainers
• Release the old dispenser, transfer any electrical connector(s), and seat the new dispenser evenly to ensure a watertight seal
• Reassemble, run a short cycle, and check for leaks around the dispenser

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

Color: White

This nozzle assembly directs fresh water for the refrigerator's fresh-fill function, restoring controlled filling and helping prevent leaks and drips. Replace a damaged nozzle to restore reliable water dispensing. What it does:

• Directs and meters fresh water flow during the refrigerator's fill cycle.
• Helps prevent water from spraying or dripping away from the intended fill area.
• Common symptoms for replacement: visible leaks, dripping after fills, inconsistent or no water during fill cycles.
• Interfaces with the fridge water tubing and fill valve to deliver proper flow.

• Disconnect power to the appliance before starting any repair.
• Shut off the water supply and drain residual water to avoid spills.
• Replace using basic hand tools; ensure proper seating and secure connections to avoid leaks.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Lid Lock Assembly is an OEM part for Whirlpool washing machines. It ensures the washer lid is securely locked during operation, preventing it from being opened mid-cycle and ensuring safe and efficient washing.

Causes of a bad lid lock assembly can include wear and tear from frequent use, electrical issues such as short circuits, and physical damage from impact or mishandling. A malfunctioning lid lock can disrupt the washing cycle, leading to incomplete washes or safety concerns.

Symptoms of a bad lid lock assembly include:

• The washer not starting or stopping mid-cycle
• Error codes indicating a lid lock issue
• The lid not locking or unlocking properly
• The washer lid feeling loose or failing to stay closed

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White

The Absorber is an OEM part for Whirlpool washing machines. It plays a role in minimizing vibrations and noise during operation by damping the mechanical movements within the machine.

Causes of a bad Absorber can include the natural wear and tear from continuous use, degradation due to exposure to harsh chemicals or extreme temperatures, and mechanical failure from excessive loads or unbalanced cycles.

Symptoms of a bad Absorber include:

• Increased vibration or shaking during operation.
• Unusual noises like thumping or banging during the spin cycle.
• The washing machine moving excessively or "walking" across the floor.
• Uneven wear and tear on other washing machine components.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This sound absorber is an OEM-style insulation pad designed to reduce washer cabinet noise and rattling for a quieter cycle. It mounts inside the appliance cabinet to help dampen vibration and airborne sound. What it does:

• Dampens vibration and reduces cabinet noise during spin and agitation
• Helps minimize rattling from internal components for a quieter operation
• Supports stable operation by providing a cushioned barrier between parts and the cabinet
• Commonly replaced when padding is torn, missing, or compressed

• One sound absorber insulation pad

• Disconnect power and water supply before starting any repair
• Access may require removing outer cabinet or panels; follow your model's service manual
• Use proper fasteners and placement as shown in OEM diagram; avoid altering material

This is a genuine replacement mounting screw that secures appliance components and panels so parts stay aligned and stable. Installing the correct screw restores proper fit and helps eliminate vibration or loose panels. What it does:

• Fastens panels, brackets, or small components in place
• Replaces missing, stripped, or damaged screws that cause loose parts
• Helps stop rattling, vibration, or misaligned panels
• Restores secure connections after repairs or part replacement

• One mounting screw

• Unplug the appliance or disconnect power before starting work
• Use the correct screwdriver bit to avoid stripping the head
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic
• Keep removed hardware organized so you can reuse existing screws when applicable

Used from harness to top.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
