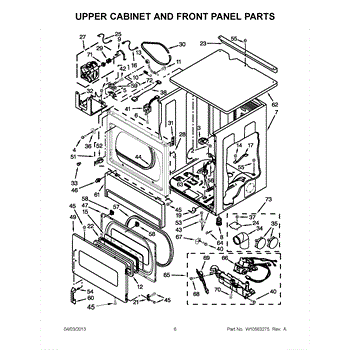

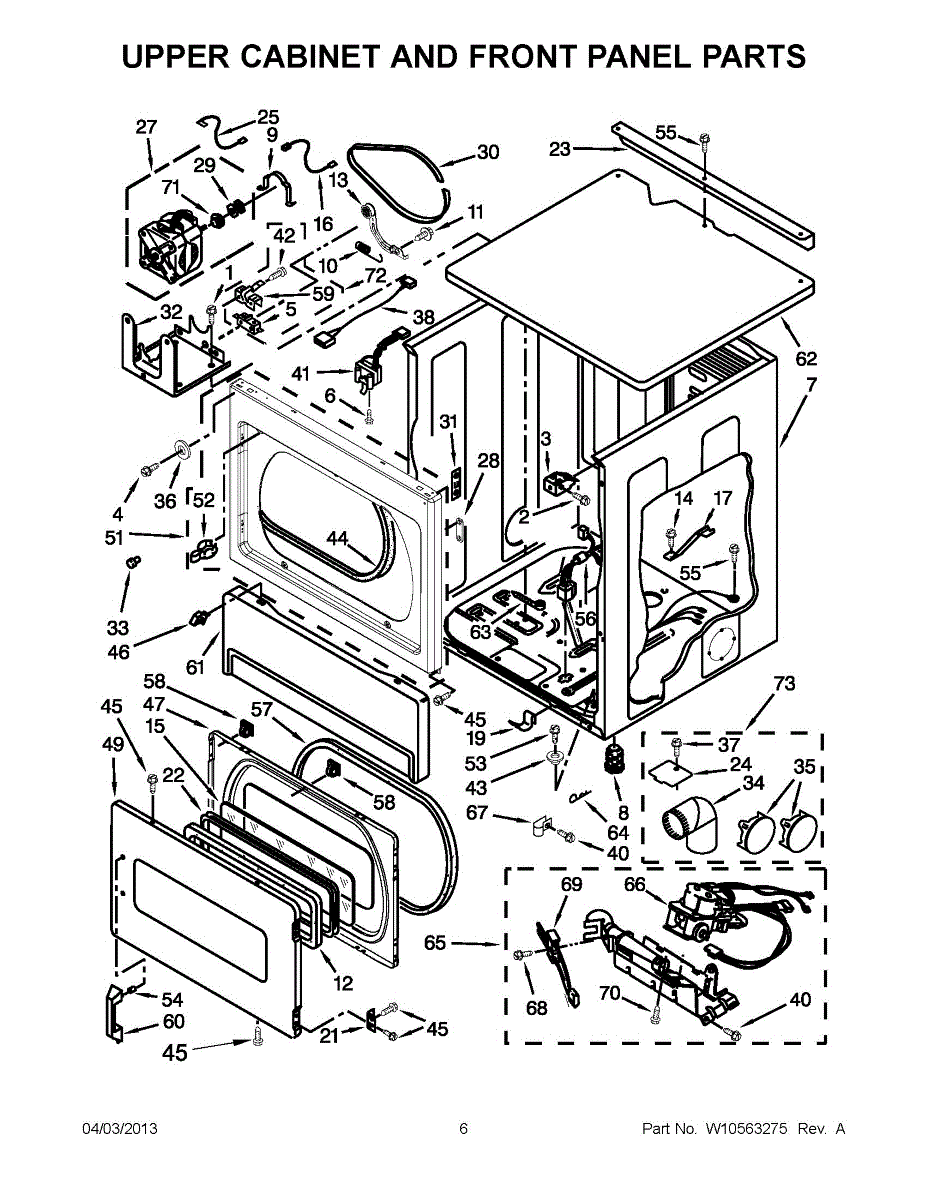

Parts for Whirlpool CSP2761TQ4: 03 - Upper Cabinet And Front Panel Parts

Specs: 10-16 x 1/2 inch.

This is a replacement sheet-metal screw used to secure panels and components on compatible Whirlpool appliances. It provides a reliable fasten point for reattaching trim, brackets, and access panels after service. What it does:

• Secures appliance panels, brackets, and smaller components to the cabinet or frame
• Helps restore original fit and finish after repairs or part replacement
• Prevents rattles or loose panels when properly installed
• Matches OEM thread size and head style for a correct fit

• Turn off and unplug the appliance before removing panels or installing hardware
• Use the correct driver bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing to prevent thread damage or warped panels

The Broken Belt Switch Kit is an OEM replacement part for Whirlpool dryers. It is an assembly that includes a microswitch and bracket installed to monitor the dryer drum belt status. The broken belt switch plays an important safety role by automatically stopping the dryer if it detects the drum belt breaking or slipping off the motor pulley during a cycle. The kit includes a switch, actuator lever, screws, and wire terminals.

Causes of a bad broken belt switch can include wear and tear over time, electrical malfunctions, or physical damage from a broken belt or other internal issues. Ensuring the switch is functioning correctly is crucial for the safe and efficient operation of the dryer.

Symptoms of a broken or failing switch include:

• The dryer failing to shut off if the belt breaks during operation
• Inability to diagnose belt issues through error code displays
• Intermittent stopping or variance in belt tension detection

This genuine Whirlpool switch replacement is also compatible with Kenmore, Maytag, Jenn-Air, and KitchenAid dryer models.

A general-purpose 6-20 screw used to secure panels, brackets and small components on Whirlpool appliances. Replaces stripped or missing fasteners to restore a snug fit and reduce rattling or loose parts. What it does:

• Secures appliance panels, trim, brackets and internal components in original mounting locations.
• Stops panel movement, vibration noise and loose connections caused by missing or corroded screws.
• Fits the OEM 6-20 thread designation used on multiple Whirlpool assembly points.
• Sold individually for spot repairs and small part replacements.

• Disconnect power or gas supply to the appliance before starting any repair.
• Use the correct screwdriver or bit to avoid stripping the head; tighten until snug but do not overtighten.
• Replace like-for-like; stop and verify the correct fastener for the mounting point.
• Check the appliance's parts diagram for the exact screw location and orientation.

This part is a motor clamp. This is a genuine OEM part and has been sourced directly from the manufacturer. This part is intended to replace a deteriorated, damaged, or broken motor clamp on certain makes of indoor appliance models. Motor clamps are essential for properly securing the drive motor on various types of indoor appliances such as washers, dryers, and refrigerators. Without the use of a motor clamp, the drive motor is free to move around or become detached. This can easily cause serious damage to the equipment and prevent proper functionality. Proper tools are needed to replace this part and appropriate safety measures should be adhered to when working on any type of equipment. For accurate information on how and where to install this replacement motor clamp, specific manufacturer diagrams should be referred to.As an authentic replacement part, this motor clamp can be used on multiple different models of washers, dryers, refrigerators, and washer/dryer combos manufactured by Kenmore, Maytag, Whirlpool, and Amana. Please note that this motor clamp is a genuine part made of high-quality materials and is sold individually.

The Idler Arm Spring is an OEM part for Whirlpool dryers, maintains tension in the dryer's belt system. This spring is crucial for the proper operation of the dryer, as it helps to keep the belt tight around the drum and motor pulley, enabling the drum to rotate smoothly during cycles.

Causes of a bad Idler Arm Spring can include stretching or weakening over time due to constant tension, or breakage from wear and tear.

Symptoms of a bad Idler Arm Spring include:

• Unusual noises, such as squeaking or squealing
• The dryer drum may not rotate smoothly or may stop turning altogether
• Clothes take longer to dry, or you may notice uneven drying
• The dryer might not start if the belt is disengaged due to insufficient tension.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Idler Arm Bolt is an OEM part for Whirlpool dryers. It secures the idler pulley, which maintains the proper tension on the dryer drum belt.

Causes of a bad idler arm bolt can include wear and tear from prolonged use, vibration and movement within the dryer, or improper installation.

Symptoms of a bad idler arm bolt include:

• The dryer drum not rotating properly
• Unusual noises such as squeaking or grinding
• The dryer belt slipping or coming off the pulley
• The dryer not drying clothes effectively

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This idler pulley assembly maintains proper tension on the dryer's drive belt so the drum turns smoothly and quietly. Replacing a worn pulley restores reliable tumbling and helps eliminate squealing or belt slippage.

• Maintains drive belt tension between the motor and drum for consistent rotation
• Reduces friction at the belt contact point to minimize noise
• Helps prevent the belt from slipping off, overheating, or fraying
• Typical symptoms of failure: squeaking/squealing, burning-rubber smell, drum won't turn, or belt repeatedly comes off

• Disconnect power; for gas dryers, also shut off the gas supply
• Access the idler by removing the appropriate front or rear panel per your model's service information
• Release belt tension, replace the assembly, and route the belt correctly around the motor and idler
• While open, inspect the drive belt and drum rollers and replace any worn components

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This toe kick retainer clip secures the dishwasher's lower access panel to the base for a clean, rattle-free fit. Replace worn or missing clips to keep the front panel properly aligned after service or cleaning. What it does:

• Attaches the toe panel/kickplate to the dishwasher base or frame
• Helps prevent panel vibration, gaps, and rattling at the bottom front
• Restores a snug fit when the original retainer is broken, bent, or missing
• Common symptoms include a loose, drooping, or noisy kickplate

• 1 retainer clip

• Disconnect power at the breaker before servicing; wear cut-resistant gloves
• Remove the screws securing the toe panel and pull the panel away carefully
• Install the new retainer in the designated slot/tab and ensure it snaps fully into place
• Reinstall the toe panel and fasteners; confirm the panel seats flush and secure

This hinge pin assembly provides the pivot point for your door, keeping it aligned on the hinge and allowing smooth opening and closing. Replacing a worn pin restores proper door movement and helps maintain a reliable seal.

• Creates the pivot for the door to rotate smoothly on the hinge
• Maintains door height and alignment for consistent gasket contact
• Helps prevent sagging, rubbing, or gaps that can affect sealing
• Common symptoms include clicking/popping at the hinge, door wobble, or difficulty closing

• Disconnect power and support the door before servicing
• Note hinge orientation and the placement of any spacers/washers; transfer as needed
• Secure fasteners without overtightening to avoid binding
• After installation, verify door alignment and gasket seal

This exhaust cover plate protects and finishes the dryer's exhaust outlet, helping direct airflow and keeping the vent opening sealed from debris. It provides a clean, durable surface where the exhaust connects to the dryer cabinet. What it does:

• Covers and seals the dryer exhaust opening to prevent dust and lint buildup around the vent
• Helps direct exhaust airflow into the duct for proper ventilation
• Restores a finished appearance to the exhaust area after repair or replacement
• Can reduce drafts and discourage pests entering through the vent opening

• Disconnect power to the appliance before starting any work.
• Use basic hand tools; handle edges carefully to avoid cuts.
• Verify proper alignment with the exhaust opening and secure with the original screws or hardware.
• Inspect the exhaust duct and surrounding seals for wear.

The Motor Pulley is an OEM part for Whirlpool dryers, connects the dryer motor to the drum belt, enabling the drum to turn and efficiently dry your clothes. This pulley is crucial for the smooth operation of the dryer, ensuring that the belt is tensioned correctly and runs smoothly without slipping or causing wear.

Causes of a bad Motor Pulley include wear and tear from regular use, a buildup of lint and debris that can interfere with its operation, or a malfunctioning dryer motor that puts undue stress on the pulley.

Symptoms of a bad Motor Pulley include:

• Unusual noises coming from the dryer, such as squeaking or grinding
• The dryer drum failing to turn even though the motor is running
• The dryer taking longer than normal to dry clothes, which can occur if the pulley is not providing proper tension to the belt

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drive Belt is an OEM replacement part for Whirlpool dryers. This essential component is responsible for transferring power from the dryer's motor to the drum, allowing it to spin and tumble the clothes during the drying cycle.

Symptoms of needing to replace the drive belt include:

• The dryer drum not spinning or rotating
• Loud squeaking or grinding noises during the drying cycle
• Excessive vibration or shaking from the dryer
• Clothes taking longer to dry or remaining damp

Causes of a faulty drive belt can include normal wear and tear over time, exposure to excessive heat or lint buildup, or physical damage due to impact or mishandling.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

This door hinge clip secures the hinge assembly to the appliance door so the door stays aligned and opens and closes properly. A small, direct-fit replacement used when the original clip is cracked, broken, or missing. What it does

• Holds the door hinge in position to keep the door aligned and stable
• Prevents the hinge pin or bracket from shifting or coming loose
• Commonly replaced when the clip is cracked, worn, or fails to retain the hinge
• Helps restore normal door movement and reduce sagging or misalignment

• High-level DIY: remove the door/hinge per your model's service instructions before replacing the clip
• Use caution handling the door to avoid injury or damage; support the door while the hinge is disconnected
• Replace only with the exact part number to ensure proper fit and function

This motor mounting bracket secures the appliance motor to the cabinet, keeping the motor steady for reliable operation and reduced vibration. It's a direct-fit replacement designed to restore proper motor alignment and support. What it does:

• Holds the motor in the correct position to prevent movement during operation
• Reduces motor vibration and noise caused by loose or damaged mounting
• Helps maintain proper belt alignment and drivetrain performance
• Supports safe, stable motor operation under normal load conditions

• One motor mounting bracket

• Disconnect power to the appliance before beginning any repair
• Basic mechanical skills and common hand tools are usually required
• Inspect mounting hardware and adjacent components; replace any worn fasteners

This elbow redirects a fluid or air line inside the appliance to allow routing around components and tight spaces. It restores proper flow path and helps stop leaks or blockages when the original elbow is cracked or worn. What it does:

• Provides a sealed change of direction for a water, drain, or vent line inside the appliance
• Replaces a cracked or broken elbow that can cause leaks, water pooling, or reduced flow
• Re-establishes the correct routing to prevent kinks and stress on connected hoses or tubing
• Helps eliminate intermittent draining or venting issues caused by a damaged fitting

• Disconnect power and shut off water supply before accessing the part
• Verify orientation and routing before removing the old elbow to ensure correct reinstallation
• Inspect and replace any worn clamps, gaskets, or hoses when installing the new elbow
• Tighten fittings to secure but avoid over-tightening which can crack plastic components

Side and bottom exhaust kit.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

A replacement mounting screw to secure appliance panels and components so parts stay properly fastened during normal use. Small but essential hardware for stable, rattle-free operation and reliable repairs. What it does:

• Fastens panels, brackets or components to the appliance chassis
• Prevents loose panels, vibration noise, or parts shifting during operation
• Used when original screw is lost, damaged, or stripped
• Restores proper fit and alignment after disassembly for service

• Disconnect power and water before starting any repair
• Use the correct screw type and length; do not force or substitute oversized fasteners
• Tighten until snug—avoid overtightening to prevent stripped threads or cracked parts
• Keep small parts away from children and pets

The Dryer Door Switch is an OEM replacement part for Whirlpool dryers. It is a crucial safety component that monitors the opening and closing of the dryer door, preventing the dryer from operating when the door is open.

Symptoms of a faulty Dryer Door Switch include:

• The dryer failing to start or operate with the door closed
• The dryer continuing to run or heat even when the door is open
• Error codes or warning lights related to the door switch sensor

Causes of a bad door switch can include normal wear and tear over time, physical damage from mishandling or impact, or electrical malfunctions.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

Size: 6 - 20 x 1 1/16 inch.

The Front Panel Seal is an OEM replacement part for Whirlpool dishwashers. Measures 24 inches. This seal is located on the dishwasher's front panel and helps prevent water leaks by creating a watertight barrier during the wash cycle. It ensures efficient operation while protecting your kitchen from potential water damage.

Symptoms of a bad Front Panel Seal include:

• Water leaking from the front of the dishwasher during operation
• Visible wear, cracks, or tears in the seal
• Increased noise or vibration due to improper sealing

Causes of a failing Front Panel Seal can include wear and tear from regular use, exposure to high temperatures and moisture, or improper cleaning methods. A damaged seal can compromise the dishwasher’s efficiency and lead to water leakage.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Sold individually, 2 seals are required on front panel.

This flat-head screw secures panels, brackets, or trim so they sit flush on your appliance. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, rattling, or shifting components.

• Provides a countersunk, flush-mount fastener for panels, trim, brackets, or covers
• Helps maintain alignment and secure attachment during operation
• Replaces stripped, rusted, or missing hardware
• Symptoms can include loose panels or handles, rattling noises, or visible gaps/misalignment

• Disconnect power (and shut off gas, if applicable) before servicing
• Match screw length and thread to the original for proper fit
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Support the part being fastened to keep alignment while tightening

The Access Panel Spring Retainer is an OEM part for Whirlpool dryers. This part secures the access panel of the dryer, ensuring it stays in place during operation. The spring retainer provides tension and stability, making it easy to open and close the access panel when maintenance or repairs are needed.

Causes of a bad access panel spring retainer can include regular wear and tear, loss of tension, or physical damage.

Symptoms of a bad access panel spring retainer include:

• Access panel not staying securely closed
• Difficulty opening or closing the access panel
• Loose or rattling access panel during dryer operation
• Visible damage or wear on the retainer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

This factory fastener secures appliance components such as panels, brackets, and handles. Replacing a missing or damaged screw restores a tight fit, reduces rattles, and helps keep parts aligned for smooth, reliable operation.

• Secures components to the appliance frame or assemblies
• Helps maintain alignment and structural stability
• Replaces missing, rusted, or stripped hardware
• Common symptoms include loose/wobbly handles or panels, rattling/vibration noises, or a visibly missing screw

• Disconnect power before servicing
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Do not overtighten; snug until secure
• Replace any that are corroded or stripped for an even hold

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Vinyl door seal that forms an airtight barrier around the refrigerator or freezer door to help maintain proper temperature and reduce energy loss. Replaces worn gaskets to stop drafts and minimize frost or moisture build-up. What it does:

• Creates a secure, flexible seal around the door to help keep cold air in and warm air out.
• Helps prevent frost, condensation and uneven cooling inside the compartment.
• Commonly replaced when you see visible cracks, tears, gaps, or feel cold air leaking from the door edges.
• Can improve overall temperature consistency and reduce excessive compressor cycling caused by leaks.

• Remove the old gasket and clean the door frame thoroughly before installing the new seal.
• Warm water or a short exposure to gentle heat can soften a stiff gasket to make installation easier; handle carefully.
• Press the seal fully into the channel and check that it seats evenly around the entire door; avoid forcing or trimming unless specified by the OEM.

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

The lid switch lever connects the washer's lid hinge to the lid switch, signaling when the lid is closed so the cycle can run. A damaged lever can prevent the safety interlock from closing, leading to no-start or spin issues. What it does:

• Transfers lid movement at the hinge to the lid switch actuator
• A closed lid so the washer can operate
• Common symptoms of a failed lever: washer won't start; won't spin; cycle pauses because the lid-closed signal isn't detected

• 1 lid switch lever

• Disconnect power before servicing
• Lift or open the top to access the hinge/switch area; locate the lever near the lid switch
• Remove the old lever and install the new one in the same orientation; free movement
• Close the lid by hand and the switch clicks before reassembly and testing

This replacement refrigerator door handle restores a secure, easy-grip surface for opening and closing the appliance, improving daily access and appearance. Fits the refrigerator door where the factory handle is mounted. What it does:

• Provides a solid grip to open and close the refrigerator door smoothly
• Replaces cracked, broken, or worn handles that make doors hard to operate
• Helps restore the door's original alignment feel and cosmetic appearance
• Compatible with factory mounting points for a direct-fit replacement

• Disconnect power and empty the door area before starting work for safety and ease
• Typically fastens with screws or clips hidden under trim—retain removed hardware for reinstallation
• Use basic hand tools; avoid overtightening fasteners to prevent damage

A front toe panel assembly that restores the lower front trim and airflow opening on compatible laundry appliances. Replaces a damaged or missing lower access panel to keep the cabinet sealed and looking finished. What it does:

• Covers the lower front of the appliance cabinet, protecting internal components from debris.
• Restores the lower air or vent opening and directs airflow as intended.
• Prevents items from falling under the appliance and reduces drafts at the base.
• Helps maintain proper appearance and fit of the appliance front.

• Disconnect power (and gas if applicable) before starting any work.
• Install requires removing the appliance kick strip or lower access fasteners; retain hardware as needed.
• Align panel tabs/clips with cabinet slots and secure with the original screws or clips.
• Replace any damaged clips or mounting hardware to ensure a secure fit.

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

This replacement gas valve controls gas flow to the burner in a gas dryer, enabling safe ignition and consistent heat. When it fails, the burner may not light and loads can stay damp; replacing it restores proper drying performance.

• Opens and closes gas flow to the burner when heat is called for
• Shuts off gas when the cycle ends or heating is not active
• Common symptoms: dryer runs but has no heat or the burner never ignites
• May present as the ignitor glowing or clicking repeatedly without flame, or intermittent heat

• Disconnect power and shut off the gas supply before servicing
• Work in a ventilated area and allow the dryer and burner to cool
• Use only gas-rated thread sealant on threaded connections
• After installation, turn on gas and check all joints for leaks with a soap-and-water solution

This replacement mounting screw secures appliance panels and small components to restore proper fit and reduce movement. It's a simple, direct part for repairing loose panels, trim, or interior assemblies. What it does:

• Fastens panels, brackets, or assemblies to prevent rattling and vibration
• Restores proper alignment for doors, control panels, or trim pieces
• Helps stop intermittent noise caused by loose hardware
• Use when original screw is missing, stripped, or corroded

• Disconnect power and unplug the appliance before beginning any repair
• Use the correct screwdriver bit and hand-tighten; avoid over-torquing which can strip threads
• Keep small parts away from children and pets; magnetic tray helps prevent loss
• If multiple screws are corroded or hardware threads are damaged, inspect mating parts and replace as needed

The Igniter Kit and Bracket is an OEM replacement part for Whirlpool dryers. It is a kit that includes the igniter and bracket assembly, which work together to ignite the gas or electric heating element.

Causes of a bad igniter and bracket can include failure due to prolonged or repeated use, damage from impact or mishandling, or failure of integrated electronic components.

Symptoms of a bad igniter and bracket include:

• The dryer not heating or heating intermittently
• Repeated trips of the thermal fuse
• Smell of gas indicating improper ignition
• Visible damage or cracks in the igniter or bracket

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This belt restrainer is the small guide that keeps the dryer's drive belt on the motor pulley. It prevents the belt from walking off during operation, supporting consistent drum rotation and reducing premature belt wear. What it does:

• Guides and retains the drive belt on the motor pulley
• Helps maintain proper belt tracking with the idler assembly
• Can help with symptoms like drum not turning, belt repeatedly slipping off, burning rubber smell, or frayed belt edges

• 1 belt restrainer

• Disconnect power; for gas dryers, also shut off the gas supply
• Access the motor area per your model (remove front or lower access panel)
• Position the restrainer adjacent to the motor pulley with slight clearance to the belt; route the belt correctly around drum, idler, and motor
• Hand-rotate the drum to confirm alignment before reassembly and testing

The Broken Belt Switch Kit is an OEM replacement part for Whirlpool dryers. It is an assembly that includes a microswitch and bracket installed to monitor the dryer drum belt status. The broken belt switch plays an important safety role by automatically stopping the dryer if it detects the drum belt breaking or slipping off the motor pulley during a cycle. The kit includes a switch, actuator lever, screws, and wire terminals.

Causes of a bad broken belt switch can include wear and tear over time, electrical malfunctions, or physical damage from a broken belt or other internal issues. Ensuring the switch is functioning correctly is crucial for the safe and efficient operation of the dryer.

Symptoms of a broken or failing switch include:

• The dryer failing to shut off if the belt breaks during operation
• Inability to diagnose belt issues through error code displays
• Intermittent stopping or variance in belt tension detection

This genuine Whirlpool switch replacement is also compatible with Kenmore, Maytag, Jenn-Air, and KitchenAid dryer models.

Side and bottom exhaust kit.
