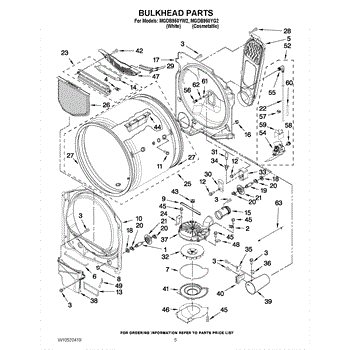

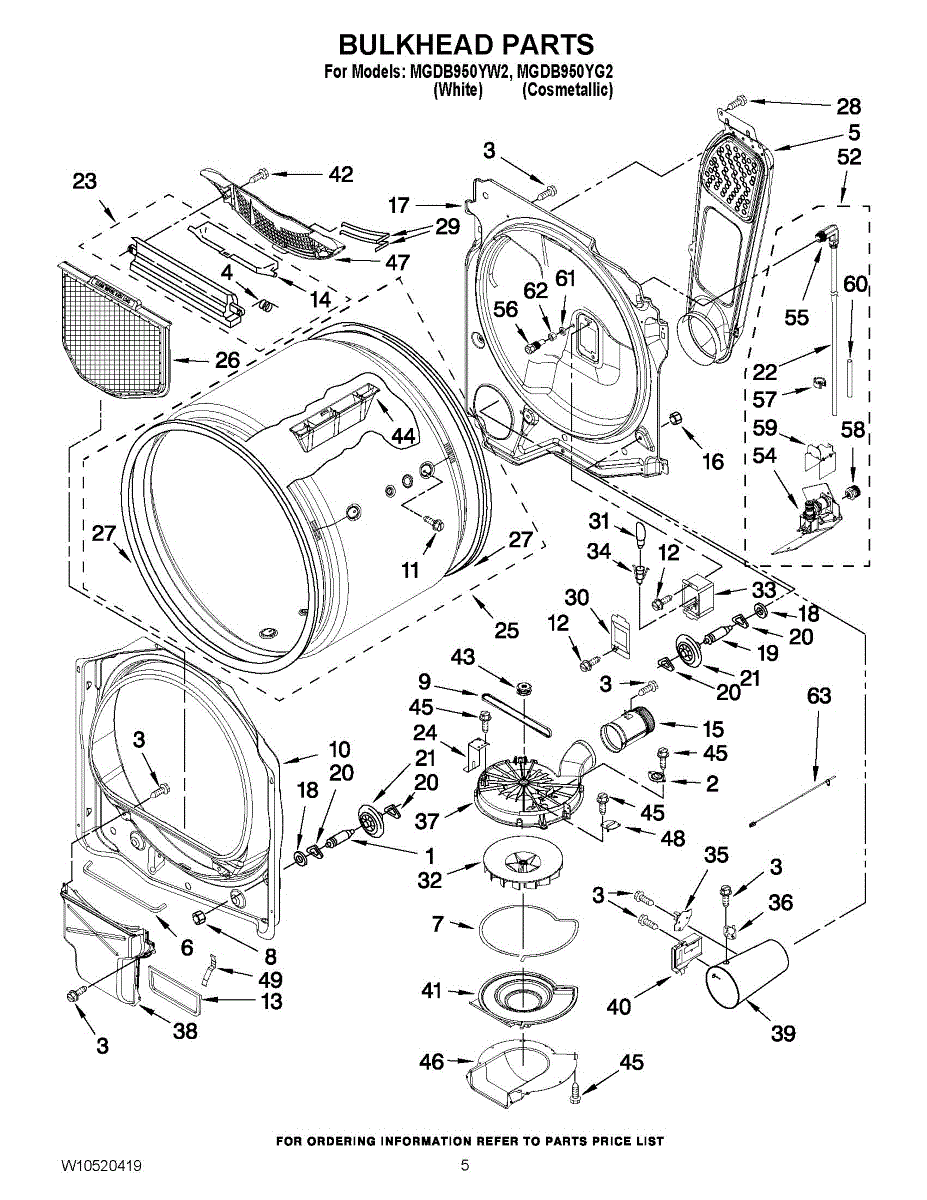

Parts for Maytag MGDB950YW2: 03 - Bulkhead Parts

The Front Drum Roller Shaft is an OEM part for Whirlpool dryers. This component provides support and stability to the drum while it rotates, ensuring smooth and quiet operation during the drying cycle. The roller shaft works in conjunction with the drum rollers to maintain proper alignment and reduce friction.

Over time, the front drum roller shaft can wear out or become damaged due to continuous use and the constant movement of the drum. Factors such as heavy loads, misalignment, and lack of lubrication can contribute to the deterioration of the shaft.

Symptoms of a bad front drum roller shaft include:

• Squeaking or grinding noises during the drying cycle
• The drum not rotating smoothly
• Increased friction or resistance when turning the drum by hand
• Uneven or excessive wear on the drum rollers

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Thermistor is an OEM part for Whirlpool brand dryers. It is a temperature-sensing resistor that monitors air temperature changes during the drying cycle. The thermistor provides feedback to the control board on heating element performance and internal air condition.

Symptoms of a failed thermistor include:

• Inaccurate temperature readings and selections
• Improper or incomplete drying
• Safety issues from overheating due to lack of feedback
• Error codes displayed on the control panel

Causes can be related to normal wear and environmental exposure over time. Failure prevents the dryer from achieving optimal drying conditions.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Restore smooth operation of your dryer's lint screen cover with this lint screen door spring. It provides the correct tension so the cover opens and closes properly and the lint screen seats securely for reliable lint collection.

• Applies spring tension to the lint screen door/cover hinge
• Helps the lint screen and cover stay properly positioned
• A worn or broken spring may cause the cover to feel loose, pop open, or not stay closed
• May make inserting or removing the lint screen difficult

• Disconnect power; for gas dryers, also shut off gas supply
• Access the lint screen door area per your model's service information
• Note the original spring orientation; transfer the new spring carefully using needle-nose pliers
• Check cover operation and lint screen seating before restoring power

The Dryer Outlet Housing Seal is an OEM part for Whirlpool dryers. This seal ensures that the hot air and moisture are properly vented out of the dryer during the drying cycle, maintaining efficiency and preventing leaks. It fits around the outlet housing to create a tight seal, keeping the internal components protected and ensuring optimal drying performance. The seal measures approximately 15 inches.

You should replace the outlet housing seal if it becomes damaged or worn out. Causes of a bad seal can include wear and tear over time, heat damage, or physical deterioration from repeated use.

Symptoms of a bad outlet housing seal include:

• Air leaks around the dryer outlet
• Reduced drying efficiency
• Excessive lint buildup around the dryer vent
• Unusual noises during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This seal sits between the dryer's blower housing and its cover to keep the air path tight. Replacing a crushed or torn seal helps restore proper airflow and drying performance while minimizing lint leakage inside the cabinet.

• Creates an airtight joint between the blower housing and cover
• Helps prevent air leaks that lead to longer dry times
• Helps keep lint contained within the exhaust path
• Replace if the original seal is torn, flattened, deteriorated, or missing

• Disconnect power; for gas models, shut off gas and allow the dryer to cool
• Access the blower housing (typically behind the lower front panel)
• Clean mating surfaces; install the new seal evenly around the perimeter with no gaps
• Reassemble and verify strong, unobstructed airflow at the exhaust

The Blower Belt is an OEM part for Whirlpool dryers. This belt drives the blower fan, which is essential for circulating air through the dryer drum and out the exhaust vent, ensuring efficient drying of clothes. The blower belt is designed to fit seamlessly within the dryer, maintaining optimal airflow and drying performance.

You should replace the blower belt if it becomes worn or damaged. Common causes of a bad blower belt include wear and tear from regular use, stretching or fraying over time, or snapping due to excessive strain.

Symptoms of a bad blower belt include:

• Dryer not producing enough heat
• Clothes taking longer to dry
• Unusual noises during the drying cycle
• The dryer stopping mid-cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This front axial bulkhead is the front support assembly that centers the dryer drum and provides a mounting surface for the front bearing and seal. It restores proper drum alignment and helps reduce noise and rubbing. What it does:

• Supports and centers the dryer drum at the front to maintain smooth rotation
• Houses the front bearing/seal interface to prevent rubbing and reduce vibration
• Stops or reduces scraping, grinding, wobbling, or uneven drum movement
• Restores proper drum alignment when the original bulkhead is cracked, warped, or worn

• Disconnect power (and gas, if applicable) before starting any repair
• Remove the dryer front panel and drum to access bulkhead mounting fasteners
• Inspect and replace any associated bearings, seals, or mounting hardware as needed
• Reassemble carefully and test on a short cycle to ensure drum spins smoothly and quietly

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Lint Screen Door is an OEM part for Whirlpool dryers. It is located at the front of the dryer and provides easy access to the lint screen. It helps to trap lint and debris from the drying process, preventing it from entering the dryer vent and potentially causing clogs or fire hazards.

Causes of a faulty or damaged lint screen door can include regular wear and tear, physical damage, or improper handling. These factors can result in issues such as difficulty in opening or closing the door, a loose or insecure fit, or reduced effectiveness in capturing lint.

Symptoms of a bad lint screen door may include:

• Difficulty in opening or closing the door
• Loose or wobbly door fit
• Lint bypassing the lint screen and accumulating in the dryer vent

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This 3/8-16 nut secures appliance components and helps prevent loosening and vibration. Replace a worn, stripped, or missing nut to restore a tight, reliable connection and consistent operation.

• Provides a 3/8-16 threaded fastener connection for applicable bolts or studs
• Helps keep brackets, panels, and other parts firmly in place
• Replaces damaged or missing hardware that can cause looseness or rattling
• Signs of failure include rounded corners, stripped threads, corrosion, or inability to tighten securely

• Disconnect power and, if applicable, shut off water and gas before servicing
• Match thread size to the original part; start threading by hand to avoid cross-threading
• Reinstall any washers/spacers in the original order; tighten securely without over-tightening
• If the original used a locking feature or threadlocker, reinstall per your product's service information

The washer is an OEM replacement part for Whirlpool clothes dryers. This part is located on the drum roller support shaft in your dryer. The exterior of the washer is 1 inch in diameter with a hole in the middle and is made of metal. They are installed alongside the drum support rollers and idler pulleys. They help prevent the rollers and pulleys from bumping up against the brackets they are installed on. If you are replacing the rollers, we suggest you replace the washers at the same time.

Causes can be normal wear to bearing surfaces over extended use cycles. Accidental impacts may also potentially bend or damage shaft components.

Symptoms of a bad roller shaft include:

• Noisy squeaks or clanks emanating from within
• Jerky or unbalanced tumbling of dryer loads
• Roller assemblies binding or sticking

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Drum Support Shaft for Left Hand Threads is an OEM replacement part for Whirlpool dryers. This component is essential for securing and supporting the drum as it rotates during the drying cycle. It helps maintain the drum’s alignment and stability, ensuring smooth and efficient operation of the dryer.

Over time, the drum support shaft can become worn out or damaged due to continuous use, the weight of laundry loads, or improper installation. Additionally, exposure to high temperatures and repeated mechanical stress can cause the shaft to weaken or fail, leading to issues with the dryer’s performance.

Symptoms of a bad drum support shaft include:

• The drum not rotating smoothly or making grinding noises
• Excessive wobbling or vibrating of the drum during the drying cycle
• The dryer taking longer to dry clothes or not drying them evenly
• Visible damage or wear on the shaft or its threads
• The drum becoming misaligned or not sitting properly within the dryer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drum Support Wheel Retainer is an OEM part for Whirlpool dryers. This part secures the drum support wheels in place, ensuring that the dryer drum rotates smoothly and quietly during operation. The retainer is designed to fit precisely, preventing the support wheels from loosening or wobbling, which can lead to inefficient drying and increased wear on other components.

Over time, retainers can wear out or become damaged, potentially leading to a loose drum support wheel. This can cause the dryer to operate noisily, vibrate excessively, or even damage the drum itself if not addressed promptly.

Symptoms of a bad Drum Support Wheel Retainer include:

• Unusual noises, such as squeaking or thumping, coming from the dryer
• Excessive vibration during operation
• The dryer drum may feel unstable or wobble when turned by hand

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Drum Support Roller is an OEM replacement part for Whirlpool dryers. It plays a crucial role in supporting and facilitating the smooth rotation of the dryer drum during the drying cycle.

Symptoms of needing to replace the drum support roller include:

• Excessive noise or grinding sounds coming from the dryer drum
• Difficulty in rotating the drum or drum not turning at all
• Visible signs of wear, cracking, or damage on the existing roller(s)
• Increased vibrations or shaking during the drying cycle

Causes of a faulty drum support roller can include normal wear and tear over time, exposure to excessive heat or lint buildup, or physical damage due to impact or overloading.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

The Lint Screen Housing is an OEM part for Whirlpool dryers. This part holds the lint screen in place, ensuring that lint is effectively captured during the drying cycle. This housing helps maintain dryer efficiency by preventing lint from entering the exhaust system, which can cause blockages and reduce performance.

Causes of a bad lint screen housing can include frequent use, accidental impacts, or heat-related degradation over time.

Symptoms of a bad lint screen housing include:

• Difficulty fitting the lint screen securely
• Lint escaping into the dryer drum or exhaust system
• Visible cracks or breaks in the housing
• Reduced drying efficiency and longer drying times

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dryer Lint Filter is an OEM replacement part for Whirlpool electric dryers. This essential screen traps lint and debris released from tumbling clothes. Consistent filtration is key for safety and performance. This filter measures approximately 12 1/2 inches wide and 10 1/2 inches deep.

Causes of a clogged lint filter can be an accumulation of lint from regular drying cycles plugging ventilation holes. Neglecting filter cleaning allows fluff to build up rapidly.

Symptoms of a dirty lint filter include:

• Extended drying times as airflow is restricted
• Overheating problems or melted slots in the filter housing
• Risk of dryer or clothing fires from unvented lint buildup

This OEM replacement part is also compatible with Kenmore and Maytag models too, it removes the fire hazard of neglected cleaning.

The Drum Seal is an OEM part for Whirlpool dryers. This seal is located around the edge of the dryer drum and is designed to prevent clothes from getting caught between the drum and the dryer cabinet. It also helps to retain heat within the drum, ensuring efficient drying performance.

Over time, the drum seal can wear out or become damaged due to the high temperatures and constant friction involved in the drying process. If the seal fails, it can lead to inefficient drying and potential damage to clothing.

Symptoms of a bad drum seal include:

• Clothes getting snagged or torn during the drying cycle
• Longer drying times due to heat loss
• Increased noise from the dryer
• Visible wear or gaps in the seal

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

The Moisture Sensor Bar is an OEM replacement part for Whirlpool dryers. It is a component located inside the dryer drum that senses the moisture level of clothes during tumble drying cycles. The moisture sensor bar utilizes sensors or probes to gauge how dry clothes are getting and signals the dryer to shut off once clothes reach the desired dryness level selected by the user.

Symptoms of a bad moisture sensor bar include:

• Dryer failing to shut off automatically at the end of cycles, leaving clothes over-dried
• Cycles taking excessively long to complete
• Dryer not sensing moisture levels properly to allow automatic ending of cycles

Causes of a faulty moisture sensor bar are usually due to normal wear and tear over time. Dust or lint buildup can also affect its ability to provide accurate readings.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This lens covers and diffuses an appliance light source, protecting it from heat, grease, and moisture while delivering even illumination. Replacing a cracked or yellowed cover restores brightness and a clean, finished look.

• Shields the bulb or LED from debris, grease, and impact
• Diffuses light for more even, glare-free illumination
• Helps maintain the appearance of the light area
• Common symptoms: cracked, broken, missing, discolored, or loose lens

• Disconnect power and let the lamp/surface cool before servicing
• Support the old lens while removing any retaining screws or clips
• Align tabs or holes carefully; seat the new lens fully and evenly
• Do not overtighten fasteners to avoid cracking the lens

The Dryer Light Bulb is an OEM part for Whirlpool dryers. This bulb is specifically designed to provide illumination inside the dryer drum, allowing for better visibility when loading and unloading laundry. It ensures a well-lit drying environment.

Causes of a bad dryer light bulb can include normal wear and tear, electrical issues, or accidental breakage.

Symptoms of a bad dryer light bulb may include:

• The bulb not turning on when the dryer door is open.
• Dim or flickering light inside the dryer drum.
• A burnt-out or broken bulb.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This dryer blower wheel assembly mounts on the drive motor and spins to move air through the drum, lint filter, and exhaust. Replacing a cracked, warped, or stripped wheel restores airflow, reduces noise, and helps prevent overheating or shutdowns. What it does:

• Attaches to the motor shaft to draw and push air through the drum and exhaust duct
• Maintains proper airflow across thermostats/heater for stable temperature control
• Helps resolve weak vent airflow and extended cycle times
• Common symptoms include rattling/scraping from the blower area and motor running with little or no airflow

• 1 blower wheel assembly

• Disconnect power; for gas models, also shut off the gas supply
• Access the blower housing, remove the retainer (clip/nut) as designed for your model, and extract the old wheel
• Clean lint and debris from the housing and duct before reassembly
• Seat the new wheel fully on the motor shaft and verify it spins freely with proper clearance

This socket is an electrical connector that secures a wiring plug to an appliance component, restoring reliable contact and reducing intermittent power or component failures caused by a worn or damaged connector. What it does:

• Provides a stable electrical connection between wiring and the appliance component.
• Ensures consistent power transfer to control boards, motors or heating elements.
• A faulty socket can cause intermittent operation, loss of function, arcing, or a component that does not receive power.
• Replacing a corroded or loose socket can eliminate connection-related faults without replacing the whole assembly.

• Always disconnect power (and gas where applicable) before attempting any repair.
• Take a photo or label wires before removing the old socket to ensure correct reassembly.
• Replace only with the exact part; do not force connectors—ensure proper seating and secure fasteners.
• If you see damaged wiring, melted insulation, or signs of arcing, inspect and repair wiring harness.

The Thermal Cut-Off is an OEM replacement part for Whirlpool dryers. It serves as a crucial safety component, automatically disconnecting power to the dryer's heating element if temperatures rise too high. This protects against overheating that could potentially cause a fire.

Symptoms of a bad thermal cut-off can include:

• dryer failing to heat during cycles
• abnormal noises or smells coming from the dryer
• error codes related to temperature
• loose/damaged wires near the heating element

Causes of failure typically involve repeated exposure to excessive heat over long periods of use, though sometimes surges or physical damage can also trigger problems.

This Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The High Limit Thermostat is an OEM replacement part for Whirlpool dryers. This safety device monitors internal dryer temperatures. The high-limit thermostat automatically interrupts power if excessive heat builds up inside the dryer drum and ventilation area.

Causes of a bad high-limit thermostat typically include wear over many heat cycles. Without this critical safeguard functioning reliably, overheating dangers increase.

Symptoms of a bad high-limit thermostat include:

• Dryer failing to heat or stop heating unexpectedly
• Repeated blowing of fuses or breaker trips
• Smoky odors emitted from the dryer vent

This OEM Whirlpool replacement is also compatible with some Maytag, Roper, and select Kenmore dryer models as well.

This finished burner funnel directs gas and air into the burner for correct flame shape and ignition. It replaces a damaged or corroded funnel to help restore even heating and reliable burner performance. What it does:

• Channels gas and air into the burner for proper mixing and flame distribution
• Helps maintain even flame across the burner for consistent cooking heat
• Can reduce ignition delays or uneven flames caused by a damaged funnel
• Works with the burner assembly; not a standalone gas valve or igniter

• Turn off gas supply and electricity to the appliance before servicing
• Replace only with the correct funnel for your burner; follow OEM diagram for orientation
• Tighten fittings by hand-first, then snug—do not overtighten; inspect for leaks after reassembly

The Flame Sensor is an OEM replacement part for Whirlpool gas dryers. This component plays a critical safety role by monitoring the presence of the gas burner flame during the drying cycle.

Causes of needing to replace the flame sensor can include normal wear and tear over extended use, exposure to high temperatures or corrosion, or physical damage to the sensor itself.

Symptoms that may indicate a faulty flame sensor include:

• The dryer not heating or producing heat properly
• Error codes related to the gas system or ignition failure
• The dryer shutting off unexpectedly during cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas dryer models.

The Whirlpool screw is an OEM replacement part responsible for securely fastening various components and parts within Whirlpool appliances. These screws are essential for maintaining the structural integrity and safe operation of the appliance. These screws hold together critical components like panels, brackets, handles, and internal parts.

This part fixes the following symptoms:

• Loose or wobbly handles on refrigerators, ovens, or other appliances
• Vibrations or rattling noises during appliance operation
• Inability to assemble or disassemble parts during appliance repair or maintenance

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This blower pulley drives the blower assembly via the belt, helping move air through the appliance for proper drying and ventilation performance. Replacing a worn pulley can restore smooth blower operation and reduce noise.

• Transfers motor power to the blower via the drive belt
• Helps maintain proper airflow through the exhaust system
• Common failure symptoms: squealing or grinding noises, poor airflow, extended dry times, or belt wear
• Restores stable blower rotation when the original pulley is worn or seized

• Unplug the appliance and shut off gas (if applicable) before servicing
• Access typically requires removing front or rear panels; note belt routing before disassembly
• Inspect and replace the belt if frayed or glazed
• Confirm free pulley rotation and align belt during reassembly

This drum baffle restores proper fabric tumbling and gentle movement inside the dryer drum for more even drying and fewer snags. It fits the drum to help lift and separate items during the cycle. What it does:

• Lifts and guides clothes as the drum rotates to promote consistent tumbling
• Reduces fabric bunching and helps improve air exposure for more even drying
• Prevents garments from riding on the drum seam and reduces rubbing/snags
• Can stop or reduce thumping or uneven tumbling when a worn baffle is the cause

• One drum baffle

• Disconnect power before beginning work
• Installation typically requires opening the dryer's front or top panel and rotating/removing the drum—follow your model's service manual
• Keep track of fasteners and note baffle orientation; replace any damaged clips or screws
• Wear gloves and eye protection; watch for sharp edges and pinch points during reassembly

The Lint Filter Grille is an OEM part for Whirlpool dryers. This grille covers and secures the lint filter, ensuring it stays in place to effectively trap lint and debris during the drying cycle. The grille measures approximately 21 inches by 7 inches.

You should replace the lint filter grille if it becomes damaged or worn out. Causes of a bad lint filter grille can include regular wear and tear from frequent use, physical damage from handling, or brittleness due to prolonged exposure to heat.

Symptoms of a bad lint filter grille include:

• The lint filter not staying securely in place
• Excessive lint buildup inside the dryer drum or vent
• Visible cracks or breaks in the grille
• Difficulty inserting or removing the lint filter

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Thermal Fuse is an OEM part for Whirlpool dryers. It is a critical safety component designed to protect the dryer from overheating by blowing and cutting off power if the temperature exceeds safe limits. This disposable, one-time fuse is essential for preventing potential fire hazards and ensuring the appliance operates within safe temperatures.

Symptoms of a bad Thermal Fuse include:

• The dryer not starting or suddenly stopping during a cycle
• No heat being produced while the dryer is running
• Unexplained cessation of all dryer functions

Causes of a bad thermal fuse can stem from restricted airflow due to lint buildup, a malfunctioning heating element that causes excessive temperatures, or other electrical issues within the dryer.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This valve hose assembly routes water from the inlet valve to the dispenser/ice/water system, restoring proper water flow and preventing leaks when the original hose is damaged. Designed to match OEM fit and function. What it does:

• Transfers water from the inlet/valve to the dispenser or ice/water components
• Replaces cracked, split, or collapsed hose that can cause leaks
• Helps restore normal water flow when dispenser or ice maker filling is slow or intermittent
• Reduces risk of water damage from deteriorated or brittle tubing

• One valve hose assembly

• Turn off water supply and unplug the appliance before starting work
• Inspect connection fittings for wear; use proper clamps or replacement fittings as needed
• Tighten connections to prevent leaks but avoid over-torquing plastic fittings

This water inlet valve assembly controls water flow into the appliance so cycles fill correctly and water-dependent functions work reliably. It replaces a worn or failing valve to restore proper water supply. What it does:

• Opens and closes to allow water into the appliance during fill cycles
• Stops water flow when the cycle or machine commands a shutoff
• Commonly replaced when the appliance won't fill, fills continuously, or leaks at the valve
• Works with the appliance's control system to meter water for proper operation

• Disconnect power and shut off the water supply before starting any repair
• Handle electrical connectors and tubing carefully; replace damaged gaskets/seals
• Verify correct hose/tube routing and secure fittings to prevent leaks

This replacement steam spray nozzle directs steam into the appliance's steam system to help produce even steam flow for wrinkle reduction and refreshing cycles. It restores proper steam delivery when the original nozzle is cracked or clogged. What it does:

• Directs and shapes steam flow into the appliance's steam path for consistent operation.
• Helps restore normal steam performance when steam output is weak or uneven.
• Prevents misdirected steam that can reduce cycle effectiveness.
• Works as a direct replacement for a damaged, cracked, or clogged nozzle.

• One steam spray nozzle

• Disconnect power and water supply before servicing; allow the appliance to cool.
• Handle the nozzle carefully to avoid damage; inspect surrounding seals and fittings.
• May require basic hand tools for access; follow OEM instructions.

A small replacement retainer clip that secures interior panels and trim to restore proper fit and reduce vibration or rattling. Fits where a molded or snap-in fastener has worn or broken. What it does

• Secures panels, trim pieces, or wiring harnesses so parts sit flush and stable.
• Prevents rattling and vibration caused by loose or missing fasteners.
• Helps keep seals and gaskets aligned by holding adjacent trim in place.
• Common symptom: loose trim, gaps, or intermittent rattling sound during operation.

• The clip shown.

• Disconnect power (unplug appliance or turn off breaker) before servicing.
• Access the clip location by removing the appropriate trim or panel.
• Clip typically snaps into a mounting hole or slot; align and press until it seats securely.
• Use basic hand tools as needed; wear gloves and eye protection to avoid injury from sharp edges.

This coupler connects the washer motor to the gearcase so the motor can turn the transmission and drive the washer's agitator and spin functions. Replacing a worn coupler restores reliable power transfer and normal wash cycles. What it does:

• Transfers torque from the motor to the gearcase so the washer agitates and spins
• Dampens shock between motor and transmission during load changes
• Worn or broken couplers can cause no-agitate/no-spin, slipping, or loud grinding noises
• Prevents direct metal-to-metal contact that can damage motor or gearcase

• Disconnect power and water supply before starting any repair
• Support the tub or transmission per the OEM instructions before removing the old coupler
• Inspect motor shaft and gearcase input for damage; replace additional parts if scored or worn
• Use basic hand tools; follow OEM diagram for proper alignment and secure fit

Flat metal washer that helps secure fasteners and evenly distribute load on mounting points. Replacing a worn or corroded washer restores proper fastener grip, reduces vibration, and stops loose or rattling parts. What it does:

• Provides a smooth bearing surface for nuts and bolts, preventing pull-through and damage
• Distributes clamping force to protect mounting surfaces and maintain alignment
• Helps reduce vibration and noise from loose or worn fasteners
• Replace when bent, corroded, cracked, or missing to restore secure mounting

• Always disconnect power to the appliance before beginning repairs; follow all safety precautions
• Use the correct size fastener and torque to avoid over-tightening or crushing the washer
• Inspect surrounding hardware and replace any damaged or corroded bolts, nuts, or brackets

This is a replacement mounting nut that secures appliance components and helps keep panels, assemblies and fasteners tight for stable operation. A simple, OEM-fit nut for repair or maintenance. What it does

• Fastens and secures assemblies, brackets or panels to prevent loosening during use
• Helps reduce vibration and rattling caused by loose hardware
• Restores proper component alignment when a stripped or missing nut causes movement
• Fits in the same location and function as the original factory nut

• Inspect the mating bolt/stud and threads; replace damaged hardware before installing the nut
• Tighten to the appliance manufacturer's specified torque where available; avoid over-tightening
• Use hand tools appropriate for the nut size to prevent rounding the hex
• Disconnect power or follow manufacturer safety instructions before servicing electrical appliances

This temperature sensor mounts on the sealed-system gas inlet line in compatible refrigerators. It relays precise temperature feedback to the control so cooling and defrost cycles are managed correctly, helping maintain stable compartment temperatures. What it does:

• Senses temperature at the gas-inlet line; resistance changes are read by the control
• Helps regulate compressor, fan, and valve operation for proper cooling performance
• A failed sensor may cause erratic temperatures or extended run times
• Can correlate with control thermistor error codes or frost/ice patterns near the evaporator

• 1 thermistor sensor

• Disconnect power before servicing
• Note original sensor placement and insulation; reinstall in the same location and orientation
• Attach the sensor firmly to the line and route the harness as originally, away from sharp, hot, or moving parts
• Do not open or puncture sealed-system tubing; if damage is suspected, stop.
