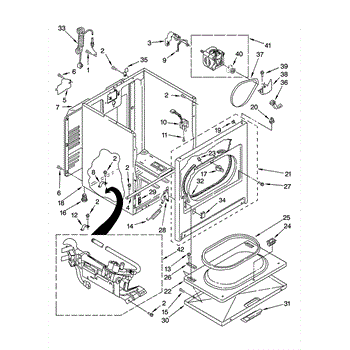

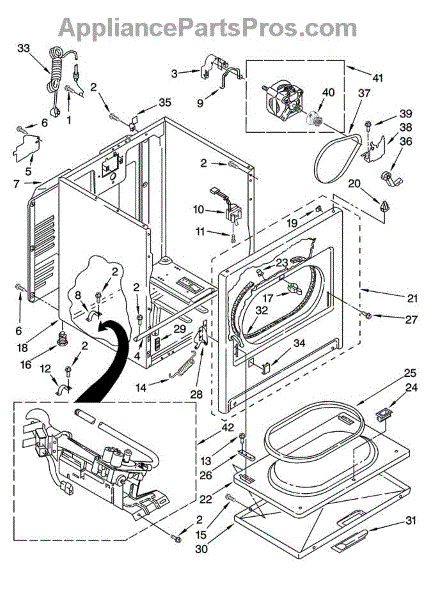

Parts for Whirlpool TEST4101: Cabinet Parts

This replacement screw secures appliance panels and components. Use this OEM fastener to swap out stripped, corroded, or missing hardware so assemblies stay tight, aligned, and quiet for reliable day-to-day operation.

• Provides secure attachment for panels, brackets, and internal assemblies
• Direct replacement for stripped, corroded, or lost screws
• Can help with symptoms like vibration, rattling, or loose/misaligned parts
• Supports proper fit to reduce gaps or unwanted movement

• Disconnect power; for gas or water appliances, shut off the supply before service
• Note hardware order and retain any spacers or clips from the original setup
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Repair or replace the mating part before installation

Specs: 10-16 x 1/2 inch.

This motor mount clamp secures the dryer's drive motor to its bracket, keeping the assembly aligned and stable. Replacing a worn or broken clamp helps reduce vibration, stop rattling, and prevent blower or belt alignment issues.

• Locks the motor to the mounting bracket to prevent shifting during operation
• Helps maintain alignment to minimize vibration and noise
• A bent, loose, or missing clamp can cause rattling, scraping, or thumping sounds
• Allow the blower wheel to rub or the belt to track poorly, affecting drum rotation

• Disconnect power to the appliance before servicing
• Access the motor area and release belt tension per your model's procedure
• Install the new clamp, ensuring the motor and rubber mounts/pads are fully seated in the bracket
• Blower clearance and belt alignment before reassembly and testing

This replacement cover restores the appliance's finished appearance and protects internal components from dust and debris. It's a direct-fit exterior trim piece designed to replace a cracked, broken, or missing cover. What it does:

• Protects internal components and wiring from debris and accidental contact
• Restores the appliance's cosmetic appearance and helps maintain sealing
• Helps reduce dust buildup in the covered area
• Replaces damaged or missing trim that can expose sharp edges or hardware

• Disconnect power (unplug or switch off circuit breaker) before beginning work
• Basic hand tools may be required; follow for panel removal/replacement
• Handle carefully to avoid scratching the finish and watch for sharp edges
• Replace with manufacturer-recommended fasteners

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This rear panel replaces the cabinet back on compatible Whirlpool appliances to protect internal components and close the cabinet for proper airflow and safety. It restores the appliance's enclosure and keeps wiring and controls covered. What it does:

• Covers and protects internal parts at the back of the appliance from dust and physical damage
• Helps maintain proper airflow paths for cooling and ventilation
• Restores the appliance cabinet for a finished appearance
• Can reduce vibration-related noise by securing rear components

• One rear panel as described

• Disconnect power (unplug or shut off breaker) before starting any repair
• Remove access panels and mounting screws to replace the rear panel; retain hardware
• Handle sharp edges carefully and wear gloves to avoid cuts
• Note wiring or components are tucked to the panel, their routing before removal and restore exactly

This motor mount clamp secures the dishwasher's pump/motor assembly to its housing, keeping the motor stable and the seal tight. Replace a damaged clamp to help prevent leaks and reduce vibration or rattling noise.

• Secures the pump/motor assembly at the mount to prevent movement
• Helps maintain a watertight seal at the motor connection
• A failed clamp can lead to leaking from the base area
• May cause excessive vibration or rattling during operation

• Disconnect power and turn off the water supply before servicing
• Access the pump/motor from beneath; support the assembly to relieve tension
• Note clamp orientation; ensure the existing seal is properly seated and tighten the new clamp evenly
• After reassembly, run a short cycle and check for leaks

The Dryer Door Switch is an OEM replacement part for Whirlpool dryers. It is a crucial safety component that monitors the opening and closing of the dryer door, preventing the dryer from operating when the door is open.

Symptoms of a faulty Dryer Door Switch include:

• The dryer failing to start or operate with the door closed
• The dryer continuing to run or heat even when the door is open
• Error codes or warning lights related to the door switch sensor

Causes of a bad door switch can include normal wear and tear over time, physical damage from mishandling or impact, or electrical malfunctions.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

A general-purpose 6-20 screw used to secure panels, brackets and small components on Whirlpool appliances. Replaces stripped or missing fasteners to restore a snug fit and reduce rattling or loose parts. What it does:

• Secures appliance panels, trim, brackets and internal components in original mounting locations.
• Stops panel movement, vibration noise and loose connections caused by missing or corroded screws.
• Fits the OEM 6-20 thread designation used on multiple Whirlpool assembly points.
• Sold individually for spot repairs and small part replacements.

• Disconnect power or gas supply to the appliance before starting any repair.
• Use the correct screwdriver or bit to avoid stripping the head; tighten until snug but do not overtighten.
• Replace like-for-like; stop and verify the correct fastener for the mounting point.
• Check the appliance's parts diagram for the exact screw location and orientation.

This is a replacement side trim screw that secures the refrigerator side trim/finish panel, restoring a snug fit and finished appearance. Designed to match the original factory fit and finish on compatible Whirlpool units. What it does:

• Fastens the side trim/finish panel so the exterior trim sits flush and secure
• Helps stop rattling, shifting, or gaps caused by loose or missing trim screws
• Matches factory color and head style to keep a consistent exterior look
• Small hardware piece used in multiple trim/assembly locations

• One side trim screw (black)

• Use the matching screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can crack trim or strip threads
• Turn power off and remove any nearby panels if needed for safe access
• Replace all to ensure even fit

This door spring restores the proper counterbalance of the oven door so it opens smoothly and closes with controlled tension. Replacing a worn or broken spring helps prevent the door from dropping, slamming, or sitting unevenly.

• Provides counterbalance tension for the oven door through the hinge mechanism
• Helps the door open smoothly and hold at a partially open position
• Maintains even alignment and consistent gasket contact
• Common symptoms of failure: door feels heavy, drops open or slams, uneven door height, squeaks during movement

• Disconnect power at the breaker and allow the oven to cool completely
• Springs are under tension—support the door and use caution to avoid injury
• Note the spring's routing and anchor points before removal; reinstall in the same positions
• For even tension, consider replacing both door springs when the design uses one per side

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

The Dryer Leveling Foot is an OEM part for Whirlpool dryers. It is designed to support and stabilize the dryer by allowing adjustments to the height and leveling of the unit. Proper leveling ensures the dryer operates smoothly and efficiently, reducing vibrations and preventing unwanted movement during cycles.

Causes of a bad leveling foot can include wear and tear from regular use, damage from moving the dryer, or breakage due to heavy loads and stress. Over time, the threads on the leveling foot can wear out, or the foot itself can become cracked or deformed.

Symptoms of a bad leveling foot include:

• Dryer rocking or wobbling during operation
• Unusual noises or vibrations
• Difficulty in adjusting the dryer's height
• Visible damage or wear on the leveling foot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Dryer Leveling Foot is an OEM part for Whirlpool dryers. It is designed to support and stabilize the dryer by allowing adjustments to the height and leveling of the unit. Proper leveling ensures the dryer operates smoothly and efficiently, reducing vibrations and preventing unwanted movement during cycles.

Causes of a bad leveling foot can include wear and tear from regular use, damage from moving the dryer, or breakage due to heavy loads and stress. Over time, the threads on the leveling foot can wear out, or the foot itself can become cracked or deformed.

Symptoms of a bad leveling foot include:

• Dryer rocking or wobbling during operation
• Unusual noises or vibrations
• Difficulty in adjusting the dryer's height
• Visible damage or wear on the leveling foot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

This U-type nut clips over a sheet-metal edge to create a durable threaded anchor for a screw. It helps secure panels, trim, and brackets so fasteners hold tight and components stay aligned and rattle-free. What it does:

• Clips onto thin sheet metal to provide captive threads where a standard nut cannot be used
• Holds screws securely to fasten panels, trim pieces, or mounting brackets
• Addresses issues like loose panels, missing/broken clips, or screws that will not tighten
• Helps reduce vibration and rattling from unsecured components

• 1 U-type nut

• Disconnect power and shut off gas/water before servicing
• Position the U-nut over the panel edge with the threaded side aligned to the hole
• Start the screw by hand to avoid cross-threading; tighten snugly without overtightening
• Replace any damaged or corroded hardware to ensure a secure hold

The Top Lock is an OEM component for Whirlpool electric and gas dryers. It secures the outer metal cabinet door during drying cycles for safety and ventilation. This lock provides a method for releasing and latching the door tightly when shut.

Symptoms of a failing top lock may include:

• Inability to fully close or properly latch the dryer door
• Accidental opening from deficient locking during operation
• Difficulty manipulating the lock due to worn or broken parts

Causes related to normal wear of moving parts through frequent use over several years. Deformation from excessive exterior impacts could also damage locking mechanisms.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Includes two bumpers and two locking clips. You will use one or the other depending on hole size.

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

The Door Seal is an OEM part for Whirlpool dryers. It forms a tight seal around the dryer door, preventing heat from escaping and ensuring efficient drying performance. This seal helps to maintain the internal temperature of the dryer, optimizing energy use and improving drying results.

Causes of a bad door seal can include wear and tear from regular use, damage due to improper handling or cleaning, or deterioration over time. A compromised door seal can affect the efficiency of the dryer and lead to potential safety issues.

Symptoms of a bad door seal include:

• Heat escaping from the dryer door
• Longer drying times
• Higher energy consumption
• Visible wear or damage to the seal

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This retaining clip secures plastic and metal panels and small assemblies to keep parts aligned and reduce movement. It replaces a worn or broken clip to restore proper fit and stop loose panels or rattling. What it does:

• Holds trim, panels or housings in place to maintain proper alignment
• Prevents parts from shifting or vibrating during operation
• Helps stop rattling or intermittent contact caused by a missing clip
• Serves as a simple mechanical fastener — no tools beyond basic hand tools may be needed for access

• Disconnect power to the appliance before beginning any repair.
• Access may require removing panels or trim; keep fasteners organized.
• Inspect mating surfaces and adjacent clips; replace additional clips if brittle or damaged.

Size: 10-32 x 1/2 inch.

Left hand hinge. For right hinge use WP8066056

The Door Hinge is an OEM part for Whirlpool dryers. This hinge ensures the secure attachment of the dryer door to the appliance, allowing it to open and close smoothly. Right-hand hinge. For the left hinge use AP3047600

Causes of a bad door hinge can include regular wear and tear, accidental impacts, or overloading the door.

Symptoms of a bad door hinge include:

• Door not closing properly
• Door sagging or misaligned
• Difficulty opening or closing the door
• Noises or squeaking when moving the door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Dryer Clip is an OEM component for Whirlpool electric and gas dryers. It securely fastens critical ductwork attached to the dryer cabinet. Over extended periods, the constant vibrations produced during tumbling cycles cause microscopic fractures or loosening within the clip material where it grips duct joints.

Causes relate to ordinary fatigue from long-term resonance vibrations concentrated at anchoring points.

Symptoms involve:

• Loose or detached venting/ductwork affecting airflow
• Noticeable leaks emerging at separation interfaces
• Reduced drying effectiveness due to compromised ventilation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement door handle restores a secure, easy-to-grip surface for opening and closing the appliance door and refreshes the door's appearance. Designed to match factory fit and function when the original handle is cracked, loose, or missing. What it does:

• Provides a firm, ergonomic grip for opening and closing the appliance door.
• Restores proper mounting and alignment if the original handle is damaged or wobbly.
• Helps prevent injury from sharp or broken handle edges.
• Improves the appearance of the appliance door when the original is faded, cracked, or missing.

• One replacement door handle

• Before starting, disconnect power to the appliance or unplug it to reduce shock risk.
• Remove any trim or access panels per the service instructions to access handle fasteners.
• Keep original screws and small parts; use the OEM diagram to confirm orientation and placement.
• Do not overtighten fasteners—snug only to avoid cracking the handle.

The Front Panel Felt Seal is an OEM part for Whirlpool dryers. This felt seal fits between the front panel and the drum, creating a barrier that helps retain heat and ensures efficient drying. It also reduces friction between the drum and the front panel, minimizing wear and tear on both components.

Causes of a bad felt seal can include regular wear and tear, exposure to high temperatures, or damage from foreign objects in the dryer. A compromised felt seal can lead to inefficient drying and potential damage to the dryer drum.

Symptoms of a bad front panel felt seal include:

• Clothes taking longer to dry
• Excessive lint buildup inside the dryer
• Unusual noises during the drying cycle
• Visible damage or gaps in the felt seal

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This power cord connects your appliance to household electricity, supplying safe, reliable power to its controls and components. Replace a damaged or overheated cord to restore dependable operation and reduce the risk of shorts.

• Supplies AC power from the wall outlet to the appliance's electrical system
• Helps resolve no power, intermittent power loss, or tripped breaker issues
• Replace if the cord is cut, frayed, melted, discolored, or feels hot at the plug
• Restores safe operation when the original plug or insulation is damaged

• Disconnect power at the outlet or circuit breaker before servicing
• Note wire routing and connection points; match the original orientation for hot, neutral, and ground
• Seat the cord properly and secure with the model's required strain relief or clamp to prevent tension on terminals
• Ensure the cord is not pinched and is clear of sharp edges, hot surfaces, and moving parts; test for proper operation

This top hinge supports the hinged top or upper panel, allowing it to lift for service and close securely. Replacing a worn hinge restores smooth motion and proper alignment to help eliminate wobble, scraping, or gaps.

• Provides the pivot point for lifting the top/panel
• Maintains alignment and helps the top seat flat when closed
• Restores smooth opening/closing without binding or rubbing
• Common signs of failure: loose or uneven top, squeaks, difficulty lifting/closing, visible bending or cracks at the hinge

• Disconnect power; also shut off gas and allow all surfaces to cool
• Support the top/panel while removing and installing the hinge to prevent strain
• Transfer and tighten existing mounting screws unless new hardware is provided
• After installation, check alignment and clearances; replacing hinges in pairs can improve fit

The Idler Pulley is an OEM part for Whirlpool dryers, responsible for maintaining the correct tension on the drive belt, allowing it to remain tight and aligned, preventing slipping and contributing to the consistent rotation of the drum during cycles.

Symptoms of a bad Idler Pulley include:

• Squealing or squeaking noises
• The dryer drum failing to turn
• Excessive vibration or unusual sounds

Causes of failure can range from normal wear and tear, which can lead to the pulley's bearing wearing out, to the accumulation of lint and debris causing the pulley to seize or function improperly. Additionally, a cracked or damaged pulley can lead to belt misalignment and slippage.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Fits all Whirlpool-made dryers (Whirlpool, Kenmore with prefix 110, Roper, KitchenAid, and Estate). Matching belt 341241 and rear support rollers 349241T. Whirlpool dryer repair manual 677818L.

Get your dryer spinning smoothly again - install the Whirlpool 341241 OEM Drum Belt in minutes.

Why this belt?

• Exact factory spec: 92 ¼-inch length × ¼-inch width, 4 ribs / 3 grooves - built to Whirlpool standards, not a generic copy.
• Broad compatibility: Fits most Whirlpool-made dryers - Kenmore 110-series, Roper, Estate, Maytag, KitchenAid, Admiral, Crosley, Amana & more.
• Quiet, durable rubber: Reinforced EPDM resists cracking and stretch for years of reliable tumbling.

Fixes these common dryer problems

DIY install — about 15 minutes

1. Unplug dryer; remove lint screen housing & front panel.
2. Release belt tension at idler pulley; lift drum slightly to slide old belt off.
3. Loop new belt around drum, idler pulley and motor pulley (ribbed side down).
4. Re-assemble, run test cycle - enjoy quiet, consistent tumbling.

This motor base is the replacement support that secures and positions the dryer motor assembly, helping restore stable alignment and minimize excess noise or vibration during operation. What it does:

• Supports and mounts the motor to the appliance chassis to keep the motor properly aligned
• Helps maintain correct spacing between the motor and drive components for smooth operation
• Reduces motor movement that can cause rubbing, vibration, or unusual noise
• Can address symptoms such as excessive vibration, banging, or misaligned motor movement

• Disconnect power to the appliance before starting any repair
• Follow the appliance's service manual or exploded parts diagram for correct removal and reassembly
• Use appropriate tools and take care with sharp sheet-metal edges
• Retain or transfer any original mounting hardware unless new fasteners are explicitly listed

This 5/16-18 x 3/4 machine bolt replaces a missing or damaged fastener used to secure panels, brackets and components in many home appliances. It restores proper fit and helps stop rattling or loose parts. What it does:

• Secures panels, brackets or assemblies to maintain proper alignment and safe operation
• Restores clamping force where a stripped or missing bolt lets parts shift or vibrate
• Helps eliminate rattling, scraping or movement caused by loose fasteners
• Matches standard 5/16-18 coarse threads for direct replacement of the OEM bolt

• Disconnect power to the appliance before servicing to reduce shock and injury risk
• Start threads by hand to avoid cross-threading; tighten using the correct socket or wrench
• Do not overtighten; snug to manufacturer torque or until secure to avoid stripping threads
• If the original mating threads are damaged, inspect the receiving part and repair or replace as needed

ROLLER ONLY. For idler pulley with bracket, order WP691366.

The Dryer Drive Motor is an OEM part for Whirlpool dryers. This motor is the heart of the dryer, responsible for turning the drum and enabling the air to circulate properly throughout the machine.

Over time, dryer motors can suffer from wear and tear due to continuous use, accumulation of lint and debris, or overload from heavy laundry loads. These factors can lead to the motor overheating, losing power, or failing to start altogether.

Symptoms of a bad Dryer Drive Motor include:

• The dryer not starting when the start button is pressed
• Unusual noises, such as humming or buzzing
• The dryer stopping unexpectedly during cycles
• A burning smell coming from the dryer

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This gas surface burner head distributes fuel through its ports to create an even, reliable flame on your cooktop. Replace a clogged, damaged, or warped head to restore consistent ignition and proper heat on the affected burner.

• Channels gas through precision ports to produce a steady, even flame
• Interfaces with the surface igniter/electrode for quick, reliable ignition
• Replaces worn or clogged heads that cause weak, uneven, or yellow flames
• Helps resolve delayed ignition or a burner that won't light

• Disconnect electrical power and shut off gas supply before servicing
• Remove grate and burner cap, lift off the old head, and clean the mating surface
• Align the new head with the igniter and locating features; seat it fully before replacing the cap
• Restore gas and power; test ignition and verify proper flame pattern
