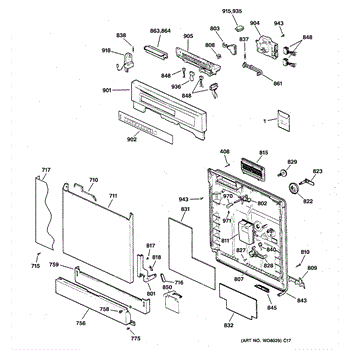

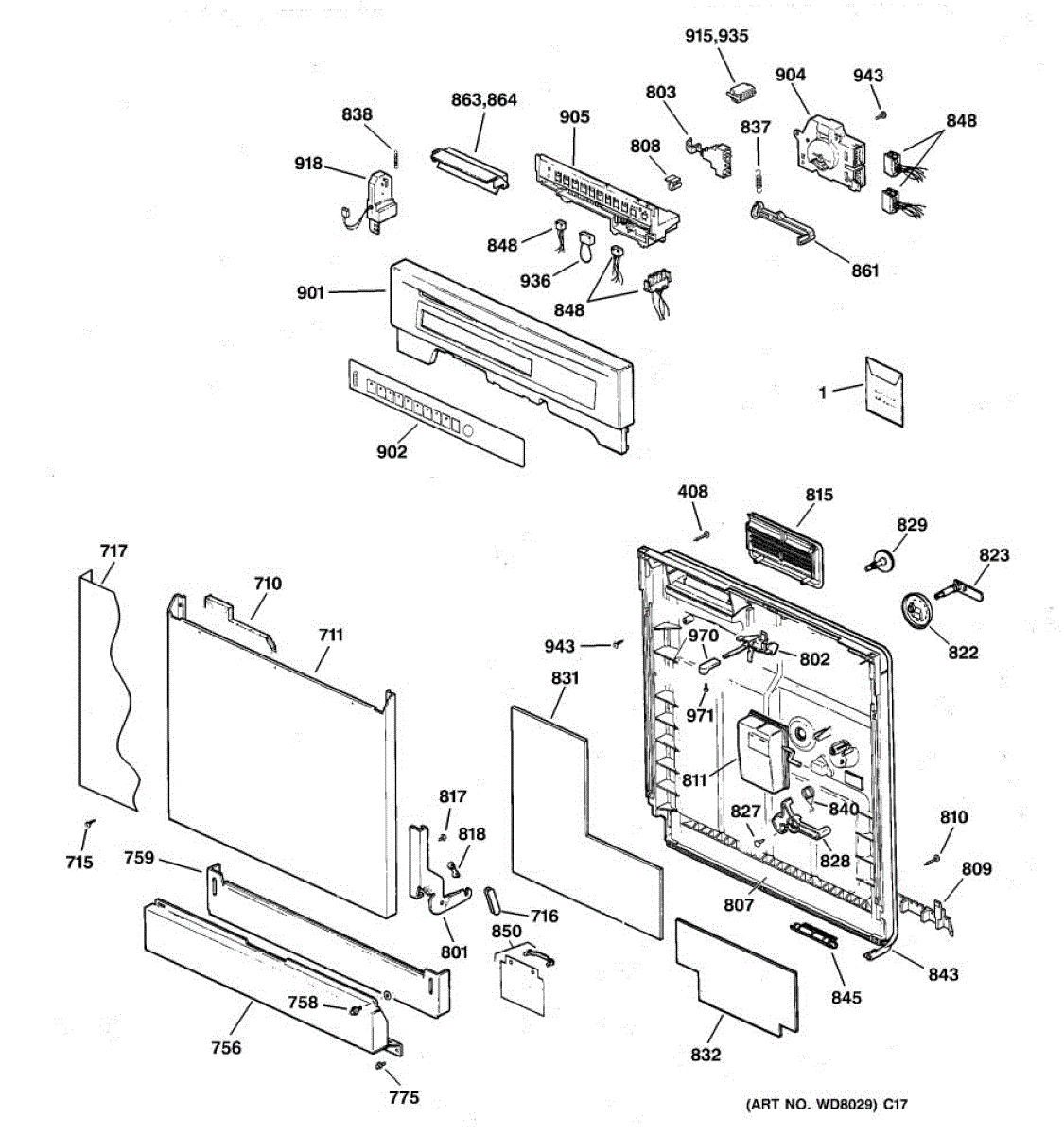

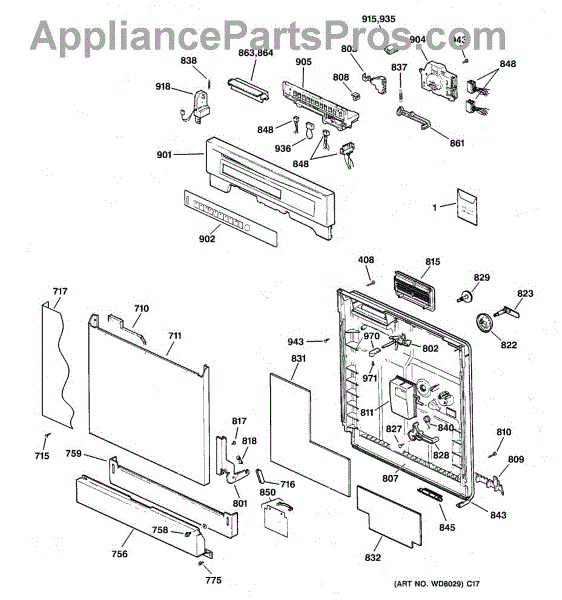

Parts for Ge EDW2020F01BB: 01 - Escutcheon & Door Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Size: 8-32 x 5/8 inch.

Color: Black

Black. 8-18 x 5/16 inch.

The Hinge Arm Link is an OEM part for GE dishwashers. This component functions as a connection point between the dishwasher door and the hinge mechanism, allowing the door to open and close smoothly. The hinge arm link ensures that the door can bear the weight of itself, often laden with a mounted dish rack when fully loaded, without straining the hinges or misaligning.

Causes of damage to the hinge arm link often involve regular wear and tear from the constant motion of opening and closing the dishwasher door.

Symptoms of a bad Hinge Arm Link include:

• Difficulty opening or closing the dishwasher door
• A door that won't stay closed or opens unexpectedly
• Visible wear or damage to the hinge arm link, such as bending, breaking, or severe wear marks

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This finished access panel mounts at the lower front of the dishwasher to cover the service opening. It restores a clean, factory appearance while helping shield internal components from debris and incidental contact. What it does:

• Covers the lower front service opening at the base of the dishwasher
• Helps protect wiring, pump area, and insulation from debris and accidental contact
• Contributes to overall noise containment and proper ventilation as designed
• Replaces a panel that is dented, bent, rusted, rattling, or missing

• 1 finished access panel

• Disconnect power (and water, if necessary) before servicing the appliance.
• Remove mounting screws securing the existing panel and set the old panel aside.
• Position the new panel and secure it with the original hardware; ensure it sits flush and doesn't interfere with door operation.
• Restore power and check for proper fit and vibration-free operation.

A stainless steel hex-washer-head screw used to secure panels and components on compatible appliances. Corrosion-resistant construction helps maintain a secure fit where short, strong fasteners are required. What it does

• Fastens appliance panels, trim, or brackets where an 8-18 thread and short 3/8" length are specified
• Hex washer head provides a larger bearing surface to reduce pull-through
• Stainless finish resists rust in humid appliance areas
• Common replacement when original mounting screw is stripped, missing, or corroded

• One stainless steel hex-washer-head screw

• Use the correct 8-18 thread fastener and do not force mismatched screws to avoid thread damage
• Tighten securely but avoid overtightening to prevent stripped threads or cracked panels
• Power tools may be used with appropriate bit, but start by hand to ensure proper alignment
• If installing near electrical components, disconnect power before servicing

This hex washer-head screw secures dishwasher components like brackets, shields, and panels. Replacing a stripped or missing screw restores a tight fit and helps prevent vibration, rattling, and loose parts during operation.

• Fastens parts where a #10-16 x 1/2-inch hex washer-head screw is specified
• Secures brackets, panels, and assemblies to the tub or frame
• Helps resolve symptoms like loose panels, vibration, or rattling noises
• Restores proper hold when the original screw is stripped, missing, or damaged

• Disconnect power and shut off water to the dishwasher before servicing
• Match length and thread to the original; replace screws one at a time to maintain alignment
• Start threading by hand to avoid cross-threading; tighten snugly—do not overtighten, especially into plastic
• Verify no wires or hoses are pinched before reassembly

• Size: #10-16 x 1/2 inch
• Head: hex washer-head
• Type: AB tapping screw

Size: 10-16 ab.

This is the complete left side hinge assembly. For right side use WD14X10008.

This is the complete right side hinge assembly. For left side use WD14X10007.

The Door Latch Assembly is an OEM part for GE dishwashers. This part ensures the door of your dishwasher shut and locks securely. This part is integral for the safe and efficient operation of your appliance, as it helps to prevent water from leaking during cycles and ensures the dishwasher only runs when the door is properly closed.

Causes for door latch issues typically involve regular wear and tear, accidental damage from forceful use, or degradation of the latch's mechanical or electrical components.

Symptoms of a malfunctioning Door Latch Assembly include:

• Difficulty in closing or locking the dishwasher door
• The dishwasher not starting, indicating the door isn't recognized as securely latched
• Water leakage around the door, suggesting an incomplete seal
• Noticeable damage to the latch itself, impairing its function

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This switch interlock assembly secures the appliance door and completes the electrical circuit so the unit can start and run safely. Replacing a worn interlock restores reliable door sensing and helps ensure normal cycle operation. What it does:

• Detects and holds the door/lid closed so the appliance will start
• Completes the electrical pathway for motor and control circuits
• Prevents operation when the door is open or not fully latched
• Can stop mid-cycle or prevent starting when the interlock fails

• One switch interlock assembly

• Disconnect power (unplug or switch off the breaker) before replacing the part
• Handle mounting screws and wiring harness carefully; match connector orientation when reinstalling
• Verify door alignment and latch function before restoring power

Inner door panel replaces the interior face of the appliance door, restoring a clean surface and proper support for door components so the door can close and seal as intended. Ideal when the door liner is cracked, dented, or visibly worn. What it does:

• Serves as the interior surface of the door and supports the inner glass or window.
• Provides a mounting surface for latches, seals, and related hardware to help maintain a proper door closure.
• Reduces rattling, visible damage, or interior door gaps that can affect operation.
• Protects internal door components from debris and normal wear.

• Disconnect power and unplug the appliance before starting any repair.
• Use basic hand tools to remove door trim or screws; keep all fasteners for reassembly.
• Handle inner glass and sharp edges carefully—wear gloves and eye protection.
• Refer to the appliance's service manual or OEM instructions for model-specific removal and reinstallation steps.

This small hardware clamp is used on select refrigerators to secure tubing or wiring to the cabinet or frame. Replaces a missing or damaged clamp to keep lines stable, reduce vibration, and help prevent rubbing or leaks.

• Secures small water tubing or electrical harnesses along the cabinet/frame
• Helps prevent vibration, rattling, and abrasion of lines
• Maintains correct routing to keep lines clear of moving or hot components
• Common clues: loose or noisy lines, chafing marks, or moisture near tubing connections

• Unplug the appliance and shut off the water supply before servicing
• Note the original location and routing; take a photo for reference
• Reuse the existing mounting screw/fastener if required; tighten only enough to hold without crushing tubing
• Restore power and water, then run and inspect for vibration and leaks

Size: 8-18 x 7/8 inch.

This rinse aid tank is the reservoir inside the dishwasher dispenser that holds liquid rinse agent and releases it during the final rinse. Replacing a damaged tank helps restore proper dispensing, reduce spotting, and prevent leaks at the dispenser.

• Stores rinse aid within the dispenser assembly
• Works with the dispenser to release a measured dose during the rinse cycle
• Failure signs: rinse aid not dispensing, dishes with spots/poor drying, rinse aid level dropping rapidly, or leaks near the dispenser area
• Visible cracks or damage to the reservoir indicate replacement is needed

• Disconnect power at the breaker and shut off water before servicing
• Remove the inner door panel to access the dispenser
• Transfer any reusable seals or clips from the original tank; seat and secure the tank per service instructions
• Reassemble, refill the reservoir with rinse aid, and run a test cycle to check for leaks

This replacement door vent directs humid air out of the dishwasher during the dry cycle. Restoring a damaged or missing vent helps maintain proper airflow and reduce unwanted moisture around the door area. What it does:

• Vents steam from the tub to help manage moisture during drying
• Routes airflow away from the door and control area
• Helps limit condensation and odor buildup inside the door
• Common signs of failure: visible cracks or broken louvers, steam/moisture escaping at the door top, water spots near the vent, or a loose/rattling vent

• 1 door vent

• Disconnect power at the breaker before servicing
• Open the door; remove screws or release tabs to remove the old vent (varies by model)
• Note orientation, seat the new vent fully, and secure without overtightening
• Reassemble and run a short cycle to check for proper sealing and airflow

The Detergent cup cover is an OEM component for GE dishwashers. It serves to protect the detergent cup assembly while allowing for easy access. Made of durable plastic, the cover clicks securely into place during operation to prevent accidental opening.

Causes of a bad detergent cup cover include cracks or breaks from heavy use over time.

Symptoms of a bad detergent cup cover can include:

• Difficulty opening or closing the detergent cup cover properly
• Portions of the cover assembly no longer intact or missing
• Leaks developing around the perimeter of the cover

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Soap Dispenser Lever is an OEM part for GE dishwashers. It operates the soap dispenser door, releasing detergent into the dishwasher at the appropriate time during the wash cycle. This lever ensures that detergent is dispensed efficiently for optimal cleaning performance.

Causes of a bad soap dispenser lever can include wear and tear over time, accumulation of detergent residue, or damage due to accidental mishandling or impact. When the lever malfunctions, the detergent might not be released properly, leading to poor cleaning results.

Symptoms of a bad soap dispenser lever include:

• The detergent not being dispensed during the wash cycle
• The dispenser door not opening or closing correctly
• Residual detergent left in the dispenser after the cycle

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Size: 10-12 x 1/2 inch.

The Detergent Cup Latch is an OEM part for GE dishwashers, specifically designed for certain models. It is located on the detergent dispenser assembly. When the detergent cup is loaded with detergent, the latch holds it in place and prevents it from accidentally opening or spilling during the wash cycle.

Causes of a faulty or damaged detergent cup latch can include regular wear and tear, misalignment, or breakage. These factors can result in issues such as the detergent cup not staying closed, detergent not being dispensed properly, or leaks from the detergent compartment.

Symptoms of a bad detergent cup latch may include:

• The detergent cup not staying closed during the wash cycle
• Detergent not being released or dispensed into the dishwasher
• Leaks or spills from the detergent cup area

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Fill Cap Assembly is an OEM part for GE dishwashers. This assembly includes the cap that covers the opening where rinse aid or other additives are poured into the dishwasher. It ensures that the additives are securely contained and properly dispensed during the wash cycles, contributing to effective cleaning and drying.

Over time, the fill cap assembly can become damaged due to regular use, exposure to cleaning agents, or accidental mishandling. A compromised fill cap can lead to leaks or improper dispensing of rinse aid, affecting the dishwasher's performance.

Symptoms of a bad fill cap assembly include:

• Rinse aid or additives leaking from the dispenser
• The cap not securing properly or coming off easily
• Improper dispensing of rinse aid
• Visible cracks or damage to the cap

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Damper has adhesive backing.

The Detergent cup spring is an OEM component for GE dishwashers. As part of the detergent cup assembly, this spring ensures the detergent cup door remains securely closed during the wash cycle. It provides just the right amount of pressure to keep dishes clean while preventing leaks or spills.

Causes of a bad detergent cup spring include general wear and tear, repeated use breaking down the coils of the spring, or damage from forceful handling.

Symptoms of a bad detergent cup spring are:

• Detergent residue building up outside the detergent cup area
• Signs of liquid detergent leaks underneath the detergent cup door
• The detergent cup door remains slightly ajar during the cycle

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dishwasher Door Gasket is an OEM part for GE dishwashers. It forms a seal around the dishwasher door to prevent water from leaking during the wash cycle. The gasket has an approximate length of 89 inches.

Causes of a bad door gasket can include wear and tear over time, improper cleaning or maintenance, or damage from sharp objects or harsh chemicals. These issues can cause the gasket to become brittle, cracked, or misshapen, compromising its sealing capability.

Symptoms of a bad door gasket include:

• Water leaking from the bottom of the dishwasher door
• Visible cracks or tears in the gasket
• The dishwasher door not closing properly
• Excess moisture around the dishwasher area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: For the short 4" piece of gasket in the bottom middle, also order WD08X10015.

The Door Gasket Insert is an OEM part for GE dishwashers, specially designed to create a watertight seal along the dishwasher door's perimeter. This insert is crucial for preventing water from leaking out of the dishwasher during operation. It fits snugly into the door's groove, ensuring that the door closes securely and no water can escape during the washing and rinsing cycles.

Causes for a Door Gasket Insert to fail include regular wear and tear from daily use, exposure to harsh detergents and high temperatures, and physical damage from loading and unloading dishes.

Symptoms of a bad Door Gasket Insert include:

• Water leaking from around the dishwasher door.
• The dishwasher door feels loose or doesn't close as tightly as before.
• Visible signs of wear, such as cracks, brittleness, or deformation in the gasket.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


Black. Size: 6-5/8".

Color: White.

Color: Black.

Includes 12 terminals.

Includes 12 screws.

A replacement knob latch handle that secures and indexes the appliance control knob for reliable selection and tactile feedback. Restores proper knob engagement to help prevent slipping or incomplete setting changes. What it does:

• Latches and holds the control knob in selected positions so settings stay engaged.
• Provides tactile detents for clear position feedback when turning the knob.
• Commonly replaces worn, cracked, or broken latch pieces that let the knob slip or fail to engage.
• Fits directly onto the control shaft and works with the existing knob assembly.

• Disconnect power (unplug or switch off circuit) before servicing to avoid shock or injury.
• Removal typically requires removing the control knob and/or console trim to access the latch; keep track of fasteners.
• Inspect the control shaft and surrounding components for wear; replace damaged knobs or retention clips as needed.

Includes 12 screws.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
