Frigidaire Dishwasher Spray Arm & Related

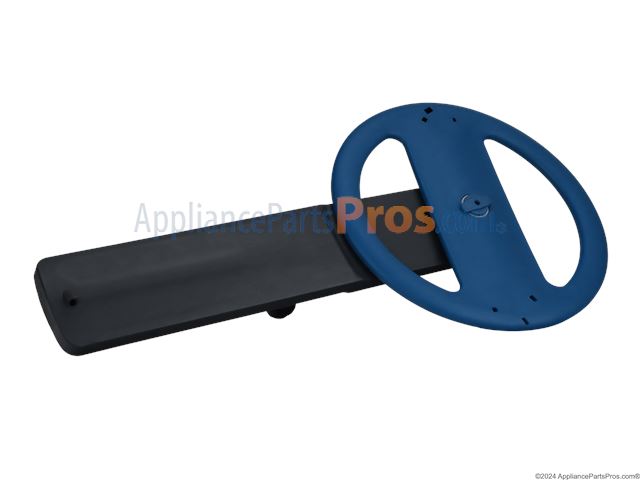

The Lower Spray Arm is an OEM replacement part for Frigidaire dishwashers. It rotates within the lower dishrack, spraying water during cycles to thoroughly clean dishes. This arm measures approximately 16.00 x 3.10 x 3.10 Inches (L x W x H) NEED TO ORDER 5304518968 SUPPORT,SPRAY LOWER when ordering the lower spray arm

Causes of a bad lower spray arm include normal wear and tear over extended use. Clogs within the arm can also reduce water pressure.

Symptoms of issues with the lower spray arm are:

• Inadequate cleaning performance, especially on lower rack dishes
• Reduced or uneven water coverage
• Difficulty rotating or getting stuck

This OEM replacement part is compatible with Electrolux, Gibson, and Kenmore brand dishwashers too.

This Dishwasher Lower Spray Arm with Heat Shield is an OEM replacement part designed for Frigidaire dishwashers. This component ensures water distribution throughout the dishwasher during cycles, reaching all dishes for a thorough clean. The added heat shield protects the spray arm from the high temperatures during drying cycles, prolonging its lifespan and maintaining its efficiency.

Symptoms of a bad Frigidaire Spray Arm, Lower, with Heat Shield include:

• Dishes not being cleaned properly
• Water not being distributed evenly during cycles
• Noticeable damage or warping to the spray arm

Over time, the spray arm can become clogged with food particles or mineral deposits, or it can become damaged from normal wear and tear. A compromised spray arm can result in poor cleaning performance and inefficient water distribution.

This OEM part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Lower Spray Arm is an OEM part for Frigidaire dishwashers. It is responsible for spraying water onto the dishes in the lower rack, ensuring they are thoroughly cleaned during the wash cycle.

Causes of a bad lower spray arm can include clogging from food particles or debris, damage from hard water buildup, or wear and tear from regular use. Additionally, physical damage or warping can occur if the dishwasher is overloaded or items block the spray arm's rotation.

Symptoms of a bad lower spray arm include:

• Poor cleaning performance on dishes in the lower rack
• Uneven water distribution
• Spray arm not spinning or moving properly
• Visible cracks or damage to the spray arm

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This support is a refrigerator mounting bracket that stabilizes internal components and keeps assemblies aligned for reliable operation. It replaces worn or broken supports to help reduce rattling and improper panel fit. What it does

• Secures and aligns internal cabinet or component panels to prevent shifting during normal use
• Helps maintain proper spacing for doors, panels, or internal assemblies
• Reduces vibration or rattling caused by loose or damaged supports
• Commonly replaced when a support is cracked, broken, or no longer holds mating parts securely

• High-level replacement: typically accessible from inside the cabinet or behind a trim panel; exact steps depend on model
• Use proper tools and retain all fasteners during removal for reinstallation
• Disconnect power before servicing any electrical components or removing panels near wiring

The Spray Arm is an OEM part for Frigidaire dishwashers. This component is crucial for the cleaning process as it rotates and sprays water onto dishes to remove food particles and ensure thorough cleaning. Located typically at the bottom or middle of the dishwasher, the spray arm is designed to distribute water evenly across all items in the dishwasher.

Symptoms of a failing Spray Arm include:

- Dishes coming out dirty or with food residue after a wash cycle
- The spray arm not spinning or rotating during the wash cycle
- Low water pressure or uneven water distribution from the spray arm
- Visible cracks, clogs, or other damage to the spray arm

Causes of a bad spray arm can include blockages from food particles or mineral deposits, wear and tear from regular use, or physical damage from improper loading of the dishwasher or impact with dishes.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

The Upper Spray Arm is an OEM part for Frigidaire dishwashers. This component is crucial for the cleaning process as it rotates and sprays water onto dishes located in the upper rack, ensuring they are thoroughly washed and rinsed. The spray arm is designed to distribute water evenly, enhancing the dishwasher's efficiency and performance.

Symptoms of a failing Upper Spray Arm include:

• Dishes in the upper rack coming out dirty or not thoroughly cleaned
• The spray arm not rotating or spinning during the wash cycle
• Low water pressure or uneven water distribution from the spray arm
• Visible cracks, clogs, or damage to the spray arm

Causes of a bad spray arm can include blockages from food particles or mineral deposits, wear and tear from regular use, or physical damage from improper loading of the dishwasher.

This OEM part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

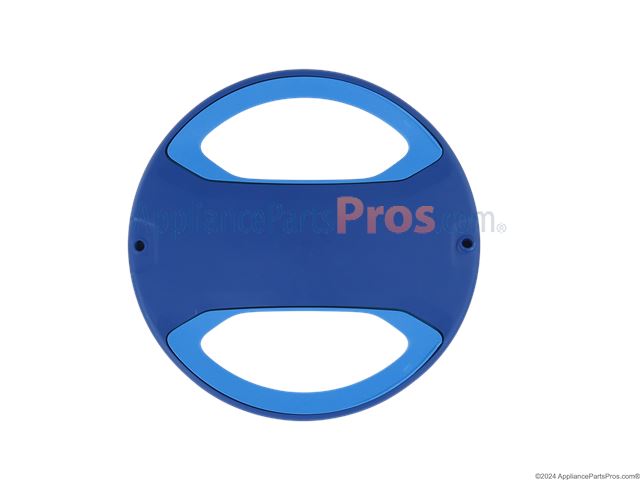

The Orbital Sprayer is an OEM part for Frigidaire dishwashers. It is a component of the dishwasher's spray arm system responsible for distributing water and detergent to effectively clean your dishes.

Causes of a malfunctioning orbital sprayer can include clogging due to food particles or debris, damage to the nozzles or spray arm, or a faulty connection. These factors can result in reduced cleaning efficiency, poor dishwashing results, or even a complete lack of water spray.

Symptoms of a faulty orbital sprayer may include:

• Dishes coming out dirty or poorly cleaned
• Visible blockage or damage to the sprayer
• Unusual noises during the wash cycle

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Upper Rack Assembly is an OEM part for Frigidaire dishwashers. It is designed to hold dishes, glasses, and other items in the upper section of the dishwasher, allowing for efficient and organized cleaning.

Causes of a bad Upper Rack Assembly can include wear and tear over time, damage from heavy or improperly placed items, or issues with the rollers and tracks that allow the rack to slide in and out smoothly.

Symptoms of a bad Upper Rack Assembly include:

• Difficulty sliding the rack in or out
• The rack falling off its tracks
• Rust or corrosion on the rack
• Broken or missing tines that hold dishes in place

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Lower Spray Arm Support is an OEM part for Frigidaire dishwashers. This support provides a secure attachment point for the lower spray arm, ensuring it rotates freely and distributes water evenly throughout the dishwasher for effective cleaning. It helps maintain the stability and proper function of the lower spray arm.

Common causes of a bad lower spray arm support include wear and tear, physical damage from loading or unloading dishes, and blockages that impede the spray arm's movement.

Symptoms of a bad lower spray arm support include:

• The lower spray arm not rotating properly
• Poor cleaning performance on the lower rack
• Unusual noises during the wash cycle
• The lower spray arm falling off or becoming loose

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

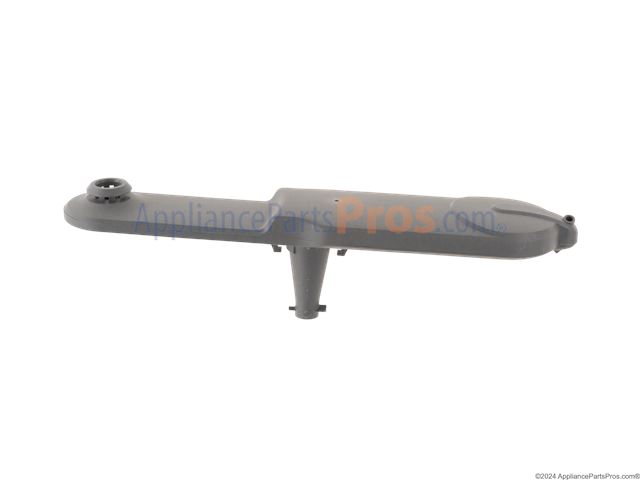

The Arm is an OEM part for Frigidaire dishwashers. It is typically involved in the spraying mechanism within the dishwasher, helping to distribute water evenly across dishes for thorough cleaning. This part is designed to rotate and spray water at high pressure, ensuring that all items in the dishwasher are cleaned effectively.

Common causes of a bad arm include debris buildup, wear and tear from regular use, or damage from heavy or improperly loaded dishes.

Symptoms of a bad arm include:

• Dishes not being cleaned properly
• Uneven water distribution during cycles
• The arm not rotating or moving as it should
• Visible cracks or damage to the arm

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This OEM Replacement Part is a designed nut to secure the Frigidaire dishwasher's spray arm. With dimensions of 2.0" x 2.0" x 0.6", this nut ensures a snug fit between the lower spray arm and the filter. It helps maintain the stability of the spray arm and enhances the overall performance of the dishwasher. The nut plays a role in preventing leakages at the bottom of the spray arm. If such a leak occurs, it may be indicative of a faulty nut. A timely replacement of this nut can ensure the proper functioning of the dishwasher. This part is compatible with select Frigidaire brand models including Crosley, Kenmore, Tappan, White Westinghouse.

The Lower Spray Arm is an OEM component specifically designed for Bosch dishwashers. It spreads cleaning water and detergent beneath dishes on lower racks and shelves.

Uniform coverage is provided through the spinning spray of multiple strategically placed nozzles. Dedicated lower basket washing power tackles tough soils.

Causes of spray arm malfunction can include clogs from food debris accumulations over time. Impeller damage from hard impacts inside the wash chamber is also possible.

Symptoms of a defective lower spray arm include:

• Poor or ineffective cleaning on lower racks and surfaces
• Dried-on food remaining in hard-to-reach crevices below
• Noticeable decreases in water pressure impacting lower wash

This OEM Bosch replacement part is also compatible with Thermador, Gaggenau, and some Kenmore models sharing uniform wash architectures. Replacement ensures balanced upper and lower cleaning performance.


The Orbital Sprayer is an OEM part for Frigidaire dishwashers. It is a moving component located near the spray arms that functions to provide an added level of spray coverage during washing cycles. The precision-designed spray nozzles work with water pressure fluctuations to deliver effective spray coverage to all dishes.

Symptoms of a bad orbital sprayer include:

• Inconsistent or uneven spray pattern within the dishwasher
• Dirt or debris buildup not being removed from certain areas
• Caking or spotting left on dishes
• Abnormal sounds or vibrations coming from the spray arms

Causes of failure can be mineral or limescale buildup clogging nozzles, wear of wash jets over time, or damage to spray arm bearings that prevent proper rotation.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This genuine replacement support holds and stabilizes its matching component so it sits level and stays securely in place. Replacing a worn or broken support restores proper alignment and reliable operation of the affected assembly.

• Provides structural support and alignment for the mating part
• Prevents wobble, sagging, or unwanted movement
• Common symptoms: cracked/broken support, loose fit, part not staying seated or falling out
• May cause rattling, misalignment, or uneven performance of the assembly

• Disconnect power to the appliance; allow hot surfaces to cool before servicing
• Note the original orientation/location and transfer any reusable hardware from the old part
• Install the new support fully seated; do not overtighten fasteners into plastic
• Test fitment and operation before reassembly

The Pump Cover is an OEM part for Frigidaire dishwashers. It is designed to cover and protect the dishwasher's pump, which is essential for the proper circulation of water during the wash cycle. This cover helps ensure that the pump operates efficiently and prevents debris from entering and damaging the pump.

Causes of a bad pump cover can include repeated exposure to high water pressure, accidental impact during loading or unloading of dishes, or buildup of debris and hard water deposits.

Symptoms of a bad Pump Cover include:

• Leaks coming from the pump area
• Unusual noises during the wash cycle
• Decreased washing performance
• Visible cracks or wear on the cover

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Color: light gray. Each prong goes out about 10 inches from the center.
