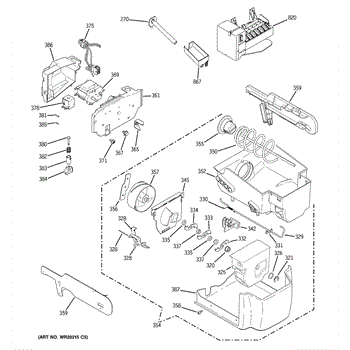

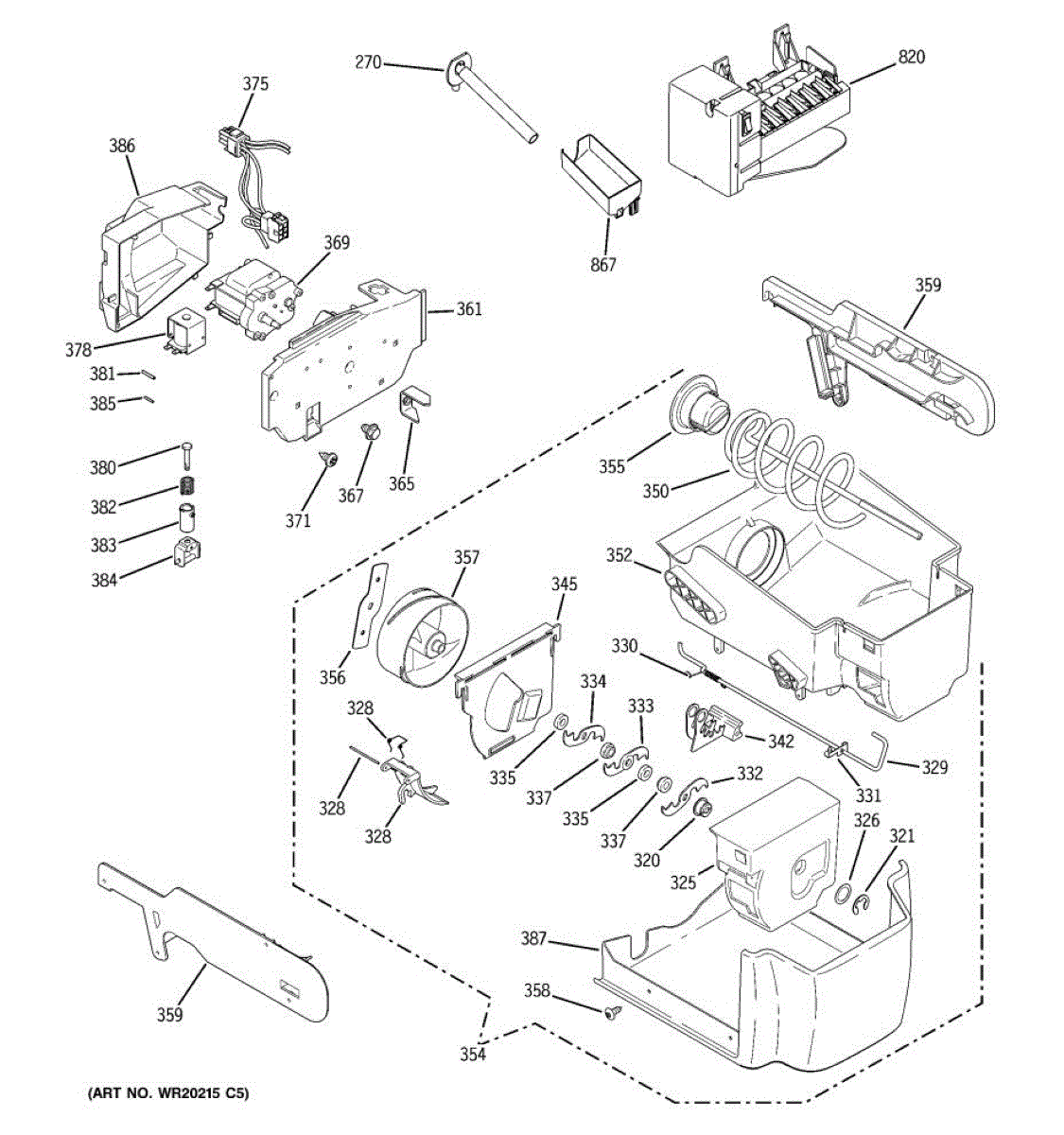

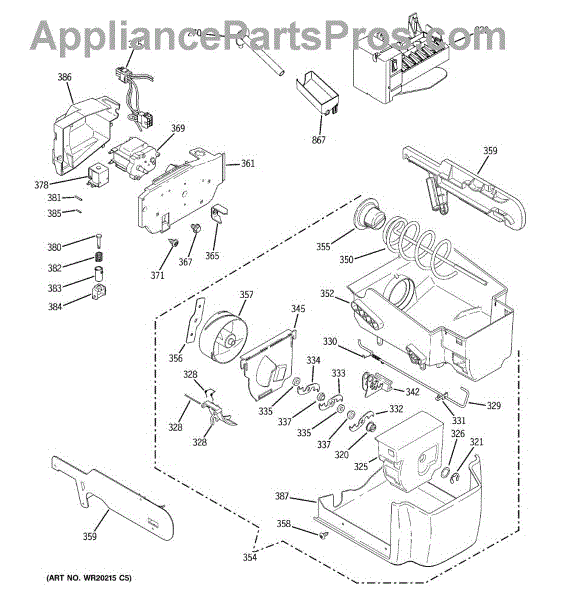

Parts for Ge PSCF3TGXCFBB: 07 - Ice Maker & Dispenser Parts

The Fill Tube & Grommet Assembly is an OEM part for GE refrigerators. This part ensures that water is efficiently and accurately delivered to the ice maker, where it's frozen into ice.

Causes of a bad Fill Tube & Grommet Assembly can include freezing within the tube, which blocks water flow, physical damage or wear that creates leaks, and deterioration of the grommet, leading to improper sealing and potential water damage.

Symptoms of a bad Fill Tube & Grommet Assembly include:

• Ice maker not producing ice due to lack of water supply
• Water leaking inside the freezer compartment
• Frost or ice formation on the back of the appliance due to leaking water
• Unusual noises as the refrigerator attempts to fill the ice maker

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Auger Nut is a genuine OEM component for GE refrigerators. Located within the icemaker assembly, this nut secures the auger shaft that transports ice from the molding trays to the ice bin.

Symptoms of a bad auger nut include:

• Poor ice harvest, with pieces remaining in trays and mold cavities
• Auger shaft wobbling excessively during ice dispensing
• Ice pieces jamming or clumping together in the bin

Causes can include wear from the continuous rotational movement of each harvest cycle. Over time, the threading may become stripped or warped from repeated heating/cooling.

This genuine GE OEM replacement part is also compatible with Profile, Monogram, and some Kenmore models.

Includes 12 retainer rings.

The Ice Crusher Housing is an OEM part for GE refrigerators. This part provies a protective enclosure that ensures the ice is crushed efficiently and safely before being dispensed.

Causes of a bad ice crusher housing can include wear and tear from regular use, damage from ice jams or foreign objects, and exposure to temperature fluctuations.

Symptoms of a bad ice crusher housing include:

• Ice not being crushed properly
• Ice jams or blockages in the dispenser
• Leaks or cracks in the housing
• Unusual noises during the ice crushing process

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 washers.

This pivot is the replacement pivot piece that supports and guides a refrigerator door or sliding drawer, restoring proper alignment for smooth opening and closing. Fits original equipment pivot points. What it does:

• Supports the weight of a door or drawer and keeps it aligned on its track
• Guides smooth opening and closing and prevents binding or sagging
• Restores proper contact and seal when a worn pivot causes misalignment
• Helps reduce noise from loose or worn pivot points

• Disconnect power to the appliance before beginning any repair
• Access may require removing interior panels, trim, or the drawer/door per model instructions
• Handle carefully to avoid scratching sealed surfaces; replace worn fasteners if needed
• If alignment issues persist after replacement, check related hinges, tracks, and mounting hardware

This ice dispenser deflector mounts in the freezer door chute to guide cubes or crushed ice into your glass. Replace a cracked or missing deflector to reduce scatter and keep ice flowing where you want it.

• Directs ice down the dispenser chute toward the glass
• Helps contain spray and bounce-back of cubes
• Restores proper flow when the original deflector is cracked, warped, or missing
• Common symptoms: ice misses the glass, ice scatters on the floor, visible damage to the deflector

• Disconnect power to the refrigerator before servicing; wear cut-resistant gloves
• Access the dispenser area per your model's instructions and note the deflector's orientation
• Transfer any screws or clips from the old part; avoid forcing plastic tabs
• Restore power and test ice dispense to confirm proper direction and clearance

A replacement dispenser wire actuator that engages the door-mounted water/ice dispenser when pressed, restoring reliable lever operation and user control at the refrigerator door. Matches OEM form and function for dispenser activation. What it does

• Transfers user pressure from the dispenser lever to the valve/actuator assembly so water or ice is dispensed.
• Replaces bent, broken, or loose actuator wire that causes intermittent or no dispensing.
• Helps restore a positive lever feel and consistent dispenser response.
• Safe, low-voltage mechanical linkage — not an electrical control.

• One dispenser wire actuator (single lever wire).

• Unplug or disconnect refrigerator power before beginning any repair to avoid electrical hazard.
• Basic door panel removal may be required; handle trim and clips carefully to avoid damage.
• Align the wire with the dispenser lever and secure per OEM mounting—do not force or bend excessively.

The Ice Deflector Spring is an OEM replacement part for GE refrigerators. This spring is a crucial component of the ice dispensing system, specifically in selecting between crushed and whole ice cubes. It is designed to always force the diverter back in a way that the cubes get crushed. When whole cubes are selected, the solenoid pulls the lever against the spring’s tension to shift the configuration, allowing cubes to bypass the crusher blades.

Causes for a malfunctioning Ice Deflector Spring can include wear and tear from regular use, corrosion due to constant exposure to moisture, or mechanical failure that prevents it from effectively reverting the diverter to the crushed ice configuration.

Symptoms of a bad Ice Deflector Spring include:

• The ice dispenser only dispensing whole cubes, even when crushed ice is selected
• The diverter not returning to the crushed ice configuration
• Unusual sounds during the ice dispensing process
• The need for manual intervention to get crushed ice

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A small metal retainer spring that secures trim and lightweight components so panels and shelves stay aligned and do not rattle. Replaces a worn or broken spring to restore a snug, reliable fit. What it does

• Holds trim, panels or lightweight components in position to prevent sagging or separation
• Stops rattling and vibration caused by loose parts
• Restores correct alignment of removable trim or small assemblies
• Helps maintain proper component engagement during normal use

• One retainer spring

• Disconnect power (unplug or switch off circuit) before working on appliances
• Use basic hand tools; access may require removing adjacent trim or clips
• Handle spring and surrounding trim carefully to avoid scratches or damage
• Replace damaged or missing mounting hardware before reassembly

This spacer is a small mounting support used to maintain proper clearance and alignment between refrigerator panels, doors, or components. It helps reduce rubbing, vibration, and noise by restoring correct spacing and fit. What it does:

• Keeps panels, trim, or components spaced correctly to prevent metal-on-metal contact and wear
• Helps align doors and panels for a flush fit and smoother operation
• Reduces vibration and rattling caused by misaligned parts
• Used wherever a fixed clearance or gap is required during reassembly

• Disconnect power to the appliance before beginning any service that requires panel or component removal
• Inspect mating surfaces for damage or debris before installing the spacer; replace any damaged fasteners
• Install in the same orientation and location as the original spacer; do not overtighten mounting hardware

A stationary blades assembly that secures the stationary blade in place so the cutting or dispensing mechanism operates smoothly. Replacing a worn or broken assembly restores proper blade alignment and reduces noise or poor cutting performance. What it does:

• Holds the stationary blade securely to stabilize rotation and cutting action
• Maintains correct blade alignment to prevent wobble, jamming, or uneven cutting
• Helps reduce abnormal noise and vibration caused by a loose or damaged blade mount
• Restores reliable operation of the appliance's blade/dispensing mechanism when original part is worn or cracked

• One stationary blades assembly

• Disconnect power (or unplug) and turn off water supply if applicable before beginning repair
• Remove access panels or covers to reach the blade area; keep track of fasteners and trim
• Inspect mating parts (rotor, fasteners, seals) for wear and replace if damaged

This auger helix is the rotating spiral that moves ice from the freezer bin to the dispenser chute, restoring reliable ice delivery when the auger is worn, broken, or missing. Designed to match OEM fit and function. What it does:

• Translates motor rotation into axial movement to push ice through the dispenser chute
• Restores consistent ice flow when previous helix was stripped, cracked, or bent
• Reduces jamming and grinding caused by damaged or worn flights
• Works with the dispenser auger assembly to ensure measured ice delivery

• One auger helix

• Disconnect power to the appliance before servicing to avoid injury
• Remove the ice bin and dispenser auger housing per manufacturer instructions
• Inspect mating components and replace if damaged
• Do not force fit; align helix and test dispenser operation before reassembling

Replace a cracked or jammed ice bin with this bucket and auger assembly. It stores the ice and uses the auger to move it toward the dispenser chute, restoring smooth, reliable through-the-door ice dispensing.

• Holds harvested ice in the freezer compartment
• Auger engages the drive to move ice toward the dispenser chute
• Helps restore consistent ice delivery through the door
• Typical symptoms: no ice dispensing, weak or intermittent dispense, cracked/broken bucket, grinding or clicking during dispense

• Unplug the refrigerator before servicing
• Empty the old bin and pull the assembly straight out
• Align the rear auger coupling with the drive and seat the assembly fully
• Briefly test the dispenser to confirm proper auger engagement

Repair your refrigerator's ice maker with this genuine General Electric Drive Cup. The cup is designed to provide secure housing for the end of the auger. The drive cup ensures proper ice dispensing and efficient functioning of your ice maker. This genuine GE part can be used as a replacement for refrigerators exhibiting common issues. These issues include an ice maker that won't dispense ice or is noisy during operation.

If any of these symptoms are present, it's time to replace the drive cup with this OEM part sourced directly from the manufacturer. This OEM Replacement Part is compatible with both General Electric and Hotpoint appliance brands. This drive cup offers reliable performance and durability, ensuring your ice maker functions smoothly for years to come.

This helix lock plate secures the ice bucket auger (helix) in the dispenser assembly so ice can move reliably to the chute. Replacing a worn plate restores positive drive and helps reduce jams, slippage, and grinding noises. What it does:

• Locks the helix to the drive so the auger rotates under motor power
• Maintains alignment of the auger/helix stack inside the ice bucket
• Helps prevent slippage that causes weak or no ice dispensing
• Can help address symptoms like no ice dispensing, auger not turning, or loud clicking/grinding from the bucket

• 1 helix lock plate

• Unplug the refrigerator and remove the ice bucket before servicing
• Note the order and orientation of blades, spacers, and hardware during disassembly
• Transfer/install the plate in the same orientation; tighten fasteners snug, not overtight
• Crusher blades and edges are sharp—wear cut-resistant gloves

This helix is the plastic spiral inside the refrigerator's ice bucket that works with the auger to move ice toward the crusher and dispenser. Replacing a worn or broken helix restores smooth ice dispensing and reduces jams.

• Surrounds the auger shaft in the ice bucket to advance cubes toward the crusher/chute
• Engages when the dispenser is activated to feed ice consistently
• Replace if cracked, stripped, or warped
• Symptoms may include little or no ice dispensing, intermittent dispensing, or grinding noises from the bucket

• Unplug the refrigerator and wear cut-resistant gloves; crusher blades are sharp
• Remove and empty the ice bucket; note the order/orientation of blades, spacers, and washers during disassembly
• Transfer components to the new helix in the same sequence; reuse existing hardware
• After reassembly, verify the auger turns smoothly by hand before reinstalling and testing

This silicon controlled rectifier (SCR) is an electronic switching device used to control power to oven/stove heating circuits, helping the appliance regulate temperature and heat output for cooking performance. What it does:

• Switches and regulates AC power to heating elements for controlled heat
• Enables cycle-based or phase-controlled heating used by oven/range controls
• Common replacement when an element won't heat consistently or unit won't maintain temperature
• Helps stop erratic heating caused by a failed power control component

• Disconnect power to the appliance before inspecting or replacing the SCR
• Observe ESD precautions and handle the component by insulated edges

The Left Drawer Glide is an OEM replacement part for GE refrigerators. It sits within the left side wall and aids in smoothly raising and lowering adjustable refrigerator shelves.

Symptoms of a glide include:

• Difficulty level adjusting shelves or full removal
• Binding, catching, or scratching along guide rails
• Noisy or creaking sounds emanating from shelves

Causes stem from typical wear over time, as constant shifting of heavy shelves can degrade plastic glide pieces.

This OEM GE replacement part is compatible with some Hotpoint, RCA and select Kenmore refrigerator models.

This is the rear motor cover used in select GE refrigerators. It shields the motor area at the back of the compartment, helping direct airflow and protect the fan/motor assembly for reliable cooling performance.

• Protects the motor/fan area from debris and damage
• Helps channel air correctly through the compartment
• Cracks, broken tabs, or missing cover can lead to noise, poor airflow, frost, or temperature swings
• Restores proper fit and finish inside the compartment

• Unplug the refrigerator before servicing
• Remove shelves/bins obstructing access; retain screws/clips
• Carefully release locking tabs and transfer any reusable hardware
• Ensure the cover seats fully and resecure all fasteners before powering on

This ice dispenser auger drive mounts on the dispenser motor shaft and engages the ice bucket auger. Replacing a worn or stripped drive restores the connection so your refrigerator can move ice smoothly to the chute.

• Couples the dispenser motor to the ice-bin auger to rotate and move ice toward the chute
• On models with crushers, also drives the crushing mechanism
• Worn or rounded splines can cause little or no ice dispensing even though the motor runs
• May produce clicking/grinding noises from the door during dispense
• Visible cracking or play at the coupling indicates replacement is needed

• Unplug the refrigerator and shut off water before servicing
• Remove the ice bin to access the dispenser motor shaft in the freezer door
• Note the orientation; remove the old drive and seat the new drive fully on the shaft, transferring any original hardware if present
• Reinstall the ice bin, restore power, and test ice dispense

This screw fastens appliance panels, brackets, and trim so parts stay secure and aligned. Replace a missing, stripped, or rusty screw to stop rattles and restore a tight, factory fit.

• Secures covers, brackets, and trim to the appliance cabinet or liner
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration noise and loose or misaligned parts
• Maintains proper fit of guards, kickplates, or internal panels

• Disconnect power; turn off water supply if working near water lines
• Match to the original fastener to size and thread
• Start threads by hand to avoid cross-threading; tighten snugly, not excessively
• If threading into plastic, avoid overtightening to prevent damage

The Auger Motor is an OEM part for GE refrigerators. This part drives the auger in the freezer's ice dispenser mechanism. This motor is vital for the smooth operation of the ice dispenser, enabling it to deliver ice cubes or crushed ice through the dispenser chute upon demand.

Over time, the auger motor can wear out or sustain damage due to normal use, leading to a decrease in performance or complete failure.

Symptoms of a malfunctioning Auger Motor include:

• The ice dispenser failing to dispense ice
• Only crushed ice being dispensed, irrespective of the selection
• Loud or unusual noises emanating from the ice dispenser when in use
• The auger failing to rotate when the ice dispenser lever is engaged

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-18 Hi/Lo hex-washer screw is a direct-use replacement fastener for appliance panels, brackets and components. It restores secure mounting and helps stop loose trim, rattling or parts that shift during use. What it does:

• Secures panels, trim pieces, mounting brackets and similar components that use a 10-18 thread with a hex-washer head
• Restores proper fit where screws are missing, stripped, or corroded
• Helps eliminate rattling, vibration noise, and misaligned parts caused by loose fasteners
• Matches OEM head and thread style for a correct mechanical fit in specified locations

• Turn power or gas to the appliance off before working on electrical or gas-equipped units; unplug when applicable
• Use the correct sized hex driver or socket to avoid rounding the head
• Tighten until snug—do not overtighten to avoid stripping threads or damaging thin sheet metal
• If replacing multiple fasteners in a load-bearing area, replace all to ensure even fit and alignment

This wiring harness connects and supplies power to the dispenser motor so the dispenser operates reliably. It replaces a worn or damaged dispenser motor harness to restore electrical continuity and dependable dispenser function. What it does:

• Carries voltage and signals between the control and the dispenser motor
• Restores power when a broken or frayed harness prevents the motor from running
• Helps stop intermittent dispenser operation caused by loose or damaged wiring
• Provides proper connector fit to maintain a secure electrical connection

• Disconnect power to the appliance before inspecting or replacing the harness
• Handle connectors gently and verify correct orientation before mating
• Route harness following original wire paths and secure with existing clips to avoid pinching
• If corrosion or other damaged components are present, inspect surrounding parts and replace as needed

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This cover fits over the refrigerator auger motor to protect internal components and help guide ice through the dispenser. It keeps the motor area enclosed to reduce debris intrusion and supports smooth auger movement. What it does

• Protects the auger motor and gearbox from ice, frost, and debris
• Helps guide ice from the bin into the auger for consistent dispensing
• Common symptom: reduced or intermittent ice dispensing, unusual noises from the dispenser area

• One cover

• High-level replacement — remove power to the refrigerator before starting
• Handle components gently to avoid damaging the auger or wiring
• If the auger still doesn't turn after replacement, check the motor, wiring, and control components

This cover fits on the bottom of the refrigerator ice bucket to protect the bucket base and help keep ice contained for smooth dispensing. Replaces a cracked, warped or missing bucket bottom cover to restore proper ice handling. What it does:

• Replaces the bottom cover of the ice bucket to protect the bucket base and help keep ice from spilling.
• Helps stop rattling or scraping noises caused by a damaged or loose bucket bottom cover.
• Prevents exposed bucket edges that can catch or break ice during removal.
• Useful when you see visible cracks, deformation, or gaps at the bucket base.

• One cover bucket bottom

• Disconnect power to the appliance before starting any repairs.
• Remove and empty the ice bucket before replacing the cover to avoid injury and spills.
• Handle the cover and surrounding parts carefully—sharp edges may be present.
• Reinstall the cover securely and test ice removal to confirm proper fit.

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.

The Icemaker Fill Cup is an OEM replacement part for GE refrigerators. This component is specifically designed to channel water from the fill tube into the ice mold.

Symptoms of a bad Icemaker Fill Cup include:

• Water leakage inside the freezer, leading to ice accumulation
• Inadequate or irregular ice production
• The presence of unusual sounds during the ice-making process

Causes for a malfunctioning Icemaker Fill Cup can range from physical damage, such as cracks or warping due to temperature fluctuations, to blockages that impede the flow of water into the ice mold.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.
