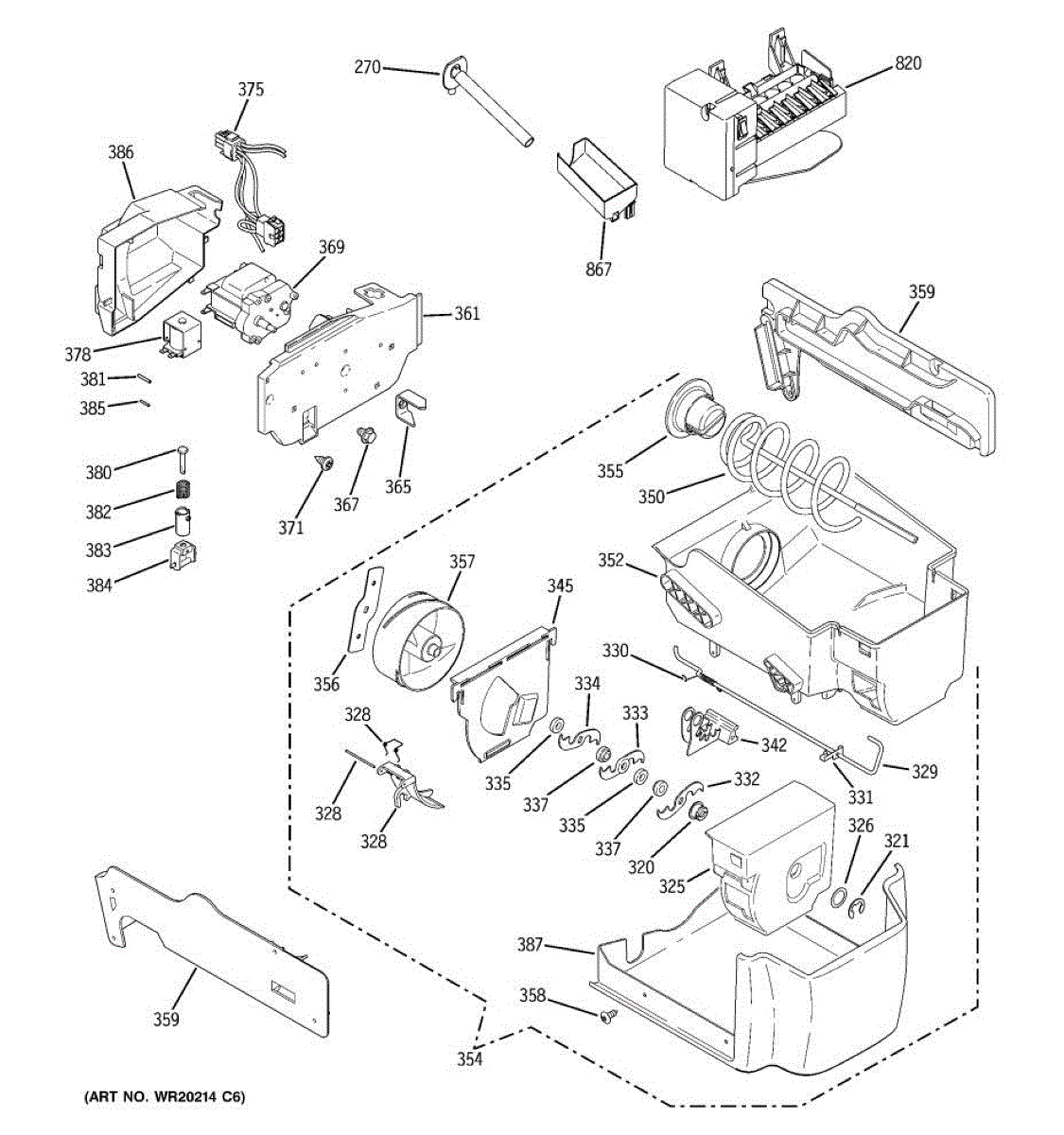

Parts for Ge PSHS6VGXCDSS: 07 - Ice Maker & Dispenser Parts

The Fill Tube & Grommet Assembly is an OEM part for GE refrigerators. This part ensures that water is efficiently and accurately delivered to the ice maker, where it's frozen into ice.

Causes of a bad Fill Tube & Grommet Assembly can include freezing within the tube, which blocks water flow, physical damage or wear that creates leaks, and deterioration of the grommet, leading to improper sealing and potential water damage.

Symptoms of a bad Fill Tube & Grommet Assembly include:

• Ice maker not producing ice due to lack of water supply
• Water leaking inside the freezer compartment
• Frost or ice formation on the back of the appliance due to leaking water
• Unusual noises as the refrigerator attempts to fill the ice maker

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Auger Nut is a genuine OEM component for GE refrigerators. Located within the icemaker assembly, this nut secures the auger shaft that transports ice from the molding trays to the ice bin.

Symptoms of a bad auger nut include:

• Poor ice harvest, with pieces remaining in trays and mold cavities
• Auger shaft wobbling excessively during ice dispensing
• Ice pieces jamming or clumping together in the bin

Causes can include wear from the continuous rotational movement of each harvest cycle. Over time, the threading may become stripped or warped from repeated heating/cooling.

This genuine GE OEM replacement part is also compatible with Profile, Monogram, and some Kenmore models.

Includes 12 retainer rings.

The Ice Crusher Housing is an OEM part for GE refrigerators. This part provies a protective enclosure that ensures the ice is crushed efficiently and safely before being dispensed.

Causes of a bad ice crusher housing can include wear and tear from regular use, damage from ice jams or foreign objects, and exposure to temperature fluctuations.

Symptoms of a bad ice crusher housing include:

• Ice not being crushed properly
• Ice jams or blockages in the dispenser
• Leaks or cracks in the housing
• Unusual noises during the ice crushing process

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 washers.

This pivot is the replacement pivot piece that supports and guides a refrigerator door or sliding drawer, restoring proper alignment for smooth opening and closing. Fits original equipment pivot points. What it does:

• Supports the weight of a door or drawer and keeps it aligned on its track
• Guides smooth opening and closing and prevents binding or sagging
• Restores proper contact and seal when a worn pivot causes misalignment
• Helps reduce noise from loose or worn pivot points

• Disconnect power to the appliance before beginning any repair
• Access may require removing interior panels, trim, or the drawer/door per model instructions
• Handle carefully to avoid scratching sealed surfaces; replace worn fasteners if needed
• If alignment issues persist after replacement, check related hinges, tracks, and mounting hardware

This ice dispenser deflector mounts in the freezer door chute to guide cubes or crushed ice into your glass. Replace a cracked or missing deflector to reduce scatter and keep ice flowing where you want it.

• Directs ice down the dispenser chute toward the glass
• Helps contain spray and bounce-back of cubes
• Restores proper flow when the original deflector is cracked, warped, or missing
• Common symptoms: ice misses the glass, ice scatters on the floor, visible damage to the deflector

• Disconnect power to the refrigerator before servicing; wear cut-resistant gloves
• Access the dispenser area per your model's instructions and note the deflector's orientation
• Transfer any screws or clips from the old part; avoid forcing plastic tabs
• Restore power and test ice dispense to confirm proper direction and clearance

This wire actuator engages the refrigerator dispenser paddle to activate water or ice dispensing. It restores reliable mechanical actuation for responsive dispenser operation without replacing the entire dispenser assembly. What it does:

• Translates paddle movement into the dispenser switch action so water or ice starts when the paddle is pressed
• Helps correct a dispenser that doesn't activate when the paddle is pushed
• Replaces a bent, broken or worn actuator wire that can cause inconsistent dispensing
• Works with the dispenser lever and switch assembly to restore proper alignment and motion

• Includes: 1 wire actuator for dispenser

• Disconnect power (unplug or shut off breaker) and turn off the water supply before starting
• Remove dispenser trim/paddle to access and replace the actuator; avoid forcing plastic clips
• Verify alignment with the dispenser switch and paddle during reassembly to prevent binding

The Ice Deflector Spring is an OEM replacement part for GE refrigerators. This spring is a crucial component of the ice dispensing system, specifically in selecting between crushed and whole ice cubes. It is designed to always force the diverter back in a way that the cubes get crushed. When whole cubes are selected, the solenoid pulls the lever against the spring’s tension to shift the configuration, allowing cubes to bypass the crusher blades.

Causes for a malfunctioning Ice Deflector Spring can include wear and tear from regular use, corrosion due to constant exposure to moisture, or mechanical failure that prevents it from effectively reverting the diverter to the crushed ice configuration.

Symptoms of a bad Ice Deflector Spring include:

• The ice dispenser only dispensing whole cubes, even when crushed ice is selected
• The diverter not returning to the crushed ice configuration
• Unusual sounds during the ice dispensing process
• The need for manual intervention to get crushed ice

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A small metal retainer spring that secures trim and lightweight components so panels and shelves stay aligned and do not rattle. Replaces a worn or broken spring to restore a snug, reliable fit. What it does

• Holds trim, panels or lightweight components in position to prevent sagging or separation
• Stops rattling and vibration caused by loose parts
• Restores correct alignment of removable trim or small assemblies
• Helps maintain proper component engagement during normal use

• One retainer spring

• Disconnect power (unplug or switch off circuit) before working on appliances
• Use basic hand tools; access may require removing adjacent trim or clips
• Handle spring and surrounding trim carefully to avoid scratches or damage
• Replace damaged or missing mounting hardware before reassembly

This spacer is a small mounting support used to maintain proper clearance and alignment between refrigerator panels, doors, or components. It helps reduce rubbing, vibration, and noise by restoring correct spacing and fit. What it does:

• Keeps panels, trim, or components spaced correctly to prevent metal-on-metal contact and wear
• Helps align doors and panels for a flush fit and smoother operation
• Reduces vibration and rattling caused by misaligned parts
• Used wherever a fixed clearance or gap is required during reassembly

• Disconnect power to the appliance before beginning any service that requires panel or component removal
• Inspect mating surfaces for damage or debris before installing the spacer; replace any damaged fasteners
• Install in the same orientation and location as the original spacer; do not overtighten mounting hardware

A stationary blades assembly that secures the stationary blade in place so the cutting or dispensing mechanism operates smoothly. Replacing a worn or broken assembly restores proper blade alignment and reduces noise or poor cutting performance. What it does:

• Holds the stationary blade securely to stabilize rotation and cutting action
• Maintains correct blade alignment to prevent wobble, jamming, or uneven cutting
• Helps reduce abnormal noise and vibration caused by a loose or damaged blade mount
• Restores reliable operation of the appliance's blade/dispensing mechanism when original part is worn or cracked

• One stationary blades assembly

• Disconnect power (or unplug) and turn off water supply if applicable before beginning repair
• Remove access panels or covers to reach the blade area; keep track of fasteners and trim
• Inspect mating parts (rotor, fasteners, seals) for wear and replace if damaged

This auger helix is the spiral ice-moving component used in refrigerator ice dispensers. It helps deliver ice from the bin to the dispenser chute so you get consistent ice flow when the dispenser motor turns. What it does:

• Transports ice from the bin toward the dispenser chute as the auger turns
• Helps clear and move jam-prone ice that can block the dispenser
• Used when ice does not advance or falls intermittently from the dispenser
• Works with the dispenser drive assembly to deliver cubed or crushed ice

• Disconnect power to the appliance before removing the ice bin or accessing the dispenser area
• Remove the ice bin and any loose ice; inspect for obstructions before installing the auger
• Align the auger on the drive coupling and seat it fully; avoid forcing parts to prevent damage
• After installation, restore power and test the dispenser with small amounts of ice to ensure proper operation

This ice bucket fits the refrigerator ice dispenser assembly to store and feed cubed ice to the dispenser chute, keeping ice contained and ready to dispense. Restores proper ice delivery for models that use this bucket. What it does:

• Holds and channels cubed ice from the dispenser housing to the chute
• Aligns with the dispenser mechanism to allow smooth ice release
• Helps prevent loose ice from backing up into the dispenser
• Commonly replaces cracked, warped or damaged buckets that cause ice jams or poor dispensing

• One ice bucket

• Disconnect power to the refrigerator before servicing
• Remove any remaining ice before removing or installing the bucket
• Handle plastic parts carefully to avoid cracking; ensure the bucket is seated and aligned with the dispenser components
• If access requires removing shelves or the freezer door, follow the refrigerator's service instructions

The Ice Bucket Assembly is an OEM part for GE refrigerators. It is designed to store ice produced by the icemaker, providing an accessible and organized storage solution within the freezer compartment. This assembly, with a dimension of roughly 15 inches wide, 11 inches high, and 23 inches deep, is made to hold ice produced by the ice maker.

You should replace the ice bucket assembly if it becomes cracked, broken, or no longer fits properly in its designated spot. Common causes of a bad ice bucket assembly include physical damage from mishandling, wear and tear from regular use, or exposure to extreme temperatures that cause the plastic to become brittle.

Symptoms of a bad ice bucket assembly include:

• Cracks or visible damage to the bucket
• Ice not dispensing properly
• The bucket not fitting securely in place
• Unusual noises from the ice compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Repair your refrigerator's ice maker with this genuine General Electric Drive Cup. The cup is designed to provide secure housing for the end of the auger. The drive cup ensures proper ice dispensing and efficient functioning of your ice maker. This genuine GE part can be used as a replacement for refrigerators exhibiting common issues. These issues include an ice maker that won't dispense ice or is noisy during operation.

If any of these symptoms are present, it's time to replace the drive cup with this OEM part sourced directly from the manufacturer. This OEM Replacement Part is compatible with both General Electric and Hotpoint appliance brands. This drive cup offers reliable performance and durability, ensuring your ice maker functions smoothly for years to come.

This helix lock plate secures the ice bucket auger (helix) in the dispenser assembly so ice can move reliably to the chute. Replacing a worn plate restores positive drive and helps reduce jams, slippage, and grinding noises. What it does:

• Locks the helix to the drive so the auger rotates under motor power
• Maintains alignment of the auger/helix stack inside the ice bucket
• Helps prevent slippage that causes weak or no ice dispensing
• Can help address symptoms like no ice dispensing, auger not turning, or loud clicking/grinding from the bucket

• 1 helix lock plate

• Unplug the refrigerator and remove the ice bucket before servicing
• Note the order and orientation of blades, spacers, and hardware during disassembly
• Transfer/install the plate in the same orientation; tighten fasteners snug, not overtight
• Crusher blades and edges are sharp—wear cut-resistant gloves

This helix is the plastic spiral inside the refrigerator's ice bucket that works with the auger to move ice toward the crusher and dispenser. Replacing a worn or broken helix restores smooth ice dispensing and reduces jams.

• Surrounds the auger shaft in the ice bucket to advance cubes toward the crusher/chute
• Engages when the dispenser is activated to feed ice consistently
• Replace if cracked, stripped, or warped
• Symptoms may include little or no ice dispensing, intermittent dispensing, or grinding noises from the bucket

• Unplug the refrigerator and wear cut-resistant gloves; crusher blades are sharp
• Remove and empty the ice bucket; note the order/orientation of blades, spacers, and washers during disassembly
• Transfer components to the new helix in the same sequence; reuse existing hardware
• After reassembly, verify the auger turns smoothly by hand before reinstalling and testing

This silicon controlled rectifier (SCR) is an electronic switching device used to control power to oven/stove heating circuits, helping the appliance regulate temperature and heat output for cooking performance. What it does:

• Switches and regulates AC power to heating elements for controlled heat
• Enables cycle-based or phase-controlled heating used by oven/range controls
• Common replacement when an element won't heat consistently or unit won't maintain temperature
• Helps stop erratic heating caused by a failed power control component

• Disconnect power to the appliance before inspecting or replacing the SCR
• Observe ESD precautions and handle the component by insulated edges

GLIDE BUCKET RH

The Ice Bucket Glide LH is an OEM part for GE refrigerators. This left-hand glide ensures the smooth sliding and secure positioning of the ice bucket within the freezer compartment, facilitating easy access to stored ice.

Causes of a bad ice bucket glide can include wear and tear from regular use, physical damage due to impact, or warping from temperature fluctuations. A malfunctioning glide can impede the movement of the ice bucket, making it difficult to access or replace.

Symptoms of a bad ice bucket glide include:

• Difficulty sliding the ice bucket in and out
• The ice bucket not sitting properly or securely in place
• Unusual noises when moving the ice bucket
• Visible damage or wear on the glide

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is the rear motor cover used in select GE refrigerators. It shields the motor area at the back of the compartment, helping direct airflow and protect the fan/motor assembly for reliable cooling performance.

• Protects the motor/fan area from debris and damage
• Helps channel air correctly through the compartment
• Cracks, broken tabs, or missing cover can lead to noise, poor airflow, frost, or temperature swings
• Restores proper fit and finish inside the compartment

• Unplug the refrigerator before servicing
• Remove shelves/bins obstructing access; retain screws/clips
• Carefully release locking tabs and transfer any reusable hardware
• Ensure the cover seats fully and resecure all fasteners before powering on

This ice dispenser auger drive mounts on the dispenser motor shaft and engages the ice bucket auger. Replacing a worn or stripped drive restores the connection so your refrigerator can move ice smoothly to the chute.

• Couples the dispenser motor to the ice-bin auger to rotate and move ice toward the chute
• On models with crushers, also drives the crushing mechanism
• Worn or rounded splines can cause little or no ice dispensing even though the motor runs
• May produce clicking/grinding noises from the door during dispense
• Visible cracking or play at the coupling indicates replacement is needed

• Unplug the refrigerator and shut off water before servicing
• Remove the ice bin to access the dispenser motor shaft in the freezer door
• Note the orientation; remove the old drive and seat the new drive fully on the shaft, transferring any original hardware if present
• Reinstall the ice bin, restore power, and test ice dispense

This screw fastens appliance panels, brackets, and trim so parts stay secure and aligned. Replace a missing, stripped, or rusty screw to stop rattles and restore a tight, factory fit.

• Secures covers, brackets, and trim to the appliance cabinet or liner
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration noise and loose or misaligned parts
• Maintains proper fit of guards, kickplates, or internal panels

• Disconnect power; turn off water supply if working near water lines
• Match to the original fastener to size and thread
• Start threads by hand to avoid cross-threading; tighten snugly, not excessively
• If threading into plastic, avoid overtightening to prevent damage

The Auger Motor is an OEM part for GE refrigerators. This part drives the auger in the freezer's ice dispenser mechanism. This motor is vital for the smooth operation of the ice dispenser, enabling it to deliver ice cubes or crushed ice through the dispenser chute upon demand.

Over time, the auger motor can wear out or sustain damage due to normal use, leading to a decrease in performance or complete failure.

Symptoms of a malfunctioning Auger Motor include:

• The ice dispenser failing to dispense ice
• Only crushed ice being dispensed, irrespective of the selection
• Loud or unusual noises emanating from the ice dispenser when in use
• The auger failing to rotate when the ice dispenser lever is engaged

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-18 Hi/Lo hex-washer screw is a direct-use replacement fastener for appliance panels, brackets and components. It restores secure mounting and helps stop loose trim, rattling or parts that shift during use. What it does:

• Secures panels, trim pieces, mounting brackets and similar components that use a 10-18 thread with a hex-washer head
• Restores proper fit where screws are missing, stripped, or corroded
• Helps eliminate rattling, vibration noise, and misaligned parts caused by loose fasteners
• Matches OEM head and thread style for a correct mechanical fit in specified locations

• Turn power or gas to the appliance off before working on electrical or gas-equipped units; unplug when applicable
• Use the correct sized hex driver or socket to avoid rounding the head
• Tighten until snug—do not overtighten to avoid stripping threads or damaging thin sheet metal
• If replacing multiple fasteners in a load-bearing area, replace all to ensure even fit and alignment

This wiring harness connects and supplies power to the dispenser motor so the dispenser operates reliably. It replaces a worn or damaged dispenser motor harness to restore electrical continuity and dependable dispenser function. What it does:

• Carries voltage and signals between the control and the dispenser motor
• Restores power when a broken or frayed harness prevents the motor from running
• Helps stop intermittent dispenser operation caused by loose or damaged wiring
• Provides proper connector fit to maintain a secure electrical connection

• Disconnect power to the appliance before inspecting or replacing the harness
• Handle connectors gently and verify correct orientation before mating
• Route harness following original wire paths and secure with existing clips to avoid pinching
• If corrosion or other damaged components are present, inspect surrounding parts and replace as needed

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This cover fits over the refrigerator auger motor to protect internal components and help guide ice through the dispenser. It keeps the motor area enclosed to reduce debris intrusion and supports smooth auger movement. What it does

• Protects the auger motor and gearbox from ice, frost, and debris
• Helps guide ice from the bin into the auger for consistent dispensing
• Common symptom: reduced or intermittent ice dispensing, unusual noises from the dispenser area

• One cover

• High-level replacement — remove power to the refrigerator before starting
• Handle components gently to avoid damaging the auger or wiring
• If the auger still doesn't turn after replacement, check the motor, wiring, and control components

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.

The Icemaker Fill Cup is an OEM replacement part for GE refrigerators. This component is specifically designed to channel water from the fill tube into the ice mold.

Symptoms of a bad Icemaker Fill Cup include:

• Water leakage inside the freezer, leading to ice accumulation
• Inadequate or irregular ice production
• The presence of unusual sounds during the ice-making process

Causes for a malfunctioning Icemaker Fill Cup can range from physical damage, such as cracks or warping due to temperature fluctuations, to blockages that impede the flow of water into the ice mold.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.
