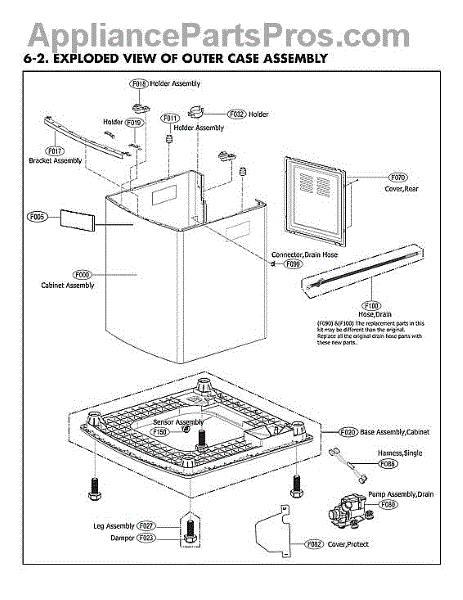

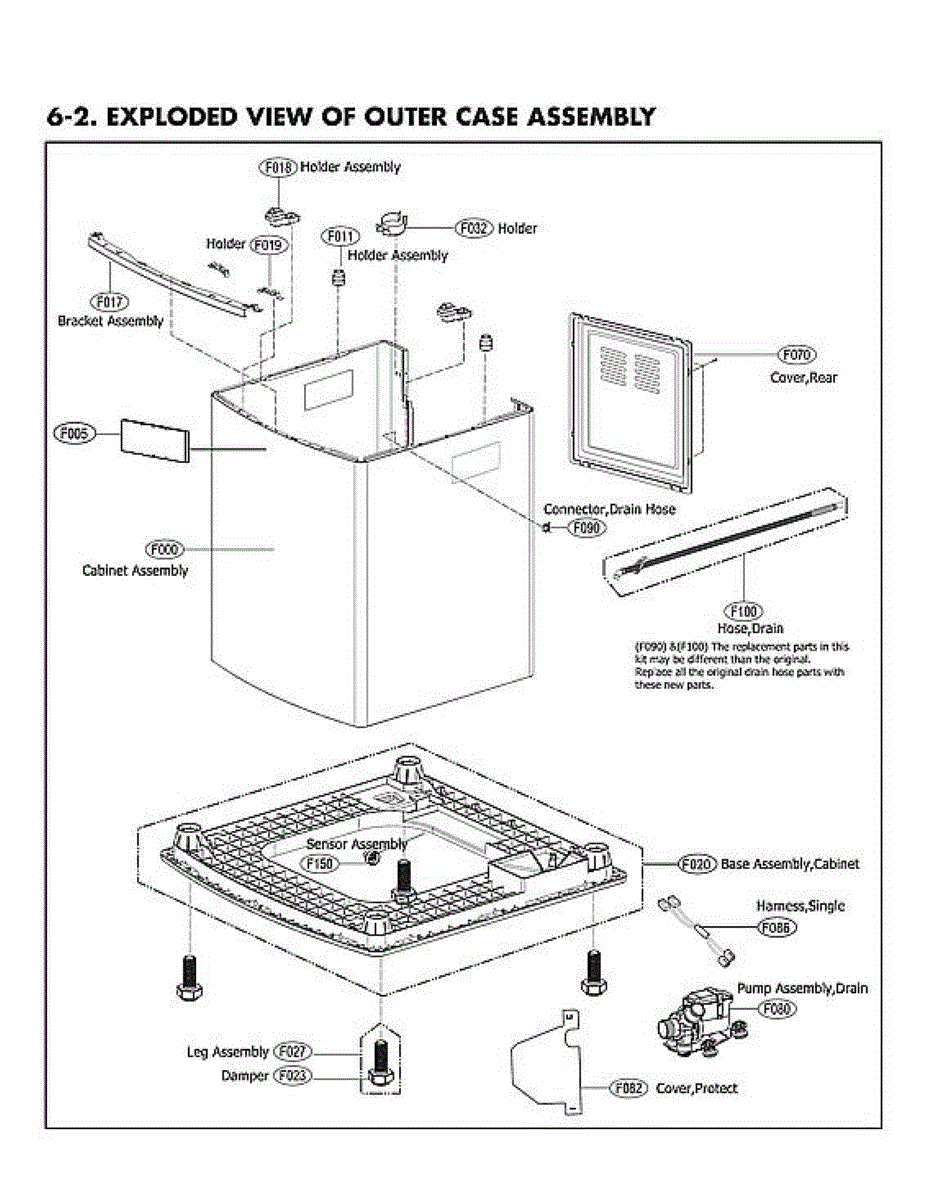

Parts for Lg WT7700HWA/01: Outer Case Assy Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This tapping screw fastens appliance panels and components for a secure, lasting hold. Replace stripped, rusted, or missing hardware to restore proper fit, reduce vibration and rattling, and keep brackets, covers, and trim tightly in place.

• Fastens metal or plastic panels, trim, or brackets to the appliance cabinet/frame
• Cuts its own threads in pre-drilled holes for a tight, reliable fit
• Helps maintain alignment and reduce movement that can cause noise
• Replace when the original screw is missing, stripped, corroded, or will not tighten

• Disconnect power and shut off water/gas before servicing
• Match the screw's position and length to the original hardware
• Start by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any washers or spacers from the original assembly if present

This damper controls airflow into the refrigerator compartment to maintain even temperatures and proper cooling. Replaces a worn or stuck damper to help restore correct air distribution and reduce temperature swings. What it does:

• Opens and closes the air inlet to regulate cold air from the freezer into the fridge compartment
• Helps maintain even temperatures and prevents sections from becoming too warm or too cold
• Commonly replaced when damper is stuck, noisy, or not responding and fridge temperatures fluctuate
• Works with the fridge's control system to modulate airflow as needed

• One damper assembly

• Disconnect power before beginning any repair to avoid electrical shock
• Access typically requires removing interior panels or trim in the refrigerator compartment; keep fasteners organized
• Verify actuator orientation and proper linkage engagement before reassembly

This holder assembly is a direct replacement mounting bracket that secures refrigerator internal components so they stay properly positioned and function reliably. Replaces a cracked or loose bracket to restore stable support and reduce rattling. What it does

• Secures internal components or assemblies to the cabinet to prevent shifting and vibration
• Restores proper alignment when a cracked or broken holder causes loose parts
• Helps stop rattling, knocking, or intermittent contact caused by a failed mount
• Works as a structural replacement—matches OEM fit and mounting points

• One holder assembly

• Disconnect power (unplug or shut off breaker) before starting any repair
• Remove nearby shelves, bins, or trim for access as needed; keep small fasteners organized
• Typically installs with basic hand tools; do not overtighten fasteners to avoid cracking
• If the part attaches to electrical components, verify connectors are secure before restoring power

The Pulsator Cap is an OEM part for LG washing machines. It is designed to secure the pulsator (or agitator) in place, ensuring proper movement of the wash plate during the wash cycle. This component helps in the effective distribution of water and detergent, promoting thorough cleaning of clothes.

You should replace this pulsator cap if it becomes damaged, lost, or worn out. Causes of a bad pulsator cap can include regular wear and tear, exposure to heavy loads, or damage from improper handling. A compromised cap can lead to inefficient washing and potential damage to the pulsator.

Symptoms of a bad Pulsator Cap include:

• The pulsator becoming loose or dislodged
• Unusual noises during the wash cycle
• Clothes not being cleaned properly
• The washer experiencing imbalance issues

This OEM LG part is also compatible with Sears/Kenmore models.

This lid assembly replaces a damaged or broken washer top lid to restore safe closing and user access. It provides the outer top cover and hinge area needed for normal lid operation and secure washing cycles. What it does:

• Replaces a cracked, warped, or broken top lid that prevents the washer from closing properly
• Restores a secure closing surface so the washer can complete spin and wash cycles where lid position is required
• Covers the washer's tub and provides the hinge/mounting interface for the lid
• Helps stop debris entry and keeps laundry contained during operation

• Disconnect power and water before starting any repair; work only on a de-energized appliance
• Remove control panel/top trim as needed to access hinge screws; support the lid during removal and installation
• Verify correct hinge orientation and tighten fasteners securely; avoid overtightening plastic bosses
• Reconnect wiring and test function before final reassembly

This pulsator assembly is the wash plate at the bottom of a top-load washer. It creates the water and fabric movement that provides cleaning action, restoring proper agitation when the original wash plate is stripped, cracked, or comes loose.

• Rotates to circulate water and move fabrics, creating the wash action
• Mounts to the washer's drive shaft via a splined hub
• Common failure signs: no or weak agitation, clothes not moving, or a loose/wobbly wash plate
• Worn splines can cause grinding or ratcheting sounds during wash

• Disconnect power and water supply; work with the tub empty and dry
• If present, remove the center cap to access the retaining bolt; remove the bolt
• Lift off the old pulsator; clean the shaft splines and fully seat the new assembly
• Reinstall the bolt and cap, tighten securely, and run a test cycle to ensure proper wash action

The Customized Screw is an OEM part for securing the wash plate in LG washing machines. This screw maintains the wash plate's position and stability during the washer's operation. The Customized Screw ensures the wash plate performs efficiently, contributing to the effectiveness of the washing process by enabling proper agitation and circulation of clothes.

Causes of a bad Customized Screw can include wear and tear over time, especially from the constant motion and stress during the wash cycles.

Symptoms of a bad Customized Screw include:

• The wash plate becoming loose or detached
• Ineffective washing due to improper motion of the wash plate
• Unusual noises during the wash cycle indicating a loose component

This OEM LG part is also compatible with some Kenmore models.

This damper controls airflow between compartments to help maintain consistent temperatures and efficient cooling. It replaces a worn or failed damper to restore proper air distribution and reduce temperature swings. What it does:

• Regulates airflow between freezer and fresh-food compartments for balanced temperatures
• Can cause uneven cooling or warm fresh-food compartment when faulty
• May click, stick, or fail to open/close if broken or obstructed
• Works with the refrigerator's control system to adjust airflow based on settings

• Disconnect power before beginning any service to avoid electric shock
• Handle the damper and housing carefully to avoid damage to plastic fins or linkage
• Note orientation and actuator connection before removal to ensure correct reassembly
• Test operation after reinstalling by restoring power and cycling temperature controls

Replace a damaged or stripped leveling foot with this leg assembly. It supports the appliance and adjusts for height so you can level it on uneven floors, restoring stability and helping reduce vibration, noise, and movement. What it does:

• Provides adjustable height to properly level the appliance
• Supports the cabinet/frame to keep all corners in firm contact with the floor
• Helps reduce rocking, walking, vibration, and rattling noises
• Fixes: appliance wobbles or is unstable; foot is cracked/missing; threads are stripped; cannot be leveled

• One leg assembly

• Disconnect power and, if applicable, turn off the water supply before servicing
• Carefully tilt or raise the appliance; protect the floor from scratches
• Unscrew the old leg; thread the new leg in by hand and adjust height to level
• Ensure all feet contact the floor firmly and the unit is stable before use

This hardware washer sits beneath a screw or nut to spread load and help keep fasteners tight inside your appliance. Replacing a bent or missing washer restores a secure fit and can reduce vibration-related noise. What it does:

• Distributes clamping force to protect mounting surfaces
• Helps resist loosening from vibration and movement
• Restores proper alignment when a washer is damaged or missing
• Common symptoms: loose or wobbling parts, rattling noises, screws backing out

• 1 washer

• Disconnect power; if working on a washer, also turn off water supply
• Note the original hardware stack order and take photos for reference
• Place the washer between the fastener head or nut and the part being secured
• Tighten to manufacturer guidance; avoid overtightening to prevent damage

This replacement nut secures bolts or studs in your appliance. Replacing a missing or stripped nut restores a tight, reliable connection to keep brackets and assemblies stable and reduce vibration or rattling. What it does:

• Provides threaded retention for bolts/studs on panels, brackets, and assemblies
• Helps maintain alignment and stability during operation
• Typical failure signs: stripped threads, missing hardware, loose or rattling components, vibration
• Direct replacement for the original nut in the same location

• 1 nut

• Disconnect power before service; shut off the water supply
• Match thread size/pitch to the original; start threads by hand to avoid cross-threading
• Tighten with the correct tool; do not overtighten or damage mating parts
• Reinstall any washers/spacers in the original order and verify secure fit

A replacement front panel assembly that restores the appliance's control-face appearance and provides a stable mounting surface for the control buttons and display. Use this part to replace cracked, warped, or cosmetically damaged panels. What it does:

• Replaces the outer control panel and restores the appliance's finished appearance
• Provides the mounting surface and bezel for buttons, switches and the display area
• Fixes visible cracks, chips, or warped panel edges that affect usability or aesthetics
• Helps ensure buttons and display remain properly aligned and accessible

• Disconnect power before starting any repair to avoid shock or damage
• Remove any trim, bezels, or screws securing the old panel; keep fasteners for reuse if applicable
• Handle the panel carefully to avoid scratching or cracking during installation
• Transfer other controls or electronic modules attached to the old panel exactly as removed

This genuine hardware washer installs at the specific joint shown in your model's parts diagram. It spreads clamp force and keeps the connection aligned and secure to support smooth operation of the related component. What it does:

• Distributes fastener load and protects mating surfaces from damage
• Maintains proper spacing and alignment within the assembly
• Helps resist loosening from vibration over time
• Clues it may be needed or worn: loose/rattling parts, unusual vibration or noise, or visible wear at the fastener location; on some models, seepage at that joint

• 1 washer

• Disconnect power and turn off water supply before servicing
• Support the assembly, remove the fastener, and install the washer in the same orientation
• Tighten the fastener snugly without overtightening; replace any damaged bolts, nuts, or seals

This knob assembly replaces a damaged or missing control knob so you can securely and accurately set cooktop or oven controls. Durable replacement restores tactile grip and proper engagement with the control shaft. What it does:

• Replaces a cracked, melted, stripped, or loose control knob that won't turn or stay in position
• Provides correct spline engagement for consistent selection of heat or function settings
• Restores safe, predictable control response when adjusting temperature or burner level
• Helps prevent accidental slips or improper control input from worn knob surfaces

• One knob assembly

• Disconnect power to the appliance before servicing; for gas ranges also shut off the gas supply
• Pull the old knob straight off the control shaft; align splines and push the new knob fully onto the shaft
• If knob resists, verify correct orientation—do not force or hammer the part into place
• If the control shaft or switch is damaged, replace the underlying control/switch assembly rather than relying on the knob

This part is a genuine OEM control board and clock that has been manufactured by LG for use with washing machines. This control board ensures that the functions of the washing machine, such as the spinning and draining cycles, are controllable and monitored. If this part fails in any way, the cycles may not work properly, if at all. Thus, this part should be immediately replaced. Unplug the washing machine from the outlet and disconnect it from the water source before starting any work. Gloves are recommended to prevent injury to the hands. This part is sold individually and is manufactured from high quality, durable, non-corrosive materials to ensure the best possible quality. It is compatible with washers from LG.

Replacement display power control board assembly that restores the appliance's front-panel display and display-power functions. Installs in place of a failed display module to return visible status and responsive panel controls. What it does:

• Provides power and signal control for the front-panel display and touch/press controls
• Replaces a board that causes a blank or dim display
• Fixes intermittent or unresponsive control buttons and erratic display behavior
• Resolves display-related error codes or loss of visual feedback

• Always disconnect the appliance from power before starting any repair.
• Handle the board by its edges and use proper electrostatic discharge (ESD) precautions.
• Photograph wiring and connector locations before disconnecting to ensure correct reassembly.

This inner tub hub connects the washer's inner drum to the drive assembly, providing a secure rotational link so the drum can spin properly. Replacing a damaged hub restores drum stability and reduces noise or wobbling. What it does:

• Secures the inner tub to the drive shaft so the drum turns with the motor
• Prevents excessive movement, vibration, and scraping noises caused by a worn or broken hub
• Helps correct spin-related issues like uneven spinning or the drum not engaging
• Works with the tub assembly and other drive components to maintain proper drum alignment

• One inner tub hub

• Disconnect power and water supply, and fully drain the washer before starting
• Replacement generally requires removing the outer tub/inner tub assembly and transferring seals or gaskets as needed
• Use proper tools and follow OEM service instructions
• Inspect surrounding components (seals, bearings, suspension) and replace if worn to prevent repeat failure

The Drain Pump Assembly is an OEM replacement part for LG washing machines. As an important part of the washer drain system, it drives the pumping action removing water from the tub at the end of each cycle.

Causes of drain pump failure include normal wear from continuous operation over time, foreign debris potentially clogging the impeller cavity, or mineral/scale buildup inhibiting pump function.

Symptoms of a faulty drain pump can include:

• Washer fails to fully drain water at the end of cycles
• Excess water remains in the tub requiring manual emptying
• Abnormal grinding/knocking noises emit from below the tub

This OEM LG part is also compatible with some Sears/Kenmore model washing machines.

This spring-style hose clamp secures flexible hoses to fittings to help maintain a watertight connection and prevent leaks. A simple replacement when the original clamp is worn, bent, or no longer holds tension. What it does:

• Holds washer, drain, or water-supply hoses firmly on barbs and fittings
• Restores clamping tension to stop drips or slow leaks at hose connections
• Prevents hoses from slipping off under pressure or vibration
• Helps maintain proper fluid flow by ensuring a tight seal

• One hose clamp

• Disconnect power and shut off water supply before servicing plumbing connections
• Use pliers or the appropriate clamp tool to expand and position the clamp; release slowly to seat it
• Replace any damaged or corroded hoses or fittings for a reliable repair

This suspension assembly supports the washer tub and helps keep it centered during the spin cycle to reduce vibration and wobbling. Replacing a worn suspension restores smoother, more balanced operation. What it does:

• Cushions and stabilizes the washer tub during agitation and spin
• Absorbs shock and reduces excessive vibration and movement
• Helps prevent loud banging or rubbing as the tub spins
• Maintains proper tub alignment for consistent performance

• Disconnect power and water supply before starting any repair.
• Support the tub or cabinet while removing and installing the suspension to prevent drop or damage.
• Use basic hand tools; follow for exact procedures and torque specs.
• After installation, run a test spin with a small load to ensure proper operation.

The Drain Hose is an OEM part for LG washing machines. This hose is essential for directing used water out of the washing machine and into the household drain system, ensuring efficient water removal after each wash cycle. The hose measures 67.5 inches in length.

Causes of a bad drain hose can include wear and tear from repeated use, blockages from debris or lint, or physical damage such as cracks or splits. A compromised drain hose can lead to water leakage, improper drainage, or even flooding.

Symptoms of a bad Drain Hose include:

• Water not draining properly from the washing machine
• Leaks or puddles of water around the washing machine
• Visible cracks or splits in the hose
• Unusual sounds during the draining process

This OEM LG part is also compatible with Sears/Kenmore models.

This is a factory replacement parts assembly designed to restore proper fit and function of a specific component group in your appliance. Use it to replace a worn, damaged, or missing original assembly and maintain reliable operation. What it does:

• Provides a complete, preassembled component group specified by the manufacturer
• Restores proper alignment, support, and operation of the associated parts
• Helps resolve issues like looseness, rattling, misalignment, or intermittent function
• Direct-fit replacement engineered to match the original design

• One parts assembly

• Disconnect power (and shut off water or gas, if applicable) before servicing
• Refer to your model's service documentation for the exact location and procedure
• Handle sharp edges and components carefully; wear cut-resistant gloves
• Verify correct operation before final reassembly

The Lid Switch and Lock Assembly is an OEM component specifically designed for LG washing machines. It contains both the switch that detects when the lid is closed, as well as the metal lock mechanisms that securely engage the lid during active cycles. This switch contains a 47-inch wire harness with 6-pin plugs.

Symptoms of a bad lid switch and lock assembly include:

• The washer not starting or agitating with the lid open
• Inability to fully close or lock the washer lid
• Error codes related to sensed lid position issues

Causes of failure involve wear of lock moving parts combined with mechanical and electrical degradation over thousands of uses. Continuous hinge motions and detergent/cleaner exposure take their toll.

This Lid switch is also compatible with Kenmore units reliant on LG parts.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Tub to Pump Hose Assembly is an OEM part for LG washing machines. This hose connects the tub to the drain pump, allowing water to be efficiently drained from the washing machine during the spin and drain cycles.

Over time, the hose can become clogged, develop cracks, or experience wear due to constant water flow and agitation. Damage can also occur from accidental mishandling or impact, leading to leaks or improper drainage.

Symptoms of a bad Tub to Pump Hose Assembly include:

• Water leaking from the washing machine
• Slow or incomplete drainage
• Error codes related to drainage issues
• Excess water remaining in the tub after the cycle

This OEM LG part is also compatible with Sears/Kenmore.

A metal bracket assembly that provides secure mounting and alignment for appliance components, restoring proper fit and reducing movement. Use this bracket to replace damaged or bent mounts that cause loose panels or misaligned parts. What it does

• Secures and supports appliance components to the cabinet or frame.
• Restores proper alignment to panels, doors, or assemblies.
• Reduces vibration and rattle caused by broken or warped mounts.
• Prevents further wear by re-establishing a stable mounting point.

• Disconnect power (and water, before beginning any repair.
• Handle sharp edges and wear gloves to protect your hands.
• Compare the replacement to the original for correct orientation before fastening.
• Use appropriate-size fasteners and avoid over-tightening to prevent damage.

The Detergent Box Assembly is an OEM part for LG washing machines. This part holds and dispenses detergent, fabric softener, and bleach at the appropriate times during the wash cycle, ensuring effective cleaning and care for your laundry.

Common causes of a bad detergent box include clogging or blockage from detergent residue, wear and tear from regular use, or damage to the dispenser mechanisms.

Symptoms of a bad Detergent Box Assembly include:

• Detergent, fabric softener, or bleach not dispensing properly
• Residue build-up in the detergent drawer
• Leaks or drips from the detergent box area
• Error codes related to detergent dispensing

This OEM LG part is also compatible with some Kenmore models.

This detergent box is the molded dispenser drawer that holds and releases liquid or powdered detergent into the wash tub during cycles, helping ensure detergent is delivered where needed for cleaning. What it does:

• Holds liquid or powdered detergent and channels it into the washer during the fill and wash cycles
• Helps prevent detergent from spilling into the cabinet or away from the wash water
• Common symptom of failure: detergent leaks, fails to dispense, or sits in the drawer instead of flowing into the tub

• One detergent box (dispenser drawer) as shown

• Remove power and water connections before accessing the dispenser area
• Inspect surrounding seals and mounting tabs; replace if damaged to ensure a proper fit
• Clean the dispenser area and rinse with water before installing the new box to remove residue

The Softener Cap is an OEM part for LG washing machines. It serves as the lid and housing for the internal water softener that prevents mineral deposits from building up. The softener cap funnels water to and from the softener compartment during various stages of the wash cycle.

Causes of a faulty softener cap can include cracked or degraded seals over extended usage, impact damage distorting fit, or harsh cleaners affecting plastics over time.

Symptoms of a bad softener cap include:

• Water leaks from around the softener area
• The cap not closing or sealing properly
• Mineral buildup occurring prematurely
• The softener not functioning as intended

This genuine LG replacement is compatible with Sears/Kenmore machines.

This softener dispenser cap replaces the worn or cracked cap that covers the fabric softener chamber, restoring proper containment and controlled release of liquid softener during the wash cycle. A simple, low-cost part that prevents leaks and keeps the dispenser functioning. What it does

• Covers and seals the fabric softener compartment so liquid stays in the dispenser until the rinse cycle.
• Helps prevent softener from leaking into the washer drum between cycles.
• Restores a secure fit when the original cap is cracked, warped, or missing.
• Resolves issues with softener dispensing at the wrong time or pooling in the dispenser.

• One softener dispenser cap (1 piece)

• Disconnect power to the washer before accessing internal parts and follow all safety precautions.
• Typically accessed by removing the dispenser drawer or top panel—refer to your washer's service instructions.
• Inspect surrounding dispenser components for damage and replace any worn parts to ensure a proper seal.
• No electrical connections; basic hand tools may be required.

This replacement nozzle assembly restores proper flow and distribution within the appliance's system to maintain cleaning performance. Replace a cracked, clogged, or worn nozzle to help prevent performance loss and keep the unit operating efficiently.

• Directs and concentrates flow through the appliance for effective operation
• Helps maintain a sealed path to avoid leaks or loss of performance
• Damage or obstructions can cause reduced cleaning results, unusual noise, or visible leaks/air leaks
• Visible cracks, warping, or a loose connection indicate the nozzle should be replaced

• Disconnect power (and water supply if applicable) before servicing
• Remove the old nozzle per your model's service information; clear any debris from the mating areas
• Inspect related seals/gaskets and replace if worn to ensure a proper seal
• Install the new nozzle securely and test for proper operation and leaks/airflow

A friction-style damper assembly that controls and cushions door movement for a smooth, controlled close and hold. Replaces a worn or damaged damper to restore proper door damping and reduce abrupt motion. What it does

• Cushions and slows door movement so doors close smoothly and stay in position
• Reduces slamming and helps prevent stress on hinges and cabinet seals
• Common symptom: door drifts, won't stay open or closed, or moves unevenly
• Common symptom: grinding, binding, or increased noise at the hinge area

• One damper assembly

• Disconnect power to the appliance before beginning any repair
• Access may require removing a hinge cover or door trim; keep fasteners organized
• Handle plastic components gently to avoid breakage; align and test door travel after install

This friction damper assembly controls the refrigerator damper door to steady airflow between compartments, helping reduce temperature swings and stop the damper from moving freely. Replace a worn damper to restore controlled airflow and quieter operation. What it does:

• Provides friction to hold the damper door open or closed for consistent airflow.
• Helps regulate air exchange between compartments to support steady temperatures.
• A failing damper can stick, stay open, or make clicking/scraping noises and contribute to uneven cooling.
• Restores proper damper movement and reduces noise when functioning correctly.

• Disconnect power to the appliance before beginning any service.
• Access typically requires removing the interior damper cover or panel; keep track of screws and fasteners.
• Align and seat the assembly per OEM guidance; do not force parts into place.

The Water Inlet Valve is an OEM replacement part specific to LG washing machines. It is an electronic solenoid valve located near the water supply inlet ports that controls the flow of water into the washer tub. The inlet valve precisely regulates water levels during different phases like filling, washing, rinsing, and spinning cycles.

Causes of a bad water inlet valve can include worn or faulty electronic components, mineral buildup obstructing valve movement, or damage to seals and diaphragms.

Symptoms of a bad water inlet valve include:

• Inability to properly fill the washer tub during cycles
• Water leaking or flooding from the valve area
• Erratic water temperature or varying fill levels between loads
• Cycles failing to advance due to inadequate or unregulated water flow

This OEM LG part is also compatible with Sears/Kenmore models.

The Hose Connector is an OEM part for LG washing machines. It controls the water flow during the wash and rinse cycles. This part is designed to facilitate a secure and leak-proof connection between different sections of the washing machine, such as the inlet valve and the tub, or the pump and the drain hose. Ensuring these connections are secure is vital for the efficient operation of the washing machine, preventing leaks and maintaining optimal water usage.

Causes of failure may involve cracks, splitting, or collapsed seals/gaskets, as well as excessive mineral or foreign deposits that can obstruct water flow.

Symptoms of a bad hose connector are:

• Slow or incomplete filling during wash cycles
• Water leaks at the supply valve or connector area
• Connector split, cracked or compromised fittings

This genuine LG replacement is also compatible with Kenmore washing machines.

This inlet hose channels household water into the appliance during the fill cycle. Replacing a cracked, brittle, or leaking hose restores a secure, leak-resistant path that helps prevent puddles and fill-related interruptions. What it does:

• Routes incoming water from the inlet valve into the appliance's internal water path
• Helps maintain a watertight connection when properly secured with clamps
• Typical failure signs: dripping or puddling under the unit, visible cracks/kinks/bulges, or lingering dampness
• A restricted or leaking hose can contribute to long fill times or incomplete cycles

• 1 inlet hose

• Disconnect power and turn off the water supply before servicing
• Place towels or a shallow pan to catch residual water
• Note the original routing and clamp locations; install the new hose the same way without twists or kinks
• Fully seat hose ends and secure clamps; restore water and run a brief fill to check for leaks

Detergent housing assembly that holds and routes detergent to the washer dispenser, helping ensure proper detergent flow and reducing leaks or dispenser jams. Fits into the dispenser area to replace cracked, warped, or damaged housing components. What it does:

• Houses and channels liquid or powdered detergent into the dispenser and wash chamber
• Restores proper detergent release when the original housing is cracked, broken, or warped
• Helps stop leaks and detergent buildup around the dispenser area
• Works with the dispenser drawer and related seals to maintain correct flow

• Disconnect power and turn off the water supply before starting service
• Use basic hand tools and follow the washer service manual or OEM diagram for disassembly/reassembly
• Inspect and replace any worn seals or gaskets at reassembly to prevent leaks

The stator assembly is the stationary coil of your washer's direct-drive motor. It generates the magnetic field that spins and agitates the basket, helping restore proper movement when the original winding is worn or failed. What it does:

• Produces the electromagnetic field that drives the rotor and basket
• Common fix for no-spin, no-agitate, or weak/intermittent motor performance
• Helps restore smooth, consistent basket speed and torque

• One stator assembly

• Disconnect power and ensure stable access to the appliance before starting
• Access the motor from the bottom or rear; remove the rotor cap/center bolt and rotor before the stator
• Handle the rotor's strong magnets with care; support the tub and keep fingers clear
• Reconnect wiring harnesses fully seated and route as original; tighten mounting bolts evenly

The Water Level Pressure Switch is an OEM replacement part for LG washing machines. It is an essential component that monitors and detects the water level within the washing machine tub during the wash cycle.

Symptoms of a bad water level pressure switch:

• Washing machine not filling with water or not stopping when the desired water level is reached
• Excessive water intake, leading to overfilling and potential leaks
• Error codes or indicators related to water level issues
• Washing machine not advancing to the next cycle due to incorrect water level detection

Causes of a bad water level pressure switch can include mechanical failure, electrical malfunctions, or blockages or debris preventing accurate water level readings.

This OEM LG part is also compatible with Sears/Kenmore washing machine models.

This rotor assembly is the rotating half of the direct-drive motor in your washer. It mates with the stator to spin and agitate the basket, restoring drive when the original rotor is worn, cracked, or stripped.

• Forms the magnetic rotor of the direct-drive motor to turn the wash basket
• Transfers motor torque directly to the tub for spin and wash action
• Common symptoms: no spin or agitation, starts then stops, loud grinding/clicking, motor-related error
• Visible damage may include cracked hub, stripped splines, or loose fit on the shaft

• Disconnect power and water; wear gloves and eye protection
• Access from the rear, remove the back panel, hold the basket, then remove the center bolt and pull the rotor straight off (strong magnets)
• Align splines/keyway, seat the rotor fully, and reinstall/tighten the center bolt securely
• Inspect the stator and hall sensor for damage before reassembly and test a spin cycle

The Water Level Pressure Switch is an OEM replacement part for LG washing machines. It is an essential component that monitors and detects the water level within the washing machine tub during the wash cycle.

Symptoms of a bad water level pressure switch:

• Washing machine not filling with water or not stopping when the desired water level is reached
• Excessive water intake, leading to overfilling and potential leaks
• Error codes or indicators related to water level issues
• Washing machine not advancing to the next cycle due to incorrect water level detection

Causes of a bad water level pressure switch can include mechanical failure, electrical malfunctions, or blockages or debris preventing accurate water level readings.

This OEM LG part is also compatible with Sears/Kenmore washing machine models.

The Motor Stator Bolt is an OEM part for LG washing machines. This bolt secures the stator to the motor, ensuring the stability and proper functioning of the washing machine's motor assembly.

Causes of a bad motor stator bolt can include wear and tear over time, improper installation, or damage from over-tightening or impact. A compromised bolt can lead to instability in the motor, potentially affecting the washer's performance.

Symptoms of a bad motor stator bolt include:

• Unusual noises during the wash cycle
• Vibrations or shaking of the washer
• The motor not functioning properly or failing to start

This OEM LG part is also compatible with Sears/Kenmore.

The Clutch Motor is an OEM part for LG washing machines. This motor engages the clutch mechanism, allowing the washer to switch between agitating and spinning cycles effectively.

Causes of a bad clutch motor can include wear and tear over time, electrical issues, or mechanical failure due to overloading or improper use.

Symptoms of a bad clutch motor include:

• The washer not agitating or spinning
• Unusual noises during the wash or spin cycles
• The drum not rotating properly
• The washer stopping mid-cycle

This OEM LG part is also compatible with Sears/Kenmore models.

This filter assembly is the refrigerator water filter housing that holds and secures the replaceable water filter cartridge, helping deliver clean-tasting water and proper flow to the dispenser and icemaker. Designed to match OEM fit and function. What it does:

• Houses the water filter cartridge so water is processed before reaching the dispenser and icemaker
• Restores proper water flow when a damaged or cracked housing restricts supply
• Helps prevent contaminants and odors from passing through the system when used with the correct filter cartridge
• Supports reliable sealing to reduce risk of leaks at the filter connection

• One filter assembly housing

• Turn off refrigerator water supply and dispense any remaining water before beginning work
• Replace only with the correct OEM housing and compatible filter cartridge for this unit
• Inspect O-rings/seals and replace if worn to ensure a watertight fit

Replacement nut that secures drawer and trim components on compatible LG appliances. It restores a firm, vibration-resistant fastening to help prevent loosening, rattling, or misalignment during normal use. What it does:

• Secures drawer, trim or small mounting brackets to the appliance chassis.
• Helps stop loosened fasteners that cause rattling or misaligned panels.
• Provides proper thread engagement for a stable connection.
• Matches the appliance's original fastening point when used as the listed part.

• Always disconnect power to the appliance before beginning any repair.
• Use the correct-size wrench or socket; avoid overtightening to prevent stripped threads.
• Inspect mating screw/bolt and threads for damage; replace damaged hardware as needed.

This is a small OEM washer used with the washer's internal mounting hardware to provide proper spacing and secure fasteners. It helps keep assemblies aligned and prevents hardware from loosening during operation. What it does:

• Acts as a spacer and load distributor for bolts or screws in the washer assembly
• Helps maintain proper alignment of panels or components
• Reduces wear between mating metal parts
• Can prevent fasteners from backing out due to vibration

• One washer as pictured

• Always unplug the appliance and shut off the water supply before servicing
• Access the mounting location per the service manual or parts diagram; replace only like-for-like
• Install with the correct orientation and hardware; do not overtighten fasteners
• If other fasteners or parts are corroded or worn, replace them at the same time

Kit is no longer available. Order MCJ61861201 and ACP72929002 separately.

This replacement coupling connects the washer motor to the gearcase so the drum/agitator receives drive torque. It restores the drive link that lets the washer agitate and spin when functioning properly. What it does

• Transfers motor torque to the gearcase so the washer can agitate and spin
• Commonly replaced when the washer slips or fails to agitate/spin
• Can stop grinding, clunking, or intermittent drive caused by a worn or broken coupling
• Works as a direct-fit replacement when the OEM part number matches

• Disconnect power and water before servicing; follow all safety precautions
• Access typically requires removing the washer cabinet or back panel to reach the motor/gearcase area
• Inspect surrounding components (motor shaft, gearcase input, mounting hardware) and replace as needed
• Use proper tools and follow all safety precautions for step-by-step instructions

This thermistor assembly monitors water temperature inside the washer tub and relays a precise signal to the control board. Replacing a failed sensor restores accurate temperature sensing and helps prevent cycle errors and performance issues. What it does:

• Measures wash water temperature and sends the signal to the electronic control
• Enables the control to adjust cycle operation based on temperature feedback
• Common failure signs: tE/TE error codes on some models, incorrect temperatures, long cycles, or cycles that won't advance
• Intermittent faults may cause sporadic errors or inconsistent performance

• 1 thermistor assembly

• Disconnect power and shut off water before servicing
• Access location varies by model; the sensor is typically mounted in the outer tub or heater housing
• Unplug the harness, pull the old sensor straight out; seat the new sensor fully and reconnect the harness
• Route wiring away from moving parts; restore power and run a test cycle, checking for proper operation and any leaks around the sensor port

This dispenser assembly is the washer's detergent drawer housing. It channels incoming water through the detergent and fabric softener compartments (and prewash, if equipped) so additives are dispensed at the correct time and helps prevent leaks at the dispenser area.

• Directs water through the dispenser to flush detergent/softener into the tub at the proper points in the cycle
• Replaces cracked, warped, or clogged housings that leak or misdirect water
• Helps resolve detergent or softener remaining in the drawer after a cycle
• Addresses water leaking or overflowing from the dispenser area or visible damage/mineral buildup in the dispenser box

• Unplug the washer and shut off water supplies before servicing
• Pull out the drawer, remove the top cover as needed, then remove mounting screws and release hose clamps to detach the old assembly
• Move hoses/clamps to the new assembly and ensure gaskets/siphon caps are properly seated
• Run a quick fill/rinse to check for leaks before final reassembly

The Clamp is an OEM part for LG washing machines. It is used to secure the hose connections within the washer, ensuring that water flows correctly without leaks.

Over time, the clamp can become worn or damaged due to repeated exposure to water, vibration, or general wear and tear. If the clamp fails, it can lead to water leaks or hoses becoming detached.

Symptoms of a bad clamp include:

• Water leaking from hose connections
• Hoses coming loose or detaching during operation
• Visible rust or damage on the clamp
• Poor water flow or pressure issues

This OEM LG part is also compatible with Sears/Kenmore models.

This small cover cap conceals an exposed fastener or opening on your appliance, restoring a clean, finished look. It also helps protect the area from dust and splashes for a tidy, long-lasting installation.

• Covers and protects an open screw hole or attachment point on a panel or door
• Restores a clean, factory appearance
• Helps keep dust and moisture out of the opening
• Common signs it's needed: missing cap, cracked/broken cap, loose cap, won't stay clipped

• Disconnect power (and water, if applicable) before servicing exterior panels or doors
• Note the cap's orientation and any retaining tabs before removal
• Use a plastic pry tool to gently release the old cap; press the new cap until fully seated
• Avoid forcing the cap or overtightening any underlying fastener to prevent damage

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
