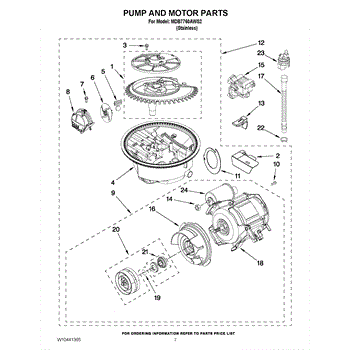

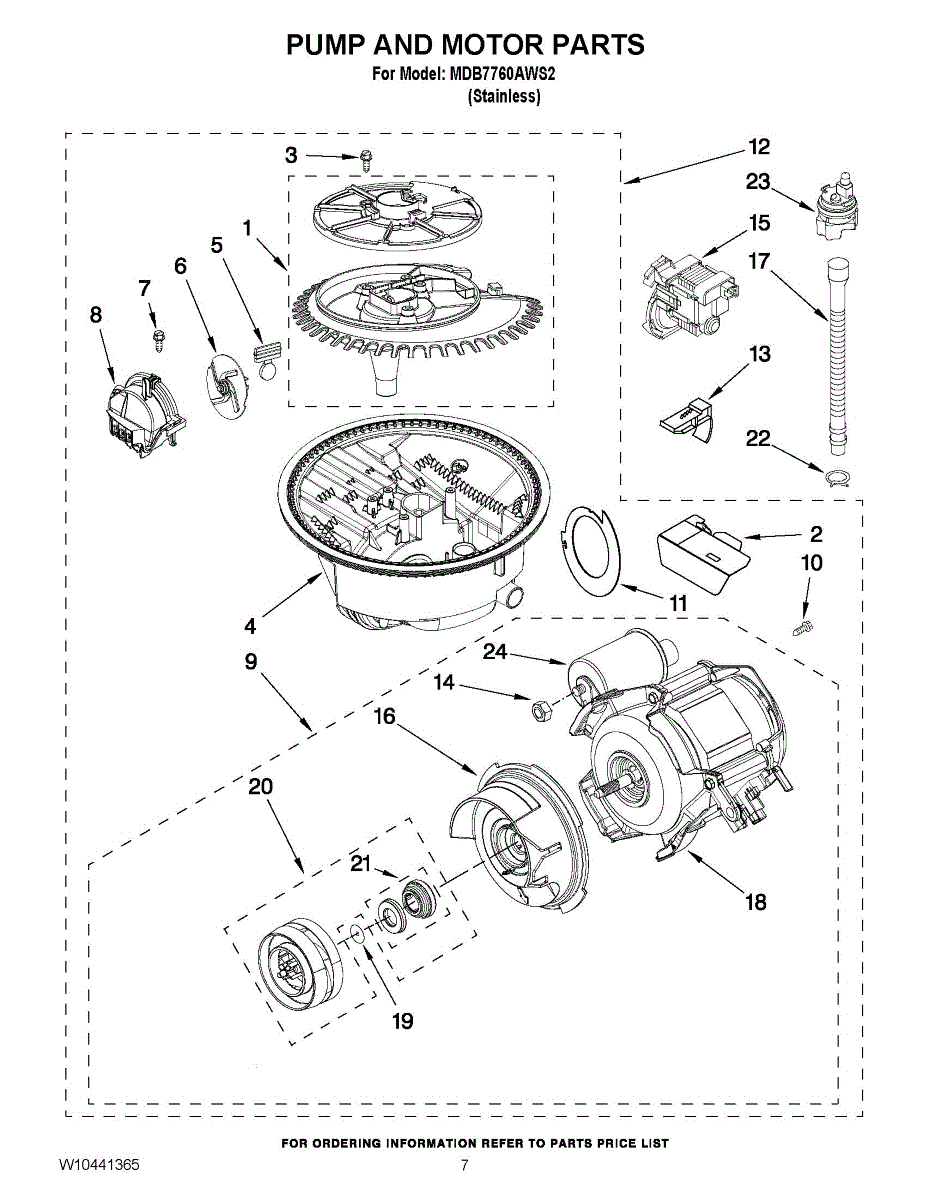

Parts for Maytag MDB7760AWS2: 06 - Pump And Motor Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Filter Assembly is an OEM part for Whirlpool dishwashers. This component is responsible for trapping food particles and debris, preventing them from recirculating during the wash cycle and ensuring that dishes come out clean.

Causes of a bad filter assembly can include accumulated debris, regular wear from repeated use, or damage from harsh cleaning agents. A compromised filter can reduce the dishwasher’s cleaning performance and lead to buildup inside the machine.

Symptoms of a bad filter assembly include:

• Dishes not being cleaned properly
• Unusual noises during the wash cycle
• Slow drainage or standing water in the dishwasher
• Visible damage or clogging of the filter

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Seal included. This sump housing assembly includes a 32.17 millimeter hole for the thermistor. If the hole for the thermistor is 31-31.5 millimeters you will need to order WP8534882.

The Check Valve is an OEM part for Whirlpool dishwashers. This small but crucial component prevents backflow of water into the dishwasher, ensuring that dirty water is properly drained and does not contaminate clean dishes. It plays a vital role in maintaining the efficiency and hygiene of the dishwasher by directing water flow correctly during the wash and drain cycles.

Causes of a bad check valve can include blockages from food particles, mineral deposits from hard water, or wear and tear over time. These issues can impede the valve's function, leading to ineffective drainage and potential backflow problems.

Symptoms of a bad check valve include:

• Water not draining properly from the dishwasher
• Dirty water pooling at the bottom of the dishwasher
• Unpleasant odors from standing water
• Residue or food particles left on dishes after a wash cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dishwasher Food Chopper is an OEM part for Whirlpool dishwashers. It's designed to break down food particles that are washed off dishes during the cleaning cycle. This prevents large debris from clogging the dishwasher's drain and ensures that water remains clean throughout the cycle, enhancing the machine's cleaning efficiency.

A malfunctioning or worn-out food chopper can lead to several problems, such as poor cleaning results due to food particles being redeposited on dishes, or even clogs that can strain the dishwasher's pump and filters.

Symptoms of a bad Dishwasher Food Chopper include:

• Dishes coming out with food particles still on them
• The dishwasher making unusual noises indicating a struggle or blockage
• Water not draining properly, suggesting a possible clog

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)

This inlet protector is the coarse screen that covers the dishwasher's pump/sump inlet, blocking large debris from entering the wash system. Replacing a damaged or missing protector helps maintain water flow and protect the pump from jams or wear.

• Screens large food particles and debris from the pump/chopper inlet
• Helps maintain proper water circulation and consistent cleaning performance
• Reduces risk of pump damage or noisy operation from debris
• Common signs: cracked or missing screen, persistent debris in the sump, grinding/rumbling noises, or declining wash results

• Disconnect power and shut off water supply before servicing
• Remove the lower rack and spray arm; access the sump/accumulator area per your model
• Lift out the old protector; seat the new protector fully and secure any tabs/fasteners
• Reassemble and ensure the screen sits flat with no gaps

This Drain Pump Motor Assembly replaces the washer's drain pump motor and impeller so the machine can move water out during drain and spin cycles. Restores proper draining and reduces standing water in the tub. What it does:

• Pumps water from the tub during drain and spin cycles to help clear wash water.
• Replaces a failed or noisy pump motor that hums but won't drain.
• Stops or reduces standing water and slow-drain symptoms.
• Helps address leaks or visible damage at the pump housing or impeller.

• Disconnect power and turn off water supply before starting any repair.
• Remove the washer access panel and drain remaining water from the tub before replacing the pump.
• Note wiring and hose locations during removal; reconnect hoses and electrical plug securely.

The Filter Screen is an OEM component specifically designed for Whirlpool dishwashers. Located inside the sump area, the durable mesh screen captures small food particles and debris before wash water is recirculated through cycles.

Symptoms of a bad filter screen can include clogging obscuring openings over time, degrading mesh no longer inhibiting passage, or dislodging from mounting points allowing bypass.

Causes involve the normal accumulation of soils requiring periodic cleaning. Mineral buildup may eventually cement sections together reducing effectiveness.

Symptoms of a bad filter screen include:

• Dirty or soiled wash water unable to fully circulate
• Filth dispersing throughout the wash cabinet interior
• Reduced cleaning and unsatisfactory dish results

This OEM Whirlpool part is also compatible with KitchenAid, Maytag, Jenn-Air, Amana, and some Kenmore dishwasher models. Replace to maintain built-in wastewater filtration protecting major components.

This replacement part is a dishwasher pump and motor assembly. The dishwasher pump and pump motor circulate water through the dishwasher's spray arm. When the spray arms aren't spraying properly, this could mean that it's time for a new pump and motor assembly. Luckily replacing this part is a relatively simple process.Start by making sure the dishwasher is unplugged. After that shut off the water supply going to the dishwasher. Then disconnect the drain line from the garbage disposal or sink drain. Open the dishwasher door and pull out the bottom dish rack. Remove the upper dishrack from its track. Release the spray arm on the bottom of the washer. Then proceed to release the feed tube clips. Using a nut driver remove the bottom access panel and tow panel. Pull them out to remove them. Remove the power cable from the junction box, and disconnect the supply line from the inlet valve. Proceed to pull the dishwasher out of the counter. Tilt the dishwasher on its side and pull the hose from the drain pump. Remove the wire harness from the pump. Disconnect wires from diverter motor and circulation motor. Once complete, proceed to tilt the dishwasher upright and remove the pump and motor assembly from the bottom of the dishwasher. Replace with the new assembly.This replacement part is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand dishwashers.

This sump tab secures the dishwasher's sump assembly to the tub opening, keeping it properly aligned and sealed. Replace a broken or missing tab to address movement, rattling, or leaks originating from the sump area.

• Locks the sump assembly to the tub/base opening
• Helps maintain the sump-to-tub seal to limit leaks
• Keeps the pump intake and fine filter area properly positioned
• Common symptoms: leaks under the unit, loose/shifted sump or filter, rattling/vibration from the sump area

• Disconnect power and water supply before servicing
• Access the sump per your model (from inside the tub by removing lower rack/filters, or from below after removing the toe panel)
• Ensure the sump and gasket are fully seated; install the new tab until it locks securely
• Run a brief fill/drain test and check for leaks before reassembly

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Drain Pump is an OEM part for Whirlpool dishwashers. It is responsible for removing wastewater from the dishwasher tub during the drain cycle, ensuring that the dishwasher operates efficiently and effectively.

Causes of a bad drain pump can include clogging from food particles and debris, damage to the pump impeller, or electrical failures within the pump motor. Over time, regular use can lead to wear and tear that affects the pump's performance.

Symptoms of a bad drain pump include:

• Water not draining from the dishwasher
• Standing water at the bottom of the dishwasher after a cycle
• Unusual noises during the drain cycle
• Error codes related to drainage issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Volute with Seal is an OEM part for Whirlpool dishwashers. This part directs water flow within the dishwasher's pump, ensuring efficient circulation and pressure during the wash cycle. The seal helps to prevent leaks by maintaining a tight closure between the volute and other pump components.

Common causes of a bad volute with seal include wear and tear from regular use, damage from debris or hard water deposits, and seal degradation due to age or chemical exposure.

Symptoms of a bad Volute with Seal include:

• Water leaking from the pump area
• Decreased washing performance
• Unusual noises from the pump during operation
• Visible cracks or damage to the volute or seal

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Drain Hose is an OEM part for Whirlpool dishwashers. This flexible hose is designed to carry waste water from the dishwasher to the kitchen drain system or garbage disposal, ensuring that the dishwasher drains properly after each wash cycle.

Causes of damage to the Drain Hose often involve regular wear and tear, bending or kinking of the hose during installation or maintenance activities, or deterioration over time due to exposure to hot water and detergents.

Symptoms of a bad Drain Hose include:

• Water remaining in the bottom of the dishwasher after a cycle
• Leaks found under or behind the dishwasher, which could be due to holes, cracks, or loose connections in the drain hose.
• Unpleasant odors emanating from the dishwasher, potentially caused by food particles or debris caught in a hose that is not draining correctly.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This motor-pump assembly replaces the washer's drain pump to restore reliable water removal and reduce leaks. It mounts to the tub and handles draining so your cycle can finish and clothes can spin out properly. What it does:

• Pumps water out of the washer during drain cycles to allow proper spin and cycle completion
• Helps prevent standing water and reduces the chance of overflow or tub leaks
• Stops humming, grinding, or no-drain symptoms caused by a failed pump motor
• Works as the integrated motor and pump unit that attaches to the washer tub

• Disconnect power and water before servicing; follow all safety precautions
• Basic hand tools required; access may require removing front or rear service panel
• Inspect and reinstall hoses and clamps securely to prevent leaks

A flat washer used with fasteners on select top-load and front-load washer assemblies to distribute load and prevent loosening. Replaces worn or missing washers to help stabilize mounting points and reduce vibration where metal parts join. What it does:

• Provides a smooth bearing surface between a bolt or nut and the mating part
• Helps distribute clamping force to prevent damage to housings or panels
• Reduces loosening from vibration or thermal cycling
• Common fix when mounting hardware is loose, rattling, or causing leaks at joins

• Inspect mating bolt, nut, and surface for wear or damage before installing
• Use correct size and orientation; do not overtighten fasteners
• Disconnect power to the appliance and follow safety procedures when accessing internal parts
• Replace all related fasteners to ensure proper fit

The Impeller is an OEM part for Whirlpool dishwashers. It plays a crucial role in the dishwasher's operation by creating the water pressure needed to circulate water through the spray arms, ensuring dishes are thoroughly cleaned during the wash cycle.

Over time, the impeller can become worn or damaged due to regular use, the presence of debris, or exposure to harsh detergents. This can result in decreased water pressure and ineffective cleaning.

Symptoms of a bad impeller include:

• Poor cleaning results with dishes remaining dirty
• Unusual noises coming from the dishwasher
• Low water pressure or weak spray from the spray arms
• The dishwasher not completing its cycle properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Turbidity Sensor is an OEM part for Whirlpool dishwashers. It detects the level of particles in the water during the wash cycle, allowing the dishwasher to adjust the cycle duration and water usage for optimal cleaning performance. This sensor ensures that dishes are thoroughly cleaned by monitoring water clarity.

You should replace the turbidity sensor if it becomes faulty or damaged. Causes of a bad turbidity sensor can include regular wear and tear, exposure to hard water minerals, or electrical malfunctions. A malfunctioning sensor can lead to inefficient cleaning cycles and poor wash results.

Symptoms of a bad turbidity sensor include:

• Dishes not being cleaned properly
• Dishwasher running longer than usual or shorter cycles
• Error codes related to the sensor
• Inconsistent wash performance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This run capacitor helps start and keep the motor running smoothly by providing the necessary phase shift and torque boost. A weak capacitor can cause hard starting, humming, or intermittent motor operation.

• Supplies continuous phase shift to maintain motor rotation
• Helps the motor start reliably under load
• Symptoms can include humming, slow or no start, or overheating shutdown
• Restores normal operation when the original capacitor has weakened

• Disconnect power before servicing; discharge the old capacitor safely
• Note wire locations and transfer leads to the new capacitor one-by-one
• Mount securely in the original bracket or location to prevent vibration
• If the motor still won't start, further diagnosis of the motor or start device may be required
