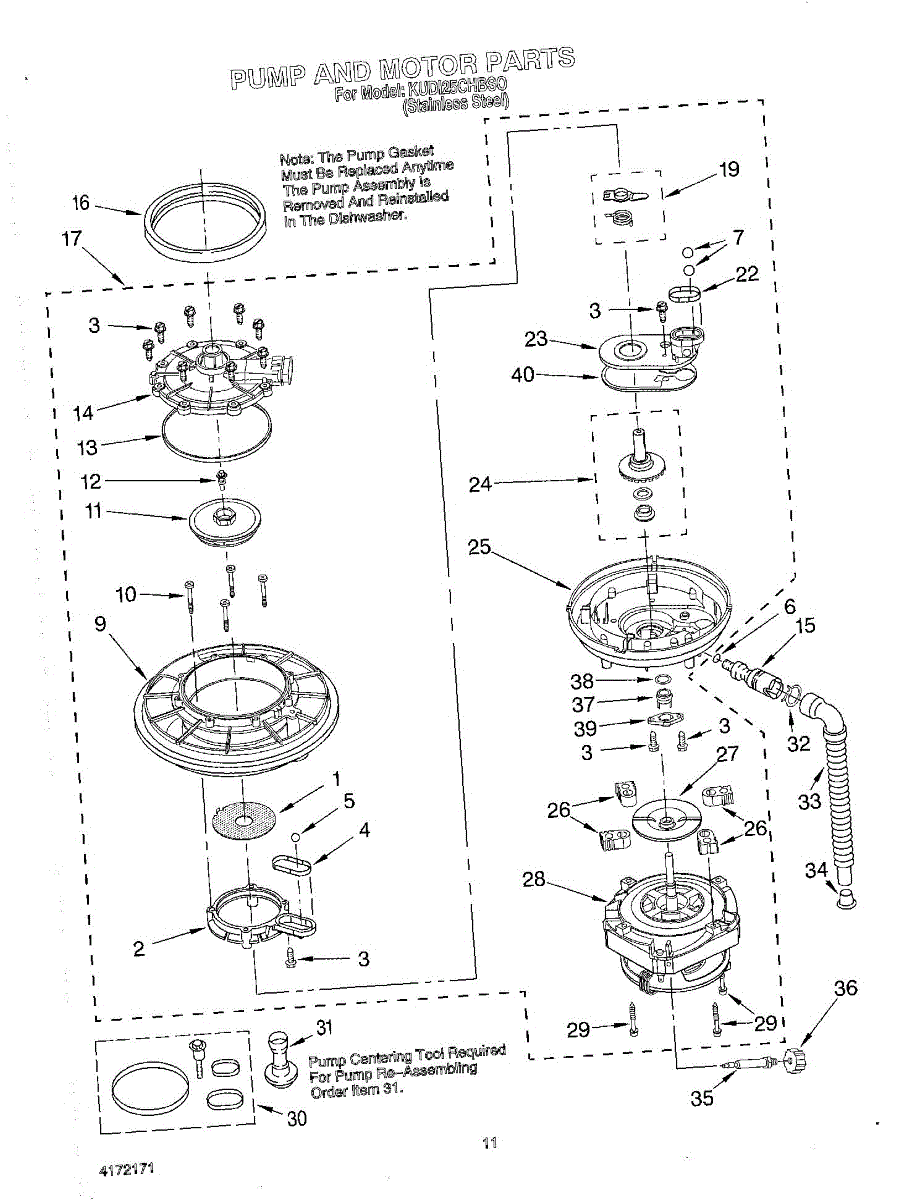

Parts for Kitchenaid KUDI25CHBS0: 09 - Pump And Motor Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Also order pump seal kit

Also includes perforated plate and check ball. Also order pump seal kit

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)

This inlet base seal is a gasket that fits between the inlet base and its mating surface. Replacing a worn seal helps maintain proper airflow through the inlet path and keeps spills and debris out of internal components.

• Forms a tight, continuous seal at the inlet base-to-housing joint
• Helps preserve correct airflow through the inlet path
• Blocks liquids, grease, and crumbs from leaking into the appliance interior
• Replace if the seal is cracked, flattened, brittle, loose, or you see visible gaps

• Disconnect power to the appliance before servicing
• Remove grates/cartridges, filters, or trim as needed to access the inlet base
• Clean and dry mating surfaces; install the new seal in the same orientation without stretching or twisting
• Reassemble and verify the seal sits evenly with no gaps

This small check ball sits inside a check valve to allow one-way water flow. Replacing a worn or missing ball helps prevent backflow and supports reliable draining performance between cycles.

• Maintains one-way flow through the valve to stop water from returning after the pump stops
• Helps ensure complete, consistent draining
• A damaged, swollen, or missing ball can let water back up into the tub/sump
• Contribute to slow or intermittent draining and unusual gurgling/flow noises

• Disconnect power and shut off water before servicing
• Access the check valve assembly per your model's service information (commonly at the sump, pump outlet, or drain connection)
• Clean the valve seat/passage; remove debris that could prevent sealing
• Place the ball in the valve seat as shown in your model's parts diagram; reassemble and test for leaks and proper flow

Size: 8-18 x 1-5/8 inch.

The Drain & Wash Impeller Kit is an OEM part for Whirlpool dishwashers. This kit includes components critical for the efficient movement of water within the dishwasher, both for washing the dishes and draining the water at the end of the cycle. The impeller aids in creating the necessary water pressure to clean dishes effectively and ensures that water is properly expelled from the dishwasher.

Symptoms of a failing Drain & Wash Impeller Kit include:

• Dishes not being cleaned thoroughly
• Water not draining properly from the dishwasher, leaving standing water
• Unusual noises during the wash or drain cycles, such as grinding or humming
• The dishwasher cycle taking longer than usual or not completing
• Visible damage or wear to the impeller components

Causes of a bad impeller kit can include normal wear and tear from regular use, blockages or debris that damage the impeller blades, or issues with the motor that affect impeller performance.

This OEM part is also compatible with some models from brands such as Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

Screw for wash impeller.

This pump outlet seal sits on the discharge side of the dishwasher pump to keep the outlet connection watertight. Replacing a worn seal helps stop leaks and keeps wash water contained during the cycle. What it does:

• Seals the joint at the pump outlet to prevent water leakage
• Helps maintain proper circulation by keeping the pump discharge airtight/watertight
• Common symptoms of failure include water under the unit, drips near the pump area, or a flattened/cracked/hardened old seal

• 1 pump outlet seal

• Disconnect power and shut off the water supply before servicing
• Remove the toe-kick/lower access panel to reach the pump area; place a towel or pan to catch residual water
• Note seal orientation; clean mating surfaces before installing the new seal
• Seat the seal evenly; reassemble and run a short test to check for leaks

includes seal

The Check Valve Assembly is an OEM replacement part for Whirlpool dishwashers. It is a component that regulates water flow and pressure, allowing water to enter the dishwasher during designated cycles but preventing backflow. The check valve plays an important role in the overall water distribution system of the dishwasher.

Causes of a bad check valve can include mineral buildup blocking the valve ports over time, damage to the valve mechanism or seals, or decreased valve integrity from wear and repeated use.

Symptoms of a bad check valve include:

• Leaks or water not properly entering the dishwasher
• Incomplete or inefficient washing and rinsing cycles
• Strange sounds coming from the water inlet area
• Higher water usage due to faulty draining

Note: O-ring included.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This seal kit is for the main tub. It goes around the pump housing.

This circulation pump and motor assembly moves wash water through your dishwasher's spray arms to clean dishes. Replace a worn or seized wash motor to restore proper spray pressure, quieter operation, and consistent cleaning performance.

• Circulates wash water through the spray arms during wash and rinse cycles
• Restores cleaning performance when the original wash motor won't run or is weak
• Typical symptoms: no/weak spray action, dishes still dirty, loud humming or grinding during wash
• Leaks at the pump housing or shaft area can indicate the assembly has failed

• Disconnect power at the breaker and shut off the water supply before servicing
• Remove the toe panel and slide the dishwasher out to access the underside
• Have a towel or pan ready for residual water; disconnect wiring and hoses, noting their orientation
• Transfer and secure existing clamps/mounting hardware as needed; ensure seals are properly seated and test for leaks after reassembly

The Drain & Wash Impeller Kit is an OEM part for Whirlpool dishwashers. This kit includes components critical for the efficient movement of water within the dishwasher, both for washing the dishes and draining the water at the end of the cycle. The impeller aids in creating the necessary water pressure to clean dishes effectively and ensures that water is properly expelled from the dishwasher.

Symptoms of a failing Drain & Wash Impeller Kit include:

• Dishes not being cleaned thoroughly
• Water not draining properly from the dishwasher, leaving standing water
• Unusual noises during the wash or drain cycles, such as grinding or humming
• The dishwasher cycle taking longer than usual or not completing
• Visible damage or wear to the impeller components

Causes of a bad impeller kit can include normal wear and tear from regular use, blockages or debris that damage the impeller blades, or issues with the motor that affect impeller performance.

This OEM part is also compatible with some models from brands such as Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Drain & Wash Impeller Kit is an OEM part for Whirlpool dishwashers. This kit includes components critical for the efficient movement of water within the dishwasher, both for washing the dishes and draining the water at the end of the cycle. The impeller aids in creating the necessary water pressure to clean dishes effectively and ensures that water is properly expelled from the dishwasher.

Symptoms of a failing Drain & Wash Impeller Kit include:

• Dishes not being cleaned thoroughly
• Water not draining properly from the dishwasher, leaving standing water
• Unusual noises during the wash or drain cycles, such as grinding or humming
• The dishwasher cycle taking longer than usual or not completing
• Visible damage or wear to the impeller components

Causes of a bad impeller kit can include normal wear and tear from regular use, blockages or debris that damage the impeller blades, or issues with the motor that affect impeller performance.

This OEM part is also compatible with some models from brands such as Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

Comes with thermostat, drain impeller, and seal.

Size: 13-18 x 1-1/2 inch.

Kit includes rubber rings, impeller screw with seal and fiber gasket.

The Spring Tension Hose Clamp is an OEM part for Whirlpool washing machines. It is designed to secure hoses in place, preventing leaks by maintaining consistent tension on the hose connections.

Over time, spring tension hose clamps can lose their effectiveness due to metal fatigue, corrosion, or damage from frequent tightening and loosening. This can lead to leaks and improper hose connections.

Symptoms of a bad spring tension hose clamp include:

• Water leaks around hose connections
• Loose or disconnected hoses
• Unusual noises or vibrations during operation
• Water pressure issues within the washing machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 7 foot long.

Includes rubber seal and mounting bracket.

This O-ring is a small rubber replacement seal that helps stop water leaks where two components meet. It restores a tight seal to reduce drips and prevent water damage from worn or cracked seals. What it does:

• Provides a compression seal between mating parts to prevent leaks
• Commonly replaced when visible cracking, flattening, or hardening occurs
• Helps eliminate steady drips or pooling of water near the seal area
• Restores proper sealing after disassembly for service or part replacement

• Disconnect power and shut off the water supply before servicing
• Remove surrounding components carefully to avoid damaging the seal seat
• Inspect the mating surfaces for debris or damage; clean before installing new O-ring
• Lubricate with a compatible, appliance-safe lubricant; do not use petroleum-based products unless specified

This drain cover gasket seals the drain/pump cover at the bottom of the dishwasher tub to keep wash water contained. Replacing a cracked or flattened gasket helps stop leaks from the base and protects nearby components.

• Creates a watertight seal between the drain cover and sump opening
• Helps prevent leaks onto the floor or into the dishwasher base during cycles
• Common signs of failure: puddles beneath the unit, dampness in the base, or a visibly hardened/cracked gasket
• Good practice to replace when the drain cover is removed for service to ensure a proper reseal

• Disconnect power and shut off water supply before servicing
• Remove the lower rack (and spray arm if required) to access the drain cover per your model
• Clean mating surfaces; install the new gasket evenly without twists
• Reassemble and run a short cycle while checking for leaks
