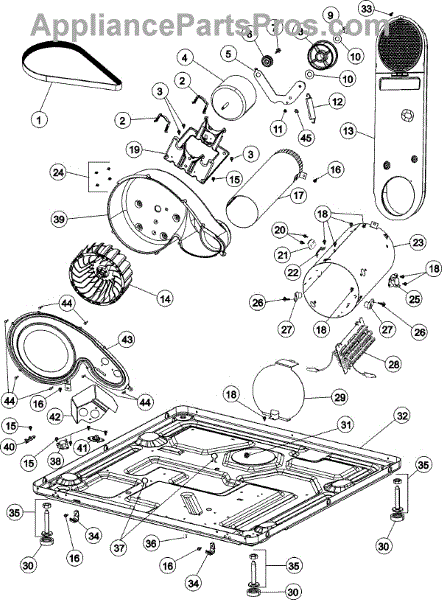

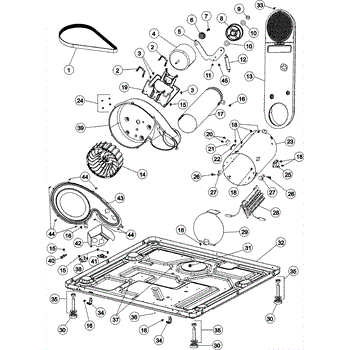

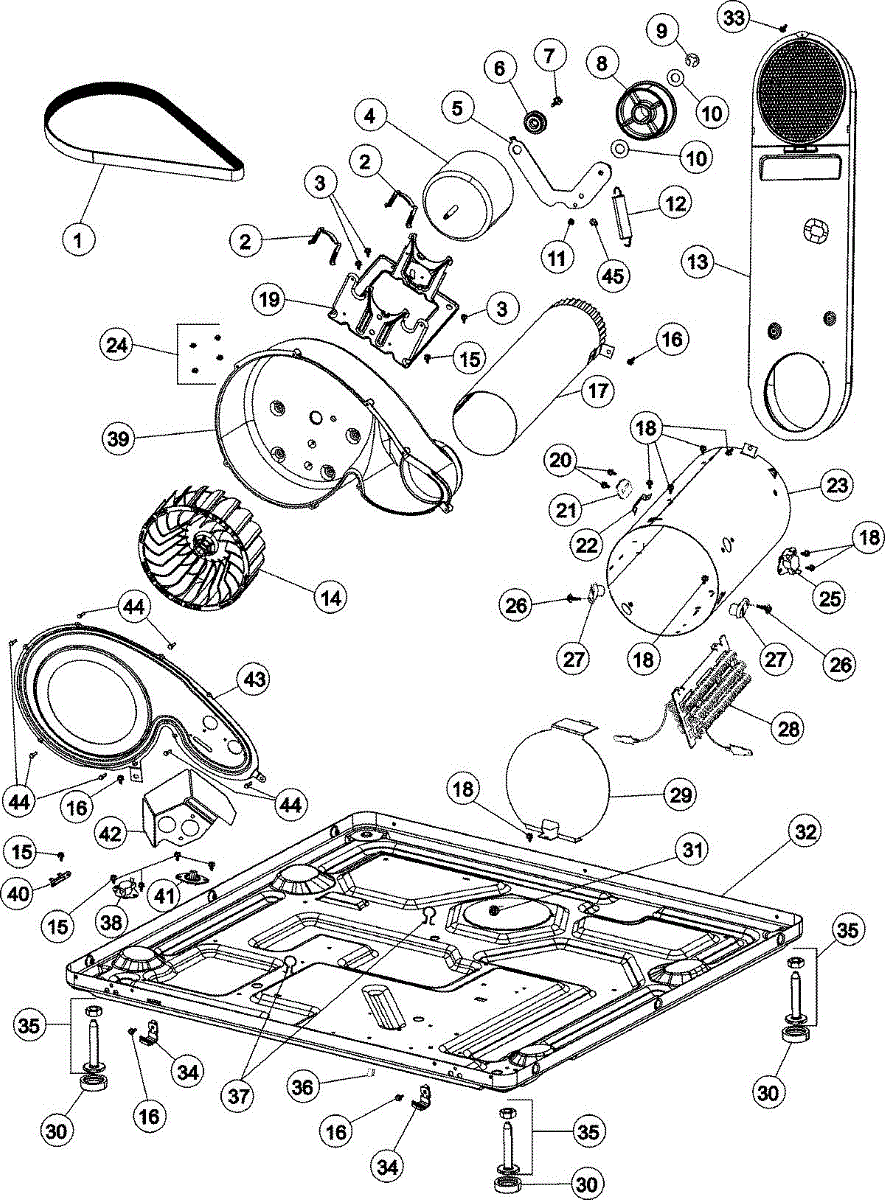

Parts for Crosley CDE4205AZJ: 01 - Base (Elec) Parts

Replace your dryer drum belt if the drum won't turn or makes squealing noises. Essential for rotating the drum during drying cycles. Verify fit by model.

This motor clip secures a motor to its mounting bracket or housing, keeping it aligned and stable during operation. Replacing a bent, broken, or missing clip helps stop rattling and prevents the motor from shifting. What it does:

• Retains the motor on its mounting bracket or frame
• Helps maintain alignment to reduce vibration and noise
• Prevents movement that can cause rubbing or wire strain
• Direct replacement when the original clip is damaged or missing

• One motor clip

• Disconnect power before servicing; allow all moving parts to stop
• Access the motor area, note the clip's orientation, and remove the damaged clip
• Seat the motor fully, then install the new clip to secure it to the bracket
• Inspect related mounts/grommets and wiring for wear; verify clearances before restoring power

A single mounting screw designed to secure panels, brackets, or components on your appliance for reliable fit and reduced vibration. Use this genuine replacement when a fastener is missing, stripped, or rusted. What it does:

• Fastens panels, trim, or mounting brackets to restore proper alignment
• Helps eliminate rattling or vibration caused by loose or missing screws
• Replaces corroded or damaged hardware to maintain safe operation
• Restores secure attachment for parts that no longer hold in place

• Disconnect power to the appliance before starting any repair
• Use the correct driver bit to avoid stripping the screw head
• Tighten until snug; avoid overtightening which can strip threads or damage parts

This genuine replacement part is a drive motor for dryers. The drive motor is the main engine that allows the dryer drum to rotate. If the drum is no longer spinning properly, the drive motor might need to be replaced. Luckily this is a relatively simple process.To replace the drive motor, begin by unplugging the dryer. Once it is powered off, uninstall the front panel of the dryer by removing the screws that attach it. After that, lift the top panel above the drum so that it is vertical and no longer covering the drum. Then disconnect the wires from the moisture sensors with a screwdriver by pressing down on the locking tab. Once the wires have been removed, lift the drum out from the dryer to gain access to the drive motor. Using a socket wrench, remove the blower wheel from the motor assembly. Then remove the old drive motor by unthreading the mounting screws that attach it. Install the new drive motor and reassemble the dryer. This OEM replacement part is sold individually and is compatible with Whirlpools, Maytag, Kitchenaid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand dryers.

Pivoting bracket arm that suspends the idler pulley and routes the drive belt in your dryer. Replace if cracked, bent, or worn to restore proper operation.

Protects the idler arm and ensures smooth belt tension operation in your dryer. Replace if you hear grinding noises or notice excessive arm movement.

Factory fastener screw secures panels, brackets, and trim inside appliances. Replace missing, stripped, or damaged screws to restore tight fit.

Replaces the belt tension pulley that maintains proper belt alignment in your dryer. Needed when pulley is squealing, cracked, or worn out.

The Idler Shaft Retaining Ring is an OEM replacement part for Whirlpool dryers. Also called an "E" ring, it is a sealing gasket positioned between the front and rear housing omponents. Maintaining an airtight seal prevents gas leakage and promotes efficient drying performance.

Causes of a bad retaining ring commonly involve compression loss of the rubber gasket material over many years of heating cycles. Exposure to petroleum-based cleaners may prematurely deteriorate the seal as well.

Symptoms of a failed 'E' ring include:

• Gas leaks emitting foul odors around seams or vents
• Reduced heat conductivity hampering dryer functioning
• Moisture accumulation shortens fabric lifespan
•  Drafts compromising indoor air quality and energy bills

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas dryer models.

Fiber washer that maintains idler pulley alignment and belt tension in your dryer. Replace if squeaking, grinding, or pulley wobbles occur.

Maintains tension on the idler arm to keep your dryer belt tight. Replace if the spring is stretched, broken, or missing to restore proper belt operation.

Dryer making loud noise or won't dry? A cracked or loose blower wheel often causes poor airflow. Moderate DIY repair, 1-2 hours with basic tools.

Screw: 8-16 x 3/8 inch.

Specs: 10 - 16 x .375

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Dryer won't start or run? A blown thermal fuse is the likely cause. This safety component cuts power if temperatures get too high. Easy 15-min fix.

Specs: 10 - 16 x .375

Dryer not heating? This high limit thermostat cuts power when temps exceed safe levels. Common fix for no heat issues. Simple DIY install in 5-10 minutes.

Dryer not heating or producing warm air? This heating element assembly often solves no-heat issues. DIY-friendly repair, typically 10-20 minutes.

The rubber foot is an OEM replacement part for Whirlpool washing machines. This small but essential component fits beneath the leveling legs, providing stability and preventing the appliance from moving or vibrating excessively during operation. It also protects flooring surfaces from potential scratches or damage.

Symptoms of a bad Leveling Leg Pad include:

• Increased vibration or noise during the wash or spin cycle
• The washing machine wobbling or becoming unsteady
• Visible wear, cracks, or damage to the pad

Causes of a failing Leveling Leg Pad can include wear and tear from prolonged use, exposure to moisture, or excessive weight causing deformation. Replacing worn pads helps maintain the appliance's balance and efficiency.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

For the leveling leg order W10176519.

Adjustable leveling feet that restore stability and balance to your appliance by letting you fine-tune height at each corner for a flat, wobble-free install—helps reduce vibration and improve door fit and operation. What it does:

• Provides adjustable height to level an appliance on uneven floors.
• Eliminates rocking or wobbling that can cause vibration, noise or movement during operation.
• Helps ensure doors and panels sit flush and seal properly.
• Durable replacement designed for direct fit where the OEM leveling foot is specified.

• Disconnect power and water before performing any work.
• Support the appliance so it cannot tip—use a jack or have a helper hold it while you adjust feet.
• Turn the foot to raise or lower the corner; use hand tools as needed and avoid excessive force.
• After adjusting, check stability and run a short cycle to ensure vibration and alignment are resolved.

The Cycling Thermostat is an OEM part for Whirlpool dryers. It regulates and monitors the temperature inside the dryer during the drying cycle. It ensures that the dryer doesn't overheat and prevents potential damage to clothes or the dryer itself.

Causes of a faulty cycling thermostat can include wear and tear over time, electrical issues, or sensor malfunction.

Symptoms of a bad cycling thermostat may include:

• Clothes taking longer than usual to dry
• Inconsistent drying results
• Overheating or burning smell
• The dryer not heating at all

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This dryer blower housing encloses the blower wheel and directs air from the drum through the lint filter to the exhaust vent. Replacing a damaged housing restores proper airflow for consistent drying and helps keep lint contained within the airflow path.

• Encloses and supports the blower wheel while channeling air from the drum to the exhaust
• Maintains correct airflow and back pressure for efficient drying performance
• Replace if the housing is cracked, warped, melted, or otherwise damaged
• Typical symptoms include weak vent airflow, longer dry times, rattling or scraping from the blower area, or visible lint leakage

• Disconnect power; if gas, also shut off the gas supply
• Access the blower area by removing the lower/front panel and lint ducting as required by your model
• Transfer the blower wheel and any brackets from the old housing; clean lint from ducts before reassembly
• Ensure the housing seats fully and all duct connections are tight; spin the blower by hand to verify clearance before restoring power

Dryer won't start or run? A blown thermal fuse is the likely cause. This safety component cuts power if temperatures get too high. Easy 15-min fix.

Specs: No.8X1/2 HEX WASHER HEAD
