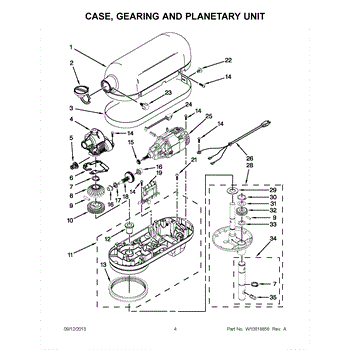

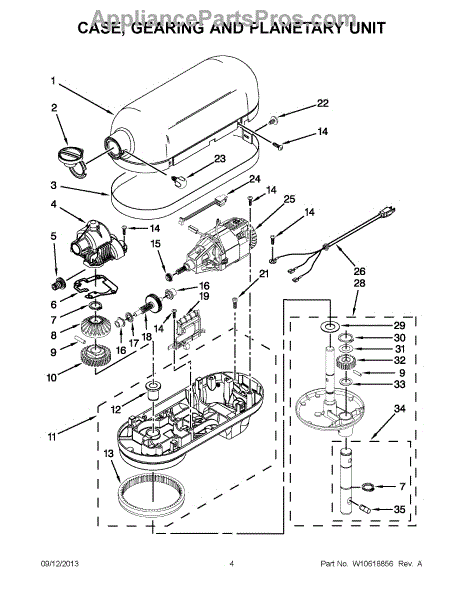

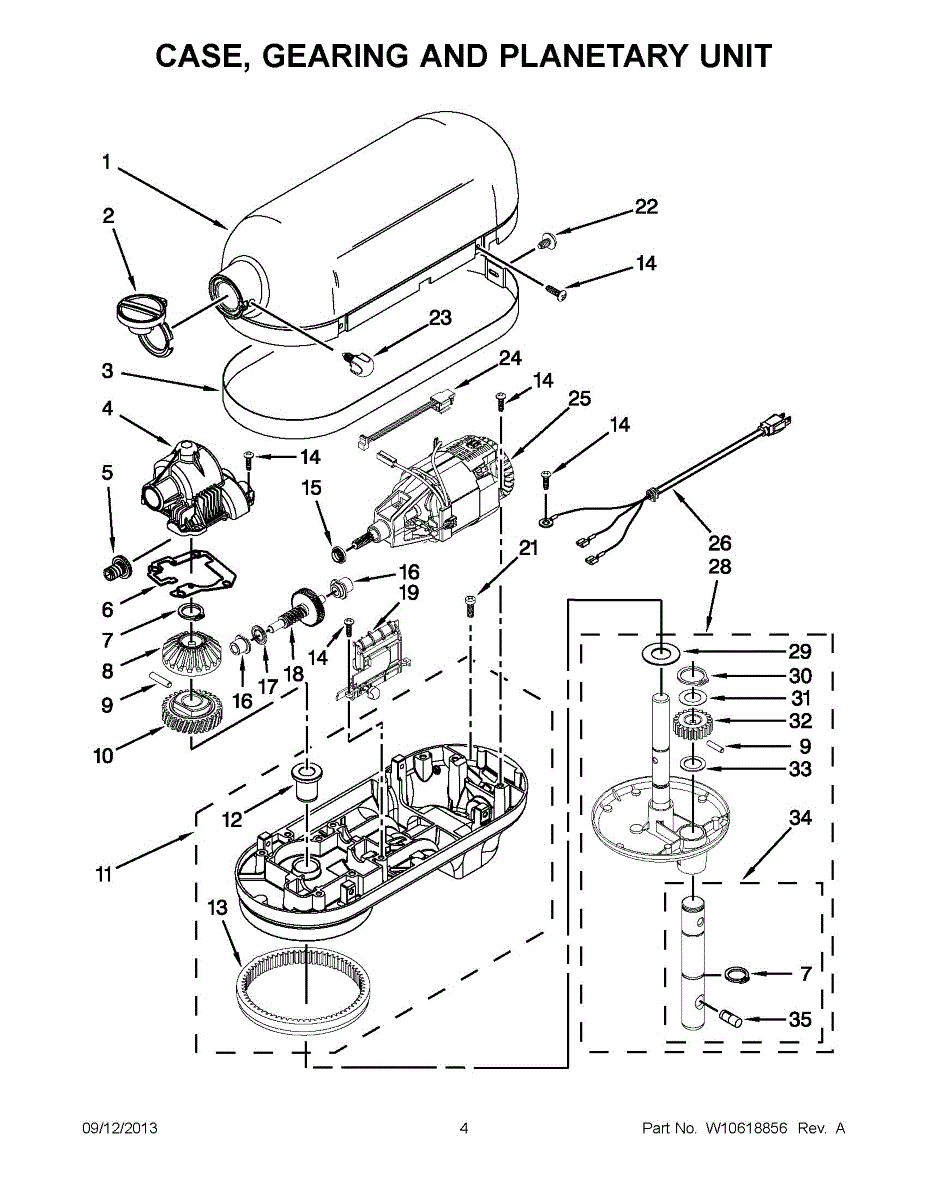

Parts for Kitchenaid KF26M2XGR5: 03 - Case, Gearing And Planetary Unit Parts

Hinged cover that protects the attachment hub on stand mixers. Replace if cracked, chipped, broken, or won't stay in place. Slides over housing grooves.

Covers and protects the attachment hub on your stand mixer. Replace if the original cap is cracked, missing, or worn for a finished look and protection.

The Transmission Housing is an OEM part for Whirlpool mixers. This component encases the transmission, which is responsible for transferring power from the motor to the mixing attachments. The housing ensures the transmission is protected from external damage and maintains the alignment and stability of internal components.

Over time, the transmission housing can become compromised due to regular use, exposure to food and moisture, or accidental impacts. Damage to this part can lead to misalignment, which affects the performance of the mixer.

Symptoms of a bad transmission housing include:

• Unusual noises during operation
• Mixing attachments not spinning properly
• Visible cracks or damage to the housing
• Leaking grease from the transmission area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

If your mixer beater won't move or makes grinding noises, worn gears are likely the cause. This gear kit restores smooth operation. DIY-friendly repair.

Seals mixer transmission housing to prevent grease leaks. Replace if you notice grease on the mixer body or attachment shaft. Confirm fit with your model.

Mixer making noise or shaft loose? This retaining ring locks gears in place on the drive shaft. Moderate DIY repair with snap ring pliers required.

If your mixer beater won't move or makes grinding noises, worn gears are likely the cause. This gear kit restores smooth operation. DIY-friendly repair.

Mixer makes growling noise but beater won't spin? This steel retaining pin locks drive components in place. Moderate repair; disassembly required.

Fix a stand mixer that won't spin or makes grinding noises. This worm follower gear transmits power in the gearbox. DIY repair in 30-60 minutes.

Supports the planetary shaft for smooth rotation in your stand mixer. Replace if you hear grinding noises or mixing becomes uneven. Confirm fit by model.

The Gear is an OEM replacement part for Whirlpool stand mixers. Located inside the mixer head assembly, it transfers torque from the motor into rotary spinning of mixing attachments. Thorough blending and kneading depend on dependable gear movement.

Causes of gear failure include wear from extended use breaking down teeth, accumulated residue gumming up meshing parts, or impacts damaging vital cogs.

Symptoms include:

• Attachments failing to spin or rotating unevenly
• Grating sounds emanating from within the mixer
• Ingredients not fully incorporated as intended

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This 8-32 x 5/8 screw replaces missing or damaged hardware specified by the manufacturer to secure panels, brackets, and internal components in your appliance. Restores a tight, rattle-free fit to help prevent vibration and misalignment.

• Provides the correct 8-32 thread and 5/8-inch length where specified
• Secures sheet-metal panels, brackets, and internal assemblies
• Replaces missing, stripped, or corroded screws
• Symptoms include loose or rattling panels, misaligned parts, or hardware that won't stay tight

• Disconnect power; shut off gas before servicing
• Support panels/components while removing or installing hardware
• Start threads by hand to avoid cross-threading; tighten only until snug
• Match the original screw's location and orientation for proper fit

Seals the motor shaft opening to prevent oil leaks and debris from entering internal components. Replace if you notice oil leaking or grease contamination.

Fix a mixer that won't rotate freely or makes grinding noises with this rear sleeve bearing. Supports the motor shaft for smooth operation. DIY repair.

Metal sleeve bearing that supports the mixer's rotating shaft. Replace if you hear grinding noises or see metal shavings in grease. Confirm fit by model.

Thrust bearing supports the worm gear in your stand mixer's drive system, reducing friction for smooth operation. Replace if you hear grinding noise.

Mixer slipping or making loud grinding noises? This worm gear transfers motor power to attachments. Moderate DIY repair with cleaning required.

Fix a mixer that won't run, starts at full speed then stops, or won't shift speeds properly. Replace the speed control board in about 30 minutes.

Replacement mounting screw for stand mixer panels, brackets, and trim. Secures internal components to keep parts aligned. Replace if missing, stripped, or rusted.

This factory replacement screw fastens appliance components securely. Use it to replace lost, stripped, or corroded hardware and restore a snug, rattle-free fit and proper alignment of panels and assemblies.

• Secures panels, brackets, and internal components to their mounting points
• Replaces missing or damaged fasteners to maintain correct alignment
• Helps eliminate vibration and rattling caused by loose hardware
• Restores the original fit with OEM-matched threads and dimensions

• Disconnect power and shut off water or gas supplies before servicing
• Use the correct driver bit that matches the screw head to avoid stripping
• Replace one fastener at a time to keep parts aligned
• Tighten snugly; do not overtighten to prevent stripped threads or cracked plastic

Replacement thumb screw for stand mixer power hub. Secures beater, whisk, and dough hook attachments. Replace if cracked, broken, or missing.

Fix a mixer that won't run, starts at full speed then stops, or won't shift speeds properly. Replace the speed control board in about 30 minutes.

Mixer won't run or starts then stops? Drive motor failure is often the cause. Straightforward repair with basic tools, about 10 screws to remove.

Replacement power cord for stand mixers. Installs at the rear base to deliver electricity. Replace if cracked, frayed, melted, or damaged at entry points.

Replacement power cord for stand mixers. Connects your mixer to the wall outlet. Replace if cord is frayed, damaged, or has exposed wiring.

Hardware washer for stand mixer planetary assembly. Replace when worn or missing to secure gears, reduce vibration, and prevent rattling. Confirm fit.

The Retaining Clip is an OEM part for Whirlpool stand mixers. This small but essential part ensures the stability and secure fitting of various mixer components, contributing significantly to the appliance's overall performance and durability. Its primary role is to hold parts in place, preventing movement that could lead to wear or malfunction during operation.

Stand mixers are subjected to a variety of stresses, particularly when mixing thick doughs or other dense mixtures. The retaining clip's integrity is vital in these situations, as it helps to maintain the correct alignment and functioning of the mixer's moving parts.

Symptoms of a bad Retaining Clip in a stand mixer include:

• Components such as beaters or attachments becoming loose or detaching during use.
• Unusual vibration or noise
• Difficulty in attaching or detaching mixer attachments

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Washer is an OEM replacement part for Kitchenaid stand mixers. This washer is used as a spacer and insulator between gears to provide protection to the planetary bushing on the stand mixer.

Causes of a bad washer can include wear over time allowing increased play between gears, or deformation from heavy use that compromises its insulating properties.

Symptoms of a bad washer include:

• Excessive noise and vibration from the gear assembly
• Premature failure of gears or other components
• Reduced power transmission and mixing performance

This OEM replacement is also compatible with Maytag, Whirlpool, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Pinion Gear is an OEM replacement part specific to KitchenAid stand mixers. It is a small gear located within the planetary mixing mechanism. The pinion gear works with the worm gear to power the planetary action that thoroughly mixes ingredients.

Symptoms of a bad pinion gear include:

• Uneven or incomplete mixing
• The mixing arm assembly failing to spin properly
• Grinding noises coming from the base of the mixer
• “Skipping” while under a load

Causes of a bad pinion gear can include cracked, worn, or broken teeth from heavy use over time. Food debris or other obstructions around the gear can damage it as well.

This OEM KitchenAid replacement is compatible with additional stand mixer models from brands like Kenmore, some Whirlpool, and Maytag mixers.

Flat metal washer that acts as a hardware spacer in stand mixers. Distributes clamping force where screws or bolts secure components. Replace if worn or missing.

If your mixer beater stopped spinning or spins loosely, this agitator shaft assembly transfers motor power to turn attachments. Moderate DIY repair.

If your stand mixer components are loose or misaligned, this grooved retaining pin secures parts together for smooth, quiet operation. Easy fix.
