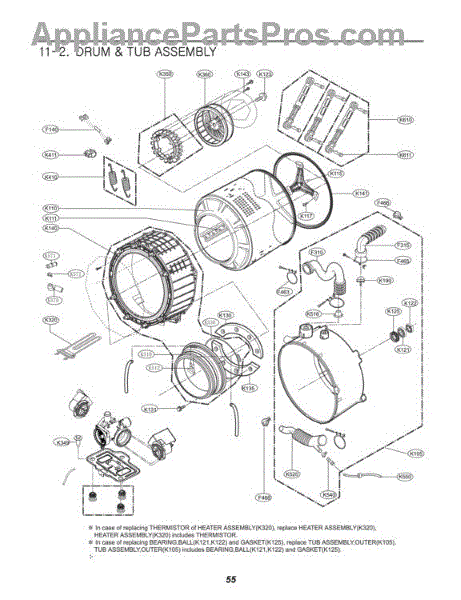

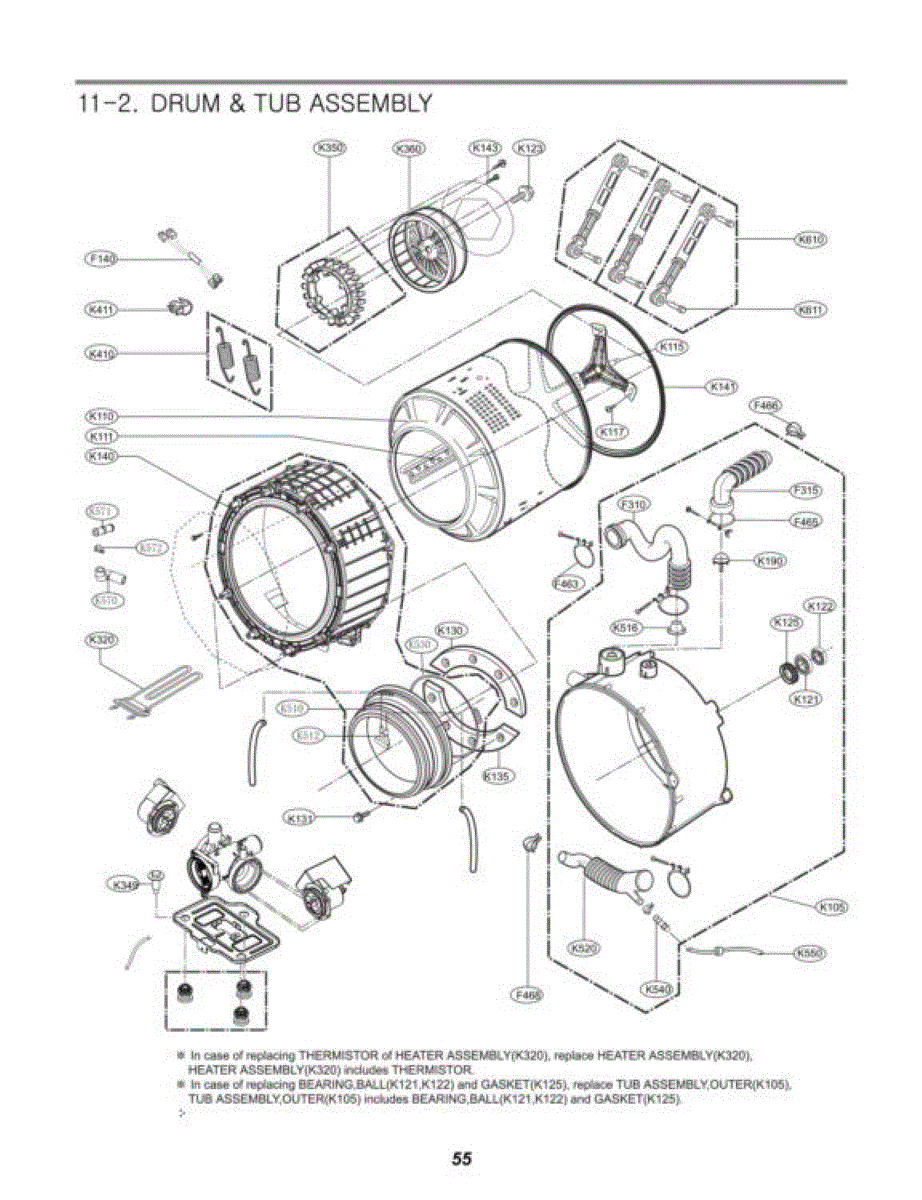

Parts for Lg WM3070RD: Exploded View Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Frame assembly for washers. This structural component supports internal parts and the cabinet. Replace if cracked, bent, or damaged to restore stability.

Rear cover panel for washers. Protects internal components at the back of the machine. Replace if cracked, damaged, or missing to restore appearance.

This replacement refrigerator door handle restores a secure grip and normal door operation after a cracked, broken, or loose handle. Designed to match the original fit and finish for a clean, factory look. What it does

• Provides a functional grip so doors open and close reliably
• Replaces cracked, bent, or detached handles that prevent safe operation
• Restores proper alignment and reduces door movement or wobble
• Helps maintain an airtight seal by allowing the door to fully close

• Use basic hand tools; avoid power tools that can strip fasteners
• Keep door supported while removing/installing the handle to prevent damage
• Do not overtighten screws—secure snugly to avoid cracking the handle

A replacement holder assembly that secures and supports internal components for proper alignment and operation. Restores stable mounting where the original bracket is cracked, bent, or broken so the appliance runs quietly and reliably. What it does

• Provides a secure mounting point for internal parts that rely on a fixed support
• Prevents rubbing, misalignment, and excess vibration caused by a damaged holder
• Helps restore correct component positioning to improve part interaction and operation
• Commonly used when the original bracket is cracked, worn, or no longer holds parts firmly

• One holder assembly

• Disconnect power before starting any repair; shut off water supply if the repair requires opening plumbing
• Basic hand tools typically required; handle clips and tabs gently to avoid damage
• Inspect adjacent components for wear and replace if needed for a long-lasting repair

Cabinet base assembly for washers. Replaces cracked, rusted, or corroded base frames. Installs at bottom of washer cabinet to support unit weight.

This lifter assembly moves clothes through the washer drum during the wash cycle, ensuring proper agitation and cleaning. It fixes issues with clothes tangling, poor washing results, or loud banging noises during operation.

Drum bearing bushing for washers. Installs between drum and bearing assembly. Replace if cracked, worn, or missing to restore proper drum support.

Protective access cover shields internal washer components from dirt and moisture. Replace if cracked, broken, or missing to restore factory protection.

Secures washer tub assembly and hoses to prevent shifting during cycles. Replace if tub moves excessively or you hear rattling. Confirm fit with your model.

Fix water leaking from your washer dispenser or misdirected flow with this dispenser water guide channel. Routes water properly to prevent splashing.

This clamp secures hoses or wiring to the appliance chassis to prevent movement, chafing, and vibration-related wear. It helps keep connections stable so hoses and wires stay in place during normal use. What it does:

• Holds water, drain or vent hoses in position to reduce strain and prevent rubbing
• Keeps wiring harnesses routed and fastened to avoid chafing or accidental disconnection
• Reduces vibration-related noise caused by loose hoses or wires
• Helps prevent hose kinks and unintended movement that can lead to leaks or intermittent electrical issues

• One clamp

• Disconnect power to the appliance before servicing; shut off water supply if working with water lines
• Remove panels as needed to access the hose or wiring route, then replace the clamp in the same orientation
• Use appropriate pliers or a screwdriver if required; do not overtighten or deform the hose or wiring
• If the original clamp was secured with a fastener, retain and reuse it only if undamaged; replace any stripped or broken hardware

Outer tub assembly holds the inner drum and seals water during wash cycles. Replace if cracked, leaking, or structurally damaged to restore your washer.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

If your washer leaks during fill or has low water pressure, this water inlet connector hose restores secure water flow. Direct replacement part.

Replaces the front outer tub cover that houses the door boot seal and aligns the spin basket. Order a new cover if yours is cracked or worn from use.

Secures hose connections to maintain watertight seals in your washer. Replace if you notice leaks or loose hoses during operation. Verify fit with model number.

Secures the spider assembly to the inner drum in your washer. Replace if bolt is stripped, loose, or missing to restore secure mounting and reduce noise.

This OEM replacement part is a washer door assembly. The washer door assembly consists of the main components that make up the front door of the washer. Over time, a washer door can become inoperable due to excessive wear and tear. If the washer door is no longer shutting or opening properly or is damaged to the point of inoperability, it will need to be replaced.To replace the washer door, start by making sure the washer is unplugged. Once it has been powered off, proceed to open the door. Locate the screws that attach the hinges to the door. Unthread the screws and lift the door off from its hinges. Set the old door to the side and proceed to place the new door on its hinges. Fasten the screws that secure it. Once secured, open and close the new door to make sure it is functioning properly.This authentic OEM part is sourced directly from the manufacturer and is compatible with LG brand washers.

Replacement knob assembly that restores control and precise selection of settings on your appliance. Fits the original control shaft and provides a secure grip for adjusting temperature, cycle, or power settings. What it does

• Restores user control when the original knob is cracked, melted, stripped, loose, or missing.
• Provides a clear indicator/pointer for accurate selection of settings.
• Matches original fit and function to prevent slipping or uneven engagement with the control shaft.
• Helps resolve symptoms like a knob that won't turn, slips on the shaft, or has a broken pointer.

• Always disconnect power to the appliance before servicing; shut off gas supply for gas ranges.
• Typically installs without tools—remove the old knob by pulling it straight off, then press the new knob onto the control shaft.

Secures the drum during washer transport or relocation. Replace missing, stripped, or damaged shipping bolts to prevent internal movement and damage while moving.

Fix water leaking from bottom of washer with this nozzle connector. Attaches supply lines to tub fill nozzle for proper water distribution. Easy repair.

Replace a broken, rusted, or missing leveling leg assembly. Installs at the base to stabilize your washer, reduce vibration, and adjust height.

Shipping bolt secures the washer drum during transportation or relocation. Replace if lost, damaged, or missing from original installation to prevent damage.

This rubber door gasket seals your front-load washer to prevent leaks. Replace if torn, cracked, or causing water seepage. Confirm fit with your model.

This Screw (drawing) is a factory fastener used to secure appliance panels and components. Replacing a stripped, corroded, or missing screw restores a tight fit, reduces vibration, and helps keep assemblies correctly aligned.

• Secures panels, brackets, and mounting points as specified by the manufacturer
• Replaces screws that are lost, damaged, corroded, or stripped
• Helps address rattling, vibration, or loose-fitting parts caused by missing hardware
• Maintains proper alignment and stability of the assembly

• Disconnect power and, if applicable, shut off gas/water before servicing
• Match the screw to its original location; start threads by hand to avoid cross-threading
• Use the correct driver; tighten snugly without over-torquing into metal or plastic
• Refer to your model's parts diagram to correct location and quantity

Secures the stator to the motor assembly in your washer. Replace if bolt is stripped, spinning freely, or missing to restore proper motor stability.

Concrete balance weight mounts to washer outer tub to stabilize drum during spin. Replace if cracked, broken, or missing to restore proper vibration control.

Includes sensor probe

Replace your washer's drain hose if cracked, leaking, or damaged. Connects the pump to the standpipe for proper water drainage during wash cycles.

Fix DE door error codes or doors that won't latch with this washer door latch hook. Simple 15-minute DIY repair with video guide. Secures door during cycles.

Pressure sensor air chamber for washers. Connects the tub to the water level switch. Replace if cracked, clogged with detergent residue, or leaking air.

Washer won't drain or shows drain error? This drain pump assembly removes wastewater from the tub. Moderate DIY repair, 1-2 hours with basic tools.

The Vent Hose is an OEM part for LG washing machines. This hose is essential for ensuring proper ventilation within the washer, allowing air to circulate and preventing the buildup of moisture and mildew. It helps maintain the efficiency of the washing machine by facilitating the expulsion of air and excess water vapor during operation.

Causes of a bad washer vent hose can include wear and tear over time, blockages from lint or debris, or damage due to bending or pinching.

Symptoms of a bad vent hose include:

• Excessive moisture or condensation inside the washer
• Musty odors from the washing machine
• Visible cracks or holes in the hose
• Poor ventilation leading to inefficient washing cycles

This OEM LG part is also compatible with Sears/Kenmore.

The Float Assembly is an OEM part for LG washing machines. This part monitors and controls the water level within the appliance. It's a safety feature that prevents water overflow and potential flooding, contributing to the efficient operation of the washing machine by maintaining the correct water level for each cycle.

Causes of a bad Float Assembly can vary from simple blockages that prevent the float from moving freely to electrical faults within the switch mechanism.

Symptoms of a bad Float Assembly include:

• Water overflowing from the washing machine
• Inadequate water levels that affect the washing cycle's effectiveness
• The washing machine failing to start the fill cycle due to a malfunctioning float switch

This OEM LG part is also compatible with some Kenmore models.

Fix grinding noises or a drum that won't spin with this washer motor rotor assembly. Common when spline teeth strip. Moderately difficult repair.

The Hinge Pin is an OEM part for LG washing machines. It serves as a pivot point for the washer door, allowing it to open and close smoothly. This component is crucial for maintaining the proper alignment and function of the washer door, ensuring a secure and reliable seal during operation.

Common causes of a bad hinge pin include frequent use leading to wear and tear, physical damage from accidental impacts, or rust and corrosion over time. A compromised hinge pin can result in misalignment of the door, affecting the washing machine's ability to close properly and maintain an effective seal.

Symptoms of a bad hinge pin include:

• Difficulty opening or closing the washer door
• Door not staying securely closed during operation
• Squeaking or grinding noises when the door is moved
• Visible wear or damage to the hinge pin

This OEM LG part is also compatible with Sears/Kenmore models.

Secures the washer’s tub and basket during moving to prevent internal damage. If the originals are missing after a move, install replacements for transport and remove them before using the washer.

What it does

• Locks the tub and basket to limit movement in transit
• Helps prevent suspension damage and internal rattles while relocating
• Replaces missing, bent, or stripped transport bolts
• Useful for moves, storage, or service shipments

What’s included
One shipping bolt assembly (sold individually).

Install notes

• Unplug power and turn off water before service
• Insert through the rear panel into the designated mounting point; tighten snugly—don’t overtighten
• Do not operate the washer with shipping bolts installed; remove all bolts after placement
• Some models use multiple bolts and lengths—match count/positions to your owner’s manual

Usage tip
After removal, bag and tape the bolts to the cabinet so they’re on hand for the next move.

Washer won't spin or shows LE error code? The stator assembly converts power to spin the drum. Moderate repair, typically takes 30-60 minutes with video.

Secures the inner door gasket to prevent water leaks during wash cycles. Replace if gasket is loose or leaking. Confirm fit with your model number.

Fix excessive vibration, banging during spin, or washer walking across floor. This damper assembly controls drum movement. Moderate DIY repair.

Central hub that connects the inner tub to the drive shaft in washers. Replace if corroded, cracked, or arms have broken off causing wobble or imbalance.

Suspension spring supports and stabilizes the washer tub during wash and spin cycles. Replace if broken, snapped, or stretched to restore proper operation.

Washer not filling or overfilling? This water level pressure switch monitors water levels and signals when to stop filling. Easy 10-minute DIY repair.

Secures the door boot seal to prevent leaks during wash cycles. Replace if corroded, loose, or if water leaks from the door area. Confirm fit with model.

Supports smooth drum rotation in your washer. Replace if you hear loud roaring or grinding noises during spin cycles. Confirm fit with your model number.

Replacement tub to pump hose for washers. Transports water from the wash tub to the drain pump. Replace if cracked, split, leaking, or damaged from wear.

Connects detergent dispenser to washer tub. Replace if cracked, leaking, or clogged with detergent buildup. Verify fit with your model number.

Fix DE error codes and door lock failures with this washer door lock switch. Most DIYers complete this repair in under an hour with our video guide.

Supports the inner drum for smooth rotation during wash and spin cycles. Replace when you hear grinding, loud noise, or excessive vibration. Confirm fit with your model number.

Seals between inner and outer tubs to prevent water leaks during wash cycles. Replace if you notice leaks or after bearing replacement. Verify fit.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.
