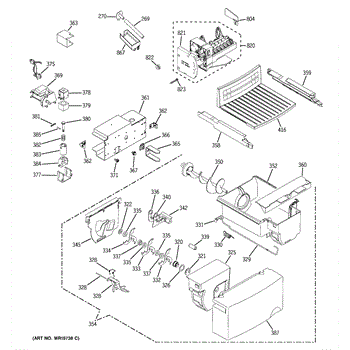

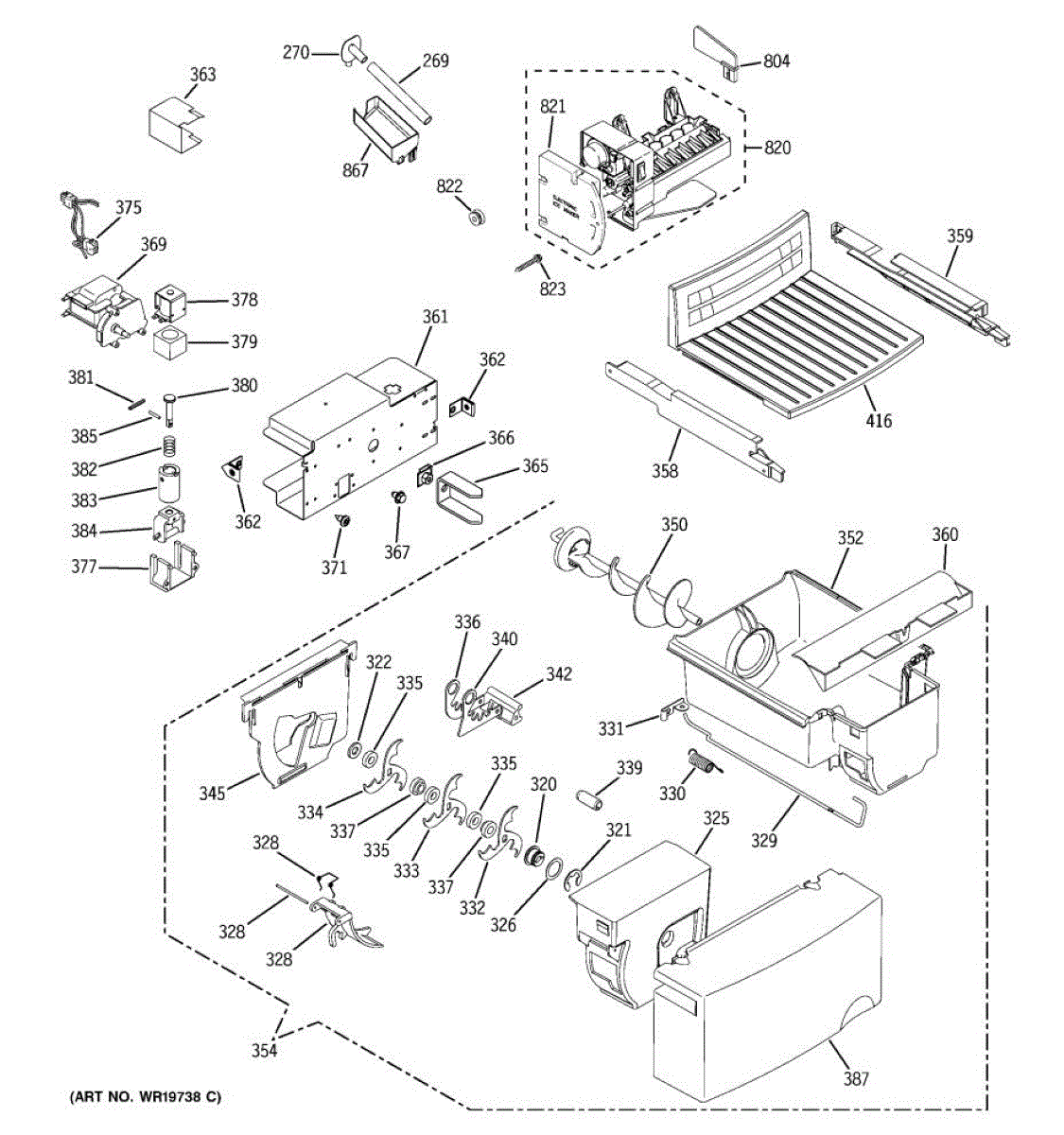

Parts for Ge BSS25GFPHCC: 05 - Ice Maker & Dispenser Parts

Replace your refrigerator water filter every 6 months to maintain clean water and ice. Removes contaminants for fresh taste. Easy DIY install in minutes.

Replaces a cracked, severed, or frozen ice maker fill tube and grommet. Delivers water from valve to ice maker. Includes tube, grommet, and plate.

Replaces a cracked, severed, or frozen ice maker fill tube and grommet. Delivers water from valve to ice maker. Includes tube, grommet, and plate.

Secures the auger shaft in the icemaker assembly. Replace if stripped, cracked, or loose, preventing proper ice transport from bin to dispenser.

Includes 12 retainer rings.

Protective enclosure for the ice crusher mechanism in your refrigerator's dispenser. Replace if cracked, broken, or damaged from ice jams or wear.

Includes 12 washers.

Replacement pivot that supports and aligns refrigerator doors or drawers. Needed when original pivot is cracked, broken, or worn, causing misalignment.

Ice scattering everywhere? This deflector guides cubes or crushed ice down the chute into your glass. Replaces cracked or missing deflectors in 30 minutes.

Wire actuator for refrigerator dispenser mechanism. Connects dispenser lever to electrical circuit. Replace if bent, broken, or detached to restore lever.

The Ice Deflector Spring is an OEM replacement part for GE refrigerators. This spring is a crucial component of the ice dispensing system, specifically in selecting between crushed and whole ice cubes. It is designed to always force the diverter back in a way that the cubes get crushed. When whole cubes are selected, the solenoid pulls the lever against the spring’s tension to shift the configuration, allowing cubes to bypass the crusher blades.

Causes for a malfunctioning Ice Deflector Spring can include wear and tear from regular use, corrosion due to constant exposure to moisture, or mechanical failure that prevents it from effectively reverting the diverter to the crushed ice configuration.

Symptoms of a bad Ice Deflector Spring include:

• The ice dispenser only dispensing whole cubes, even when crushed ice is selected
• The diverter not returning to the crushed ice configuration
• Unusual sounds during the ice dispensing process
• The need for manual intervention to get crushed ice

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Metal retainer spring secures trim panels and lightweight components in your refrigerator. Replace when worn, broken, or missing to restore snug fit.

Ice won't crush in your refrigerator? These auger blades move ice through the crushing mechanism. Common fix when crushed ice dispenses as cubes.

Fix ice dispenser jamming or not crushing ice with replacement auger blades. Common fix for ice crushing problems in side-by-side refrigerators.

Ice not crushing or dispensing properly? This refrigerator ice crusher auger blade assembly moves ice through the dispenser. Common DIY fix.

Mounting spacer maintains proper clearance between refrigerator panels, doors, or components. Replace if cracked, broken, or missing to restore fit.

This stationary display blade secures and positions the appliance's front display/overlay so controls and indicators stay aligned and visible. It replaces a cracked, loose, or missing display blade to restore a stable display surface. What it does:

• Holds the display/overlay in the correct position behind the control panel
• Prevents the display from rattling or shifting during normal use
• Restores a flush, aligned appearance when the original blade is broken or worn
• Helps keep buttons and indicators properly supported for reliable operation

• Disconnect power to the appliance before starting any repair.
• Removal usually requires removing the front/display trim or bezel; use basic hand tools.
• Handle small plastic parts carefully to avoid cracking during removal/installation.

Ice dispensing wrong type or jammed? This stationary blade assembly secures the blade for smooth ice crushing. Simple repair restores proper function.

Ice dispenser not working or crushed ice won't dispense? This crusher cover protects the ice crushing mechanism. Easy DIY repair with step-by-step video.

Ice won't dispense? A broken auger often causes this. This helical shaft pushes ice from bucket to chute. DIY-friendly repair, about 20 minutes.

Replaces cracked or broken ice dispenser bucket in side-by-side refrigerators. Holds ice supply and feeds dispenser chute. Essential when damaged.

This ice bucket assembly is a genuine LG part, sold individually. This ice bucket assembly can be used as a replacement part in a refrigerator. This part stores and dispenses ice produced by the ice maker.This ice bucket assembly is a complete replacement for a damaged or broken ice bucket. Usually, if an ice bucket isn't dispensing ice properly, it's because of the augur. Symptoms of a defective augur can include an ice maker that will not dispense ice, that will not make ice, that uncontrollably dispenses ice, or that does not dispense as much ice as usual. If this is the case, the ice bucket should be removed and replaced with this genuine OEM replacement part before using the ice maker again.This is an OEM part sourced directly from the manufacturer. This ice bucket assembly is compatible with the following appliance brands: General Electric, RCA, and Hotpoint.

The Glide Bracket is an OEM part for GE refrigerators. This left bracket supports the refrigerator drawer, allowing it to slide in and out smoothly for easy access to stored items.

Causes of a bad glide bracket can include regular wear and tear, damage from overloading the drawer, or accidental impact that causes the bracket to crack or break.

Symptoms of a bad glide bracket include:

• Difficulty sliding the drawer in and out
• The drawer not aligning properly or coming off its tracks
• Unusual noises when opening or closing the drawer
• Visible cracks or breaks in the bracket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Right side

This small guide sits at the icemaker fill area and manages the water stream. It directs incoming water into the fill cup and channels any excess safely away to help prevent splashing, leaks, and ice buildup inside the freezer.

• Guides the icemaker fill stream into the fill cup/funnel during the fill cycle
• Diverts stray or excess water to the overflow path to reduce spills
• Helps prevent leaks, sheets of ice, and clumped cubes under the icemaker
• Clues it may be needed: cracked, warped, or missing guide; water dripping from the fill area

• Disconnect power and turn off the water supply before servicing
• Remove ice bin and any covers to access the icemaker fill area
• Unclip/unscrew the old diverter; align and secure the new part to the fill cup/tube
• Restore water and power; run a test fill and check for leaks

Secures glass shelves in place to keep food organized and prevent sagging. Replaces cracked, broken, or worn brackets that no longer hold shelves level.

This boot auger motor drives the auger inside the ice dispenser boot to move ice from the bin to the dispenser chute. Replaces a failed motor to restore normal ice dispensing and reduce jams. What it does:

• Rotates the auger inside the dispenser boot to push ice forward for dispensing
• Helps prevent ice buildup by moving packed cubes during dispense cycles
• Stops working when motor windings or gears fail, causing no ice to dispense or intermittent dispensing
• Works with the dispenser drive and auger assembly to transfer ice from the bin to the chute

• One boot auger motor

• Disconnect power to the appliance before starting any repair
• Access typically requires removing the freezer/refrigerator door trim and dispenser housing; follow OEM service instructions
• Inspect related components (auger, coupler, wiring) and replace if damaged

Ice won't dispense or auger spins freely? The drive coupler connects the motor to the auger. Moderately easy DIY repair with pliers and patience.

Mounting screw fastens panels, brackets, and trim in refrigerators, dishwashers, and ranges. Replace missing, stripped, or rusty screws to secure parts.

Ice won't dispense or humming noise? The auger motor powers ice movement from maker to dispenser. DIY repair in 30 minutes with video guide.

10-18 hex washer screw for securing panels, trim, brackets, and components in appliances. Replaces lost, stripped, or corroded fasteners.

This solenoid saddle is a small mounting bracket that secures a refrigerator solenoid in the correct position. By preventing movement and misalignment, it helps the linked mechanism engage smoothly and consistently.

• Secures the solenoid to its housing or frame to prevent shifting
• Maintains proper alignment for reliable actuation
• A worn or broken saddle can cause buzzing/chattering and intermittent operation
• Restores stable mounting to help the connected mechanism work correctly

• Disconnect power; shut off water supply if working near water lines
• Access the solenoid assembly and note the original saddle's orientation
• Transfer the solenoid into the new saddle and reuse existing fasteners/clips
• Smooth operation before reassembling panels

Ice dispenser only making crushed ice instead of cubes? This solenoid valve kit fixes the cube/crushed ice selector. Easy DIY repair with video guide.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

Ice dispenser only making crushed ice instead of cubes? This solenoid valve kit fixes the cube/crushed ice selector. Easy DIY repair with video guide.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

Shields the ice bucket and maintains insulation. Replace if cracked, broken, or damaged. Installs on the dispenser assembly with two screws.

The Chiller Shelf is an OEM replacement part for GE refrigerators. Located inside the refrigerator door, this shelf provides storage for items like snacks, beverages, condiments, or leftovers that benefit from cooler temperatures.

Causes of a bad chiller shelf can include cracks or breaks developing from prolonged use. Items may have been over-packed onto the shelf, putting undue stress on the plastic material.

Symptoms of a faulty chiller shelf include:

• Sagging or inability to fully support the weight of items
• Cracks or separations in the plastic
• Items falling through or off of the shelf

This OEM GE shelf is also compatible with Hotpoint and some Kenmore refrigerator models.

Secures and guides the ice maker assembly to prevent shifting during operation. Replace if cracked, broken, or missing to restore proper alignment.

Ice maker not producing ice or stopped working? This ice maker kit restores ice production. Includes full assembly for harvesting and ejecting ice.

Front mounting grommet for refrigerator ice makers. Secures ice maker assembly to freezer wall. Replace if cracked, missing, or worn to restore stability.

This screw is a genuine General Electric part, sold individually. This screw can be used as a replacement part for a refrigerator. A screw can suffer damage in the lifespan of a refrigerator. It can also be easily lost or misplaced. Screws are small parts and are usually installed in multiples to ensure components are reliably attached, so one screw loosening or going missing might not necessarily affect the operability of the refrigerator. However, if the components loosen or the screw suffers damage that strips the part, such as punctures or erosion to the metal material from general wear and tear or from a direct impact, the screw should be removed and replaced with this genuine OEM replacement part. This is an OEM part sourced directly from the manufacturer, and it is sold individually. This screw is compatible with the following appliance brands: General Electric, Hotpoint, RCA, and Americana.

Channels water from the fill tube into the icemaker mold. Replace if cracked, broken, or dislodged, causing water leakage or ice buildup in freezer.
