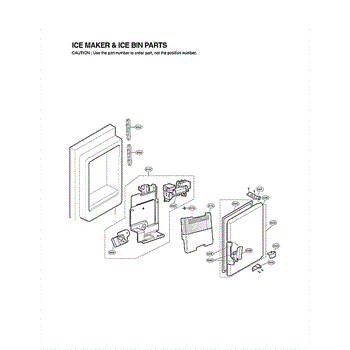

Parts for Lg LSMX211ST/00: Ice Maker & Ice Bin Parts

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

This replacement screw secures specified panels or components inside your appliance. Refreshing worn or missing hardware helps restore a tight fit, reduce rattling, and keep assemblies properly aligned for reliable performance.

• Provides secure fastening for brackets, panels, or internal assemblies
• Replaces stripped, rusted, or lost hardware
• Helps reduce vibration and rattling noises
• Symptoms include loose panels, shifting components, or a screw that won't tighten

• Disconnect power and allow any hot surfaces to cool before servicing
• Wear cut-resistant gloves and eye protection
• Match length and thread to the original; replace like-for-like
• Start threads by hand to avoid cross-threading; do not overtighten

This hinge bolt secures the hinge to the appliance cabinet or door, keeping alignment true and motion smooth. Replacing a stripped, missing, or corroded bolt helps restore proper door operation and reliable closing.

• Fastens the hinge to support and stabilize the door
• Helps maintain alignment for smooth opening and closing
• Replaces damaged, stripped, or missing hardware

• Disconnect power to the appliance; shut off water supply if applicable
• Support the door to prevent strain on remaining hardware; enlist a second person if needed
• Note the order/orientation of any shims or washers and transfer them during reassembly
• Start threads by hand to avoid cross-threading; tighten securely without overtightening

This is a genuine replacement mounting screw designed to secure appliance panels and internal components, restoring proper fit and stopping movement. Fits specified LG assemblies where the original screw is missing or damaged. What it does:

• Secures panels, brackets, or small components to prevent rattling and misalignment
• Restores proper attachment when original screw is stripped, lost, or broken
• Helps eliminate vibration noise caused by loose fasteners
• Matches OEM fit and thread form for reliable reassembly

• One mounting screw

• Disconnect power and water before beginning any service
• Use the correct driver and do not overtighten to avoid striping threads or cracking components
• Keep removed screws organized to ensure correct replacement locations
• If threads are damaged, replace mating clip or insert as recommended by OEM

This is a replacement mounting bolt used to secure appliance components and assemblies, restoring proper fit and reducing movement that can cause noise or misalignment. Use when a factory fastener is missing or damaged. What it does

• Fastens panels or internal components to maintain correct alignment and structural integrity.
• Prevents vibration-related noise and rubbing by holding parts securely in place.
• Restores secure connections after disassembly for service or repair.
• Helps eliminate intermittent movement that can lead to wear or leaks when a fastener is compromised.

• Use the correct bolt length and thread engagement for the application; do not force a mismatched fastener.
• Tighten to snug, manufacturer-specified torque when available; avoid overtightening to prevent stripping.
• Inspect surrounding parts (washers, nuts, threaded holes) and replace if worn or damaged.
• Disconnect power and follow all safety precautions before servicing the appliance.

The Handle Mounting Stud is an OEM replacement part for LG refrigerator doors. It provides a sturdy mounting point for the door handle assembly. Reliable handle connection and support is crucial for dependable door function and access.

Causes of a faulty stud can include damage from excess weight or impact over time rendering the stud loose or unstable.

Symptoms of a bad stud include:

• Loose or sagging door handle
• Difficulty opening and closing the refrigerator door
• Potential for the handle to detach completely
• Safety concerns if the handle connection fails

This OEM LG replacement stud is also compatible with Sears/Kenmore models.

This replacement screw secures panels and components on LG appliances to restore proper alignment and prevent rattling or loose parts. It's a direct-fit fastener used where OEM mounting hardware has become stripped, lost, or damaged. What it does:

• Secures panels, brackets, or trim to maintain appliance structure and alignment
• Helps stop vibration noise caused by loose panels or components
• Replaces missing or damaged mounting hardware to prevent parts from shifting
• Restores proper fit where stripped or worn screws no longer hold

• Use the correctly sized screwdriver or bit to avoid stripping the head
• Tighten snugly but do not overtighten; excess torque can strip threads or crack plastic
• If working near electrical components, unplug the appliance first to ensure safety
• Keep removed screws organized during disassembly to match locations on reassembly

This is a customized screw used to secure components in LG appliances. It replaces a worn or missing fastener to restore proper assembly and reduce rattling or loose panels. What it does:

• Secures panels, brackets, or small components in the appliance chassis
• Helps stop vibration-related noise caused by loose fasteners
• Replaces missing or stripped screws to restore safe, stable assembly
• Matches OEM fit for the specific mounting point it was made for

• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can damage threads or parts
• Disconnect power and follow appliance-specific safety procedures before servicing

This is a replacement mounting screw used to secure appliance panels, trim or components. It restores proper attachment to reduce vibration and rattling and helps keep removable parts firmly in place during operation. What it does:

• Fastens panels, brackets or trim pieces to the appliance frame
• Restores secure fit when original screw is missing, loose, or stripped
• Reduces rattling and vibration caused by loose hardware
• Helps maintain proper alignment of removable covers and control panels

• Disconnect power and water before starting any repair
• Verify size and thread match the original screw before installation
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but do not overtighten — overtightening can strip threads or crack plastic parts
• Keep small parts away from children and pets

This replacement customized screw restores secure fastening for LG appliance panels and components. It provides a precise fit where the original screw was lost or damaged so parts stay properly aligned and rattle-free. What it does:

• Fastens panels, trim, brackets or small components to maintain proper alignment and fit
• Replaces missing or damaged screws that cause loose parts or vibration noise
• Helps prevent movement that can lead to wear or intermittent contact
• Matches the original mounting point so installation restores OEM fit

• Disconnect power and unplug the appliance before servicing
• Use the correct screwdriver or driver bit to avoid stripping the head
• Start threads by hand to avoid cross-threading; do not overtighten
• Keep removed hardware organized and compare to the new screw before final assembly

This rear door handle replaces a worn or damaged handle on compatible LG appliances, restoring a secure grip and smooth opening. It's a direct-fit exterior handle that keeps the appliance door operating and looking right. What it does

• Provides a secure gripping point to open and close the appliance door
• Replaces cracked, loose, or broken rear handle hardware
• Restores correct alignment and feel when the door is operated
• Helps prevent further damage to the door edge from makeshift handles

• Power off and unplug the appliance before starting work; remove food or shelves as needed for access
• Keep fasteners and mounting clips; transfer original hardware unless new hardware is explicitly included
• Test door operation and alignment after installation; tighten fasteners evenly to avoid stress

The Drain Pipe Assembly is an OEM replacement part for LG refrigerators. It is a plastic tubing system that collects and removes liquid condensation from evaporator coils. Proper drainage is crucial to minimizing frost buildup and ensuring optimal cooling of food storage areas.

Symptoms of a bad drain pipe assembly include:

• Excessive frost or ice accumulation inside the refrigerator
• Puddling or leaks detected near evaporator housing
• Slow draining allowing water to pool versus emptying fully
• Cracks or breaks in the tubing prevent complete fluid removal

Causes are typically mineral sediment clogging drainage paths or deteriorating plastic from constant use. This OEM LG replacement pipe restores reliable condensate removal to maintain peak efficiency.

This OEM LG part is also compatible with Sears/Kenmore.

This duct assembly routes internal airflow in the appliance, replacing damaged or worn vent tubing to restore proper air movement. It helps reduce air leaks and airflow-related performance issues when the original duct is compromised. What it does:

• Channels blower air from the fan housing to the exhaust path to maintain proper ventilation.
• Replaces collapsed, torn or disconnected ducting that can cause poor airflow.
• Addresses symptoms such as reduced drying/cooling performance, longer cycles, or warm cabinet air.
• Helps eliminate drafty or noisy airflow caused by gaps or damaged duct sections.

• Disconnect power (and turn off gas supply for gas appliances) before beginning service.
• Access may require removing rear or lower access panels; keep hardware organized for reassembly.
• Inspect and replace any damaged clamps, seals or gaskets during installation for a proper seal.

A replacement freezer tray that restores a level, secure surface for frozen foods and helps contain spills in the freezer compartment. Fits where the factory storage pan has cracked, warped, or failed. What it does:

• Provides a flat, durable surface to hold frozen foods and packages
• Contains minor spills to help keep the freezer interior cleaner
• Replaces cracked, warped or broken freezer pans that no longer seat properly
• Helps maintain organized storage and prevents items from shifting

• Disconnect power to the appliance before any service to avoid electrical hazards
• Remove food, shelves, and drawers that block access to the tray area
• Slide or snap the tray into place; do not force—verify it seats securely and level

This fresh room tray assembly replaces the removable crisper tray that holds produce and deli items in the refrigerator's fresh room, helping contain spills and support proper storage. What it does:

• Provides a stable, removable surface for fruits, vegetables and deli items in the fresh room
• Helps contain small spills and crumbs for easier cleanup
• Restores proper fit and support for drawers or keep-fresh accessories that sit above or below the tray
• Useful when the original tray is cracked, warped or missing

• Tray assembly (single)

• No special tools typically required; tray drops into place or slides onto rails
• Remove food and drawers from the fresh room before installing to avoid spills or injury
• Inspect surrounding rails and seals for damage; replace if worn to ensure proper operation

This duct assembly routes internal airflow in the appliance, replacing damaged or worn vent tubing to restore proper air movement. It helps reduce air leaks and airflow-related performance issues when the original duct is compromised. What it does:

• Channels blower air from the fan housing to the exhaust path to maintain proper ventilation.
• Replaces collapsed, torn or disconnected ducting that can cause poor airflow.
• Addresses symptoms such as reduced drying/cooling performance, longer cycles, or warm cabinet air.
• Helps eliminate drafty or noisy airflow caused by gaps or damaged duct sections.

• Disconnect power (and turn off gas supply for gas appliances) before beginning service.
• Access may require removing rear or lower access panels; keep hardware organized for reassembly.
• Inspect and replace any damaged clamps, seals or gaskets during installation for a proper seal.

This lamp cover is the replacement light lens that protects and diffuses the refrigerator's interior lamp, restoring even illumination and preventing direct bulb contact. Fits the original mounting for a clean, finished appearance. What it does:

• Protects the interior lamp from spills, splashes, and incidental contact
• Diffuses light for more even interior illumination
• Helps prevent direct exposure to the lamp bulb
• Restores a damaged, cracked, or yellowed lens to improve visibility

• One lamp cover / light lens

• Turn off power or unplug the appliance before replacing the lamp cover to avoid electric shock
• Handle the cover carefully to avoid cracking; use a soft cloth to seat into mounting tabs
• Remove and retain any fasteners or clips from the old cover for reinstallation if applicable
• Replace the bulb before seating the new cover

This guide assembly supports and guides freezer/refrigerator drawers for smooth opening and closing. It replaces worn or damaged rails to restore proper drawer alignment and reduce sticking or uneven movement. What it does:

• Guides the drawer along its track to keep it level and stable during use
• Restores smooth, consistent drawer travel when original rails are bent, cracked, or worn
• Helps prevent drawer binding, catching, or premature wear on slide components
• Works as a direct-fit replacement for the factory guide/rail on compatible units

• Keep power off and remove food from drawers before starting work
• Use basic hand tools; inspect surrounding slides and fasteners and replace any damaged hardware

A replacement rail guide assembly that restores smooth, aligned drawer movement and support. Fits the refrigerator drawer slide system to reduce sticking, sagging, or uneven operation for safer access and proper cycling. What it does:

• Guides and supports a refrigerator drawer along its slide track for stable opening and closing
• Helps prevent the drawer from binding, tilting, or falling out of alignment
• Reduces scraping, grinding, or noisy operation caused by a worn guide
• Restores proper drawer travel and load support for daily use

• Disconnect power to the appliance before inspection or repair to avoid electrical hazards.
• Basic tools are usually required; remove the drawer to access the rail guide assembly.
• Verify left/right orientation before fastening; do not force parts into place.
• If screws or mounting clips are damaged, replace them to ensure secure installation.

This door gasket assembly forms the airtight seal between the door and cabinet. Replacing a worn gasket restores a proper seal to keep cold air in, moisture out, and temperatures stable to help reduce frost and condensation.

• Creates a tight seal around the door perimeter when closed
• Helps maintain interior temperature and reduce cold-air loss
• Helps minimize condensation and frost near the door opening
• Common symptoms of failure: tears/cracks, hardened or warped gasket, visible gaps, door not sealing or popping open

• Disconnect power before servicing and clear items from the door
• Soften the new gasket in warm water or with low heat to relax folds; do not overheat
• Remove the old gasket from the retainer/channel; press the new gasket fully into the channel, starting at the corners
• Close the door and perform a paper-strip test around the perimeter; reseat or adjust hinges as needed for a uniform seal

This door gasket is the flexible magnetic seal that runs around the edge of the refrigerator door to keep cold air in and warm air out, helping maintain proper temperature and energy efficiency.

• Creates an airtight seal between the refrigerator door and cabinet
• Helps prevent temperature swings, frost buildup, and excess run time
• Common failure signs: torn, warped, or hardened seal; doors not sealing; condensation around the door
• Magnetic strip embedded to pull the door closed against the frame

• Unplug the appliance before starting any repair
• Soften the old or new gasket with warm air (hair dryer on low) to ease removal/fit
• Transfer or seat the gasket fully in the door channel; work evenly around corners
• Check door alignment and perform a dollar-bill test to confirm an even seal

The Door Gasket Assembly is an OEM replacement part for LG refrigerators. This part seals the door and maintains a thermal barrier. Proper compression provides energy efficiency.

Causes of a faulty gasket assembly may involve deterioration as adhesive softens from repeated compression. Mineral deposits accumulated over extended use could also harden material reducing flexibility.

Symptoms of a problematic gasket include:

• Cool air felt leaking from the door
• Moisture visible on seal interface areas
• Temperature fluctuations

This part is also compatible with some Kenmore refrigerator models.

The Refrigerator Door Gasket is an OEM replacement part for LG refrigerators. It is a crucial component that seals the gap between the refrigerator door and the main body, creating an airtight seal to maintain the desired temperature and humidity levels inside the appliance. It has approximate dimensions of 2" x 41" x 20".

Symptoms of a bad refrigerator door gasket include:

• Warm air leaking into the refrigerator compartment
• Excessive frost or ice buildup in the freezer
• Condensation forming on the interior walls or shelves
• Higher energy consumption due to the refrigerator working harder to maintain the set temperature

Causes of a bad door gasket can include physical damage, such as tears or cracks, due to impact or wear and tear over time. It can also become stiff or lose its pliability, preventing a proper seal.

This OEM LG part is also compatible with Sears/Kenmore models.

This replacement door basket assembly mounts on the refrigerator door to hold bottles, jars, and condiments. It restores secure, organized storage and a proper fit when the original door bin is cracked, loose, or missing.

• Provides on-door storage for bottles, jars, and condiments
• Helps keep items upright, organized, and easy to access
• Replaces a cracked, broken, warped, or missing door bin
• Resolves issues like the bin not staying seated or items tipping

• Remove contents, then lift the old bin straight up and out of the door liner channels
• Align the new bin's tabs with the door slots and press down until it snaps securely into place
• The bin is fully seated before loading to avoid damage or spills
• Wear cut-resistant gloves when handling broken or cracked plastic

This refrigerator door basket mounts on the inner door and holds bottles, jars, and condiments. Replace a cracked or missing upper bin to restore secure, organized storage and keep frequently used items within easy reach.

• Attaches to the door liner to support and organize condiments and beverages
• Restores lost storage when a bin is cracked, warped, or missing
• Common symptoms: broken tabs, sagging bin, won't stay seated, or items tipping
• Helps keep frequently used items accessible without opening main shelves

What's included: 1 door basket Install notes:

• Remove contents, then lift the old bin straight up to release
• Align the new basket's hooks/tabs with the door slots and lower or snap into place
• Confirm it's fully engaged before loading items
• Handle carefully; avoid flexing or overloading the bin

This refrigerator door basket mounts on the inner door and holds bottles, jars, and condiments. Replace a cracked or missing upper bin to restore secure, organized storage and keep frequently used items within easy reach.

• Attaches to the door liner to support and organize condiments and beverages
• Restores lost storage when a bin is cracked, warped, or missing
• Common symptoms: broken tabs, sagging bin, won't stay seated, or items tipping
• Helps keep frequently used items accessible without opening main shelves

What's included: 1 door basket Install notes:

• Remove contents, then lift the old bin straight up to release
• Align the new basket's hooks/tabs with the door slots and lower or snap into place
• Confirm it's fully engaged before loading items
• Handle carefully; avoid flexing or overloading the bin

The Refrigerator Door Shelf is an OEM component for LG refrigerators. It provides useful storage space directly on the refrigerator door. This shelf's wire construction allows for versatile item organization while occupying minimal space.

Causes of a bad door shelf can include warping or cracks due to temperature fluctuations over time. Improper cleaning can also damage shelf surfaces.

Symptoms of a failed door shelf include:

• Gaps or separation where the shelf meets the door
• Loss of integrity making the shelf unable to securely hold items

This genuine LG shelf  is compatible with LG and Kenmore French door, side-by-side, and bottom-freezer refrigerator models utilizing a similar door shelf design.

STOPPER ASSEMBLY,DOOR

The Lower Refrigerator Door Hinge is an OEM part for LG refrigerators, designed to support and pivot the refrigerator door, allowing it to open and close smoothly. This hinge is a critical component for the proper alignment and function of the door, ensuring an airtight seal when closed to maintain the internal temperature and efficiency of the refrigerator.

Causes of damage to the lower refrigerator door hinge often include normal wear and tear, excessive force when opening or closing the door, or corrosion due to moisture and cleaning agents.

Symptoms of a bad Lower Refrigerator Door Hinge include:

• Difficulty in opening or closing the refrigerator door.
• A door that hangs unevenly or does not close properly
• Unusual noises during door operation
• Visible wear or damage to the hinge itself.

This OEM LG part is also compatible with some Kenmore models.

This ice gear transfers motor rotation to the refrigerator's ice mechanism so cubes can be dispensed or ejected. Replacing a worn or stripped gear restores smooth, reliable ice operation and helps eliminate grinding or clicking noises.

• Transfers drive from the motor to the ice mechanism (auger/ejector, depending on model)
• Helps move ice through the system for dispensing or harvest
• Common symptoms: no or slow ice dispensing, auger not turning, loud clicking/grinding from the ice bin
• Cracked or stripped teeth indicate the gear should be replaced

• Disconnect power to the refrigerator before servicing
• Remove the ice bin and access the ice assembly per your model; note gear orientation for reassembly
• Align teeth carefully; do not force the gear onto the shaft
• Inspect related parts (drive coupler, auger, motor shaft) and replace any worn components to prevent repeat failure

This hinge assembly replaces a worn or damaged refrigerator door hinge to restore proper door alignment and smooth opening and closing. It helps stop sagging doors, noisy movement, and improper sealing for better cooling performance. What it does:

• Supports and pivots the refrigerator door for correct alignment and even sealing
• Replaces broken, bent, or worn hinge hardware that causes door sag or misalignment
• Reduces rubbing, grinding, or noisy hinge movement when opening or closing
• Helps restore proper door closure to prevent cold air loss and temperature issues

• Unplug the appliance and support the door before removing hinge hardware to prevent injury or damage
• Transfer any mounting screws or brackets only if specified by the OEM; replace visibly damaged fasteners
• Tighten mounting fasteners to secure the hinge but avoid over-torquing; confirm door alignment after installation

This turntable roller ring sits under the glass tray and allows it to rotate smoothly for even heating. Replace a worn, warped, or broken ring to restore stable rotation and consistent cooking performance.

• Supports the glass turntable and rides on built-in rollers for smooth, quiet movement
• Keeps the tray level and centered to promote even heating
• Common symptoms: tray not turning, uneven cooking, scraping/grinding noises, or a wobbly/slipping turntable
• Restores proper interaction between the turntable, drive coupling, and motor

• Unplug the microwave or switch off the breaker before servicing
• Remove the glass tray; lift out the old ring and clean the track
• Place the new ring with the rollers facing down on the track; reseat the tray on the center drive coupling
• Test rotation with a microwave-safe cup of water

The Flapper Door Spring is an OEM part for LG french door refrigerators. It provides tension and support to the door flap or mullion, allowing it to open and close smoothly. It helps to maintain a tight seal, preventing cold air from escaping and keeping your food fresh.

A bad Door Spring can occur due to regular use, wear and tear, or accidental damage. If the spring becomes loose, stretched, or broken, it can lead to issues with the flapper door, such as improper sealing or difficulty in opening and closing.

Symptoms of a bad Flapper Door Spring include:

• Flapper door not closing properly.
• Difficulty in opening or closing the doors.
• Visible damage or deformation of the spring.
• Flapper door not staying securely in place.

This OEM LG part can also be used on Kenmore/Sears appliances.

Note: If you need a spring that is wound the opposite of this one, order part# MHY62044106.

This hinge secures and guides a refrigerator door for reliable opening and closing. It restores proper door alignment to help maintain an airtight seal and prevent sagging or rubbing. What it does:

• Supports the refrigerator door and attaches it to the cabinet frame
• Guides smooth door movement and maintains alignment
• Helps prevent door sag, uneven gaps, and items catching when opening/closing
• Reduces rubbing, scraping or abnormal door noise caused by a worn hinge

• Disconnect power and remove food from the door before starting; support the door to prevent dropping
• Use the factory mounting screws and follow OEM torque and alignment steps
• Check door position and seal after installation; adjust hinge mounting if necessary

Replacement refrigerator door hinge that restores smooth pivoting and proper door alignment, helping the door open and close reliably and maintain an airtight seal to preserve cooling performance. What it does:

• Supports the refrigerator door and allows it to pivot smoothly.
• Replaces worn, bent, or damaged hinges that cause door sag or misalignment.
• Helps reduce noisy or grinding door operation when the hinge is failing.
• Promotes an even door seal to help maintain internal temperature consistency.

• Unplug the appliance and remove food from nearby shelves before starting work.
• Support the door while removing hinge fasteners to prevent dropping or damage.
• Reinstall using the original hardware; align the door and tighten fasteners securely but avoid overtightening.

This dispenser lever holder is the mounting bracket behind the refrigerator's dispenser paddle. It supports and aligns the lever and switch so water or ice dispenses reliably when the paddle is pressed.

• Holds and guides the dispenser lever and actuator switch inside the dispenser housing
• Provides a secure pivot point for smooth paddle movement
• Helps ensure consistent activation of water and ice dispensing
• Damage can cause a loose or stuck paddle, intermittent dispensing, or no dispense

• Disconnect power and shut off the water supply before servicing
• Remove the dispenser panel/escutcheon to access the lever assembly; note part orientation
• Transfer the lever, switch, and return spring to the new holder and secure with the original fasteners
• Restore power/water and test dispensing before reinstalling trim

This holder bracket replaces a damaged or missing mounting support. It secures an internal component so it stays aligned and stable, helping your appliance operate smoothly without looseness or rattling.

• Provides a rigid mounting point to hold a component or assembly in place
• Maintains alignment to reduce vibration, rubbing, and intermittent operation
• Restores support when the original bracket is cracked, warped, or missing
• Common symptoms include a loose/wobbly part, rattling noises, or visible broken tabs

• Disconnect power to the appliance before servicing
• Note the original bracket's orientation and transfer any clips or screws from the old part
• Use existing hardware and tighten fasteners evenly—do not overtighten
• Verify proper fit and alignment before restoring power

The Dispenser Lever Retainer is an OEM part for LG refrigerators. This part secures the dispenser lever in place, this part ensures the smooth operation of the water and ice dispenser.

Causes of a bad Dispenser Lever Retainer can include normal wear and tear from repeated use, accidental damage, or deterioration of the material over time.

Symptoms of a bad Dispenser Lever Retainer include:

• The dispenser lever is loose or wobbly
• Difficulty in dispensing water or ice
• The lever does not return to its original position after use
• Unintended activation or difficulty in activating the dispenser

This OEM LG part is also compatible with some Kenmore models.

The Ice Door Lever Spring is an OEM component compatible with LG refrigerators. It is part of the mechanism that opens and closes the ice door on LG French door refrigerators. Over time, springs can lose resiliency or become misaligned.

Causes may be extensive usage over years or damage like kinking that compromises spring function.

Symptoms of a bad ice door lever spring include:

• The ice door not latching fully when closed
• Difficulty opening or poor balance while moving the door
• The lever rubbing or catching instead of moving smoothly

This OEM LG part is also compatible with Sears/Kenmore side-by-side refrigerators.

This OEM replacement part is a cover assembly for refrigerators. The cover assembly houses the selection buttons of the refrigerator as well as the water dispenser. If the cover assembly is cracked, inoperable, or otherwise damaged, it will need to be replaced. Luckily, replacing this part is a rather simple process. To start, make sure the refrigerator is unplugged. Once unplugged, proceed to open the freezer door to remove the side panel of the freezer door. Remove the screws that attach the panel. Once they are removed, locate the mounting tabs that hold the display cover in place. Release the locking tabs and push the display cover out away from the fridge to release it. Once removed, snap the new display cover back in place and make sure that it is securely attached to the refrigerator. Reinstall the inner panel, and restore power to the appliance.This genuine replacement part is sourced directly from the manufacturer and is compatible with LG brand refrigerators.

The Button Assembly is an OEM component specifically designed for LG side-by-side refrigerators equipped with electronic control interfaces. This integral assembly contains all command buttons governing cycles and settings.

Causes of failure include damaged circuit pathways from failed seals exposing buttons to moisture, cracked assembly housings restricting movement over years, or worn tactile buttons becoming unresponsive to light touch inputs.

Symptoms of a bad button assembly include:

• Stuck or non-functional buttons unable to activate modes
• Unintended commands from loose electrical connections
• Missing buttons resulting in inaccessible settings
• Illuminated labels or backlights malfunctioning

Replace yours today with this genuine OEM LG assembly to maintain premium touchscreen usability and aesthetics. Rigid construction and gold-plated contacts deliver reliable performance. This replacement part restores adjustable freezer drawers and freshness centers for Samsung, GE, and Kenmore refrigerators as well. Factory-grade quality sustains dependability.

The Dispenser Cover is an OEM part for LG refrigerators. This cover protects the dispenser unit, shielding the internal components from spills and debris.

Causes for a bad cover can include cracks or breaks from regular opening and closing of the dispenser over time, damage due to accidental impacts, or staining/warping from repeated exposure to liquid spills.

Symptoms of a bad dispenser cover include:

• Presence of moisture, dirt or food particles within the dispenser assembly
• Interior dispenser components becoming corroded or malfunctioning prematurely
• Difficulty opening and closing the cover smoothly
• External cosmetic defects such as cracks, scratches, stains or discoloration

This OEM LG part is also compatible with some Kenmore models.

This replacement button assembly restores the positive feel and reliable actuation of a front-panel push button on your appliance. Ideal when the original button is cracked, loose, or sticks and no longer engages the underlying switch consistently.

• Replaces a worn or broken front-panel push button
• Transfers your press to the underlying microswitch or control
• Helps resolve: button won't press or return, intermittent response, or cosmetic damage/wear
• Provides proper alignment and travel for smooth operation

• Disconnect power to the appliance before servicing; for microwaves, unplug and avoid the high-voltage section
• Access the front/control panel; remove trim or grille if applicable
• Release retaining clips or screws, transfer any reusable clips/guides, seat the new button, and reassemble
• Test the button for smooth, reliable operation before finalizing reassembly

The Actuator Lever is an OEM part for LG refrigerators. It plays a crucial role in the dispensing mechanism of the refrigerator, allowing for the controlled release of water and ice. The lever is designed to interact seamlessly with the internal components of the dispenser to ensure smooth and reliable operation.

Over time, the actuator lever can wear out or become damaged due to frequent use or mishandling. Causes of a bad actuator lever include physical wear, breakage from excessive force, or deformation due to constant usage.

Symptoms of a bad actuator lever include:

• Difficulty in dispensing water or ice
• The lever sticking or not returning to its original position
• Unresponsive dispenser mechanism
• Unusual noises when using the dispenser

This OEM LG part is also compatible with Sears/Kenmore.

This replacement drain tray sits beneath the refrigerator's ice/water dispenser to catch drips and splashes, helping keep the door area clean and dry. It restores a neat, finished look when the original tray is cracked, stained, or missing. What it does:

• Collects drips and minor spills from the dispenser to reduce mess on the door and floor
• Helps prevent water streaks and mineral-stain buildup around the dispenser recess
• Restores a secure, flush fit when the original tray is warped, loose, or broken
• Common signs: standing water in the recess, leaks running down the door, visible cracks, tray won't stay seated

• 1 dispenser drain tray

• Lock dispenser controls or power off the refrigerator to avoid accidental dispensing
• Pull the old tray straight out; clean any residue in the dispenser recess
• Align and press the new tray in until fully seated and flush
• If your model uses a separate top grate, transfer and reinstall it on the new tray

This dispenser drip tray grille sits in the recess beneath the refrigerator water/ice dispenser. It catches drips and splashes, keeping the area tidy while restoring a clean, finished look when the original is damaged or missing.

• Sits over the drain pan beneath the dispenser to catch stray water and ice
• Helps minimize puddling and protects the door finish around the dispenser area
• Restores appearance and fit when the original grille is cracked, warped, loose, or heavily stained
• Direct-fit replacement for the dispenser recess on applicable units

• Disconnect power and avoid using the dispenser during replacement
• Lift the old insert straight up/out; clean the recess before installing
• Align and press the new grille down until fully seated and level
• Verify a secure fit before restoring power and normal use

NOTE: This part also requires software update kit CJT30000002. DO NOT INSTALL WITHOUT UPDATING SOFTWARE. Call for more information.

The Compressor is an OEM part for LG refrigerators. As the primary component that circulates refrigerant to chill the refrigerator and freezer compartments, it is crucial for proper cooling operation. The compressor works with the condenser fan and evaporator coil to regulate temperatures inside the refrigerator.

Causes of a faulty compressor can include gradual breakdown of motor windings, loss of refrigerant pressure over time, or failure of electrical components vital to operation.

Symptoms of a bad compressor are:

• Elevated fridge/freezer temperatures unable to be maintained
• Frost patterns indicating poor or insufficient cooling
• Abnormal vibrations or sounds upon compressor cycling
• Error codes displayed regarding cooling performance

It is also compatible with Sears/Kenmore refrigerator models.


The Compressor Overload Protector Assembly is an OEM part for LG refrigerators. The compressor overload protector steps in if the compressor motor draws excessive current. It then interrupts the power to prevent overheating. The wire harness boosts the compressor to kick-start it, disengaging as soon as the motor reaches the desired speed.

Over time, the compressor overload protector can wear out or become damaged due to electrical issues, power surges, or constant exposure to high temperatures. A faulty protector can compromise the safety and efficiency of the refrigerator’s cooling system.

Symptoms of a bad compressor overload protector assembly include:

• The refrigerator not cooling properly
• The compressor frequently cycling on and off
• Clicking noises coming from the compressor area
• The refrigerator not turning on at all

This OEM LG part is also compatible with Sears/Kenmore models.

The Overload Compressor is an OEM part for LG refrigerators. This part protects the refrigerator's compressor from overheating and potential damage by acting as a safety device. It works by monitoring the compressor's electrical current and temperature. If the compressor operates under conditions that could lead to overheating or overcurrent, the overload protector will cut off the power to the compressor, allowing it to cool down before potentially restarting.

Causes of damage to the Overload Compressor can include power surges, electrical faults within the refrigerator, or a malfunctioning compressor that requires more current than usual to operate.

Symptoms of a bad Overload Compressor include:

• The refrigerator not cooling properly or not cooling at all
• The compressor failing to start, indicated by a clicking sound coming from the back of the refrigerator where the compressor is located.
• The refrigerator or freezer section warming up

This OEM LG part is also compatible with some Kenmore models.

This PTC cover is the protective housing that shields a PTC sensor/assembly from debris and physical damage, helping maintain reliable sensor performance and prolong component life in the appliance. What it does:

• Protects the PTC sensor or PTC assembly from dust, impact, and accidental contact
• Helps prevent shorting or intermittent sensor signals caused by contaminants
• Supports proper positioning and mounting of the PTC component
• Can help address symptoms such as visible sensor damage, exposed wiring, or intermittent operation related to a compromised sensor housing

• Disconnect power to the appliance before starting any repair
• Remove the outer panel(s) as needed to access the PTC location; handle surrounding wiring and components carefully
• Replace only with the correct OEM cover to ensure proper fit and protection

This damper assembly controls airflow between compartments to help maintain consistent refrigerator temperatures and restore proper air distribution. It replaces a damaged or stuck damper that interferes with cooling balance. What it does:

• Regulates fresh food/freezer airflow by opening and closing the inlet
• Helps correct uneven temperatures or reduced cooling caused by a stuck or broken damper
• Stops unwanted drafts when the damper is closed
• Operates with the fridge's control system to respond to temperature changes

• Disconnect power to the appliance before starting any repair
• Access typically requires removing interior panels or shelving to reach the damper housing
• Handle plastic parts and wiring gently; avoid forcing connectors

This tray assembly collects and channels defrost and condensation water to the drain, helping prevent leaks and water buildup under the appliance. Designed to fit into the drain path and route moisture away safely. What it does:

• Catches defrost and condensation runoff and directs it toward the drain
• Helps prevent pooling and water damage inside the lower cabinet area
• Supports proper evaporator/drain operation by maintaining the drain path
• Can reduce dripping or puddling symptoms when the original tray is cracked or clogged

• 1 tray assembly

• Inspect surrounding seals and drain lines before installing; replace any damaged components
• Clean drain channel and remove debris to ensure proper flow prior to installation
• Handle gently to avoid cracking plastic tabs; use basic hand tools for removal/installation
• Disconnect power to the appliance before accessing internal components to avoid injury

Replacement front cover that restores your appliance's exterior finish and helps protect controls and internal components from everyday wear, spills, and minor impacts, delivering a clean, finished look and proper front-panel fit. What it does:

• Covers and protects the appliance's front area, helping shield controls and wiring from dirt and moisture.
• Restores damaged or cracked front trim for improved appearance.
• Helps maintain proper alignment and fit of the front assembly.
• Common symptom: cracked, chipped, warped, or loose front panel that exposes internal parts or looks worn.

• Disconnect power (unplug or switch off breaker) before starting any repair.
• Basic hand tools (screwdriver set) may be required to remove the old cover and install the replacement.
• Handle edges carefully to avoid cuts; align tabs/clips and secure fasteners snugly but do not overtighten.

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

A small retaining pin used to secure moving parts and keep components aligned for smooth operation. Replacing a worn or broken common pin can stop rattling and restore proper fit between linked parts. What it does:

• Holds or aligns two parts together so they move correctly and stay in position
• Helps prevent rattling, looseness, or parts slipping out of place
• Works as a simple mechanical fastener—no electronics involved

• One common pin

• Disconnect power to the appliance before beginning any service
• Keep track of small parts; lay out components in order to aid reassembly
• May require removal of trim or a hinge/retainer to access the pin—use basic hand tools
• If the pin is difficult to seat, do not force; inspect mating parts for damage

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

The Fan Assembly is an OEM part for LG refrigerators. It is responsible for circulating air within the refrigerator and freezer compartments, ensuring consistent cooling and optimal temperature distribution. The fan assembly helps maintain the freshness of your food by evenly distributing cold air.

Common causes of a bad fan assembly include electrical issues, worn-out bearings, or obstructions that prevent the fan from spinning properly.

Symptoms of a bad fan assembly include:

• Unusual noises coming from the refrigerator
• Inconsistent temperatures within the fridge or freezer
• Frost buildup in the freezer
• Refrigerator running continuously or not cooling effectively

This OEM LG part is also compatible with Sears/Kenmore models.

The Defrost Control Assembly is an OEM part for LG refrigerators, crucial for regulating the defrost cycle within the unit. This component plays a pivotal role in ensuring that the evaporator coils are periodically defrosted, preventing the build-up of ice that can impede airflow and cooling efficiency.

Causes of a bad Defrost Control Assembly can include electrical failures, sensor malfunctions, or damage to the assembly itself, which can disrupt the defrost cycle.

Symptoms of a bad Defrost Control Assembly include:

• The refrigerator or freezer compartment becoming too warm due to blocked airflow from ice accumulation
• A noticeable build-up of frost or ice on the evaporator coils or in the freezer compartment
• The refrigerator running continuously without cycling off
• Unusual noises coming from the refrigerator as ice builds up and interferes with the fan

This OEM LG part is also compatible with Sears/Kenmore.

The Door Switch is an OEM part for LG refrigerators. It is located near the door hinge and is activated by the door's movement. When the door is closed, the switch is engaged, allowing the interior light to turn off and other functions to operate normally. When the door is opened, the switch is released, triggering the interior light to turn on and potentially activating other features, such as the ice dispenser or cooling system.

Causes of a faulty door switch can include wear and tear over time, mechanical damage from excessive force, or electrical issues.

Symptoms of a bad door switch may include:

• The interior light not turning on when the door is opened
• The interior light remains on when the door is closed
• Issues with the dispenser or other functions associated with the door switch

The Dispenser Switch is an OEM part for LG refrigerators. It is responsible for controlling the operation of the dispenser, allowing you to dispense water or ice from the refrigerator door. This switch is located in the dispenser house and activates the dispenser when pressed.

Causes of a bad dispenser switch can include wear and tear over time, electrical malfunctions, or damage due to accidental mishandling or impact.

Symptoms of a bad dispenser switch include:

• Inability to dispense water or ice when pressing the buttons.
• The dispenser works intermittently.
• No response or delayed response when pressing the dispenser buttons.

This LG part can also be used on Kenmore/Sears appliances.

The Fan Motor is an OEM part for LG refrigerators. It is essential for circulating air throughout the refrigerator and freezer compartments, ensuring that the temperature is evenly distributed and maintained at the set levels. This motor powers the fan that helps to cool the evaporator coils and dissipate heat, which is vital for the appliance's cooling efficiency.

Symptoms of a failing Fan Motor include:

• The refrigerator not cooling adequately
• Unusual noises coming from the refrigerator, such as humming or buzzing
• Ice buildup in the freezer compartment due to poor air circulation
• The refrigerator cycling on and off more frequently

Causes of a bad fan motor can include wear and tear over time, obstructions in the fan blades, or electrical issues such as faulty wiring or a malfunctioning capacitor.

This OEM LG part is also compatible with Sears/Kenmore.

Motor Bracket secures the motor assembly, keeping it aligned and reducing vibration for reliable operation. Replacing a damaged bracket restores stable motor mounting and helps reduce noise and premature motor wear. What it does:

• Secures and supports the motor to maintain correct alignment and stable operation.
• Reduces motor vibration and operational noise when properly installed.
• A cracked, bent, or broken bracket can cause increased noise, vibration, or motor misalignment.
• Use when the existing bracket is bent, damaged, or failing to hold the motor securely.

• Disconnect power to the appliance before starting any repair.
• Access may require removing the cabinet or an access panel; keep track of fasteners.
• Installation typically requires basic hand tools; avoid forcing parts into position.

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

The Ice Dispenser Door Motor is an OEM part for LG refrigerators. This motor is responsible for the operation of the ice dispenser door, controlling its opening and closing mechanism to allow ice to be dispensed without letting warm air into the freezer.

Symptoms of a bad Ice Dispenser Door Motor include:

• The dispenser door not opening or closing properly,
• Ice not being dispensed when activated,
• Unusual noises coming from the dispenser mechanism.

Causes of ice dispenser door motor failure can include electrical issues such as shorts or wiring problems, mechanical wear over time, or blockages that strain the motor.

This OEM LG part is also compatible with Sears/Kenmore.

The Door Bracket is an OEM part for LG refrigerators. This bracket supports the refrigerator door by providing stability and ensuring proper alignment during opening and closing. It plays a crucial role in maintaining the door’s secure fit, which is essential for maintaining the internal temperature and efficiency of the appliance.

Common causes of a bad door bracket include wear and tear from frequent use, impact damage, or corrosion due to moisture.

Symptoms of a bad door bracket include:

• The refrigerator door not closing properly
• The door sagging or being misaligned
• Unusual noises when opening or closing the door
• Gaps in the door seal leading to temperature inconsistencies

This OEM LG part is also compatible with Sears/Kenmore.

This is a replacement mounting bracket that secures internal appliance components to the cabinet frame, restoring proper alignment and support for moving parts. It helps reduce vibration and prevents loose or sagging assemblies. What it does:

• Provides a stable mounting point for internal components to maintain correct positioning
• Helps stop rattling, knocking, or vibration caused by loose fittings
• Restores support for panels, assemblies, or mechanical linkages that rely on the bracket
• Useful when original bracket is bent, cracked, or otherwise damaged

• Follow manufacturer service manual for correct placement and fastener torque
• Use proper tools and retain all screws/fasteners; replace damaged fasteners as needed
• Disconnect power before accessing internal components to avoid shock or injury

This fan grille assembly covers the interior compartment fan and helps direct airflow. Replacing a damaged grille restores safe, consistent air movement and protects the fan from contact with food items or debris. What it does:

• Shields the compartment fan to prevent accidental contact
• Guides airflow for more even cooling across shelves
• Helps keep packaging and loose items from striking the fan blades
• Replaces cracked, missing, or rattling fan cover components

• 1 fan grille assembly

• Disconnect power to the appliance before servicing
• Remove shelves/drawers as needed to access the fan cover area
• Remove screws or release tabs and pull the old grille straight out
• Seat the new assembly, reuse existing hardware, and verify the fan spins freely before restoring power

This refrigerator sheath heater melts frost from the evaporator so air can circulate freely and the unit can cool properly. Replacing a failed heater helps restore even temperatures and reduce frost buildup in the freezer.

• Warms the evaporator coil during defrost cycles to clear ice
• Helps prevent restricted airflow, warm spots, and long run times
• Common failure symptoms include heavy frost on the evaporator, poor cooling, ice buildup on the back panel, or frequent defrost errors
• May cause sizzling sounds or water under the evaporator area during normal operation after replacement

• Unplug the refrigerator before service; defrost any heavy ice to access parts safely
• Access typically from the rear of the freezer compartment behind the evaporator cover
• Handle heater leads and evaporator fins carefully to avoid damage
• Secure all connectors before reassembly

This LED backlight assembly restores screen illumination for compatible LG LCD/LED TVs, improving picture brightness and uniformity. Use it to replace damaged or failing backlight components and recover visible image lighting. What it does:

• Provides backlight illumination for the TV LCD panel so the picture is visible and evenly lit.
• Replaces damaged or non-functioning LED strips that cause dim screens or dark bands.
• Can address symptoms such as no backlight while image is still present, flickering or uneven brightness.
• Restores overall screen brightness and reduces backlight-related artifacts.

• Disconnect the TV from power and discharge capacitors before beginning any repair.
• Screen and internal components are fragile; handle the panel and LED strips carefully to avoid damage.
• Use ESD-safe precautions and follow manufacturer service instructions where available.

The Run Capacitor is an OEM part for LG refrigerators. It is located near the compressor in the appliance's cooling system. It stores electrical energy and provides a boost to the motor during startup, ensuring smooth and efficient operation. The capacitor helps maintain the required power levels, stabilizes voltage, and supports the proper functioning of the compressor.

Causes of a faulty run capacitor can include electrical issues, capacitor aging or degradation, or damage due to power surges. These factors can result in issues such as the compressor not starting, the appliance not cooling properly, or unusual noises coming from the appliance.

Symptoms of a bad run capacitor may include:

• Compressor failing to start or delayed startup
• Inadequate cooling or no cooling at all
• Unusual noises, such as buzzing or clicking sounds

This OEM LG part can also be used on Kenmore/Sears appliances.

The Compressor Run Capacitor is an OEM part for LG refrigerators. It plays a critical role in the operation of the refrigerator's compressor by providing the necessary electrical boost to start and maintain the compressor's operation.

Causes of a bad compressor run capacitor can include electrical surges, overheating, or simply wear and tear over time. When the capacitor fails, it can no longer deliver the required electrical charge, which impacts the compressor's ability to start and run efficiently.

Symptoms of a bad compressor run capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running intermittently
• Unusual humming or clicking noises from the compressor area
• The refrigerator cycling on and off frequently

This OEM LG part is also compatible with Sears/Kenmore models.

This fan motor assembly circulates air across the evaporator coils to keep temperatures even inside the refrigerator. Replacing a worn or noisy motor restores proper airflow for consistent cooling performance.

• Drives the evaporator fan to move chilled air through the cabinet and vents
• Helps maintain stable temperatures and reduces frost from stagnant air
• Common symptoms: weak or no airflow, loud or intermittent fan noise, temperature fluctuations, refrigerator section warmer than expected
• Failures may result from worn bearings, moisture exposure, or an open motor winding

• Disconnect power before servicing; wear cut-resistant gloves and eye protection
• Access the fan behind the interior rear panel; remove shelves/drawers as needed and avoid bending evaporator fins
• Note wire connector orientation and mounting order; transfer any reusable hardware from the original assembly as needed
• After reassembly, verify the fan spins freely and confirm operation before reloading the compartment

This replacement power control board assembly restores the electronic control for the appliance, allowing regulated power and signal management for proper operation. It replaces a failed sub control board to help recover normal function. What it does:

• Regulates power distribution and control signals to the appliance's subsystems
• Replaces a failed sub PCB that can cause intermittent or total loss of electronic control
• Resolves symptoms such as no power to circuits, unresponsive controls, or erratic operation
• Works with the appliance's main control to restore coordinated electronic control

• Disconnect power (unplug or shut off breaker) before beginning service
• Take photos of wire locations and connector orientation before disconnecting
• Handle the board carefully; avoid static discharge and do not touch components

This sub power control board assembly controls and routes electrical power and control signals for the appliance, restoring electronic control when the original sub-PCB fails. Use this board to address power and control-related faults. What it does:

• Regulates and routes power to motors, valves, sensors and other control circuitry.
• Processes low-voltage control signals from the main board, user interface and sensors.
• Common symptoms linked to a failing board: no power or no response, intermittent operation, error codes or unresponsive controls.
• Replacing the faulty sub control board can restore normal electronic operation and command response.

• Disconnect the appliance from power before beginning any service.
• Handle the PCB by the edges and use proper ESD precautions to avoid static damage.
• Verify all connectors are fully seated and wiring matches the replacement before reapplying power.

NOTE: For 3 wire connectors, see part number AEQ73110203

The 14 Cube Ice Maker is an OEM part for LG refrigerators. This ice maker is responsible for automatically producing batches of cube ice on demand to keep extra ice readily available in the freezer.

Causes of a bad ice maker can include failures from usage over time, clogged lines preventing proper water flow, or impaired mechanical components.

Symptoms of a bad ice maker include:

• Reduced or no ice production at all
• Water buildup or overflowing due to malfunctioning fill valves
• Grinding or crunching noises from impaired mechanical parts
• Error codes or fault messages for ice production issues

This OEM LG replacement is also compatible with Sears/Kenmore refrigerator models.

This small retaining clip secures its mating component within the refrigerator assembly, keeping parts properly seated and reducing vibration. Replacing a damaged or missing clip helps restore a snug fit and reliable operation of the attached piece.

• Holds the designated part firmly in place within the assembly
• Maintains proper alignment to prevent movement or rattling
• Helps ensure panels, ducts, or lines stay secured during use
• Symptoms can include loose or sagging parts, vibration noises, or components that won't stay attached

• Disconnect power; if working near the water system, also shut off the water supply
• Note the original orientation and placement before removal
• Fully seat the mating component, then press the new clip into place without forcing
• Check operation before reassembly

The Water Line Connector is an OEM replacement part for LG refrigerators. It is responsible for connecting the water supply line from the home plumbing to the refrigerator's internal water distribution system, allowing for ice and water dispenser functionality.

Causes of a bad water line connector can include cracking, leaks, or deterioration of the connector material over time due to regular water pressure and temperature fluctuations. Connectors may also become damaged if exposed to impact.

Symptoms of a bad water line connector include:

• Leaks at the connection point between the line and refrigerator
• Loose, slipping, or disconnected water line fitting
• Reduced water pressure or no water flow to the dispenser
• Error codes related to water flow from the refrigerator diagnostics

 This OEM LG part is also compatible with Sears/Kenmore refrigerators.

The Clip is an OEM part for LG refrigerators. This clip secures the water tube in place, preventing it from moving or becoming disconnected. It plays a crucial role in maintaining the proper flow of water to the ice maker and water dispenser.

Causes of a bad water tube clip can include physical damage, wear and tear from regular use, or brittleness due to temperature fluctuations. If the clip fails, it can result in leaks or disconnections, disrupting the water supply.

Symptoms of a bad water tube clip include:

• Water leaks inside or outside the refrigerator
• The water tube becoming loose or disconnected
• Reduced or no water flow to the ice maker or water dispenser

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

This temperature sensor is the thermistor that monitors compartment temperature and reports it to the control. Replacing a failed sensor helps restore accurate cooling and steady, reliable temperatures in your refrigerator.

• Detects refrigerator or freezer air temperature and sends a resistance signal to the control board
• Helps the control regulate compressor, evaporator fan, and air damper operation
• Also called a thermistor; critical for maintaining stable, set-point temperatures
• Failure symptoms can include sections that are too warm or too cold, erratic temperature swings, or frequent cycling

• Unplug the refrigerator before servicing
• Access location varies by model (often behind an interior cover or air duct); note routing and placement before removal
• Reinstall in the original position and route wiring in the factory path; ensure the connector is fully seated
• Restore power and allow up to 24 hours for temperatures to stabilize

The Temperature Sensor is an OEM part for LG refrigerators. Also known as a thermistor, is responsible for sensing the temperature changes and providing the necessary feedback to the refrigerator's control board. It helps maintain accurate and consistent temperature levels, ensuring optimal food preservation and efficient cooling.

Causes of a faulty temperature sensor can include wear and tear over time, damage due to electrical issues or exposure to extreme temperatures, or sensor calibration issues. These factors can result in temperature inconsistencies, inaccurate readings, or improper cooling performance of the refrigerator.

Symptoms of a bad temperature sensor may include:

• Incorrect temperature readings on the control panel
• Temperature fluctuations inside the refrigerator
• Overcooling or inadequate cooling of food items

This OEM LG part can also be used on Kenmore/Sears appliances.

The Refrigerator Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature inside the refrigerator and communicates with the control board to maintain the optimal cooling environment.

Common causes of failure include wear and tear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can lead to inaccurate temperature readings, resulting in improper cooling or freezing.

Symptoms of a bad refrigerator temperature sensor include:

• Inconsistent refrigerator or freezer temperatures
• Food spoiling faster than usual
• Refrigerator running continuously or not running at all
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore models.

The Ice Bucket Assembly is an OEM part for LG refrigerators. It is designed to collect and store ice produced by the icemaker, ensuring a convenient and organized storage solution within the freezer.

Causes of a bad ice bucket assembly can include damage from frequent handling, cracks or breaks due to impact, or issues with the internal components such as the auger or motor. Over time, these issues can impair the functionality of the ice bucket, leading to inefficient ice storage or dispensing problems.

Symptoms of a bad ice bucket assembly include:

• Cracks or visible damage to the bucket
• Ice not dispensing properly
• The bucket not fitting securely in place
• Excessive noise during ice dispensing

This OEM LG part is also compatible with Sears/Kenmore.

This AC fan motor drives the cooling fan that moves air through your appliance's heat-exchange coils, helping maintain stable temperatures. Replace a failed motor to restore reliable airflow and reduce noise or inconsistent cooling.

• Powers the fan blade to move air across the coils for efficient heat transfer
• Helps maintain steady compartment temperatures and overall cooling performance
• Common symptoms include: fan not running, weak or no airflow, loud humming/squealing, or intermittent cooling
• Replaces a seized, slow, or burnt-out motor to restore proper circulation

• Disconnect power before servicing; allow moving parts to stop completely
• Access the fan assembly; note wire positions and mounting orientation
• Transfer the fan blade, bracket, and grommets from the old motor if required
• Secure the motor, route wiring as original, ensure the blade spins freely, then restore power and verify operation

The Water Tank Assembly is an OEM part for LG refrigerators. It stores and supplies water for the refrigerator's dispenser and ice maker, ensuring a steady and clean water flow for these features.

Causes of a bad water tank assembly can include mineral buildup from hard water, leaks due to cracks or punctures, or contamination from mold or bacteria if the tank is not regularly cleaned. Over time, wear and tear from repeated use can also lead to failure.

Symptoms of a bad water tank assembly include:

• Water dispenser not functioning properly
• Reduced or no ice production
• Leaks or puddles inside the refrigerator
• Unpleasant taste or odor in the water

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

This water tube routes drinking water from the refrigerator's supply to the dispenser/ice system, restoring proper water flow for dispensing and ice-making. Use when water flow is reduced, leaking, or the tube is cracked or clogged. What it does:

• Carries potable water between the internal components (valve, dispenser, ice maker) for dispensing and ice production
• Replaces cracked, split, or clogged tubing that causes leaks or poor water flow
• Helps stop visible leaks and restores consistent dispenser flow when tubing is the fault
• Compatible with systems that use a molded plastic water line rather than braided or metal tubing

• Turn off water supply and unplug the appliance before beginning work
• Drain residual water from the line and catch any spillage with a towel or small container
• Inspect fittings and seals; replace O-rings or clamps if damaged

This is a replacement ice maker fill tube. This is a genuine OEM part made by LG and has been sourced directly from the manufacturer. This part is intended to replace broken or detached ice maker fill tubes in a variety of refrigerators. This piece of plastic tubing supplies the in-built refrigerator ice maker with water so it can make ice. If the ice maker is not working properly and is not making ice, there may be an issue with the tubing. Always make sure that the refrigerator is entirely disconnected from power and water before starting the any repair work. Please ensure that the appropriate safety precautions are followed when attempting to fix any appliances. For more accurate information on how and where to install this ice maker fill tube, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this ice maker fill tube is suitable for use on several different models of refrigerators manufactured by LG and Kenmore. This is a genuine part made of high-quality, durable plastic and is sold individually.

Note: 90 degree elbow coupler (Fits 1/4" diameter tubing on each end) For 5/16" elbow connector, order part# 4932JA3009B.

The Water Line Union is an OEM part for LG refrigerators. This component connects sections of the water line, ensuring a secure and leak-free passage of water to the refrigerator's icemaker and water dispenser. It is an elbow tube union connector, which connects two tubes at a 90-degree angle.

Causes of a bad water line union can include wear and tear from frequent use, damage from high water pressure, or deterioration due to mineral buildup and age. A compromised union can lead to water leaks and disruption in the water supply.

Symptoms of a bad Water Line Union include:

• Water leaks around the connection points
• Reduced water flow to the icemaker or water dispenser
• Puddles or moisture near the refrigerator
• Unusual noises from the water line

This OEM LG part is also compatible with Sears/Kenmore.

The Water Line is an OEM part for LG refrigerators, designed to supply water to the ice maker and water dispenser. Made from durable materials to withstand water pressure and prevent leaks, this water line is essential for access to clean, filtered water at all times. Note: color of the water tube may be different from original. Tube is 5/16" diameter

Symptoms of a bad Water Line include:

• Leaking of water at the connection points or along the tubing.
• A noticeable decrease in water flow to the dispenser or ice maker.
• A bad taste or odor of the water and ice

Causes of failure can range from physical damage, such as kinks or punctures, to wear and tear over time leading to brittleness or weakening of the material. These issues can compromise the integrity of the water supply, affecting both the quality and safety of the water and ice provided by your refrigerator.

This OEM LG part can also be used on Kenmore/Sears appliances.

The Reservoir Water Supply Line is an OEM part for LG refrigerators. This component is essential for delivering water from the reservoir to the dispenser and ice maker, ensuring a steady and reliable flow.

Symptoms of a bad Reservoir Water Supply Line include:

• Leakage of water at connection points or along the line.
• Reduced water flow to the dispenser or ice maker.
• Unusual tastes or odors in the dispensed water.
• Visible signs of wear, such as kinks or brittleness.

Causes of a bad water supply line can include physical damage from bending or pinching, chemical degradation from exposure to contaminants, or blockages due to sediment or scale buildup.

This OEM LG part is also compatible with Sears/Kenmore.
