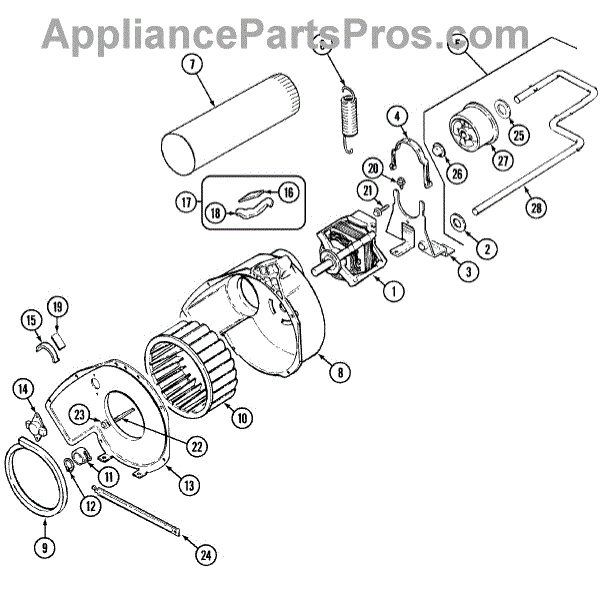

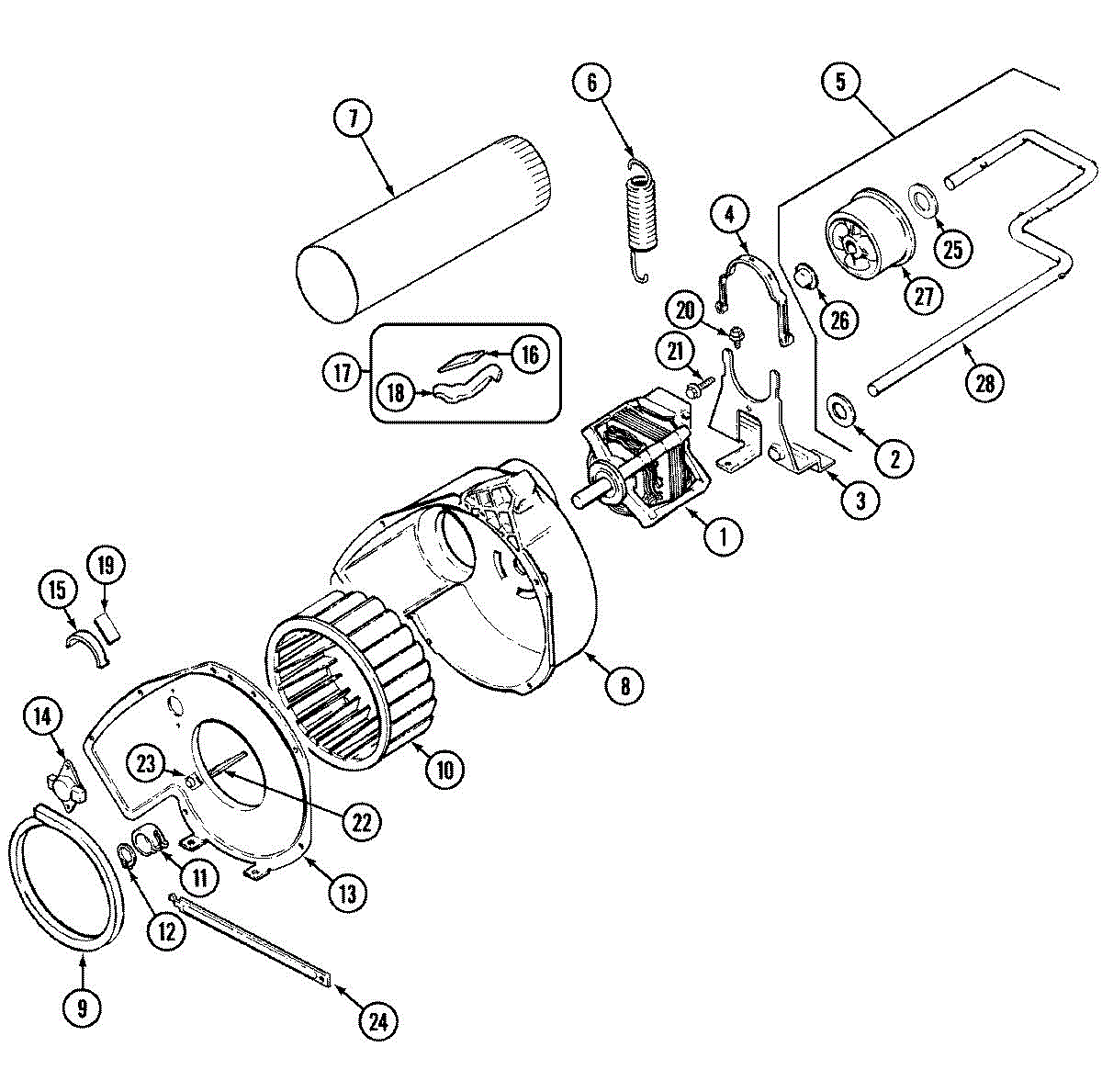

Parts for Magic Chef CYE4000AZS: 05 - Motor & Drive Parts

This motor pulley transfers power from the drive motor to the washer belts. The 60 Hz sizing restores the correct speed and belt tracking so the tub agitates and spins smoothly without squeal or slippage. What it does:

• Drives the belt(s) that power the washer's drive system (and on some models, the drain pump)
• Maintains the correct speed ratio for 60 Hz operation
• Worn or damaged pulley can cause belt squeal, burning rubber odor, or frayed/slipping belts
• Result in no/slow spin or agitation if the belt can't grip properly

• One motor pulley (60 Hz)

• Disconnect power before servicing; wear cut-resistant gloves
• Access the motor, relieve belt tension, and note belt routing
• Loosen the pulley set screw and remove the old pulley from the motor shaft
• Install and align the new pulley; adjust belt alignment/tension per service information, hand-rotate to check clearance, then test

• Designed for 60 Hz electrical systems; match the Hz rating to your original part

This is the drive motor that powers your washer's drive system. It turns the basket for wash and spin, restoring smooth, reliable operation when the original motor is weak, noisy, or fails to start. What it does and common symptoms:

• Provides the torque needed to rotate the basket during wash and spin cycles
• Symptoms of a failing motor include: no agitate, no spin, or cycle stalling
• Can trigger motor/drive-related error indications on some models

• 1 drive motor

• Disconnect power and turn off water supply before servicing
• Access the motor per your model's service procedure; label and transfer connectors one at a time
• Ensure the drive system turns freely by hand; correct any binding in related components before powering on
• After installation, run a diagnostic or spin test to verify operation

Specs: 10-16 x 1/2 inch.

This part is a motor clamp. This is a genuine OEM part and has been sourced directly from the manufacturer. This part is intended to replace a deteriorated, damaged, or broken motor clamp on certain makes of indoor appliance models. Motor clamps are essential for properly securing the drive motor on various types of indoor appliances such as washers, dryers, and refrigerators. Without the use of a motor clamp, the drive motor is free to move around or become detached. This can easily cause serious damage to the equipment and prevent proper functionality. Proper tools are needed to replace this part and appropriate safety measures should be adhered to when working on any type of equipment. For accurate information on how and where to install this replacement motor clamp, specific manufacturer diagrams should be referred to.As an authentic replacement part, this motor clamp can be used on multiple different models of washers, dryers, refrigerators, and washer/dryer combos manufactured by Kenmore, Maytag, Whirlpool, and Amana. Please note that this motor clamp is a genuine part made of high-quality materials and is sold individually.

This idler assembly is the spring-loaded belt tensioner that keeps the drive belt correctly tightened. Replacing a worn or seized idler restores smooth belt tracking, reduces squeal, and helps prevent slippage or loss of drive.

• Maintains proper tension on the drive belt for reliable power transfer
• Helps prevent belt slippage, squealing, or the belt coming off the pulleys
• Supports smooth rotation of the driven components
• Failure symptoms can include noise from the belt path, a frayed or derailed belt, or loss of motion

• Disconnect power and allow all moving parts to stop before servicing
• Access the belt path; relieve belt tension and remove the old idler assembly
• Install the new assembly; ensure the pulley spins freely and the belt is centered in the groove
• Manually rotate the system to verify alignment and clearances before restoring power

This idler spring maintains proper tension on the dryer drum belt by keeping the idler pulley engaged. Replacing a weak or broken spring restores consistent drum rotation and helps prevent belt slippage and squealing during operation.

• Maintains belt tension by pulling the idler arm/pulley against the drum belt
• Helps the motor start and keep the drum turning smoothly
• Reduces belt slippage that can cause squealing or chirping
• Common symptoms of a failed spring: drum won't turn or turns intermittently; belt comes off or feels loose; loud squeal from idler area

• Disconnect power; for gas dryers, shut off the gas supply
• Access the idler assembly; relieve belt tension and note belt/spring routing before removal
• Attach the new spring to the same holes/orientation on the idler arm and base; verify belt path
• Rotate the drum by hand to confirm alignment and tension before reassembly

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Replace a damaged collector duct to restore proper ventilation airflow. This kit channels air from the appliance's intake to the exhaust path, helping reduce leaks, noise, and recirculation for consistent capture performance.

• Directs airflow from the intake/collector to the exhaust duct path
• Helps maintain proper airflow and capture efficiency
• Provides a sealed transition to minimize air leaks and recirculation
• Common symptoms: poor vent suction, smoke/steam lingering, rattling vibrations, visible damage or gaps

• Disconnect power at the breaker; shut off gas before servicing
• Wear cut-resistant gloves—sheet-metal edges can be sharp
• Note airflow orientation and gasket locations; dry-fit before fastening
• Seal joints with UL-listed foil HVAC tape; do not use cloth duct tape

The Blower Wheel is an OEM part for Whirlpool dryers. It is essential for circulating air through the dryer's drum, helping to efficiently and evenly dry clothes by moving heated air past the tumbling laundry. This component is crucial for maintaining the performance and energy efficiency of your dryer.

Symptoms of a bad Blower Wheel include:

• Unusual noises, such as rattling or thumping, indicating a loose or damaged wheel.
• Reduced airflow, leading to longer drying times or clothes not drying completely.
•  Excessive vibrations during operation, which can also affect other components.

Causes of a bad blower wheel can include physical damage from foreign objects hitting the wheel, wear and tear from regular use, or accumulation of lint and debris that unbalances the wheel.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Clamp is an OEM part for Whirlpool dryers. This clamp ensures tight and secure connections within the dryer, particularly in securing ducts and vents that are essential for proper airflow and operation.

Clamps may need replacement due to loss of tension, corrosion, or damage from regular use. A compromised clamp can lead to operational issues such as prolonged drying times or excessive noise, resulting from loose parts or improper ventilation.

Symptoms of a bad Clamp include:

• Loose or detached vents or hoses, leading to inefficient dryer operation.
• Increased drying times, as a result of compromised airflow from unsecured ducts.
• Unusual vibrations or noise, indicating that internal components may not be securely fastened.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Can use 410233

Specs: No.8X1/2 HEX WASHER HEAD

This cycling thermostat regulates on/off heat cycles to maintain consistent operating temperature. Replacing a failed thermostat restores proper temperature control and helps protect the appliance from overheating or underheating during normal operation.

• Senses internal temperature and opens/closes contacts to control the heating circuit
• Helps prevent overheating; supports stable, repeatable heat cycling
• Common failure symptoms include no heat, overheating/shutting off too soon, or longer-than-normal run times
• Electrical component—failure may be intermittent before complete loss of function

• Disconnect power (and gas supply, if applicable) before service
• Note wire locations; transfer connectors one at a time to the new thermostat
• Mount firmly against the mating surface for accurate temperature sensing
• After installation, verify proper operation and temperature cycling

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Left hand side.

Felt pad.

Right hand side. Used most Admiral, Crosley, Norge, and Magic Chef dryers. Includes glide and felt pad.

Right hand side. For the drum glide and felt pad order LA-1006.

Felt pad.

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

This replacement idler pulley keeps the drive belt tight and tracking correctly so the drum can rotate smoothly. It restores quiet, consistent operation when the original pulley is worn or seized and causing belt slippage or noise.

• Maintains proper tension on the drive belt to enable smooth drum rotation
• Provides a low-friction surface for the belt to ride on and stay aligned
• Common symptoms of failure: squealing/chirping, belt fraying or coming off, burning rubber smell, or a drum that won't turn
• Replace if the pulley wobbles, binds, or the rim/bearing is worn

• Disconnect power; if gas, shut off the gas supply
• Note belt routing, relieve tension from the idler arm, and remove the belt from the motor pulley
• Remove the retaining hardware from the old pulley, install the new pulley on the idler arm shaft, and re-tension the belt
• Manually rotate the drum to verify smooth belt tracking before reassembly and test run

This idler assembly is the spring-loaded belt tensioner that keeps the drive belt correctly tightened. Replacing a worn or seized idler restores smooth belt tracking, reduces squeal, and helps prevent slippage or loss of drive.

• Maintains proper tension on the drive belt for reliable power transfer
• Helps prevent belt slippage, squealing, or the belt coming off the pulleys
• Supports smooth rotation of the driven components
• Failure symptoms can include noise from the belt path, a frayed or derailed belt, or loss of motion

• Disconnect power and allow all moving parts to stop before servicing
• Access the belt path; relieve belt tension and remove the old idler assembly
• Install the new assembly; ensure the pulley spins freely and the belt is centered in the groove
• Manually rotate the system to verify alignment and clearances before restoring power
