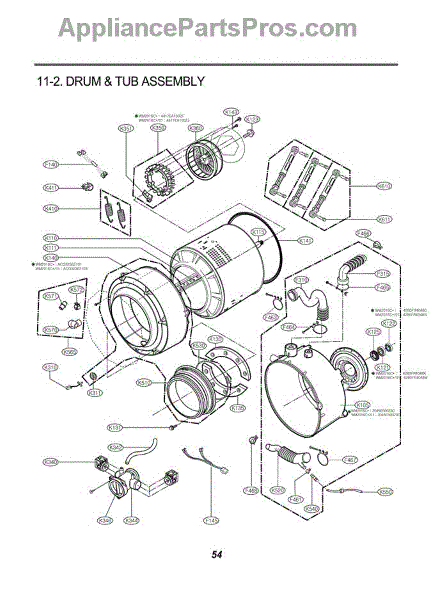

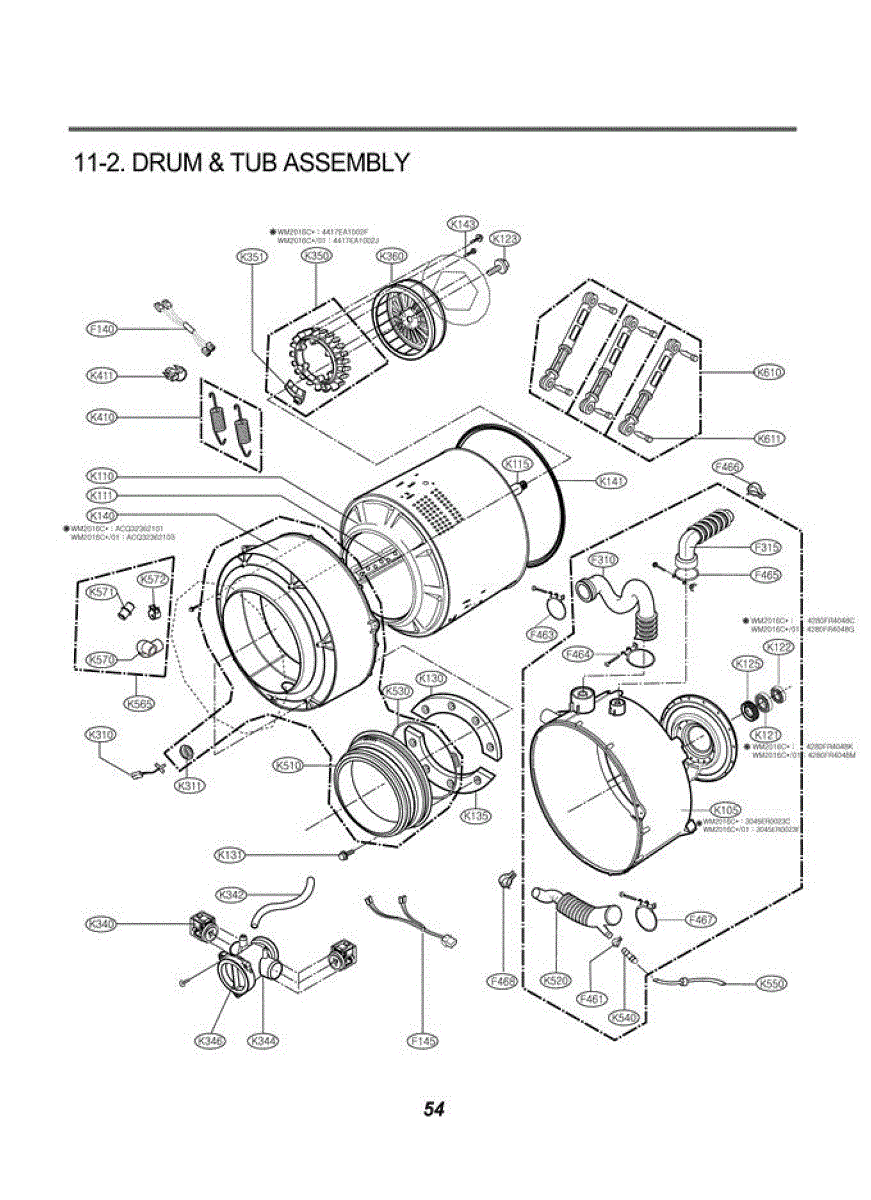

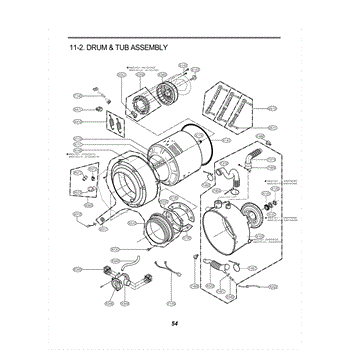

Parts for Lg WM2016CW / ABWEEUS: Section 2 Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This is a spider arm assembly for washing machines. Another name for the spider is the rear tub support because it provides support for the outer tub. The spider has three legs that are approximately 10 inches long each. washing machines might need a new spider arm assembly if it is very noisy, if it shakes excessively while running, if the drum is emitting burning smells at high speeds, or if it is smoking. If upon visual inspection, the spider arm assembly is rusted or corroded, it will need to be replaced. The dryer drum may appear to have cracks, but this is how it is manufactured during the casting process. This is a genuine LG part and is an OEM part sourced directly from the manufacturer. It is sold individually. This specific spider arm assembly is compatible with washing machines that are LG and Kenmore manufacture.

The Motor Rotor Bolt is an OEM part for LG washing machines. It secures the rotor to the motor shaft, playing a crucial role in the efficient functioning of the motor and ensuring the washer drum spins correctly during wash cycles.

Causes of a bad motor rotor bolt can include wear and tear from prolonged use, corrosion due to exposure to moisture, or damage from over-tightening or accidental impacts. A faulty motor rotor bolt can compromise the stability of the motor, leading to various operational issues.

Symptoms of a bad motor rotor bolt include:

• The washer drum not spinning or spinning irregularly
• Unusual noises during operation, such as banging or clunking
• The washer failing to complete cycles or stopping mid-cycle
• Visible wear or damage to the bolt or surrounding components

This OEM LG part is also compatible with Sears/Kenmore models.

The Lower Tub Seal is an OEM part for LG front-loading washing machines. It is located between the inner and outer tubs, creating a barrier to prevent water from leaking through the space between these two components.

Symptoms of a leaking lower tub seal include:

• Water stains or moisture accumulating on the outer tub surface
• Puddles of water found underneath the machine
• Excess vibration or noise from unbalanced water pressure

Failure can occur from mineral deposits obstructing the sealing surface over time. Cracks or tears in the seal material also compromise its leak-prevention ability.

This OEM LG part can also be used on Kenmore/Sears appliances.

This Screw (drawing) is a factory fastener used to secure appliance panels and components. Replacing a stripped, corroded, or missing screw restores a tight fit, reduces vibration, and helps keep assemblies correctly aligned.

• Secures panels, brackets, and mounting points as specified by the manufacturer
• Replaces screws that are lost, damaged, corroded, or stripped
• Helps address rattling, vibration, or loose-fitting parts caused by missing hardware
• Maintains proper alignment and stability of the assembly

• Disconnect power and, if applicable, shut off gas/water before servicing
• Match the screw to its original location; start threads by hand to avoid cross-threading
• Use the correct driver; tighten snugly without over-torquing into metal or plastic
• Refer to your model's parts diagram to correct location and quantity

The Outer Tub Seal is an OEM part for LG washing machines. It provides a watertight seal between the outer tub and the tub cover, preventing water from leaking during the wash and spin cycles.

Causes of a bad outer tub seal can include wear and tear over time, exposure to harsh detergents, or damage from foreign objects that may enter the tub during washing. A compromised seal can lead to water leakage, which can cause further damage to the washing machine and the surrounding area.

Symptoms of a bad outer tub seal include:

• Water leaking from the bottom of the washing machine
• Mold or mildew growth around the seal
• Excessive moisture in the area surrounding the washer
• Unusual noises during the wash or spin cycles

This OEM LG part is also compatible with Sears/Kenmore.

The Motor Stator Bolt is an OEM part for LG washing machines. This bolt secures the stator to the motor, ensuring the stability and proper functioning of the washing machine's motor assembly.

Causes of a bad motor stator bolt can include wear and tear over time, improper installation, or damage from over-tightening or impact. A compromised bolt can lead to instability in the motor, potentially affecting the washer's performance.

Symptoms of a bad motor stator bolt include:

• Unusual noises during the wash cycle
• Vibrations or shaking of the washer
• The motor not functioning properly or failing to start

This OEM LG part is also compatible with Sears/Kenmore.

The Thermistor Assembly is an OEM component specifically designed for front loading LG washing machines. It plays an important role in monitoring and regulating temperatures during heated wash cycles. The thermistor detects temperature changes within the wash drum and sends this information to the control board to ensure clothes are washed at the optimal temperature.

Causes of a bad thermistor assembly can include general wear and tear over time, exposure to extreme temperatures, or damage due to impact or mishandling during cycles.

Symptoms of a bad thermistor assembly include:

• Inability to reach or maintain set temperatures
• Fluctuating water temperatures
• Error codes related to temperature sensing

This OEM LG part is also compatible with Sears/Kenmore washers.

This thermistor seal is the grommet that seals the temperature sensor where it passes through the washing machine's outer tub. Replacing a worn seal restores a watertight fit and helps prevent leaks that can damage surrounding components. What it does

• Forms a watertight barrier around the tub temperature sensor (thermistor)
• Helps keep the sensor securely positioned in the mounting port
• Common failure symptoms: water leaking during cycles, puddles under the unit, visible cracking/hardening of the grommet, or a loose sensor fit

• 1 thermistor seal

• Disconnect power and water; drain any remaining water from the tub
• Access the thermistor on the outer tub, disconnect its harness, and remove the sensor
• Pull out the old seal, clean the opening, press in the new seal, and reinstall the sensor fully seated
• Run a brief test cycle and check for leaks before final reassembly

The Vent Hose is an OEM part for LG washing machines. This hose is essential for ensuring proper ventilation within the washer, allowing air to circulate and preventing the buildup of moisture and mildew. It helps maintain the efficiency of the washing machine by facilitating the expulsion of air and excess water vapor during operation.

Causes of a bad washer vent hose can include wear and tear over time, blockages from lint or debris, or damage due to bending or pinching.

Symptoms of a bad vent hose include:

• Excessive moisture or condensation inside the washer
• Musty odors from the washing machine
• Visible cracks or holes in the hose
• Poor ventilation leading to inefficient washing cycles

This OEM LG part is also compatible with Sears/Kenmore.

The Drain Pump and Motor is an original LG (OEM) replacement part for LG made washing machines that is responsible for removing water from the washer at the end of the wash cycle. The pump forces water out through the drain hose so that clothing comes out free of excess water, making the drying process faster.

Symptoms of a failing Drain Pump Motor include:

• Water not draining out of the washing machine
• Noisy or unusual sounds coming from the pump area during the drain cycle
• The washing machine stopping mid-cycle

Causes of a bad Drain Pump Motor can range from obstructions in the pump or hose, which can strain or damage the motor, to wear and tear from regular use leading to motor failure. Electrical issues can also affect the motor's performance, preventing it from operating correctly.

This OEM LG part can also be used on Kenmore/Sears appliances.

The Drain Hose is an OEM part for LG washing machines. It is designed to carry used water from the washing machine to the household drain. This hose ensures that water is efficiently expelled from the washer, preventing any overflow or leakage issues.

Causes of a bad drain hose can include cracks or splits due to wear and tear, clogs from debris or residue buildup, and damage from mishandling or improper installation. Such issues can compromise the hose's ability to transport water effectively.

Symptoms of a bad Drain Hose include:

• Water leaks during or after the wash cycle
• The washer not draining properly
• Visible cracks or damage to the hose
• Unpleasant odors due to trapped debris or standing water

This OEM LG part is also compatible with Sears/Kenmore models.

The Pump Casing is an OEM replacement part for LG washing machines. It is a crucial component that houses the drain pump, which is responsible for removing water from the wash tub during the drain and spin cycles.

Symptoms of a need to replace the pump casing:

• Leaks or water seeping from the pump area
• Unusual noises or vibrations during the drain or spin cycles
• Pump failure or inability to drain water effectively
• Cracks or damage to the casing itself

Causes of a faulty pump casing can include physical impact or mishandling, excessive wear and tear over time, or potential manufacturing defects.

This OEM LG part is also compatible with Sears/Kenmore washing machines.

The Pump Filter Assembly is an OEM replacement part for LG washing machines. It is a crucial component that filters out lint, debris, and other particles from the wash water, preventing them from recirculating and damaging the pump or other internal components.

Symptoms of a need to replace the pump filter assembly:

• Clogging or blockages, leading to poor drainage or water not draining completely
• Excessive buildup of lint, hair, or other debris in the filter screen
• Leaks or water seeping from the filter housing or surrounding area
•  Unusual noises or vibrations during the drain or spin cycles, indicating a potential blockage

Causes of a faulty pump filter assembly can include excessive lint accumulation, damage to the filter screen or housing due to impact or mishandling, and general wear and tear over time.

This OEM LG part is also compatible with Sears/Kenmore washing machines.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

Stator assembly for the washer's direct-drive motor that produces the magnetic field to turn the rotor and drive wash cycles. Replacing a worn or damaged stator can restore proper spin and agitation.

• What it does: stationary coil pack inside the direct-drive motor that creates the magnetic field used to rotate the rotor and power wash/spin functions.
• Common symptoms: washer won't spin or agitate, motor hums but won't start, intermittent motor operation, or motor-related error codes.
• Compatibility note: used as the motor stator in applicable LG direct-drive washers.
• Service tip: inspect the rotor and motor connectors for damage when replacing the stator.

• Always disconnect power to the appliance before starting any repair.
• Replacement typically requires access to the motor assembly and separation of the rotor from the stator; handle strong magnets and fragile windings carefully.
• Check wiring harnesses and connector pins for corrosion or damage and ensure all connectors are fully seated during reassembly.

This rotor position sensor (Hall sensor) tracks the direct-drive motor's rotor position and speed so the control can commutate the washer motor accurately. Replacing a failed sensor can restore proper wash/agitate and spin performance. What it does:

• Detects rotor position and speed from the stator assembly
• Sends timing feedback to the control for correct motor start, direction, and speed
• Supports smooth agitation and spin ramp-up/ramp-down
• Failure may cause: no spin or agitation, cycle stalling/pausing, or an LE motor error code

• 1 rotor position sensor assembly

• Unplug the washer and shut off water; wear protective gloves
• Access the motor at the rear of the tub; remove the back panel if needed
• Remove the rotor and stator; support the stator to protect wiring, then unclip/unscrew and replace the sensor
• Align the sensor correctly and seat the connector fully before reassembly and testing

This washer rotor assembly mounts on the direct-drive motor and works with the stator to turn the basket. Replacing a worn rotor restores smooth tumbling and full spin performance when the drum won't turn or makes harsh scraping noises.

• Works with the stator to create the magnetic drive that spins the wash basket
• Helps when the washer won't spin or tumble, or only reaches a weak/erratic spin
• Can reduce grinding/scraping noises from the rear of the tub
• Addresses slippage from worn splines or a damaged magnet ring on the rotor

• Disconnect power and turn off water before servicing
• Access the rotor at the back of the tub; remove the rear cover if present
• Support the rotor, remove the center bolt, and pull the rotor straight off; magnets are strong
• Align splines, seat the new rotor fully, start the bolt by hand, and tighten to the manufacturer's specification

The Suspension Spring Holder is an OEM part for LG washing machines. This holder supports the suspension springs that help stabilize the washer drum during operation, reducing vibration and movement. It plays a critical role in ensuring smooth and quiet operation of the washing machine.

Over time, the suspension spring holder can become worn or damaged due to regular use, heavy loads, or accidental impacts. Causes of a bad suspension spring holder include wear and tear, physical damage, or corrosion from moisture exposure.

Symptoms of a bad suspension spring holder include:

• Excessive vibration or shaking during wash cycles
• Unusual noises, such as banging or clunking
• The washer drum appearing misaligned or sagging
• The washing machine moving or walking during operation

This OEM LG part is also compatible with Sears/Kenmore.

This spring-style hose clamp secures a washer's rubber hose to its fitting to maintain a tight, leak-resistant seal. Replacing a weakened clamp helps stop drips and keeps the hose firmly in place during operation.

• Provides constant spring tension to hold a rubber hose on its port
• Helps prevent leaks at the connection point
• Resists vibration so the hose doesn't back off the fitting
• Common signs include water at a hose joint, a loose/detached hose, or a rusted/broken clamp

• Disconnect power and turn off water supply before servicing
• Place a towel or pan to catch residual water from hoses
• Use pliers to compress the ears, slide off the old clamp, position the new clamp behind the hose bead, and release evenly
• After reassembly, run a quick test cycle and check for leaks

This hose clamp secures a rubber hose connection to prevent leaks where the hose meets its fitting. A tight, uniform seal helps maintain proper water flow and keeps the appliance operating reliably.

• Provides a tight, 360-degree seal around the hose barb/fitting
• Helps correct issues like water leaks at the hose connection point
• Maintains correct hose attachment during operation and vibration
• Step-less ear design distributes clamping force evenly

• Unplug power and shut off water supply before servicing
• Note clamp orientation and hose routing before removal
• Use appropriate ear-clamp pincers or pliers to compress the clamp evenly
• Check the hose and fitting for wear; replace if cracked or deformed

This hose clamp secures a washer hose to its fitting to maintain a tight, leak-resistant connection. Replace a weakened or damaged clamp to stop seepage at hose joints and keep the washer operating reliably.

• Holds the hose firmly on pump, tub, or drain fittings to help prevent leaks
• Maintains clamping pressure during operation and vibration
• Replace if rusted, bent, cracked, or no longer holding tension
• Typical symptoms: water dripping at hose connections or a hose that slips off

• Disconnect power and shut off water; drain any remaining water from the unit
• Release and slide back the old clamp, then remove the hose
• Fully seat the hose on the fitting and position the clamp just behind the hose bead/ridge
• Secure the clamp and run a brief test to check for leaks

This hose clamp secures a rubber hose connection to prevent leaks where the hose meets its fitting. A tight, uniform seal helps maintain proper water flow and keeps the appliance operating reliably.

• Provides a tight, 360-degree seal around the hose barb/fitting
• Helps correct issues like water leaks at the hose connection point
• Maintains correct hose attachment during operation and vibration
• Step-less ear design distributes clamping force evenly

• Unplug power and shut off water supply before servicing
• Note clamp orientation and hose routing before removal
• Use appropriate ear-clamp pincers or pliers to compress the clamp evenly
• Check the hose and fitting for wear; replace if cracked or deformed

This hose clamp secures a washer hose to its fitting to maintain a tight, leak-resistant connection. Replace a weakened or damaged clamp to stop seepage at hose joints and keep the washer operating reliably.

• Holds the hose firmly on pump, tub, or drain fittings to help prevent leaks
• Maintains clamping pressure during operation and vibration
• Replace if rusted, bent, cracked, or no longer holding tension
• Typical symptoms: water dripping at hose connections or a hose that slips off

• Disconnect power and shut off water; drain any remaining water from the unit
• Release and slide back the old clamp, then remove the hose
• Fully seat the hose on the fitting and position the clamp just behind the hose bead/ridge
• Secure the clamp and run a brief test to check for leaks

The Door Boot Gasket is an OEM replacement part for LG washing machines. It establishes a secure seal around the perimeter of the washer door during operation.

Causes for failure include cracking or breakdown of adhesive qualities over extended tumbling cycles. Repeated impacts during high spin can dislodge sections.

Symptoms of a bad door boot gasket include:

• Drips or puddles around the base after cycles complete
• Gradual pooling observed near door edges
• Loosening or falling fragments found inside the drum
• Visible moisture escaping between the door and frame interface

This OEM LG replacement ensures years of leak-free washing.

NOTE: This gasket includes a port. For the gasket without the port order MDS33059401.

This tub-to-pump hose connects the washer's outer tub to the drain pump, carrying water out during the drain cycle. Replace it to resolve leaks or drain errors caused by cracks, splits, or internal blockages.

• Routes wash water from the outer tub to the drain pump
• Flexible bellows section helps prevent kinking and accommodates tub movement
• Failure signs: water leaking under the washer, slow/no draining, drain-related error codes, or visible cracks/soft spots
• Often needed after clamp corrosion, physical damage, or age-related deterioration

• Unplug the washer and turn off water supply; drain any remaining water from the tub/hoses
• Access location varies by model; remove panels as needed to reach the hose and clamps
• Use pliers to release spring clamps; note routing and clamp orientation before removal
• Seat the hose fully on fittings, secure clamps, and test with a short drain/rinse cycle to check for leaks

The Inner Door Gasket Clamp is an OEM part for LG washing machines. It secures the inner door gasket in place, ensuring a tight seal to prevent water leaks during the wash cycle. This clamp is essential for maintaining the efficiency and reliability of the washing machine by keeping the door gasket firmly in position.

Over time, wear and tear, exposure to water and detergent, or accidental mishandling can compromise the integrity of the clamp, leading to potential leaks.

Symptoms of a bad inner door gasket clamp include:

• Water leaking from the door area
• The door gasket not staying securely in place
•  Visible damage or corrosion on the clamp

This OEM LG part is also compatible with Sears/Kenmore.

Comes with clamps and adapter.

This hose connector joins two internal water lines inside your washer to create a secure, leak-resistant connection. Replacing a worn coupler helps stop drips and keeps water moving properly during fill, wash/recirculation, and drain cycles.

• Joins two hoses inside the appliance for a tight, reliable seal
• Helps maintain proper water flow during operation
• Replace if cracked, deformed, or if hoses slip off despite clamp tension

• Unplug the washer and turn off water supply; expect some residual water
• Access the hose junction and note hose routing and clamp positions
• Fully seat hoses onto the connector and secure clamps behind the hose bead
• Reassemble and run a short test cycle while checking for leaks

The Clamp is an OEM part for LG washing machines. It is used to secure the hose connections within the washer, ensuring that water flows correctly without leaks.

Over time, the clamp can become worn or damaged due to repeated exposure to water, vibration, or general wear and tear. If the clamp fails, it can lead to water leaks or hoses becoming detached.

Symptoms of a bad clamp include:

• Water leaking from hose connections
• Hoses coming loose or detaching during operation
• Visible rust or damage on the clamp
• Poor water flow or pressure issues

This OEM LG part is also compatible with Sears/Kenmore models.

The Shock Absorber Kit is an OEM part for LG washing machines. This part minimizes vibrations and absorbs shocks during the washing and spinning cycles. By stabilizing the drum, these shock absorbers ensure smooth and quiet operation, preventing excessive movement and potential damage to the washer.

Causes of a bad shock absorber can include wear and tear over time, heavy or unbalanced loads that put extra strain on the absorbers, or damage from impact or mishandling.

Symptoms of a bad shock absorber include:

• Excessive shaking or vibrating during the wash cycle
• Loud banging or knocking noises
• The washer moving or "walking" during operation
• Leaks due to increased stress on the tub and other components

This OEM LG part is also compatible with Sears/Kenmore.

Locking pin for shock absorber.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
