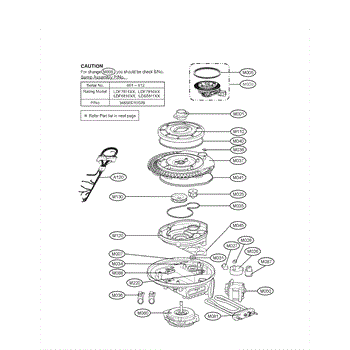

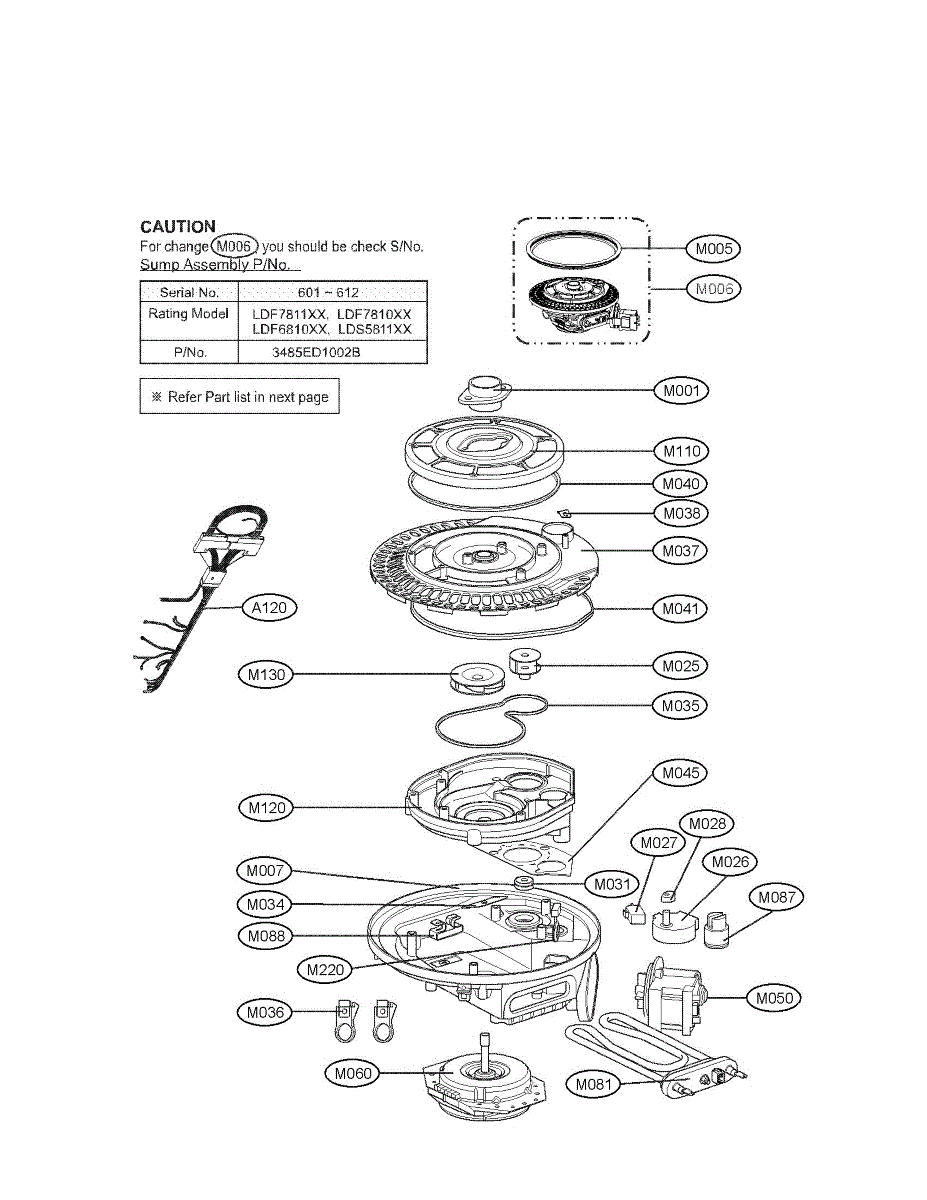

Parts for Lg LDF6810BB-01: Sump Assy Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This thermistor holder secures the temperature sensor in place inside the dishwasher, ensuring accurate water temperature readings for proper wash and dry performance.

• Holds the thermistor securely in the sump/tub area
• Helps the control accurately monitor wash water temperature
• A loose or missing holder can cause temperature-related wash issues
• Common symptoms include temperature errors or poor cleaning/drying when the sensor isn't properly positioned

• Disconnect power and turn off water supply before servicing
• Access the sensor location from the tub/sump area; note original orientation
• Transfer the thermistor into the new holder and snap the holder into place
• Inspect the sensor wiring and seals while reassembling

This dishwasher sump gasket seals the joint between the sump assembly and the tub to prevent leaks and maintain wash performance. Replace it if the old seal is worn, flattened, cracked, or damaged to stop water escaping beneath the unit.

• Creates a watertight seal where the sump attaches to the tub
• Helps prevent water leaks from the base of the dishwasher
• Supports proper circulation and overall wash performance
• Common failure signs: puddles under the unit, leaks during a cycle, or a visibly torn/deformed gasket

• Disconnect power and turn off the water supply before servicing
• Access the sump from inside the tub (remove lower rack, spray arm, filters, and sump cover) or from below, depending on model
• Clean mating surfaces; install the new gasket evenly without twists or gaps
• Reassemble and run a short cycle to check for leaks

The Sump and Motor Assembly is an OEM replacement part for LG dishwashers. As a functional pumping component, it circulates water and removes debris during dish cycles.

Symptoms of a bad sump and motor assembly can include:

• Inability to properly fill or drain water from the dishwasher
• Leaks or excessive pooling of water inside the unit
• Loud knocking or grinding noises from the motor area

Causes of failure may involve a clogged or cracked sump housing impairing flow, or wear of the motor bearings degrading power output over time.

This genuine OEM LG part is also compatible with some select Kenmore brand models.

Sump assembly collects and channels a washer's drained water into the drain pump to let the machine empty properly. Replacing a worn or cracked sump helps stop leaks and restores normal draining performance. What it does:

• Directs and funnels tub water to the drain pump so the washer can evacuate water.
• Prevents water from leaking under the washer when intact and properly sealed.
• Can cause poor or no draining, standing water in the tub, or drain/pump-related error codes when damaged.
• May produce unusual noises during the drain cycle if cracked or clogged.

• Disconnect power and turn off water supply before starting any repair.
• Access typically requires removing the washer's front or lower access panel; support the machine as needed.
• Inspect and replace any worn seals, hoses, or clamps when installing to ensure a watertight fit.
• After installation, run a short drain/spin cycle and check for leaks before returning the washer to regular use.

This check valve is a one-way valve used in the refrigerator's water line. It prevents backflow to maintain pressure for the dispenser and ice maker, helping reduce drips and ensuring consistent water delivery.

• Allows water to flow in one direction only to prevent backflow
• Helps maintain line pressure for steady dispensing and proper ice fills
• May reduce post-dispense dripping at the water outlet
• Failure symptoms can include slow/sputtering dispense, dripping, or inconsistent ice fills

• Unplug the appliance and shut off the household water supply before servicing
• Dispense water to relieve pressure; place a towel to catch residual water
• Note the valve's orientation/flow direction and tubing routing before removal
• Fully seat tubing and secure connections; restore water and check for leaks

The Diverter Motor Assembly is an OEM part for LG dishwashers. It is a critical component used to control the direction of water flow within the dishwasher, ensuring that water is properly diverted between the different spray arms during various wash cycles.

Symptoms of a failing Diverter Motor Assembly include:

• Inadequate cleaning of dishes, with some areas remaining dirty
• Unusual noises, like humming or clicking, indicating the diverter motor is struggling to operate
• Error codes displayed on the dishwasher that relate to water distribution problems
• Water not reaching all spray arms

Causes of a bad diverter motor can include wear and tear from regular use, electrical issues such as faulty wiring or motor failure, and mechanical obstructions or debris that prevent the diverter from moving smoothly.

This OEM LG part is also compatible with Sears/Kenmore models.

The Dishwasher Micro Switch is an OEM part for LG dishwashers. It plays a crucial role in detecting the door's position, ensuring the dishwasher only operates when the door is securely closed. This switch helps maintain safety and proper functioning during the wash cycle.

Causes of a bad micro switch can include wear and tear from regular use, electrical malfunctions, or physical damage. A compromised micro switch can prevent the dishwasher from starting or stopping correctly.

Symptoms of a bad dishwasher micro switch include:

• The dishwasher not starting or stopping unexpectedly
• Error codes related to door issues
• The door not locking securely during operation
• Unresponsive control panel or buttons

This OEM LG part is also compatible with Sears/Kenmore models.

This replacement switch cam interfaces with a lever or knob to actuate a microswitch. It restores reliable on/off signaling and the positive feel/engagement of the related control or latch mechanism when the original cam wears or cracks.

• Translates lever or rotary motion into precise switch activation
• Ensures the switch travels fully to open and close as intended
• A worn or broken cam can cause intermittent operation or functions that won't start/stop as expected
• Helps bring back a defined "click" or detent at the control/lever

• Disconnect power to the appliance before servicing; turn off gas/water if applicable
• Access the switch or latch assembly; remove any knob, trim, or cover as needed
• Note the cam's orientation/indexing before removal; take photos for reference and transfer any springs/clips
• After reassembly, manually test the mechanism to ensure smooth switch actuation before restoring power

The Cam Motor Shaft Seal is an OEM part for LG dishwashers. It provides a watertight seal around the cam motor shaft, preventing water from leaking into the motor and other electrical components. This seal is essential for maintaining the efficiency and safety of the dishwasher.

You should replace the cam motor shaft seal if it becomes worn out or damaged. Common causes of a bad shaft seal include regular wear and tear, exposure to high temperatures and chemicals from detergents, or improper installation. A compromised seal can lead to leaks and potential damage to the motor.

Symptoms of a bad cam motor shaft seal include:

• Water leaks from the bottom of the dishwasher
• Unusual noises during the wash cycle
• Reduced efficiency in cleaning due to water escaping
• Visible damage or wear on the seal

This OEM LG part is also compatible with Sears/Kenmore models.

This dishwasher spray arm, also called a blade, directs high-pressure wash water through its jet ports and rotates to cover the tub. Replace a cracked, warped, or clogged blade to restore spray coverage and cleaning performance.

• Distributes wash water through multiple jets during wash and rinse cycles
• Rotates using water pressure for even, consistent spray coverage
• Helps remove soils from dishes throughout the tub
• Helps resolve poor cleaning, weak spray, a non-spinning arm, or visible cracks/deformation

• Disconnect power and shut off water supply before servicing
• Open the dishwasher and clear access to the spray arm (remove rack(s) if needed)
• Release the retaining clip or nut, lift off the old arm, and clear any debris at the hub
• Install the new arm, secure the fastener, ensure it spins freely, restore utilities, and run a test cycle

This holder is a small mounting bracket that secures internal components in place, helping reduce movement and noise while keeping parts aligned for reliable operation. It's a direct-fit replacement when the original holder is broken or missing. What it does

• Secures and supports nearby components or assemblies to prevent shifting during operation
• Helps reduce vibration and rattling caused by loose parts
• Maintains proper alignment for connected parts to ensure consistent performance
• Commonly replaced when cracked, warped, or missing after impact or wear

• One holder

• Disconnect power (and water supply if appliance uses water) before servicing
• Inspect surrounding clips and screws; replace any that are damaged
• Typically installs with existing fasteners; keep orientation the same as the original

The PUMP MOTOR is an OEM part for LG washing machines. It is an electric motor that powers the pump responsible for circulating water inside the washing machine tub and through hoses during all wash cycles. Efficient water flow is necessary for proper cleaning and rinsing performance.

Causes of a bad pump motor can include mineral buildup inhibiting smooth rotation, worn motor windings affecting current flow, or damage from water damage into the motor housing.

Symptoms of a bad pump motor include:

• Incomplete or failed wash cycles
• Inability to fill or drain properly
• Strange noises emanating from the pump area
• Leaks or water issues related to poor water circulation

This OEM LG part is also compatible with Sears/Kenmore.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Dishwasher Circulation Motor is an OEM part for LG dishwashers. It plays a crucial role in the dishwasher's operation by pumping water through the spray arms during the wash cycle, ensuring that dishes are thoroughly cleaned.

Over time, the circulation motor can fail due to normal wear and tear, electrical issues, or blockages caused by debris. A malfunctioning motor can lead to inefficient cleaning and increased noise levels. Regular maintenance and avoiding overloading the dishwasher can help extend the motor's lifespan.

Symptoms of a bad circulation motor include:

• Dishes not being cleaned properly
• Unusual noises during the wash cycle
• The dishwasher not completing cycles
• Water not circulating within the dishwasher

This OEM LG part is also compatible with Sears/Kenmore.

The Heater Assembly is an OEM replacement part for LG dishwashers. Located internally behind the tub wall, it works to boost incoming water temperatures for optimal sanitization during hot rinse cycles.

Symptoms of a bad heater assembly include:

• Inadequate heating resulting in lukewarm final rinses
• Fault codes or cycle interruptions during prolonged heating
• Diminished drying performance from lack of hot air
• Noticeable decline in overall cleaning from colder wash water

Causes related to mineral deposits clogging component coils over many years of use. Damage may also be caused by harsh chemicals left inside during wash cycles.

Compatible models include some Kenmore and Sears dishwashers.

The Mesh Filter Assembly is an OEM part for LG dishwashers. It is responsible for trapping food particles and debris during the wash cycle, preventing them from recirculating and ensuring clean dishes. This filter maintains the efficiency and performance of the dishwasher by keeping the water clean and free of contaminants.

Over time, the mesh filter can become clogged with food particles, grease, and other debris, reducing its effectiveness. Physical damage or wear and tear from regular use can also compromise its functionality, leading to poor cleaning results and potential blockages in the dishwasher.

Symptoms of a bad mesh filter assembly include:

• Dishes not being cleaned properly
• Water not draining correctly
• Unpleasant odors coming from the dishwasher
• Visible debris in the wash water

This OEM LG part is also compatible with Sears/Kenmore.

The Dishwasher Inner Pump Housing is an OEM part for LG dishwashers. This component houses the pump, which is essential for circulating water throughout the dishwasher during the wash and rinse cycles.

Causes of a bad inner pump housing can include cracks or damage from debris, mineral buildup from hard water, or general wear and tear over time. Damage to the housing can lead to inefficient water circulation and potential leaks.

Symptoms of a bad inner pump housing include:

• Water leaks under the dishwasher
• Unusual noises during the wash cycle
• Poor cleaning performance
• Reduced water circulation

This OEM LG part is also compatible with Sears/Kenmore.

This impeller screw secures the pump impeller so the washer's drain system operates correctly. It's a small but critical fastener that keeps the impeller mounted and aligned for reliable water removal. What it does:

• Holds the pump impeller to the motor or pump shaft to maintain proper rotation
• Prevents the impeller from coming loose or wobbling during operation
• Can help stop grinding or unusual pump noises caused by a loose impeller
• Supports proper draining by keeping the impeller engaged with the pump assembly

• Disconnect power and water before accessing the pump or impeller assembly
• Small part — keep track of screws and use appropriate tools to avoid stripping
• Inspect mating threads and the impeller for wear; replace damaged components as needed

This impeller assembly spins on the dishwasher's pump to move water through the system. Replacing a worn or broken impeller restores proper water flow, helping maintain wash performance and reducing noise from the pump area. What it does:

• Moves water through the dishwasher's pump system for circulation and cleaning
• Helps maintain correct water flow and spray pressure to the spray arms
• Typical failure signs: poor cleaning or weak spray, unusual grinding/humming from the sump, or slow/no draining depending on which impeller has failed
• Physical clues include damaged/broken blades or a loose fit on the motor shaft

• 1 impeller assembly

• Disconnect power and turn off the water supply before servicing
• Remove the lower rack and filters to access the pump/sump; follow your model's service information
• Note the impeller's orientation; transfer any reusable seals or hardware from the original as required
• After reassembly, check for leaks and verify the pump spins freely before running a test cycle

The Check Valve is an OEM part for LG dishwashers. It prevents the backflow of water into the dishwasher, ensuring that water only flows in the intended direction. This helps maintain the efficiency of the washing cycle and prevents contamination of clean dishes.

The check valve can fail due to reasons such as wear and tear, blockage from debris or hard water deposits, or damage from high water pressure. Over time, the internal components can degrade, leading to improper sealing.

Symptoms of a bad check valve include:

• Water backing up into the dishwasher
• Poor cleaning performance due to improper water flow
• The dishwasher not draining properly
• Unusual noises during the wash or drain cycles

This OEM LG part is also compatible with certain models of Kenmore dishwashers.
