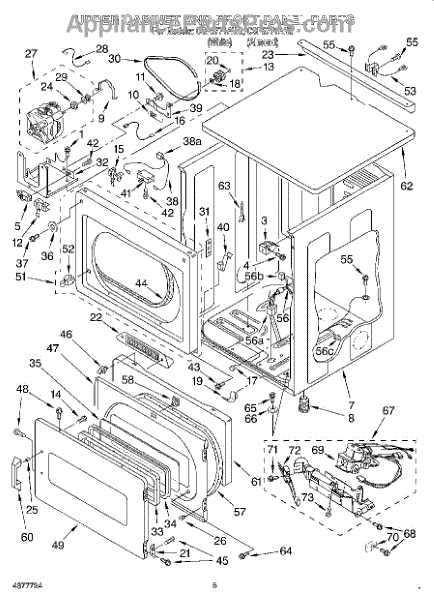

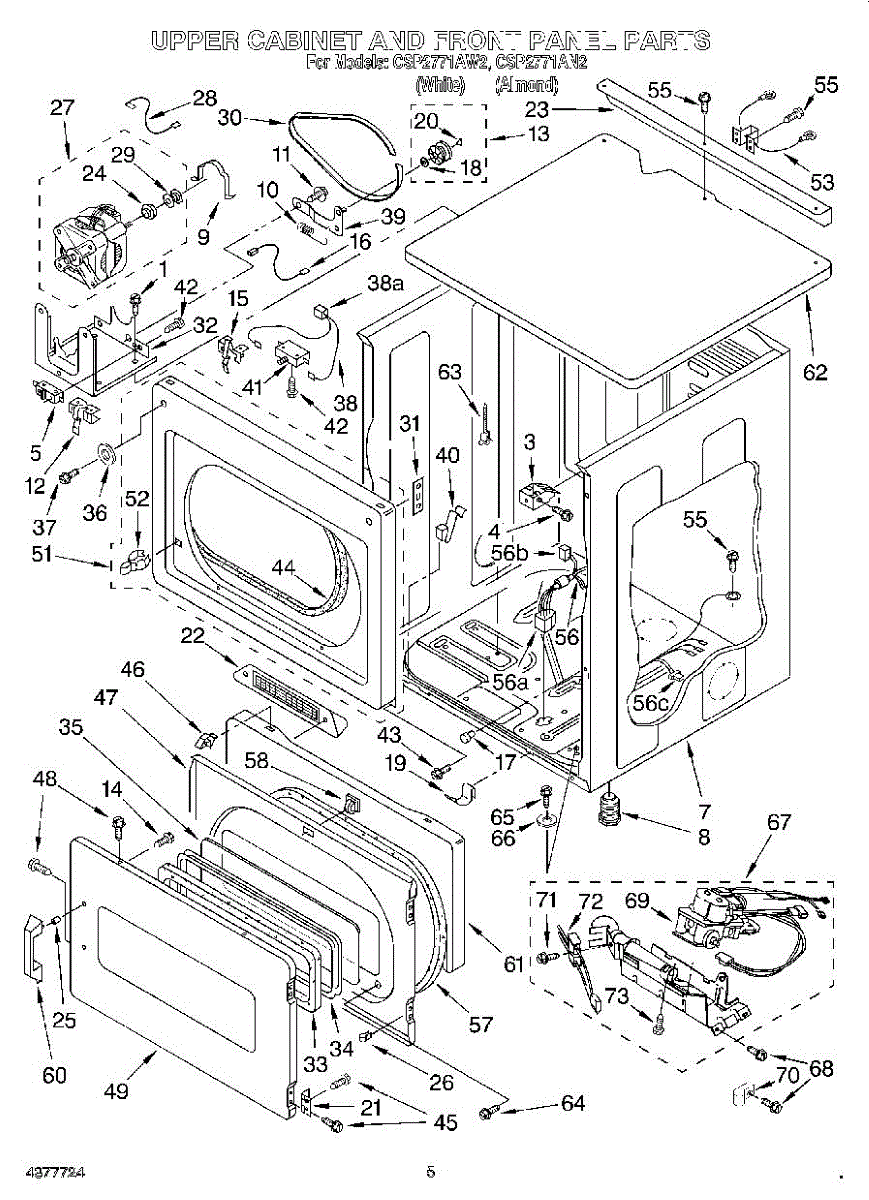

Parts for Whirlpool CSP2771AW2: 04 - Upper Cabinet And Front Panel Parts

Specs: 10-16 x 1/2 inch.

Secures the front panel to the dryer cabinet. Replace if broken or missing to ensure proper panel alignment. Verify fit with your model number.

Replacement mounting screw for securing handles, panels, and internal components. Needed when original screws are stripped, lost, or broken during repairs.

Dryer won't start but has power and timer works? This belt switch kit stops the dryer when the belt breaks. Moderate DIY repair, 45-60 minutes.

This part is a motor clamp. This is a genuine OEM part and has been sourced directly from the manufacturer. This part is intended to replace a deteriorated, damaged, or broken motor clamp on certain makes of indoor appliance models. Motor clamps are essential for properly securing the drive motor on various types of indoor appliances such as washers, dryers, and refrigerators. Without the use of a motor clamp, the drive motor is free to move around or become detached. This can easily cause serious damage to the equipment and prevent proper functionality. Proper tools are needed to replace this part and appropriate safety measures should be adhered to when working on any type of equipment. For accurate information on how and where to install this replacement motor clamp, specific manufacturer diagrams should be referred to.As an authentic replacement part, this motor clamp can be used on multiple different models of washers, dryers, refrigerators, and washer/dryer combos manufactured by Kenmore, Maytag, Whirlpool, and Amana. Please note that this motor clamp is a genuine part made of high-quality materials and is sold individually.

The Idler Arm Spring is an OEM part for Whirlpool dryers, maintains tension in the dryer's belt system. This spring is crucial for the proper operation of the dryer, as it helps to keep the belt tight around the drum and motor pulley, enabling the drum to rotate smoothly during cycles.

Causes of a bad Idler Arm Spring can include stretching or weakening over time due to constant tension, or breakage from wear and tear.

Symptoms of a bad Idler Arm Spring include:

• Unusual noises, such as squeaking or squealing
• The dryer drum may not rotate smoothly or may stop turning altogether
• Clothes take longer to dry, or you may notice uneven drying
• The dryer might not start if the belt is disengaged due to insufficient tension.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Secures the idler pulley to maintain proper drum belt tension in your dryer. Replace if worn, loose, or causing squealing noises. Confirm fit with your model.

The lid switch lever connects the washer's lid hinge to the lid switch, signaling when the lid is closed so the cycle can run. A damaged lever can prevent the safety interlock from closing, leading to no-start or spin issues. What it does:

• Transfers lid movement at the hinge to the lid switch actuator
• A closed lid so the washer can operate
• Common symptoms of a failed lever: washer won't start; won't spin; cycle pauses because the lid-closed signal isn't detected

• 1 lid switch lever

• Disconnect power before servicing
• Lift or open the top to access the hinge/switch area; locate the lever near the lid switch
• Remove the old lever and install the new one in the same orientation; free movement
• Close the lid by hand and the switch clicks before reassembly and testing

Replacement idler pulley for dryer drum belt systems. Maintains proper belt tension. Replace if pulley is cracked, worn, or bearings are damaged.

The Door Switch Lever is an OEM part for Whirlpool dryers. It plays a vital role in ensuring the dryer only operates when the door is securely closed by engaging with the door switch to signal the door's status.

Causes of a bad door switch lever can include normal wear and tear from repeated use, physical damage from accidental impact, or deformation from heat and humidity inside the dryer. A faulty lever can prevent the dryer from starting or stopping correctly.

Symptoms of a bad door switch lever include:

• Dryer not starting
• Dryer stopping mid-cycle
• Door not latching properly
• The dryer continuing to run with the door open

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Rubber bumper that cushions and supports the dryer drum. Replace if cracked, worn, or missing to prevent drum damage and reduce noise during operation.

The Thrust Washer is an OEM part for Whirlpool washers and dryers, reduces friction between moving parts within the appliance. This small component is placed between rotating surfaces to ensure smooth operation and to extend the lifespan of those parts. The thrust washer can wear down or become damaged due to the constant pressure and movement.

Causes for replacement may include normal wear and tear, overloading the appliance, which puts extra stress on mechanical components, or a lack of regular maintenance.

Symptoms of a bad Thrust Washer include:

• Increased noise during operation
• The appliance vibrating more than usual
• A decrease in performance efficiency

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This small retaining clip secures the door hinge in place so the door opens and closes smoothly and stays properly aligned. Replacing a worn or missing clip helps restore reliable hinge support and consistent door operation.

• Retains the hinge/hinge pin to prevent shifting or separation
• Helps maintain door alignment to avoid rubbing, sagging, or binding
• Replaces a clip that is bent, cracked, corroded, or missing
• Common signs it's needed: loose or wobbly door, difficulty closing, misaligned door, visible damaged/missing clip

• Unplug the appliance and, if applicable, remove items from the door to reduce weight
• Support the door before working on the hinge
• Remove any hinge cover/fasteners, swap the clip, and ensure it seats fully
• Reassemble and check door alignment and smooth operation

Secures drum support rollers to their shafts in your dryer. Replace if broken, missing, or damaged during roller maintenance to keep drum wheels stable.

Factory dryer door hinge that supports and pivots the door for smooth opening and closing. Replace if twisted, bent, or worn to restore proper alignment.

Dryer belt slipping off motor pulley or making squealing noises? The belt restrainer keeps the drive belt aligned. Moderate DIY repair with video guide.

Mounting nut for dryers. Secures components and panels in place. Replace if stripped, corroded, missing, or damaged during appliance maintenance.

Dryer humming but not starting? This drive motor rotates the drum and blower wheel. Moderately difficult repair requires drum removal. Fix it today.

Jumper wire for dryer broken belt switch. Installs on idler arm assembly. Replace if wire is damaged, broken, or missing after belt replacement.

The Motor Pulley is an OEM part for Whirlpool dryers, connects the dryer motor to the drum belt, enabling the drum to turn and efficiently dry your clothes. This pulley is crucial for the smooth operation of the dryer, ensuring that the belt is tensioned correctly and runs smoothly without slipping or causing wear.

Causes of a bad Motor Pulley include wear and tear from regular use, a buildup of lint and debris that can interfere with its operation, or a malfunctioning dryer motor that puts undue stress on the pulley.

Symptoms of a bad Motor Pulley include:

• Unusual noises coming from the dryer, such as squeaking or grinding
• The dryer drum failing to turn even though the motor is running
• The dryer taking longer than normal to dry clothes, which can occur if the pulley is not providing proper tension to the belt

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drive Belt is an OEM replacement part for Whirlpool dryers. This essential component is responsible for transferring power from the dryer's motor to the drum, allowing it to spin and tumble the clothes during the drying cycle.

Symptoms of needing to replace the drive belt include:

• The dryer drum not spinning or rotating
• Loud squeaking or grinding noises during the drying cycle
• Excessive vibration or shaking from the dryer
• Clothes taking longer to dry or remaining damp

Causes of a faulty drive belt can include normal wear and tear over time, exposure to excessive heat or lint buildup, or physical damage due to impact or mishandling.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

Fix a misaligned or sagging dryer door with this door hinge clip. Secures the hinge assembly to keep your door properly aligned and functioning smoothly.

Fix excessive vibration or loud rattling noises during cycles with this dryer motor mounting bracket. Secures motor to cabinet for stable operation.

Replacement door window pack for your dryer. Includes transparent viewing window and mounting components. Needed when the original is cracked or broken.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Complete idler pulley assembly with bracket, roller, and hardware. Replaces worn, squeaking, or damaged pulley components. Maintains belt tension.

The Washer Door Switch is an OEM part for Whirlpool washing machines. This component is crucial for ensuring the washer operates safely by detecting whether the door is open or closed. The door switch prevents the washer from starting or continuing its cycle when the door is open, and it allows the machine to function only when the door is securely closed.

Symptoms of a failing Washer Door Switch include:

• The washer not starting or stopping unexpectedly during a cycle
• Error codes related to door closure issues displayed on the washer's control panel
• The washer door not locking properly or the lock mechanism not engaging
• The washer continuing to operate with the door open

Causes of a bad door switch can include wear and tear from frequent use, damage from repeated opening and closing of the door, electrical faults such as short circuits, or physical damage from mishandling or impact.

This OEM Whirlpool part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

Size: 6 - 20 x 1 1/16 inch.

Sheet metal screw secures panels, brackets, and trim on washers, dryers, and laundry appliances. Replace when stripped, missing, or rusted during repair.

The Front Panel Seal is an OEM replacement part for Whirlpool dishwashers. Measures 24 inches. This seal is located on the dishwasher's front panel and helps prevent water leaks by creating a watertight barrier during the wash cycle. It ensures efficient operation while protecting your kitchen from potential water damage.

Symptoms of a bad Front Panel Seal include:

• Water leaking from the front of the dishwasher during operation
• Visible wear, cracks, or tears in the seal
• Increased noise or vibration due to improper sealing

Causes of a failing Front Panel Seal can include wear and tear from regular use, exposure to high temperatures and moisture, or improper cleaning methods. A damaged seal can compromise the dishwasher’s efficiency and lead to water leakage.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Sold individually, 2 seals are required on front panel.

This flat-head screw secures panels, brackets, or trim so they sit flush on your appliance. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, rattling, or shifting components.

• Provides a countersunk, flush-mount fastener for panels, trim, brackets, or covers
• Helps maintain alignment and secure attachment during operation
• Replaces stripped, rusted, or missing hardware
• Symptoms can include loose panels or handles, rattling noises, or visible gaps/misalignment

• Disconnect power (and shut off gas, if applicable) before servicing
• Match screw length and thread to the original for proper fit
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Support the part being fastened to keep alignment while tightening

The Access Panel Spring Retainer is an OEM part for Whirlpool dryers. This part secures the access panel of the dryer, ensuring it stays in place during operation. The spring retainer provides tension and stability, making it easy to open and close the access panel when maintenance or repairs are needed.

Causes of a bad access panel spring retainer can include regular wear and tear, loss of tension, or physical damage.

Symptoms of a bad access panel spring retainer include:

• Access panel not staying securely closed
• Difficulty opening or closing the access panel
• Loose or rattling access panel during dryer operation
• Visible damage or wear on the retainer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is a replacement side trim screw that secures the refrigerator side trim/finish panel, restoring a snug fit and finished appearance. Designed to match the original factory fit and finish on compatible Whirlpool units. What it does:

• Fastens the side trim/finish panel so the exterior trim sits flush and secure
• Helps stop rattling, shifting, or gaps caused by loose or missing trim screws
• Matches factory color and head style to keep a consistent exterior look
• Small hardware piece used in multiple trim/assembly locations

• One side trim screw (black)

• Use the matching screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can crack trim or strip threads
• Turn power off and remove any nearby panels if needed for safe access
• Replace all to ensure even fit

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

For terminal use WP596797.

Vinyl door seal creates an airtight barrier to maintain proper temperature and prevent energy loss. Replace when worn, cracked, or causing drafts.

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

White door handle for your dryer. Installs on the dryer door to provide a comfortable grip for opening and closing. Replace when cracked, broken, or missing.

Replaces damaged lower front panel on your dryer. Restores cabinet seal and professional appearance. Confirm fit with your model number before ordering.

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

Replacement machine bolt for securing panels, brackets, and components in dishwashers, dryers, washers, and laundry centers. Restores fit if missing.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Dryer won't heat or pilot lights but shuts off? This gas valve assembly controls burner ignition and flame. Typical DIY repair in 45-60 minutes.

Replacement mounting screw for securing panels, brackets, and interior assemblies. Needed when original screw is stripped, missing, or damaged.

Dryer not heating or won't dry clothes? This igniter kit lights the gas burner. Moderately easy DIY repair with video guide—replaces failed igniters.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.
