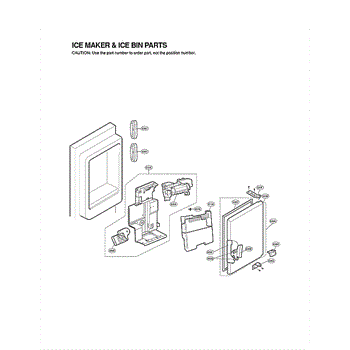

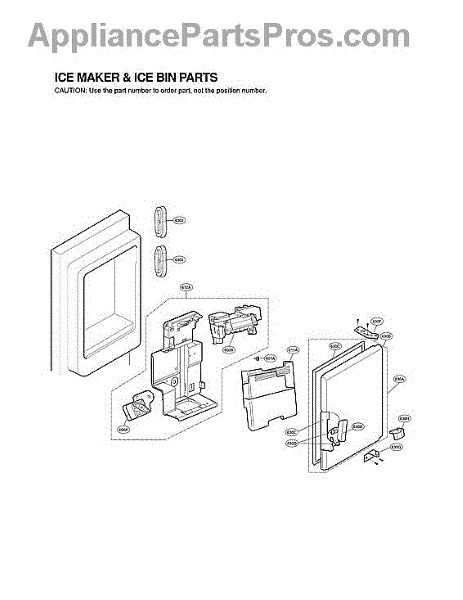

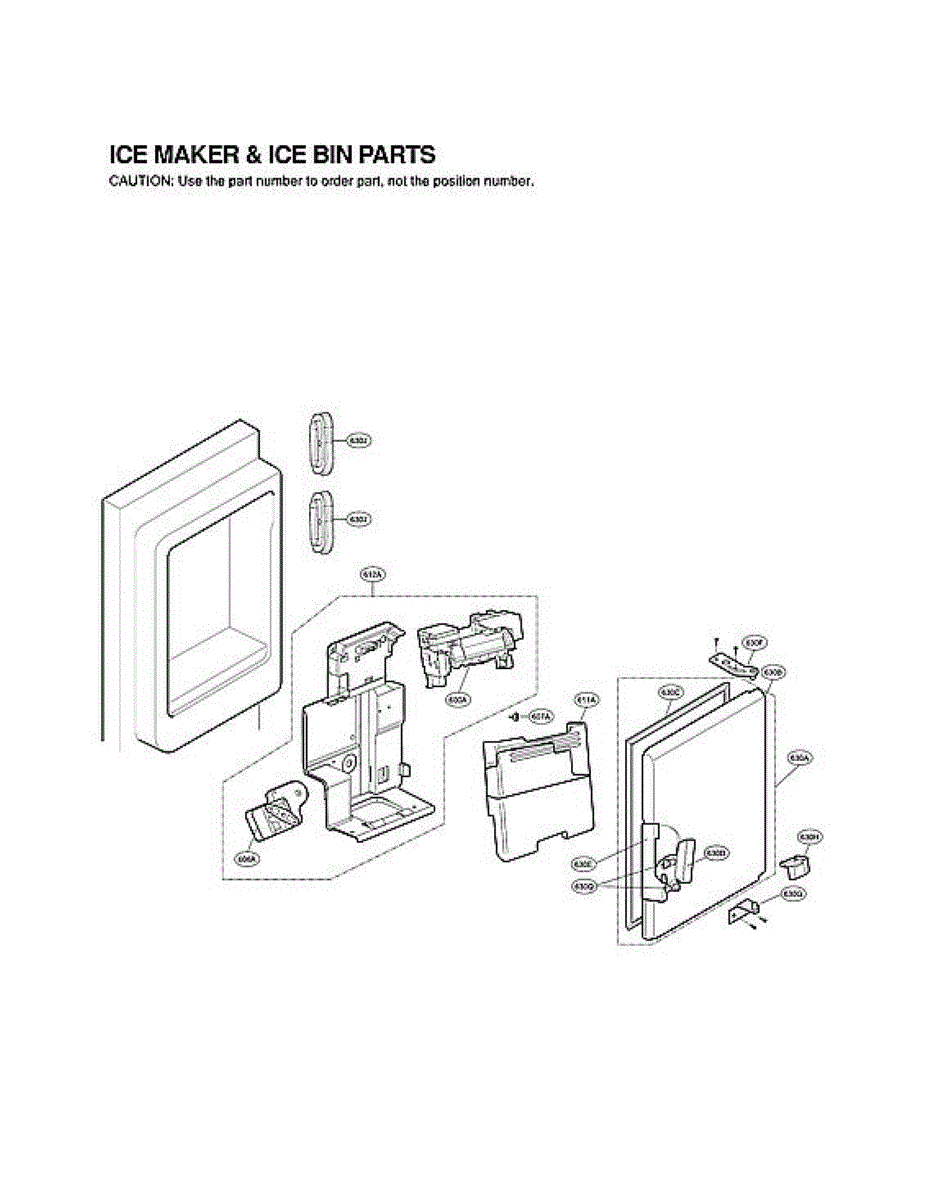

Parts for Lg LMX31985ST/02: Ice Maker & Ice Bin Parts

This is a factory-style screw used to secure components and panels on compatible LG appliances. It restores proper fit and reduces movement where a missing or stripped screw causes parts to sit loose. What it does:

• Fastens panels, brackets, or trim to appliance chassis to restore secure attachment
• Stops rattling or vibration caused by loose or missing fasteners
• Helps maintain proper alignment of removable parts for safe operation
• Serves as a direct replacement when the original screw is lost or damaged

• Screw

• Use the matching screwdriver or driver bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent damage to threads or plastic parts
• Replace only with the specified OEM screw to ensure fit and function
• Disconnect power to the appliance before accessing internal components when applicable

This hinge bolt secures the hinge to the appliance cabinet or door, keeping alignment true and motion smooth. Replacing a stripped, missing, or corroded bolt helps restore proper door operation and reliable closing.

• Fastens the hinge to support and stabilize the door
• Helps maintain alignment for smooth opening and closing
• Replaces damaged, stripped, or missing hardware

• Disconnect power to the appliance; shut off water supply if applicable
• Support the door to prevent strain on remaining hardware; enlist a second person if needed
• Note the order/orientation of any shims or washers and transfer them during reassembly
• Start threads by hand to avoid cross-threading; tighten securely without overtightening

This is a replacement mounting bolt used to secure appliance components and assemblies, restoring proper fit and reducing movement that can cause noise or misalignment. Use when a factory fastener is missing or damaged. What it does

• Fastens panels or internal components to maintain correct alignment and structural integrity.
• Prevents vibration-related noise and rubbing by holding parts securely in place.
• Restores secure connections after disassembly for service or repair.
• Helps eliminate intermittent movement that can lead to wear or leaks when a fastener is compromised.

• Use the correct bolt length and thread engagement for the application; do not force a mismatched fastener.
• Tighten to snug, manufacturer-specified torque when available; avoid overtightening to prevent stripping.
• Inspect surrounding parts (washers, nuts, threaded holes) and replace if worn or damaged.
• Disconnect power and follow all safety precautions before servicing the appliance.

This screw is a direct-fit replacement fastener that secures panels, brackets, and internal components. Replacing a missing or stripped screw helps stop rattling and keeps parts aligned for reliable operation. What it does:

• Secures panels, trim, brackets, or internal components to restore proper fit
• Replaces missing or damaged hardware that can cause rattling or loose parts
• Restores alignment so doors, shelves, or assemblies operate smoothly
• Provides a straightforward hardware fix without replacing larger assemblies

• Use the matching screwdriver or driver bit to avoid stripping the head
• Do not overtighten — snug until seated to avoid damaging threads or plastic parts
• Disconnect power or follow appliance safety instructions before servicing electrical areas
• Keep removed hardware organized and save any damaged parts for inspection

The Handle Mounting Stud is an OEM replacement part for LG refrigerator doors. It provides a sturdy mounting point for the door handle assembly. Reliable handle connection and support is crucial for dependable door function and access.

Causes of a faulty stud can include damage from excess weight or impact over time rendering the stud loose or unstable.

Symptoms of a bad stud include:

• Loose or sagging door handle
• Difficulty opening and closing the refrigerator door
• Potential for the handle to detach completely
• Safety concerns if the handle connection fails

This OEM LG replacement stud is also compatible with Sears/Kenmore models.

This is a customized screw used to secure components in LG appliances. It replaces a worn or missing fastener to restore proper assembly and reduce rattling or loose panels. What it does:

• Secures panels, brackets, or small components in the appliance chassis
• Helps stop vibration-related noise caused by loose fasteners
• Replaces missing or stripped screws to restore safe, stable assembly
• Matches OEM fit for the specific mounting point it was made for

• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can damage threads or parts
• Disconnect power and follow appliance-specific safety procedures before servicing

This rear door handle replaces a worn or damaged handle on compatible LG appliances, restoring a secure grip and smooth opening. It's a direct-fit exterior handle that keeps the appliance door operating and looking right. What it does

• Provides a secure gripping point to open and close the appliance door
• Replaces cracked, loose, or broken rear handle hardware
• Restores correct alignment and feel when the door is operated
• Helps prevent further damage to the door edge from makeshift handles

• Power off and unplug the appliance before starting work; remove food or shelves as needed for access
• Keep fasteners and mounting clips; transfer original hardware unless new hardware is explicitly included
• Test door operation and alignment after installation; tighten fasteners evenly to avoid stress

The Drain Pipe Assembly is an OEM replacement part for LG refrigerators. It is a plastic tubing system that collects and removes liquid condensation from evaporator coils. Proper drainage is crucial to minimizing frost buildup and ensuring optimal cooling of food storage areas.

Symptoms of a bad drain pipe assembly include:

• Excessive frost or ice accumulation inside the refrigerator
• Puddling or leaks detected near evaporator housing
• Slow draining allowing water to pool versus emptying fully
• Cracks or breaks in the tubing prevent complete fluid removal

Causes are typically mineral sediment clogging drainage paths or deteriorating plastic from constant use. This OEM LG replacement pipe restores reliable condensate removal to maintain peak efficiency.

This OEM LG part is also compatible with Sears/Kenmore.

The Leveling Leg is an OEM part for LG refrigerators. It is one of the four legs at the bottom corners that elevate and provide stability to the entire appliance.

Causes of failure can be broken mounting points that no longer provide secure elevation, full compression of the built-in cushioning, or damage from impact on an unlevel floor.

Symptoms of a faulty leveling leg include:

• Excessive shaking or vibrating of the refrigerator
• Door alignment issues where doors are difficult to open or close fully
• Visible leaning or misalignment of the refrigerator cabinet

This OEM LG part is also compatible with some Kenmore models.

This multi-outlet vent duct directs exhaust air from the appliance to the home venting system, restoring proper airflow and reducing cooking odors and excess heat. Replaces a damaged or leaking duct to improve ventilation performance. What it does:

• Channels exhaust air from the appliance to the ventilation outlet
• Prevents leaks that can cause poor ventilation, odors, or heat buildup
• Helps reduce rattling or whistling caused by damaged ducting
• Works with the appliance's blower to maintain proper airflow

• Turn off power to the appliance and unplug before beginning work
• Handle sheet-metal edges carefully; wear gloves to avoid cuts
• Use basic hand tools;

This is an air duct and evaporator cover with fan that is used in refrigerators. This part makes up the back wall of the refrigerator and is used to channel cold air into the refrigerator. It also protects the evaporator. It includes the fan, which circulates cold air throughout the appliance. If any of these parts are damaged, the refrigerator may get too hot or make squealing noises.Before replacing the air duct and evaporator cover with fan, make sure that any food that could go bad while the refrigerator is unplugged has been placed in a cooler or other cold location. Disconnect the refrigerator from power once food has been safely stored. While making the replacement, make sure to wear a pair of work gloves for safety.The air duct and evaporator cover with fan is made to be compatible with a series of refrigerators by LG. It is sold individually and sourced straight from the manufacturer. The component is an authentic OEM replacement part.

This replacement freezer tray holds water to form ice and fits into the freezer compartment to restore ice production and keep cubes contained. It's a simple swap that brings back reliable ice-making without tools. What it does:

• Holds water in molded cavities so ice cubes form evenly
• Replaces cracked, warped, or missing trays that leak or fail to produce ice
• Keeps ice contained and easier to remove from the freezer
• Helps prevent spills and pooling inside freezer shelves

• Remove the old tray, clean the cavity area, and slide or set the new tray into place per your freezer's shelf layout
• Wash the tray with warm, soapy water and rinse before first use
• Do not use sharp tools to pry ice from the tray; twist gently or run under cold water to release cubes
• Keep away from direct heat or stovetop surfaces and avoid using abrasive cleaners

This shelf net is a replacement mesh shelf for refrigerators that helps keep bottles and small items secured and organized on a fridge shelf. Restores containment for torn or sagging nets. What it does:

• Provides a flexible mesh surface to hold bottles, cans and other items in place
• Prevents small items from falling through or shifting during door access
• Replaces torn, stretched or sagging shelf nets that no longer secure contents
• Helps restore original shelf function and appearance

• Disconnect power or unplug the refrigerator before starting any repair
• Remove food and the affected shelf before replacing the net
• Typically installs by fitting the net into the dedicated shelf frame or clips; for exact instructions
• Wear gloves to avoid sharp edges on shelf frames during installation

The Crisper Glass is an OEM part for LG refrigerators. This glass panel sits on top of the crisper drawers, providing a clear view of the contents inside while supporting the items placed on top. It helps in maintaining the structural integrity of the crisper area and aids in the efficient organization of food items.

Causes of a bad crisper glass can include accidental dropping, heavy impact, or overloading the shelf beyond its weight capacity. A damaged crisper glass can compromise the safety and usability of the crisper drawers.

Symptoms of a bad crisper glass include:

• Cracks or chips in the glass
• The glass panel not fitting securely or evenly
• Difficulty in sliding the crisper drawers
• Potential risk of glass shards in the refrigerator

This OEM LG part is also compatible with Sears/Kenmore models.

This refrigerator glass shelf assembly replaces a broken, cracked or missing interior shelf so you can safely store food and restore usable shelving space. Tempered glass shelf with frame supports everyday fridge organization. What it does:

• Provides a stable, easy-to-clean surface for storing food and containers
• Replaces cracked, chipped or shattered glass shelves that cause leaks or safety hazards
• Prevents items from falling through open shelf openings and helps maintain internal organization
• Fits into existing shelf rails and rests on factory shelf supports

• Disconnect power and remove food before installing to avoid spills and injury
• Handle tempered glass carefully; wear gloves to protect hands during installation
• Slide shelf into existing rails until it seats securely on factory supports
• If shelf support clips or rails are damaged, replace them before installing this shelf

This replacement fresh food tray assembly sits in the refrigerator compartment to support and organize items or bins. Replace a cracked, warped, or missing tray to restore a level surface and smooth, secure storage.

• Provides a rigid, level surface in the fresh food section
• Seats into existing guides/rails for proper fit and smooth operation
• Helps keep contents organized and prevents tipping or spills
• Common symptoms: cracks, chips, broken tabs, warping, won't seat or slide correctly, sagging surface

• Empty the area and remove the damaged tray; wear cut-resistant gloves if plastic is cracked
• Clear any broken fragments and clean the supports before installing
• Align with the guides and slide/seat fully; do not force into place
• Load evenly and avoid overloading to prevent repeat damage

This tray cover assembly replaces a damaged cover above a storage tray or drawer. It restores a flat, supportive surface and smooth operation, keeping the interior organized and preventing items from tipping or the drawer from binding.

• Forms the top cover/shelf over a tray or drawer and supports items stored above
• Helps align the tray/drawer so it opens and closes smoothly
• Replaces cracked, warped, or broken covers that cause sagging or jams
• Ideal when the existing cover is visibly damaged or unstable

• Disconnect power and remove contents from the area before servicing
• If present, lift out any removable glass insert before removing the frame
• Release tabs or screws, remove the old cover, and transfer any reusable components
• Seat the new assembly fully and reinstall any inserts and contents

This replacement drawer guide helps the freezer/refrigerator drawer slide smoothly and stay aligned for reliable opening and closing. It restores stable support and reduces sticking or noisy movement. What it does:

• Guides the drawer along its track so it opens and closes smoothly
• Supports the drawer weight to prevent sagging or misalignment
• Helps eliminate binding, catching, or uneven movement
• Reduces scraping or rattling noises caused by a worn guide

• Disconnect power to the appliance or unplug before beginning any work
• Remove the drawer and any contents to access the guide mounting points
• Align the guide with the existing track and secure using the original screws or fasteners
• If mounting hardware is damaged or missing, replace with OEM-specified fasteners; do not force parts into place

This vegetable tray assembly replaces a worn or cracked crisper insert to keep produce organized and stable inside the refrigerator. It restores the storage surface so fruits and vegetables sit flat and are easier to access. What it does:

• Provides a flat, removable surface for storing fruits and vegetables in the refrigerator crisper area
• Replaces cracked, warped or discolored trays that can trap moisture or cause items to tip
• Helps maintain organization so drawers close and slide properly
• Compatible with the refrigerator's existing drawer/frame to resume normal storage use

• One vegetable tray assembly

• Designed for user installation with basic hand tools; remove the crisper drawer to access the tray
• Inspect surrounding drawer rails and seals for wear while replacing the tray
• Handle carefully to avoid breakage; do not force parts into misaligned tracks
• Disconnect power only if working near electrical components or lighting; otherwise no electrical disconnection required

Restore a sturdy, easy-sliding produce bin with this replacement vegetable crisper drawer. It keeps fruits and vegetables organized and, when used with the matching cover, helps support proper humidity conditions in the refrigerator. What it does:

• Provides a dedicated bin for storing fresh produce under the crisper shelf
• Slides on the factory rails for smooth opening and closing
• Works with the crisper cover/humidity control to help manage moisture
• Common failure symptoms: cracked or broken bin, damaged corners/tabs, drawer sticks, falls off track, or won't stay seated

• 1 vegetable crisper drawer (tray assembly)

• Unplug the refrigerator before servicing
• Remove contents, then slide the old drawer straight out; remove the shelf above if needed
• Transfer any reusable inserts from the old bin if applicable
• Align the new drawer on the rails and slide it in fully; verify smooth operation

This vegetable crisper drawer replaces a cracked or missing bin in your refrigerator. It restores smooth sliding access and organized produce storage, keeping items contained and easy to reach.

• Provides dedicated storage space for fruits and vegetables in the fresh food section
• Slides on the drawer rails for easy access to contents
• Helps contain spills and prevent items from falling into the compartment
• Typical symptoms include cracks, broken tabs, difficulty sliding, or the drawer falling off the rails

• Remove items and pull the old drawer straight out to release it from the rails
• Inspect and clean the shelf tracks/rails before installing the new drawer
• Align the drawer with the rails and push in gently until fully seated
• Handle carefully; avoid forcing or overloading to prevent damage

A replacement TV cover assembly that restores the exterior cabinet and helps protect internal components from dust and damage. Fits behind the front bezel to keep your TV enclosure secure and looking complete. What it does:

• Replaces a cracked, warped, or missing outer cabinet panel to improve appearance and protection
• Shields internal electronics and wiring from dust, debris, and accidental contact
• Helps maintain proper airflow pathways by restoring the factory enclosure shape
• Reduces rattles or unusual noises caused by a loose or damaged outer panel

• Disconnect power and remove the TV from its stand or wall before beginning repair
• Handle the cover carefully to avoid scratching; use a soft surface and non-marring tools
• Retain all original screws and mounting clips; compare new part to the old part for alignment before fastening

This guide assembly helps support and direct a sliding component within the appliance, ensuring smooth, stable movement and proper alignment for reliable operation.

• Provides a track/guide path for a moving tray or drawer
• Helps prevent binding, wobbling, or misalignment
• Can address issues like sticking, uneven travel, or jamming
• Maintains correct positioning for consistent performance

• Disconnect power and, if applicable, shut off water before servicing
• Remove the affected drawer/tray to access the guide area
• Transfer any reusable hardware from the original part if required
• Test movement and alignment after installation before reloading contents

This is a refrigerator drawer guide assembly that supports and guides a crisper/vegetable bin so it slides smoothly in and out. Replacing a worn guide restores proper drawer alignment and easy operation.

• Provides the track surface for the vegetable/crisper drawer
• Helps correct sticking, binding, or a sagging/misaligned drawer
• Can reduce scraping noises and uneven drawer movement
• Restores smooth sliding action after wear or damage

• Unplug the refrigerator before service
• Remove the affected drawer and any shelf above it for access
• Retain and transfer any screws or clips from the original guide
• Test drawer movement and alignment before closing up

This rail guide assembly supports and guides a sliding refrigerator drawer, helping it open and close smoothly. Replace a cracked or worn guide to restore proper alignment and prevent binding or the drawer jumping off its track.

• Provides the track and support for pantry/crisper/freezer drawer movement
• Keeps the drawer aligned to reduce wobble and uneven travel
• Restores smooth open/close when the guide is cracked or worn
• Helps the drawer seat fully for a proper fit

• Unplug the refrigerator before servicing
• Remove the bin/drawer from the compartment to access the guide
• Save and reuse existing mounting hardware and spacers
• Install the new guide, align the drawer, and verify smooth travel

This rail guide assembly supports and guides a sliding refrigerator drawer so it opens and closes smoothly. Replacing a worn guide can restore proper glide, alignment, and sealing for reliable everyday use.

• Mounts to the slide track to guide the pull-out drawer
• Keeps the drawer level and aligned during opening and closing
• Helps ensure the drawer closes fully for proper sealing
• Common symptoms: drawer binds or rubs, feels rough, won't close flush, or shows cracks/wear on the guide

• Disconnect power and remove the affected drawer/basket before starting
• Remove screws or release tabs to detach the old guide; note orientation
• Install the new guide and secure with existing hardware; ensure slides move freely
• Reinstall the drawer and verify smooth travel and full closure before restoring power

The Fresh Food Tray Rail is an OEM replacement part for LG refrigerators. It allows the right side of the fresh food tray to slide in and out.

Causes of a bad fresh food tray rail can include warping, cracking, or bending from heavy shelf loads over time compromising its structural integrity.

Symptoms of a bad fresh food tray rail include:

• Sagging or sliding shelves that no longer fit securely
• Gaps allowing cold air leakage and loss of chilled temperatures
• Jammed fresh food tray

This genuine OEM LG part is also compatible with some select Kenmore brand models.

Replace a cracked or missing door bin with this door basket. It mounts to the refrigerator door to hold bottles and condiments, restoring safe, convenient storage and helping the door close properly.

• Attaches to the inner door to organize bottles and small items within easy reach
• Replaces a bin that is cracked, warped, or has broken locking tabs
• Symptoms include: bin falls off, won't stay seated, spills, or difficulty closing the door
• Restores designed door storage capacity and stability

• Unload the door and lift the old bin up and out of the mounting slots
• Align the new basket with the slots and press down until fully seated on both ends
• Do not force; confirm it's locked in before loading items
• Follow appliance safety guidelines; avoid overloading the bin after installation

This name plate is the exterior emblem that mounts to the appliance's front panel. It replaces a missing, cracked, or faded badge to restore a clean, factory look and cover the designated trim area.

• Attaches to the outer panel to display brand/series identification
• Restores a finished appearance where the original emblem sits
• Direct replacement for a lost, damaged, or worn badge
• Typical symptoms: missing emblem, loose or broken tabs, peeling, or discoloration

• Disconnect power before servicing the appliance
• Carefully remove the old emblem; release any tabs from behind or peel away remaining adhesive
• Clean and dry the mounting surface; remove all residue for best fit
• Align with the recess/holes and press evenly until fully seated

The Door Gasket Assembly is an OEM replacement part for LG refrigerators. This part seals the door and maintains a thermal barrier. Proper compression provides energy efficiency.

Causes of a faulty gasket assembly may involve deterioration as adhesive softens from repeated compression. Mineral deposits accumulated over extended use could also harden material reducing flexibility.

Symptoms of a problematic gasket include:

• Cool air felt leaking from the door
• Moisture visible on seal interface areas
• Temperature fluctuations

This part is also compatible with some Kenmore refrigerator models.

The Gasket Assembly Door is an OEM part for LG refrigerators. This gasket forms a seal around the refrigerator door, preventing warm air from entering and cool air from escaping, thus maintaining optimal temperature inside the refrigerator.

Causes of a bad gasket assembly can include wear and tear over time, damage from frequent opening and closing of the door, or degradation from exposure to various elements. A compromised gasket can lead to inefficiency in the refrigerator's cooling performance.

Symptoms of a bad gasket assembly include:

• Warm air entering the refrigerator
• Increased energy consumption
• Frost buildup inside the refrigerator
• The door not sealing properly or being difficult to close

This OEM LG part is also compatible with Sears/Kenmore models.

The French Door Mullion is an OEM part for LG refrigerators. It is a flap located between the two doors of a French door refrigerator, helping to seal the gap and maintain the internal temperature by preventing warm air from entering when the doors are closed. This component is crucial for energy efficiency and proper functioning of the refrigerator.

Over time, the mullion can wear out or become damaged due to frequent use, impact from door closures, or issues with the hinge mechanism. Causes of a bad French door mullion include wear and tear, physical damage, or a faulty hinge that causes misalignment.

Symptoms of a bad French door mullion include:

• The mullion not folding or unfolding correctly
• Visible cracks or damage to the mullion
• Warm air entering the refrigerator, affecting cooling
• Increased energy consumption

This OEM LG part is also compatible with Sears/Kenmore models.

This refrigerator door shelf bin replaces a cracked or missing bin on the fresh food door. It snaps into the molded slots to restore secure, convenient storage for condiments, jars, and small bottles. What it does:

• Mounts to the inner door liner to hold items and free up shelf space
• Restores door storage capacity when the original bin is damaged or missing
• Common symptoms: cracked plastic, broken tabs, bin falls off, won't stay seated
• Helps keep jars and bottles organized and easy to access

• 1 door shelf bin

• Remove items from the old bin, then lift it straight up to release from the door slots
• Align the new bin's hooks with the door slots and press down firmly until it locks
• Handle plastic carefully and consider wearing gloves to avoid cuts from sharp edges
• Do not force the bin; ensure it's positioned in the correct door location before securing

This refrigerator door shelf bin replaces a cracked or missing bin on the fresh food door. It snaps into the molded slots to restore secure, convenient storage for condiments, jars, and small bottles. What it does:

• Mounts to the inner door liner to hold items and free up shelf space
• Restores door storage capacity when the original bin is damaged or missing
• Common symptoms: cracked plastic, broken tabs, bin falls off, won't stay seated
• Helps keep jars and bottles organized and easy to access

• 1 door shelf bin

• Remove items from the old bin, then lift it straight up to release from the door slots
• Align the new bin's hooks with the door slots and press down firmly until it locks
• Handle plastic carefully and consider wearing gloves to avoid cuts from sharp edges
• Do not force the bin; ensure it's positioned in the correct door location before securing

This refrigerator door shelf bin replaces a cracked or missing bin on the fresh food door. It snaps into the molded slots to restore secure, convenient storage for condiments, jars, and small bottles. What it does:

• Mounts to the inner door liner to hold items and free up shelf space
• Restores door storage capacity when the original bin is damaged or missing
• Common symptoms: cracked plastic, broken tabs, bin falls off, won't stay seated
• Helps keep jars and bottles organized and easy to access

• 1 door shelf bin

• Remove items from the old bin, then lift it straight up to release from the door slots
• Align the new bin's hooks with the door slots and press down firmly until it locks
• Handle plastic carefully and consider wearing gloves to avoid cuts from sharp edges
• Do not force the bin; ensure it's positioned in the correct door location before securing

The Refrigerator Door Shelf is an OEM part for LG refrigerators. It provides additional storage space on the door of the refrigerator, allowing for the organization and easy access of frequently used items such as condiments, beverages, and small containers. It measures approximately 14" x 4" x 4".

Causes of a bad refrigerator door shelf can include general wear and tear from repeated use, overloading the shelf with heavy items, or accidental damage during cleaning or reorganization. Cracks or breakage in the plastic material can also render the shelf unusable.

Symptoms of a bad refrigerator door shelf include:

• Cracked or broken shelf
• Items not staying securely on the shelf
• The shelf not fitting properly into the door brackets
• Difficulty in attaching or removing the shelf

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

The Refrigerator Door Shelf is an OEM part for LG refrigerators. Designed to offer additional storage space, this door shelf seamlessly integrates into the refrigerator door, providing a convenient spot to store jars, bottles, and other condiments.

Over time, door shelves may suffer from wear and tear or become damaged due to overloading or accidental impact. This can lead to cracks, breaks, or a loose fit, which compromises the shelf's ability to hold items securely.

Symptoms of a bad Refrigerator Door Shelf include:

• Visible cracks or breaks in the shelf
• The shelf sagging or unable to hold items securely
• Difficulty fitting the shelf into the door slots
• Items falling through the shelf due to damage or warping

This OEM LG part is also compatible with some Kenmore models.

This stopper assembly mounts on the appliance door to cushion movement and hold the door in position, reducing wear and preventing slamming for smoother, safer operation. Fits as the OEM door stop used on compatible LG models. What it does:

• Cushions door movement to prevent hard impacts and reduce noise
• Holds the door in the open or closed position to prevent unwanted swings
• Helps maintain door alignment and reduces stress on hinges and latches
• Common symptom: door slams, won't stay open, or bangs against the cabinet

• Disconnect power and water before starting any repair
• Remove the door or open access for safe replacement
• Replacement typically requires basic hand tools (screwdriver or nut driver)
• Inspect surrounding hinge/fastener hardware and replace if worn

This door stopper assembly mounts at the hinge to control how far the door opens and promote smooth, consistent closing. Replacing a worn or broken stopper restores proper door swing and helps protect the hinge from overextension.

• Limits the door's opening range to prevent overextension
• Guides and cushions door movement for a smoother close
• Helps maintain door alignment at the hinge area
• Common symptoms: door swings too far, doesn't stop at the usual angle, clicks/binds near the hinge, or visible cracks/wear on the stopper

• Disconnect power to the appliance before servicing
• Support the door and use a helper when loosening hinge hardware
• Note the original orientation and transfer any spacers/shims if present
• Tighten fasteners evenly and verify smooth door operation before finalizing reassembly

The Lower Refrigerator Door Hinge is an OEM part for LG refrigerators. This hinge supports the refrigerator door, allowing it to open and close smoothly while maintaining proper alignment. It is designed to handle the weight of the door and ensure a secure and stable operation over time.

Causes of a bad lower refrigerator door hinge can include regular wear and tear, physical damage from overloading or impacts, and gradual loosening over time. A faulty hinge can lead to misalignment, difficulty in opening or closing the door, and potential damage to the door seal.

Symptoms of a bad lower refrigerator door hinge include:

• The door not closing properly or staying open
• Sagging or misaligned door
• Unusual noises when opening or closing the door
• Gaps in the door seal, causing cooling inefficiency

This OEM LG part is also compatible with Sears/Kenmore models.

The Lower Refrigerator Door Hinge is an OEM part for LG refrigerators, designed to support and pivot the refrigerator door, allowing it to open and close smoothly. This hinge is a critical component for the proper alignment and function of the door, ensuring an airtight seal when closed to maintain the internal temperature and efficiency of the refrigerator.

Causes of damage to the lower refrigerator door hinge often include normal wear and tear, excessive force when opening or closing the door, or corrosion due to moisture and cleaning agents.

Symptoms of a bad Lower Refrigerator Door Hinge include:

• Difficulty in opening or closing the refrigerator door.
• A door that hangs unevenly or does not close properly
• Unusual noises during door operation
• Visible wear or damage to the hinge itself.

This OEM LG part is also compatible with some Kenmore models.

The Refrigerator Door Handle is an OEM replacement part for LG refrigerators. The door handle provides an easy grip point for opening and closing the refrigerator door.

Symptoms of a bad door handle include:

• Looseness, wobbling, or detachment from the refrigerator door
• Cracking or splitting of the plastic material
• Discoloration or warping from sun exposure

Causes can be regular wear and tear over many opening and closing cycles. Repeated force exerted by grabbing the handle may cause stress fractures. Exposure to direct sunlight's UV rays can degrade plastic over time as well.

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

This slide rail is the replacement drawer track that lets a refrigerator or freezer drawer glide smoothly and stay aligned. It restores proper drawer movement for easier access and prevents sticking or uneven operation. What it does:

• Guides the refrigerator/freezer drawer along its intended path for smooth opening and closing
• Keeps the drawer aligned to prevent binding, jamming, or uneven movement
• Supports the drawer weight so it operates securely and consistently
• Helps restore normal access when worn or damaged tracks cause sticking or misalignment

• One slide rail

• Remove power and empty the drawer before attempting repair to avoid injury or damage
• Use basic hand tools; do not force components—inspect mating hardware for wear
• If screws or clips are missing or damaged, replace them with OEM equivalents

This rail holder is a small mounting bracket that secures an appliance rail in place to keep moving parts aligned and operating smoothly. Replacing a worn or broken holder restores stable rail support and reduces play or rubbing. What it does

• Secures the rail or track so drawers/doors/assemblies slide correctly
• Prevents misalignment that can cause rubbing, sticking, or uneven movement
• Keeps the rail from shifting or detaching during operation
• Helps reduce noise caused by loose or damaged rail supports

• One rail holder mounting bracket

• Disconnect power (and water, if applicable) before servicing to avoid shock or injury
• Basic hand tools (screwdriver) are typically required; follow OEM disassembly steps
• Replace only with the exact part number to ensure fit and function

This ice maker drive gear replaces the small plastic gear that turns the ice-eject/auger mechanism so your ice maker can harvest and dispense cubes reliably. Fits compatible LG ice maker assemblies. What it does

• Transfers motor rotation to the ice-eject/auger mechanism so ice cubes are pushed out or advanced.
• Commonly replaced when cubes aren't being ejected, ice builds up, or the mechanism spins without moving the ejector.
• Works with the ice maker's actuator/motor to synchronize harvest and fill cycles.
• Small, precision-molded gear designed for quiet, consistent operation in the ice maker assembly.

• One ice maker drive gear.

• Disconnect power to the appliance before servicing to avoid shock or accidental motor operation.
• Remove the ice maker module and inspect surrounding gears/shaft for wear or debris before installing.
• Press the gear onto the motor shaft or replace the internal gear assembly as required; do not force or hammer into place.
• If other components show wear (motor, shaft, or companion gears), replace them to prevent repeat failure.

This center hinge assembly replaces the factory center hinge that supports and aligns the refrigerator doors, restoring proper door movement and a tight seal for efficient cooling. It's a direct-fit mechanical hinge used where the upper and lower doors meet. What it does:

• Supports the weight of the upper/lower doors and maintains proper door alignment
• Lets the door pivot smoothly to open and close without binding
• Helps the door seal correctly to prevent warm air leaks and frost buildup
• Stops sagging or uneven door gaps that cause rubbing or poor closure

• One center hinge assembly

• Disconnect power to the appliance before starting work; if the unit has a water line, shut off the water supply as needed
• Support the door while removing and installing the hinge to prevent dropping or damage
• Use basic hand tools; follow the manufacturer service instructions for torque and fastener sequence

This center hinge assembly secures and guides a refrigerator door, restoring proper door alignment and smooth opening/closing. Replacing a worn or damaged center hinge helps stop sagging doors and improves seal integrity for reliable cooling. What it does:

• Supports the center of a refrigerator door and keeps it aligned on the cabinet frame
• Guides door movement to ensure smooth opening and closing
• Restores proper door fit to help maintain an even door seal
• Addresses symptoms such as door sagging, misalignment, scraping or grinding noises from the hinge

• Disconnect power to the appliance before starting any repair.
• Doors are heavy; support the door and use a second person or proper support when removing or installing hinges.
• Keep track of fasteners and hinge shims or spacers; reinstall in the same order and orientation.

This turntable roller ring sits under the glass tray and allows it to rotate smoothly for even heating. Replace a worn, warped, or broken ring to restore stable rotation and consistent cooking performance.

• Supports the glass turntable and rides on built-in rollers for smooth, quiet movement
• Keeps the tray level and centered to promote even heating
• Common symptoms: tray not turning, uneven cooking, scraping/grinding noises, or a wobbly/slipping turntable
• Restores proper interaction between the turntable, drive coupling, and motor

• Unplug the microwave or switch off the breaker before servicing
• Remove the glass tray; lift out the old ring and clean the track
• Place the new ring with the rollers facing down on the track; reseat the tray on the center drive coupling
• Test rotation with a microwave-safe cup of water

The Spanner Wrench is an OEM replacement part for LG refrigerators. This tool allows you to adjust the door hinges to ensure the doors are level and aligned properly. A well-aligned door is crucial for maintaining the internal temperature and efficiency of the refrigerator, preventing energy loss and ensuring food is stored under optimal conditions.

Symptoms that you might need to adjust the door hinges and potentially need this wrench include:

• Doors not closing properly or sealing tightly
• Visible gaps between the door and the main body of the refrigerator
• The refrigerator tilting or not sitting level

This spanner wrench is also compatible with some Sears/Kenmore refrigerators.

This hinge secures and guides a refrigerator door for reliable opening and closing. It restores proper door alignment to help maintain an airtight seal and prevent sagging or rubbing. What it does:

• Supports the refrigerator door and attaches it to the cabinet frame
• Guides smooth door movement and maintains alignment
• Helps prevent door sag, uneven gaps, and items catching when opening/closing
• Reduces rubbing, scraping or abnormal door noise caused by a worn hinge

• Disconnect power and remove food from the door before starting; support the door to prevent dropping
• Use the factory mounting screws and follow OEM torque and alignment steps
• Check door position and seal after installation; adjust hinge mounting if necessary

Replacement refrigerator door hinge that restores smooth pivoting and proper door alignment, helping the door open and close reliably and maintain an airtight seal to preserve cooling performance. What it does:

• Supports the refrigerator door and allows it to pivot smoothly.
• Replaces worn, bent, or damaged hinges that cause door sag or misalignment.
• Helps reduce noisy or grinding door operation when the hinge is failing.
• Promotes an even door seal to help maintain internal temperature consistency.

• Unplug the appliance and remove food from nearby shelves before starting work.
• Support the door while removing hinge fasteners to prevent dropping or damage.
• Reinstall using the original hardware; align the door and tighten fasteners securely but avoid overtightening.

The Ice Dispenser Door Assembly is an OEM part for LG refrigerators. This assembly includes the door and the necessary components that control the opening and closing of the ice dispenser chute. It plays a vital role in maintaining the efficiency of the ice dispensing system by ensuring that the ice chute remains sealed when not in use, preventing warm air from entering the freezer compartment.

Causes of a bad ice dispenser door assembly can include wear and tear from frequent use, damage from ice buildup, or issues with the mechanical or electronic components that control the door.

Symptoms of a bad ice dispenser door assembly include:

• Ice dispenser door not opening or closing properly
• Frost or ice buildup around the ice chute
• Warm air leaking into the freezer, affecting its temperature
• The ice dispenser not functioning efficiently

This OEM LG part is also compatible with Sears/Kenmore.

This lever holder is the replacement mounting bracket that secures the door lever so the microwave door operates smoothly and reliably. It restores proper lever alignment to help the door latch and release as intended. What it does:

• Secures the door lever assembly so the door can latch and release properly
• Keeps the lever aligned to prevent binding, sticking, or loose movement
• Helps restore normal door operation and user access to the oven cavity
• Common symptom: door feels loose, lever moves freely, or door will not latch

• Disconnect power before beginning any repair to avoid shock or injury
• Remove the outer cabinet or door trim only as needed to access the lever area
• Handle door components and glass carefully to avoid damage or injury

This holder bracket replaces a damaged or missing mounting support. It secures an internal component so it stays aligned and stable, helping your appliance operate smoothly without looseness or rattling.

• Provides a rigid mounting point to hold a component or assembly in place
• Maintains alignment to reduce vibration, rubbing, and intermittent operation
• Restores support when the original bracket is cracked, warped, or missing
• Common symptoms include a loose/wobbly part, rattling noises, or visible broken tabs

• Disconnect power to the appliance before servicing
• Note the original bracket's orientation and transfer any clips or screws from the old part
• Use existing hardware and tighten fasteners evenly—do not overtighten
• Verify proper fit and alignment before restoring power

The Right Ice Door Spring is an OEM part for LG refrigerators. This part provides the necessary tension to ensure the ice door opens and closes smoothly, maintaining the seal to keep the ice compartment cold and efficient.

Causes of a bad ice door spring can include wear and tear over time, loss of tension due to repeated use, or physical damage from accidental mishandling.

Symptoms of a bad Right Ice Door Spring include:

• Ice door not staying closed
• Difficulty in opening or closing the ice door
• Unusual noises when the ice door operates
• Increased frost buildup around the ice compartment

This OEM LG part is also compatible with some Kenmore models.

The Dispenser Lever Retainer is an OEM part for LG refrigerators. This part secures the dispenser lever in place, this part ensures the smooth operation of the water and ice dispenser.

Causes of a bad Dispenser Lever Retainer can include normal wear and tear from repeated use, accidental damage, or deterioration of the material over time.

Symptoms of a bad Dispenser Lever Retainer include:

• The dispenser lever is loose or wobbly
• Difficulty in dispensing water or ice
• The lever does not return to its original position after use
• Unintended activation or difficulty in activating the dispenser

This OEM LG part is also compatible with some Kenmore models.

The Left Ice Door Spring is an OEM part for LG refrigerators. It is responsible for providing the necessary tension to ensure the ice door closes properly after dispensing ice. This spring helps maintain an airtight seal, preventing warm air from entering the ice compartment and ensuring efficient operation of the ice maker.

Over time, the ice door spring can become worn out, lose tension, or break due to repeated use or accidental damage. A faulty spring can result in the ice door not closing correctly, which can lead to issues with ice production and storage.

Symptoms of a bad left ice door spring include:

• The ice door not closing or sealing properly
• Warm air entering the ice compartment
• Excessive frost buildup around the ice dispenser
• The ice door feeling loose or not springing back into place

This OEM LG part is also compatible with Sears/Kenmore models.

This replacement funnel channels flow cleanly through the dispenser/fill area, guiding it into the correct passage to help prevent spills, drips, and messes when the original piece is cracked, warped, or missing.

• Guides flow into the correct passage within the dispenser or fill area
• Helps reduce drips, leaks, and misdirected flow caused by damage or wear
• Restores clean, accurate dispensing and a tidy appearance
• Common symptoms include leaking/dripping at the dispenser, misdirected stream, visible cracks, or a loose/missing funnel

• Disconnect power; shut off water supply if applicable
• Remove surrounding trim or fasteners carefully and retain hardware for reuse
• Clean the mounting area before installing the new funnel
• Ensure tabs/locks fully seat; secure fit before restoring power and water

The Ice Dispenser Door Lever is an OEM part for LG refrigerators. This part is responsible for operating the ice dispenser door, allowing ice to be dispensed from the ice maker when the lever is pressed.

Causes of a bad part can include mechanical wear and tear from repeated use, physical damage or impact, or issues with the internal mechanisms that control the lever's motion.

Symptoms of a bad Ice Dispenser Door Lever include:

• Failure of the ice dispenser door to open when the lever is pressed
• The door opening erratically or becoming stuck
• Difficulty in dispensing ice due to the improper operation of the door

This OEM LG part is also compatible with some Kenmore models.

The Dispenser Touchpad is an OEM replacement part for LG refrigerators. As an interface part, it plays a key role in allowing users to control dispensed water types and amounts.

Symptoms of a bad dispenser touchpad can include:

• Inability to dispense water or select temperatures as inputs are unresponsive
• Stuck or non-responsive buttons that don't register selection presses
• Error messages displaying related to touch control failures

Causes may involve moisture penetration degrading internal circuitry or normal component wear/failure over lengthy usage.

This genuine OEM LG part is also compatible with some select Kenmore brand models.

The Ice Dispenser Button is an OEM part for LG refrigerators. It is a part of the refrigerator's ice dispensing system, enabling users to easily select and dispense ice with the press of a button.

Over time, the ice dispenser button can experience wear and tear from regular use, or it may become unresponsive due to electrical issues or physical damage such as cracking or breaking.

Symptoms of a bad Ice Dispenser Button include:

• The button not responding or requiring extra force to activate
• Ice not dispensing when the button is pressed
• The button sticking in the pressed position
• Visible damage or wear to the button

This OEM LG part is also compatible with Sears/Kenmore.

The Dispenser Cover is an OEM part for LG refrigerators. It covers and protects the dispenser area where water and ice are dispensed, ensuring the components remain clean and functional.

Over time, the dispenser cover can become damaged due to repeated use, exposure to moisture, or accidental impact. A compromised cover can affect the appearance of the refrigerator and lead to difficulties in using the dispenser.

Symptoms of a bad Dispenser Cover include:

• Cracks or breaks in the cover
• Difficulty in operating the dispenser
• Water or ice leaking from the dispenser area

This OEM LG part is also compatible with Sears/Kenmore.

Note: This is just the cover and does not include any other components. For the entire assembly, order part number ACQ85430239.

The Front Panel Display Assembly is an OEM part for LG refrigerators. This assembly includes the control panel and display, allowing users to interact with and monitor the refrigerator's functions, such as temperature settings, ice and water dispensing, and other features. It provides a convenient interface for adjusting and controlling the refrigerator's operations.

Causes of a bad front panel display assembly can include electrical malfunctions, physical damage from impacts or mishandling, or wear and tear over time. A malfunctioning display assembly can affect the overall usability and functionality of the refrigerator.

Symptoms of a bad front panel display assembly include:

• Unresponsive or erratic touch controls
• Display not lighting up or showing incorrect information
• Inability to adjust temperature settings or other functions
• Error messages or fault codes displayed

This OEM LG part is also compatible with Sears/Kenmore models.

The Water Dispenser Button is an OEM part for LG refrigerators. This part allows users to easily dispense water with a simple press. It's directly connected to the electronic control system of the refrigerator, ensuring that when pressed, it signals the refrigerator to activate the water dispenser.

Causes of damage to the Water Dispenser Button often involve repeated use, which can wear down the mechanical components, or impact damage from objects hitting the button.

Symptoms of a bad Water Dispenser Button include:

• The button sticking or failing to spring back after being pressed.
• No water being dispensed when the button is pressed, indicating a possible fault in the signal transmission to the control system.
• The button feeling loose or falling off, suggesting that the mounting or connecting components may be damaged.

This OEM LG part is also compatible with some Kenmore models.

The Dispenser Drip Tray is an OEM part for LG refrigerators. Positioned discreetly below the dispenser spouts, this drip tray collects any accidental overflow or spills from beverage containers.

Causes may involve cracking or deformation of plastic over extended use. Mineral scale marks or stains are also common.

Symptoms of a bad dispenser drip tray include:

• Puddles or stains around the base of the dispenser unit
• Overflow running inside the refrigerator cabinet
• Odors developing from residual liquids near warm compressor

This OEM LG part is also compatible with some Kenmore models.

NOTE: This part also requires software update kit CJT30000002. DO NOT INSTALL WITHOUT UPDATING SOFTWARE. Call for more information.

The Compressor is an OEM part for LG refrigerators. As the primary component that circulates refrigerant to chill the refrigerator and freezer compartments, it is crucial for proper cooling operation. The compressor works with the condenser fan and evaporator coil to regulate temperatures inside the refrigerator.

Causes of a faulty compressor can include gradual breakdown of motor windings, loss of refrigerant pressure over time, or failure of electrical components vital to operation.

Symptoms of a bad compressor are:

• Elevated fridge/freezer temperatures unable to be maintained
• Frost patterns indicating poor or insufficient cooling
• Abnormal vibrations or sounds upon compressor cycling
• Error codes displayed regarding cooling performance

It is also compatible with Sears/Kenmore refrigerator models.


The Thermistor Assembly is an OEM part for LG refrigerators. It serves a crucial function in monitoring and regulating the temperature within the appliance. By sensing temperature changes, the thermistor sends information to the refrigerator’s control board, ensuring the system adjusts cooling to maintain the desired temperature settings.

Symptoms of a failing thermistor assembly include:

• Inconsistent temperatures in the refrigerator or freezer
• Refrigerator running longer than usual or not cooling efficiently
• Frequent fluctuations in temperature readings

Causes of thermistor assembly failure typically involve electrical faults, damage from moisture or frost, or simple wear over time, which can impact its ability to accurately measure and report temperatures.

This OEM LG part is also compatible with Sears/Kenmore.

The Overload Compressor is an OEM part for LG refrigerators. This part protects the refrigerator's compressor from overheating and potential damage by acting as a safety device. It works by monitoring the compressor's electrical current and temperature. If the compressor operates under conditions that could lead to overheating or overcurrent, the overload protector will cut off the power to the compressor, allowing it to cool down before potentially restarting.

Causes of damage to the Overload Compressor can include power surges, electrical faults within the refrigerator, or a malfunctioning compressor that requires more current than usual to operate.

Symptoms of a bad Overload Compressor include:

• The refrigerator not cooling properly or not cooling at all
• The compressor failing to start, indicated by a clicking sound coming from the back of the refrigerator where the compressor is located.
• The refrigerator or freezer section warming up

This OEM LG part is also compatible with some Kenmore models.

This PTC cover is the protective housing that shields a PTC sensor/assembly from debris and physical damage, helping maintain reliable sensor performance and prolong component life in the appliance. What it does:

• Protects the PTC sensor or PTC assembly from dust, impact, and accidental contact
• Helps prevent shorting or intermittent sensor signals caused by contaminants
• Supports proper positioning and mounting of the PTC component
• Can help address symptoms such as visible sensor damage, exposed wiring, or intermittent operation related to a compromised sensor housing

• Disconnect power to the appliance before starting any repair
• Remove the outer panel(s) as needed to access the PTC location; handle surrounding wiring and components carefully
• Replace only with the correct OEM cover to ensure proper fit and protection

This compressor damper is a vibration-isolating mount that sits between the sealed-system compressor and the chassis. It cushions the compressor to reduce noise, limit vibration transfer, and help keep refrigerant lines from being stressed.

• Isolates the compressor from the frame to absorb start/stop shock and vibration
• Helps reduce humming, rattling, or buzzing from the back/bottom of the appliance
• Replaces a damper that's cracked, flattened, hardened, or missing
• Can help if the compressor rocks or the unit vibrates excessively

• Disconnect power and pull the unit forward for access; remove rear/service panel if present
• Support the compressor to relieve load on the mounts before removing fasteners
• Match orientation; transfer any sleeves/spacers from the old damper to the new one
• Ensure the compressor sits level and that tubing is not strained before restoring power

This drip tray catches and channels water runoff inside the appliance to help prevent pooling and minor leaks. It's a direct-fit replacement listed by the manufacturer and sold as the single tray used in the unit. What it does

• Collects condensate or defrost water and directs it to the drain area to prevent pooling.
• Helps stop water from dripping onto lower drawers, shelves or the floor.
• Commonly replaces a cracked, warped or missing tray that causes visible leaks or water buildup.
• Fits into the appliance's lower compartment where the original tray sat.

• Unplug the appliance or disconnect power before servicing.
• Remove any obstructing drawers or shelves to access the tray location; handle glass shelves carefully.
• Lift out the old tray and set the new tray into the same position; no special tools typically required.

Replacement fan guide that directs airflow from the refrigerator fan to improve cooling distribution and help keep the fan blade clear of nearby components. Restores proper airflow and can reduce rubbing or scraping noises. What it does:

• Channels airflow from the fan to promote even temperatures throughout the compartment.
• Keeps the fan blade aligned and away from cabinet walls and other components.
• Commonly replaced when cracked, warped, or broken parts cause rubbing or unusual fan noise.
• Helps maintain efficient cooling by restoring the intended airflow path.

• Disconnect power (unplug or shut off breaker) before servicing the appliance.
• Access typically requires removing the interior cover or rear evaporator cover.
• Handle the plastic guide carefully to avoid cracking; align mounting tabs and secure using the original fasteners.
• Inspect the fan blade and motor for damage while replacing the guide; replace any damaged components to avoid repeat issues.

This drain tray assembly collects and directs moisture and condensate to the drain system, helping prevent leaks and pooling under the appliance. Designed to fit the appliance's drain path and restore proper drainage. What it does:

• Captures condensate and channel water toward the drain to reduce standing moisture.
• Helps prevent water from pooling under components that could cause corrosion or odors.
• Restores proper drain routing after a damaged or cracked tray is removed.
• Works with existing hoses and clips to maintain normal drainage performance.

• Disconnect power and water before beginning repair.
• Remove access panels or components as needed to reach the drain tray; keep fasteners organized.
• Inspect surrounding seals, hoses, and clips and replace any worn parts to ensure a watertight fit.
• Reassemble panels and test the appliance for proper drainage and leaks before returning to service.

This cover assembly protects the machine components and helps keep internal machinery free of debris and accessible for repair. It provides a durable barrier that helps extend component life and maintains safe operation. What it does:

• Shields motors, belts and internal linkages from dust and lint that can cause wear
• Helps contain moving parts to reduce pinch or contact hazards during normal use
• Maintains proper component alignment by providing a stable mounting surface
• Commonly replaced when cracked, warped, missing fasteners, or damaged from impact

• One cover assembly as shown

• Disconnect power before attempting service
• Handle gently to avoid cracking plastic tabs; inspect mounting clips and screws for damage
• Reuse original fasteners only if undamaged; replace any stripped screws or broken clips

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

A small retaining pin used to secure moving parts and keep components aligned for smooth operation. Replacing a worn or broken common pin can stop rattling and restore proper fit between linked parts. What it does:

• Holds or aligns two parts together so they move correctly and stay in position
• Helps prevent rattling, looseness, or parts slipping out of place
• Works as a simple mechanical fastener—no electronics involved

• One common pin

• Disconnect power to the appliance before beginning any service
• Keep track of small parts; lay out components in order to aid reassembly
• May require removal of trim or a hinge/retainer to access the pin—use basic hand tools
• If the pin is difficult to seat, do not force; inspect mating parts for damage

This cabinet roller supports the refrigerator and lets the unit roll in and out of place for cleaning or service. Replace a worn or broken roller to restore smooth movement and help keep the appliance properly positioned.

• Supports the base of the refrigerator and enables rolling movement
• Helps with safe positioning and service access without dragging
• Common failure signs: appliance is hard to move, scraping or rolling noises, a flat-spotted/cracked wheel, or a wheel that won't turn
• Replace when the roller is damaged, seized, or missing

• Disconnect power and shut off water supply; protect flooring before moving the appliance
• With help, pull the refrigerator forward and safely support it to access the roller
• Remove mounting fasteners, install the new roller, and reuse original hardware
• Confirm level and smooth movement before returning the unit to its location

The Drier Assembly is an OEM part for LG refrigerators. This part removes moisture and contaminants from the refrigerant, ensuring the system operates efficiently and effectively. The drier assembly helps maintain the proper function of the compressor and other cooling components, contributing to the longevity and performance of the refrigerator.

Causes of a bad drier assembly can include clogs from debris, wear and tear over time, or contamination from moisture or refrigerant leaks.

Symptoms of a bad drier assembly include:

• The refrigerator not cooling properly
• Frost or ice buildup on the evaporator coils
• Increased noise from the compressor
• Reduced efficiency and higher energy consumption
• You should replace the drier assembly if it becomes faulty or damaged.

This OEM LG part is also compatible with select Sears/Kenmore models.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

This damper controls airflow between compartments to help maintain proper temperatures and consistent cooling. It replaces a worn or broken damper to restore normal airflow and temperature balance inside the appliance. What it does:

• Regulates air flow between compartments so the refrigerator can maintain set temperatures
• Helps reduce uneven cooling and temperature swings caused by a stuck or broken damper
• Works as part of the appliance's air distribution system to route cooled air where needed
• Common symptom: compartment temperature too warm or inconsistent airflow noise from the damper area

• One damper assembly

• High-level replacement; access usually requires removing interior panels or duct covers
• Disconnect power before any repair to avoid shock or injury
• Handle with care to avoid bending or damaging mounting tabs and linkage

The Fan Assembly is an OEM part for LG refrigerators. It is responsible for circulating air within the refrigerator and freezer compartments, ensuring consistent cooling and optimal temperature distribution. The fan assembly helps maintain the freshness of your food by evenly distributing cold air.

Common causes of a bad fan assembly include electrical issues, worn-out bearings, or obstructions that prevent the fan from spinning properly.

Symptoms of a bad fan assembly include:

• Unusual noises coming from the refrigerator
• Inconsistent temperatures within the fridge or freezer
• Frost buildup in the freezer
• Refrigerator running continuously or not cooling effectively

This OEM LG part is also compatible with Sears/Kenmore models.

The Defrost Control Assembly is an OEM part for LG refrigerators. It is designed to regulate the defrost cycle, ensuring that frost buildup on the evaporator coils is periodically melted away. This helps maintain efficient cooling performance and prevents excessive ice accumulation, which can hinder the refrigerator's functionality.

You should replace the defrost control assembly if it becomes faulty. Causes of a bad defrost control assembly can include electrical failures, regular wear and tear, or damage from power surges. A malfunctioning defrost control can lead to issues such as inadequate defrosting, which results in excessive frost buildup and affects the cooling efficiency of the refrigerator.

Symptoms of a bad defrost control assembly include:

• Frost buildup on the evaporator coils
• The refrigerator not cooling properly
• The defrost cycle not initiating or running too frequently
• Increased energy consumption due to the refrigerator working harder to maintain temperature

This OEM LG part is also compatible with Sears/Kenmore models.

This controller assembly is the electronic control board that manages appliance functions and user commands, restoring reliable cycle control and display operation when the original board fails. It replaces a faulty control to help return normal machine operation. What it does:

• Receives and processes user inputs from the control panel and touchpad
• Controls timing, cycle selection, and power distribution to motors, valves, and sensors
• Can stop appliance operation or cause error codes when it malfunctions
• Common symptoms: unresponsive controls, incorrect cycles, flashing/error display, or no power to controlled components

• One controller assembly

• Disconnect power before starting; verify power is off to avoid shock
• Handle the board by edges and avoid static discharge; wear an ESD strap if available
• Inspect connectors and harnesses for damage and ensure firm, correct connections
• After installation, restore power and run a test cycle to proper operation

The Door Switch is an OEM part for LG refrigerators. It is located near the door hinge and is activated by the door's movement. When the door is closed, the switch is engaged, allowing the interior light to turn off and other functions to operate normally. When the door is opened, the switch is released, triggering the interior light to turn on and potentially activating other features, such as the ice dispenser or cooling system.

Causes of a faulty door switch can include wear and tear over time, mechanical damage from excessive force, or electrical issues.

Symptoms of a bad door switch may include:

• The interior light not turning on when the door is opened
• The interior light remains on when the door is closed
• Issues with the dispenser or other functions associated with the door switch

The Dispenser Switch is an OEM part for LG refrigerators. It is responsible for controlling the operation of the dispenser, allowing you to dispense water or ice from the refrigerator door. This switch is located in the dispenser house and activates the dispenser when pressed.

Causes of a bad dispenser switch can include wear and tear over time, electrical malfunctions, or damage due to accidental mishandling or impact.

Symptoms of a bad dispenser switch include:

• Inability to dispense water or ice when pressing the buttons.
• The dispenser works intermittently.
• No response or delayed response when pressing the dispenser buttons.

This LG part can also be used on Kenmore/Sears appliances.

The Dispenser Micro Switch is an OEM part for LG refrigerators. It is a component of the ice and water dispensing system, responsible for activating the dispenser when the lever is pressed.

Causes of a bad Dispenser Micro Switch can include mechanical wear from frequent use, failure due to moisture or debris affecting the switch’s contacts, or electrical faults that prevent proper signaling.

Symptoms of a bad Dispenser Micro Switch include:

• The dispenser not releasing ice or water when the lever is pressed.
• Continuous dispensing or dripping after the lever is released.
• Intermittent or no response from the dispenser controls.

This OEM LG part is also compatible with Sears/Kenmore.

The Condenser Fan Motor Assembly is a genuine OEM replacement part that plays a crucial role in the functioning of your LG refrigerator. The assembly includes the fan blade, which directs air across the condenser, and the motor that powers the fan blade. Operating at DC11V with 176mA and 1.93W, this DC motor includes an electrical plug with a 3-pin harness.

Causes of a bad DC motor can include wear and tear over time, bearing failure, electrical issues, or exposure to excessive heat or moisture. A failing motor may cause the refrigerator to malfunction or stop working altogether.

Symptoms of a bad Motor DC include:

• The refrigerator not cooling properly or not cooling at all
• Strange noises coming from the refrigerator
• The ice maker not producing ice or dispensing ice
• The compressor not running or running continuously

This OEM LG part is also compatible with Sears/Kenmore models.

This DC motor assembly drives the refrigerator's fan to move air across the coils and through the cabinet, helping maintain stable temperatures. Replacing a worn, noisy, or non-running motor restores proper airflow for reliable cooling.

• Powers the fan that circulates air across the coils and throughout the compartment
• Supports even temperatures and consistent cooling performance
• Common symptoms: fan won't run, intermittent or loud fan noise, weak/no airflow, warmer than normal temperatures
• Longer run times when failing due to reduced airflow

• Disconnect power to the appliance before servicing; use cut-resistant gloves
• Access location varies by model; remove the rear cover or interior panel to reach the fan motor
• Note connector orientation before unplugging; secure wiring fully on reassembly
• Ensure the fan spins freely after installation before restoring power

The Fan Motor is an OEM part for LG refrigerators. It is essential for circulating air throughout the refrigerator and freezer compartments to ensure a consistent and even temperature. This air circulation is crucial for proper food preservation and to prevent warm spots or frost buildup, which can occur when air does not circulate properly.

Symptoms of a bad Fan Motor include:

• The refrigerator making unusual noises such as humming or buzzing, which may indicate the motor is struggling.
• Poor cooling performance, with parts of the refrigerator warmer than usual.
• The refrigerator cycling on and off more frequently, which can be a sign of the motor overheating.

Causes of a bad fan motor can include wear and tear from continuous use, accumulation of dust or debris in the fan, or electrical issues such as faulty wiring or a burned-out motor.

This OEM LG part is also compatible with Sears/Kenmore models.

This lamp cover is the replacement clear/white lens that protects and diffuses the appliance interior light, restoring proper illumination and preventing direct bulb contact. It helps keep the light assembly enclosed and looking finished. What it does:

• Protects the interior light bulb from spills, dust, and impact
• Diffuses light for even illumination inside the appliance
• Restores a cracked, yellowed, or missing lens to improve visibility
• Prevents direct contact with the bulb for safer operation

• One lamp cover (lens) as shown

• Remove power to the appliance before replacing the lens (unplug or shut off circuit)
• Typically snaps or screws into the light housing; use care to avoid breaking the new lens
• Inspect the light housing and bulb; replace bulb if damaged before reassembly
