Range / Cooktop / Oven Heating Element

This 20-inch bake element heats the bottom of the oven cavity so food cooks and browns evenly. Replacing a failed element restores proper oven heating and baking performance. What it does

• Heats the oven's bake chamber during bake cycles
• Replaces a cracked, burned-through, or non-heating bake element
• Helps resolve symptoms like no heat from the bottom, uneven baking, or oven failing to reach set temperature
• Works with the oven's control and safety circuits to provide consistent heat

• Disconnect power to the appliance at the breaker or unplug before starting
• Access usually requires removing the oven cavity bottom or back panel
• Handle the element by its insulated areas and avoid bending or touching the bare heating surface
• Tighten terminal connections securely and verify operation with the oven empty after reassembly

The Element is an OEM component specifically designed for Frigidaire brand electric ranges. Located beneath the cooktop surface, these resistive elements generate heat for cooking.

Prolonged use causes elements to warp, crack, or lose continuity over time due to normal heating/cooling cycles. Element failure limits cooktop functionality.

Causes of a faulty element relate to typical wear expected of high-temperature filament windings. Accidental damage during cleaning can also impact integrity.

Symptoms of a bad element involve:

• One or more cooktop zones not heating properly or at all
• Burned residue indicating heating dysfunction
• Visible cracks or separations in the resistive coils

Replacing with this OEM Frigidaire assembly restores reliable and consistent zoned heating. Compatibility extends to some Kenmore, Gibson, and Electrolux ranges.

This bake element heats the oven cavity so your range can reach and maintain baking temperatures for cooking and roasting. Replaces a worn or damaged oven element to restore consistent oven heating. What it does:

• Heats the oven interior during bake cycles to cook food evenly
• Restores expected oven temperature when a faulty element prevents heating
• Helps eliminate uneven baking or no-heat symptoms caused by a broken element
• Visible signs to watch for: blistering, breaks, or burn marks on the element

• One bake (oven) heating element

• Disconnect power to the appliance at the breaker or unplug before servicing
• Handle the element carefully to avoid bending or damaging terminals
• Verify correct part fit and terminal type for your model before installation

This round cooktop surface element provides a direct heat source for electric ranges, restoring one burner's ability to heat cookware evenly. It's a straightforward replacement for a damaged or non-heating burner element. What it does:

• Heats cookware on an electric range cooktop so pots and pans can reach cooking temperatures
• Replaces a cracked, burned-through, or non-functioning surface element to restore burner operation
• Helps eliminate intermittent or no-heat symptoms on the affected burner
• Works with the range's existing terminal block and controls when compatible

• One cooktop surface (round) element

• Disconnect power to the range at the circuit breaker before starting work
• Remove the damaged element from its terminal connections and lift out; install the new element by seating terminals fully and testing power
• Use care to avoid scratching the cooktop surface and verify element compatibility with your model

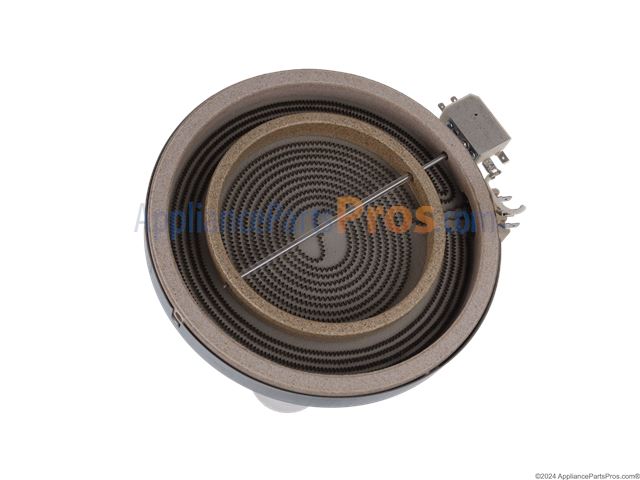

This radiant cooktop element replaces a failed dual-size burner to restore proper heating on compatible glass-ceramic ranges. It provides the inner and outer cooking zones in one dual-ring element for flexible cookware sizing. What it does:

• Heats cookware using the inner or outer cooking ring for small or large pots and pans
• Restores normal cooking when a burner won't heat or heats only on one ring
• Replaces cracked, visibly damaged, or non-responsive radiant elements
• Helps eliminate uneven heating or intermittent power to the cooktop zone

• One radiant cooktop element (dual-size 230/140 mm)

• Disconnect power at the breaker before servicing the cooktop to avoid shock
• Handle the glass-ceramic surface and element carefully to prevent cracking
• After installation, test the burner on low and high settings to confirm operation

This replacement grill (broil) heating element restores high, direct heat for broiling and browning in the oven. It lets you crisp and brown food quickly so broil functions work like new. What it does:

• Provides the intense direct heat required for broiling and grilling
• Replaces a burnt-out or broken upper oven element to restore broil performance
• Helps eliminate problems like food not browning or uneven broiling
• Visible breaks, blisters, or open circuits on the element are common failure signs

• Disconnect power to the appliance before starting any repair to avoid shock
• Handle element carefully to avoid bending or damaging the terminals
• Reconnect wiring securely

This fast radiant cooktop element replaces a damaged or non-working surface burner to restore even, reliable heating on compatible electric glass-ceramic ranges. It's a direct-fit heating element designed for 4-wire connections. What it does:

• Heats cookware quickly via the radiant heating surface for stovetop cooking
• Replaces cracked, non-heating, or intermittently heating burners
• Restores consistent temperature response and even heat distribution
• Works with 4-wire cooktop wiring; matches OEM element size and mounting

• One fast radiant cooktop element (180 mm / 7 in., 4-wire)

• Disconnect power at the breaker before servicing the cooktop to avoid shock
• Handle glass-ceramic surfaces carefully to prevent cracking; lift element per your model's service instructions
• Match wire colors/terminals exactly and secure connections;
• Test cooktop function after installation and re-seat any trim or retainers per the manufacturer guide

This convection heating element replaces the oven's rear/top convection heater to restore even heat circulation and consistent baking results. Designed to match OEM fit and function for compatible Bosch ranges and ovens. What it does:

• Heats oven cavity to enable convection cooking and improved heat distribution
• Restores proper airflow and browning when the original convection element is burnt out or intermittent
• Helps resolve symptoms like uneven cooking, longer cook times, or visible element damage
• Works with the oven's convection fan to maintain set temperatures during bake/convection cycles

• Disconnect power at the breaker before attempting service to avoid shock hazard
• Handle element carefully; avoid bending terminals or damaging insulation
• Basic disassembly of the oven back/upper panel may be required

This oven bake element heats the cavity to cook and brown food reliably. It replaces a worn or broken heating element so your oven can reach cooking temperatures again. What it does:

• Heats the oven for baking, roasting and broiling steps
• Restores proper oven temperature when the element is visibly damaged or not glowing
• Helps eliminate undercooked or unevenly baked food caused by a failed bake element
• Works as the main lower heating source in electric ovens that use separate bake and broil elements

• Always disconnect power at the breaker or unplug the appliance before starting work
• Typical install requires accessing the oven interior and securing the element with screws; support the element when disconnecting wires
• Use proper wire connectors and confirm tight, correct connections before restoring power

This bake element is the oven heating element that produces the lower radiant heat used for baking and roasting, restoring even oven temperatures and consistent cooking results. What it does:

• Heats the oven cavity during bake cycles to cook food evenly
• Replaces a broken or visibly damaged element that won't glow or heats weakly
• Helps correct symptoms like no heat on bake, uneven baking, or error codes tied to heating failures
• Works as the direct replacement heating element assembly in compatible ranges and wall ovens

• One bake element

• Disconnect power to the appliance before starting any repair
• Allow the oven to cool completely and wear gloves to avoid cuts from sharp edges
• Access typically requires removing the oven cavity or rear access panel and disconnecting two terminal connectors
• Verify correct fit and secure electrical connections;

This is a replacement lower oven bake element that restores the heating surface used for baking and roasting. It installs in the oven cavity to produce the consistent radiant heat needed for proper cooking results. What it does:

• Heats the oven floor area to provide the primary baking and roasting heat.
• Helps maintain oven temperature so food cooks evenly.
• Commonly replaced when the oven does not heat or reaches lower-than-set temperatures.
• Replace if the element is visibly broken, burnt, or shows exposed wires.

• Disconnect power to the appliance at the breaker or unplug before starting.
• Handle the element carefully to avoid bending or damaging the terminals or insulation.
• Secure mounting screws as required.
• After installation, restore power and test oven heat; if oven still fails to heat, further electrical diagnosis may be needed.

This 230V, 1500W radiant cooktop element replaces a damaged or non-working surface burner to restore even heating for compatible electric glass-ceramic ranges. Durable design for direct terminal connections on most Bosch-style cooktops. What it does:

• Heats cookware through direct radiant energy for stovetop cooking
• Replaces a cracked, non-heating, or intermittently working surface element
• Helps eliminate uneven cooking or zones that won't reach set temperatures
• Matches OEM electrical rating for safe, consistent performance

• One radiant element (230V, 1500W)

• Disconnect power at the breaker before inspecting or replacing the element
• Allow the cooktop to fully cool; element and glass surface can retain heat
• Verify terminal connections and secure mounting per range instructions

This 1200W heater element warms dishwasher wash water to improve cleaning and drying performance. It replaces a worn or failed heating tube to restore normal wash temperatures and help reduce cycle time and spotting. What it does:

• Heats incoming water during wash cycles so detergents activate and soils break down
• Helps improve drying and reduces water spots by raising rinse temperature
• Commonly replaced when dishwasher runs but water stays cool or cleaning performance drops
• A fix for longer-than-normal cycles or error codes related to heating

• One 1200W heater element

• Disconnect power and water before beginning any repair
• Access requires partial disassembly of the dishwasher tub or base; follow OEM instructions
• Inspect wiring, connectors, and gaskets; replace damaged parts and tighten connections

Large

This oven bake element replaces the bottom heating element that provides consistent heat for baking and roasting. It restores proper oven temperature so food cooks evenly and helps resolve heating issues. What it does

• Heats the oven cavity during bake cycles to maintain set temperatures
• Restores even baking and roasting when the oven underheats or cooks unevenly
• Can resolve symptoms such as no heat during bake, long preheat times, or inconsistent oven temperatures
• Connects to existing terminal studs and mounts at the rear of the oven cavity

• Disconnect power at the circuit breaker before starting any repair
• Allow the oven to fully cool and remove racks before accessing the element
• Replace using appropriate tools; ensure terminals are tight and insulated to prevent shorting
