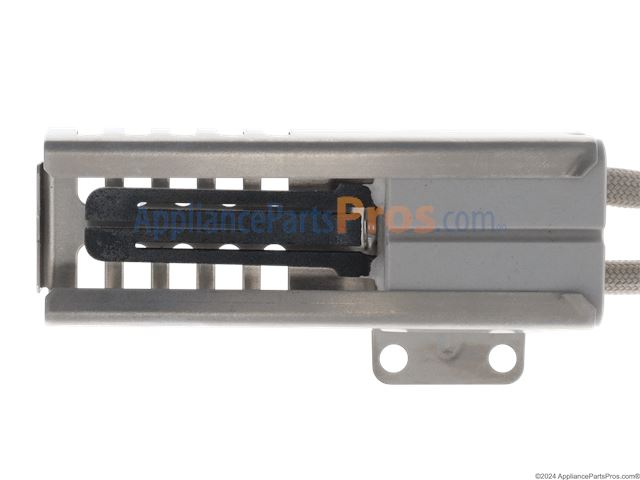

Kenmore / Sears Igniter

• Little to no heat when broiling
• Little to no heat when baking
• Gas igniter glows, but will not light
• Won't start

If the oven burner would not light but the broiler would this indicated that the safety valve is OK. Problem had to be with the igniter. Removed the bottom panel in the oven and restarted the oven. The igniter would not glow at all. It should be brilliant red. This is where the problem came in. I could not find the location of the model on the Kenmore range anywhere you would normally look - the back, the wiring envelope, the oven door jamb etc. Also the igniter cannot be removed from... Read more

• No heat or not enough heat
• Takes too long to dry

I used Fixya as an initial source describing my problem. I got two responses which were very helpful. One that the "coils" were probably the problem. Two, that the problem could be the thermostat or a thermistor in the dryer. I verified that AC was coming from the timing control, that both the two terminal and three terminal coils,the igniter and shut off thermostat all had continuity. I then applied AC directly to the coils: the two terminal coil ""clanked" and I interpreted that as the coil... Read more

• Gas smell
• Gas igniter glows, but will not light
• Little to no heat when baking
• Won't start

My Tappan Range, which I paid a grand total of $65.00 for, and have been using since Katrina, (Katrina in 2005 is how we measure time in South Mississippi.) I live in an old house, and I am old, too. Last winter was the coldest I can remember, and my husband (older than I and far more hard-headed) used the oven like a heater. I read all user's manuals, because I use only used stuff, I can download the manuals or read them online, and it clearly stated in there NOT to use the oven as a... Read more

My Kenmore 790.74139310 gas range was taking over 30 minutes to reach 350F. It used to take a little less than 10 minutes. The problem was the ignitor for the lower gas burner. It would glow but not pass sufficient current to increase the gas flow to the lower burner. Once at temperature, there is of course loss of heat when loading the oven with room temperature food. This took too long to recover, so we did not have proper temperature for proper cooking for the first 30 to 40 minutes. Food... Read more

• Little to no heat when broiling
• Little to no heat when baking
• Won't start
• Gas igniter glows, but will not light

There are two igniters in oven, one for top broiler and one for bake oven at bottom. Your website help me troubleshoot the problem and locate the part. ordered part was delivered the next day. Following the instructions that others on your website had provided, the repair was quick and SUCCESSFUL. No need to pull out oven as power cord can be accessed from removing bottom storage drawer. Step 1: Remove the storage drawer from below the oven and disconnect the power cord from inside. No need... Read more

• Gas igniter glows, but will not light
• Won't start
• Little to no heat when baking

I watched a video by AppliancePartPros, and it showed the exact problem that I was having as well as what part that I would need for the repair. So I ordered the part which was and oven igniter, that also turned out to be the exact replacement for my old igniter.The part came in the mail in a about 3 days and I was able to install it myself in about 20 minutes give or take, with simple hand tools, then I did a quick test and everything worked fine. THANKS APPLIANCE PARTS PROS FOR ALL OF YOUR... Read more

Replaced igniter. Problems solved. Read more

• Won't start
• No heat
• Little to no heat when broiling
• Oven not heating evenly

We were getting an intermittent F19 code on our lower oven mainly. This code gets triggered when the oven fails to heat up to a minimum temperature within a specific amount of time. I figured this was being caused by an ignition failure so I bought this new ignitor. As it turns out, if you have a double oven then you will have two ignitors. Just keep that in mind in case you are thinking about replacing both or you are seeing errors in both ovens. The ignitor in the lower oven is located below... Read more

On my Jenn-Air downdraft range, the oven stopped heating. The broiler still worked. So pulled the pan off the bottom so I could see and found the igniter wasn't glowing to start the gas. I had replaced the full electronic control panel using Appliance Parts Pros so knew they had the full breakdown of parts for my model. I found the igniter and ordered. But frankly, I wasn't sure about doing the repair myself. It looked easy enough from videos and discussions here. Still, dealing with the... Read more

• Won't start

There are hex screws keeping the igniter in place. I think they were 5/16...so you have to have a socket wrench. The space is kind of tight, and it's all on the right side, so if you're left handed (like I am) it's going to be a challenge to get the hex screws out without dropping them. Dropping them isn't too bad if they don't fall into the hole the gas pipe is coming through. Unfortunately one of them fell in there, and there's no getting it out of there. I had a machine screw that fit, so I... Read more

• Little to no heat when broiling
• Gas igniter glows, but will not light
• Little to no heat when baking
• Gas smell

Followed linked video instructions and replaced with new flat style Oven Igniter Kit. Some repair info background, while out shopping for a replacement oven ($1000 plus) a terrific salesman listened to the issue with my current oven and recalled his same issue and solution. I thanked him for his time and recommendation. I went home and searched "oven Ignitor" where I was led to this website. The video showed the same exact flat oven igniter and how easy it would be to replace it. I immediately... Read more

Replaced ignitor. Very simple project. Read more

I have used this site before to fix my dishwasher, so I knew to check here first. I searched other's comments to troubleshoot my problem. Ordered the part and it arrived in only a couple of days. I should insert here that I am a 45 yo female, so if I could do this, anyone can. I watched the video and proceeded to replace the part. For my particular model, I didn't access the part from the back, but instead through the underside by removing the bottom drawer. Total from start to finish... Read more

I first ordered a thermostat and ignitor and replaced and that did not work. I asked Appliance Parts Pros their opinion in the chat and they said it was the coils in the gas valve but you had to replace the entire valve as the coils are not sold individually. So i ordered the part and also replaced the thermistor and drum belt while i had the dryer apart anyway! And this fixed the problem! These guys are the absolute best and most helpful i have ever dealt with. This is the second time i... Read more

Changed ignitor. Ordered new ignitor by just putting dryer model number in the search box. When I opened the dryer up and took the old one out I was originally upset. The meter read 73 ohms. I was expecting OL (open line). The new one read 273 ohms so I put it in. Dryer works now. The install video’s are old. It was much easier than the video’s showed. Opening the control panel was a little trickier than the video. You do NOT need to take screws off the back of the dryer. There are 2 screws... Read more

• Gas igniter glows, but will not light
• Little to no heat when baking
• Won't start

The oven would not heat up but the broiler and stove top burners all worked so I replaced the igniter. The part arrived quicker than I expected - one day with regular shipping - and the repair also went much quicker than expected. After accessing the igniter I was able to unplug the plastic modular connection. Instead of pulling the oven out from the wall - which would have been a huge pain - I was able to reach the plug by removing the bottom storage drawer under the oven. From there it was... Read more
