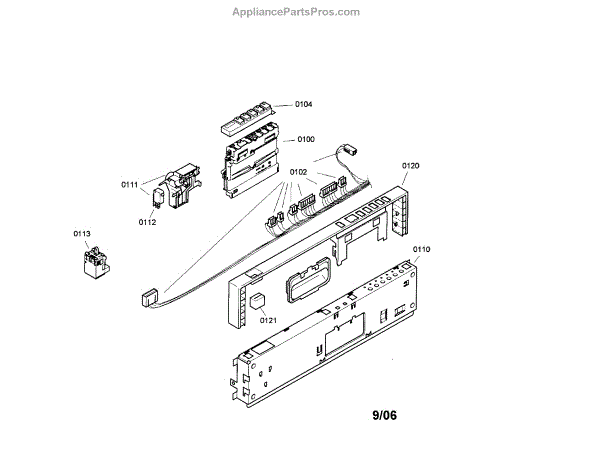

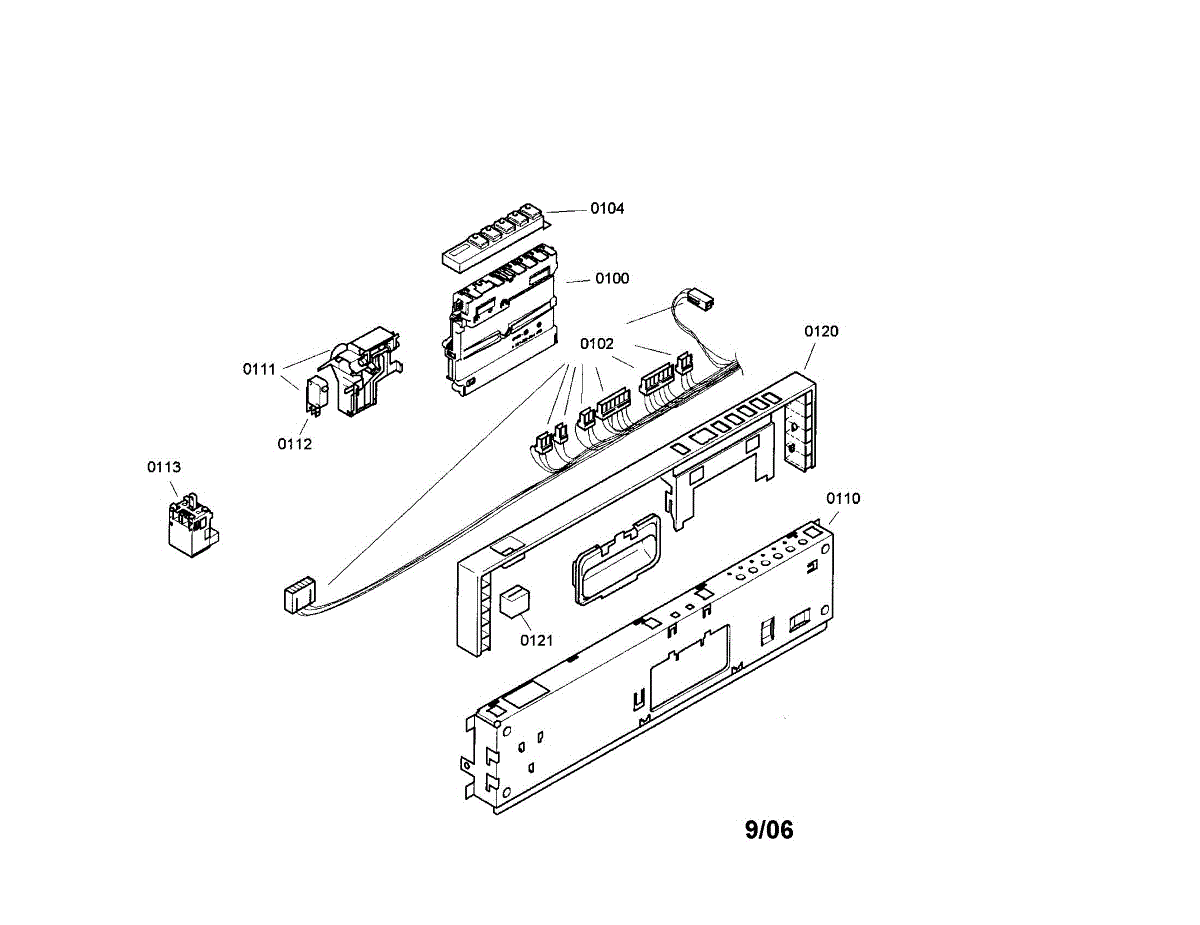

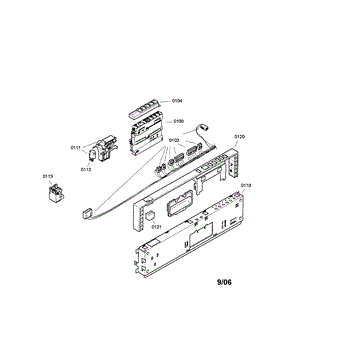

Parts for Bosch SRV53C03UC/30: Control Panel Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Fix a dishwasher that won't start, stops mid-cycle, or has unresponsive buttons with a new control module. Manages all functions and cycle timing.

Fix a dishwasher door that won't latch or stay closed. This door latch assembly secures the door during operation. DIY repair in 15-30 minutes.

This replacement switch restores reliable electrical control within your appliance. It opens and closes an electrical circuit to signal the control system, so power and functions respond consistently when the switch is actuated.

• Opens/closes an electrical circuit when the actuator is engaged
• Sends an on/off or selection signal to the control or main board
• Helps address: no response or no start, intermittent operation, stuck on/off state, or heat-damaged/burned terminals
• Direct replacement for the original switch on applicable units

• Disconnect power at the breaker and unplug the unit before servicing
• Access the control area to reach the switch; note wire locations or take a photo
• Transfer wires one at a time for correct orientation; ensure snug terminal connections
• Reinstall mounting hardware, reassemble panels, restore power, and test operation

Fix a dishwasher that won't power on or reset with this on/off switch. Replaces worn or moisture-damaged switches. DIY-friendly installation.

Seals the detergent dispenser to prevent leaks and ensure proper release during wash cycles. Replace if detergent leaks or dispenser malfunctions.

The Dispenser is an OEM part for Bosch dishwashers. It dispenses detergent and rinse aid at appropriate times during the dishwashing cycle, ensuring optimal cleaning and rinsing performance. The dispenser is essential for maintaining the efficiency and effectiveness of your dishwasher.

Causes of a bad dispenser can include clogging from detergent residue, mechanical failure of the dispenser door or latch, or electronic issues that prevent proper operation. Regular cleaning and maintenance can help mitigate these problems, but parts may still need replacement over time.

Symptoms of a bad dispenser include:

• Inconsistent or improper dispensing of detergent or rinse aid
• Dishwasher leaving spots or residue on dishes
• The dispenser door not opening during the cycle
• Leaks or drips from the dispenser area

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Fix a detergent dispenser door that won't stay closed or pops open during the wash cycle. This lid replacement is a simple DIY repair with no tools needed.

The Sealing is an OEM replacement part for Bosch brand dishwashers. Located on the perimeter of the small rinse aid compartment door, this resilient rubber piece forms an essential water-tight seal when the dispenser is closed.

Symptoms of a potentially problematic rinse aid door sealing include:

• Leakage or spills within the rinse aid reservoir
• Mineral deposits or residue build up inside the compartment
• Cracks, tears, or deformation of the sealing material

Causes of a faulty rinse aid door sealing can be repetitive opening/closing stress breaking down pliability long-term. Exposure to chemical vapors from the rinse aid may also degrade sealing properties.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Detergent dispenser door won't stay closed? This latch secures the detergent cup during wash cycles. Simple DIY repair with video guidance included.

Fix detergent door that won't open or latch properly. This dispenser plunger actuator restores mechanical engagement between the lid and release mechanism.

Fix a rinse aid door that won't stay closed or causes leaks. This dishwasher dispenser door with gasket snaps on in minutes. Easy DIY repair.

Dishrack adjuster regulator with O-ring for dishwashers. Installs on rack assembly to control height adjustment. Replace if cracked, broken, or worn.

If your dishwasher detergent dispenser won't open during the wash cycle, this actuator lever assembly with springs restores mechanical movement.

Wax motor for detergent/rinse-aid dispenser.

Detergent not dispensing during wash cycle? This actuator arm with spring releases the detergent cup at the right time. Moderate DIY repair.

Six-screw kit for securing the inner door assembly in your dishwasher. Replace missing, stripped, or lost screws to properly fasten door panels.

Replace your dishwasher's rubber seal gasket to prevent leaks and restore watertight sealing. Install when you notice water escaping or damaged seals.

Insulating pad for dishwashers. Installs inside cabinet to reduce noise and retain heat. Replace if damaged, torn, or missing for proper insulation.

Replace the trim strip on your dishwasher door or panel. This decorative strip covers gaps and provides a finished look. Order now if yours is cracked or missing.

Secures your dishwasher to the cabinet or countertop. Includes brackets and hardware for stable installation. Replaces worn, missing, or broken mounts.

This replacement side panel restores the dishwasher's exterior side surface, covering internal components and returning a finished look. It helps protect insulation and wiring while keeping the cabinet appearance uniform. What it does:

• Covers and protects the dishwasher tub side, hiding insulation and internal components
• Restores cosmetic appearance when original panel is dented, corroded, or missing
• Helps reduce noise by enclosing the washer cavity
• Keeps insulation and wiring secured behind a finished surface

• Disconnect power and water to the appliance before beginning any work
• Remove the toe panel and adjacent trim to access side panel fasteners; mounting hardware may be required
• Handle edges carefully — sheet metal can be sharp

This side panel replaces a damaged or corroded cabinet side on compatible Bosch dishwashers, restoring the appliance's exterior appearance and protecting internal components. Fits one side of the dishwasher cabinet. What it does:

• Covers and protects the dishwasher cabinet side from moisture, dents, and daily wear
• Restores a flush, factory appearance to the appliance exterior
• Keeps internal components shielded from spills and debris
• Helps maintain proper alignment of the outer cabinet panels

• Typical replacement requires removing the dishwasher from the opening; ensure power and water are disconnected first
• Use proper tools and follow dishwasher disconnection steps to avoid damage to trim or hoses
• Retain all original fasteners when possible; replacement hardware may be required if damaged

This upper trim strip finishes the top edge of the appliance's front opening, restoring a clean look and helping protect nearby components. Replace a cracked, missing, or loose strip to keep panels aligned and secure.

• Provides a finished edge along the upper portion of the door/face area
• Helps protect adjacent components from dust and minor splashes
• Maintains proper panel gaps and alignment
• Typical symptoms: visible cracks, warping, looseness, rattling, or exposed/sharp edges

• Disconnect power before servicing; also shut off water
• Remove the existing strip by releasing screws/clips; retain hardware for reuse
• Align the new strip and secure evenly—do not overtighten fasteners
• Check door/panel operation afterward to confirm proper fit and clearance

Seals the sides and top of your dishwasher tub to prevent leaks and contain steam. Replace when worn or cracked to restore watertight operation.

Dishwasher door won't stay closed or latch properly? This door latch securely fastens the door during wash cycles. Common DIY fix for door issues.

Front corner block for dishwashers. Secures side panels at the top front of the unit. Replace if cracked, broken, or missing to restore proper fit.

Rear corner block for dishwashers. Secures insulation at the back corner of the cabinet. Replace if cracked, broken, or missing to restore stability.

Replacement end cap stops for dishwasher upper rack rails. Clips onto rail ends to keep rack on track. Order when original caps are cracked or missing.

Replace your dishwasher's upper rack rail if cracked, broken, or worn. This guide rail installs along the sides to support smooth rack sliding.

Dishwasher condensation tube connector channels moisture from the tank to the drain. Replace if cracked, leaking, or loose to prevent water pooling. Verify fit with your model number before ordering.

This condensation tube routes moisture from the dryer's vented condensate tank to the drain, helping prevent leaks and pooling under the appliance. It's a direct-replacement tank drain tube for compatible vented-tank models. What it does:

• Channels condensate away from the tank to the dryer drain connection to reduce water buildup.
• Helps stop leaking or pooling beneath the dryer when the tank is vented.
• Restores proper condensate flow if the original tube is cracked, clogged, or damaged.
• Compatible with vented-tank dryer assemblies that use a routed drain tube for condensate.

• Turn off and unplug the dryer before starting any repair; if applicable, shut off gas supply.
• Remove access panels as needed to reach the condensate tank and tube; avoid damaging nearby wiring or hoses.
• Ensure tube fittings seat fully and secure clamps or fasteners to prevent leaks.

Replacement mounting bracket set for securing your dishwasher to cabinetry. Needed when original brackets are bent, broken, or missing during installation.

Repair set for dishwasher rack rollers. Restores smooth rack movement when wheels are broken, cracked, or worn. Installs on upper or lower racks.

Spring-style hose clamp secures water and drain hoses to fittings, preventing leaks. Replace when connections loosen or clips lose tension. Confirm fit with your model number.

Replaces cracked or brittle dishwasher hose connecting the sump to the water inlet valve. Includes 2 o-rings. Essential for preventing leaks during pump replacement or routine maintenance.

O-ring seal prevents leaks between dishwasher components. Replace when you notice water drips or moisture buildup. Confirm fit with your model number.

Replacement water level control cover for dishwashers. Snaps over the water level control assembly. Order a new cover if yours is broken, cracked, or missing.

O-ring seal prevents leaks between dishwasher components. Replace when you notice water drips or moisture buildup. Confirm fit with your model number.

Fix a dishwasher that won't fill with water by replacing the water inlet valve. This part controls water flow into your dishwasher during wash cycles.

The Pressure Chamber is an OEM part for Bosch dishwashers. This part is responsible for monitoring and controlling the water level within the dishwasher. It operates by sensing the pressure exerted by the height of the water in the tub and ensures that the dishwasher fills with the correct amount of water for optimal cleaning performance.

Causes for replacement may involve wear and tear over extended use, mineral buildup affecting the switch’s sensitivity, or electrical faults leading to inconsistent performance.

Symptoms of a failing Pressure Chamber include:

• Overfilling or underfilling of the dishwasher, which can lead to inadequate cleaning or potential water damage.
• Unexpected changes in the wash cycle, such as sudden stops or pauses.
• The dishwasher not starting a wash cycle due to incorrect water level readings.

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

Dishwasher won't fill or keeps overfilling? The float switch detects water levels for proper filling and draining. Accessible repair in under 30 minutes.

O-ring seal prevents leaks between dishwasher components. Replace when you notice water drips or moisture buildup. Confirm fit with your model number.

Dishwasher not draining or water pooling at bottom? A cracked sump disrupts water flow to the pump. This housing restores drainage and prevents leaks.

Seals the dishwasher sump to prevent water leaks during wash cycles. Replace if you notice leaking at the base or constant drain pump operation.

Secures the sump assembly to the tub, preventing leaks and movement. Replace if worn, cracked, or if you notice water leaking from the base of your dishwasher.

Secures the dishwasher sump or sump cover to the tub for a tight, leak-resistant seal. Replace if missing, stripped, or damaged to restore stability.

Secures the hose between pump and heater in your dishwasher. Replace if loose, damaged, or causing leaks. Confirm fit with your model number.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Fix dishwasher not heating or running for hours. This NTC temperature sensor monitors water temp and prevents overheating. Moderate DIY repair with video.

Seals the NTC temperature sensor port in your dishwasher to prevent leaks and ensure accurate temperature readings. Replace if leaking or worn. Verify fit with your model number before ordering.

Circular sealing gasket creating watertight joints between dishwasher components. Replace when flattened or cracked to prevent leaks. Confirm fit by model.

This turbidity sensor detects how clear the dishwasher's wash water is so the control can adjust cycle time, rinses, and water changes. Replacing a faulty sensor helps restore proper cleaning performance and normal cycle lengths.

• Monitors soil level/clarity of the wash water
• Signals the control to extend or shorten wash and rinse phases as needed
• Helps optimize water use while maintaining cleaning results
• Failure symptoms can include unusually long or short cycles, poor cleaning, repeated draining/refilling, or cycles that won't advance

• Disconnect power and turn off the water supply before servicing
• Pull the dishwasher out as needed; access the sensor from the base area
• Place a towel to catch residual water; release the locking tab or twist-lock, unplug the connector, and install the new sensor fully seated and locked
• Restore power/water and run a test cycle; check for leaks

Seals the aqua sensor assembly to prevent water leaks and protect electronics. Replace if you notice leaks or sensor errors. Confirm fit with your model.

Fix poor cleaning and weak spray arms with this circulation pump motor. Powers water through your dishwasher's wash system. Moderate DIY repair.

Support strap that cushions and secures the dishwasher circulation motor, stabilizing the motor assembly to reduce vibration and help maintain alignment for steadier, quieter operation. Designed for circulation motors with softer bearings. What it does:

• Cushions and supports the circulation motor to limit movement and vibration and reduce motor noise.
• Secures the motor assembly to the tub/chassis to maintain proper clearance and fit.
• Helps prevent undue stress on motor bearings and mounting points that can cause premature wear.
• Commonly replaced when the strap is cracked, stretched, or no longer holds the motor firmly in place.

• Disconnect power and water supply before servicing; follow all safety and OEM service instructions.
• Remove access panels and any obstructing components to reach the circulation motor as required.
• Replace using the original mounting hardware; inspect motor mounts and bearings while accessible.
• Reassemble and run a short test cycle to confirm reduced vibration/noise and proper motor operation.

Rear pump housing for the washer drain/pump assembly. Replaces the worn rear housing that supports the impeller and bearing, helping restore proper draining and reduce leaks or unusual pump noises when the housing fails. What it does:

• Houses and supports the pump impeller and bearing, forming the rear half of the drain pump assembly.
• Restores a sealed mounting surface to help prevent water leaks from the pump area.
• Helps re-establish correct water flow and draining when a cracked or worn housing impairs the pump.
• Addresses symptoms such as poor or no draining, water at the base of the appliance, or loud/grinding pump noises.

• Disconnect power and shut off water supply before starting; drain any standing water to avoid spills.
• Remove the washer access panels and pump assembly; transfer the impeller, seals, and any hardware as required.
• Inspect and replace pump gaskets/seals and the impeller if worn; tighten mounting fasteners to OEM torque where specified.

Pump housing cover for dishwashers. Replaces cracked, broken, or missing covers that protect the pump assembly. Installs over the pump mechanism.

Seals connection between pump and sump to prevent leaks during wash cycles. Replace if water pools under dishwasher or pump noise occurs.

Fix dishwasher not draining or foul odors with a new check valve. Prevents dirty water backflow into clean dishes. DIY-friendly repair in 1-2 hours.

Plastic cover that protects the drain pump mechanism from debris. Replace if cracked, broken, or tabs are bent preventing proper seal during drain cycles.

Secures the dishwasher sump or sump cover to the tub for a tight, leak-resistant seal. Replace if missing, stripped, or damaged to restore stability.

Dishwasher salt funnel guides water softener salt into the reservoir without spills. Replace if cracked or lost to maintain proper salt loading.

If your dishwasher is leaking or you need to replace a failed leak detection system, this anti-flood inlet valve stops water flow when leaks are detected.

Leaking water around the inlet valve? This rubber inlet seal creates a watertight connection at your dishwasher's water inlet to stop drips and leaks.

The Water Inlet Fill Hose is an OEM part for Bosch dishwashers. This part is responsible for safely and efficiently connecting the dishwasher to your home's water supply, ensuring that water flows into the dishwasher at the correct pressure and volume for optimal cleaning performance.

Over time, the Water Inlet Fill Hose can become susceptible to wear and tear, leaks and blockages.

Symptoms indicating the need for a new Water Inlet Fill Hose include:

• Water pooling around the dishwasher base, pointing to a potential leak in the hose.
• The dishwasher not filling with water properly, or filling very slowly, suggesting a blockage or damage to the hose.
• A visible inspection reveals cracks, bulges, or signs of corrosion on the hose connectors.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Replaces cracked, kinked, or leaking dishwasher drain hose. Connects unit to household drainage system. Essential when hose is damaged or worn.

Drain hose clamp

2 clamps included.

Front leveling leg adjusts and supports your dishwasher at the front. Replace if damaged, missing, or worn to restore proper height and stability.

Replacement door spring for dishwashers. Installs inside the door panel to provide counterbalance tension. Needed when original is broken or stretched.

Replacement tank mounting bushing for your dishwasher. Secures the wash tank assembly in place. Order a new bushing if yours is cracked or missing.

The Float is an OEM part for Bosch dishwashers. This float senses water levels inside the dishwasher, signaling the inlet valve to refill when needed.

Causes of a float malfunctioning can be mineral deposits accumulating and weighing it down over time, or cracks in the plastic housing allowing water in.

Symptoms of a bad float include:

• The dishwasher not filling or filling slowly
• Error codes related to fill issues
• Improper water levels impacting wash results

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

Dishwasher overfilling or won't stop filling? This float switch lever activates the water level sensor. Simple DIY fix restores proper fill control.

Replacement shaft that secures and guides the dishwasher float for accurate water level detection. Needed when the original shaft is worn or broken.

Replacement base panel for dishwashers. Covers and protects the bottom section of the unit. Replace if cracked, damaged, or missing to restore appearance.

Replacement adjuster socket for dishwasher leveling feet. Installs at cabinet base to raise or lower the unit for level installation. Replace if cracked or stripped.

Left side door hinge plate for your dishwasher. Replaces cracked, broken, or worn hinge plates that cause door misalignment or instability.

The Roller and Cable Assembly is an OEM part for Bosch dishwashers. This assembly includes the roller and cable, which work together to facilitate the smooth operation of the dishwasher door, allowing it to open and close effortlessly.

Over time, the roller and cable can wear out or become damaged due to regular use, friction, or accidental mishandling. If either component fails, it can affect the balance and movement of the dishwasher door, making it difficult to operate.

Symptoms of a bad roller and cable assembly include:

• Difficulty in opening or closing the dishwasher door
• A sagging or misaligned door
• Unusual noises when operating the door
• The door not staying securely in place

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Plastic bushing that guides and supports the dishwasher door hinge assembly. Replace if cracked, broken, or worn causing noisy or misaligned door movement.

Left side door hinge for your dishwasher. Replaces damaged, bent, or broken hinges that cause the door to fall open or swing too far. Bushing included.

Left hinge cap for dishwasher door assembly. Replaces cracked, broken, or missing hinge caps. Cosmetic and structural part for door hinge cover.

Right side door hinge plate for dishwashers. Secures the door hinge mechanism to the frame. Replace if cracked, broken, or damaged to restore proper fit.

The Roller and Cable Assembly is an OEM part for Bosch dishwashers. This assembly includes the roller and cable, which work together to facilitate the smooth operation of the dishwasher door, allowing it to open and close effortlessly.

Over time, the roller and cable can wear out or become damaged due to regular use, friction, or accidental mishandling. If either component fails, it can affect the balance and movement of the dishwasher door, making it difficult to operate.

Symptoms of a bad roller and cable assembly include:

• Difficulty in opening or closing the dishwasher door
• A sagging or misaligned door
• Unusual noises when operating the door
• The door not staying securely in place

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Right side door hinge for dishwashers. Installs on the right side of the door frame. Replace if bent, broken, or damaged from door falling too hard.

Replace your dishwasher's broken or missing right hinge cap. This cover installs on the door hinge to provide a finished look and protection.

Securing kit for dishwasher installation. Includes mounting hardware to attach your dishwasher to cabinetry. Replace if brackets are missing or damaged.

M6 x 26 screw secures the dishwasher door tension adjuster assembly. Replace if screw is stripped, missing, or loose to restore proper door alignment.

Rotating spray arm that distributes water during wash cycles. Replacement needed when cracked, clogged, or not spinning properly in your dishwasher.

Tall item spray head that attaches to the upper feed tube in your dishwasher. Replace if cracked, broken, missing, or won't lock into place properly.

Traps food particles and debris during wash cycles to keep water clean. Replace if clogged with buildup or if plastic retainer fails. Verify fit by model.

Replacement crockery basket for the lower dishwasher rack. Organizes and secures plates, cups, and bowls during wash cycles. Needed when broken or missing.

Replacement wheel for dishwasher racks that glide in and out. Snaps into place on upper or lower rack. Needed when wheels are broken, missing, or worn.

Light gray flip tine latch for dishwasher dishrack. Replaces broken, cracked, or missing latches that secure flip-down tines in upper or lower racks.

Gray plastic clip that secures folding tines to the dishwasher rack rail. Snaps onto the rack assembly to hold flip tines in place. Replace broken or missing clips.

Replacement crockery basket for dishwashers. Securely holds plates, cups, and dishware during wash cycles. Replaces cracked, broken, or missing baskets.

Replace your dishwasher's rack insert if it's cracked, broken, or missing. This insert installs into the dish rack to protect delicate items during wash cycles.

Replacement silverware basket with handle for dishwasher lower rack. Holds utensils upright for better cleaning. Replaces cracked, broken, or missing baskets.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
