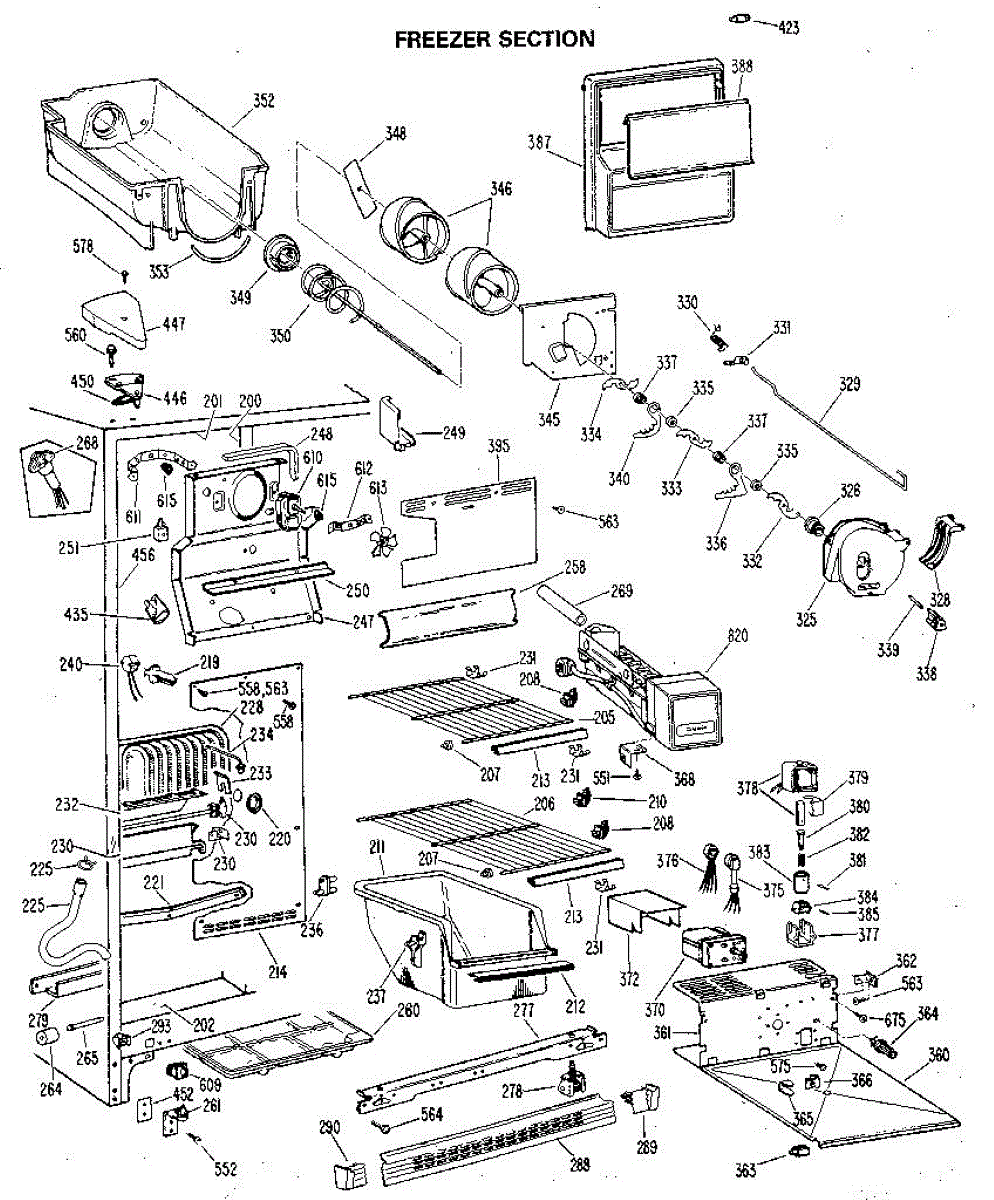

Parts for Kenmore 363.8587711 (3638587711, 363 8587711): Freezer Section Parts

The Riser Cam Shim is an OEM part for GE refrigerators. This part helps in aligning and leveling the refrigerator door, ensuring it opens and closes smoothly.

Causes of a bad riser cam shim can include regular wear and tear, damage from repeated door openings and closings, or deformation from improper installation.

Symptoms of a bad riser cam shim include:

• The refrigerator door not closing properly
• Difficulty in opening or closing the door
• The door appearing misaligned
• Reduced cooling efficiency due to an improper seal

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Spring for recess duct. For spring sleeve use WR2X4822.

This dispenser cradle is the molded housing that supports and guides the refrigerator dispenser components, helping keep the dispenser chute and actuator aligned for smooth water or ice dispensing. Replacement restores proper fit and function. What it does:

• Holds the dispenser chute and actuator assembly in the door for stable dispensing
• Guides water or ice flow to the dispense area and helps prevent spills
• Replaces cracked, warped, or broken housing that can cause misalignment or leaks
• Restores a solid mounting surface for switches, nozzles, and trim

• One dispenser cradle housing

• Disconnect power and shut off water supply before beginning any work
• Removal typically requires opening the freezer/refrigerator door and removing inner door trim and screws to access the cradle
• Handle plastic parts gently to avoid cracking; use a trim tool to disengage clips where needed

Ice maker dispenser door.

Time delay display arm.

Includes 12 washers.

Ice chute door lever.

This is the right side duct gasket. For left side use WR14X247.

This is the left side duct gasket. For right side use WR14X246.

The Refrigerator Union Connector is an OEM replacement part for GE refrigerators. It is responsible for connecting the water supply lines from the kitchen plumbing to the refrigerator, allowing water to flow to the ice maker and water dispenser. The plastic connector assists your water dispenser by joining two 5/16 inch x 5/16 inch plastic water lines. Over time, Union Connectors can crack or break under pressure.

Causes of a bad Union Connector include wear and tear from repeated use, exposure to extreme fluctuations or surges in water pressure, or damage from accidental mishandling.

Symptoms of a bad Refrigerator Union Connector include:

• Water leaks at or near the connector area
• Inconsistent or no water flow to the ice maker/dispenser
• Fluctuations in water pressure to the fridge
• Water damage to surrounding kitchen areas from leaks

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A stainless-steel #6-20 screw (1/2" length) used to fasten appliance panels and components securely. Durable corrosion-resistant finish helps maintain a tight fit and long-lasting hold in wet or humid areas. What it does:

• Fastens trim, brackets, panels, and internal components where a #6-20 x 1/2" screw is specified
• Provides a corrosion-resistant connection for areas exposed to moisture
• Restores loose or missing fasteners that cause rattling or misalignment
• Matches OEM thread and length for proper fit and function

• One stainless steel #6-20 x 1/2" screw

• Turn power off and unplug appliance before servicing
• Use the correct screwdriver or driver bit to avoid stripping the head
• Do not overtighten; stop when the component is snug and aligned
• Replace any additional damaged fasteners with matching OEM screws

Includes 12 screws.

Includes 12 screws.

Includes 12 screws.

This shelf support secures an interior refrigerator shelf in place so food items stay level and storage remains organized. It replaces a cracked or worn support to restore proper shelf seating and stability. What it does

• Holds a refrigerator shelf or shelf trim in the correct position to prevent sagging or tipping
• Restores stable support for glass or wire shelving that no longer stays seated
• Helps eliminate shelf movement that can cause items to slide or spill
• Works where a broken, chipped, or missing support prevents proper shelf alignment

• Disconnect power to the appliance before starting any repair and empty the shelf area
• Remove the affected shelf or trim to access the support; reinstall shelf to confirm correct seating
• Use basic hand tools as needed and avoid forcing parts to prevent further damage
• Replace all affected pieces for consistent shelf alignment

Open - 55, close - 35

The Defrost Timer is an OEM part for GE refrigerators. This part manages the defrost cycle of the fridge and freezer compartments, ensuring that the evaporator coils do not build up excessive frost.

This cycling is crucial for maintaining optimal temperatures for food preservation and energy efficiency. Over time, the defrost timer can malfunction due to wear, electrical issues, or a buildup of dust and debris, leading to poor performance or failure.

Symptoms of a bad Defrost Timer include:

• Frost buildup in the freezer compartment
• The refrigerator or freezer is not maintaining the set temperature
• The fridge or freezer sections are too warm
• The defrost cycle does not activate, leading to reduced cooling efficiency

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This rear wheel roller replaces a worn or damaged drawer/glide wheel to restore smooth movement and reduce sticking or noise. Durable molded construction fits the rear guide position to help support and steady the sliding drawer or bin. What it does

• Supports and guides the appliance drawer or bin for smooth in-and-out motion
• Replaces cracked, chipped, or worn rear wheel that causes binding or catching
• Helps reduce squeaks and uneven movement from a damaged roller
• Restores proper alignment and load support at the rear glide point

• One rear wheel (roller)

• Disconnect power and remove the drawer/bin per your owner's manual before replacing the wheel
• Typically installs by snapping or sliding into the rear glide bracket; basic hand tools may be needed
• Inspect mating tracks or brackets for damage and clean debris before installing the new wheel

This clamp secures small hoses or tubing and nearby wiring inside the appliance to keep lines held in place and reduce rubbing, leaks, or vibration noise. It's a direct-fit replacement designed to restore proper hose routing and stability. What it does:

• Holds water, drain or vent tubing securely to prevent sagging and rubbing that can cause leaks or wear
• Keeps hoses and wires aligned to reduce vibration and rattling during operation
• Helps maintain proper connections at fittings so seals stay seated and drip risk is minimized
• Simple mechanical clip action — no special tools or adhesives required

• Disconnect power and shut off the water supply before starting any repair
• Remove the old clamp and install this clamp in the same orientation; tubing sits fully in the fitting
• Use standard pliers (or the OEM-recommended tool) to compress/seat the clamp; avoid twisting or pinching the tubing
• Inspect surrounding tubing and fittings for wear; replace damaged hoses or seals if found

The Ice Maker Fill Tube Grommet is an OEM part for GE refrigerators. This grommet creates a seal between the ice maker fill tube and the refrigerator, preventing leaks and ensuring that water is properly directed into the ice maker during the filling process.

Causes of a bad grommet can include regular wear and tear, damage from exposure to freezing and thawing cycles, or degradation from exposure to water and moisture.

Symptoms of a bad ice maker fill tube grommet include:

• Water leaks around the ice maker fill tube area
• Ice maker not producing ice properly
• Visible cracks or deformation in the grommet
• Water pooling inside or around the refrigerator

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement crusher dispenser housing restores the outer housing that supports the ice crusher and dispenser chute, helping the dispenser operate smoothly and keep ice contained while in use. What it does:

• Replaces cracked or broken dispenser housing that can allow ice to jam or fall out
• Provides the proper mounting surface for the crusher and chute to align ice flow
• Helps reduce noise and rubbing caused by a misaligned or damaged housing
• Restores the dispenser's outer enclosure for a finished appearance and safe operation

• Disconnect power to the refrigerator before starting any repair.
• Remove ice bin and dispenser components as needed to access the housing; keep track of fasteners.
• Inspect adjacent seals, gaskets and mounting clips and replace if damaged.
• Handle plastic parts carefully to avoid cracking; reassemble components to factory alignment.

Includes 12 washers.

Includes 12 retainer rings.

This pivot is the replacement pivot piece that supports and guides a refrigerator door or sliding drawer, restoring proper alignment for smooth opening and closing. Fits original equipment pivot points. What it does:

• Supports the weight of a door or drawer and keeps it aligned on its track
• Guides smooth opening and closing and prevents binding or sagging
• Restores proper contact and seal when a worn pivot causes misalignment
• Helps reduce noise from loose or worn pivot points

• Disconnect power to the appliance before beginning any repair
• Access may require removing interior panels, trim, or the drawer/door per model instructions
• Handle carefully to avoid scratching sealed surfaces; replace worn fasteners if needed
• If alignment issues persist after replacement, check related hinges, tracks, and mounting hardware

This replacement part is an ice dispenser deflector, and it is intended for use in different types of appliances. This is a genuine replacement part made by General Electric. Ice dispenser deflectors are found inside of the ice-making assembly and are an important part of many freezers. The ice dispenser deflector allows the ice to come down from the tray into the dispensing area. A new ice dispenser deflector might be needed if the current one has become too brittle and has even cracked or broken. Be sure that the refrigerator is completely powered off before starting this repair. The user must have access to the ice maker assembly and will need common household tools like a screwdriver and pliers. The user might also need working gloves as some parts in and around the assembly have sharp edges or blades.Note that this part is sold individually. This ice dispenser deflector is sourced directly from the manufacturer and is a genuine OEM replacement part.

This spacer is a small mounting support used to maintain proper clearance and alignment between refrigerator panels, doors, or components. It helps reduce rubbing, vibration, and noise by restoring correct spacing and fit. What it does:

• Keeps panels, trim, or components spaced correctly to prevent metal-on-metal contact and wear
• Helps align doors and panels for a flush fit and smoother operation
• Reduces vibration and rattling caused by misaligned parts
• Used wherever a fixed clearance or gap is required during reassembly

• Disconnect power to the appliance before beginning any service that requires panel or component removal
• Inspect mating surfaces for damage or debris before installing the spacer; replace any damaged fasteners
• Install in the same orientation and location as the original spacer; do not overtighten mounting hardware

This blade rest stabilizer supports and centers the blade assembly to keep cutting/wiping components aligned and operating quietly. It helps prevent blade wobble and uneven operation caused by a worn or damaged rest. What it does

• Holds the blade assembly in the correct position so blades remain centered during use
• Reduces vibration, rattling, and uneven motion from a loose or broken rest
• Helps maintain proper clearance between blade and housing for consistent performance
• Restores stable blade engagement after cracks, wear, or deformation

• One blade rest

• Disconnect power (unplug or switch off breaker) before servicing
• Remove surrounding housing or components as needed to access the blade assembly
• Handle blades carefully — they are sharp; use gloves if available
• Follow the appliance manufacturer's instructions and replace only with the correct part number

This stationary display blade secures and positions the appliance's front display/overlay so controls and indicators stay aligned and visible. It replaces a cracked, loose, or missing display blade to restore a stable display surface. What it does:

• Holds the display/overlay in the correct position behind the control panel
• Prevents the display from rattling or shifting during normal use
• Restores a flush, aligned appearance when the original blade is broken or worn
• Helps keep buttons and indicators properly supported for reliable operation

• Disconnect power to the appliance before starting any repair.
• Removal usually requires removing the front/display trim or bezel; use basic hand tools.
• Handle small plastic parts carefully to avoid cracking during removal/installation.

Plate for dispenser.

This replacement part is an ice auger blade, and it is intended for use in different types of appliances. This is a genuine replacement part made by General Electric. Ice auger blades are usually found in ice maker assemblies and are used during the ice-making and dispensing process. These blades are what are used when the user is in need of shaved or crushed ice. The mechanism takes full ice cubes and cuts the ice cubes down to create the different types of ice. A new ice auger blade might be needed if the user noticed that the current blades are dull or unable to cut ice. It is possible that the blades become dull over time after many years of use, so replacing them might be a good idea. Be sure the power is completely off before attempting to repair this part.This ice auger blade is sourced directly from the manufacturer and is a genuine OEM replacement part. Note that this part is sold individually.

The Drive Cup is an OEM part for GE refrigerators. This part engages with other parts to drive the ice out of the molds and into the storage bin.

Causes of Drive Cup failure can range from physical wear and tear from regular use, which may lead to cracks or deformities in the part, to accumulation of frost or ice that hinders its movement.

Symptoms of a malfunctioning Drive Cup include:

• The ice maker fails to eject ice properly, leading to clogs or jams within the system.
• Unusual noises during the ice-making cycle, which could indicate that the drive cup is not engaging correctly with other components.
• Decreased efficiency in ice production, as the mechanism struggles to operate smoothly.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes ice auger blade. For blade separately use WR2X7783. Please note Due to manufacturer changes they no longer make the auger as shown (helix coil approx 7 1/2") in the photo. The replacement helix coil is now approx. 5". If you have the original as shown in the photo you must order the complete auger/bucket assembly.

This is just the bucket.

Replacement bucket seal that fits around the refrigerator ice bucket to restore a snug fit and help keep ice contained while reducing frost, spills and water pooling. What it does

• Seals the ice bucket to the cabinet/shelf to help keep ice from spilling or shifting.
• Reduces frost build-up and melting around the ice bin area.
• Helps prevent minor water pooling from melting ice.
• Restores proper fit so the bucket sits flush and operates as intended.

• Disconnect power to the appliance before beginning any service.
• Remove the ice bucket and carefully peel out the old seal; clean the mounting surface of ice, debris and residue.
• Press the new seal into place, making sure it is fully seated and oriented correctly around the bucket.

Includes 12 clips.

This boot auger motor drives the auger inside the ice dispenser boot to move ice from the bin to the dispenser chute. Replaces a failed motor to restore normal ice dispensing and reduce jams. What it does:

• Rotates the auger inside the dispenser boot to push ice forward for dispensing
• Helps prevent ice buildup by moving packed cubes during dispense cycles
• Stops working when motor windings or gears fail, causing no ice to dispense or intermittent dispensing
• Works with the dispenser drive and auger assembly to transfer ice from the bin to the chute

• One boot auger motor

• Disconnect power to the appliance before starting any repair
• Access typically requires removing the freezer/refrigerator door trim and dispenser housing; follow OEM service instructions
• Inspect related components (auger, coupler, wiring) and replace if damaged

This part has been discontinued by the manufacturer and is no longer available.

This solenoid saddle is a small mounting bracket that secures a refrigerator solenoid in the correct position. By preventing movement and misalignment, it helps the linked mechanism engage smoothly and consistently.

• Secures the solenoid to its housing or frame to prevent shifting
• Maintains proper alignment for reliable actuation
• A worn or broken saddle can cause buzzing/chattering and intermittent operation
• Restores stable mounting to help the connected mechanism work correctly

• Disconnect power; shut off water supply if working near water lines
• Access the solenoid assembly and note the original saddle's orientation
• Transfer the solenoid into the new saddle and reuse existing fasteners/clips
• Smooth operation before reassembling panels

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This is the front vegetable pan seal. For rear seal use WR2X8963.
