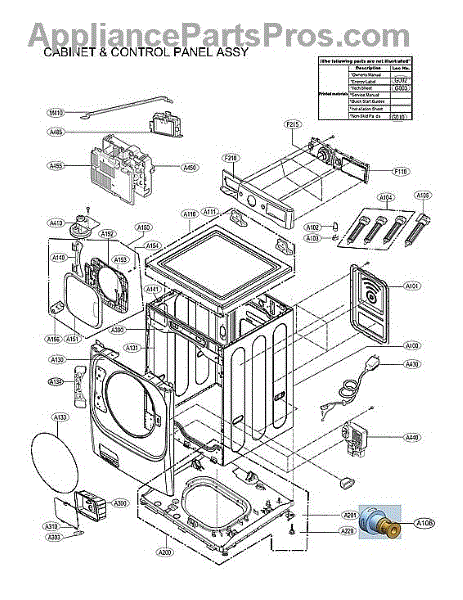

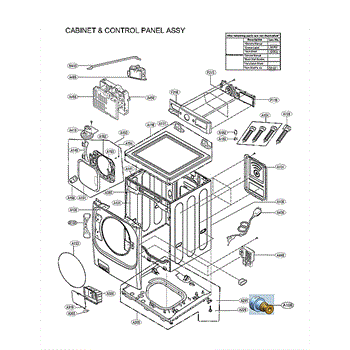

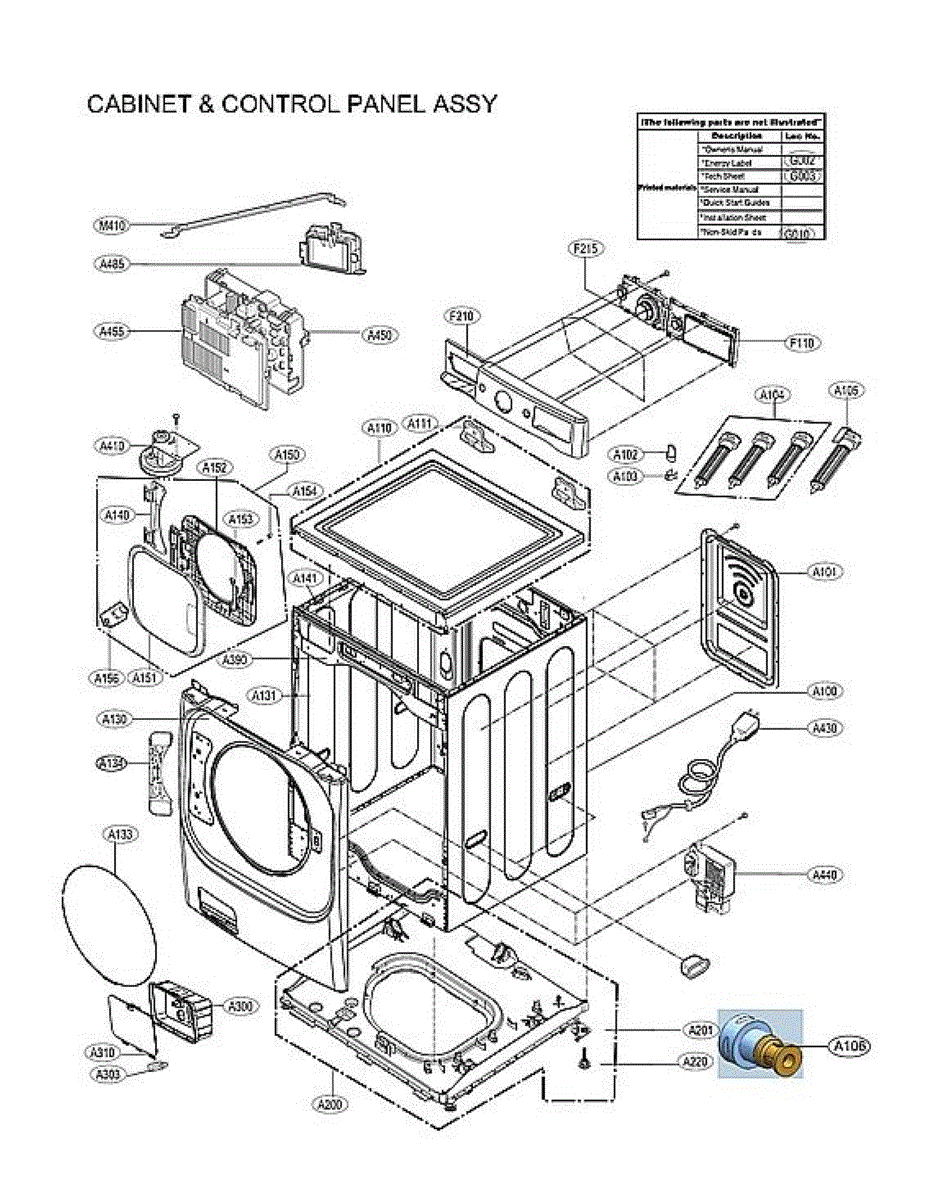

Parts for Kenmore Elite 79641583211: Cabinet & Control Panel Assy Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Rear cover panel for washers. Protects internal components at the back of the machine. Replace if cracked, damaged, or missing to restore appearance.

Washer suspension bush that cushions and stabilizes the drum assembly. Replace if cracked, worn, or causing excessive movement during spin cycles.

Outer tub assembly for your washer. Holds the inner drum and houses key components. Replace if cracked, leaking, or structurally damaged during use.

Secures the drum during washer transport or relocation. Replace missing, stripped, or damaged shipping bolts to prevent internal movement and damage while moving.

Secures the washer’s tub and basket during moving to prevent internal damage. If the originals are missing after a move, install replacements for transport and remove them before using the washer.

What it does

• Locks the tub and basket to limit movement in transit
• Helps prevent suspension damage and internal rattles while relocating
• Replaces missing, bent, or stripped transport bolts
• Useful for moves, storage, or service shipments

What’s included
One shipping bolt assembly (sold individually).

Install notes

• Unplug power and turn off water before service
• Insert through the rear panel into the designated mounting point; tighten snugly—don’t overtighten
• Do not operate the washer with shipping bolts installed; remove all bolts after placement
• Some models use multiple bolts and lengths—match count/positions to your owner’s manual

Usage tip
After removal, bag and tape the bolts to the cabinet so they’re on hand for the next move.

Top plate assembly for washer control panel area. Replaces cracked, broken, or damaged top plates. Structural component that secures and supports control.

Mounts inside the washer drum to lift and tumble clothes during the wash cycle. Replace if cracked, broken, or missing to restore proper agitation.

This bolt assembly is the shipping bolt used to secure a washing machine's tub and suspension during transport. Replacing a missing or damaged bolt helps protect internal components from vibration and impact when moving the appliance. What it does:

• Locks the tub in place to limit movement during shipping or relocation
• Helps prevent internal damage caused by excessive shaking in transit
• Restores a complete set when one shipping bolt is lost, bent, or stripped
• For transport only—remove all shipping bolts before operating the washer

• 1 bolt assembly

• Unplug the appliance and shut off water before starting
• From the rear, align the bolt with the shipping hole and hand-thread to avoid cross-threading; tighten securely without overtightening
• Install all shipping bolts required by your model (often four) before moving the unit
• After moving, remove all shipping bolts before use and store for future moves

Wire harness for washer electrical connections. Replaces damaged, frayed, or corroded wiring harness. Essential for restoring internal electrical routing.

The Bearing Ball is an OEM part for LG washing machines. This component plays a crucial role in the smooth operation of the washer drum, enabling it to rotate quietly and efficiently during the wash and spin cycles.

Causes of a bad bearing ball can include regular wear and tear, exposure to heavy loads, or insufficient lubrication. Over time, these factors can lead to deterioration and reduced performance of the bearing ball, potentially causing the washer drum to spin improperly or not at all.

Symptoms of a bad bearing ball include:

• Loud rumbling or grinding noises during the wash or spin cycles
• The drum not spinning or spinning unevenly
• Increased vibration or movement of the washer
• Leaks from the drum area due to damaged seals

This OEM LG part is also compatible with Sears/Kenmore models.

Supports smooth drum rotation in your washer. Replace if you hear loud roaring or grinding noises during spin cycles. Confirm fit with your model number.

Secures the spider assembly to the inner drum in your washer. Replace if bolt is stripped, loose, or missing to restore secure mounting and reduce noise.

Seals the rear tub to prevent water leaks during wash and spin cycles. Replace if you notice leaking or bearing noise. Confirm fit with your model.

Fix washer control issues with this multi-connector wiring harness. Restores electrical connections between control board, sensors, and motor components.

Fix excessive shaking and loud spinning with this washer balance weight. Restores drum stability to reduce vibration and noise during spin cycles.

This Screw (drawing) is a factory fastener used to secure appliance panels and components. Replacing a stripped, corroded, or missing screw restores a tight fit, reduces vibration, and helps keep assemblies correctly aligned.

• Secures panels, brackets, and mounting points as specified by the manufacturer
• Replaces screws that are lost, damaged, corroded, or stripped
• Helps address rattling, vibration, or loose-fitting parts caused by missing hardware
• Maintains proper alignment and stability of the assembly

• Disconnect power and, if applicable, shut off gas/water before servicing
• Match the screw to its original location; start threads by hand to avoid cross-threading
• Use the correct driver; tighten snugly without over-torquing into metal or plastic
• Refer to your model's parts diagram to correct location and quantity

Fixes loud banging or clunking during spin cycle caused by loose or broken balance weight. Reduces vibration and stabilizes drum movement. DIY repair.

Replacement tub cover for your washer. This plastic cover installs on top of the outer tub assembly. Order a new one if yours is cracked or broken.

Washer lid hinge assembly connects the lid to the cabinet. Replace if your hinge is cracked, broken, or worn causing the lid to sag or not stay open properly.

Fix intermittent power issues, unresponsive controls, or component failures with this multi wiring harness. Restores electrical connections in washers.

A replacement holder assembly that secures and supports internal components for proper alignment and operation. Restores stable mounting where the original bracket is cracked, bent, or broken so the appliance runs quietly and reliably. What it does

• Provides a secure mounting point for internal parts that rely on a fixed support
• Prevents rubbing, misalignment, and excess vibration caused by a damaged holder
• Helps restore correct component positioning to improve part interaction and operation
• Commonly used when the original bracket is cracked, worn, or no longer holds parts firmly

• One holder assembly

• Disconnect power before starting any repair; shut off water supply if the repair requires opening plumbing
• Basic hand tools typically required; handle clips and tabs gently to avoid damage
• Inspect adjacent components for wear and replace if needed for a long-lasting repair

Seals between front and rear outer tubs to prevent water leaks during wash cycles. Replace if you notice leaking or during bearing replacement. Confirm fit with your model number.

Replacement mounting bolt assembly for washers. Secures panels, brackets, and hinges to the cabinet. Replace if bolt is missing, stripped, or damaged.

Secures the stator to the motor assembly in your washer. Replace if bolt is stripped, spinning freely, or missing to restore proper motor stability.

Motor harness wiring for washers. Connects motor to control board. Replace if wires are damaged, frayed, connectors broken, or harness is worn out.

Washer door won't close or latch securely? This door strike ensures proper door closure for safe operation. Easy DIY fix for common latch issues.

Secures components in correct position inside your washer. Replace if cracked, broken, or worn to restore proper support and alignment for reliable operation.

This three coil solenoid is used for the cold water, bleach dispenser and prewash.

Fix washer IE error or no water flow issues with this water inlet valve. Controls hot or cold water flow into wash drum. 15-minute DIY repair.

The Float Assembly is an OEM part for LG washing machines. This part monitors and controls the water level within the appliance. It's a safety feature that prevents water overflow and potential flooding, contributing to the efficient operation of the washing machine by maintaining the correct water level for each cycle.

Causes of a bad Float Assembly can vary from simple blockages that prevent the float from moving freely to electrical faults within the switch mechanism.

Symptoms of a bad Float Assembly include:

• Water overflowing from the washing machine
• Inadequate water levels that affect the washing cycle's effectiveness
• The washing machine failing to start the fill cycle due to a malfunctioning float switch

This OEM LG part is also compatible with some Kenmore models.

Cabinet base assembly for washers. Forms the bottom structural support of the cabinet frame. Replace if cracked, rusted, or damaged from moisture exposure.

Replace a broken, rusted, or missing leveling leg assembly. Installs at the base to stabilize your washer, reduce vibration, and adjust height.

Fix a loose or missing fabric softener cap that won't stay in place or causes drawer issues. Simple snap-in replacement restores proper dispensing.

Bleach dispenser funnel for LG front load washers. Installs in detergent drawer to safely dispense bleach. Replace if cracked, broken, or missing.

Fix detergent not dispensing or a broken dispenser drawer. This washer detergent box assembly holds and releases soap properly. DIY-friendly repair.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

This part may be black or gray in color.

Connects detergent dispenser to washer tub. Replace if cracked, leaking, or clogged with detergent buildup. Verify fit with your model number.

The Vent Hose is an OEM part for LG washing machines. This hose is essential for ensuring proper ventilation within the washer, allowing air to circulate and preventing the buildup of moisture and mildew. It helps maintain the efficiency of the washing machine by facilitating the expulsion of air and excess water vapor during operation.

Causes of a bad washer vent hose can include wear and tear over time, blockages from lint or debris, or damage due to bending or pinching.

Symptoms of a bad vent hose include:

• Excessive moisture or condensation inside the washer
• Musty odors from the washing machine
• Visible cracks or holes in the hose
• Poor ventilation leading to inefficient washing cycles

This OEM LG part is also compatible with Sears/Kenmore.

Includes sensor probe

Replace your washer's water inlet hose if cracked, kinked, or leaking. This hose connects your water supply to the washer inlet valve for proper fill.

Directs water from inlet valve to detergent dispenser in LG washers. Replace if hose is cracked, leaking, won't stay attached, or damaged from wear.

Fix washer dispenser overflows and leaks with this inlet hose. Connects water supply to detergent drawer for proper softener and bleach distribution.

Washer won't drain or shows OE error? This drain pump assembly removes water during spin cycle. Moderate DIY repair with video guide available.

Note: Per the manufacturer, the design changed  of this washer drain pump changed in April 2025. The new gray casing with different fins will still work, as the fins allow access for wiring.

Drain hose carries used water from washer to household drain. Replace if cracked, leaking, deteriorated, or damaged to prevent water overflow issues.

Fix leaking water from the bottom of your washer with a new pump casing. Houses and protects the water pump. Moderate DIY repair with clear instructions.

The Washer Circulation Pump Motor is an OEM replacement part for LG washing machines. It is a vital component responsible for circulating and pumping water through the wash tub during the various wash and rinse cycles.

Symptoms of a faulty circulation pump motor include:

• Improper water circulation or agitation during wash cycles
• Failure to drain or drain slowly after wash cycles
• Abnormal noises or vibrations coming from the pump area

Causes of a bad circulation pump motor can range from normal wear and tear over time, electrical malfunctions, blockages or obstructions in the pump impeller, or physical damage from foreign objects or debris.

This OEM LG part is also compatible with Sears/Kenmore washing machine models.

The Damper is an OEM replacement part for LG washing machines. It plays an important role in regulating airflow through the machine's drying system. The damper uses adjustable louvers to direct warm air emitted during the drying cycle.

Causes of a faulty washer damper include broken internal mechanisms preventing louver movement, and restricting optimal air dispersion. Dust or mineral buildup can also impact function over time.

Symptoms of a problematic damper are

• incomplete or lengthy drying cycles.
• Clothing may still feel damp even after an extended run
• Excessive lint accumulation could also point to improper air management

This OEM LG part is also compatible with Sears/Kenmore.

Fix LE error code or washer won't spin issues with this stator assembly. Common repair for motor lock problems. DIY-friendly, typically installed in 30 minutes.

The Connector Hose is an OEM part for LG front-loading washing machines. It is a flexible vinyl tube that connects the water supply line to the individual water valves and nozzles inside the washer. As water flows through this hose during wash cycles, it must withstand pressure and thermal expansion/contraction.

Causes of a bad connector hose can include cracks, splits, or leaks developing from repeated bending and flexing over thousands of wash cycles. Mineral buildup or scale deposits inside the hose can also restrict water flow.

Symptoms of a bad connector hose include:

• Water supply issues such as low pressure, reduced flow, or leaks
• Mineral deposits causing clogged or dripping nozzles
• Discolored or brittle hose material

Replacing the hose with a new OEM LG part restores proper water connections for improved washing performance. It is also compatible with Sears/Kenmore front-load washer models.

Fix LE error codes or grinding noises during spin with this washer rotor assembly. Pairs with stator to drive drum rotation. DIY repair in 30 minutes.

The Connector Hose is an OEM part for LG front-loading washing machines. It is a flexible vinyl tube that connects the water supply line to the individual water valves and nozzles inside the washer. As water flows through this hose during wash cycles, it must withstand pressure and thermal expansion/contraction.

Causes of a bad connector hose can include cracks, splits, or leaks developing from repeated bending and flexing over thousands of wash cycles. Mineral buildup or scale deposits inside the hose can also restrict water flow.

Symptoms of a bad connector hose include:

• Water supply issues such as low pressure, reduced flow, or leaks
• Mineral deposits causing clogged or dripping nozzles
• Discolored or brittle hose material

Replacing the hose with a new OEM LG part restores proper water connections for improved washing performance. It is also compatible with Sears/Kenmore front-load washer models.

Restores proper door tension for smooth opening and closing. Replace if door sags, closes unevenly, or slams. Confirm fit with your washer model number.

Fix washer overfilling or won't fill issues with this water level pressure switch. Senses tub water level to control fill cycles. Easy DIY repair.

Flexible drain hose assembly that carries wastewater from your washer to the household drain. Replace if cracked, leaking, or damaged during installation.

Pivot hanger assembly for washers. Mounts inside the cabinet to support the tub suspension system. Replace if cracked, broken, or worn to restore stability.

Washer won't start or shows dE/door lock error? This door switch detects if the door is closed so the cycle can begin. Easy DIY repair with video guide.

Secures washer hoses to mounting points, preventing leaks and vibration. Replace if worn, cracked, or loose. Confirm fit with your model number.

Fix a washer that won't start, stops mid-cycle, or shows error codes with a main power control board replacement. This PCB controls all washing functions.

Protective access cover shields internal washer components from dirt and moisture. Replace if cracked, broken, or missing to restore factory protection.

Secures hose connections to maintain watertight seals in your washer. Replace if you notice leaks or loose hoses during operation. Verify fit with model number.

Secures washer tub assembly and hoses to prevent shifting during cycles. Replace if tub moves excessively or you hear rattling. Confirm fit with your model.

This clamp assembly secures a wash tub boot or drain hose to prevent leaks and keep connections tight during operation. It replaces a worn or loose clamp to restore a proper seal and reduce water leaks. What it does:

• Secures the tub boot or hose connection to the appliance, helping prevent leaks
• Keeps hoses and bellows firmly attached during cycles to reduce movement and wear
• Helps eliminate water dripping or pooling around the appliance inlet/outlet
• Can stop noise caused by a loose or shifting hose/boot connection

• Disconnect power and water supply before attempting any service
• Use appropriate tools to tighten evenly without over-torquing to avoid damage
• Inspect surrounding seals and hoses while replacing the clamp and replace if cracked or brittle

Seals washer drum to prevent leaks and water damage. Replace if you notice leaking, mildew buildup, or visible tears. Confirm fit with your model number.

This is an LED light assembly that mounts inside the washer to provide interior illumination. It allows you to see the drum contents when the door is open or during operation. Replace this assembly if the interior light no longer turns on, flickers, or appears dim.

Fix water leaking from your washer dispenser or misdirected flow with this dispenser water guide channel. Routes water properly to prevent splashing.

Replacement tub to pump hose for washers. Transports water from the wash tub to the drain pump. Replace if cracked, split, leaking, or damaged from wear.

Secures the door boot seal to prevent leaks during wash cycles. Replace if corroded, loose, or if water leaks from the door area. Confirm fit with model.

Pressure sensor air chamber for washers. Connects the tub to the water level switch. Replace if cracked, clogged with detergent residue, or leaking air.

This inlet hose routes household water into the appliance's fill system, providing a secure, watertight connection. Replacing a worn, cracked, or leaking hose restores proper fill and helps prevent leaks and cycle interruptions.

• Directs incoming water from the supply connection to the appliance's inlet/fill assembly
• Maintains a sealed path to prevent drips and leaks
• Replace if the hose is cracked, swollen, kinked, or fittings are corroded
• Typical symptoms include leaks behind/under the unit, slow or no fill, or a water supply error message

• Disconnect power and shut off the water supply before servicing
• Place a towel or pan to catch residual water and relieve line pressure
• Note routing and fitting orientation; transfer any seals/clips from the original if required
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening, then restore water and check for leaks

Replace your washer's drain hose if cracked, leaking, or damaged. Connects the pump to the standpipe for proper water drainage during wash cycles.

If your washer leaks during fill or has low water pressure, this water inlet connector hose restores secure water flow. Direct replacement part.

Fix excessive vibration, banging during spin, or washer walking across floor. This damper assembly controls drum movement. Moderate DIY repair.

The Hinge Pin is an OEM part for LG washing machines. It serves as a pivot point for the washer door, allowing it to open and close smoothly. This component is crucial for maintaining the proper alignment and function of the washer door, ensuring a secure and reliable seal during operation.

Common causes of a bad hinge pin include frequent use leading to wear and tear, physical damage from accidental impacts, or rust and corrosion over time. A compromised hinge pin can result in misalignment of the door, affecting the washing machine's ability to close properly and maintain an effective seal.

Symptoms of a bad hinge pin include:

• Difficulty opening or closing the washer door
• Door not staying securely closed during operation
• Squeaking or grinding noises when the door is moved
• Visible wear or damage to the hinge pin

This OEM LG part is also compatible with Sears/Kenmore models.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.
