Maytag Washer Control Board

The Motor Control Board is an OEM part for Whirlpool washing machines. This electronic board is responsible for regulating and controlling the motor's speed and direction during various cycles, ensuring optimal washing performance.

Over time, the motor control board can fail due to electrical issues, power surges, or general wear and tear. When the control board malfunctions, it can disrupt the washing machine's operation and lead to various performance issues.

Symptoms of a bad motor control board include:

• The washer not spinning or agitating
• Erratic or unpredictable cycle times
• The washer stopping mid-cycle
• Error codes related to motor function

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Electronic Control Board is an OEM component for Whirlpool washing machines. It governs essential operations like cycle selection, water levels, spin speeds and more.

Causes of a faulty control board can include liquid damage, power surges, or standard component wear over time under regular operation.

Symptoms include:

• Inability to select or change washing cycles
• Issues with the display, lights or buttons
• The washer failing to fill or spin properly
• Repeated error codes or immovable cycles

This Whirlpool OEM replacement control board restores full and reliable functionality, compatible with KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models as well.

The Control Timer is an OEM replacement part specific to Whirlpool washers. It is the electronic component responsible for governing the sequence and duration of wash cycles. Located inside the control console, the timer works with the control dial to initiate various wash/rinse phases based on the selected settings.

Causes for timer failure may include water exposure corroding electrical circuits or repeated rapid switching wearing out internal switches.

Symptoms of a faulty control timer include:

• Inability to advance through complete cycles
• Random operation of rinse or spin functions
• Premature termination of cycles before finishing
• Failure to respond when turning the cycle selector

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Timer is an OEM part for Whirlpool washing machines. This part controls the various cycles of the washing machine, including wash, rinse, and spin cycles, by regulating the amount of time each cycle runs.

Causes of a bad timer can include electrical malfunctions, wear and tear over time, or damage to the timer's internal mechanisms.

Symptoms of a bad timer include:

• The washer not advancing through cycles
• Cycles running too long or too short
• The washer stopping mid-cycle
• Inconsistent or unpredictable cycle timing

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Timer is an OEM part for Whirlpool washing machines. It controls the electrical components and the sequence of operations during the wash cycle, ensuring each phase of the cycle occurs at the right time.

Causes of a bad timer include electrical issues such as short circuits or power surges, wear and tear of internal mechanical components over time, and exposure to moisture or detergent, which can lead to corrosion.

Symptoms of a bad timer include:

• The washer not advancing through cycles
• Cycles taking longer than usual
• The washer skipping cycles
• The machine stopping mid-cycle or not starting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This mechanical cycle timer controls the sequence and duration of operations in the selected program. Replacing a worn timer restores reliable cycle selection and proper advancing from start to finish.

• Controls cycle timing and advancement via internal cams and contacts
• Directs power to components in the correct order for each cycle
• Stops the appliance at the end of the cycle
• Fixes: cycle won't advance or gets stuck, won't start, stops mid-cycle, dial doesn't move or skips

• Disconnect power before servicing
• Access the timer through the control console; remove knob/dial as needed
• Transfer wires one at a time from the old timer to the new unit, matching terminals
• Reuse existing mounting hardware and console parts; verify proper alignment before reassembly

This electronic control board manages the appliance's core operations by interpreting inputs and switching power to components. Replacing a failed board restores proper control of cycles and functions when the unit is unresponsive or behaving erratically.

• Coordinates cycle timing and operation based on signals from sensors and the user interface
• Switches power to loads via onboard relays/triacs
• Monitors for faults and stores/displays error codes for diagnostics
• Failure symptoms can include: won't start, no response at controls, cycle won't advance, intermittent operation, or recurring error codes

• Disconnect power before servicing; follow all safety and ESD precautions
• Photograph/label connectors; transfer wiring one at a time to the new board and secure with existing hardware
• Restore power and perform any model-specific diagnostics, resets, or calibrations per the tech sheet/service manual

This motor control board is created for use with washing machines. It's located inside the washing machine, where users can change settings and start or stop the appliance. It is tasked with regulating how quickly the washer spins during a cycle. Wear and tear or damage can cause the motor control board to malfunction. This may make it impossible for the washer to agitate or spin. If this happens, a replacement will need to be made.To replace this part, start by unplugging the appliance. Once the area is safe, the bottom front panel should be removed. This will provide access to the original motor control board. Pull on the motor control board until the wires can be reached. The position of these components should be noted before taking out the part. Replace with a new motor control board and replace the wires.This motor control board is designed to fit washing machines made by Maytag, Whirlpool, Kenmore, and KitchenAid. This is an authentic OEM replacement part that is sourced directly from the manufacturer. It's sold as a single part.

This is a Whirlpool drive motor control board, or MCU, for washing machines. It monitors and controls the speed and direction of the drive motor. If this board fails, the washer likey will not work, and the display may show an error code like F70.Before installing this part, be sure to cut power to the appliance and allow it to drain, cool, and dry completely. The washer will need to be pulled away from any walls to properly access the control panel. After opening the panel, remove any mounting screws or wire harnesses connecting the old drive motor control board and install the new one in its place.This is a genuine OEM part compatible with washers manufactured by Whirlpool brands, including Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and others. This product contains no additional parts or hardware.

This genuine OEM part is a timer for washers. The timer is the part that allows the washer to start and stop after being in use for a amount of time. The settings of the timer are controlled by the user and adjusts automatically depending on the desired settings. If the washer is no longer stopping after the desired time has elapsed, the timer might need to be replaced. To replace the timer, start by making sure the washer is unplugged. After that, pull the washer away from the wall to access the back panel. Once accessed, remove the screws that attach to the back panel and locate the timer. Once found, remove the mounting screws that hold it in place. Proceed to pull the timer out of the washer and replace it with the new part. This replacement part is sold individually and is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand washing machines.

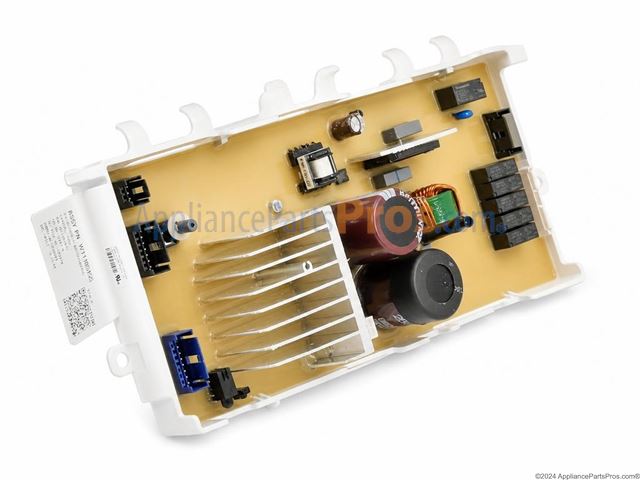

The Electronic Control Board is an OEM part for Whirlpool washing machines. It manages and regulates the washer's functions, including the wash cycles, water levels, and temperature settings. The control board ensures that the washer operates efficiently and correctly by processing user inputs and coordinating various components.

Causes of a bad electronic control board can include electrical surges, moisture damage, or component wear over time.

Symptoms of a bad electronic control board include:

• Washer not starting or completing cycles
• Displaying error codes
• Inconsistent or incorrect wash cycles
• Unresponsive control panel

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This mechanical cycle timer regulates the sequence and duration of the washer's programs. Replacing a worn timer restores proper cycle advancement, helping the machine start, progress, and complete wash, rinse, and spin stages as designed.

• Sequences power to the drive motor, pump, and water valves through each stage of the cycle
• Advances the internal cam and contacts to move the washer from wash to rinse to spin
• Helps with: cycle not advancing or stopping mid-cycle; won't start on certain settings; no agitate or no spin in selected cycles; knob won't turn or feels loose
• Mounts in the control console and interfaces with the cycle knob

• Unplug the washer before servicing
• Open the control console; remove the knob/dial and the timer's mounting hardware
• Photograph or label wiring; transfer leads to the new timer one at a time to matching terminals
• Reassemble, ensure the knob indexes correctly, and run a test cycle

This washer timer controls the sequence and duration of wash, rinse, drain, and spin cycles. Replacing a worn timer restores proper cycle advancement and consistent performance when the machine stalls, skips steps, or runs unpredictably.

• Sequences power to the motor, pump, and water valves to run each stage of the cycle
• Advances through timed contacts to start and stop functions at the right time
• Common symptoms: cycle won't advance or stops mid-cycle; washer won't start
• Runs too long or too short; skips or repeats steps
• No drain or spin; timer knob doesn't move or shaft slips

• Disconnect power before servicing; turn off water if moving the appliance
• Open the control console to access the timer; remove rear cover as needed
• Note wire positions; transfer connectors one at a time or photograph for reference
• Secure the new timer, reinstall dial/knob if applicable, reassemble, and test a full cycle

This washer timer controls the sequence and length of the wash, rinse, and spin cycles. Replacing a failing timer restores proper cycle advancement and reliable switching between functions to help resolve stalls, continuous running, or cycles that never complete.

• Governs timing and switching for fill, agitate, drain, and spin steps
• Advances through each stage of the selected cycle
• Routes power to the motor, water valves, and pump as required
• Common symptoms: cycle won't advance, stops mid-cycle, runs continuously, won't start, or won't spin

• Unplug the washer and turn off water supply before servicing
• Open the control panel; remove knob/dial and mounting to free the old timer
• Move wires one at a time from the old timer to the new timer to match positions
• Secure the new timer, reassemble the console, restore power, and test a normal cycle

This mechanical timer controls your washer's cycle sequencing, advancing power to the valves, drive motor, and drain pump at the correct intervals. Replace it to restore reliable start, progression, and completion of wash, drain, and spin cycles.

• Regulates the order and duration of wash, rinse, drain, and spin
• Directs power to the inlet valves, drive motor, and drain pump per cycle selection
• Advances the timer knob through the cycle automatically
• Common symptoms of failure: cycle won't advance or gets stuck; stops mid-cycle; won't start; intermittent operation

• Disconnect power and turn off the water supply before servicing
• Access the timer through the control console; remove the knob/dial and mounting screws
• Transfer wires one at a time from the old timer to the new (take a reference photo)
• Reattach the dial/knob, secure the console, and run a test cycle to verify advancement

This motor control board regulates and powers the washer's drive motor, coordinating speed, direction, and spin. Replacing a failed module can restore proper tumbling/spinning performance and resolve common motor-related faults.

• Supplies variable-speed power to the drive motor for wash and spin
• Monitors motor feedback to maintain correct speed and direction
• Communicates with the main control to carry out cycle commands
• Common symptoms: no tumble or spin, erratic/incomplete spin, cycle stops with motor/communication errors

• Disconnect power before servicing; verify power is off
• Use ESD protection and handle the board by the edges
• Access the board inside the cabinet; move connectors one at a time and seat them fully
• Inspect the motor and wiring harness for shorts or damage before restoring power
