Whirlpool Control Board

The Dryer Timer is an OEM replacement part for Whirlpool dryers. It is a critical component that controls the timing and sequence of the various drying cycles, ensuring the machine operates correctly and efficiently.

Causes of needing to replace the dryer timer can include general wear and tear over time, electrical malfunctions, damage from power surges or voltage fluctuations, or moisture or water exposure within the timer itself.

Symptoms of a bad dryer timer include:

• The dryer failing to advance through the complete cycle or getting stuck in one part of the cycle
• Cycles running for an incorrect duration (too short or too long)
• The dryer failing to heat, tumble, or stop at the appropriate times

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Electronic Control Board is an OEM replacement part for Whirlpool refrigerators. This Electronic (JAZZ) Control Board manages various functions of your refrigerator, ensuring proper temperature control and operation. After installation, the board will need to be programmed. An instruction sheet is included.

Causes of a bad Electronic Control Board can include electrical surges, which can damage components on the board, age-related wear and tear affecting its functionality, and exposure to moisture or extreme temperature fluctuations. These factors can lead to a malfunctioning fridge with erratic behaviors.

Symptoms of a bad Electronic Control Board include:

• The refrigerator not cooling properly
• Irregular defrost cycles leading to frost buildup or thawing issues
• Unresponsive controls or display issues
• The ice maker or water dispenser not working as expected

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Includes black knob

The Speed Control Assembly is an OEM part for Whirlpool mixers, integral to managing the mixing speed to accommodate various ingredients and recipes efficiently. This assembly is crucial for the precise control over the mixer's speed, ensuring that your mixing tasks are performed with the desired consistency and texture.

Common causes of a faulty Speed Control Assembly can vary, such as electrical problems resulting in erratic mixer speeds, wear and tear from regular usage, physical damage to the control assembly, or faulty wiring and connections within the mixer.

Symptoms of a bad Speed Control Assembly include:

• The mixer operates at one speed regardless of the setting
• Inability to adjust the mixer's speed
• The mixer fails to start or exhibits intermittent stopping during use
• Unusual noises or behavior when changing speeds

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Whirlpool Defrost Timer is an OEM replacement part for Whirlpool refrigerators. The defrost timer regulates the automatic defrost cycle, which prevents ice buildup on the evaporator coils in the freezer compartment by sending a signal to the defrost heater to turn on and melt any ice buildup on the coils.

Causes of a bad defrost timer can include mechanical wear over time, electrical failures, or internal component damage. Prolonged usage and voltage spikes can also affect the timer's functionality.

Symptoms of a bad Defrost Timer include:

• Excessive frost buildup in the freezer compartment
• The refrigerator or freezer not maintaining the set temperatures
• Unusual noises coming from the appliance
• The appliance running continuously without cycling off

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Dryer Timer is an OEM part for Whirlpool dryers. This timer is a control mechanism that allows you to set the drying time for various fabrics and load sizes. It works by regulating the duration of the drying cycle to ensure clothes are dried efficiently without overuse of energy or excessive wear on fabrics.

Causes of a bad dryer timer can vary from electrical problems within the timer mechanism, such as short circuits or burnt contacts, to mechanical failures like stripped gears.

Symptoms of a bad timer:

• The dryer not starting or failing to stop at the end of a cycle
• Clothes remaining damp or overly dry
• The dryer operating only at a specific setting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Phase Control Board is an OEM part for Whirlpool mixers. It regulates the mixer's motor speed by controlling the electrical current flowing to the motor, ensuring precise speed settings and smooth operation. This board is essential for achieving consistent mixing results and handling various mixing tasks effectively.

Causes of a bad phase control board can include electrical surges, wear and tear from regular use, or component failure due to overheating. A faulty control board can lead to inconsistent speeds, affecting the mixer's performance and potentially damaging the motor.

Symptoms of a bad phase control board include:

• Inconsistent or erratic mixer speeds
• Mixer not starting or stopping unexpectedly
• Unusual noises or burning smells during operation
• Mixer operating at only one speed regardless of setting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: This is the 120-volt phase control board. For the 240-volt board use W11174552.

The Ice Level Control Board is an OEM part for Whirlpool refrigerators. It is an electronic component responsible for monitoring and regulating ice production in the icemaker. The board works with sensors to detect the level of ice in the bucket and control the icemaker accordingly. It plays a vital role in ensuring a consistent ice supply.

Symptoms of a bad control board include:

• Irregular or inconsistent ice production
• The icemaker failing to turn on at all
• Error codes displayed related to the icemaker
• Sensors providing inaccurate readings to the control board

Causes of a bad control board can include failure over time due to normal wear and tear, exposure to moisture or temperature fluctuations, or damage due to electrical surges.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Motor Control Board is an OEM part for Whirlpool washing machines. This electronic board is responsible for regulating and controlling the motor's speed and direction during various cycles, ensuring optimal washing performance.

Over time, the motor control board can fail due to electrical issues, power surges, or general wear and tear. When the control board malfunctions, it can disrupt the washing machine's operation and lead to various performance issues.

Symptoms of a bad motor control board include:

• The washer not spinning or agitating
• Erratic or unpredictable cycle times
• The washer stopping mid-cycle
• Error codes related to motor function

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Refrigerator Control Board is an OEM part for Whirlpool refrigerators. It acts as the brain of the refrigerator, managing and coordinating various functions such as temperature regulation, defrost cycles, and the operation of fans and compressors.

You should replace the control board if it malfunctions or fails. Causes of a bad control board can include power surges, electrical shorts, or component wear and tear over time. Exposure to moisture or extreme temperatures can also cause damage to the board.

Symptoms of a bad control board include:

• Inconsistent or incorrect temperatures
• The refrigerator or freezer not cooling
• Unresponsive control panel or display
• Unusual noises from the refrigerator
• Error codes displayed on the control panel

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dryer Timer is an OEM part for Whirlpool dryers. It controls the drying cycles by regulating the duration and sequence of operations, ensuring that clothes are dried properly according to the selected settings.

Over time, the dryer timer can wear out due to regular use, electrical issues, or internal mechanical failures. A faulty timer can lead to cycles not starting or ending correctly, resulting in under-dried or over-dried clothes.

Symptoms of a bad Dryer Timer include:

• The dryer not advancing through cycles
• The timer not moving or stopping
• Inconsistent drying times or the dryer stopping mid-cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Timer Assembly is an OEM part for Whirlpool dryers. It is responsible for controlling and managing the timing and sequence of the various drying cycles and functions.

Causes of a bad timer assembly may include electrical malfunctions, mechanical wear and tear, or physical damage from impact or moisture.

Symptoms of a faulty Timer Assembly include:

• Dryer not advancing through cycles or stopping mid-cycle
• Incorrect cycle times or skipping of certain cycle phases
• Lights or displays indicating incorrect time remaining
• Failure to initiate or start drying cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Timer is an OEM part for Whirlpool dryers. This part manages the drying cycle's duration, ensuring clothes are dried efficiently without overuse of energy. It allows users to select the desired cycle time based on the laundry's type and moisture level.

Over time, timers can wear out or malfunction due to electrical issues or mechanical wear and tear. If your dryer isn't advancing through the drying cycle, stops mid-cycle, or fails to start, it might be time to replace the timer.

Symptoms of a bad Timer include:

• The dryer fails to start
• The drying cycle doesn't advance or stops mid-cycle
• Clothes are not dried in the time expected
• The timer knob doesn't move or is stuck

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

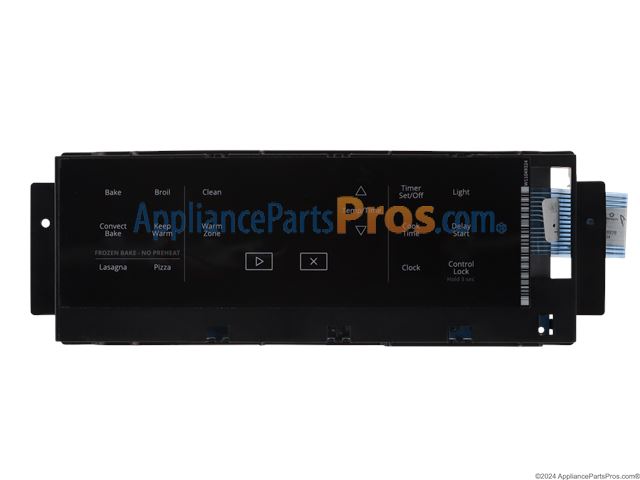

The Range Control Board is an OEM replacement part for Whirlpool ranges. This control board manages the oven’s functions, such as temperature settings, cooking modes, and timers, ensuring precise and reliable operation.

The control board can fail due to electrical issues, exposure to heat, or wear and tear over time. Power surges, faulty wiring, or physical damage can also lead to control board malfunction.

Symptoms of a bad range control board include:

• The oven not responding to input commands
• Error codes or faulty display messages
• Inconsistent or inaccurate temperature control
• The oven not heating or turning on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Timer is an OEM part for Whirlpool dryers. It controls the full automatic drying cycle, advancing through timed heating, cooling, and tumbling stages. The digital timer precisely measures increments to deliver perfectly dried laundry batch after batch.

Causes of a bad timer can include failure of integrated circuit boards or chips due to electrical currents over time. Lubricants may also break down the inner workings of timer gears.

Symptoms of a bad timer include:

• Cycles failing to advance properly or stopping mid-cycle unexpectedly
• The dryer remains constantly running without automatic switching stages
• Drying taking much longer than normal or inconsistently timed loads
• Random buzzing or humming noises emitting from the control area

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Power Control Board is an OEM component for Whirlpool refrigerators. It is an essential electronic component responsible for monitoring and regulating power distribution throughout the entire unit. The power control board controls components such as cooling fans, compressors, lights, ice makers, and more.

Symptoms of a bad power control board include:

• Lights, fans, or other components failing to turn on
• Inability to adjust temperature settings
• Constant tripping of circuit breakers
• Error codes displayed that cannot be cleared

Causes of failure include moisture damage, component breakdown over time, or power surges that can fry circuitry.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

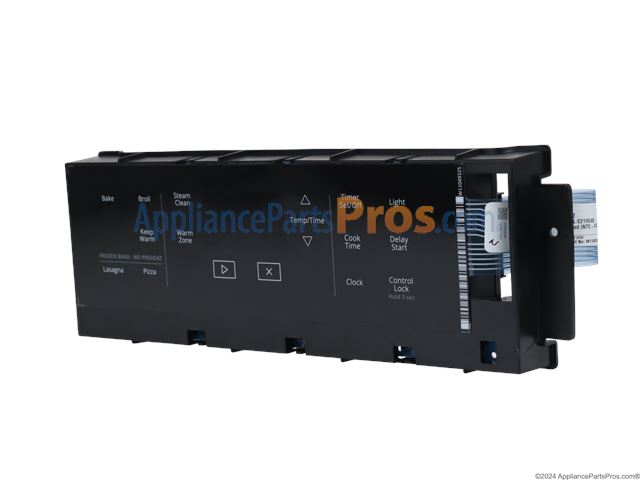

The Control Assembly is an OEM part for Whirlpool ranges. This electronic control panel manages the various functions of the range, including oven temperature settings, cooking modes, and timer operations. It ensures precise control and operation of both the oven and stovetop elements.

Over time, the control assembly can fail due to electrical issues, power surges, or regular wear and tear. When the control assembly malfunctions, it can disrupt the range's functionality, making it difficult to cook or bake effectively.

Symptoms of a bad range control assembly include:

• The oven or burners not heating correctly
• Display errors or unresponsive control panel
• Inaccurate temperature settings
• The oven or range failing to turn on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
