Whirlpool Control Board

This mechanical timer sequences the dishwasher through its wash, drain, and dry steps. Replacing a failing timer restores proper cycle advancement so the dishwasher starts, progresses, and finishes cycles reliably. What it does:

• Times and sequences power to the wash motor, drain pump, fill valve, and heater for each stage of the cycle
• Advances the cycle automatically and moves the dial/indicator through programmed steps
• Coordinates wash, rinse, and dry durations for consistent results
• Typical failure symptoms: cycle won't advance or stops mid-cycle; runs too long; must be advanced manually; timer knob won't turn

• 1 mechanical timer assembly

• Disconnect power at the breaker before servicing; do not rely on the control panel to turn the unit off
• Access the timer from the control console/inner door; remove screws to reach the component
• Photograph/label wire positions and transfer leads to the new timer one at a time
• Reuse existing mounting hardware and knob; ensure the shaft orientation matches before reassembly

This mechanical cycle timer controls the sequence and duration of operations in the selected program. Replacing a worn timer restores reliable cycle selection and proper advancing from start to finish.

• Controls cycle timing and advancement via internal cams and contacts
• Directs power to components in the correct order for each cycle
• Stops the appliance at the end of the cycle
• Fixes: cycle won't advance or gets stuck, won't start, stops mid-cycle, dial doesn't move or skips

• Disconnect power before servicing
• Access the timer through the control console; remove knob/dial as needed
• Transfer wires one at a time from the old timer to the new unit, matching terminals
• Reuse existing mounting hardware and console parts; verify proper alignment before reassembly

60Hz

The Dispenser Control Board Kit is an OEM part for Whirlpool refrigerators. This kit includes the control board responsible for regulating the functions of the dispenser, such as dispensing water and ice, and often includes associated wiring and components for installation.

Causes of a bad dispenser control board can include electrical surges, wear and tear over time, or exposure to moisture, which can interfere with the electronic controls.

Symptoms of a bad dispenser control board kit include:

• The dispenser not responding to inputs
• Inconsistent or no dispensing of water or ice
• Display errors or malfunctioning indicator lights
• The dispenser operating erratically or not at all

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The LED Control Board is an OEM replacement part for Whirlpool refrigerators. This board houses the electronic components that power and operate the LED lighting inside the refrigerator and freezer.

Symptoms of a bad control board include:

• Lights flickering, flickering, or failing to illuminate fully
• Inconsistent or unresponsive lighting that does not turn on as needed
• Excessive power usage or overheating of the lights

Causes can be a result of damage from moisture exposure, power surges, or faulty electronic components over an extended period of use. This OEM board directly replaces the original for dependable lighting performance.

This Whirlpool part is also compatible with KitchenAid, Jenn-Air, Crosley, Amana, and some Kenmore refrigerator models as well.

The Control Board is an OEM part for Whirlpool ranges. This electronic board processes inputs from the user interface and coordinates the operation of the various components, ensuring precise and reliable performance of the range.

Causes of a bad Control Board can include electrical surges, exposure to heat and moisture, and general wear and tear over time.

Symptoms of a bad Control Board include:

• The range or oven not powering on or responding to controls
• Error codes or messages displayed on the control panel
• Inconsistent or inaccurate oven temperature
• The oven not heating up or only heating intermittently
• The range or oven turning off unexpectedly during use

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The User Interface is an OEM part for Whirlpool dishwashers. It is the control panel that allows users to select and monitor different wash cycles and options, providing an interface between the user and the dishwasher's electronic control system.

Causes of a bad user interface can include exposure to moisture, electrical faults, or general wear and tear from regular use.

Symptoms of a bad user interface include:

• Buttons not responding or working intermittently
• Display screen not functioning or showing error codes
• Inability to select or change wash cycles
• Dishwasher not starting or stopping unexpectedly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Electronic Control Board is an OEM replacement part for Whirlpool ranges. As the "brain" of the range, this intricate circuit board monitors and regulates all cooking functions such as oven temperatures, convection settings, timed baking modes, and warming functions.

Causes of a bad electronic control board can include heat damage over time, failures in electronic components, or intermittent connectivity issues in traces and connections on the board.

Symptoms of a bad electronic control board include:

• Failure to power on or select desired cooking modes
• Inability to adjust or maintain set oven temperatures
• Erratic or unpredictable oven operation
• Fault codes or error messages displayed

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Control Board is an OEM replacement part for Whirlpool dryers. As the central processing component, it works to operate all dryer functions through programmed instructions. The circuit board receives inputs to control temperature settings, cycle selections, sensors, and more.

Causes of a bad control board can include moisture damage corroding circuitry, component failures due to power surges, or normal component wear over time.

Symptoms of a bad control board include:

• Inability to select or change dryer settings/cycles
• Dryer not heating properly or venting air as expected
• Cycles failing to complete or restarting unexpectedly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Electronic Control Board is an OEM part for Whirlpool dishwashers. This part manages and regulates the dishwasher's functions, including cycle selection, water temperature, and the timing of different phases in the washing process.

Common causes of a bad control board include electrical surges, moisture exposure, or general wear and tear over time.

Symptoms of a bad electronic control board include:

• The dishwasher not starting or completing cycles
• Error codes displayed on the control panel
• Unresponsive or erratic buttons and controls
• The dishwasher stopping mid-cycle or failing to perform as expected

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

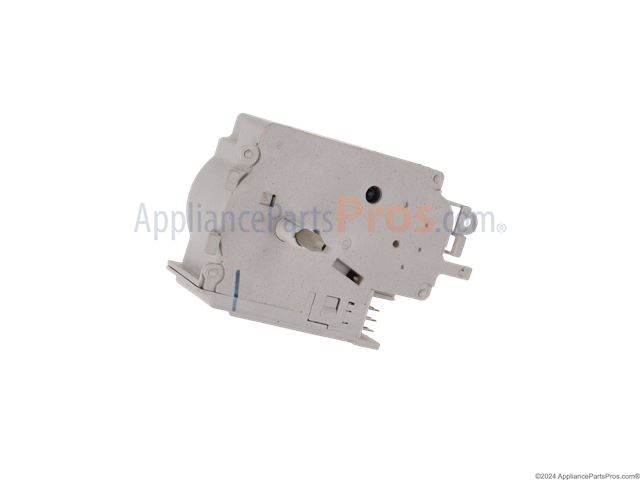

This mechanical timer controls the sequence and duration of cycles in your washer. Replacing a worn timer restores dependable cycle advancement and consistent operation from fill through spin.

• Selects and times each cycle by routing power to the motor, pump, and water valves in the correct order
• Automatically advances through wash, rinse, and spin
• Helps resolve symptoms such as: cycle won't start or advance, stops mid-cycle or runs too long, or a timer knob that doesn't move/only advances intermittently

• Unplug the appliance before servicing
• Open the control console; remove the knob/dial and any retaining hardware
• Label or photograph wire positions; transfer connectors one at a time to matching terminals on the new timer
• Align the timer shaft, secure the mounting, and test a short cycle before full reassembly

The Main Control Board is an OEM replacement part for Whirlpool refrigerators. It serves as the central processing and monitoring unit that oversees vital fridge functions. The control board regulates components like the compressor, fans, lights, ice maker, and dispenser based on sensor temperature feedback.

Causes of a bad control board can include electrical surges, wear and tear over time, or exposure to moisture, which can interfere with its electronic components.

Symptoms of a bad fridge main control board include:

• The refrigerator not cooling properly
• The compressor or fans not running
• Display errors or malfunctioning indicator lights
• The refrigerator running continuously or not cycling on and off as needed

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Timer is an OEM replacement part for Whirlpool dryers. It precisely manages dryer operations and cycles clothes to the ideal doneness level based on the fabric type selected.

Causes of a faulty timer include worn buttons or switches, damaged internal electronic boards, or shorted connections due to environmental exposures over many years.

Symptoms of a bad dryer timer are:

• The dryer fails to start or run the expected cycles
• Inability to select desired time or setting options
• Premature stopping or ongoing operation despite dry clothes

Compatible with KitchenAid, Maytag, and more, it maintains customized cycle programming.

The Inverter is an OEM replacment part for Whirlpool microwaves. It regulates the magnitude and duration of electromagnetic waves generated during cooking functions.

Causes of a faulty inverter can include general wear from prolonged use or damage from power surges entering the microwave.

Symptoms include:

• Inconsistent or incomplete heating of foods
• Sparking or burning smells emanating from within
• Control panel errors or failure to properly sense wattage settings

This OEM Whirlpool replacement ensures precise electromagnetic wave output. Compatible with KitchenAid, Maytag, Jenn-Air, and select other branded microwaves, the inverter restores consistent cooking performance.

Restore reliable operation with this electronic control board, the appliance's central "brain." It manages inputs and outputs so programmed functions run correctly, helping resolve unresponsive controls and erratic or failed cycles.

• Directs and times operations based on user commands and sensor feedback
• Distributes power to components such as motors, valves, heaters, lights, or fans as required
• Monitors switches/sensors to maintain proper performance
• Symptoms can include no power, won't start, unresponsive buttons, random resets, incomplete cycles, or error codes

• Disconnect power before servicing; verify no voltage is present
• Use ESD precautions and handle the board by its edges
• Photograph wiring/connectors to ensure correct reassembly
• Mount in the original position and refer to the unit's tech sheet for any required setup or diagnostics after installation

The main control board is an OEM part for Whirlpool refrigerators. As the central command module, it directs all temperature and function regulation.

Symptoms of a bad main control board include:

• Fluctuating temperatures cause freezer burn or thawing
• Fault codes and error messages on digital displays
• Inability to engage desired cooling presets efficiently
• Potential leakage currents posing electrical safety risks

Causes involve liquid damage degrading circuit boards over time, physical cracks interrupting power after repeated door usage, as well as individual component failures affecting coils or sensors.

This OEM Whirlpool part is also compatible with some Kenmore and KitchenAid.
