Whirlpool Dishwasher Control Board

Includes black knob

The Speed Control Assembly is an OEM part for Whirlpool mixers, integral to managing the mixing speed to accommodate various ingredients and recipes efficiently. This assembly is crucial for the precise control over the mixer's speed, ensuring that your mixing tasks are performed with the desired consistency and texture.

Common causes of a faulty Speed Control Assembly can vary, such as electrical problems resulting in erratic mixer speeds, wear and tear from regular usage, physical damage to the control assembly, or faulty wiring and connections within the mixer.

Symptoms of a bad Speed Control Assembly include:

• The mixer operates at one speed regardless of the setting
• Inability to adjust the mixer's speed
• The mixer fails to start or exhibits intermittent stopping during use
• Unusual noises or behavior when changing speeds

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Phase Control Board is an OEM part for Whirlpool mixers. It regulates the mixer's motor speed by controlling the electrical current flowing to the motor, ensuring precise speed settings and smooth operation. This board is essential for achieving consistent mixing results and handling various mixing tasks effectively.

Causes of a bad phase control board can include electrical surges, wear and tear from regular use, or component failure due to overheating. A faulty control board can lead to inconsistent speeds, affecting the mixer's performance and potentially damaging the motor.

Symptoms of a bad phase control board include:

• Inconsistent or erratic mixer speeds
• Mixer not starting or stopping unexpectedly
• Unusual noises or burning smells during operation
• Mixer operating at only one speed regardless of setting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: This is the 120-volt phase control board. For the 240-volt board use W11174552.

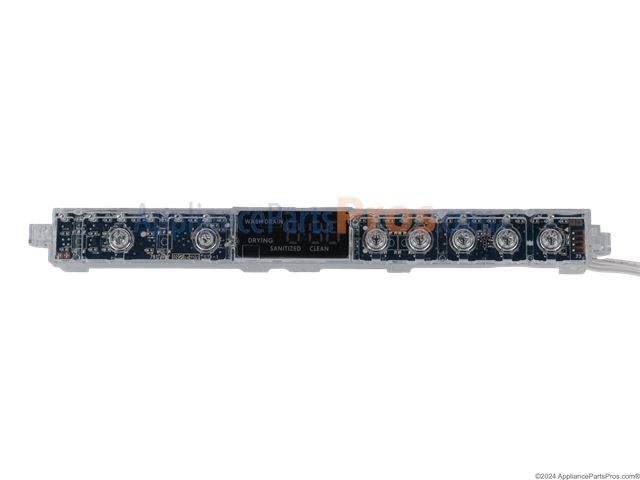

The User Interface is an OEM part for Whirlpool dishwashers. It is the control panel that allows users to select and monitor different wash cycles and options, providing an interface between the user and the dishwasher's electronic control system.

Causes of a bad user interface can include exposure to moisture, electrical faults, or general wear and tear from regular use.

Symptoms of a bad user interface include:

• Buttons not responding or working intermittently
• Display screen not functioning or showing error codes
• Inability to select or change wash cycles
• Dishwasher not starting or stopping unexpectedly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

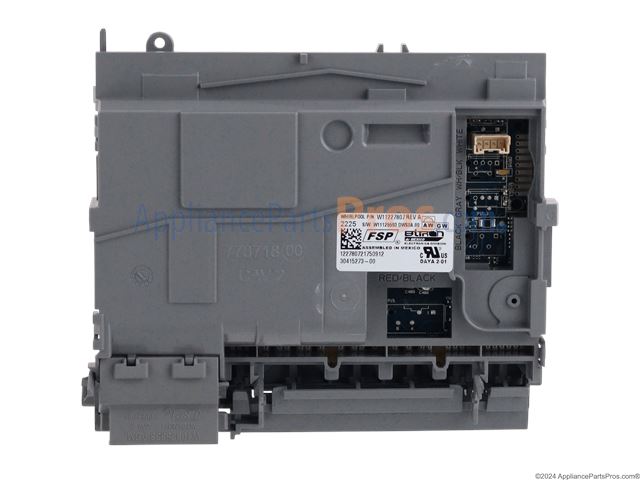

The Electronic Control Board is an OEM part for Whirlpool dishwashers. This part manages and regulates the dishwasher's functions, including cycle selection, water temperature, and the timing of different phases in the washing process.

Common causes of a bad control board include electrical surges, moisture exposure, or general wear and tear over time.

Symptoms of a bad electronic control board include:

• The dishwasher not starting or completing cycles
• Error codes displayed on the control panel
• Unresponsive or erratic buttons and controls
• The dishwasher stopping mid-cycle or failing to perform as expected

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This Control Board is an OEM replacement part for Whirlpool dishwashers. It is an electronic control module that coordinates various functions within the dishwasher. It regulates processes like temperature settings, wash cycles, timing mechanisms, water level and pressure valves.

Causes of a bad control board can include wear and tear over time, exposure to moisture or chemicals, voltage fluctuations, or failure of internal electronic components.

Symptoms of a bad control board include:

• Dishwasher not starting or responding to controls
• Inability to select wash cycles or options
• Error codes appearing or failure to display normally
• Abnormal sounds or vibrations during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Control Board is an OEM part for Whirlpool dishwashers. It serves as the brain of the appliance, controlling and regulating all functions and cycles of the dishwasher.

Causes of a bad Control Board can range from power surges or electrical issues that damage the board's components, to physical damage from moisture exposure or impact, as well as general wear and tear over time.

Symptoms of a faulty dishwasher Control Board include:

• The dishwasher not turning on or starting cycles
• Certain wash cycles or options not functioning correctly
• Error codes or indicator lights displaying on the control panel
• The dishwasher shutting off unexpectedly during cycles

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This dishwasher user interface mounts behind the door console and translates button presses into commands for the main control. Replacing a failed UI restores responsive keys, cycle selection, and indicator lights when the panel stops responding or behaves intermittently.

• Registers button selections and controls indicator LEDs on the console
• Sends inputs to the electronic control to start and manage wash cycles
• Helps resolve unresponsive or intermittent buttons and non-illuminating status lights
• Common symptoms include no panel response, won't start when Start is pressed, or random/erratic panel behavior

• Disconnect power at the breaker before servicing
• Remove inner-door/console screws to access the interface
• Use ESD precautions; seat ribbon/plug connectors fully and route wiring to avoid pinching
• Transfer any re-usable mounting clips as needed, reassemble, and test operation

This phase control board is the power module that drives designated surface elements on compatible cooktops. It regulates power and communicates with the main control to deliver steady heat, restoring proper heating performance when the original module fails. What it does:

• Regulates and supplies power to assigned surface heating zones
• Communicates with the main/user interface control to execute heat settings
• Helps monitor fault conditions to protect the circuit
• Typical symptoms: one or more surface elements won't heat, intermittent heating, or the unit powers on but doesn't heat those zones

• One electronic control board

• Disconnect power at the breaker before servicing
• Use ESD protection; avoid touching component leads and solder joints
• On models with multiple phase boards, confirm the correct board position for your unit
• Label and transfer all connectors; secure the board per the service manual and test each surface element after reassembly

The Control Board is an OEM component for Whirlpool dishwashers. As the central "brain" located under the dishwasher tub, this printed circuit board orchestrates all wash cycle functions and settings.

Symptoms of a bad control board include:

• Failure to turn on or select desired cycles
• Glitches in display readouts
• Inability to advance cycles or unwanted resets
• Circuit board humming or buzzing noises

Causes of a bad control board can include water intrusion or prolonged exposure to steam damaging sensitive electronic components over time.

Replace with this Whirlpool board to restore reliable programming and dependable dish cleaning. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This electronic control board is the dishwasher's brain, managing cycles and powering the pump, valve, heater, and other loads. Replacing a failed board restores normal start, wash, drain, and dry functions.

• Coordinates and times wash cycles based on user selections and sensor inputs
• Sends power to the circulation pump, drain pump, water inlet valve, and heater
• Interfaces with the user interface and monitors door/latch status
• Failure may cause: no start, cycle won't advance or ends early, no fill/drain/heat, or error codes

• Disconnect power at the breaker before servicing; verify power is off
• Access location varies by model; commonly behind the lower toe panel or inside the console
• Handle the board by the edges and observe ESD (anti-static) precautions
• Move wire connectors one at a time from the old board to the new, secure the board, and reassemble; run any required diagnostics/reset per your model's tech sheet

This speed control regulates and stabilizes motor speed in your appliance. Replacing a faulty control restores smooth start-up and accurate speed selection so the motor runs consistently at the setting you choose.

• Modulates power to the motor to reach and hold the selected speed
• Helps correct issues like surging, stalling, or running only at one speed
• Common symptoms include erratic speeds, failure to start, or sudden speed changes
• Also presents as an unresponsive speed selector or inconsistent performance

• Disconnect power before servicing and allow components to discharge
• Access the control per your model's service information; note wire locations or take photos
• Transfer connectors one at a time; seat fully and handle electronics with ESD care
• Reassemble and test operation through all speed settings; perform any model-specific calibration if required

This user interface is the electronics behind a full-door console dishwasher panel. It reads your button selections and communicates with the main control so cycles start and options respond reliably.

• Interprets keypad inputs from the console and sends commands to the control board
• Helps restore proper control of wash cycles, options, and start/delay functions
• Common symptoms: unresponsive or intermittent buttons, no console lights, can't start from the panel, erratic beeping/stuck-key behavior
• Built for full-door (full-console) configurations used on select models

• Disconnect power at the breaker; turn off the water supply
• Remove inner door/console screws to access the UI; support the panel to avoid straining wires
• Handle the board with ESD care; transfer any mounting clips/brackets and seat ribbon cables/connectors fully and correctly
• Reassemble the door and test console operation before running a full cycle

The Electronic Control is an OEM part for Whirlpool dishwashers. It is the main circuit board that regulates all electrical functions and directs components during cycles. Sensors throughout the dishwasher relay information to the control board, which processes data and generates output signals to control mechanisms such as wash motor, heater and dispensers.

Causes of a bad electronic control include failures from long-term, continuous usage overload, issues due to power fluctuations or surges that disrupt circuitry.

Symptoms of a bad electronic control include:

• Fault codes displayed
• Lights, buttons or other functions malfunctioning
• Inability to start cycles or advance through phases
• Irregular cycle times, temps or abnormal sounds

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and Kenmore models.

This user interface housing is the front console shell that holds and protects the control buttons and display, restoring the appliance's look and secure fit for the control components. What it does

• Secures the control board, buttons and display in the appliance console
• Protects electronics from light impact, dust and everyday wear
• Restores proper button alignment and front-panel fit and finish
• Helps resolve issues caused by cracked, warped or broken console housing

• One user interface (UI) housing / front console housing

• Disconnect power to the appliance before starting any repair
• Removal typically requires detaching the console and transferring the display, buttons and any mounting clips to the new housing
• Handle with care to avoid scratching the finish or damaging snap clips and wiring

This electronic control board is the appliance's main control module that manages cycles, timing, and user-interface functions to restore normal operation. Replace a failed board to help resolve control, display, and cycle problems. What it does:

• Regulates cycle timing, motor and heater control, and other automated functions
• Interprets user commands from the control panel and runs selected cycles
• Sends/receives signals to sensors, relays, and displays for coordinated operation
• Commonly used to address symptoms like unresponsive controls, no or erratic display, or appliances that won't start or complete cycles

• Disconnect power before accessing the control area to avoid shock or damage
• Handle the board by the edges and avoid electrostatic discharge; use grounding methods if available
• Verify the board PN on the old part matches W10597041 before installing

The Control Board is an OEM part for Whirlpool dishwashers. As the central processing unit, this board regulates all cycles and component functions including wash and rinse settings, heating controls and the digital display.

Symptoms of a failed control board include:

• Inability to select or change wash/rinse options
• Cycles failing to complete through all settings
• Error codes displayed or unresponsive controls

Causes can be normal wear of electronic components over extended use. Exposure to fluctuating internal temperatures may also deteriorate electrical connections over time.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
