Frigidaire Refrigerator Parts

The Drip Tray is an OEM replacement part that fits Frigidaire refrigerators. It is responsible for catching water drips and spills under the water dispenser. Over time, the tray can crack or warp leading to leaks. Causes of failure include loss of the part, accidental damage, and wear over time.

Symptoms of a failing drip tray include:

• water on the floor
• improper fit allowing leaks
• cracks or breaks in the tray

The drip tray is compatible with Frigidaire, Gibson, White Westinghouse, Kelvinator, Crosley, and Kenmore refrigerator models

This ice container assembly stores ice in the freezer and feeds it to the dispenser. Replacing a cracked or stripped bin helps restore smooth, reliable dispensing of cubed or crushed ice from your refrigerator.

• Holds finished ice beneath the icemaker and connects to the auger drive to move ice to the door chute
• Internal mechanism advances ice and enables crushed-ice operation when selected
• Helps resolve no or intermittent ice dispensing, auger slippage, or inconsistent cubed/crushed output
• Direct replacement for damaged or cracked ice buckets

• Disconnect power and turn off the icemaker; wear cut-resistant gloves
• Lift out the old bin; discard clumped ice and clear any jams in the chute
• Align the auger drive coupling and slide the new assembly fully into place
• Restore power and test both cubed and crushed dispense modes

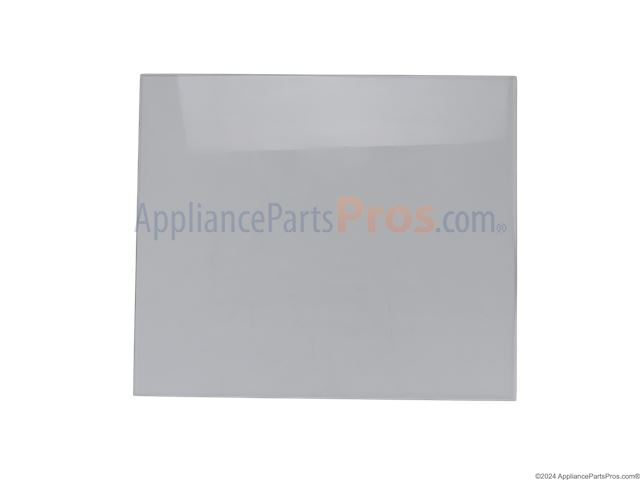

This refrigerator pan cover insert sits in the frame above a storage drawer to create a flat, sturdy shelf surface. Replace a cracked, missing, or loose insert to restore support and help drawers slide and seal properly. What it does:

• Fits into the pan cover frame to form a flat surface above the drawer
• Supports food items while covering the drawer below
• Helps contain spills and prevents items from falling into the drawer
• Common symptoms: cracked/broken insert, sagging shelf, spills leaking into drawer, drawer catching

• 1 pan cover insert

• Remove food, slide out the drawer, and lift out the cover/frame for access
• If working near lights or controls, disconnect power; wear cut-resistant gloves when handling edges
• Clean the frame channels and align the insert with orientation tabs/grooves
• Lower the insert gently and ensure it sits flush—do not force into place

This upper door hinge supports the refrigerator/freezer door at the top pivot, keeping it aligned so the gasket seals and the door opens smoothly. Replacing a worn hinge helps restore proper door swing and reliable closing.

• Supports and pivots the door at the top hinge point
• Maintains door alignment for an even, consistent gasket seal
• Helps prevent door sagging, rubbing, or binding
• Worn hinge symptoms include misalignment, squeaks, poor sealing, or the door popping open

• Disconnect power; remove items from the door.
• Support the door to prevent dropping; remove hinge cover and mounting screws.
• Lift the door off the lower hinge, transfer any spacers/shims, and install the new upper hinge.
• Reinstall and align the door; tighten hardware and verify gasket contact all around.

The Defrost Heater is an OEM part for Frigidaire refrigerators. It melts the ice buildup that occurs on the evaporator coils. The defrost heater is an element that generates warmth during scheduled defrost cycles, making sure the excess ice and frost are cleared away.

Causes of failure for a defrost heater may be related to cracked or broken heating filaments over many heating and cooling cycles. Natural wear and tear can weaken the heater structure.

Symptoms of a bad defrost heater include:

• Excessive ice or frost buildup inside fridge and freezer
• Inability of refrigerator to maintain set temperatures
• Frost or condensation appearing outside of refrigerator

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Start Device is an OEM part for Frigidaire refrigerators. It is responsible for initiating the electrical power to the compressor, enabling it to start functioning.

Causes tend to relate to standard wear over time. Moisture exposure can also impact durability.

Symptoms of a faulty start device can include:

• The compressor not starting or running intermittently
• Unusual clicking or buzzing sounds coming from the appliance
• Temperature fluctuations inside the refrigerator or freezer
• Complete loss of cooling or freezing capabilities
• Overheating of the compressor
• Burnt or damaged electrical connections near the start device

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.


Frigidaire PureAir® Refrigerator Air Filter combines activated carbon, Zeolite and real baking soda to reduce odors from foods such as onions, garlic, fish, stale milk and over-ripe fruits and vegetables. Recommended air filter replacement is every six months. Dimensions: 4-1/2" x 2-1/2"

This meat pan is the refrigerator's deli drawer. Replacing a cracked or missing bin restores smooth sliding access for meats and cheeses and helps keep the fresh food section organized.

• Creates a dedicated compartment for deli items in the fresh food section
• Slides on existing shelf rails for easy access
• Restores proper fit when the original bin is cracked, warped, or missing
• Common symptoms: broken or missing drawer, front lip cracked, drawer falls or won't slide smoothly

• Remove contents; pull the old drawer straight out from the rails
• Inspect and clean the rails; transfer any reusable parts from the old drawer if applicable
• Align the new pan on the rails and slide it fully into place
• If movement is tight, confirm the shelf cover and rails are seated and level

The Door Light Switch is an OEM part for Frigidaire refrigerators. It is a component located inside the refrigerator door that turns the interior light on and off based on door position. The light switch works with a door switch plate and light socket assembly to automatically illuminate the interior when the door is opened.

Causes of a bad switch can be normal wear and tear over time, especially from frequent door openings. The contact points within the switch can become corroded or damaged.

Symptoms of a bad light switch include:

• Interior light not turning on at all when door is opened
• Light remaining constantly on even when door is closed
• Inconsistent or intermittent lighting

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.


This compressor inverter control board powers and regulates the variable-speed compressor in your refrigerator by converting household AC into the controlled output the compressor needs. Replacing a failed inverter can restore compressor operation and normal cooling performance.

• Receives commands from the main control to vary compressor speed for efficient, steady cooling
• Converts AC line voltage to the controlled output required by the compressor motor
• Common symptoms of failure: refrigerator warm, compressor not running while fans/lights operate
• May also present as intermittent cooling, clicking or humming near the compressor, or visible damage on the module

• Disconnect power before servicing; this is a high-voltage component mounted at the compressor
• Note wire positions and transfer connectors one at a time; ensure all connections are fully seated
• Secure the module to the original mounting to maintain proper heat dissipation and vibration control

This replacement fan circulates air through the appliance to maintain proper airflow and stable temperatures. Installing a new fan restores efficient performance and can reduce noise, vibration, and uneven airflow or cooling. What it does:

• Circulates air to support proper airflow and temperature control
• Helps cool internal components and distribute air evenly
• Common symptoms include the fan not spinning, intermittent operation, loud or rubbing noises, excessive vibration, or weak airflow
• Visible wear or damage to the fan vanes or hub can indicate the need for replacement

• One fan, as shown

• Disconnect power before servicing; allow moving parts to stop completely
• Access the fan location and note the original orientation for correct airflow
• Transfer any clips, spacers, or fasteners from the original part as needed
• After installation, hand-spin to ensure free movement and clearance; restore power and test for smooth operation

This carriage is the factory support piece that holds and guides the related assembly so it moves smoothly and stays properly aligned. Replacing a worn or broken carriage helps restore solid, reliable operation. What it does:

• Supports and guides the connected assembly for smooth, consistent movement
• Keeps components aligned to prevent binding, wobbling, or sagging
• Restores proper operation when the original is cracked, worn, or deformed
• Typical symptoms include sticking, uneven travel, or misalignment

• 1 carriage

• Disconnect electrical power before servicing; allow any hot surfaces to cool
• Wear cut-resistant gloves to protect hands from sharp edges
• Transfer any screws, clips, or brackets from the old carriage to the new one
• Confirm smooth movement and proper alignment before full reassembly

This spacer fits between the fixed crusher blades inside the refrigerator's ice bucket assembly. It preserves the correct gap and alignment so the auger turns freely and crushed ice dispenses smoothly without jams or grinding.

• Maintains the correct spacing between fixed crusher blades in the ice bucket
• Keeps the blade stack and auger aligned for smooth rotation
• Helps prevent ice jams, grinding noises, and inconsistent crushed-ice output
• Replaces a worn, cracked, or missing spacer discovered during service

• Disconnect power before servicing; remove the ice bucket from the freezer door/bin
• Carefully disassemble the crusher housing, noting the exact order of blades, spacers, and washers
• Wear cut-resistant gloves; crusher blades are sharp
• Reassemble in the original sequence and verify the auger turns freely before reinstalling

This door bin replaces a broken or missing refrigerator door shelf, restoring secure, organized storage for jars and bottles. It snaps into the door's molded slots to keep items stable and easy to reach. What it does:

• Creates a storage shelf on the fresh food door for condiments, jars, and small bottles
• Helps keep items upright and contained to reduce spills when the door opens/closes
• Also referred to as a door shelf or door rack in some manuals
• Replace if cracked, warped, discolored, loose, or missing end tabs
• Common symptoms: bin falls off, won't seat correctly, or reduced door storage

• 1 door bin

• Remove the old bin by lifting up and out; transfer contents before removal
• Align the new bin with the correct door slots and press down until it locks in place
• Handle plastic carefully; allow part to reach room temperature to prevent cracking
• Unplug the appliance if removing additional door components or as directed by your model's instructions

This main power control board is the appliance's central electronic module. It routes incoming power and coordinates key functions so the unit powers up, runs, and responds to controls as designed, restoring reliable operation when the original board fails. What it does:

• Distributes and regulates power to motors, valves, and other loads
• Processes inputs from sensors and user controls, switching relays/triacs accordingly
• Coordinates start-up and run cycles for consistent performance
• Typical symptoms include a dead/unresponsive unit, intermittent shutoffs, specific components not running, or visible heat damage on the board

• 1 main power control board

• Disconnect power before servicing; discharge any capacitors where applicable
• Use ESD protection and handle the board by the edges
• Photograph/label all connectors; transfer any jumpers or settings from the old board to the same positions if present
• Inspect wiring and connected components for shorts before restoring power

This cover assembly replaces a damaged or missing cover on your appliance, protecting internal components and restoring a clean, finished appearance. Use it when the original is cracked, loose, or no longer secures properly.

• Shields internal parts from debris, spills, and accidental contact
• Helps keep components enclosed and aligned for reliable operation
• Restores the appliance's finished look after damage or wear
• Common signs of failure: cracks, broken or missing tabs, discoloration, rattling, or a cover that won't stay in place

• Disconnect power before servicing; shut off water supply if working near water connections
• Remove retaining screws or release tabs; note the orientation of the original cover
• Transfer and reuse original screws, clips, or seals if required
• Do not overtighten fasteners into plastic; ensure all tabs fully engage before testing
