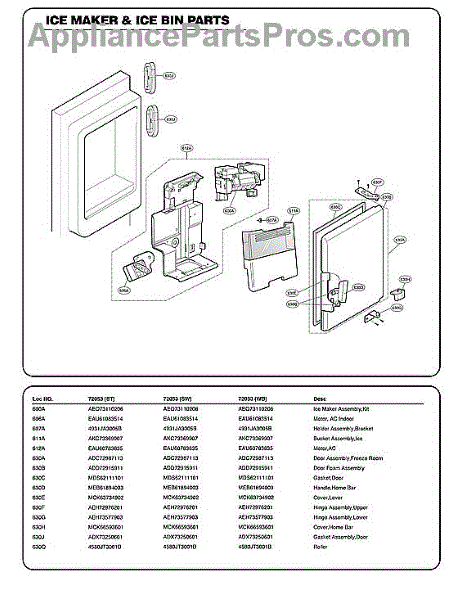

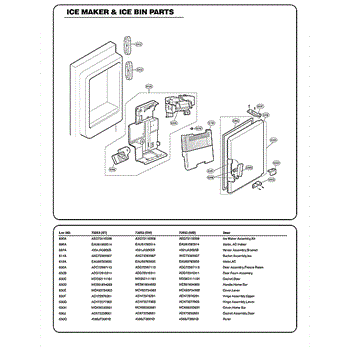

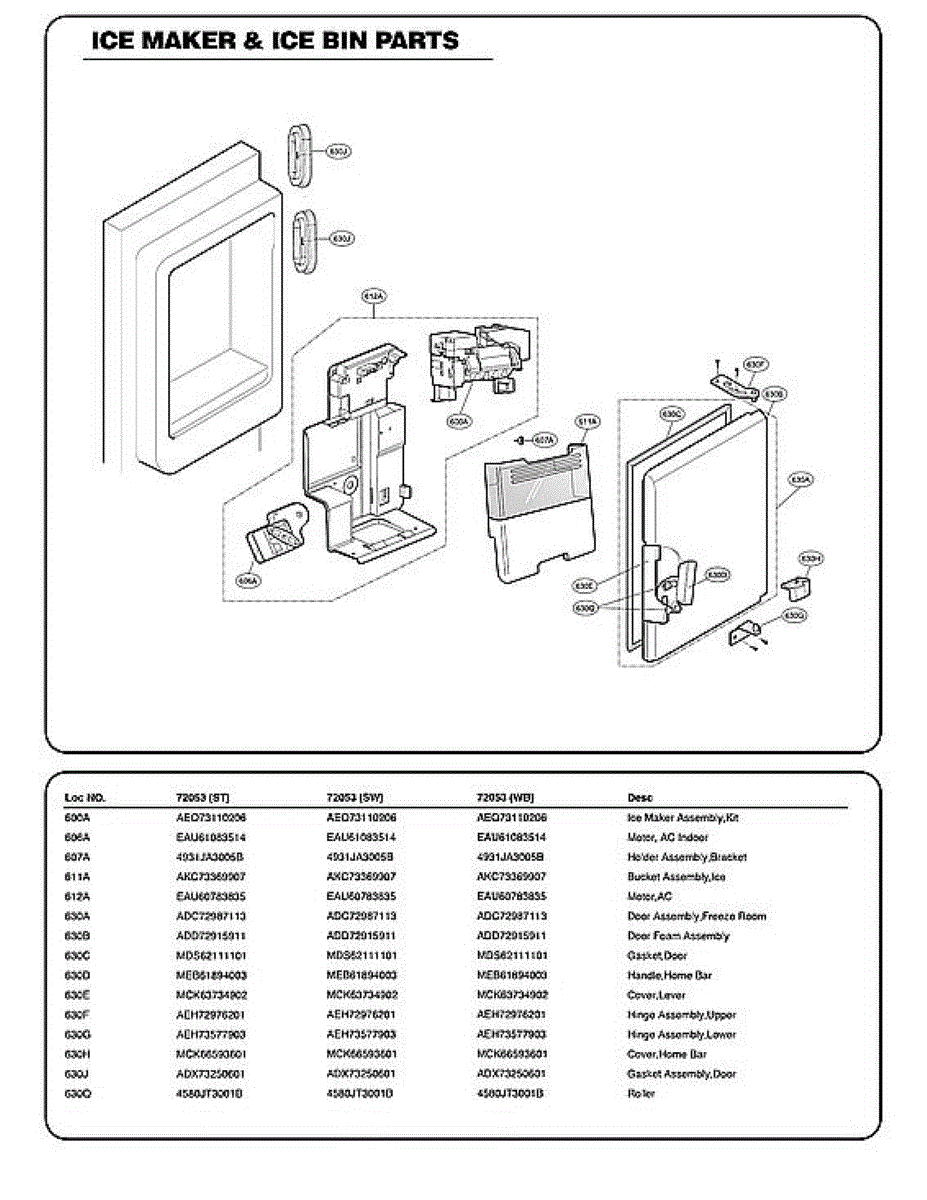

Parts for Kenmore Elite 79572053318: Ice Maker / Ice Bin Parts

This replacement screw secures specified panels or components inside your appliance. Refreshing worn or missing hardware helps restore a tight fit, reduce rattling, and keep assemblies properly aligned for reliable performance.

• Provides secure fastening for brackets, panels, or internal assemblies
• Replaces stripped, rusted, or lost hardware
• Helps reduce vibration and rattling noises
• Symptoms include loose panels, shifting components, or a screw that won't tighten

• Disconnect power and allow any hot surfaces to cool before servicing
• Wear cut-resistant gloves and eye protection
• Match length and thread to the original; replace like-for-like
• Start threads by hand to avoid cross-threading; do not overtighten

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

This hinge bolt secures the hinge to the appliance cabinet or door, keeping alignment true and motion smooth. Replacing a stripped, missing, or corroded bolt helps restore proper door operation and reliable closing.

• Fastens the hinge to support and stabilize the door
• Helps maintain alignment for smooth opening and closing
• Replaces damaged, stripped, or missing hardware

• Disconnect power to the appliance; shut off water supply if applicable
• Support the door to prevent strain on remaining hardware; enlist a second person if needed
• Note the order/orientation of any shims or washers and transfer them during reassembly
• Start threads by hand to avoid cross-threading; tighten securely without overtightening

The Handle Mounting Stud is an OEM replacement part for LG refrigerator doors. It provides a sturdy mounting point for the door handle assembly. Reliable handle connection and support is crucial for dependable door function and access.

Causes of a faulty stud can include damage from excess weight or impact over time rendering the stud loose or unstable.

Symptoms of a bad stud include:

• Loose or sagging door handle
• Difficulty opening and closing the refrigerator door
• Potential for the handle to detach completely
• Safety concerns if the handle connection fails

This OEM LG replacement stud is also compatible with Sears/Kenmore models.

This is a customized screw used to secure components in LG appliances. It replaces a worn or missing fastener to restore proper assembly and reduce rattling or loose panels. What it does:

• Secures panels, brackets, or small components in the appliance chassis
• Helps stop vibration-related noise caused by loose fasteners
• Replaces missing or stripped screws to restore safe, stable assembly
• Matches OEM fit for the specific mounting point it was made for

• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can damage threads or parts
• Disconnect power and follow appliance-specific safety procedures before servicing

This rear door handle replaces a worn or damaged handle on compatible LG appliances, restoring a secure grip and smooth opening. It's a direct-fit exterior handle that keeps the appliance door operating and looking right. What it does

• Provides a secure gripping point to open and close the appliance door
• Replaces cracked, loose, or broken rear handle hardware
• Restores correct alignment and feel when the door is operated
• Helps prevent further damage to the door edge from makeshift handles

• Power off and unplug the appliance before starting work; remove food or shelves as needed for access
• Keep fasteners and mounting clips; transfer original hardware unless new hardware is explicitly included
• Test door operation and alignment after installation; tighten fasteners evenly to avoid stress

The Drain Pipe Assembly is an OEM replacement part for LG refrigerators. It is a plastic tubing system that collects and removes liquid condensation from evaporator coils. Proper drainage is crucial to minimizing frost buildup and ensuring optimal cooling of food storage areas.

Symptoms of a bad drain pipe assembly include:

• Excessive frost or ice accumulation inside the refrigerator
• Puddling or leaks detected near evaporator housing
• Slow draining allowing water to pool versus emptying fully
• Cracks or breaks in the tubing prevent complete fluid removal

Causes are typically mineral sediment clogging drainage paths or deteriorating plastic from constant use. This OEM LG replacement pipe restores reliable condensate removal to maintain peak efficiency.

This OEM LG part is also compatible with Sears/Kenmore.

The Leveling Leg is an OEM part for LG refrigerators. It is one of the four legs at the bottom corners that elevate and provide stability to the entire appliance.

Causes of failure can be broken mounting points that no longer provide secure elevation, full compression of the built-in cushioning, or damage from impact on an unlevel floor.

Symptoms of a faulty leveling leg include:

• Excessive shaking or vibrating of the refrigerator
• Door alignment issues where doors are difficult to open or close fully
• Visible leaning or misalignment of the refrigerator cabinet

This OEM LG part is also compatible with some Kenmore models.

This duct assembly channels and seals airflow inside the refrigerator, helping deliver cold air to the right places for steady, even temperatures. Replace a cracked or warped duct to restore proper air circulation and cooling performance.

• Directs cooled air from the evaporator through the cabinet to maintain set temperatures
• Helps seal and separate airflow paths to prevent temperature swings and condensation
• Provides a mounting path and pass-throughs for related components, depending on model design
• Helps with symptoms like uneven cooling, weak airflow from vents, frost/ice near vents, or a loose/rattling rear panel

• Disconnect power before servicing; remove food from the affected compartment
• Take out shelves/drawers and inner paneling as needed to access the duct
• Transfer any reusable parts (e.g., seals, sensors, clips) from the old duct
• Ensure foam seals sit flat and vents are unobstructed before reassembly and restoring power

A small protective cap that covers and protects a component connection or opening from dirt and moisture, helping maintain proper function and prolong component life. Simple replacement when the original cap is cracked, missing, or worn. What it does:

• Covers exposed fittings, terminals, or openings to keep out debris and moisture
• Helps prevent leaks or contamination at the sealed connection
• Restores a secure fit when the original cap is cracked, split, or degraded
• Commonly used where a small, removable protective seal is required

• Inspect mating surface and surrounding gasket/seal before installing; replace other damaged parts as needed
• Press the cap firmly into place until fully seated; no special tools usually required
• Wear gloves and disconnect power or water supply if working near energized or pressurized components

This door stopper replaces the small hinge stop that limits door swing and helps the door close and latch properly. It restores correct door alignment and prevents the door from swinging past its intended range. What it does:

• Acts as a mechanical stop on the door hinge to control opening angle and reduce stress on the hinge
• Helps the door close smoothly and remain properly aligned
• Commonly replaces a cracked, worn, or missing stopper that allows over-rotation or uneven closing
• Can reduce noise and wear caused by a loose or shifting door

• Disconnect power to the appliance before servicing to avoid injury
• Replace like-for-like; removal may require removing the hinge trim or screws—keep fasteners organized
• Inspect adjacent hinge components and seals for wear while the door is removed

The Shelf Assembly is an OEM replacement part for LG refrigerators. It provides a movable shelf surface for organizing and storing items in the refrigerator or freezer compartment.

Symptoms of a bad shelf assembly include:

• Sagging or bowing of the shelf surface
• Difficulty in moving or removing the shelf
• Damage or cracks in the frame or wire grid
•  Inability to bear weight as intended

Causes of failure can be repeated overloading, accidental impacts, or normal wear and tear over time.

This authentic LG shelf assembly is also compatible with refrigerators by Kenmore models.

The Freezer Tray is an OEM part for LG refrigerators. It provides a convenient and organized space for storing frozen foods, ensuring they remain easily accessible and properly arranged within the freezer compartment.

Causes of a bad freezer tray can include cracks or breaks from heavy items, warping due to temperature fluctuations, or general wear from frequent use. A damaged tray can lead to improper storage and difficulty in organizing frozen items.

Symptoms of a bad freezer tray include:

• Cracks or splits in the tray
• Difficulty sliding the tray in and out
• Warping or bending
• Reduced storage capacity

This OEM LG part is also compatible with Sears/Kenmore.

This drawer tray assembly forms the shelf/base that supports a slide-out bin inside the refrigerator. Replace a cracked or warped tray to restore stable food storage and smooth drawer movement.

• Supports a slide-out drawer and food items in the fresh food or freezer section
• Helps drawers track correctly and sit level
• Damage can lead to binding drawers, tilting contents, or reduced storage
• Common signs: cracked plastic, sagging tray, drawer hard to open/close, visible wear

• Disconnect power and remove food from the affected area
• Slide out and remove the drawer(s) resting on the tray
• Lift out the damaged tray; transfer any reusable trim from the original if applicable
• Seat the new tray fully in the supports and reinstall the drawer(s)

The Tray Assembly Drawer is an OEM part for LG refrigerators. This tray assembly provides organized storage space in the freezer section, making it easier to access and manage frozen items.

Over time, freezer tray assemblies can become damaged due to regular use, accidental impacts, or overloading with heavy items. Damage can also occur if the drawer is forced open or closed when obstructed.

Symptoms of a bad freezer tray assembly include:

• Difficulty sliding the drawer in and out
• Cracks or breakage in the tray or its components
• Items not staying securely in place within the drawer

This OEM LG part is also compatible with Sears/Kenmore models.

The Freezer Tray is an OEM part for LG refrigerators. It provides a convenient and organized space for storing frozen foods, ensuring they remain easily accessible and properly arranged within the freezer compartment.

Causes of a bad freezer tray can include cracks or breaks from heavy items, warping due to temperature fluctuations, or general wear from frequent use. A damaged tray can lead to improper storage and difficulty in organizing frozen items.

Symptoms of a bad freezer tray include:

• Cracks or splits in the tray
• Difficulty sliding the tray in and out
• Warping or bending
• Reduced storage capacity

This OEM LG part is also compatible with Sears/Kenmore.

This shelf net is a replacement mesh shelf for refrigerators that helps keep bottles and small items secured and organized on a fridge shelf. Restores containment for torn or sagging nets. What it does:

• Provides a flexible mesh surface to hold bottles, cans and other items in place
• Prevents small items from falling through or shifting during door access
• Replaces torn, stretched or sagging shelf nets that no longer secure contents
• Helps restore original shelf function and appearance

• Disconnect power or unplug the refrigerator before starting any repair
• Remove food and the affected shelf before replacing the net
• Typically installs by fitting the net into the dedicated shelf frame or clips; for exact instructions
• Wear gloves to avoid sharp edges on shelf frames during installation

Restore safe, level storage with this refrigerator glass shelf. It replaces cracked or missing shelf glass so you can organize groceries securely and use the full width of the compartment without wobbling containers or makeshift fixes.

• Provides a flat, supportive surface for food storage inside the fresh food section
• Replaces broken, chipped, or shattered shelf glass to correct unsafe support
• Helps keep items level to reduce tipping and spills
• Restores the original shelf layout when a pane is missing

• Unplug the refrigerator and clear the shelf area before starting
• Wear cut-resistant gloves; handle glass with both hands
• Slide out the shelf assembly; remove the damaged pane and seat the new glass into the existing frame/trim as designed
• Ensure the glass is fully seated, reinstall the shelf, and verify stability before loading items

This refrigerator glass shelf assembly replaces a broken, cracked or missing interior shelf so you can safely store food and restore usable shelving space. Tempered glass shelf with frame supports everyday fridge organization. What it does:

• Provides a stable, easy-to-clean surface for storing food and containers
• Replaces cracked, chipped or shattered glass shelves that cause leaks or safety hazards
• Prevents items from falling through open shelf openings and helps maintain internal organization
• Fits into existing shelf rails and rests on factory shelf supports

• Disconnect power and remove food before installing to avoid spills and injury
• Handle tempered glass carefully; wear gloves to protect hands during installation
• Slide shelf into existing rails until it seats securely on factory supports
• If shelf support clips or rails are damaged, replace them before installing this shelf

This rail holder is a small replacement mounting clip that secures a rail or guide in place so racks or sliding components stay aligned and operate smoothly. It restores proper fit and reduces shifting or rattling during use. What it does:

• Secures the appliance rail or guide to prevent the rail from coming loose
• Keeps racks or sliding parts aligned for smooth movement
• Reduces vibration and rattling caused by a loose rail
• Helps prevent minor wear from misalignment or shifting components

• Disconnect power (or unplug) and remove any obstructing parts before replacing the holder
• Replacement typically requires basic hand tools; retain all fasteners and note orientation
• Inspect mating rail and fasteners for damage; replace any worn parts to ensure a secure fit

The Slide Rail is an OEM part for LG refrigerators. This part allows the smooth and stable operation of the freezer drawer, allowing it to slide in and out. The slide rail supports the weight of the drawer and its contents, facilitating easy access to frozen items while maintaining proper alignment. The rail measures approximately 16” x 2”

Causes of a bad slide rail can include wear and tear from frequent use, physical damage from overloading the drawer, and the accumulation of debris or ice buildup that can obstruct the sliding mechanism.

Symptoms of a bad slide rail for the freezer drawer include:

• Difficulty in sliding the freezer drawer in and out
• The freezer drawer not staying in place or coming off the rails
• Unusual noises such as grinding or squeaking during movement
• Visible damage, bending, or rust on the rail

This OEM LG part is also compatible with some Kenmore models.

The Rail Guide Assembly is an OEM replacement part for LG bottom-mount refrigerators. It contains telescopic extension rails and channel brackets that accommodatingly glide freezer and fridge shelves in and out with simplicity. This assembly facilitates effortless access to every stored item.

Causes of part malfunction relate to prolonged retraction/extension stressing roller bearings and metal rails to the point of fatigue cracks or binding issues hindering smooth sliding.

Symptoms involve:

• Shelves that resist extension or fail to fully retract into fridge cavities
• Grating noises and vibrations emerging from misaligned or strained rails
• Inconvenient access as capacity-flexible shelving gets restricted

This OEM replacement part is compatible with LG and Kenmore bottom-mount refrigerators.

The Tray Assembly, Fresh Room is an OEM part for LG refrigerators. This tray assembly is designed to fit in the fresh room section of the refrigerator, providing a designated space for storing fresh produce and other perishable items.

Causes of a bad tray assembly can include overloading the tray, accidental impacts that cause cracks or breaks, and normal wear and tear from frequent use.

Symptoms of a bad tray assembly include:

• Cracks or breaks in the tray plastic
• The tray not fitting securely in its designated space
• Difficulty in sliding the tray in or out

This OEM LG part is also compatible with Sears/Kenmore models.

The Freezer Drawer Rail Assembly is an OEM part for LG refrigerators. This assembly includes the rails that support and guide the freezer drawer, allowing it to slide in and out smoothly for easy access to frozen foods.

Causes of a bad freezer drawer rail assembly can include wear and tear over time, buildup of ice or debris, or damage from excessive force or impact. A compromised rail assembly can hinder the drawer's movement and affect the overall functionality of the freezer.

Symptoms of a bad Freezer Drawer Rail Assembly include:

• Difficulty opening or closing the freezer drawer
• The drawer not staying aligned or on track
• Unusual noises when operating the drawer
• Visible damage or wear on the rails

This OEM LG part is also compatible with Sears/Kenmore.

This right-side Freezer Basket Support Rail is an OEM part for LG refrigerators. Located inside the freezer compartment, it provides elevated storage shelves for ice cream, frozen vegetables, meats, and more above the freezer floor.

Causes of a bad support rail can include damages such as cracks or breaks that compromise its load-bearing ability over years of use. Sharp freezer temperatures cause constant contraction and expansion.

Symptoms of a bad support rail include:

• Baskets or containers unstable and prone to tipping
• Reduced storage capacity within the freezer
• Safety concerns if a cracked rail were to fully collapse

This OEM LG part can also be used on Kenmore/Sears appliances.

The Freezer Basket Support Rail is an OEM part for LG refrigerators. This component is essential for supporting and guiding the freezer basket, allowing it to slide in and out smoothly. The rail measures approximately 13 x 2 inches.

Symptoms of a failing Freezer Basket Support Rail include:

• Difficulty sliding the freezer basket in and out
• Unusual noises such as grinding or squeaking when moving the basket
• The basket becoming misaligned or tilting when pulled
• Visible wear or damage to the rail

Causes of a bad support rail often include mechanical stress from overloading the basket, frequent use which can wear down the material, or accidental damage during cleaning or rearranging items within the freezer.

This OEM LG part is also compatible with Sears/Kenmore.

This tray cover assembly replaces a cracked or warped cover that supports the refrigerator bin/tray. Restoring a level, secure surface helps keep items stable and allows the drawer to move and seat properly. What it does:

• Forms the shelf/cover above a refrigerator drawer or tray
• Supports items stored above and aligns the bin beneath
• Replaces cracked, sagging, or broken frames and tabs
• Helps prevent spills and binding when opening or closing the drawer

• Includes 1 tray cover assembly

• Unplug the refrigerator and clear the compartment for safe access.
• Slide out and remove the bin/tray; lift the old cover off its support rails or tabs.
• Position the new cover; ensure all tabs fully engage before reinstalling the bin and checking movement.

The Tray Assembly,vegetable is an OEM part for LG refrigerators. This tray provides a dedicated storage area for perishables like fruits and vegetables in the fresh food compartment.

Causes of a bad vegetable tray can include cracks or punctures developing over time from frequent loading/unloading of produce. This exposes produce directly to cooler air reducing shelf life.

Symptoms of a damaged tray include:

• Produce falling into other shelves and compartments
• Dividers separating or breaking off the main tray
• The tray no longer fitting properly in the dedicated shelf space

This OEM LG part is also compatible with some Kenmore models.

This Vegetable Tray Assembly is the refrigerator crisper drawer pan that provides a flat, secure surface for storing produce. Replacing a damaged tray restores proper containment and keeps fruits and vegetables organized and protected. What it does

• Replaces a cracked, chipped, warped, or otherwise damaged crisper tray that fails to hold produce securely
• Provides a stable surface to contain fruits and vegetables and prevent spills onto lower shelves
• Helps the drawer slide and align properly when the tray and pan are intact
• Reduces direct contact between produce and lower cabinet areas, making cleanup easier

• Empty the drawer and remove any shelves or supports before removing the old tray
• Lift the old tray straight out and slide the new tray into the same tracks or supports until it seats securely
• Handle carefully during installation to avoid damage; wear gloves if the part is glass or has sharp edges

This cover assembly finishes and protects the T/V control/display area, keeping the buttons and display aligned while shielding internal electronics. Replacing a cracked or loose cover restores proper fit, clean appearance, and reliable button operation.

• Provides front trim and protective housing for the T/V control/display module
• Supports correct alignment of buttons/touch areas and display/light windows
• Protects internal wiring and boards from impact and incidental moisture
• Common symptoms: cracked or chipped trim, broken mounting tabs, loose or rattling panel, misaligned or sticky buttons

What's included: One cover assembly. Install notes:

• Disconnect power before servicing to avoid electrical shock
• Use a plastic trim tool to release clips and prevent scratching the finish
• Transfer any lenses, brackets, switches, or display boards from the old cover to the new one
• Ensure all tabs fully engage and any screws are snug; do not overtighten

This guide assembly helps support and direct a sliding component within the appliance, ensuring smooth, stable movement and proper alignment for reliable operation.

• Provides a track/guide path for a moving tray or drawer
• Helps prevent binding, wobbling, or misalignment
• Can address issues like sticking, uneven travel, or jamming
• Maintains correct positioning for consistent performance

• Disconnect power and, if applicable, shut off water before servicing
• Remove the affected drawer/tray to access the guide area
• Transfer any reusable hardware from the original part if required
• Test movement and alignment after installation before reloading contents

This is a refrigerator drawer guide assembly that supports and guides a crisper/vegetable bin so it slides smoothly in and out. Replacing a worn guide restores proper drawer alignment and easy operation.

• Provides the track surface for the vegetable/crisper drawer
• Helps correct sticking, binding, or a sagging/misaligned drawer
• Can reduce scraping noises and uneven drawer movement
• Restores smooth sliding action after wear or damage

• Unplug the refrigerator before service
• Remove the affected drawer and any shelf above it for access
• Retain and transfer any screws or clips from the original guide
• Test drawer movement and alignment before closing up

This rail guide assembly supports and guides a sliding refrigerator drawer, helping it open and close smoothly. Replace a cracked or worn guide to restore proper alignment and prevent binding or the drawer jumping off its track.

• Provides the track and support for pantry/crisper/freezer drawer movement
• Keeps the drawer aligned to reduce wobble and uneven travel
• Restores smooth open/close when the guide is cracked or worn
• Helps the drawer seat fully for a proper fit

• Unplug the refrigerator before servicing
• Remove the bin/drawer from the compartment to access the guide
• Save and reuse existing mounting hardware and spacers
• Install the new guide, align the drawer, and verify smooth travel

This rail guide assembly supports and aligns a refrigerator drawer so it slides smoothly along its track. Replacing a worn rail restores easy operation and helps prevent binding, sagging, or uneven travel when opening and closing.

• Supports and guides the drawer/bin along the cabinet track
• Helps the drawer open and close smoothly and stay level
• Maintains proper alignment so the drawer seats correctly
• Common symptoms: drawer hard to slide, tilts or binds, rough/noisy travel, visible cracks or damage on the rail

• Disconnect power and remove drawer contents for safety
• Pull out and lift the drawer/basket off the rails to access the mounting points
• Remove screws/clips, transfer any brackets or end caps from the old rail, and install the new assembly
• Re-engage the drawer on both rails and test for smooth operation before reloading

The Crisper Drawer Slide Rail is an OEM part for LG refrigerators. It is designed to support and guide the crisper drawer, allowing it to slide in and out smoothly for easy access to your fresh produce. The rail measures approximately 20 x 6 inches,

Over time, the slide rail can wear out or become damaged, affecting the operation of the crisper drawer. Common causes of a bad crisper drawer slide rail include repeated use, accidental impact, or the accumulation of debris and residue that can hinder movement.

Symptoms of a bad crisper drawer slide rail include:

• Difficulty sliding the crisper drawer in and out
• The drawer not staying securely in place
• Unusual noises when using the drawer
• The drawer becoming misaligned or falling out of the track

This OEM LG part is also compatible with Sears/Kenmore models.

This case assembly is the outer housing for the Magic Room compartment, restoring proper fit and protection for internal components. Replaces a cracked, warped or damaged compartment case to help maintain compartment integrity and appearance. What it does:

• Provides the structural housing for the Magic Room compartment and secures internal components
• Restores proper alignment and fit to prevent rubbing or interference with doors/drawers
• Helps maintain an even internal compartment environment by sealing the compartment area
• Addresses visible damage such as cracks, broken mounting tabs or deformation

• Refer to the refrigerator's service manual for disassembly/reassembly steps and proper fastener torque
• Disconnect power to the appliance before starting any repair to avoid electrical hazard
• Handle plastic components carefully to avoid further cracking; replace any broken mounting clips
• Replace damaged screws or brackets with OEM-specified hardware for a secure fit

The Freezer Door Gasket is an OEM replacement part for LG refrigerators. It is designed to create a tight seal around the freezer door, helping to maintain the internal temperature by preventing cold air from escaping and warm air from entering. This ensures the freezer operates efficiently and keeps food frozen at the proper temperature.

Over time, freezer door gaskets can wear out or become damaged due to repeated opening and closing, exposure to cold temperatures, or the buildup of dirt and debris. A faulty gasket can lead to temperature fluctuations and increased energy consumption.

Symptoms of a bad freezer door gasket include:

• Frost buildup inside the freezer
• The door not sealing properly
• Increased energy use
• Food not staying properly frozen

This OEM LG part is also compatible with Sears/Kenmore models.

Replace a cracked or missing door bin with this door basket. It mounts to the refrigerator door to hold bottles and condiments, restoring safe, convenient storage and helping the door close properly.

• Attaches to the inner door to organize bottles and small items within easy reach
• Replaces a bin that is cracked, warped, or has broken locking tabs
• Symptoms include: bin falls off, won't stay seated, spills, or difficulty closing the door
• Restores designed door storage capacity and stability

• Unload the door and lift the old bin up and out of the mounting slots
• Align the new basket with the slots and press down until fully seated on both ends
• Do not force; confirm it's locked in before loading items
• Follow appliance safety guidelines; avoid overloading the bin after installation

Color: Stainless

The Door Gasket Assembly is an OEM replacement part for LG refrigerators. This part seals the door and maintains a thermal barrier. Proper compression provides energy efficiency.

Causes of a faulty gasket assembly may involve deterioration as adhesive softens from repeated compression. Mineral deposits accumulated over extended use could also harden material reducing flexibility.

Symptoms of a problematic gasket include:

• Cool air felt leaking from the door
• Moisture visible on seal interface areas
• Temperature fluctuations

This part is also compatible with some Kenmore refrigerator models.

The Gasket Assembly Door is an OEM part for LG refrigerators. This gasket forms a seal around the refrigerator door, preventing warm air from entering and cool air from escaping, thus maintaining optimal temperature inside the refrigerator.

Causes of a bad gasket assembly can include wear and tear over time, damage from frequent opening and closing of the door, or degradation from exposure to various elements. A compromised gasket can lead to inefficiency in the refrigerator's cooling performance.

Symptoms of a bad gasket assembly include:

• Warm air entering the refrigerator
• Increased energy consumption
• Frost buildup inside the refrigerator
• The door not sealing properly or being difficult to close

This OEM LG part is also compatible with Sears/Kenmore models.

The French Door Mullion is an OEM part for LG refrigerators. It is a flap located between the two doors of a French door refrigerator, helping to seal the gap and maintain the internal temperature by preventing warm air from entering when the doors are closed. This component is crucial for energy efficiency and proper functioning of the refrigerator.

Over time, the mullion can wear out or become damaged due to frequent use, impact from door closures, or issues with the hinge mechanism. Causes of a bad French door mullion include wear and tear, physical damage, or a faulty hinge that causes misalignment.

Symptoms of a bad French door mullion include:

• The mullion not folding or unfolding correctly
• Visible cracks or damage to the mullion
• Warm air entering the refrigerator, affecting cooling
• Increased energy consumption

This OEM LG part is also compatible with Sears/Kenmore models.

This drawer guide is the sliding rail that helps a refrigerator/freezer drawer open and close smoothly and stay aligned. It restores stable drawer movement and prevents sticking, sagging, or drawers coming off the track. What it does:

• Guides and supports the drawer as it slides in and out
• Keeps the drawer aligned to prevent binding or uneven movement
• Reduces drawer sag and helps prevent accidental removal
• Restores smooth operation when original guide is cracked, worn, or broken

• One drawer guide

• Disconnect power to the appliance before starting any repair
• Remove the drawer per the appliance service instructions to access the guide
• Replace the guide using the OEM fasteners or clips; keep original mounting hardware unless damaged

The Basket Assembly is an OEM component specifically designed for LG Door-in-Door refrigerators containing bottom-mounted crisper drawers. This integral assembly organizes stored items within the refrigerator doorway.

Symptoms of a bad basket assembly include:

• Cracked or broken perforated shelves
• Detached mounting brackets failing to secure basket
• Warped contours no longer fitting base compartment
• Missing attachments inhibiting proper installation

Causes of failure involve stresses from repeated loading/unloading cycles, mineral buildup weakening plastic brackets over time, or impact damage compromising structural integrity.

Replace yours today with this genuine OEM LG assembly to maintain tidy organizational capacity. Precision slots provide adjustable shelf positioning optimized for produce, snacks, and beverages. Compatible across Samsung, Frigidaire, and GE models featuring removable door crisper baskets.

This refrigerator door shelf bin replaces a cracked or missing bin on the fresh food door. It snaps into the molded slots to restore secure, convenient storage for condiments, jars, and small bottles. What it does:

• Mounts to the inner door liner to hold items and free up shelf space
• Restores door storage capacity when the original bin is damaged or missing
• Common symptoms: cracked plastic, broken tabs, bin falls off, won't stay seated
• Helps keep jars and bottles organized and easy to access

• 1 door shelf bin

• Remove items from the old bin, then lift it straight up to release from the door slots
• Align the new bin's hooks with the door slots and press down firmly until it locks
• Handle plastic carefully and consider wearing gloves to avoid cuts from sharp edges
• Do not force the bin; ensure it's positioned in the correct door location before securing

This refrigerator door shelf bin replaces a cracked or missing bin on the fresh food door. It snaps into the molded slots to restore secure, convenient storage for condiments, jars, and small bottles. What it does:

• Mounts to the inner door liner to hold items and free up shelf space
• Restores door storage capacity when the original bin is damaged or missing
• Common symptoms: cracked plastic, broken tabs, bin falls off, won't stay seated
• Helps keep jars and bottles organized and easy to access

• 1 door shelf bin

• Remove items from the old bin, then lift it straight up to release from the door slots
• Align the new bin's hooks with the door slots and press down firmly until it locks
• Handle plastic carefully and consider wearing gloves to avoid cuts from sharp edges
• Do not force the bin; ensure it's positioned in the correct door location before securing

This refrigerator door shelf bin replaces a cracked or missing bin on the fresh food door. It snaps into the molded slots to restore secure, convenient storage for condiments, jars, and small bottles. What it does:

• Mounts to the inner door liner to hold items and free up shelf space
• Restores door storage capacity when the original bin is damaged or missing
• Common symptoms: cracked plastic, broken tabs, bin falls off, won't stay seated
• Helps keep jars and bottles organized and easy to access

• 1 door shelf bin

• Remove items from the old bin, then lift it straight up to release from the door slots
• Align the new bin's hooks with the door slots and press down firmly until it locks
• Handle plastic carefully and consider wearing gloves to avoid cuts from sharp edges
• Do not force the bin; ensure it's positioned in the correct door location before securing

The Refrigerator Door Shelf is an OEM part for LG refrigerators. It provides additional storage space on the door of the refrigerator, allowing for the organization and easy access of frequently used items such as condiments, beverages, and small containers. It measures approximately 14" x 4" x 4".

Causes of a bad refrigerator door shelf can include general wear and tear from repeated use, overloading the shelf with heavy items, or accidental damage during cleaning or reorganization. Cracks or breakage in the plastic material can also render the shelf unusable.

Symptoms of a bad refrigerator door shelf include:

• Cracked or broken shelf
• Items not staying securely on the shelf
• The shelf not fitting properly into the door brackets
• Difficulty in attaching or removing the shelf

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

The Refrigerator Door Shelf is an OEM part for LG refrigerators. Designed to offer additional storage space, this door shelf seamlessly integrates into the refrigerator door, providing a convenient spot to store jars, bottles, and other condiments.

Over time, door shelves may suffer from wear and tear or become damaged due to overloading or accidental impact. This can lead to cracks, breaks, or a loose fit, which compromises the shelf's ability to hold items securely.

Symptoms of a bad Refrigerator Door Shelf include:

• Visible cracks or breaks in the shelf
• The shelf sagging or unable to hold items securely
• Difficulty fitting the shelf into the door slots
• Items falling through the shelf due to damage or warping

This OEM LG part is also compatible with some Kenmore models.

This stopper assembly mounts on the appliance door to cushion movement and hold the door in position, reducing wear and preventing slamming for smoother, safer operation. Fits as the OEM door stop used on compatible LG models. What it does:

• Cushions door movement to prevent hard impacts and reduce noise
• Holds the door in the open or closed position to prevent unwanted swings
• Helps maintain door alignment and reduces stress on hinges and latches
• Common symptom: door slams, won't stay open, or bangs against the cabinet

• Disconnect power and water before starting any repair
• Remove the door or open access for safe replacement
• Replacement typically requires basic hand tools (screwdriver or nut driver)
• Inspect surrounding hinge/fastener hardware and replace if worn

This door stopper assembly mounts at the hinge to control how far the door opens and promote smooth, consistent closing. Replacing a worn or broken stopper restores proper door swing and helps protect the hinge from overextension.

• Limits the door's opening range to prevent overextension
• Guides and cushions door movement for a smoother close
• Helps maintain door alignment at the hinge area
• Common symptoms: door swings too far, doesn't stop at the usual angle, clicks/binds near the hinge, or visible cracks/wear on the stopper

• Disconnect power to the appliance before servicing
• Support the door and use a helper when loosening hinge hardware
• Note the original orientation and transfer any spacers/shims if present
• Tighten fasteners evenly and verify smooth door operation before finalizing reassembly

The Lower Refrigerator Door Hinge is an OEM part for LG refrigerators. This hinge supports the refrigerator door, allowing it to open and close smoothly while maintaining proper alignment. It is designed to handle the weight of the door and ensure a secure and stable operation over time.

Causes of a bad lower refrigerator door hinge can include regular wear and tear, physical damage from overloading or impacts, and gradual loosening over time. A faulty hinge can lead to misalignment, difficulty in opening or closing the door, and potential damage to the door seal.

Symptoms of a bad lower refrigerator door hinge include:

• The door not closing properly or staying open
• Sagging or misaligned door
• Unusual noises when opening or closing the door
• Gaps in the door seal, causing cooling inefficiency

This OEM LG part is also compatible with Sears/Kenmore models.

The Lower Refrigerator Door Hinge is an OEM part for LG refrigerators, designed to support and pivot the refrigerator door, allowing it to open and close smoothly. This hinge is a critical component for the proper alignment and function of the door, ensuring an airtight seal when closed to maintain the internal temperature and efficiency of the refrigerator.

Causes of damage to the lower refrigerator door hinge often include normal wear and tear, excessive force when opening or closing the door, or corrosion due to moisture and cleaning agents.

Symptoms of a bad Lower Refrigerator Door Hinge include:

• Difficulty in opening or closing the refrigerator door.
• A door that hangs unevenly or does not close properly
• Unusual noises during door operation
• Visible wear or damage to the hinge itself.

This OEM LG part is also compatible with some Kenmore models.

This rail assembly replaces a worn or damaged slide rail that guides and supports a drawer or sliding component, restoring smooth, stable movement and reducing noise. Designed to match OEM fit and function for straightforward replacement. What it does

• Guides and supports the drawer/slide so it opens and closes smoothly
• Replaces bent, rusted, worn, or broken rail hardware that causes sticking or misalignment
• Reduces grinding, scraping, or noisy operation from damaged slides
• Helps maintain proper drawer alignment and load support during use

• Disconnect power and remove the drawer or sliding component before starting
• Use basic hand tools; avoid forcing parts into place to prevent damage

This replacement hinge assembly supports and pivots the refrigerator door. Replacing a worn or bent hinge restores smooth door movement and proper alignment so the gasket can seal correctly to help maintain performance. What it does:

• Provides the pivot point for the door to open and close
• Supports the door's weight to keep it aligned
• Helps the door gasket seal evenly against the cabinet
• May correct issues such as door sagging, rubbing, popping, or not closing/sealing fully

• One hinge assembly

• Unplug the refrigerator and remove items from the affected door
• Support the door while removing hinge screws; note the orientation of any spacers/bushings
• Transfer any reusable hardware from the old hinge to the new assembly
• Reinstall and tighten fasteners; verify door is level and check gasket seal

The Freezer Drawer Rail is an OEM component for select LG refrigerators.  Its operatation allows access to frozen foods.

Causes of a bad rail could include debris accumulation, ice buildup, or physical damage that hinders smooth sliding. Over time, continuous usage may also cause wear of moving parts.

Symptoms of a failed freezer drawer rail include:

• Resistance or stiffness when opening/closing drawers
• Noisy, squeaking, or grinding sounds
• Drawers that do not fully extend or retract
• Drawers detaching from the rail mechanism

This OEM LG rail is compatible with LG and Kenmore French door refrigerator models.

The Freezer Drawer Rail is an OEM component for LG French door refrigerators featuring bottom drawer designs. It provides smooth gliding support for the refrigerator's lower freezer storage compartment.

Common causes involve typical fatigue damage concentrating stresses at sensitive drawer guide interfaces.

Symptoms include:

• Drawer difficult to fully extend or retract
• Noises or binding during operation
• Reduced storage organization from impaired drawer support

This OEM LG part can also be used on Kenmore/Sears appliances.

This ice gear transfers motor rotation to the refrigerator's ice mechanism so cubes can be dispensed or ejected. Replacing a worn or stripped gear restores smooth, reliable ice operation and helps eliminate grinding or clicking noises.

• Transfers drive from the motor to the ice mechanism (auger/ejector, depending on model)
• Helps move ice through the system for dispensing or harvest
• Common symptoms: no or slow ice dispensing, auger not turning, loud clicking/grinding from the ice bin
• Cracked or stripped teeth indicate the gear should be replaced

• Disconnect power to the refrigerator before servicing
• Remove the ice bin and access the ice assembly per your model; note gear orientation for reassembly
• Align teeth carefully; do not force the gear onto the shaft
• Inspect related parts (drive coupler, auger, motor shaft) and replace any worn components to prevent repeat failure

This supporter hinge is the OEM-style hinge support that helps secure and align the appliance door, restoring stable door movement and proper sealing. Built to match the original hinge geometry for reliable fit. What it does:

• Supports the door at the hinge mounting point to keep door alignment stable
• Helps prevent sagging or uneven door gaps that can cause poor sealing
• Restores smooth opening and closing when worn or damaged hinge support is the cause
• Works as the hinge mounting support component shown in OEM parts diagrams

• One supporter hinge

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Follow the appliance's service manual for disassembly order and hinge removal/installation steps
• Use common hand tools (screwdriver, socket) and keep fasteners organized for reassembly
• Check adjacent hinge components and mounting hardware

This center hinge assembly replaces the factory center hinge that supports and aligns the refrigerator doors, restoring proper door movement and a tight seal for efficient cooling. It's a direct-fit mechanical hinge used where the upper and lower doors meet. What it does:

• Supports the weight of the upper/lower doors and maintains proper door alignment
• Lets the door pivot smoothly to open and close without binding
• Helps the door seal correctly to prevent warm air leaks and frost buildup
• Stops sagging or uneven door gaps that cause rubbing or poor closure

• One center hinge assembly

• Disconnect power to the appliance before starting work; if the unit has a water line, shut off the water supply as needed
• Support the door while removing and installing the hinge to prevent dropping or damage
• Use basic hand tools; follow the manufacturer service instructions for torque and fastener sequence

This center hinge assembly secures and guides a refrigerator door, restoring proper door alignment and smooth opening/closing. Replacing a worn or damaged center hinge helps stop sagging doors and improves seal integrity for reliable cooling. What it does:

• Supports the center of a refrigerator door and keeps it aligned on the cabinet frame
• Guides door movement to ensure smooth opening and closing
• Restores proper door fit to help maintain an even door seal
• Addresses symptoms such as door sagging, misalignment, scraping or grinding noises from the hinge

• Disconnect power to the appliance before starting any repair.
• Doors are heavy; support the door and use a second person or proper support when removing or installing hinges.
• Keep track of fasteners and hinge shims or spacers; reinstall in the same order and orientation.

This turntable roller ring sits under the glass tray and allows it to rotate smoothly for even heating. Replace a worn, warped, or broken ring to restore stable rotation and consistent cooking performance.

• Supports the glass turntable and rides on built-in rollers for smooth, quiet movement
• Keeps the tray level and centered to promote even heating
• Common symptoms: tray not turning, uneven cooking, scraping/grinding noises, or a wobbly/slipping turntable
• Restores proper interaction between the turntable, drive coupling, and motor

• Unplug the microwave or switch off the breaker before servicing
• Remove the glass tray; lift out the old ring and clean the track
• Place the new ring with the rollers facing down on the track; reseat the tray on the center drive coupling
• Test rotation with a microwave-safe cup of water

The Spanner Wrench is an OEM replacement part for LG refrigerators. This tool allows you to adjust the door hinges to ensure the doors are level and aligned properly. A well-aligned door is crucial for maintaining the internal temperature and efficiency of the refrigerator, preventing energy loss and ensuring food is stored under optimal conditions.

Symptoms that you might need to adjust the door hinges and potentially need this wrench include:

• Doors not closing properly or sealing tightly
• Visible gaps between the door and the main body of the refrigerator
• The refrigerator tilting or not sitting level

This spanner wrench is also compatible with some Sears/Kenmore refrigerators.

This spring restores the correct tension for the connected mechanism so parts move and return as designed. A fatigued or broken spring can cause loose, inconsistent action; replacing it helps recover smooth, reliable performance.

• Provides the return/tension force for the attached assembly
• Helps keep parts aligned and moving smoothly
• Reduces slack that can cause rattling, squeaks, or intermittent operation
• Common signs of failure: stretched or broken spring, weak return action, unusual noise

• Disconnect power; turn off water and/or gas supplies before servicing
• Wear gloves and eye protection—springs can release stored energy suddenly
• Note the original orientation and hook locations; take a reference photo before removal
• Support the linked component and carefully relieve/reapply tension to avoid snap-back

This hinge secures and guides a refrigerator door for reliable opening and closing. It restores proper door alignment to help maintain an airtight seal and prevent sagging or rubbing. What it does:

• Supports the refrigerator door and attaches it to the cabinet frame
• Guides smooth door movement and maintains alignment
• Helps prevent door sag, uneven gaps, and items catching when opening/closing
• Reduces rubbing, scraping or abnormal door noise caused by a worn hinge

• Disconnect power and remove food from the door before starting; support the door to prevent dropping
• Use the factory mounting screws and follow OEM torque and alignment steps
• Check door position and seal after installation; adjust hinge mounting if necessary

Replacement refrigerator door hinge that restores smooth pivoting and proper door alignment, helping the door open and close reliably and maintain an airtight seal to preserve cooling performance. What it does:

• Supports the refrigerator door and allows it to pivot smoothly.
• Replaces worn, bent, or damaged hinges that cause door sag or misalignment.
• Helps reduce noisy or grinding door operation when the hinge is failing.
• Promotes an even door seal to help maintain internal temperature consistency.

• Unplug the appliance and remove food from nearby shelves before starting work.
• Support the door while removing hinge fasteners to prevent dropping or damage.
• Reinstall using the original hardware; align the door and tighten fasteners securely but avoid overtightening.

The LG cap assembly is an OEM replacement part responsible for controlling the opening and closing of the ice dispenser chute on an LG refrigerator. The ice dispenser door assembly is specifically designed to cover and protect the ice dispenser chute, ensuring that ice is dispensed only when desired.

Common causes of a bad cap assembly include accidental impact, wear and tear from regular use, or exposure to temperature fluctuations within the refrigerator. These factors can lead to cracks, breaks, or loosening of the caps, which can compromise their protective function.

Symptoms of a bad cap assembly include:

• Visible cracks or damage to the caps
• Loose or missing caps
• Difficulty in maintaining the proper position of internal components

This OEM LG part is also compatible with Sears/Kenmore.

This LED cover is the clear lens that protects and diffuses the control-panel LED indicators, restoring a clean, readable display and shielding the LEDs from dirt and damage. It fits into the panel opening for a finished look. What it does:

• Covers and protects control-panel LEDs from dust, spills, and impact
• Diffuses LED light for even, readable indicator illumination
• Replaces cracked, cloudy, scratched or missing LED lens that affects display appearance
• Helps keep internal electronics cleaner by sealing the LED area

• One LED cover (lens)

• Disconnect power before starting any repair to avoid shock or damage
• Handle lens carefully to avoid scratches; use non-abrasive cloth for cleaning
• Typical installation uses small screws or snap clips—retain hardware and follow the appliance service manual

This dispenser lever holder is the mounting bracket behind the refrigerator's dispenser paddle. It supports and aligns the lever and switch so water or ice dispenses reliably when the paddle is pressed.

• Holds and guides the dispenser lever and actuator switch inside the dispenser housing
• Provides a secure pivot point for smooth paddle movement
• Helps ensure consistent activation of water and ice dispensing
• Damage can cause a loose or stuck paddle, intermittent dispensing, or no dispense

• Disconnect power and shut off the water supply before servicing
• Remove the dispenser panel/escutcheon to access the lever assembly; note part orientation
• Transfer the lever, switch, and return spring to the new holder and secure with the original fasteners
• Restore power/water and test dispensing before reinstalling trim

This holder bracket replaces a damaged or missing mounting support. It secures an internal component so it stays aligned and stable, helping your appliance operate smoothly without looseness or rattling.

• Provides a rigid mounting point to hold a component or assembly in place
• Maintains alignment to reduce vibration, rubbing, and intermittent operation
• Restores support when the original bracket is cracked, warped, or missing
• Common symptoms include a loose/wobbly part, rattling noises, or visible broken tabs

• Disconnect power to the appliance before servicing
• Note the original bracket's orientation and transfer any clips or screws from the old part
• Use existing hardware and tighten fasteners evenly—do not overtighten
• Verify proper fit and alignment before restoring power

The Dispenser Lever Retainer is an OEM part for LG refrigerators. This part secures the dispenser lever in place, this part ensures the smooth operation of the water and ice dispenser.

Causes of a bad Dispenser Lever Retainer can include normal wear and tear from repeated use, accidental damage, or deterioration of the material over time.

Symptoms of a bad Dispenser Lever Retainer include:

• The dispenser lever is loose or wobbly
• Difficulty in dispensing water or ice
• The lever does not return to its original position after use
• Unintended activation or difficulty in activating the dispenser

This OEM LG part is also compatible with some Kenmore models.

The Ice Door Lever Spring is an OEM component compatible with LG refrigerators. It is part of the mechanism that opens and closes the ice door on LG French door refrigerators. Over time, springs can lose resiliency or become misaligned.

Causes may be extensive usage over years or damage like kinking that compromises spring function.

Symptoms of a bad ice door lever spring include:

• The ice door not latching fully when closed
• Difficulty opening or poor balance while moving the door
• The lever rubbing or catching instead of moving smoothly

This OEM LG part is also compatible with Sears/Kenmore side-by-side refrigerators.

This display power control board assembly replaces the control electronics that power and drive the appliance display and front-panel controls, restoring normal display illumination and responsive touch/key input. What it does:

• Supplies regulated power to the control panel and display components
• Provides the interface for buttons/touch controls and sends signals to the main control board
• Restores display backlight, icons, and status indicators when the original board fails
• Helps resolve symptoms such as a dark or unresponsive display, flickering indicators, or non-functioning front-panel controls

• Disconnect power before starting work to avoid shock or damage
• Handle the board by its edges and avoid touching components or connector pins
• Reconnect all ribbon cables and wire harnesses securely before restoring power

This funnel assembly channels wash water inside the tub to the wash system, helping maintain proper flow and prevent internal leaks. Replace a cracked or missing funnel to restore consistent cleaning performance and reliable operation.

• Directs water flow between the tub and wash/circulation components
• Helps maintain wash pressure for effective cleaning
• Creates a proper water path at its mounting point to prevent internal leaks
• Common signs of failure: visible cracks/warping, water dripping from the area, or declining cleaning results

• Disconnect power and turn off the water supply before servicing
• Remove dish racks and interior panels/filters as needed to access the funnel location for your model
• Transfer any reusable screws, clips, or seals from the old part
• After installation, run a short cycle and check carefully for leaks

This button assembly replaces the physical buttons you press on the appliance's control panel, restoring a consistent click and reliable selections. Swap a worn or stuck button pad to fix unresponsive or intermittent controls.

• Provides the external button pad that actuates the underlying switches on the user interface
• Helps resolve symptoms like unresponsive keys, intermittent operation, sticking buttons, or cracked/damaged caps
• Restores proper tactile feel and accurate selection of functions
• Built to fit the existing control panel housing on the applicable model

• Disconnect power before servicing to prevent electrical shock
• Access the control console; remove retaining screws/clips as directed in your model's service information
• Transfer any model-specific trim/overlays and reuse original mounting hardware as needed
• Align the new button pad with the underlying switches; test operation before full reassembly

This cover panel replaces a damaged or missing exterior trim piece to restore the appliance's appearance and protect internal components from dust and debris. It fits where the original cover was mounted and keeps wiring and parts shielded. What it does

• Covers and protects internal components from dirt and accidental contact
• Restores the appliance's exterior finish for a clean, finished look
• Helps reduce rattles by securing loose openings or edges
• Matches the original mounting locations for proper fit and alignment

• Disconnect power (unplug appliance or switch off breaker) before starting work.
• Removal/install typically requires basic tools (screwdriver or nut driver); keep original fasteners unless replacements are provided.
• Handle with care to avoid scratching the finish or breaking mounting tabs; avoid forcing clips.

This replacement hinge cover is a molded trim piece that snaps over the refrigerator door hinge to restore the appearance and protect the hinge area from dirt and damage. It keeps the hinge assembly concealed and the door looking finished. What it does:

• Covers and protects the door hinge assembly from dust, grease and accidental contact
• Restores a clean, finished look when original hinge cover is cracked, broken or missing
• Helps prevent debris buildup that can interfere with hinge movement
• Matches original mounting style for a secure snap-on fit when intact

• High-level replacement: typically snaps into place; inspect clips/tabs and align before pressing fully
• Power/disconnect: no electrical disconnect usually required, but follow appliance safety guidance and keep doors supported
• Handle gently to avoid breaking plastic clips during installation

This drain decor trim is the cosmetic and protective ring that fits around the appliance drain opening, restoring a clean finished look and helping channel water into the drain. It keeps the area neat and reduces visible wear. What it does:

• Covers and finishes the drain opening for a factory appearance
• Guides water toward the drain to reduce splashing and pooling near the edge
• Replaces cracked, faded, or missing drain trim
• Helps prevent debris from collecting at the drain edge

• High-level: remove lower access panel or kickplate to access drain area as required by your model
• Use gentle hand pressure to snap the trim into place; avoid prying on surrounding surfaces
• If any water lines or electrical components need to be moved to access the drain, disconnect power and water first

This damper assembly controls airflow between refrigerator compartments to help maintain set temperatures and even cooling. Replaces a failed or stuck damper to restore proper air distribution and temperature balance. What it does:

• Regulates airflow between compartments so cold air moves where needed
• Can stop stuck-open or stuck-closed airflow that causes uneven temperatures
• Often linked to symptoms like warm spots, inconsistent cooling, or temperature swings
• Help reduce excess frost or humidity issues caused by improper airflow

• Disconnect power to the appliance before starting any repair
• Access usually requires removing interior liners, shelves, or panels; follow the service manual
• Handle actuator and wiring carefully; avoid pinching wires when reinstalling

NOTE: This part also requires software update kit CJT30000002. DO NOT INSTALL WITHOUT UPDATING SOFTWARE. Call for more information.

The Compressor is an OEM part for LG refrigerators. As the primary component that circulates refrigerant to chill the refrigerator and freezer compartments, it is crucial for proper cooling operation. The compressor works with the condenser fan and evaporator coil to regulate temperatures inside the refrigerator.

Causes of a faulty compressor can include gradual breakdown of motor windings, loss of refrigerant pressure over time, or failure of electrical components vital to operation.

Symptoms of a bad compressor are:

• Elevated fridge/freezer temperatures unable to be maintained
• Frost patterns indicating poor or insufficient cooling
• Abnormal vibrations or sounds upon compressor cycling
• Error codes displayed regarding cooling performance

It is also compatible with Sears/Kenmore refrigerator models.


The Thermistor Assembly is an OEM part for LG refrigerators. It serves a crucial function in monitoring and regulating the temperature within the appliance. By sensing temperature changes, the thermistor sends information to the refrigerator’s control board, ensuring the system adjusts cooling to maintain the desired temperature settings.

Symptoms of a failing thermistor assembly include:

• Inconsistent temperatures in the refrigerator or freezer
• Refrigerator running longer than usual or not cooling efficiently
• Frequent fluctuations in temperature readings

Causes of thermistor assembly failure typically involve electrical faults, damage from moisture or frost, or simple wear over time, which can impact its ability to accurately measure and report temperatures.

This OEM LG part is also compatible with Sears/Kenmore.

The Overload Compressor is an OEM part for LG refrigerators. This part protects the refrigerator's compressor from overheating and potential damage by acting as a safety device. It works by monitoring the compressor's electrical current and temperature. If the compressor operates under conditions that could lead to overheating or overcurrent, the overload protector will cut off the power to the compressor, allowing it to cool down before potentially restarting.

Causes of damage to the Overload Compressor can include power surges, electrical faults within the refrigerator, or a malfunctioning compressor that requires more current than usual to operate.

Symptoms of a bad Overload Compressor include:

• The refrigerator not cooling properly or not cooling at all
• The compressor failing to start, indicated by a clicking sound coming from the back of the refrigerator where the compressor is located.
• The refrigerator or freezer section warming up

This OEM LG part is also compatible with some Kenmore models.

This PTC cover is the protective housing that shields a PTC sensor/assembly from debris and physical damage, helping maintain reliable sensor performance and prolong component life in the appliance. What it does:

• Protects the PTC sensor or PTC assembly from dust, impact, and accidental contact
• Helps prevent shorting or intermittent sensor signals caused by contaminants
• Supports proper positioning and mounting of the PTC component
• Can help address symptoms such as visible sensor damage, exposed wiring, or intermittent operation related to a compromised sensor housing

• Disconnect power to the appliance before starting any repair
• Remove the outer panel(s) as needed to access the PTC location; handle surrounding wiring and components carefully
• Replace only with the correct OEM cover to ensure proper fit and protection

This compressor damper is a vibration-isolating mount that sits between the sealed-system compressor and the chassis. It cushions the compressor to reduce noise, limit vibration transfer, and help keep refrigerant lines from being stressed.

• Isolates the compressor from the frame to absorb start/stop shock and vibration
• Helps reduce humming, rattling, or buzzing from the back/bottom of the appliance
• Replaces a damper that's cracked, flattened, hardened, or missing
• Can help if the compressor rocks or the unit vibrates excessively

• Disconnect power and pull the unit forward for access; remove rear/service panel if present
• Support the compressor to relieve load on the mounts before removing fasteners
• Match orientation; transfer any sleeves/spacers from the old damper to the new one
• Ensure the compressor sits level and that tubing is not strained before restoring power

This drip tray catches and channels water runoff inside the appliance to help prevent pooling and minor leaks. It's a direct-fit replacement listed by the manufacturer and sold as the single tray used in the unit. What it does

• Collects condensate or defrost water and directs it to the drain area to prevent pooling.
• Helps stop water from dripping onto lower drawers, shelves or the floor.
• Commonly replaces a cracked, warped or missing tray that causes visible leaks or water buildup.
• Fits into the appliance's lower compartment where the original tray sat.

• Unplug the appliance or disconnect power before servicing.
• Remove any obstructing drawers or shelves to access the tray location; handle glass shelves carefully.
• Lift out the old tray and set the new tray into the same position; no special tools typically required.

Replacement fan guide that directs airflow from the refrigerator fan to improve cooling distribution and help keep the fan blade clear of nearby components. Restores proper airflow and can reduce rubbing or scraping noises. What it does:

• Channels airflow from the fan to promote even temperatures throughout the compartment.
• Keeps the fan blade aligned and away from cabinet walls and other components.
• Commonly replaced when cracked, warped, or broken parts cause rubbing or unusual fan noise.
• Helps maintain efficient cooling by restoring the intended airflow path.

• Disconnect power (unplug or shut off breaker) before servicing the appliance.
• Access typically requires removing the interior cover or rear evaporator cover.
• Handle the plastic guide carefully to avoid cracking; align mounting tabs and secure using the original fasteners.
• Inspect the fan blade and motor for damage while replacing the guide; replace any damaged components to avoid repeat issues.

This drain tray assembly collects and directs moisture and condensate to the drain system, helping prevent leaks and pooling under the appliance. Designed to fit the appliance's drain path and restore proper drainage. What it does:

• Captures condensate and channel water toward the drain to reduce standing moisture.
• Helps prevent water from pooling under components that could cause corrosion or odors.
• Restores proper drain routing after a damaged or cracked tray is removed.
• Works with existing hoses and clips to maintain normal drainage performance.

• Disconnect power and water before beginning repair.
• Remove access panels or components as needed to reach the drain tray; keep fasteners organized.
• Inspect surrounding seals, hoses, and clips and replace any worn parts to ensure a watertight fit.
• Reassemble panels and test the appliance for proper drainage and leaks before returning to service.

This cover assembly protects the machine components and helps keep internal machinery free of debris and accessible for repair. It provides a durable barrier that helps extend component life and maintains safe operation. What it does:

• Shields motors, belts and internal linkages from dust and lint that can cause wear
• Helps contain moving parts to reduce pinch or contact hazards during normal use
• Maintains proper component alignment by providing a stable mounting surface
• Commonly replaced when cracked, warped, missing fasteners, or damaged from impact

• One cover assembly as shown

• Disconnect power before attempting service
• Handle gently to avoid cracking plastic tabs; inspect mounting clips and screws for damage
• Reuse original fasteners only if undamaged; replace any stripped screws or broken clips

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

A small retaining pin used to secure moving parts and keep components aligned for smooth operation. Replacing a worn or broken common pin can stop rattling and restore proper fit between linked parts. What it does:

• Holds or aligns two parts together so they move correctly and stay in position
• Helps prevent rattling, looseness, or parts slipping out of place
• Works as a simple mechanical fastener—no electronics involved

• One common pin

• Disconnect power to the appliance before beginning any service
• Keep track of small parts; lay out components in order to aid reassembly
• May require removal of trim or a hinge/retainer to access the pin—use basic hand tools
• If the pin is difficult to seat, do not force; inspect mating parts for damage

This cabinet roller supports the refrigerator and lets the unit roll in and out of place for cleaning or service. Replace a worn or broken roller to restore smooth movement and help keep the appliance properly positioned.

• Supports the base of the refrigerator and enables rolling movement
• Helps with safe positioning and service access without dragging
• Common failure signs: appliance is hard to move, scraping or rolling noises, a flat-spotted/cracked wheel, or a wheel that won't turn
• Replace when the roller is damaged, seized, or missing

• Disconnect power and shut off water supply; protect flooring before moving the appliance
• With help, pull the refrigerator forward and safely support it to access the roller
• Remove mounting fasteners, install the new roller, and reuse original hardware
• Confirm level and smooth movement before returning the unit to its location

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

This damper controls airflow between compartments to help maintain proper temperatures and consistent cooling. It replaces a worn or broken damper to restore normal airflow and temperature balance inside the appliance. What it does:

• Regulates air flow between compartments so the refrigerator can maintain set temperatures
• Helps reduce uneven cooling and temperature swings caused by a stuck or broken damper
• Works as part of the appliance's air distribution system to route cooled air where needed
• Common symptom: compartment temperature too warm or inconsistent airflow noise from the damper area

• One damper assembly

• High-level replacement; access usually requires removing interior panels or duct covers
• Disconnect power before any repair to avoid shock or injury
• Handle with care to avoid bending or damaging mounting tabs and linkage

The Fan Assembly is an OEM part for LG refrigerators. It is responsible for circulating air within the refrigerator and freezer compartments, ensuring consistent cooling and optimal temperature distribution. The fan assembly helps maintain the freshness of your food by evenly distributing cold air.

Common causes of a bad fan assembly include electrical issues, worn-out bearings, or obstructions that prevent the fan from spinning properly.

Symptoms of a bad fan assembly include:

• Unusual noises coming from the refrigerator
• Inconsistent temperatures within the fridge or freezer
• Frost buildup in the freezer
• Refrigerator running continuously or not cooling effectively

This OEM LG part is also compatible with Sears/Kenmore models.

The Defrost Control Assembly is an OEM part for LG refrigerators. It is designed to regulate the defrost cycle, ensuring that frost buildup on the evaporator coils is periodically melted away. This helps maintain efficient cooling performance and prevents excessive ice accumulation, which can hinder the refrigerator's functionality.

You should replace the defrost control assembly if it becomes faulty. Causes of a bad defrost control assembly can include electrical failures, regular wear and tear, or damage from power surges. A malfunctioning defrost control can lead to issues such as inadequate defrosting, which results in excessive frost buildup and affects the cooling efficiency of the refrigerator.

Symptoms of a bad defrost control assembly include:

• Frost buildup on the evaporator coils
• The refrigerator not cooling properly
• The defrost cycle not initiating or running too frequently
• Increased energy consumption due to the refrigerator working harder to maintain temperature

This OEM LG part is also compatible with Sears/Kenmore models.

The Refrigerator Control Assembly is an OEM part for LG refrigerators. This component is crucial for managing and regulating the refrigerator's cooling and defrosting cycles. It ensures the proper operation of the refrigerator by controlling the temperature and defrost settings.

Causes of a bad control assembly can include electrical surges, wear and tear over time, or moisture damage. These factors can lead to malfunctioning controls or inconsistent temperature regulation within the refrigerator.

Symptoms of a bad control assembly include:

• Refrigerator not cooling properly
• Unusual noises from the control panel
• Inconsistent temperature readings
• Refrigerator not defrosting automatically

This OEM LG part is also compatible with Sears/Kenmore.

The Door Switch is an OEM part for LG refrigerators. It is located near the door hinge and is activated by the door's movement. When the door is closed, the switch is engaged, allowing the interior light to turn off and other functions to operate normally. When the door is opened, the switch is released, triggering the interior light to turn on and potentially activating other features, such as the ice dispenser or cooling system.

Causes of a faulty door switch can include wear and tear over time, mechanical damage from excessive force, or electrical issues.

Symptoms of a bad door switch may include:

• The interior light not turning on when the door is opened
• The interior light remains on when the door is closed
• Issues with the dispenser or other functions associated with the door switch

The Dispenser Micro Switch is an OEM part for LG refrigerators. It is a component of the ice and water dispensing system, responsible for activating the dispenser when the lever is pressed.

Causes of a bad Dispenser Micro Switch can include mechanical wear from frequent use, failure due to moisture or debris affecting the switch’s contacts, or electrical faults that prevent proper signaling.

Symptoms of a bad Dispenser Micro Switch include:

• The dispenser not releasing ice or water when the lever is pressed.
• Continuous dispensing or dripping after the lever is released.
• Intermittent or no response from the dispenser controls.

This OEM LG part is also compatible with Sears/Kenmore.

The Condenser Fan Motor Assembly is a genuine OEM replacement part that plays a crucial role in the functioning of your LG refrigerator. The assembly includes the fan blade, which directs air across the condenser, and the motor that powers the fan blade. Operating at DC11V with 176mA and 1.93W, this DC motor includes an electrical plug with a 3-pin harness.

Causes of a bad DC motor can include wear and tear over time, bearing failure, electrical issues, or exposure to excessive heat or moisture. A failing motor may cause the refrigerator to malfunction or stop working altogether.

Symptoms of a bad Motor DC include:

• The refrigerator not cooling properly or not cooling at all
• Strange noises coming from the refrigerator
• The ice maker not producing ice or dispensing ice
• The compressor not running or running continuously

This OEM LG part is also compatible with Sears/Kenmore models.

This DC motor assembly drives the refrigerator's fan to move air across the coils and through the cabinet, helping maintain stable temperatures. Replacing a worn, noisy, or non-running motor restores proper airflow for reliable cooling.

• Powers the fan that circulates air across the coils and throughout the compartment
• Supports even temperatures and consistent cooling performance
• Common symptoms: fan won't run, intermittent or loud fan noise, weak/no airflow, warmer than normal temperatures
• Longer run times when failing due to reduced airflow

• Disconnect power to the appliance before servicing; use cut-resistant gloves
• Access location varies by model; remove the rear cover or interior panel to reach the fan motor
• Note connector orientation before unplugging; secure wiring fully on reassembly
• Ensure the fan spins freely after installation before restoring power

The Fan Motor is an OEM part for LG refrigerators. It is essential for circulating air throughout the refrigerator and freezer compartments to ensure a consistent and even temperature. This air circulation is crucial for proper food preservation and to prevent warm spots or frost buildup, which can occur when air does not circulate properly.

Symptoms of a bad Fan Motor include:

• The refrigerator making unusual noises such as humming or buzzing, which may indicate the motor is struggling.
• Poor cooling performance, with parts of the refrigerator warmer than usual.
• The refrigerator cycling on and off more frequently, which can be a sign of the motor overheating.

Causes of a bad fan motor can include wear and tear from continuous use, accumulation of dust or debris in the fan, or electrical issues such as faulty wiring or a burned-out motor.

This OEM LG part is also compatible with Sears/Kenmore models.

This lamp cover is the replacement clear/white lens that protects and diffuses the appliance interior light, restoring proper illumination and preventing direct bulb contact. It helps keep the light assembly enclosed and looking finished. What it does:

• Protects the interior light bulb from spills, dust, and impact
• Diffuses light for even illumination inside the appliance
• Restores a cracked, yellowed, or missing lens to improve visibility
• Prevents direct contact with the bulb for safer operation

• One lamp cover (lens) as shown

• Remove power to the appliance before replacing the lens (unplug or shut off circuit)
• Typically snaps or screws into the light housing; use care to avoid breaking the new lens
• Inspect the light housing and bulb; replace bulb if damaged before reassembly

Replacement lamp cover that protects and diffuses an appliance's interior light, restoring even illumination and shielding the bulb from spills and contact. Restores proper light output and appearance after a cracked or missing lens. What it does:

• Protects the interior light bulb from food splatter, grease, and accidental contact.
• Diffuses and evens interior illumination to reduce hot spots and glare.
• Replaces cracked, yellowed, or missing lenses that can cause dim, flickering, or exposed-bulb issues.
• Matches the original lamp housing shape and secures with the appliance's existing clips or screws.

• Always disconnect power (unplug appliance or switch off circuit) and allow the bulb to cool before beginning.
• Remove any retaining screws or clips carefully; handle the cover gently to avoid cracking.
• Seat the cover securely in the lamp housing and reinstall original hardware—do not overtighten screws.
• After installation, restore power and verify the light operates and the cover is properly seated.

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.
