Jenn-Air Dispenser Parts

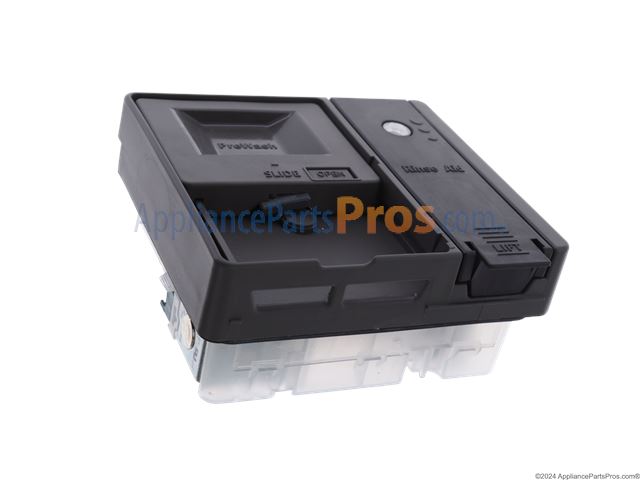

The Detergent Dispenser is an OEM part for Whirlpool dishwashers. It plays a crucial role in the dishwasher's operation by dispensing detergent and rinse aid at the precise moments during the wash cycle. This ensures dishes are thoroughly cleaned and dried without residue.

Causes of dispenser failure can range from mechanical issues such as a faulty spring or latch, blockages within the dispenser itself, or electronic problems affecting the timing and release of detergent.

Symptoms of a bad Detergent Dispenser include:

• Failure to dispense detergent properly, leading to dishes not being cleaned effectively.
• Rinse aid leakage, which can result in streaky and spotty dishes.
• The dispenser door sticking or failing to open during the wash cycle.
• Unusual noises coming from the dispenser mechanism.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Ice Dispenser Chute Door is an OEM part for Whirlpool refrigerators. This component is located in the ice dispenser mechanism on the freezer door and is responsible for opening and closing the ice chute. The chute door helps to dispense ice properly and prevents warm air from entering the freezer compartment, which can lead to frost buildup and inefficient cooling.

Symptoms of a failing Ice Dispenser Chute Door include:

• Ice not dispensing properly or getting stuck in the chute
• Frost or ice buildup around the ice dispenser area
•  Warm air entering the freezer, causing temperature fluctuations
• The dispenser door not opening or closing correctly, leading to gaps

Causes of a bad ice dispenser chute door can include wear and tear from regular use, damage from ice jams or blockages, and degradation of the door’s sealing mechanism over time.

This OEM part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

Note: This part longer uses the ribbon heater due to the improved foam design. If your refrigerator uses this ice door and the mounting tabs are broken, you can use the broken tab ice door kit 8201756.

The Dispenser is an OEM part for Whirlpool dishwashers. It is responsible for releasing detergent and rinse aid during the washing cycle. This dispenser ensures that the right amount of cleaning agents is dispensed at the appropriate times, contributing to effective cleaning and rinsing of your dishes.

Causes of a bad dispenser can include clogging due to detergent buildup, mechanical failure of the dispenser door or latch, or electronic malfunction that prevents proper operation. Regular maintenance can help prevent these issues, but over time, parts may still wear out and need replacement.

Symptoms of a bad dispenser include:

• Improper dispensing of detergent or rinse aid
• Dishwasher leaving spots or residue on dishes
• Dispenser door not opening during the cycle
• Leaks or drips from the dispenser area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Detergent cup cover is an OEM component for GE dishwashers. It serves to protect the detergent cup assembly while allowing for easy access. Made of durable plastic, the cover clicks securely into place during operation to prevent accidental opening.

Causes of a bad detergent cup cover include cracks or breaks from heavy use over time.

Symptoms of a bad detergent cup cover can include:

• Difficulty opening or closing the detergent cup cover properly
• Portions of the cover assembly no longer intact or missing
• Leaks developing around the perimeter of the cover

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dispenser Pad is an OEM part for Whirlpool refrigerators. It is the user interface component that allows you to control and operate the water and ice dispensers.

Causes of a bad part can include physical impact or mishandling, exposure to moisture or liquid spills, or general wear and tear over time, leading to deterioration of the pad's internal electronics or surface.

Symptoms of a bad Dispenser Pad include:

• Unresponsive or non-functional dispensers
• Difficulty in selecting water or ice options
• Visible cracks, damage, or wear on the pad surface

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Ice Door Fountain Kit is an OEM replacement part for Whirlpool refrigerators with built-in ice makers. It directs water to the ice molding trays and facilitates automated ice cube harvesting. Kit includes flapper, solenoid, strike arm, solenoid plunger, and instructions. Spring is not included. For the spring order 61004388.

Causes of a bad ice door fountain kit can include wear and tear over time, buildup of ice or debris obstructing the door mechanism, or damage to the components from frequent use.

Symptoms include:

• Incomplete ice cubes or low ice yield
• Drips or leaks in the ice maker area
• The ice drawer fails to eject cubes fully

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Ice Chute Door is an OEM replacement part for Whirlpool side-by-side refrigerators. It provides access to the dedicated ice and water storage and dispensing compartment located on the refrigerator door.

Causes of a faulty chute door can include normal wear from frequent use. Internal temperature fluctuations may cause durability issues over several years.

Symptoms of problems include:

• Failure to fully close or form a tight seal
• Difficulty dispensing ice or water due to door misalignment
• Premature cooling loss from unsealed opening
• Physical damage preventing proper closing

This OEM door is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore side-by-side refrigerators.

This dishwasher dispenser assembly stores detergent and rinse aid, releasing them at the correct time in the cycle for consistent cleaning and drying performance. Replacing a damaged or leaking dispenser restores reliable detergent release and helps prevent rinse aid messes.

• Holds detergent and rinse aid and seals to the inner door
• Opens the detergent cup when signaled by the control during the wash
• Meters rinse aid into the final rinse to improve drying results
• Common symptoms: dispenser door won't open, detergent tablet left in cup, rinse aid leaks/empties quickly, door won't latch, poor cleaning from no detergent release

• Disconnect power to the dishwasher before servicing
• Remove the inner door panel to access the dispenser
• Unplug the harness, release the locking tabs, and seat the new dispenser evenly to avoid leaks
• Reconnect wiring, reinstall the panel, and run a quick cycle to check for leaks

This genuine replacement pad provides the specified cushion or contact surface in your appliance. Replacing a worn, flattened, or missing pad restores proper fit, helps quiet operation, and protects adjacent parts from rubbing and premature wear.

• Provides the designed cushion/spacing or contact surface between components
• Helps dampen vibration and reduce rattles or squeaks in the area of use
• Protects finishes by preventing metal-to-metal or plastic-to-metal contact
• Restores proper alignment or smooth actuation where a pad is specified
• Common signs it's due: missing pieces, cracking, compression, residue, or new noises from that location

• Disconnect power (and water, if applicable) before servicing
• Access the pad location per your model diagram; note original placement and orientation
• Clean the mounting surface; if adhesive-backed, peel liner and press firmly; if clip- or friction-fit, seat fully
• Reassemble and test for proper fit, quiet operation, and smooth function

Color: Stainless

Used on the black and aluminum models

This ice dispenser solenoid assembly engages the dispenser mechanism to switch between crushed and cubed ice. A worn or failed solenoid can prevent the selector from changing modes or stop ice from dispensing smoothly.

• Actuates the ice bucket/crusher selector to allow cubed or crushed ice
• Failure may cause only one ice option to work, no change between modes, or intermittent dispensing
• Can resolve loud clicking/buzzing from the dispenser area when switching options
• Helps restore proper ice dispensing performance

• Disconnect power before servicing the dispenser area
• Access is typically through the freezer door dispenser chute/ice bucket area
• Note actuator linkage orientation during removal to ensure correct reassembly
• After installation, test both crushed and cubed selections

This wax motor is the actuator for the dishwasher's rinse aid dispenser, releasing rinse agent at the correct time in the cycle. Replacing a weak or failed unit restores consistent rinse aid dispensing and helps minimize spotting.

• Actuates the rinse aid dispenser by extending a plunger when energized
• Works with the control to meter rinse aid during the final rinse
• Failure symptoms can include rinse aid not dispensing, the level never dropping, and increased spotting/filming on dishes
• Dispenser may remain closed with no audible actuation during the cycle

• Disconnect power at the breaker and shut off water before servicing
• Remove the door panel to access the dispenser; label and disconnect wires
• Release the old motor and install the new one in the same orientation, ensuring it seats fully
• Run a test cycle to ensure the dispenser releases rinse aid

This dispenser separator assembly forms the interior of the refrigerator's ice/water dispensing area. It guides ice and water into your glass and helps seal the chute to limit warm air intrusion, drips, and frost at the opening.

• Forms and supports the dispenser recess and chute opening
• Provides sealing surfaces to help prevent air leaks that lead to frost or condensation around the dispenser
• Directs ice/water flow for cleaner, more controlled dispensing
• Replace if cracked, warped, loose, or if you notice frost/moisture around the chute or splashing/dripping during dispense

• Unplug the refrigerator and shut off the water supply before service
• Remove the dispenser front/trim to access the separator; handle wiring/connectors with care and reuse existing fasteners
• Avoid prying on finished surfaces; use non-marring tools
• Restore power and test ice and water dispensing; check for proper chute sealing

Note: Check Serial Number for correct part

This icemaker fill cup guides incoming water from the refrigerator's inlet tube into the ice mold, helping prevent splashing and freeze-ups during the fill cycle. Replacing a cracked or missing cup restores consistent fills and reduces leaks.

• Directs water from the fill tube straight into the icemaker mold
• Helps prevent overspray, splashing, and ice buildup around the icemaker
• Replace if the cup is cracked, warped, loose, or missing
• Common symptoms: water dripping/freezing under the icemaker, clumped or misshapen cubes

• Unplug the refrigerator and turn off the water supply before servicing
• Remove the icemaker assembly as needed to access the inlet/fill area
• Release the old cup and seat the new cup so the fill tube aligns with the opening
• Restore water and power; check for proper fill and any leaks
