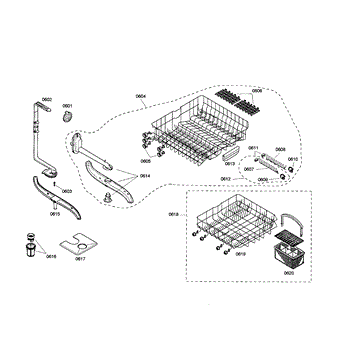

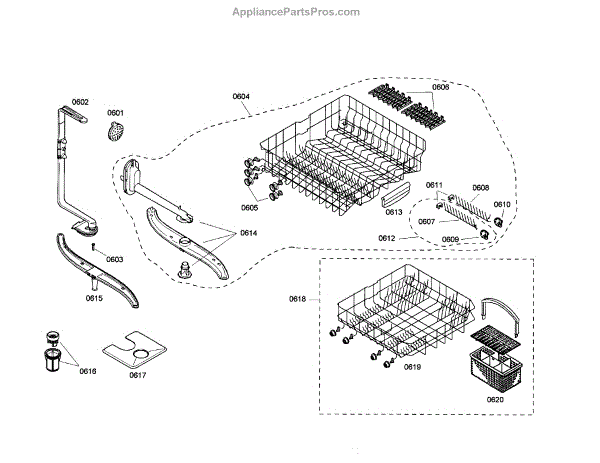

Parts for Bosch SHU43C06UC/17: Racks And Spray Arm Assemblies Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

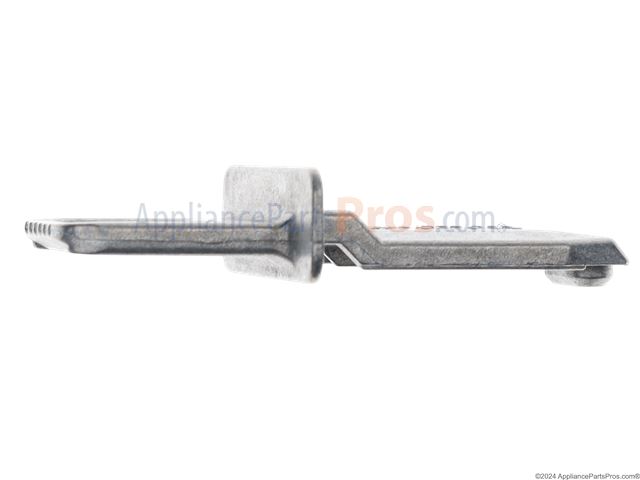

This connecting rod is a direct-replacement linkage that restores proper mechanical movement between internal components. It helps reestablish reliable mechanical connection so affected cycles or motions operate normally. What it does

• Transfers motion between two internal parts to enable proper mechanical operation
• Commonly used where a broken or worn linkage causes reduced or no movement
• A damaged rod can cause intermittent operation, unusual noises, or failed cycles
• Restoring the linkage often eliminates play or binding in the mechanism

• One connecting rod

• Disconnect power before starting any repair to avoid shock or injury
• Replacement typically requires basic hand tools and removal of access panels
• Handle the rod and surrounding components carefully to avoid bending or misalignment

This door latch and strike plate secure the door closed and engage the safety interlock so the appliance can start and run reliably. Replacing a worn latch restores consistent door closure and prevents nuisance cycle interruptions.

• Locks the door by engaging the strike, keeping it closed during operation
• Ensures the door-closed interlock/microswitch is actuated so cycles can start
• Helps prevent the door from popping open mid-cycle
• Common symptoms: door won't latch or stay closed, unit won't start, cycle stops when the door is jostled

• Disconnect power before servicing
• Open the door and remove the inner-panel screws to access the latch area
• Remove the old latch/strike; align and install the new components
• If your model uses a separate microswitch, transfer/reuse it as required and test door engagement before reassembly

Color: Bisque

This replacement control-panel button provides the physical interface to press the underlying switch on your appliance. Swap a cracked, missing, or sticky button to restore reliable actuation and a clean, finished look on the console.

• Interfaces with the control panel's switch to register button presses
• Allows selection of settings or power depending on its position
• Common symptoms: button loose, cracked, sticking, missing, or not engaging the switch
• Restores proper feel and alignment when the original is worn or damaged

• Disconnect power to the appliance before servicing
• Access the control console/fascia to reach the button location
• Remove the old button and seat the new button into the panel, aligning with the actuator
• Reassemble the console and test operation

Color: White

Color: Black

Color: White.

This door latch cover is a direct-fit replacement trim piece that protects and conceals the dishwasher door latch assembly while restoring a finished appearance. Keeps the latch area tidy and helps ensure the door closes cleanly. What it does:

• Covers and protects the door latch mechanism from debris and wear
• Helps the door latch engage and the door sit flush when closed
• Restores the appliance's cosmetic finish around the latch area
• Can address symptoms such as a loose-looking latch area or an unsealed door edge

• Disconnect power to the appliance before installing; follow lockout/tagout practices
• Basic hand tools (screwdriver or trim tool) are typically required to remove the old cover
• Align the new cover over the latch assembly and snap or fasten into place per OEM diagram
• If the latch mechanism or strike is damaged, replace those parts as needed for full repair

This door latch cover is the exterior trim that fits over the dishwasher door latch, restoring a finished appearance and protecting the latch mechanism from spills and wear. It matches stainless-steel finishes and keeps the latch area clean. What it does:

• Covers and protects the door latch assembly from moisture and grime.
• Restores the dishwasher door's exterior appearance when dented, scratched, or missing trim.
• Helps prevent debris build-up that can interfere with latch engagement.
• Compatible with latch installations that use a snap-on or screw-attached cover.

• Remove power to the appliance before starting any repair to avoid electrical hazard.
• Remove the inner door panel or access trim per service instructions to reach latch area.
• Install by aligning the cover over the latch and securing with the original screws or clips; do not force or bend the cover.
• If metal damage or latch misalignment is present, inspect latch mechanism and replace if necessary.

This replacement control panel push button restores a responsive, secure button on the appliance's front console so you can reliably select cycles and settings. It's a direct-fit cosmetics/function piece for worn, broken, or missing buttons. What it does:

• Replaces a damaged, cracked, or missing control panel push button
• Provides a solid contact surface for selecting cycles and settings
• Helps resolve a button that sticks, is loose, or fails to engage
• Restores original look and tactile feedback on the console

• Disconnect power to the appliance before beginning any work.
• Remove the console or trim per the manufacturer's instructions to access and replace the button.
• Snap the new button into place; avoid forcing or bending surrounding parts.
• Check the underlying switch or control assembly.

Color: White.

The Screw Kit (Inner Door) is an OEM part for Bosch dishwashers. It is a comprehensive kit that includes 6 screws required for securing and maintaining the inner door assembly of the dishwasher.

Symptoms of needing a new screw kit:

• Loose or rattling inner door panels
• Inner door components becoming misaligned or detached
• Water leaks or vapor escaping from the inner door area
• Difficulty in opening or closing the dishwasher door smoothly

Causes of a bad screw kit can include missing or stripped screws, corrosion or wear over time, or damage during repair or maintenance work.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwasher models.

The Lower Door Seal is an OEM part for Bosch dishwashers. It plays a crucial role in preventing water from leaking out of the dishwasher door during cycles. This seal is positioned along the bottom of the door, ensuring a tight and secure closure that keeps water contained within the unit.

Causes of a bad Lower Door Seal may stem from various factors. These include natural wear and tear due to extended use, chemical degradation caused by harsh detergents, physical damage like tears or cuts, as well as improper installation or alignment.

Symptoms of a bad Lower Door Seal include:

• Water leaking from the bottom of the dishwasher door
• Visible signs of wear or damage on the seal
• Mold or mildew buildup on the seal due to constant moisture exposure

This OEM Bosch part can also be used on Thermador and Gaggenau appliances.

This outer door panel is the exterior panel that restores the appliance's front appearance and protects internal door components. Replacing a damaged or dented outer panel brings back a flush, sealed door and improves the unit's look. What it does

• Covers and protects inner door components from impact, moisture, and wear
• Restores proper door alignment and helps maintain the cabinet seal
• Improves cosmetic appearance when the original panel is dented, scratched, or corroded
• Helps prevent debris from entering the door cavity and affecting internal parts

• One outer door panel

• Designed for compatibility with specific OEM door assemblies; fit for your model before ordering
• Handle and trim may need transfer from the old panel; your model's parts diagram
• Use appropriate fasteners and avoid overtightening to prevent panel distortion
• Disconnect power and water (if applicable) and follow general safety precautions before servicing

This outer door is the dishwasher's exterior front panel that restores the appliance's appearance and protects internal components from damage. It provides a finished look and replaces dented, scratched, or corroded panels. What it does

• Covers and protects the inner door assembly, controls, and insulation from impact and moisture.
• Restores the dishwasher's exterior finish and alignment for proper sealing.
• Helps prevent further cosmetic damage and exposure-related corrosion.
• Resolves issues where visible dents, deep scratches, or rust affect the door surface.

• One outer door panel only.

• Disconnect power and water supply before starting any repair.
• Door panels can be heavy or awkward—have a second person assist to avoid dropping or bending the panel.
• Follow the manufacturer's service manual for correct removal/reinstallation steps and torque specifications.
• If trim, latch, or control components are attached, verify whether they must be transferred from the old door.

The Dispenser is an OEM part for Bosch dishwashers. It dispenses detergent and rinse aid at appropriate times during the dishwashing cycle, ensuring optimal cleaning and rinsing performance. The dispenser is essential for maintaining the efficiency and effectiveness of your dishwasher.

Causes of a bad dispenser can include clogging from detergent residue, mechanical failure of the dispenser door or latch, or electronic issues that prevent proper operation. Regular cleaning and maintenance can help mitigate these problems, but parts may still need replacement over time.

Symptoms of a bad dispenser include:

• Inconsistent or improper dispensing of detergent or rinse aid
• Dishwasher leaving spots or residue on dishes
• The dispenser door not opening during the cycle
• Leaks or drips from the dispenser area

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Dispenser Gasket is an OEM part for Bosch dishwashers. This gasket forms a seal around the detergent dispenser, ensuring that water and detergent are properly contained within the dispenser until they are released during the wash cycle. It helps prevent leaks and ensures efficient operation of the dishwasher’s detergent system.

Causes of a bad dispenser gasket can include regular wear and tear, exposure to high temperatures, and the use of harsh detergents.

Symptoms of a bad dispenser gasket include:

• Leaks around the detergent dispenser area
• Detergent not being dispensed properly
• Visible cracks or wear on the gasket
• Water pooling inside or outside the dispenser

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Rinse Aid Door (with Gasket) is an OEM replacement part for Bosch dishwashers. It is responsible for covering and sealing the rinse aid dispenser. Problems with a rinse aid door can cause leaks during washing.

Causes of issues may include wear over time, damage to the door or integrated gasket. This can compromise the seal needed to contain rinse aid.

Symptoms of a problem rinse aid door:

• Observing liquid around the dispenser area
• Water spots after a cycle
• A loose or damaged gasket allows contents to leak underneath.

This genuine Bosch OEM replacement part is also compatible with Thermador, Gaggenau, and some Kenmore models

The Sealing is an OEM replacement part for Bosch brand dishwashers. Located on the perimeter of the small rinse aid compartment door, this resilient rubber piece forms an essential water-tight seal when the dispenser is closed.

Symptoms of a potentially problematic rinse aid door sealing include:

• Leakage or spills within the rinse aid reservoir
• Mineral deposits or residue build up inside the compartment
• Cracks, tears, or deformation of the sealing material

Causes of a faulty rinse aid door sealing can be repetitive opening/closing stress breaking down pliability long-term. Exposure to chemical vapors from the rinse aid may also degrade sealing properties.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Regulator with o-ring.

The Detergent Lid is an OEM part for Bosch dishwashers, designed to cover the detergent dispenser compartment. This lid ensures that dishwasher detergent is contained and released at the correct point in the wash cycle, contributing to efficient and effective cleaning.

Causes of a malfunctioning detergent lid can range from physical damage, such as cracks or warping that prevent a proper seal, to mechanical failure in the latch mechanism that prevents it from staying closed during the wash cycle.

Symptoms of a bad Detergent Lid include:

• Detergent not being dispensed properly during cycles
• Water leaking from the dispenser area
• Dishes not being cleaned effectively due to the detergent not releasing at the correct time

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Detergent Cup Latch W Spring is an OEM part for Bosch dishwashers. This latch securely closes the detergent dispenser cup, containing detergent during the wash cycle.

Causes of a bad latch can include wear and fatigue of the latching spring over many uses.

Symptoms of a bad detergent cup latch include:

• The cup popping open unexpectedly during a wash
• Difficulty fully closing and hearing the "click" of the latch
• Detergent leakage resulting in reduced cleaning

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This plunger is a small push-style actuator that transfers motion between linked components, restoring proper mechanical engagement for the related mechanism. It's a direct-fit replacement designed to return a lever or latch to its resting position. What it does:

• Acts as the push/pull actuator in a latch, dispenser or control assembly to transmit motion
• Helps the related mechanism engage, release, or return smoothly when working correctly
• Common symptom: lever or latch fails to engage, stick, or does not return to home position
• Prevents intermittent operation caused by a worn or broken push rod

• One plunger

• Disconnect power before beginning any repair to avoid electrical or mechanical hazards
• Access may require removal of trim or housing panels; keep small parts organized
• Inspect mating pivot points and bushings for wear; replace if excessively worn

This actuator lever assembly with springs replaces a worn or broken control lever to restore proper mechanical movement in the appliance. It helps the dispenser/latch mechanism operate smoothly for reliable everyday use. What it does:

• Transfers motion from a control cam or motor to the latch or dispenser linkage
• Restores proper engagement when a broken or fatigued lever prevents operation
• Helps stop intermittent or failed cycle starts caused by damaged mechanical linkage
• Works as a direct-fit replacement that re-establishes spring tension and lever action

• Disconnect power before accessing internal components to avoid shock or injury
• Basic hand tools usually required; maintain original screw/hardware if reusing
• Inspect surrounding linkages and replace damaged clips or fasteners as needed

Wax motor for detergent/rinse-aid dispenser.

This actuator arm is the mechanical lever inside the dishwasher door's dispenser assembly. Working with its spring, it releases the detergent cup at the proper point in the cycle to restore consistent detergent dispensing. What it does

• Transfers motion from the control/drive mechanism to the dispenser latch to open the detergent cup
• Provides the spring tension needed for the lever to return to its home position
• Helps ensure detergent is dispensed at the intended time in the wash cycle
• Common symptoms include detergent left in the cup, a dispenser door that won't latch or opens inconsistently, or a visibly broken/missing lever

• 1 actuator arm with spring

• Disconnect power to the dishwasher before servicing
• Open the door and remove the inner door panel fasteners to access the dispenser linkage
• Note the spring orientation; move the spring to the new arm if needed and seat the arm in the correct pivot location
• Reassemble the door and manually test the dispenser action before running a cycle

Color: White. This is the right side trim strip. For left side use 00353048.

The Cabinet Side Seals are an OEM part for Bosch dishwashers. These seals are located along the sides of the dishwasher cabinet and play a crucial role in preventing water leaks and maintaining an airtight seal during operation.

Causes of a bad seal can include general wear and tear over time, exposure to high temperatures or moisture, or damage from mishandling or improper installation.

Symptoms of a bad Cabinet Side Seal include:

• Water leaks or moisture buildup around the sides of the dishwasher
• Difficulty closing the dishwasher door properly
• Decreased efficiency in drying performance
• Potential for water damage to surrounding areas

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This trim strip mounting clip secures the decorative door trim on dishwashers with short side panels, restoring a flush, stable front appearance and preventing the trim from rattling or coming loose. Ideal when the trim has shifted or separated. What it does:

• Secures the outer trim strip to the dishwasher door at short-side-panel mounting points.
• Keeps trim aligned and prevents rattling, sagging, or visible gaps.
• Restores the finished look of the dishwasher front after trim movement or damage.
• Works with the original trim assembly and mounting hardware to maintain proper fit.

• Always disconnect power to the appliance before accessing the door assembly and follow OEM service instructions.
• Access typically requires removing the inner or outer door panel or lower access panel; preserve existing screws and hardware for reassembly.
• Clip installs into the designated trim mounting location; confirm orientation before fastening and avoid over-tightening.
• Obtain the correct fasteners from the OEM parts list.

This metric M4 x 8 screw secures the toe-kick/lower access panel at the base of the appliance. Replace a missing or stripped fastener to keep the kickplate tight and aligned, helping prevent looseness and noise.

• Secures the toe-kick or lower access panel to the base/frame
• Restores proper fit when the original screw is lost or damaged
• Helps reduce panel rattles and vibration
• Maintains correct alignment and clearance at the bottom edge

• Disconnect power before servicing; also shut off the water supply
• Support the panel and align holes before threading the screw
• Start by hand to avoid cross-threading; tighten snugly—do not overtighten
• Verify size matches the original; replace matching hardware together if required by your model

The Dishrack Stop Kit is an OEM replacement part for Bosch dishwashers. This kit comes with both the front and the rear stop, these parts are installed at either end of the rails that the upper rack slides on. These stops help keep the rack on the rail, without this part the upper rack of your dishwasher will not slide in and out of your dishwasher properly.

Causes of faulty dishrack stops include wear of sliding surfaces through repetitive racking and unracking over extended use. Exposure to moisture in the wash chamber environment can accelerate degradation.

Symptoms of a bad dishrack stop kit include:

• Dishracks slipping during rotation potentially damage fine china
• Clearance issues where racks impact other interior components
• Potential tipping if stops fail to release rack load onto door interior

This OEM Bosch part is also compatible with Thermador, Gaggenau and some Kenmore models.

This replacement sealing gasket restores a tight, leak-resistant barrier between mating components in your appliance. Replacing a worn seal helps prevent leaks and moisture escape to keep performance stable and reliable.

• Maintains a watertight/airtight seal between connected parts
• Helps resolve leaks, drips, and moisture pooling inside or beneath the unit
• Addresses issues caused by flattened, cracked, or hardened seals
• Supports proper operation by preserving pressure and flow at the joint

• Disconnect power and, if applicable, shut off water before servicing
• Remove the related cover/assembly to access the old seal; note its orientation
• Clean the groove/mating surfaces; install the new seal evenly without stretching
• Reassemble and run a short test to check for leaks

The Door Latch is an OEM part for Bosch dishwashers. This latch mechanism securely fastens the dishwasher door in the closed position during operation.

Causes of a bad door latch can include wear and loosening of moving parts over time and cycles, or damage to latch components from forced or excessive door openings.

Symptoms of a bad door latch include:

• The door not closing or latching properly
• Unexpected door openings during the wash cycle
• Reduced safety with an unstable door

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Mounting Bracket Set is an OEM replacement part for Bosch dishwashers. Comprised of heavy-duty brackets and mounting fasteners, this set securely anchors the dishwasher to surrounding cabinetry.

Causes involve normal stress and fatigue of mounting points from years of use, and cycles of expansion and contraction.

Symptoms of faulty or damaged mounting brackets include:

• Loose installation allows appliance movement during operation
• Creaking or vibration noise emanating from cabinetry joints

This OEM Bosch replacement set is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

The Bosch dishwasher mounting bracket set includes both left and right-hand brackets used for side or top mounting.

Color: White. This is the left side trim strip. For right side use 00353047.

The Cabinet Side Seals are an OEM part for Bosch dishwashers. These seals are located along the sides of the dishwasher cabinet and play a crucial role in preventing water leaks and maintaining an airtight seal during operation.

Causes of a bad seal can include general wear and tear over time, exposure to high temperatures or moisture, or damage from mishandling or improper installation.

Symptoms of a bad Cabinet Side Seal include:

• Water leaks or moisture buildup around the sides of the dishwasher
• Difficulty closing the dishwasher door properly
• Decreased efficiency in drying performance
• Potential for water damage to surrounding areas

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This condensation tube routes moisture from the dryer's vented condensate tank to the drain, helping prevent leaks and pooling under the appliance. It's a direct-replacement tank drain tube for compatible vented-tank models. What it does:

• Channels condensate away from the tank to the dryer drain connection to reduce water buildup.
• Helps stop leaking or pooling beneath the dryer when the tank is vented.
• Restores proper condensate flow if the original tube is cracked, clogged, or damaged.
• Compatible with vented-tank dryer assemblies that use a routed drain tube for condensate.

• Turn off and unplug the dryer before starting any repair; if applicable, shut off gas supply.
• Remove access panels as needed to reach the condensate tank and tube; avoid damaging nearby wiring or hoses.
• Ensure tube fittings seat fully and secure clamps or fasteners to prevent leaks.

This rubber gasket seals appliance openings to help prevent water and air leaks and restore proper door/tub sealing. It replaces a worn or damaged seal to reduce leaking and maintain normal appliance performance. What it does

• Creates a watertight/airtight barrier between mating surfaces to prevent leaks.
• Helps maintain operating temperature and efficiency by sealing the door/tub.
• Common symptom: visible water around the door or base during use.
• Common symptom: cracked, flattened, or distorted seal material that no longer compresses.
• Works as a direct replacement for the matching OEM seal when damaged or worn.

• One gasket as shown on the product page.

• Turn off power and water supply to the appliance before starting any repair.
• Remove the old seal carefully, clean the mounting channel of debris and residue, and inspect the mating surface.
• Press the new gasket evenly into the channel, starting at one corner and working around to ensure full seating without twists.
• Test the door closure and run a short cycle to confirm there are no leaks; re-seat if necessary.

The 4 x 16 Screw is an OEM component for Bosch dishwashers.

Common causes of faulty screws include standard wear from years of housing vibrations during wash cycles. Mineral deposits lingering around screw heads also risk eventual corrosion and seizing issues.

Symptoms of potentially loose or damaged screws comprise:

• Odd knocking or buzzing noises from inside cabinets
• Detached or misaligned door panels
• Water leaks developing between internal seams
• Components unable to be fully secured down during repairs

This screw type is additionally suited for Thermador, Gaggenau as well as some premium Kenmore dishwashers.

NTC (negative temperature coefficient). Resistance or capacitance decreases when temperature increases.

The Temperature Sensor with Hi Limit Thermistor is an OEM part for Bosch dishwashers. This sensor monitors internal temperatures, providing feedback to the control module during each cycle.

Causes of failure can be related to mineral buildup over time interfering with sensing or physical damage to wiring or connectors.

Symptoms of a bad temperature sensor include:

• Abnormal or inconsistent wash temperatures
• Error codes related to temperature issues
• Reduced cleaning performance from improper heating

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This O-ring seals the NTC (negative temperature coefficient) temperature sensor where it inserts into the appliance. It restores a watertight seal at the sensor port to help prevent leaks and maintain reliable temperature-sensing performance.

• Provides a leak-tight seal between the NTC temperature sensor and its housing/tub/sump
• Helps prevent water seepage and moisture intrusion around the sensor opening
• Common symptoms of a failed seal: drips near the base, moisture in the leak tray, flattened/cracked ring, or a sensor that feels loose
• Good practice to replace when the NTC sensor is removed for service

• Disconnect power and shut off water supply before servicing
• Access the NTC sensor, remove the old O-ring, and clean mating surfaces
• Lightly moisten the new O-ring with water; seat it evenly to avoid pinching, then reinstall the sensor fully
• Run a brief test cycle and inspect for leaks

This O-ring is a circular sealing gasket that creates a watertight joint between mating parts. Replacing a flattened or cracked ring restores a tight seal and helps prevent leaks during operation.

• Provides a compressible seal between fittings, hoses, or housings
• Helps prevent drips and leaks at joints under normal system pressure
• Maintains proper flow by keeping connections sealed
• Typical failure signs: visible cracking/flattening, seepage at a joint, pooling water near the appliance

• Disconnect power and shut off the water supply before servicing
• Relieve any line pressure and place a towel to catch residual water
• Clean and inspect mating surfaces; replace any damaged components
• Lightly lubricate the O-ring with approved silicone lubricant, seat evenly without twisting, and test for leaks after reassembly

This turbidity sensor detects how clear the dishwasher's wash water is so the control can adjust cycle time, rinses, and water changes. Replacing a faulty sensor helps restore proper cleaning performance and normal cycle lengths.

• Monitors soil level/clarity of the wash water
• Signals the control to extend or shorten wash and rinse phases as needed
• Helps optimize water use while maintaining cleaning results
• Failure symptoms can include unusually long or short cycles, poor cleaning, repeated draining/refilling, or cycles that won't advance

• Disconnect power and turn off the water supply before servicing
• Pull the dishwasher out as needed; access the sensor from the base area
• Place a towel to catch residual water; release the locking tab or twist-lock, unplug the connector, and install the new sensor fully seated and locked
• Restore power/water and run a test cycle; check for leaks

Small replacement O-ring that seals the dishwasher aqua sensor assembly to maintain a watertight seal and help ensure reliable sensor operation. Fits the sensor housing to reduce leaks and protect internal electronics. What it does:

• Seals the aqua/sensor housing to prevent water from escaping the sensor area
• Helps maintain accurate sensor readings by keeping the sensor dry and properly seated
• Commonly replaced when you see water pooling or dripping near the sensor assembly
• Used during aqua-sensor, pump, or housing repairs where the original seal is damaged

• Always disconnect power and turn off the water supply before starting repairs
• Replace the O-ring only when the sensor or housing is disassembled; inspect mating surfaces for damage or debris
• Ensure the O-ring is seated evenly in its groove before reassembly to avoid pinching or leaks

The Heater Assembly is an OEM part for Bosch dishwashers. This part heats the water during the wash cycles, ensuring that dishes are cleaned effectively and sanitized.

Causes of a bad heater assembly can include electrical issues such as short circuits, mineral buildup from hard water, or wear and tear from regular use.

Symptoms of a bad heater assembly include:

• The dishwasher not heating water properly
• Dishes coming out dirty or not fully sanitized
• The dishwasher taking longer than usual to complete cycles
• Error codes related to heating issues

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Pump to Heater Hose Clamp is an OEM part for Bosch dishwashers. This clamp secures the hose that connects the pump to the heater, ensuring a tight and leak-free connection. It plays a crucial role in maintaining the integrity of the water flow within the dishwasher, preventing leaks and ensuring efficient operation.

Causes of a bad hose clamp can include wear and tear over time, loosening due to vibrations, or damage from repeated tightening and loosening. A faulty clamp can lead to water leaks, which can cause further damage to the dishwasher.

Symptoms of a bad pump to heater hose clamp include:

• Water leaking from the hose connection points
• Reduced water pressure within the dishwasher
• Visible wear, rust, or damage on the clamp
• The clamp not holding the hose securely in place

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This Sump Gasket is an OEM part for Bosch Dishwashers. It seals the dishwasher sump to prevent water leaks during the washing cycle. Continuous exposure to water, detergent, and heat can lead to wear or damage to this component.

What Causes a Bad Sump Gasket:
Exposure to hot water, chemicals in detergents, and constant water pressure can cause the sump gasket to deteriorate or develop tears.

Symptoms of a Bad Sump Gasket:

• Water leakage from the dishwasher
• Incomplete washing cycles
• Visible tears or damage to the gasket

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This sump collects and channels dishwasher wash water into the wash pump, helping maintain proper drainage and reduce leaks at the tub-to-pump connection. Replace a cracked or damaged sump to restore correct water flow and sealing. What it does

• Directs wash water from the tub into the wash pump and drain system.
• Houses the pump inlet and seals the pump-to-tub interface.
• Prevents leaks by providing a secure seal between the tub and pump assembly.
• Common symptoms: pooling water in the tub, dishwasher not draining, leaks from the base, or unusual pump noise/vibration.

• Disconnect power and turn off the water supply before starting any repair.
• Handle carefully; inspect and replace any worn gaskets or seals when installing the new sump.
• Access typically requires removing lower access panels and the lower dish rack.
• After installation, test for leaks and proper drain operation before returning the appliance to normal use.

This sump clamp secures the dishwasher sump/drain assembly to the tub, keeping the seal and pump assembly held in place to prevent leaks and movement. It's a small but essential fastener for a watertight sump connection. What it does:

• Holds the sump/drain housing tightly against the tub to maintain a proper seal
• Prevents the sump assembly from shifting during operation, which can cause leaks or noise
• Helps stop water from leaking under the machine when the pump runs
• Supports proper alignment of the drain/pump components for reliable draining

• One sump clamp

• Disconnect power and water supply before starting any repair
• Access the sump area by removing the lower access panel or toe kick and tilting the machine as needed
• Inspect the sump seal/gasket and replace if cracked or damaged when replacing the clamp
• Tighten clip until secure but avoid forcing or deforming the sump housing; test for leaks after reassembly

This sump screw secures the dishwasher's sump or sump cover to the tub, keeping the assembly tight and leak-resistant. Replace a missing, stripped, or damaged screw to restore a proper seal and stable mounting.

• Fastens the sump or sump cover to the dishwasher tub
• Helps maintain a watertight seal to reduce leaks
• Keeps filter/sump components aligned and secure
• Replaces missing, stripped, or damaged hardware
• Helps address leaks or rattling around the sump area

• Disconnect power and turn off water supply before servicing
• Remove the lower rack and filters to access the sump area
• Ensure mating surfaces and seals are clean and properly seated
• Tighten snugly by hand; do not overtighten to avoid stripping

This O-ring is the sealing gasket between mating components, keeping fluid contained inside the system. Replacing a worn ring restores a tight, leak-free connection and helps prevent drips, moisture, and leak-related error indications.

• Creates a compressible seal between parts to prevent leaks at the joint
• Helps maintain proper system flow by stopping seepage or air ingress
• Direct replacement for rings that are flattened, cracked, brittle, swollen, or missing
• Common symptoms include dripping at the connection, moisture beneath the unit, or leak/float error alerts

• Disconnect power and shut off the water supply before servicing; wear appropriate PPE.
• Note the original ring's location; clean the groove and mating surfaces before installation.
• Apply a light coat of compatible silicone grease; avoid twisting or overstretching the ring.
• Seat evenly, reassemble, restore service, and check for leaks during a test cycle.

The Check Valve is an OEM part for Bosch dishwashers. It prevents the backflow of water into the dishwasher after it has been drained, ensuring that dirty water does not re-enter the appliance and contaminate clean dishes.

Causes of a bad check valve can include blockages from debris or food particles, wear and tear over time, or damage from improper installation or handling. These issues can impair the valve's ability to effectively prevent backflow.

Symptoms of a bad check valve include:

• Water not draining properly from the dishwasher
• Dirty water pooling at the bottom of the dishwasher
• Foul odors coming from the dishwasher
• Residual water remaining in the tub after the cycle ends

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Drain Pump Cover is an OEM part for Bosch dishwashers. This cover protects the drain pump mechanism from debris while draining dirty water after each cycle.

Causes of a bad drain pump cover include cracks or breaks from heavy impacts over time.

Symptoms of an improperly functioning cover include:

• Leaks in the area around the drain pump
• Decreased drain and pump performance over time
• Potential clogs from broken pieces inside

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Support strap that cushions and secures the dishwasher circulation motor, stabilizing the motor assembly to reduce vibration and help maintain alignment for steadier, quieter operation. Designed for circulation motors with softer bearings. What it does:

• Cushions and supports the circulation motor to limit movement and vibration and reduce motor noise.
• Secures the motor assembly to the tub/chassis to maintain proper clearance and fit.
• Helps prevent undue stress on motor bearings and mounting points that can cause premature wear.
• Commonly replaced when the strap is cracked, stretched, or no longer holds the motor firmly in place.

• Disconnect power and water supply before servicing; follow all safety and OEM service instructions.
• Remove access panels and any obstructing components to reach the circulation motor as required.
• Replace using the original mounting hardware; inspect motor mounts and bearings while accessible.
• Reassemble and run a short test cycle to confirm reduced vibration/noise and proper motor operation.

Rear pump housing for the washer drain/pump assembly. Replaces the worn rear housing that supports the impeller and bearing, helping restore proper draining and reduce leaks or unusual pump noises when the housing fails. What it does:

• Houses and supports the pump impeller and bearing, forming the rear half of the drain pump assembly.
• Restores a sealed mounting surface to help prevent water leaks from the pump area.
• Helps re-establish correct water flow and draining when a cracked or worn housing impairs the pump.
• Addresses symptoms such as poor or no draining, water at the base of the appliance, or loud/grinding pump noises.

• Disconnect power and shut off water supply before starting; drain any standing water to avoid spills.
• Remove the washer access panels and pump assembly; transfer the impeller, seals, and any hardware as required.
• Inspect and replace pump gaskets/seals and the impeller if worn; tighten mounting fasteners to OEM torque where specified.

This circulation pump repair kit is a genuine Bosch part, sold individually. This circulation pump repair kit can be used as a replacement part for a dishwasher. This part supplies all of the necessary components to facilitate the replacement of the dishwasher impeller and seal. The impeller of a dishwasher sprays and drains the water during a standard dishwasher cycle, and the seal keeps the interior of the dishwasher protected from external materials.A circulation pump repair kit might have to be ordered as a replacement part for the impeller and seal of a dishwasher in the event that the impeller and the seal suffer damage that prevents the components from serving their dual functions. Damage can include punctures, tears, scrapes, or warping from general wear and tear or as the result of a direct impact collision with a hard object. If this occurs, the circulation pump repair kit should be ordered as a complete, genuine OEM replacement part.This is an OEM part sourced directly from the manufacturer. It is sold individually. This circulation pump repair kit is compatible with the following appliance brands: Bosch, Kenmore, Thermador, and Gaggenau.

The Pump to Sump Gasket is an OEM part for Bosch dishwashers. It serves as a seal between the dishwasher's pump and the sump, preventing water leaks during the washing cycle. This gasket is essential for maintaining the integrity of the dishwasher's internal components, ensuring that water flows where it's supposed to go without causing damage to the machine or your home.

Causes of a malfunctioning Pump to Sump Gasket can stem from normal wear and tear, as repeated exposure to water and detergent can degrade the gasket over time. Improper installation may cause the gasket not to seal properly.

Symptoms of a bad Pump to Sump Gasket include:

• Water leaking from underneath the dishwasher.
• Signs of water damage or corrosion around the pump or sump area.
• Unusual noises during operation, which may indicate water is seeping into areas it shouldn't.

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

Hose, with o - ring, shu (uc/12 & above)

This Sump to Float Hose is an OEM part for Bosch Dishwashers. It functions to carry water from the dishwasher sump to the float assembly. Continuous water flow and exposure to detergents can lead to wear or damage over time.

What Causes a Bad Sump to Float Hose:
Exposure to chemicals and hot water, along with wear from water flow, can cause the hose to degrade or develop cracks.

Symptoms of a Bad Sump to Float Hose:

• Water leakage around the dishwasher
• Incomplete or interrupted washing cycles
• Visible cracks or damage to the hose

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Pressure Chamber is an OEM part for Bosch dishwashers. This part is responsible for monitoring and controlling the water level within the dishwasher. It operates by sensing the pressure exerted by the height of the water in the tub and ensures that the dishwasher fills with the correct amount of water for optimal cleaning performance.

Causes for replacement may involve wear and tear over extended use, mineral buildup affecting the switch’s sensitivity, or electrical faults leading to inconsistent performance.

Symptoms of a failing Pressure Chamber include:

• Overfilling or underfilling of the dishwasher, which can lead to inadequate cleaning or potential water damage.
• Unexpected changes in the wash cycle, such as sudden stops or pauses.
• The dishwasher not starting a wash cycle due to incorrect water level readings.

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

Water level regulator.

The Float Switch is an OEM replacement part specific to Bosch dishwashers. It is a switch located in the sump area of the dishwasher tub that detects water levels and provides feedback for automatic filling and draining functions.

Symptoms of a bad float switch include:

• The dishwasher fails to fully drain water after cycles
• Cycles not initiating or advancing properly due to water level issues
• Float switch area where the sensor attaches developing leaks
• Loose or detached float switch from normal wear over time

Causes of a bad float switch are usually mineral or sediment buildup disrupting its buoyancy and sensing ability. Without a properly functioning float switch, the dishwasher cannot effectively monitor water levels to manage filling and drainage.

This OEM Bosch replacement switch is also compatible with Thermador, Gaggenau, and some Kenmore dishwasher models.

The Water Inlet Fill Hose is an OEM part for Bosch dishwashers. This part is responsible for safely and efficiently connecting the dishwasher to your home's water supply, ensuring that water flows into the dishwasher at the correct pressure and volume for optimal cleaning performance.

Over time, the Water Inlet Fill Hose can become susceptible to wear and tear, leaks and blockages.

Symptoms indicating the need for a new Water Inlet Fill Hose include:

• Water pooling around the dishwasher base, pointing to a potential leak in the hose.
• The dishwasher not filling with water properly, or filling very slowly, suggesting a blockage or damage to the hose.
• A visible inspection reveals cracks, bulges, or signs of corrosion on the hose connectors.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This spring-style hose clamp secures flexible appliance hoses to fittings, helping prevent leaks and loose connections. It's a small but critical fastener that keeps water and drain hoses sealed under normal operation. What it does:

• Holds a rubber or plastic hose firmly onto a barb or spigot to stop leaks
• Prevents hose slippage that can cause water pooling or drip symptoms
• Maintains a compressive seal that resists vibration and thermal cycling
• Commonly used on drain, fill, and circulation hoses in dishwashers and washers

• Disconnect power and shut off water supply before starting work
• Use appropriate pliers (hose clamp or needle-nose) to expand and position the clamp
• Ensure the clamp sits evenly over the hose barb and releases fully to secure the hose
• Inspect the hose and connection for damage; replace hoses if they are cracked or excessively worn

The Sump to Water Inlet Hose is an OEM replacement part for Bosch dishwashers. It efficiently transports water from the internal sump to the dishwasher's inlet valve during wash cycles. The flex hose comes with 2 o-rings. Approximate size: 19 5/8 inch.

Symptoms of a faulty sump hose include:

• Incomplete or ineffective washing from insufficient water transfer
• Hoses detaching from connections allow water to spill
• Reduced water pressure signs like slower fills or weak sprays
• Leakage where the hose connects to other components

Over many uses, mineral deposits can build inside the hose restricting flow. Physical damage like cracks or kinks also inhibits proper drainage. Replace your hose with this genuine Bosch part to restore maximal washing capacity.

Compatible with Thermador, Gaggenau, and some Kenmore models utilizing the same hose dimensions, this OEM hose ensures washing needs are consistently met.

The Drain Hose is an OEM part for Bosch dishwashers, designed to facilitate the efficient and reliable expulsion of wastewater from the appliance to the household drainage system. This component ensures that used water is properly drained out after each wash cycle, preventing water from backing up and causing issues within the dishwasher.  The hose measures 5 feet. This Bosch dishwasher drain hose comes with one O-ring. For the 1-foot drain hose order 00298556.

Causes for replacement may include clogs from food particles or debris, physical damage such as cracks or splits that lead to leaks, or a hose that has become stiff and noncompliant over time.

Symptoms of a bad Drain Hose include:

• Water remaining in the bottom of the dishwasher after the cycle has completed, indicating a failure to drain.
• Leaks under the dishwasher, which may be a sign of a cracked or damaged hose.
• Poor dishwasher performance or error codes related to drainage problems.

This genuine Bosch OEM replacement part is also compatible with Thermador, Gaggenau, and some Kenmore models.

A small spring-style hose clamp used to secure flexible appliance hoses to fittings and prevent leaks. Simple, durable replacement that restores a tight connection for water and drain lines. What it does:

• Compresses around a hose to hold it firmly on an inlet, outlet or drain fitting
• Helps stop leaks caused by loose or slipping hoses
• Keeps hoses seated during normal appliance operation and vibration
• Commonly used on dishwasher and washer drain or water hoses

• One hose clip / spring clamp

• Disconnect power and water supply before starting repairs
• Use pliers to expand the clamp for removal and reinstall; ensure hose is fully seated before releasing clamp
• Inspect the hose and fitting for damage; replace any cracked or brittle hose
• Do not overtighten or deform clamp when installing; replace if corroded or weakened

The Water Inlet System is an OEM component specifically designed for select Bosch dishwashers. Comprising inlet valve, screens, hoses, and connectors, it precisely meters fresh water. Reliable flow prevents mineral buildups from impairing performance.

Causes of a bad water inlet system commonly involve bursting hoses or stripped connectors. Prolonged pressure weakens seals requiring timely replacement.

Symptoms of a faulty water inlet system include:

- Fluctuating or absent water flow to spray arms
- Leaks forming inside or near the installation site
- Errors relating to improper water temperature or amounts

Causes of a bad water inlet system involve typical degradation such as:

• Limescale clogging narrow valve openings
• Plumbing joint corrosion compromising integrity
• Splitting plastic tubing unable to withstand cycles

This OEM Bosch part is also compatible with some Miele, Blomberg, and Thermador dishwashers.


Bushing included. To order bushing separately use 00165296. This is the right side hinge. For left side hinge use 00263115.

The Hinge Lever (RH) is an OEM component specifically designed for Bosch dishwashers. This right-hand lever is a part of the dishwasher door hinge assembly, working to open and close the door during each use.

Causes of a bad hinge lever can include wear and fatigue over thousands of opening and closing cycles. Damage can also potentially occur from any impact or denting of the door surface near the lever mechanism.

Symptoms of an ineffective hinge lever include:

• The dishwasher door sagging or becoming misaligned
• Difficulty fully opening or closing the door
• Loud squeaks or grinding noises coming from the hinges
• The door potentially detach from the hinge if broken

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

The Hinge Lever (RH) is an OEM component specifically designed for Bosch dishwashers. This right-hand lever is a part of the dishwasher door hinge assembly, working to open and close the door during each use.

Causes of a bad hinge lever can include wear and fatigue over thousands of opening and closing cycles. Damage can also potentially occur from any impact or denting of the door surface near the lever mechanism.

Symptoms of an ineffective hinge lever include:

• The dishwasher door sagging or becoming misaligned
• Difficulty fully opening or closing the door
• Loud squeaks or grinding noises coming from the hinges
• The door potentially detach from the hinge if broken

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

This metric M4 x 8 screw secures the toe-kick/lower access panel at the base of the appliance. Replace a missing or stripped fastener to keep the kickplate tight and aligned, helping prevent looseness and noise.

• Secures the toe-kick or lower access panel to the base/frame
• Restores proper fit when the original screw is lost or damaged
• Helps reduce panel rattles and vibration
• Maintains correct alignment and clearance at the bottom edge

• Disconnect power before servicing; also shut off the water supply
• Support the panel and align holes before threading the screw
• Start by hand to avoid cross-threading; tighten snugly—do not overtighten
• Verify size matches the original; replace matching hardware together if required by your model

The Hinge Bushing is an OEM component for Bosch dishwasher models. This bushing acts as a guide and support component for the dishwasher door hinge assembly. It facilitates smooth and quiet opening and closing of the door.

Symptoms of a bad hinge bushing include:

• noise or squeaking coming from the door hinges
• excess play or looseness feeling in the hinge movement
• difficulty fully closing or opening the dishwasher door

Causes of a bad hinge bushing can be normal wear and tear over the life of the appliance. Small metal particles embedded in the bushing material during manufacturing may also cause premature wear.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Hinge Bushing is an OEM component for Bosch dishwasher models. This bushing acts as a guide and support component for the dishwasher door hinge assembly. It facilitates smooth and quiet opening and closing of the door.

Symptoms of a bad hinge bushing include:

• noise or squeaking coming from the door hinges
• excess play or looseness feeling in the hinge movement
• difficulty fully closing or opening the dishwasher door

Causes of a bad hinge bushing can be normal wear and tear over the life of the appliance. Small metal particles embedded in the bushing material during manufacturing may also cause premature wear.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Hinge Bushing is an OEM component for Bosch dishwasher models. This bushing acts as a guide and support component for the dishwasher door hinge assembly. It facilitates smooth and quiet opening and closing of the door.

Symptoms of a bad hinge bushing include:

• noise or squeaking coming from the door hinges
• excess play or looseness feeling in the hinge movement
• difficulty fully closing or opening the dishwasher door

Causes of a bad hinge bushing can be normal wear and tear over the life of the appliance. Small metal particles embedded in the bushing material during manufacturing may also cause premature wear.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This hinge cover is a molded trim piece that protects and conceals a refrigerator door hinge for a clean finished look. It helps keep hinge hardware free of dust and reduces sharp edges while restoring appearance. What it does

• Covers the door hinge area to hide hardware and improve the appliance's appearance
• Helps block dust and debris from accumulating on hinge components
• Reduces the risk of clothes or fingers catching on exposed hinge parts
• Matches OEM fit and shape to maintain proper clearance and alignment

• One hinge cover

• High-level replacement: remove the old cover and snap or screw the new cover into place (specific fasteners vary by model)
• Use basic hand tools if required; for model-specific instructions
• Disconnect power (or follow appliance-specific safety steps) before working near electrical components
• Inspect hinge and hardware while replacing the cover; replace damaged hinge components as needed

This is the right side hinge plate. For left side use 00298567.

This factory screw secures select Bosch/BSH appliance components. Use it to replace a missing or damaged fastener so panels, brackets, or trim stay tight and rattle-free during operation.

• Tightens and holds appliance parts such as panels, brackets, or trim in place
• Helps correct issues like loose or vibrating panels caused by a missing/stripped screw
• Maintains proper fitment after service or disassembly
• Torx T20 drive head helps resist cam-out during tightening

• Unplug power and shut off any water supply before servicing
• Use a T20 Torx driver; hand-start to avoid cross-threading
• Do not overtighten—snug to manufacturer torque guidance if available
• Replace any additional missing or damaged fasteners for even clamping

The Roller and Cable Assembly is an OEM part for Bosch dishwashers. This assembly includes the roller and cable, which work together to facilitate the smooth operation of the dishwasher door, allowing it to open and close effortlessly.

Over time, the roller and cable can wear out or become damaged due to regular use, friction, or accidental mishandling. If either component fails, it can affect the balance and movement of the dishwasher door, making it difficult to operate.

Symptoms of a bad roller and cable assembly include:

• Difficulty in opening or closing the dishwasher door
• A sagging or misaligned door
• Unusual noises when operating the door
• The door not staying securely in place

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Replacement door hinge tension spring that restores proper door balance and smooth opening and closing on compatible Bosch appliances. Replaces a worn or broken door spring to help prevent sagging and doors that won't stay open. What it does:

• Provides counter-tension for the door hinge so the door stays level and moves smoothly.
• Restores proper balance to doors that feel heavy, sag, or close too quickly.
• Works as the return/tension element inside the hinge assembly to control door travel.
• Common repair for door sag, uneven closing, or doors that don't remain open.

• Disconnect power (or unplug) and remove water supply if working on dishwashers; follow all safety steps before servicing.
• Spring is under tension—wear eye protection and gloves; release or install slowly and carefully.
• May require removing the door panel or hinge caps.

This replacement dispenser cover protects the detergent dispenser assembly and helps keep detergent and rinse aid contained until the wash cycle. It restores a proper seal and appearance for the dispenser area. What it does:

• Covers and protects the detergent dispenser housing from water and detergent exposure
• Helps ensure detergent releases correctly during the wash cycle
• Replaces cracked, warped, or missing dispenser trim that can cause leaks or cosmetic damage
• Fits as a direct replacement for the original Bosch dispenser cover

• One dispenser cover

• Disconnect power and water supply before beginning any repair
• Access typically requires opening the inner door panel and removing a few screws; handle panels carefully to avoid scratching
• Use proper-size screwdrivers and keep fasteners organized for reassembly

The 4 x 16 Screw is an OEM component for Bosch dishwashers.

Common causes of faulty screws include standard wear from years of housing vibrations during wash cycles. Mineral deposits lingering around screw heads also risk eventual corrosion and seizing issues.

Symptoms of potentially loose or damaged screws comprise:

• Odd knocking or buzzing noises from inside cabinets
• Detached or misaligned door panels
• Water leaks developing between internal seams
• Components unable to be fully secured down during repairs

This screw type is additionally suited for Thermador, Gaggenau as well as some premium Kenmore dishwashers.

This front leveling leg supports and adjusts the appliance at the front, helping it sit stable and truly level. Replace a damaged or missing leg to restore proper height, stability, and smooth door alignment during everyday use.

• Provides height adjustment at the front to level the appliance
• Helps prevent rocking, vibration, and rattling
• Maintains correct cabinet/door alignment for proper operation
• Replace if the foot is cracked, stripped, missing, or won't adjust
• Common signs: unit wobbles, sits unevenly, or is difficult to level

• Disconnect power; if applicable, shut off water or gas. Pull the appliance forward and remove the toe-kick/access panel for clearance.
• Protect the floor; tilt or raise the front slightly to reach the leg.
• Unscrew the damaged leg; thread the new leg in by hand to avoid cross-threading.
• Adjust height until level front-to-back and side-to-side; verify stability before returning to service.

This adjuster socket is the replacement socket used with a cabinet/appliance leveling foot to adjust and stabilize the unit. It lets you raise or lower the appliance for a level installation and steadier operation. What it does:

• Engages the appliance leveling foot so you can turn and set the height
• Restores proper leveling to reduce rocking, uneven doors, and drainage issues
• Provides a secure interface between the leg and adjustment tool or nut
• Durable replacement for worn or damaged socket components

• One adjuster socket

• Turn power off and unplug the appliance before accessing leveling components
• Access may require tipping or partially removing the front grill or toe panel per your model's service manual
• Verify correct socket orientation and thread engagement before lowering appliance back to floor

The Screw (Toe Kick) is an OEM part for Bosch dishwashers. It is a mounting fastener that secures the toe kick panel to the bottom frame of the appliance. As a low-profile screw, it serves an important aesthetic purpose while maintaining structural integrity.

Causes of a failed screw can include wear and deterioration from constant vibrations during cycles, or physical damage if the toe kick panel is impacted.

Symptoms of loose or missing toe kick screws include:

• Sagging or detachment of the toe kick panel from the dishwasher
• Unsightly gaps appearing below the appliance
• Possible shifting of the entire dishwasher if not properly secured
• Access issues for cleaning beneath the unit

Replacing with this genuine Bosch screw restores proper mounting of the external panels. It is also compatible with some Asko, Thermador, and Jenn-Air specialty dishwashers.


The Water Inlet Valve is an OEM part for Bosch dishwashers. This component is responsible for controlling the flow of water into the dishwasher. It operates via electrical signals from the dishwasher's control board, opening to allow water to enter during the filling phase and closing to halt water flow once the correct level is achieved.

Causes for replacement can include wear and tear over time, mineral deposits from hard water that obstruct the valve, or electrical failures that prevent the valve from opening or closing properly.

Symptoms of a bad Water Inlet Valve include:

• Insufficient water filling the dishwasher, leading to poor cleaning results.
• No water entering the dishwasher, resulting in dry cycles.
• Water leaking from the valve, which could indicate a crack or failure in the valve mechanism.

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Float is an OEM part for Bosch dishwashers. This float senses water levels inside the dishwasher, signaling the inlet valve to refill when needed.

Causes of a float malfunctioning can be mineral deposits accumulating and weighing it down over time, or cracks in the plastic housing allowing water in.

Symptoms of a bad float include:

• The dishwasher not filling or filling slowly
• Error codes related to fill issues
• Improper water levels impacting wash results

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This float switch lever is the actuator that moves the dishwasher's tub float to operate the water-level/flood-sensing switch, helping the appliance detect overfill and control fill/drain cycles. Replaces a worn or broken lever to restore proper float activation. What it does:

• Transfers movement from the tub float to the float switch so the machine senses water level correctly
• Commonly needed when a cracked or detached lever prevents the float from engaging the switch
• Can stop overfill-safety trips or no-fill symptoms caused by a non-responsive float assembly
• Works with the existing float and float switch; restores mechanical linkage function

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove lower access panels or tub components as required to reach the float assembly
• Inspect surrounding clips and the float for damage; replace any broken hardware
• Tighten securely but avoid over-torquing; test float movement and switch activation before reassembly

This shaft for the float switch is the replacement shaft that secures and guides the dishwasher float to accurately detect water level, helping the appliance fill and shut off properly. Direct-fit design replaces the worn or broken float shaft. What it does

• Guides the float so the level-sensing switch can detect low or high water levels.
• Prevents overfilling by ensuring the float actuates the water-level switch reliably.
• Commonly replaces a cracked, bent or missing shaft that causes inconsistent fill, continuous filling, or water-level errors.

• One replacement float switch shaft.

• Disconnect power to the appliance before starting any repair.
• Remove the access panels and float assembly per your model's service instructions to reach the shaft.
• Inspect the float and switch for damage; replace only the failed components as needed.
• Reassemble carefully and test fill/stop operation before returning the appliance to service.

The Drain Hose is an OEM part for Bosch dishwashers, designed to facilitate the efficient and reliable expulsion of wastewater from the appliance to the household drainage system. This component ensures that used water is properly drained out after each wash cycle, preventing water from backing up and causing issues within the dishwasher.  The hose measures 5 feet. This Bosch dishwasher drain hose comes with one O-ring. For the 1-foot drain hose order 00298556.

Causes for replacement may include clogs from food particles or debris, physical damage such as cracks or splits that lead to leaks, or a hose that has become stiff and noncompliant over time.

Symptoms of a bad Drain Hose include:

• Water remaining in the bottom of the dishwasher after the cycle has completed, indicating a failure to drain.
• Leaks under the dishwasher, which may be a sign of a cracked or damaged hose.
• Poor dishwasher performance or error codes related to drainage problems.

This genuine Bosch OEM replacement part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This O-ring is the sealing gasket between mating components, keeping fluid contained inside the system. Replacing a worn ring restores a tight, leak-free connection and helps prevent drips, moisture, and leak-related error indications.

• Creates a compressible seal between parts to prevent leaks at the joint
• Helps maintain proper system flow by stopping seepage or air ingress
• Direct replacement for rings that are flattened, cracked, brittle, swollen, or missing
• Common symptoms include dripping at the connection, moisture beneath the unit, or leak/float error alerts

• Disconnect power and shut off the water supply before servicing; wear appropriate PPE.
• Note the original ring's location; clean the groove and mating surfaces before installation.
• Apply a light coat of compatible silicone grease; avoid twisting or overstretching the ring.
• Seat evenly, reassemble, restore service, and check for leaks during a test cycle.

Drain hose clamp

This drain hose adapter connects the appliance's drain hose to another hose or a compatible fitting, providing a secure, leak-resistant joint so wastewater can be routed to the household drain. Replace when the original adapter is cracked or loose.

• Couples the drain hose to another hose or to a sink/disposal/standpipe fitting
• Helps seal the joint to reduce leaks and hose slippage
• Restores a tight fit when the original adapter is worn, brittle, or missing
• Symptoms of a bad adapter: leaking at the connection, hose won't stay attached, visible cracks

• Disconnect power and turn off water before servicing
• Place a towel or pan to catch residual water from the hose
• Fully seat hose ends over the adapter barbs and secure with appropriate hose clamps
• Run a short test cycle and inspect all connections for leaks

2 clamps included.

Bushing included. To order bushing separately use 00165296. This is the left side hinge. For right side hinge use 00263119.

The Hinge Lever (LH) is an OEM part for Bosch dishwashers. This left-hand lever is responsible for assisting in the opening and closing of the dishwasher door through a pivoting motion. The hinge lever works with other door components like springs and cables to provide smooth, balanced movement of the door.

Symptoms of a bad Hinge Lever include:

• Difficulty opening or closing the dishwasher door
• The door not staying securely closed during the cycle
• Excessive noise or creaking coming from the door area
• Misalignment of the door

Causes of a bad Hinge Lever can include normal wear and tear over time, damage from excessive force or weight on the door, or loose mounting hardware.

Note: Left hinge lever

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.


The Hinge Lever (LH) is an OEM part for Bosch dishwashers. This left-hand lever is responsible for assisting in the opening and closing of the dishwasher door through a pivoting motion. The hinge lever works with other door components like springs and cables to provide smooth, balanced movement of the door.

Symptoms of a bad Hinge Lever include:

• Difficulty opening or closing the dishwasher door
• The door not staying securely closed during the cycle
• Excessive noise or creaking coming from the door area
• Misalignment of the door

Causes of a bad Hinge Lever can include normal wear and tear over time, damage from excessive force or weight on the door, or loose mounting hardware.

Note: Left hinge lever

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.


This is the left side hinge plate. For right side use 00298570.

Tall item spray head.
This Spray Head is an OEM part for Bosch Dishwashers. It plays a role in distributing water evenly during the dishwasher's washing cycles. Continuous exposure to hard water, debris, or mineral deposits can cause issues with this component.

What Causes a Bad Spray Head:
Hard water deposits, debris, or mineral buildup can clog or block the spray head, affecting its performance. Physical damage can also impair its functionality.

Symptoms of a Bad Spray Head:

• Inadequate cleaning of dishes
• Uneven water distribution
• Reduced water pressure during washing cycles

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.


The Upper Spray Arm Water Tube is an OEM part for Bosch dishwashers. It is a vital component of the washing mechanism responsible for spraying water across the upper rack.

Over time, mineral deposits can clog the narrow openings of the water tube, reducing water pressure and spray effectiveness. Accidental bending or cracking of the flexible water tube could also cause spray issues.

Symptoms of a bad upper spray arm and water tube include:

• Incomplete cleaning of dishes on the upper rack
• Dried food soils left behind after washing
• Noticeably weaker water spray pressure from the arm
• Possible leaks or drips around the arm connection point

Replacing with this OEM Bosch part restores full spray coverage and optimized washing for all rack levels. It is also compatible with certain Miele, Asko, and Jenn-Air professional-grade dishwashers.


This sump screw secures the dishwasher's sump or sump cover to the tub, keeping the assembly tight and leak-resistant. Replace a missing, stripped, or damaged screw to restore a proper seal and stable mounting.

• Fastens the sump or sump cover to the dishwasher tub
• Helps maintain a watertight seal to reduce leaks
• Keeps filter/sump components aligned and secure
• Replaces missing, stripped, or damaged hardware
• Helps address leaks or rattling around the sump area

• Disconnect power and turn off water supply before servicing
• Remove the lower rack and filters to access the sump area
• Ensure mating surfaces and seals are clean and properly seated
• Tighten snugly by hand; do not overtighten to avoid stripping

Includes center spray arm and tube assembly. Color: platinum.

This upper rack wheel lets the mid-range and standard dishwasher upper rack glide smoothly on its tracks. Replacing a worn or broken wheel restores easy, level rack movement for reliable loading and unloading. What it does:

• Guides and supports the upper rack along the slide rails
• Enables smooth slide-in/slide-out operation
• Helps keep the rack aligned and level
• Common symptoms: hard-to-slide rack, rack falls off track, cracked/missing wheel, rough or noisy travel

• One upper rack wheel

• Disconnect power and water supply before servicing
• Pull out the upper rack and remove rail end caps if present
• Release the locking tab/clip on the old wheel and snap the new wheel onto the rack
• Reinstall end caps and verify smooth rack travel

Color: platinum gray. It measures about 2 inches wide by 2 inches high.

The Flip Tine Latch is an OEM part for Bosch dishwashers. It serves as a latching mechanism on upper dish racks that securely holds folded tines.

Made of durable plastic, the latch features offset hooks integrated along its base edge. These engage onto roll edges of individual flip up tines, pinning them neatly against the chamber to prevent unwanted movement.

Symptoms of a failed flip tine latch include:

• Sagging or unfolded flip tines potentially blocking spray jets
• Restricted water distribution due to improper rack orientation
• Scratched or misplaced dishes from unlatched tines potentially flailing
• Inefficient cleaning from lack of optimized spray coverage

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This door handle replaces a worn or broken appliance door grip to restore a secure, comfortable surface for opening and closing. Designed to match the original fit and appearance for easy cosmetic repair. What it does:

• Provides a sturdy grip for opening and closing the appliance door
• Replaces cracked, loose, or cosmetically damaged handles
• Restores proper leverage to reduce stress on the door latch and hinges
• Helps improve the look of the appliance by replacing a worn handle

• One door handle

• Refer to your appliance model's service manual for step-by-step removal and installation instructions
• Installation typically requires basic hand tools; disconnect power (and water if applicable) before servicing
• Handle may attach with screws or snap-fit clips—keep removed fasteners for re-use unless replacements are provided
