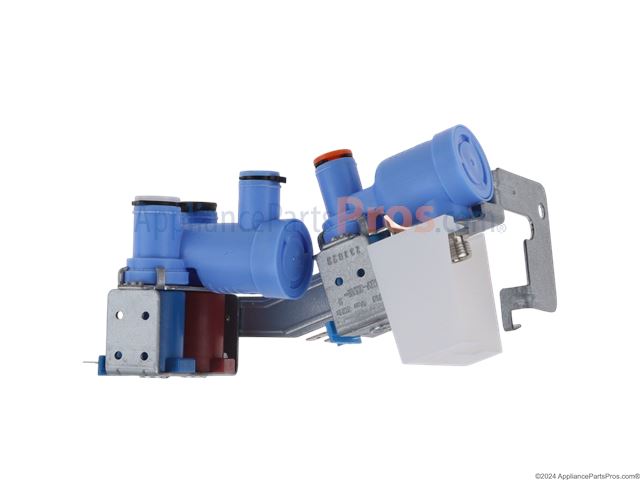

Refrigerator Valve

• Leaking
• Ice maker not making ice
• Ice maker won't dispense ice

I replaced the water inlet valve. The toughest part was closing off the feed line while I waited for the valve to be delivered. The needle valve used to install the feed line wouldn't close completely. I ended up fabricating a plug from some parts from the hardware store. The mounting bracket on the new valve was completely different from the original, but it still mounted easily enough. The 1/4" plastic hose fitting was a different type from the original, but the hose fitted into it easily... Read more

Replaced water valve in about 10 minutes, 5 of which were pulling the frige out and gathering the tools. Now I have ice. Read more

• Leaking
• Not dispensing water

Installed a new water valve assembly and a new ice maker assembly. Read more

Re placed the water inlet valve. Read more

Replaced water valve and ice maker Read more

Swapped out with a new valve, took about 2 minutes and just a small nut driver (crescent wrench, socket or even pliers would have worked fine). Easiest repair I've done. Read more

A bit of online research and some component testing narrowed my issue down to either a faulty ice maker or a bad supply valve. Appliance Parts Pros had both of these, at reasonable prices, so I purchased and replaced both items. I recommend watching online videos to get a sense of what to do, and how to go about doing it. The repairs were relatively easy, other than this being a bottom freezer model hence the ice maker was difficult to access: I removed the freezer door (four screws) to get... Read more

• Ice maker not making ice
• Leaking

Replaced inlet water valve Read more

1.) Located where the water leak was coming from in the refrigerator. 2.) Unplugged the refrigerator. 3.) Shut off the water supply to the refrigerator. 4.) Unscrewed the back cardboard panel. 5.) Unscrewed the Water Valve attached to the side of the refrigerator (one screw). 6.) Disconnected the three electrical plugs on the water valve. The plugs are different sizes so there is no need to worry about reconnecting incorrectly. 7.) Disconnected the two water lines by pushing down on... Read more

The tech sheet test 56 said the motor wouldn't return to zero. I ordered the "Ice Maker Assy-Lp, and the Valve Assy-Water Dual". On my particular model the ice maker is in the ceiling of the refrigerator box. After removing the water filter and two screws around the drop down water filter door, the right side panel drops down by pulling it apart from 3 plastic pop-ins. Two of them broke when the repair guy man handled it. Pulling easy and supporting the inside pieces is key. Then I unplugged... Read more

Replaced icemaker Read more

I ordered a new solenoid valve set and watched the online video of the replacement process. So after emptying my freezer and fridge, removing the doors and freezer drawer, so I could mover the fridge out of its cove, I discovered after taking the panels off the rear, that my fridge is different than that shown in the video. I went back online and discovered in one of the exploded views of the cabinet there is a panel inside the refrigerator which can be removed after taking the shelves out of... Read more

• Leaking

First I replaced the filter thinking it was the problem, but that was not the case. Next was replace water supply valve at the back of the refrigerator. It was very easy. The only thing that was in question was how to get the refrigerator side line off of the existing valve. There is a plastic slide clip that you remove and pull the line out and press the line back into the port it came out of. It was a very simple project and took about 20 minutes. Read more

Ordered valves and new ice maker. Couple sites mentioned problem could be ice in the waterline and to make sure temps be set to 37 in frig and 0 in freezer. I had adjusted temps to these the day I ordered parts. Parts arrived a couple of days later so I opened up the ice maker and found the ice bin to be full! Guess the temp adjustment worked. I just kept the parts for when they are needed. For those unaware, access to the ice maker is really simple. There is a latch on the backside of the... Read more

• Not dispensing water
• Leaking

Being an ex maintainence. person, I went down and turned off the water supply. Then I started to try to find the leak by removing the rear covers for the compressor and valves. Once removing a couple of covers where the dual valve was, I spotted where the water was coming from.I then pulled the electrical plug from the wall. Between the solenoid and valve. I removed the screws that held the valve in place. Then disconnected the three hoses going into valve and removed the two electrical... Read more

Replaced solonoid. Video was very helpful. Parts came in the time frame given when I ordered the part. (1.7 days). Without the video I would have called a repairman. Thanks . Read more
