Dishwasher Switch

The Sensor is an OEM replacement part for Bosch dishwashers. It detects soil levels through cycles, automatically adjusting water volumes and times for optimal cleaning. Precise sensing reduces overwashing.

Causes of a bad sensor involve general deterioration from continuous usage monitoring wash parameters thousands of times. Dirt or debris accumulation triggers false readings, decreasing efficiency.

Symptoms of a bad sensor include:

• Extended cycle times as improper inputs cause system delays
• Inconsistent wash results relying on default static cycle settings
• Error codes displayed indicating disrupted functionality
• Soiled dishes from inadequate adjustments meant for heavier loads

This OEM Bosch part maintains customized cleaning for Thermador versions as well.

The Pressure Switch is an OEM part for Frigidaire dishwashers. It plays a crucial role in monitoring water pressure inside the dishwasher, signaling the control module when to activate various components during the wash and rinse cycles. Overl or under pressure conditions could damage the dishwasher or prevent it from cleaning properly.

Symptoms of a bad pressure switch include:

• Dishes not getting fully clean
• Cycles not completing or getting stuck
• Error codes displaying
• Strange noises or leaks coming from the dishwasher

Causes of a bad pressure switch can be wear and tear over time, mineral buildup interfering with the switch's function or accidental damage from household chemicals or objects left in the dishwasher.

This OEM Frigidaire replacement part is designed to function like the original part for reliable performance. It is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.


Overfill control.

The Pressure Chamber is an OEM part for Bosch dishwashers. This part is responsible for monitoring and controlling the water level within the dishwasher. It operates by sensing the pressure exerted by the height of the water in the tub and ensures that the dishwasher fills with the correct amount of water for optimal cleaning performance.

Causes for replacement may involve wear and tear over extended use, mineral buildup affecting the switch’s sensitivity, or electrical faults leading to inconsistent performance.

Symptoms of a failing Pressure Chamber include:

• Overfilling or underfilling of the dishwasher, which can lead to inadequate cleaning or potential water damage.
• Unexpected changes in the wash cycle, such as sudden stops or pauses.
• The dishwasher not starting a wash cycle due to incorrect water level readings.

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This miniature door switch is the snap-action interlock that tells the appliance when the door is closed. Replacing a worn or sticking switch restores reliable start/stop and proper door-status sensing for safe, consistent operation. What it does:

• Acts as the latch/interlock sensor for door open/closed status
• Signals the control to allow or prevent operation based on door position
• Typical symptoms include: won't start or shows a door message, stops when the door is bumped, or light/fan behavior doesn't match door position

• 1 miniature door switch

• Disconnect power before servicing. If working on a microwave, high voltage may be present even when unplugged—properly discharge the capacitor.
• Access the latch/interlock area; note wire positions and transfer one lead at a time to the new switch.
• Use a multimeter to confirm the switch changes continuity when pressed before reassembly.

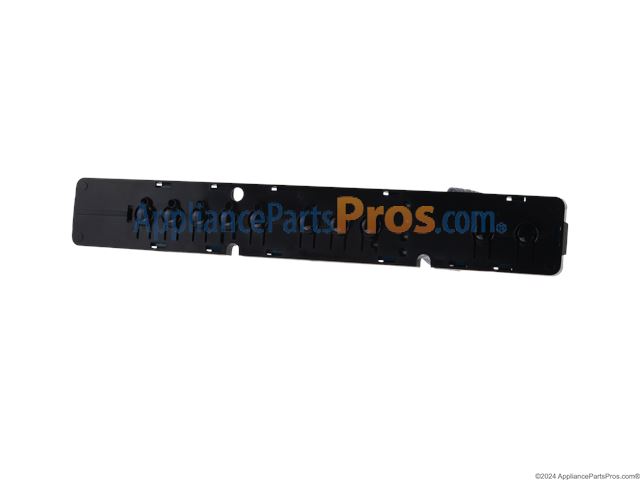

This switch assembly is used in select dishwashers to provide a precise open/closed electrical signal to the control. Replacing a worn or sticking switch helps restore consistent cycle operation and reliable responses from the affected function. What it does:

• Sends an on/off (open/closed) signal to the control for the related mechanism in your model
• Helps ensure the connected function engages only at the correct time
• Common symptoms of a failed switch can include: cycle won't start, intermittent stopping, or improper filling/draining behavior
• A sticking or heat-damaged switch may cause erratic operation or error alerts

• One switch assembly

• Disconnect power (and water supply if required by access) before servicing
• Access location is model-specific; photograph wiring and note terminal positions before removal
• Transfer or reuse existing mounting hardware as applicable; ensure firm terminal connections
• After install, check switch actuation and run a test cycle to normal operation

This float switch detects rising water in the refrigerator drain pan or lower cabinet area and signals the appliance control to help prevent overflow and water damage. Use it to replace a failed or intermittent water-level sensor. What it does:

• Senses high water level in the drain pan or collection area and closes the circuit to alert the control.
• Helps identify causes of leaks and pooling under or behind the appliance.
• Commonly used when symptoms include water on the floor, drip pan overflow, or water-related error/alert conditions.
• Matches OEM function for refrigeration units that include a float-based water-detection circuit.

• Disconnect power to the appliance before starting any repairs; shut off the water supply if working near water lines.
• Access may require removing lower kick plate or back panel; handle plastic clips and fasteners carefully.
• Disconnect electrical connector gently and note orientation before installing the replacement; secure wiring and verify float moves freely.
• Restore power and run a short test cycle or simulate water level to ensure proper operation.

Wax motor for detergent/rinse-aid dispenser.

This door switch detects when the dishwasher door is fully closed and latched. Replacing a worn or intermittent switch restores reliable start/stop operation and ensures the safety interlock cuts power whenever the door is opened.

• Senses door-closed status and sends a signal to the control
• Interrupts power to the machine when the door opens
• Helps prevent operation with an unlatched door
• Typical failure symptoms: won't start, stops mid-cycle if the door is bumped, or only runs when pressing on the door

• Disconnect power at the breaker before servicing
• Access the latch/switch area by removing the inner door panel or console; note wire locations
• Transfer wires one at a time and secure the new switch in the bracket
• Verify latch engagement and switch actuation before restoring power

This replacement switch assembly restores proper signaling between the dishwasher's mechanism and the control, so selected functions register and cycles can start and run consistently. A worn or failed switch can cause intermittent or no operation. What it does:

• Provides the on/off signal the control needs when the mechanism is actuated
• Can lead to a dishwasher that won't start or stops mid-cycle when failing
• May cause options or selections to be unresponsive or require extra pressure
• Heat damage or a broken actuator on the switch assembly can indicate failure

• 1 switch assembly

• Disconnect power to the dishwasher before servicing
• Access location varies by model; refer to your model's parts diagram/service information
• Photograph wiring and move connectors one at a time to the new assembly
• Verify secure connections and proper wire routing to prevent pinching during reassembly

This dishwasher microswitch is the snap-action switch used in the door-latch interlock. It signals the control when the latch is engaged so cycles start and continue only when the door is securely closed.

• Senses latch position and sends an open/closed signal to the control
• Failure signs include the cycle not starting, stopping when the door is bumped, or needing to press on the door/handle to run
• Restores reliable door-closed detection and safe operation
• Direct replacement for a worn, sticking, or inconsistent switch

• Disconnect power to the dishwasher before servicing
• Note wire positions (COM/NO/NC); transfer any actuator/lever or bracket from the original switch
• Ensure a positive "click" and correct continuity before reassembly
• Latch and strike alignment after installation

This switch assembly restores electrical on/off control for a specific appliance function. Replace a worn or failed switch to stop intermittent operation and return reliable control to the affected circuit. What it does:

• Provides the electrical on/off or function control for the appliance circuit.
• Replaces a failed switch that can cause intermittent operation or unresponsive controls.
• Helps resolve symptoms such as a function that won't start, no response from the control, or erratic switching.
• Connects to the existing wiring harness and mates with the original mounting points.

• Disconnect power to the appliance before beginning any work.
• Remove the appropriate access panel to reach the switch; note wire and terminal locations before disconnecting.
• Unplug the wiring harness or carefully detach terminals, swap the switch assembly, then reconnect securely.
• Restore power and verify the replaced switch operates the function correctly.

Color: Black. Instruction sheet included.

This limit switch is a safety control for compatible cooking appliances. It opens or closes an electrical circuit when a preset limit is reached—commonly temperature or travel—helping protect components and ensure proper operation of heating and latch systems.

• Monitors a specific limit at its mounting point (temperature or mechanism travel, depending on model)
• Opens/closes the circuit to interrupt or allow power to related components
• A failed switch can prevent heating, stop self-clean from starting, or keep the door from locking/unlocking
• Helps protect wiring and controls from damage during abnormal conditions

• Disconnect power to the appliance and allow all components to cool before servicing
• Access location varies by model; take photos and label wires before removal
• Transfer wires one at a time to the new switch; secure with existing hardware
• If the old switch tripped due to overheating or binding, inspect fans, vents, and latch/linkages to correct the root cause

Oven light switch.

This push-button door switch detects when the appliance door opens and closes, enabling the interior light and informing the control system. Replacing a faulty switch restores normal door-sensing and light operation. What it does:

• Activates the interior light when the door opens and turns it off when closed
• Sends a door-open/closed signal to the appliance control so timed features behave correctly
• Commonly replaces a switch that causes the light to stay off or fail to turn off
• Helps eliminate intermittent lighting or door-sensing problems

• Disconnect power before starting any repair to avoid shock or injury
• Access may require removing the light housing or door trim; keep fasteners for reassembly
• Verify the old switch matches this part number and connector style before installing
