Spray Arm & Related

The Center Wash Arm Assembly is an OEM component specifically designed for GE dishwashers. It is the main wash arm responsible for spraying water across the center rack area during cycles to effectively clean dishes. The wash arm measures approximately 3/4” H x 2 ¾” W x 19” D.

Causes of a bad center wash arm assembly can include clogs from food particles or hard water deposits, damage from dishware, or wear and tear from frequent use. A malfunctioning wash arm can lead to poor cleaning performance and spots or residue on dishes.

Symptoms of a bad center wash arm assembly include:

• Dishes not being cleaned properly
• Water not spraying or rotating as expected
• Unusual noises during the wash cycle
• Visible cracks or damage to the wash arm

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Lower Spray Arm is an OEM part for GE dishwashers. It is located at the bottom of the dishwasher. The spray arm uses a series of small nozzles and openings to produce targeted sprays that assist in loosening and washing away food debris.

Causes of a bad lower spray arm include clogs or mineral buildup inside the spray nozzles over time, or damage such as bending of the arm that affects water pressure and spray patterns.

Symptoms of a bad Lower Spray Arm include:

• Ineffective cleaning and rinsing at the bottom rack of dishes
• Standing water or poor drainage from the dishwasher tub
• Visible defects like cracks or gaps in the spray arm material

This genuine GE replacement part is also compatible with Hotpoint, RCA, and select Kenmore models.

The Lower Spray Arm is an OEM replacement part specific to Whirlpool dishwashers. It is a component located on the lower rack that sprays water uniformly across dishes to fully saturate and rinse them. The lower spray arm ensures complete coverage to remove stuck-on foods and refresh dishes.

Symptoms of a faulty lower spray arm include:

• Dirty or improperly cleaned lower rack dishes after cycles
• Leaks or excess water pooling in the dishwasher bottom tub
• Cracks or deterioration of the spray arm material over time

Causes may involve normal wear from frequent use or impact damage.

This genuine OEM replacement part is compatible with Whirlpool, KitchenAid, Jenn-Air, and other branded dishwashers as well.

The Lower Spray Arm is an OEM part for Whirlpool dishwashers. This component is located at the bottom of the dishwasher and is responsible for distributing water to clean the dishes during the wash cycle.

Causes of a bad lower spray arm can include clogging due to food particles or debris, wear and tear from regular use, or damage from accidentally loading items improperly. Such issues can obstruct water flow or prevent the spray arm from rotating effectively, leading to suboptimal cleaning performance.

Symptoms of a bad lower spray arm include:

• Dishes not being cleaned properly
• Inconsistent water spray patterns
• Noisy operation during the wash cycle
• The spray arm not rotating or moving smoothly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Lower Spray Arm Support is an OEM part for Frigidaire dishwashers. This support provides a secure attachment point for the lower spray arm, ensuring it rotates freely and distributes water evenly throughout the dishwasher for effective cleaning. It helps maintain the stability and proper function of the lower spray arm.

Common causes of a bad lower spray arm support include wear and tear, physical damage from loading or unloading dishes, and blockages that impede the spray arm's movement.

Symptoms of a bad lower spray arm support include:

• The lower spray arm not rotating properly
• Poor cleaning performance on the lower rack
• Unusual noises during the wash cycle
• The lower spray arm falling off or becoming loose

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Arm is an OEM part for Frigidaire dishwashers. It is typically involved in the spraying mechanism within the dishwasher, helping to distribute water evenly across dishes for thorough cleaning. This part is designed to rotate and spray water at high pressure, ensuring that all items in the dishwasher are cleaned effectively.

Common causes of a bad arm include debris buildup, wear and tear from regular use, or damage from heavy or improperly loaded dishes.

Symptoms of a bad arm include:

• Dishes not being cleaned properly
• Uneven water distribution during cycles
• The arm not rotating or moving as it should
• Visible cracks or damage to the arm

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Upper Wash Arm Support is an OEM replacement part for Whirlpool dishwashers. This supports houses and secures the upper wash arm inside the dishwasher tub. It makes sure the arm stays firmly anchored during the high-pressure washing cycles without damage or noise.

Causes of failure involve cracking or fracturing from pressure overload after heavy usage. Impact or handling damage may also compromise the integrity of the plastic housing over time.

Symptoms of a faulty component include:

• Looseness
• Wavering or detachment of the top wash arm
• This can lead to scraping sounds or obstructed spray patterns that result in inadequate cleaning.

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

The Upper Rinse Arm Spinner is an OEM part for Whirlpool dishwashers. As a rotating spray component, it assists water dispersion across the upper basket during rinse cycles.

Heavy accumulations of food or mineral deposits left over after many cycles can potentially clog or restrict rotation over time. Natural wear from cycle after cycle also affects plastic and rubber parts.

Symptoms of a faulty upper rinse arm spinner include:

• Improper or uneven coverage of water on dishes in the top rack
• Stubborn food or residue remaining in hard-to-reach areas
• Less effective drying results on upper dishware
• Abnormal squeaking, and rubbing noises from the spray arm area

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Lower Spray Arm is an OEM replacement part for Whirlpool dishwashers. It evenly distributes water and detergent inside the wash chamber during cleaning cycles.

Symptoms of a faulty spray arm include:

• Inadequate or inefficient cleaning performance
• Detergent residue buildup inside dishwasher
• Misaligned, loose, or damaged spray arm fitment
• Leaks from wash arm connection point

Causes can involve mineral deposits clogging nozzles over time. Heavy loads may have bent or fatigued the flexible plastic spray components prematurely.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwashers.

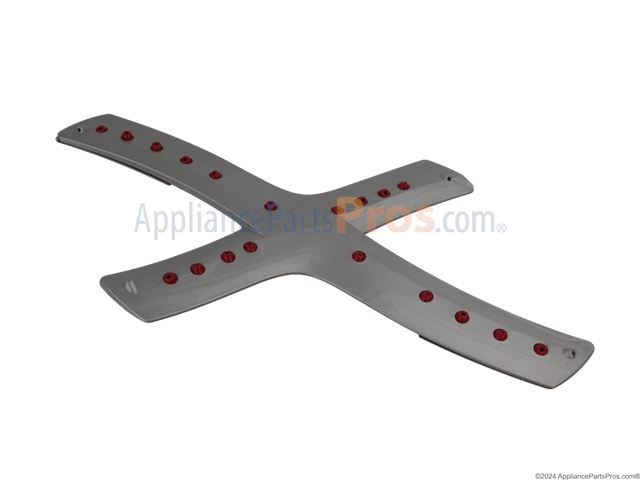

The Lower Spray Arm Assembly is an OEM replacement part for GE dishwashers. It is responsible for delivering powerful spray coverage to lower racks and delicate items.

Causes of a faulty spray arm can include mineral buildup clogging nozzles over time or broken/missing arm components inhibiting proper rotation.

Symptoms of a bad lower spray arm include:

• Reduced lower rack cleaning performance
• Nozzles that do not spray or mist properly
• Grinding or grinding noises during washing

Compatible with Hotpoint, Profile, and select Kenmore models as well, it restores full washing effectiveness throughout the dishwasher.

This OEM Replacement Part is a designed nut to secure the Frigidaire dishwasher's spray arm. With dimensions of 2.0" x 2.0" x 0.6", this nut ensures a snug fit between the lower spray arm and the filter. It helps maintain the stability of the spray arm and enhances the overall performance of the dishwasher. The nut plays a role in preventing leakages at the bottom of the spray arm. If such a leak occurs, it may be indicative of a faulty nut. A timely replacement of this nut can ensure the proper functioning of the dishwasher. This part is compatible with select Frigidaire brand models including Crosley, Kenmore, Tappan, White Westinghouse.

The Upper Spray Arm is an OEM part for GE dishwashers. It is designed to distribute water evenly throughout the upper rack during the wash cycle, ensuring that all dishes are thoroughly cleaned. The spray arm rotates to provide coverage and spray patterns that reach every dish and utensil. The arm measures about 10 inches by 2.5 inches

Over time, the upper spray arm can become clogged with food particles or mineral deposits, which can impede its function. Physical damage or wear and tear can also cause it to fail.

Symptoms of a bad upper spray arm include:

• Dishes on the upper rack not getting clean
• Reduced water pressure from the upper arm
• Spray arm not spinning or moving properly
• Visible cracks or damage to the spray arm

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Lower Spray Arm Hub is an OEM replacement part for Whirlpool built-in dishwashers. It is a central component that secures the rotating lower wash arm during the wash cycle.

Causes of a bad lower spray arm hub involve general wear from years of repeated wash cycles. Mineral buildup accumulating inside may also deteriorate connecting surfaces over time.

Symptoms of a compromised hub include:

• Loose, detached lower wash arm that does not rotate properly
• Mineral deposits or food debris caught in the hub impeding arm movement
• Excessive noise, clanking sounds, or vibrations emanating from the lower basket
• Poor lower rack cleaning leaving residual food soils after wash cycles

Compatible brands also include KitchenAid, Jenn-Air, and some Kenmore built-in dishwasher models.

Note: Also Order Spray Arm Seal: WP8268340

The Spray Arm is an OEM part for Whirlpool dishwashers. This part is responsible for distributing water evenly throughout the dishwasher during the wash cycle, ensuring that all dishes are thoroughly cleaned. It rotates and sprays water from its nozzles, reaching every corner of the dishwasher's interior.

Over time, the spray arm can become clogged with food particles or mineral deposits, or it can become damaged due to regular use or accidental impact.

Symptoms of a bad spray arm include:

• Dishes coming out dirty or with food particles still on them
• The spray arm not rotating properly or at all
• Water not spraying out of the nozzles evenly
• Unusual noises during the wash cycle

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Spray Arm Assembly is an OEM part for GE dishwashers. This component is located at the bottom of the dishwasher and is responsible for distributing water to clean the dishes during the wash cycle. It rotates to ensure that water reaches all areas within the dishwasher, providing thorough cleaning of the dishes.

Causes of a bad spray arm assembly can include clogging due to food particles or debris, wear and tear from regular use, or damage from improper loading of items. Such issues can obstruct water flow or prevent the spray arm from rotating effectively, leading to suboptimal cleaning performance.

Symptoms of a bad spray arm assembly include:

• Dishes not being cleaned properly
• Inconsistent water spray patterns
• Noisy operation during the wash cycle
• The spray arm not rotating or moving smoothly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Lower Spray Arm Support is an OEM replacement part for Whirlpool built-in dishwashers. Attached underneath the wash arms enclosure, this bracket securely anchors the rotating lower spray arm inside the lower dishrack.

Causes of failure involve cracking or stripping of securing clips allowing excessive movement during high-pressure spray cycles. Mineral buildup over time can also obstruct smooth operation.

Symptoms consist of:

• Detached lower spray arm failing to thoroughly rinse lower rack dishes
• Abnormal noises and vibrations from mobility during operation
• Ineffective cleaning even on light soil levels
• The lower spray arm not rotating or spinning freely during wash cycles

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

To order seal use WP8268340.
